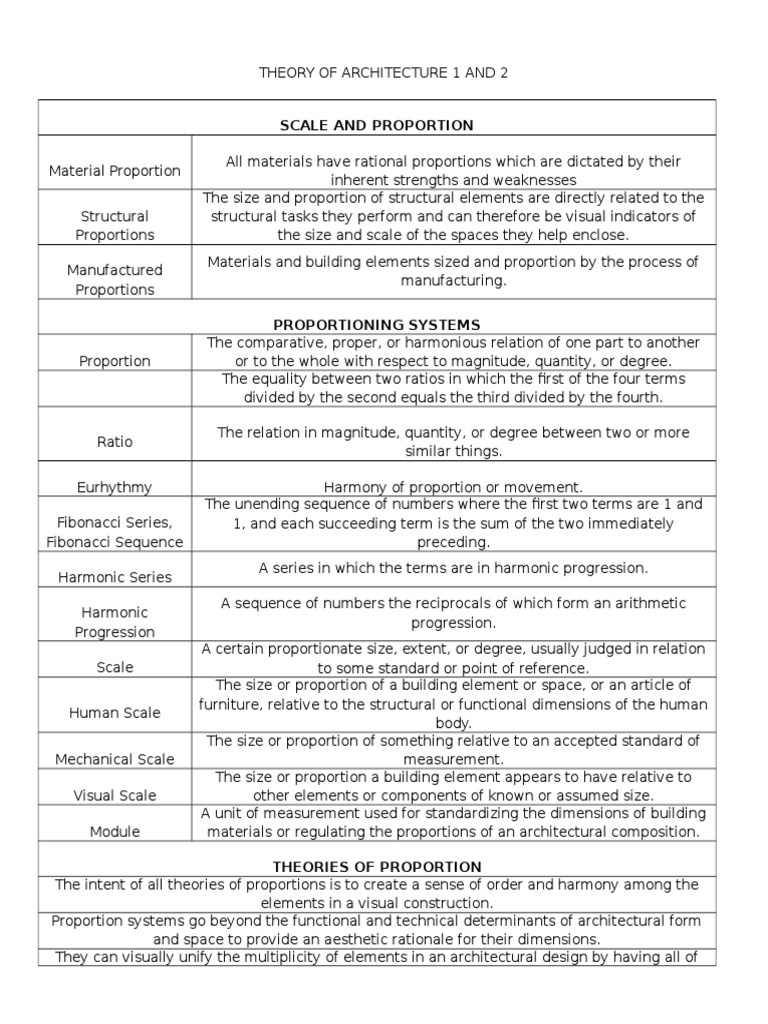

PROPORTIONING SYSTEMS
The comparative, proper, or harmonious relation of one part to another
Proportion or to the whole with respect to magnitude, quantity, or degree.
The equality between two ratios in which the first of the four terms
divided by the second equals the third divided by the fourth.
THEORIES OF PROPORTION
The intent of all theories of proportions is to create a sense of order and harmony among the
elements in a visual construction.
Proportion systems go beyond the functional and technical determinants of architectural form
and space to provide an aesthetic rationale for their dimensions.
They can visually unify the multiplicity of elements in an architectural design by having all of
its parts belong to the same family f proportions.
They can provide a sense of order in, and heighten the continuity of a sequence of spaces.
They can establish relationships between the exterior and interior elements of a building.
RENAISSANCE THEORIES
The architects of the Renaissance, believing that their buildings had to belong to a higher
order, returned to the Greek mathematical system of proportions.
The Greeks conceived music to be geometry translated into sound, Renaissance architects
believed that architecture was mathematics translated into spatial units.
Renaissance architects applied Pythagorass theory of means to the ratios of the intervals of
the Greek musical scale, and soon developed an unbroken progression of ratios that formed
the basis for the proportions of their architecture.
MODULOR
Le Corbusiers own proportioning system developed in 1942 published as: The Modulor: A
Harmonious Measure to the Human Sale Universally Applicable to Architecture and
Mechanics. : To order the dimensions of that which contains and that which is contained.
He saw the measuring tools of the Greeks, Egyptians, and other high civilizations as being
infinitely rich and subtle because they formed part of the mathematics of the human body,
gracious, elegant, and firm, the source of that harmony which moves us, beauty.
He based the Modulor on both mathematics (the aesthetic dimension of the Golden Section
and the Fibonacci Series), and the proportions of the human body (functional dimensions).
He saw it not merely as a series of numbers with an inherent harmony, but as a system of
measurements that could govern lengths, surfaces, and volumes, and maintain the human
scale everywhere. It could lend itself to infinity of combinations; it ensures unity with
diversity, the miracle of numbers...
ERGONOMICS ( HUMAN ENGINEERING)
An applied science concerned with the characteristics of people that
Human Factors in need to be considered in the design of devices and systems in order that
Design people and things will interact effectively and safely.
Structural Any of the dimensions of the human body and its parts.
Dimension
Any of the dimensions determined by bodily position and movement, as
Functional
reach, stride, or clearance.
Dimension
The correspondence between the size and posture of a human body and
Static Fit a building element or article of furniture.
The correspondence between the sensory experience of bodily presence
Dynamic Fit and movement and the size and, shape, and proportion of a space.
Of or pertaining to space, buildings, and facilities fully accessible and
Barrier Free usable by all people, including the physically handicapped.
ARCHITECTURAL CONCEPTS
A mental image or formulation of what something is or ought to be, esp.
Concept an idea generalized from particular characteristics or instances.
A concept for the form, structure, and features of a building or other
construction, represented graphically by diagrams, plans, or other
Design Concept
drawings.
Personal Analogy The designer identifies himself directly with the elements of the problem.
Fantasy Analogy Uses a description of an ideal condition desired as a source for ideas.
STRUCTURAL CONCEPT
A structure or structural member that redirects external forces primarily
Bulk-Active
through the bulk and continuity of its material.
Structure
A type of construction characterized by the use of vertical columns (post)
Post and Lintel
and a horizontal beam (lintel) to carry a load over an opening.
Construction
A straight bar of masonry in which the lateral thrusts of a roof or vault
are taken up, usually sloping, carried on an arch, and a solid pier or
Flying Buttress
buttress sufficient to receive the thrusts.
A structure that redirects external forces primarily through the
Vector Active
composition of tension and compression members.
Structure
A structure composed of a combination of members, usually in some
Truss triangular arrangement so as to constitute a rigid framework.
Any 3D structural frameworks as a contrasted with a plane frame all of
Space Frame whose elements lie in a single plane.
A structure consisting of a multiplicity of similar, light, straight-line
Geodesic Dome elements (usually in tension) which form a grid in the shape of a dome.
A system of framing a wooden building; all vertical structural elements of
the exterior bearing walls and partitions consist of single studs which
Light Frame
extend the full height of the frame, from the top off the sole plate to the
Construction
roof plate; all floor joists are fastened by nails to studs.
A timber framework in which the studs are only one story high; the floor
joists of each story rest on the top plates of the story below or on the
Platform Frame
foundation sill for the first story, and the bearing walls and positions rest
Construction
on the subfloor of each story.
Flooring construction making it as one integral slab, and spanning the
Structural Grid flooring in two directions supported by a rectilinear grid of beams.
Surface Active A structure that redirects external forces primarily along the continuity of
Structure a surface.
The upper part of a reinforced concrete floor, which is carried on beams
below. A concrete mat poured on subgrade, serving as a floor rather than
Structural Slabs
as a structural member.
A rigid, planar, usually monolithic structure that disperses applied loads
in a multidirectional pattern, with the loads generally following the
Plate
shortest and stiffest routes to the supports.
A thin, curved plate structure, Shaped t transmit applied forces by
compressive, tensile, and shear stresses acting in the plane of the
Shell
surface.
Barrel Shell A rigid cylindrical shell structure.
A shell structure constructed of reinforced concrete.
Thin Shell
A vaulted structure having a circular plan and usually the form of a
portion of a sphere, so constructed as to exert an equal thrust in all
Dome
direction.
Factor Involved in The Nervous System, Emotional States, Blood Supply, Temperature
Thermal Space
Tactile Space
Relating to or based on the sense of touch. Touch and visual spatial
Haptic experience interwoven and cannot be separated.
VISUAL SPACE
An awareness derived by the visual system in response to an external
VISUAL
stimulus
PERCEPTION
VISION AS Man learns while he sees and what he learns influences what he sees.
SYNTHESIS
THE IMPLICATIONS OF THE STRUCTURE OF THE EYE FOR THE DESIGN OF SPACE
Movement is exaggerated at the periphery of the eye.
Straight edges, alternates black and yellow. Has the highest visual impact.
Regularly spaced columns exaggerate the sense of movement.
To increase the speed of the motorist in tunnel, it is necessary to reduce the number of visual
impact that flash by at eye level.
In libraries, restaurant, public spaces, cutting down on movement in the peripheral fields
should reduce the sense of crowding.
MANS VARIOUS SYSTEM OF DEPTH PERCEPTION AS HE MOVES THROUGH SPACE
Perspectives of Position
The gradual increase in the density of the texture of a surface as it
Texture Perspective recedes in the distance.
As the object get farther away they decrease in size
Size Perspective
The most commonly know form of perspective. A mathematical system
for representing 3-D objects and spatial relationships on a 2-D surface by
Linear Perspective
means of perspective projection.
Perspective of Parallax
Operates very much out of awareness. The separation of the eye
projection each a different image.
Binocular
Closing and opening one eye and then the makes the differences in the
Perspective
images apparent.
As one moves forward in space, the closer one approaches a stationary
object, the faster it appears to move.
Motion Perspective Objects moving at uniform speeds appear to be moving more slowly as
distance increases.
Perspectives Independent of the Position or Motion of the Observer
Derived from the increased haziness and changes in color due to the
intervening atmosphere.
It is an indicator of distance but not as stable and reliable as some of the
Aerial Perspective/
other forms of perspective.
Atmospheric
In drawing, a technique for rendering depth or distance by muting the
Perspective
hue, tone, and distinctness of objects perceived as receding from the
picture plane.
Evident when focusing on an object held out in front of the face so that
the background is blurred.
The Perspective of
Object in a visual plane other than the one which the eyes are focused
Blur
will be seen less distinctly.
The Horizon is seen as a line at about eye level.
The Surface of the globe climbs, as it where, from ones feet to eye level.
Relative Upward The Surface of the globe climbs, as it where, from ones feet to eye level.
Location in the The further from the ground one is, the more pronounced this effect.
Visual Field In the context of everyday experience, one looks down at object that are
close and up to objects that are far away.
A valley seen over the edge of a cliff is perceived as more distant
because of the break or rapid increase in texture density.
Shift of Texture or Standing on a grassy edge, looking down 1500 feet at streets and houses
Linear Spacing of a village, blades of grass were sharply etched in the visual field, while
each blade was the width of one of the small houses.
If one looks at a distant point, every between the viewer and the point
will be seen as double.
Shift in the Amount
The closer to the viewer, the greater the doubling; the more distant the
of Double Imagery
point, the less doubling.
Differential movement of objects in the visual fields
Shift in the Rate One of the most dependable and consistent ways of sensing depth.
Motion Close object move much more than distant object.
Camouflage, deceptive because it breaks the continuity.
Completeness or
Even if there is no texture difference, no shift in double imagery, and no
Continuity of
shift in the rate of motion.
Outline
An abrupt shift in brightness of an object in the visual field will signal as
Transition Between an edge (similar to change in texture) gradual transition in brightness.
Light and Shade Principal means of perceiving molding or roundness
THE ANTHROPOLOGY OF SPACE : AN ORGANIZING MODEL
Behavior on the lower organizational levels that underlie culture. It is a
part of the Proxemics classification system and implies a specific set of
INFRACULTURE
levels of relationship with other parts of the system.
Behavior and is rooted in mans biological past.
Infracultural
Physiological and very much in the present
Precultural
The one on which most Proxemics observation are made.
Microcultural
Tend to discourage conversation.
Sociofugal Spaces
Tend to bring people together.
Sociopetal Spaces
The most important for the individuals spatial experience because it
Informal Space includes the distances maintained in encounters with others
MONOCHRONIC & POLYCHRONIC TIME
Characteristic of low-involvement peoples, who compartmentalize time.
A monochronic person separate activities in space.
Monochronic They schedule one thing at a time and become disoriented if they have
deal with too many things at once.
People that are so much involved with each other, tend to keep several
operations going at once, like jugglers
Polychronic
Polychronic person tends to collect activities.
ELEMENTS OF DESIGN
Form encompasses the spatial definition of a thing, its extent in one, two
or three dimensions.
In mathematics, form is spoken of in terms of point line and plane.
In design we speak of line, shape and volume.
Form is any three dimensional object. Form can be measured, from top to
bottom (height), side to side (width), and from back to front (depth).
Form
Form may be created by the combining of two or more shapes. It may be
enhanced by tone, texture and colour. It can be illustrated or
constructed.
Form is also defined by light and dark. NATURAL (ORGANIC FORM)
Geometric (Man-Made Form)
Point is a position in space. It is one-dimensional; has no height, depth,
or length; the beginning and the end.
When a point is in the center, it feels stable, organizing surrounding
Point
elements around it.
Off-center points feel hostile, no longer dominant.
When a point is in the center, it feels stable, organizing surrounding
elements around it.
Off-center points feel hostile, no longer dominant.
Line
It can be an intersection, outline, boundary, horizontal, vertical, diagonal,
zigzag, curved.
Width- thick, thin, tapering, uneven
Length - long, short, continuous, broken
Direction- horizontal, vertical, diagonal, curving, perpendicular, oblique,
parallel, radial, zigzag
Focus- sharp, blurry, fuzzy, choppy
Characteristic Of Feeling- sharp, jagged, graceful, smooth
evoke aspiration, stability and ascendancy, suggest more of a potential
Vertical lines for movement or energy
express feelings of rest and relaxation, calm and quiet
Horizontal lines
suggest movement and activity, and give more of a feeling of vitality to a
Diagonal lines picture
PUBLIC DISTANCE
Distance : 12-25
At 12, an alert subject can take evasive or defensive action in
threatened
Close Phase
At 16, the body begins to lose its roundness and to look flat color of the
eyes white of the eye is visible.
Distance : 25 or more
At 30 the distance that is automatically set around important public
Far Phase
figures.
MASTERS IN ARCHITECTURE
This award is annually given to honour a living architect whose built
work demonstrates a combination of those qualities of talent, vision and
Pritzker
commitment which has produced consistent and significant contributions
Architecture Prize
to humanity and the built environment through the art of architecture
Form ever follows Function
Louis Sulivan Auditorium Building
Form does not necessarily follow function
Antonio Gaudi Sagrada Familia
Frank Lloyd Wright believed in designing structures which were in
harmony with humanity and its environment, a philosophy he called
organic architecture. This Philosophy was best exemplified by his design
Usonian
the Falling water(1935), w/c has been called the best all-time work of
American Architecture
Wright was a leader of a prairie school movement of architecture and
develop this concept , his unique visions for urban planning in the United
States
He was an influential American Architect.
In 1930, he founded the Department of Architecture and Design at the
Museum of Modern Art in New York City
Philip Cortleyou
In 1978, he was awarded an American Institute of Architects Gold medal
Johnson
and the first Pritzker Architecture Prize, in 1979
He was a student at Harvard Graduate School of Design
