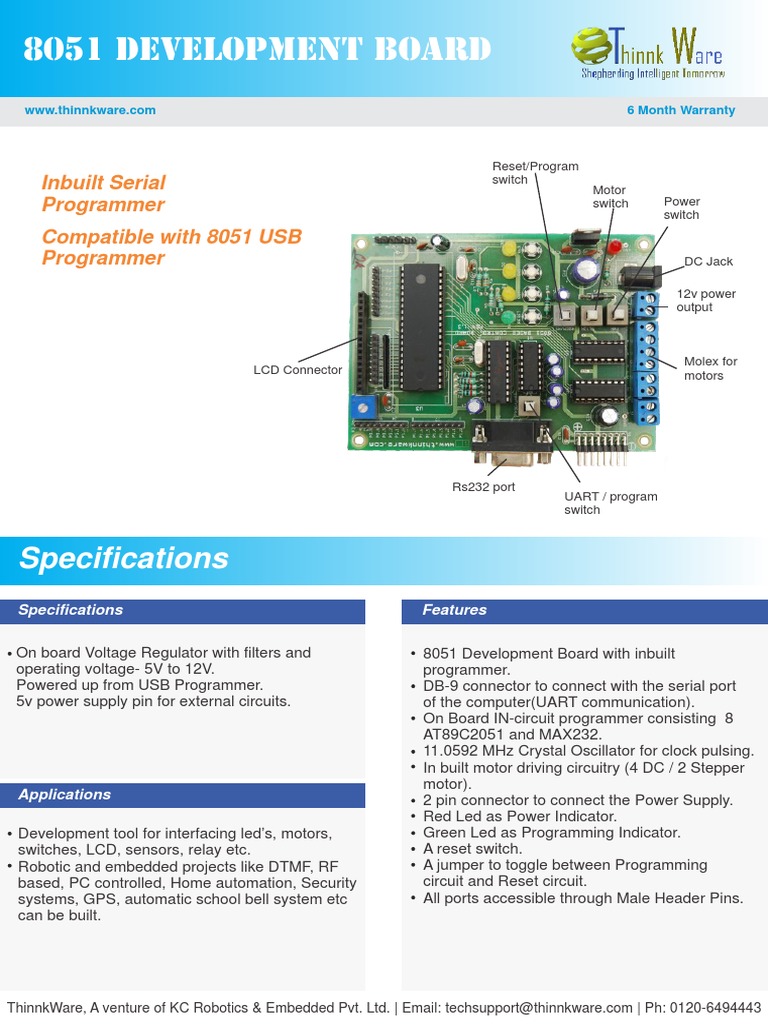

8051 Development Board

www.thinnkware.com 6 Month Warranty

Reset/Program
Inbuilt Serial switch
Motor
Programmer switch Power
switch

Compatible with 8051 USB


Programmer DC Jack

12v power
output

Molex for
LCD Connector motors

Rs232 port
UART / program
switch

Specifications
Specifications Features

On board Voltage Regulator with filters and 8051 Development Board with inbuilt
operating voltage- 5V to 12V. programmer.
Powered up from USB Programmer. DB-9 connector to connect with the serial port
5v power supply pin for external circuits. of the computer(UART communication).
On Board IN-circuit programmer consisting 8
AT89C2051 and MAX232.
11.0592 MHz Crystal Oscillator for clock pulsing.
In built motor driving circuitry (4 DC / 2 Stepper
motor).
Applications 2 pin connector to connect the Power Supply.
Red Led as Power Indicator.
Development tool for interfacing leds, motors, Green Led as Programming Indicator.
switches, LCD, sensors, relay etc. A reset switch.
Robotic and embedded projects like DTMF, RF A jumper to toggle between Programming
based, PC controlled, Home automation, Security circuit and Reset circuit.
systems, GPS, automatic school bell system etc All ports accessible through Male Header Pins.
can be built.

ThinnkWare, A venture of KC Robotics & Embedded Pvt. Ltd. | Email: techsupport@thinnkware.com | Ph: 0120-6494443
