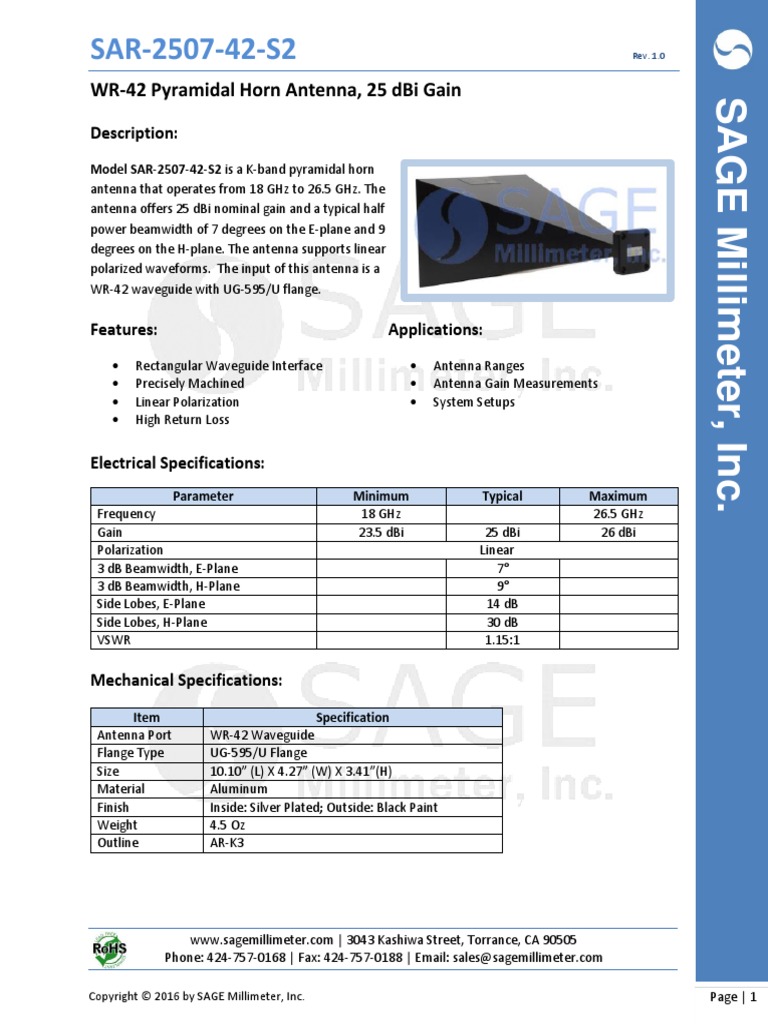

Features: Applications:
Rectangular Waveguide Interface Antenna Ranges
Precisely Machined Antenna Gain Measurements
Linear Polarization System Setups
High Return Loss
Electrical Specifications:
Parameter Minimum Typical Maximum
Frequency 18 GHz 26.5 GHz
Gain 23.5 dBi 25 dBi 26 dBi
Polarization Linear
3 dB Beamwidth, E-Plane 7
3 dB Beamwidth, H-Plane 9
Side Lobes, E-Plane 14 dB
Side Lobes, H-Plane 30 dB
VSWR 1.15:1
Mechanical Specifications:
Item Specification
Antenna Port WR-42 Waveguide
Flange Type UG-595/U Flange
Size 10.10 (L) X 4.27 (W) X 3.41(H)
Material Aluminum
Finish Inside: Silver Plated; Outside: Black Paint
Weight 4.5 Oz
Outline AR-K3
E-Plane
20
H-Plane
10
Gain (dBi)
-10
-20
-30
-180 -150 -120 -90 -60 -30 0 30 60 90 120 150 180
Boresight Angle (Degree)
26
25
Gain (dBi)
24
23
22
21
18 21 24 27
Frequency Range (GHz)
Note:
All data presented are simulated. Actual data may vary unit to unit.
SAGE Millimeter, Inc. reserves the right to change the information presented without notice.
Caution:
Any foreign objects in the waveguide will cause performance degradation and possible device
damage.
