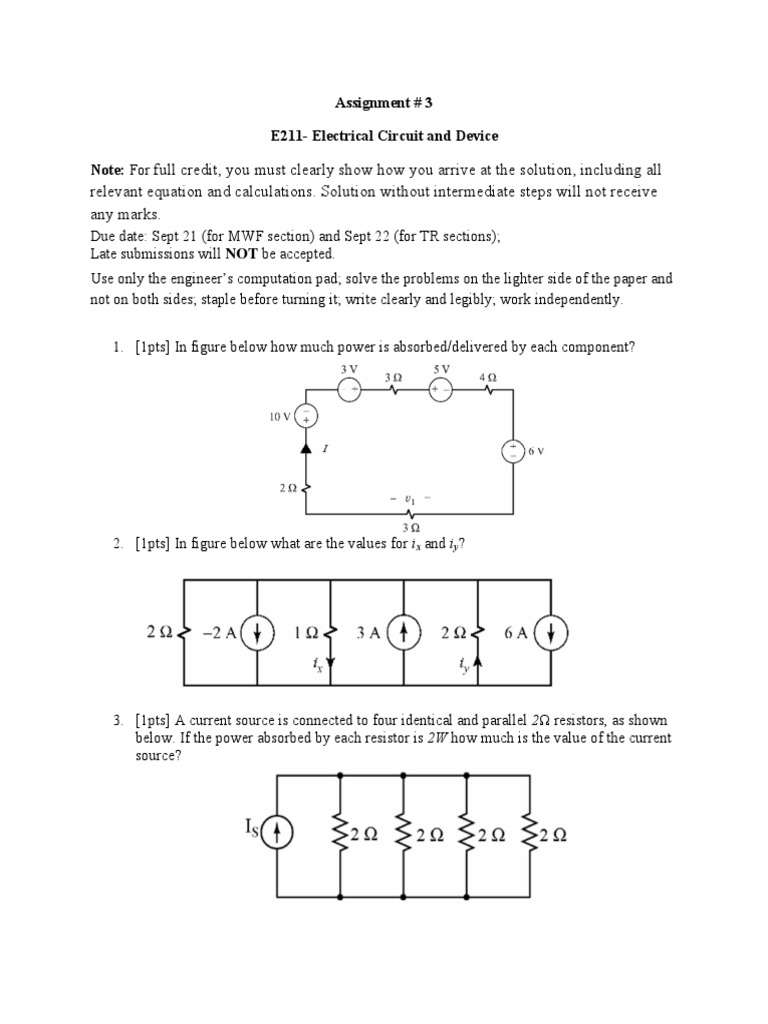

Assignment # 3

E211- Electrical Circuit and Device

Note: For full credit, you must clearly show how you arrive at the solution, including all
relevant equation and calculations. Solution without intermediate steps will not receive
any marks.
Due date: Sept 21 (for MWF section) and Sept 22 (for TR sections);
Late submissions will NOT be accepted.
Use only the engineers computation pad; solve the problems on the lighter side of the paper and
not on both sides; staple before turning it; write clearly and legibly; work independently.

1. [1pts] In figure below how much power is absorbed/delivered by each component?

2. [1pts] In figure below what are the values for ix and iy?

3. [1pts] A current source is connected to four identical and parallel 2 resistors, as shown
below. If the power absorbed by each resistor is 2W how much is the value of the current
source?
4. [1pts] In the circuit given below, we have V1=2V2=3V3 and R1=6. Find the value for
R1+R2+R3?

5. [1pts] What is the voltage V in the circuit shown below?

6. [1pts] What is the voltage V in the circuit shown below?

7. [1pts] 15 identical resistors are connected as shown below. If the equivalent resistance at
terminals ab is 15, calculate the value for each resistor.
8. [1pts] In figure below Determine VX in the circuit?

9. [1pts] What is the current measured by the ammeter in the following circuit?

10. [1pts] What is the equivalent resistance between terminals a and b?

11. [1 Extra Point] For question # 5 write node analysis equations in matrix form and
calculate the euquation to find the voltage V

12. [1 Extra Point] For question # 6 write node analysis equations in matrix form and
calculate the euquation to find the voltage V

13. [1 Extra Point] For question # 8 write node analysis equations in matrix form and
calculate the euquation to find the voltage Vx
