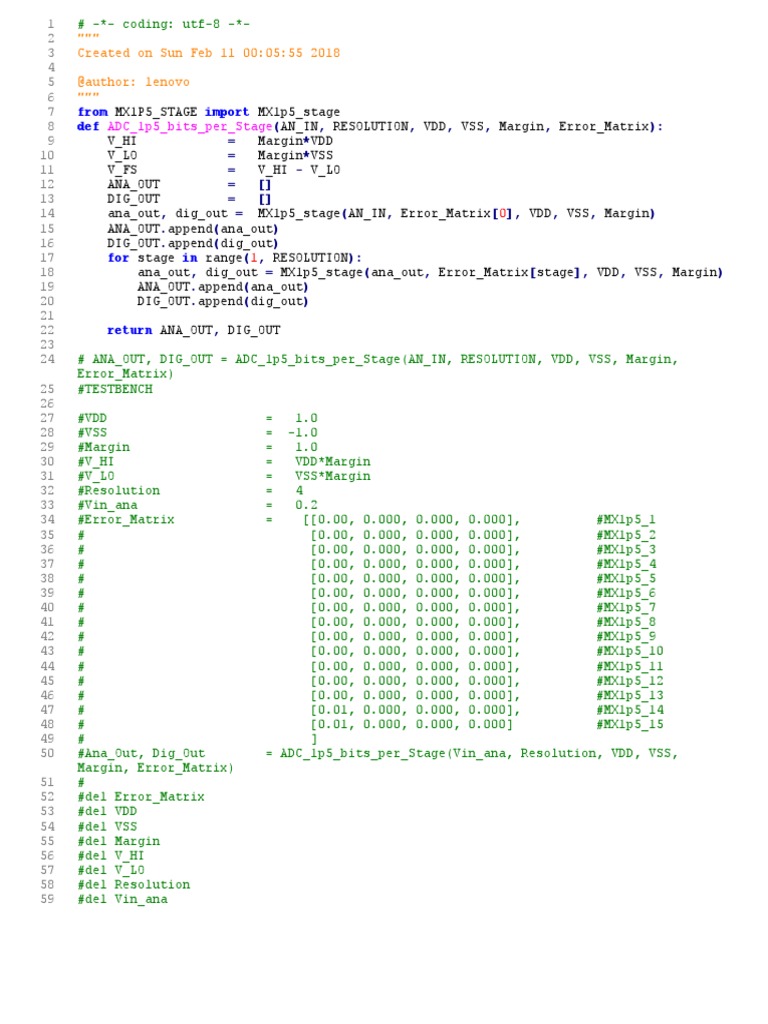

1 # -*- coding: utf-8 -*-

2 """
3 Created on Sun Feb 11 00:05:55 2018
4
5 @author: lenovo
6 """
7 from MX1P5_STAGE import MX1p5_stage
8 def ADC_1p5_bits_per_Stage(AN_IN, RESOLUTION, VDD, VSS, Margin, Error_Matrix):
9 V_HI = Margin*VDD
10 V_LO = Margin*VSS
11 V_FS = V_HI - V_LO
12 ANA_OUT = []
13 DIG_OUT = []
14 ana_out, dig_out = MX1p5_stage(AN_IN, Error_Matrix[0], VDD, VSS, Margin)
15 ANA_OUT.append(ana_out)
16 DIG_OUT.append(dig_out)
17 for stage in range(1, RESOLUTION):
18 ana_out, dig_out = MX1p5_stage(ana_out, Error_Matrix[stage], VDD, VSS, Margin)
19 ANA_OUT.append(ana_out)
20 DIG_OUT.append(dig_out)
21
22 return ANA_OUT, DIG_OUT
23
24 # ANA_OUT, DIG_OUT = ADC_1p5_bits_per_Stage(AN_IN, RESOLUTION, VDD, VSS, Margin,
Error_Matrix)
25 #TESTBENCH
26
27 #VDD = 1.0
28 #VSS = -1.0
29 #Margin = 1.0
30 #V_HI = VDD*Margin
31 #V_LO = VSS*Margin
32 #Resolution = 4
33 #Vin_ana = 0.2
34 #Error_Matrix = [[0.00, 0.000, 0.000, 0.000], #MX1p5_1
35 # [0.00, 0.000, 0.000, 0.000], #MX1p5_2
36 # [0.00, 0.000, 0.000, 0.000], #MX1p5_3
37 # [0.00, 0.000, 0.000, 0.000], #MX1p5_4
38 # [0.00, 0.000, 0.000, 0.000], #MX1p5_5
39 # [0.00, 0.000, 0.000, 0.000], #MX1p5_6
40 # [0.00, 0.000, 0.000, 0.000], #MX1p5_7
41 # [0.00, 0.000, 0.000, 0.000], #MX1p5_8
42 # [0.00, 0.000, 0.000, 0.000], #MX1p5_9
43 # [0.00, 0.000, 0.000, 0.000], #MX1p5_10
44 # [0.00, 0.000, 0.000, 0.000], #MX1p5_11
45 # [0.00, 0.000, 0.000, 0.000], #MX1p5_12
46 # [0.00, 0.000, 0.000, 0.000], #MX1p5_13
47 # [0.01, 0.000, 0.000, 0.000], #MX1p5_14
48 # [0.01, 0.000, 0.000, 0.000] #MX1p5_15
49 # ]
50 #Ana_Out, Dig_Out = ADC_1p5_bits_per_Stage(Vin_ana, Resolution, VDD, VSS,
Margin, Error_Matrix)
51 #
52 #del Error_Matrix
53 #del VDD
54 #del VSS
55 #del Margin
56 #del V_HI
57 #del V_LO
58 #del Resolution
59 #del Vin_ana
