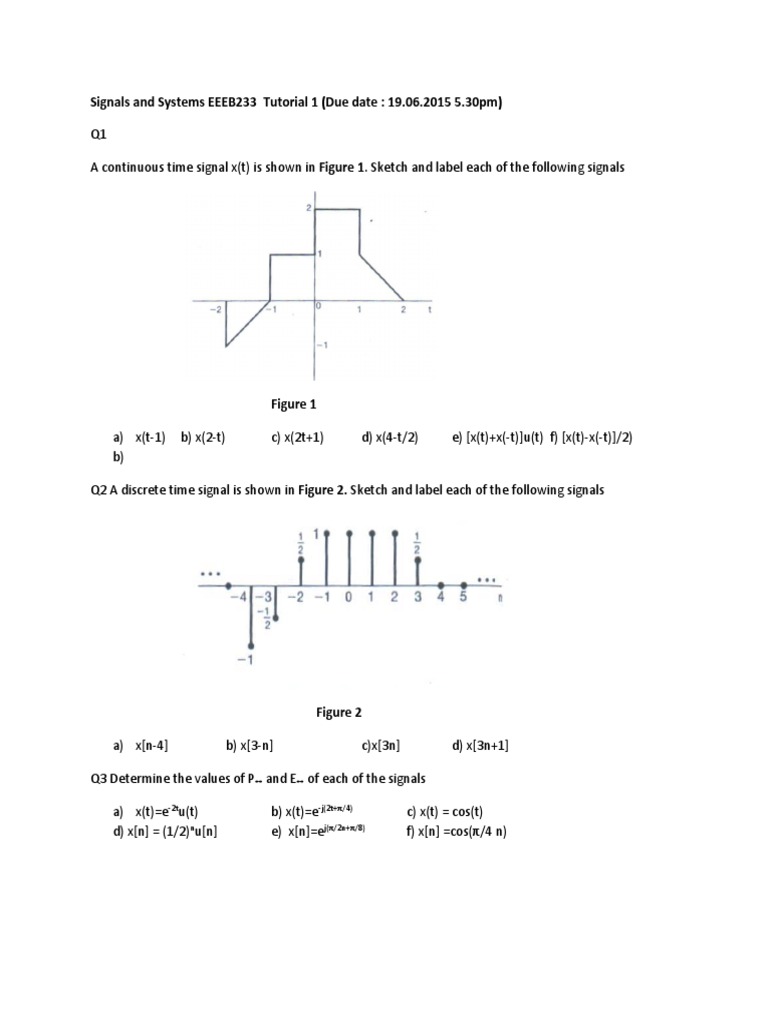

Signals and Systems EEEB233 Tutorial 1 (Due date : 19.06.2015 5.

30pm)

Q1

A continuous time signal x(t) is shown in Figure 1. Sketch and label each of the following signals

Figure 1

a) x(t-1) b) x(2-t) c) x(2t+1) d) x(4-t/2) e) [x(t)+x(-t)]u(t) f) [x(t)-x(-t)]/2)

b)

Q2 A discrete time signal is shown in Figure 2. Sketch and label each of the following signals

Figure 2

a) x[n-4] b) x[3-n] c)x[3n] d) x[3n+1]

Q3 Determine the values of P∞ and E∞ of each of the signals

a) x(t)=e-2tu(t) b) x(t)=e-j(2t+π/4) c) x(t) = cos(t)

d) x[n] = (1/2)nu[n] e) x[n]=ej(π/2n+π/8) f) x[n] =cos(π/4 n)
Q4. Determine and sketch the even and odd parts of each of the continuous time signals shown in
Figure 3

Figure 3

Q5. Determine and sketch the even and odd parts of each of the discrete time signals shown in Figure 4

Figure 4
