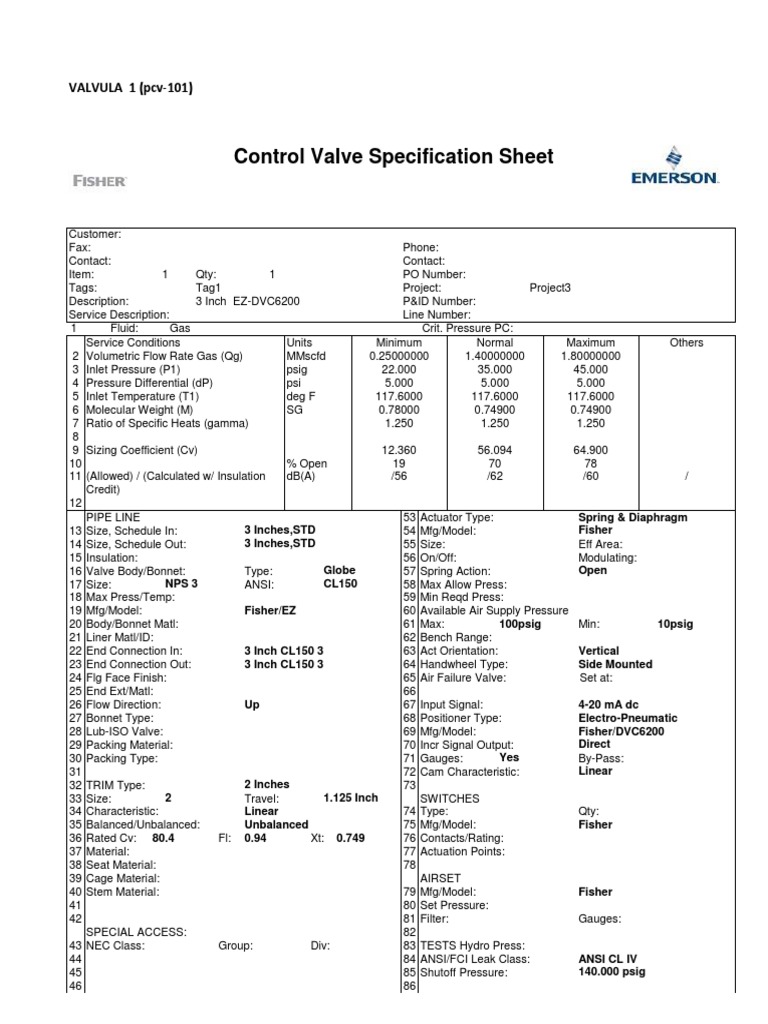

VALVULA 1 (pcv-101)
Control Valve Specification Sheet
Customer:
Fax: Phone:
Contact: Contact:
Item: 1 Qty: 1 PO Number:
Tags: Tag1 Project: Project3
Description: 3 Inch EZ-DVC6200 P&ID Number:
Service Description: Line Number:
1 Fluid: Gas Crit. Pressure PC:
Service Conditions Units Minimum Normal Maximum Others
2 Volumetric Flow Rate Gas (Qg) MMscfd 0.25000000 1.40000000 1.80000000
3 Inlet Pressure (P1) psig 22.000 35.000 45.000
4 Pressure Differential (dP) psi 5.000 5.000 5.000
5 Inlet Temperature (T1) deg F 117.6000 117.6000 117.6000
6 Molecular Weight (M) SG 0.78000 0.74900 0.74900
7 Ratio of Specific Heats (gamma) 1.250 1.250 1.250
8
9 Sizing Coefficient (Cv) 12.360 56.094 64.900
10 % Open 19 70 78
11 (Allowed) / (Calculated w/ Insulation dB(A) /56 /62 /60 /
Credit)
12
PIPE LINE 53 Actuator Type: Spring & Diaphragm
13 Size, Schedule In: 3 Inches,STD 54 Mfg/Model: Fisher
14 Size, Schedule Out: 3 Inches,STD 55 Size: Eff Area:
15 Insulation: 56 On/Off: Modulating:
16 Valve Body/Bonnet: Type: Globe 57 Spring Action: Open
17 Size: NPS 3 ANSI: CL150 58 Max Allow Press:
18 Max Press/Temp: 59 Min Reqd Press:
19 Mfg/Model: Fisher/EZ 60 Available Air Supply Pressure
20 Body/Bonnet Matl: 61 Max: 100psig Min: 10psig
21 Liner Matl/ID: 62 Bench Range:
22 End Connection In: 3 Inch CL150 3 63 Act Orientation: Vertical
23 End Connection Out: 3 Inch CL150 3 64 Handwheel Type: Side Mounted
24 Flg Face Finish: 65 Air Failure Valve: Set at:
25 End Ext/Matl: 66
26 Flow Direction: Up 67 Input Signal: 4-20 mA dc
27 Bonnet Type: 68 Positioner Type: Electro-Pneumatic
28 Lub-ISO Valve: 69 Mfg/Model: Fisher/DVC6200
29 Packing Material: 70 Incr Signal Output: Direct
30 Packing Type: 71 Gauges: Yes By-Pass:
31 72 Cam Characteristic: Linear
32 TRIM Type: 2 Inches 73
33 Size: 2 Travel: 1.125 Inch SWITCHES
34 Characteristic: Linear 74 Type: Qty:
35 Balanced/Unbalanced: Unbalanced 75 Mfg/Model: Fisher
36 Rated Cv: 80.4 Fl: 0.94 Xt: 0.749 76 Contacts/Rating:
37 Material: 77 Actuation Points:
38 Seat Material: 78
39 Cage Material: AIRSET
40 Stem Material: 79 Mfg/Model: Fisher
41 80 Set Pressure:
42 81 Filter: Gauges:
SPECIAL ACCESS: 82
43 NEC Class: Group: Div: 83 TESTS Hydro Press:
44 84 ANSI/FCI Leak Class: ANSI CL IV
45 85 Shutoff Pressure: 140.000 psig
46 86

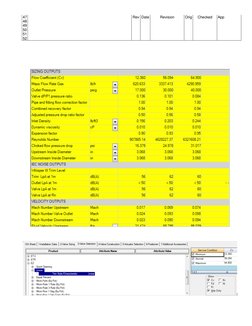

47 Rev Date Revision Orig Checked App
48
49
50
51
52

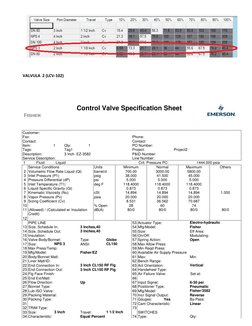

VALVULA 2 (LCV-102)
Control Valve Specification Sheet
Customer:
Fax: Phone:
Contact: Contact:
Item: 1 Qty: 1 PO Number:
Tags: Tag1 Project: Project2
Description: 3 Inch EZ-3582 P&ID Number:
Service Description: Line Number:
1 Fluid: Liquid Crit. Pressure PC: 1444.000 psia
Service Conditions Units Minimum Normal Maximum Others
2 Volumetric Flow Rate Liquid (Ql) barrel/d 700.00 3000.00 5800.00
3 Inlet Pressure (P1) psig 38.000 41.500 45.000
4 Pressure Differential (dP) psi 5.000 5.000 5.000
5 Inlet Temperature (T1) deg F 118.4000 118.4000 118.4000
6 Liquid Specific Gravity (Gl) 0.873 0.873 0.873
7 Kinematic Viscosity (Nu) cSt 14.894 14.894 14.894 1.000
8 Vapor Pressure (Pv) psia 20.000 20.000 20.000
9 Sizing Coefficient (Cv) 8.531 36.562 70.687
10 % Open 28 60 74
11 (Allowed) / (Calculated w/ Insulation dB(A) 80/0 80/0 80/0 80/0
Credit)
12
PIPE LINE 53 Actuator Type: Electro-hydraulic
13 Size, Schedule In: 3 Inches,40 54 Mfg/Model: Fisher
14 Size, Schedule Out: 3 Inches,40 55 Size: Eff Area:
15 Insulation: 56 On/Off: Modulating:
16 Valve Body/Bonnet: Type: Globe 57 Spring Action: Open
17 Size: NPS 3 ANSI: CL150 58 Max Allow Press:
18 Max Press/Temp: 59 Min Reqd Press:
19 Mfg/Model: Fisher/EZ 60 Available Air Supply Pressure
20 Body/Bonnet Matl: 61 Max: Min:
21 Liner Matl/ID: 62 Bench Range:
22 End Connection In: 3 Inch CL150 RF Flg 63 Act Orientation: Vertical
23 End Connection Out: 3 Inch CL150 RF Flg 64 Handwheel Type:
24 Flg Face Finish: 65 Air Failure Valve: Set at:
25 End Ext/Matl: 66
26 Flow Direction: Up 67 Input Signal: 6-30 psi
27 Bonnet Type: 68 Positioner Type: Pneumatic
28 Lub-ISO Valve: 69 Mfg/Model: Fisher/3582
29 Packing Material: 70 Incr Signal Output: Reverse
30 Packing Type: 71 Gauges: Yes By-Pass:
31 72 Cam Characteristic: Linear
32 TRIM Type: 73
33 Size: 3 Inch Travel: 1 1/2 Inch SWITCHES
34 Characteristic: Equal Percent 74 Type: Qty:

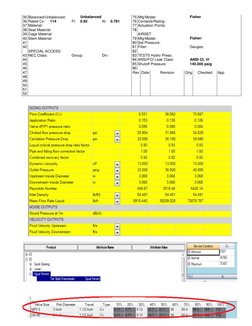

35 Balanced/Unbalanced: Unbalanced 75 Mfg/Model: Fisher
36 Rated Cv: 114 Fl: 0.92 Xt: 0.781 76 Contacts/Rating:
37 Material: 77 Actuation Points:
38 Seat Material: 78
39 Cage Material: AIRSET
40 Stem Material: 79 Mfg/Model: Fisher/
41 80 Set Pressure:
42 81 Filter: Gauges:
SPECIAL ACCESS: 82
43 NEC Class: Group: Div: 83 TESTS Hydro Press:
44 84 ANSI/FCI Leak Class: ANSI CL VI
45 85 Shutoff Pressure: 140.000 psig
46 86
47 Rev Date Revision Orig Checked App
48
49
50
51
52

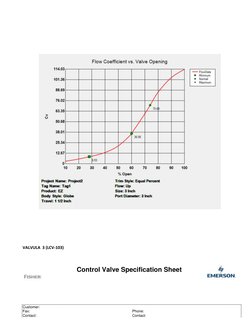

VALVULA 3 (LCV-103)
Control Valve Specification Sheet
Customer:
Fax: Phone:
Contact: Contact:

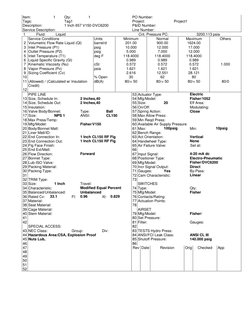

Item: 1 Qty: 1 PO Number:
Tags: Tag1 Project: Project1
Description: 1 Inch 657 V150-DVC6200 P&ID Number:
Service Description: Line Number:
1 Fluid: Liquid Crit. Pressure PC: 3200.113 psia
Service Conditions Units Minimum Normal Maximum Others
2 Volumetric Flow Rate Liquid (Ql) barrel/d 201.00 900.00 1624.00
3 Inlet Pressure (P1) psig 10.000 12.000 17.000
4 Outlet Pressure (P2) psig 5.000 7.000 12.000
5 Inlet Temperature (T1) deg F 118.4000 118.4000 118.4000
6 Liquid Specific Gravity (Gl) 0.989 0.989 0.989
7 Kinematic Viscosity (Nu) cSt 0.572 0.572 0.572 1.000
8 Vapor Pressure (Pv) psia 1.621 1.621 1.621

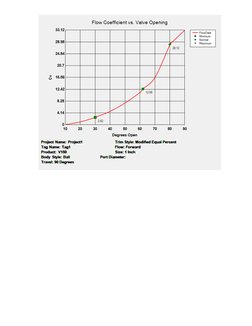

9 Sizing Coefficient (Cv) 2.616 12.551 28.121
10 % Open 30 62 80
11 (Allowed) / (Calculated w/ Insulation dB(A) 80/< 50 80/< 50 80/< 50 80/0
Credit)
12
PIPE LINE 53 Actuator Type: Electric
13 Size, Schedule In: 2 Inches,40 54 Mfg/Model: Fisher/1052
14 Size, Schedule Out: 2 Inches,40 55 Size: 20 Eff Area:
15 Insulation: 56 On/Off: Modulating:
16 Valve Body/Bonnet: Type: Ball 57 Spring Action: Close
17 Size: NPS 1 ANSI: CL150 58 Max Allow Press:
18 Max Press/Temp: 59 Min Reqd Press:
19 Mfg/Model: Fisher/V150 60 Available Air Supply Pressure
20 Body/Bonnet Matl: 61 Max: 100psig Min: 10psig
21 Liner Matl/ID: 62 Bench Range:
22 End Connection In: 1 Inch CL150 RF Flg 63 Act Orientation: Vertical
23 End Connection Out: 1 Inch CL150 RF Flg 64 Handwheel Type: None
24 Flg Face Finish: 65 Air Failure Valve: Set at:
25 End Ext/Matl: 66
26 Flow Direction: Forward 67 Input Signal: 4-20 mA dc
27 Bonnet Type: 68 Positioner Type: Electro-Pneumatic
28 Lub-ISO Valve: 69 Mfg/Model: Fisher/DVC6200
29 Packing Material: 70 Incr Signal Output: Direct
30 Packing Type: 71 Gauges: Yes By-Pass:
31 72 Cam Characteristic: Linear
32 TRIM Type: 73
33 Size: 1 Inch Travel: SWITCHES
34 Characteristic: Modified Equal Percent 74 Type: Qty:
35 Balanced/Unbalanced: Unbalanced 75 Mfg/Model: Fisher
36 Rated Cv: 33.1 Fl: 0.96 Xt: 0.829 76 Contacts/Rating:
37 Material: 77 Actuation Points:
38 Seat Material: 78
39 Cage Material: AIRSET
40 Stem Material: 79 Mfg/Model: Fisher/
41 80 Set Pressure:
42 81 Filter: Gauges:
SPECIAL ACCESS: 82
43 NEC Class: Group: Div: 83 TESTS Hydro Press:
44 Hazardous Area:CSA, Explosion Proof 84 ANSI/FCI Leak Class: ANSI CL III
45 Nuts Lub, 85 Shutoff Pressure: 140.000 psig
46 86
47 Rev Date Revision Orig Checked App
48
49
50
51
52
