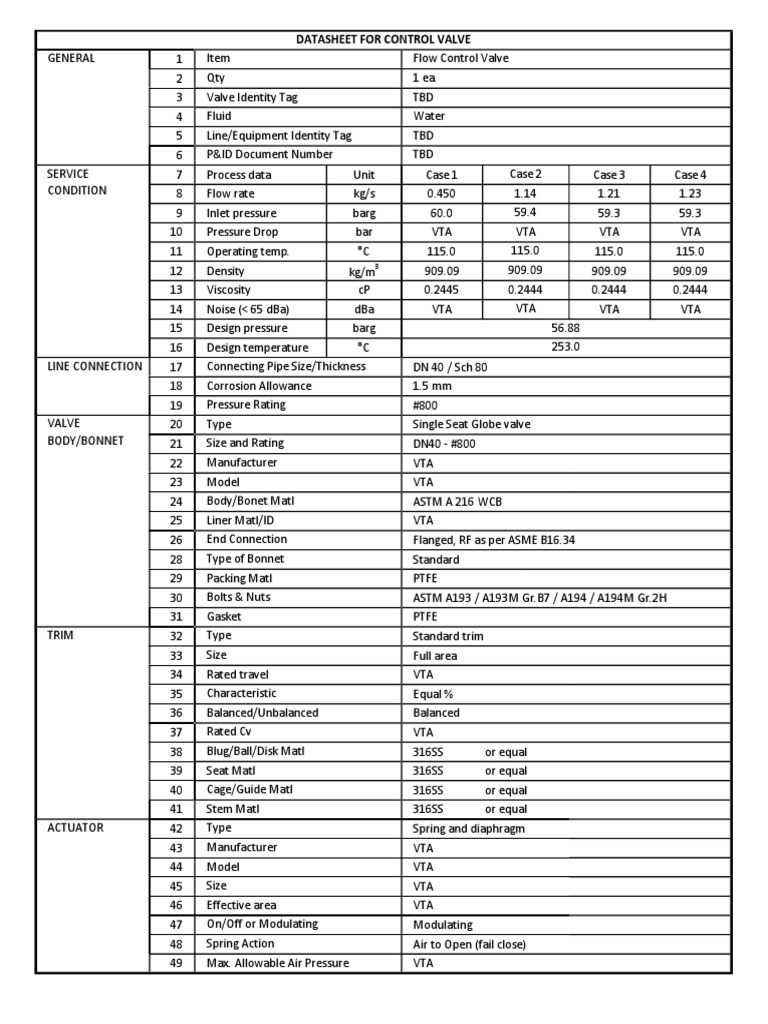

DATASHEET FOR CONTROL VALVE

GENERAL 1 Item Flow Control Valve

2 Qty 1 ea.
3 Valve Identity Tag TBD
4 Fluid Water
5 Line/Equipment Identity Tag TBD
6 P&ID Document Number TBD
SERVICE 7 Process data Unit Case 1 Case 2 Case 3 Case 4
CONDITION 8 Flow rate kg/s 0.450 1.14 1.21 1.23
9 Inlet pressure barg 60.0 59.4 59.3 59.3
10 Pressure Drop bar VTA VTA VTA VTA
11 Operating temp. °C 115.0 115.0 115.0 115.0
12 Density kg/m3 909.09 909.09 909.09 909.09
13 Viscosity cP 0.2445 0.2444 0.2444 0.2444
14 Noise (< 65 dBa) dBa VTA VTA VTA VTA
15 Design pressure barg 56.88
16 Design temperature °C 253.0
LINE CONNECTION 17 Connecting Pipe Size/Thickness DN 40 / Sch 80
18 Corrosion Allowance 1.5 mm
19 Pressure Rating #800
VALVE 20 Type Single Seat Globe valve
BODY/BONNET 21 Size and Rating DN40 - #800
22 Manufacturer VTA
23 Model VTA
24 Body/Bonet Matl ASTM A 216 WCB
25 Liner Matl/ID VTA
26 End Connection Flanged, RF as per ASME B16.34
28 Type of Bonnet Standard
29 Packing Matl PTFE
30 Bolts & Nuts ASTM A193 / A193M Gr.B7 / A194 / A194M Gr.2H
31 Gasket PTFE
TRIM 32 Type Standard trim
33 Size Full area
34 Rated travel VTA
35 Characteristic Equal %
36 Balanced/Unbalanced Balanced
37 Rated Cv VTA
38 Blug/Ball/Disk Matl 316SS or equal
39 Seat Matl 316SS or equal
40 Cage/Guide Matl 316SS or equal
41 Stem Matl 316SS or equal
ACTUATOR 42 Type Spring and diaphragm
43 Manufacturer VTA
44 Model VTA
45 Size VTA
46 Effective area VTA
47 On/Off or Modulating Modulating
48 Spring Action Air to Open (fail close)
49 Max. Allowable Air Pressure VTA
 DATASHEET FOR CONTROL VALVE
ACTUATOR 50 Min. Required Air Pressure VTA
51 Max. Available Air Pressure 9.0 barg
52 Min. Available Air Pressure 4.0 barg
53 Actuator Orentation Top Mounted
54 Max. shut-off pressure 58.0 barg
POSITIONER 55 Input Signal 4-20 mA with HART protocol
56 Type Valve positioner with position transmitter
57 Manufacturer VTA
58 Model VTA
59 Acting Direct
60 Gauges YES, in & out, SS 316
61 Bypass No
62 Response time for full stoke < 5 Sec.
SPECIALS / 63 Area Classification Class 1, Div 2, Gr. D, T3
ACCESSORIES 64 Shutoff class ANSI CLASS IV
65 IP rating min. IP65
66 All tube and fitting Swagelok brand or Equivalent
67 All cable entries M20
68 Local travel indicator Yes, required.
TESTS 69 Hydrostatic Test Pressure YES, as per Manufacturer Standard
70 Leakage YES, as per Manufacturer Standard
71 Visual Inspection YES, as per Manufacturer Standard
72 Stroking / Functional YES
OTHERS 73 Lifting Lug Lifting lugs provided for weights heavier than 50kg
74 Position Indicator Yes, required.
75 Mechanical Stop Yes, required.
76 Valve Drawing and Datasheet Yes, required.
77 Name Plate Yes, required, SS 316 Material

Notes:
1. TBD - To Be Defined; VTA - Vendor to Advise.
2. Actuator should be sized for minimum air pressure supply 4 barg.
