TAG No:

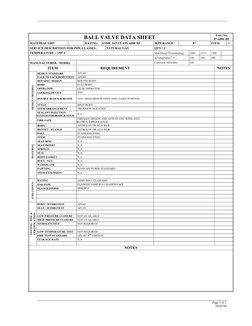

BALL VALVE DATA SHEET 8-600# RF


MATERIAL GRP: RATING: ASME 16.5 CLASS 600# RF SIZE RANGE: 8 ITEM 1
SERVICE DESCRIPTION FOR PIPE CLASSES : NATURAL GAS QTY : 2
TEMPERATURE : 1500 F Max Design Pressure(psig) 1480 1315 1200
@Temperature O F 100 300 500

MANUFACTURER / MODEL Corrosion Allowance NIL

ITEM REQUIREMENT NOTES


DESIGN STANDARD API 6D
FACE TO FACE DIMENSION API 6D
HOUSING DESIGN BOLTED BODY
BORE FULL BORE
DESIGN CRITERIA

OPERATOR GEAR OPERATOR


LOCKING DEVICE YES

DOUBLE BLOCK & BLEED YES REQUIRED IN OPEN AND CLOSE POSITION

STYLE SPLIT BODY


STEM ARRANGEMENT TRUNNION MOUNTED
SEALANT INJECTION
N.A
SYSTEM FOR BODY & STEM
FIRESAFE DESIGN AND ANTI-STATIC WITH ANTI
FIRE SAFE
BLOWOUT PROOF STEM
BODY ASTM A105 OR A216 WCB
BONNET / FLANGE ASTM A105 OR A216 WCB
BALL STAINLESS STEEL
STEM STAINLESS STEEL
SEAT RING N.A
N.A
MATERIAL

SEAT INSERT
SPRINGS N.A
SEAL N.A
BODY GASKET N.A
BOLT / NUT N.A
NAMEPLATE N.A
PAINTING MANUAFCTURER STANDARD
STEM EXTENSION N.A

RATING ASME B16.5 CLASS 600#


END CONN'S

END TYPE FLANGED ASME B16.5 RAISED FACE


FLANGE FINISH MSS SP-6

BODY - HYDROTEST API 6D


SEAT HYDROTEST API 6D
TESTING / DNE &
CERTIFICATION

LOW PRESSURE CLOSURE NOT AVAILABLE


HIGH PRESSURE CLOSURE NOT AVAILABLE
NITROGEN TEST NOT REQUIRED

LOW TEMPERATURE TEST NOT REQUIRED


FIRE TEST STANDARD API 607 4TH EDITION
LEAKAGE RATE N.A

NOTES

Page 1 of 1
26/02/04

Page 1 of 1 26/02/04 BALL VALVE DATA SHEET TAG No: 8”-600# RF MATERIAL GRP: RATING: ASME 16.
