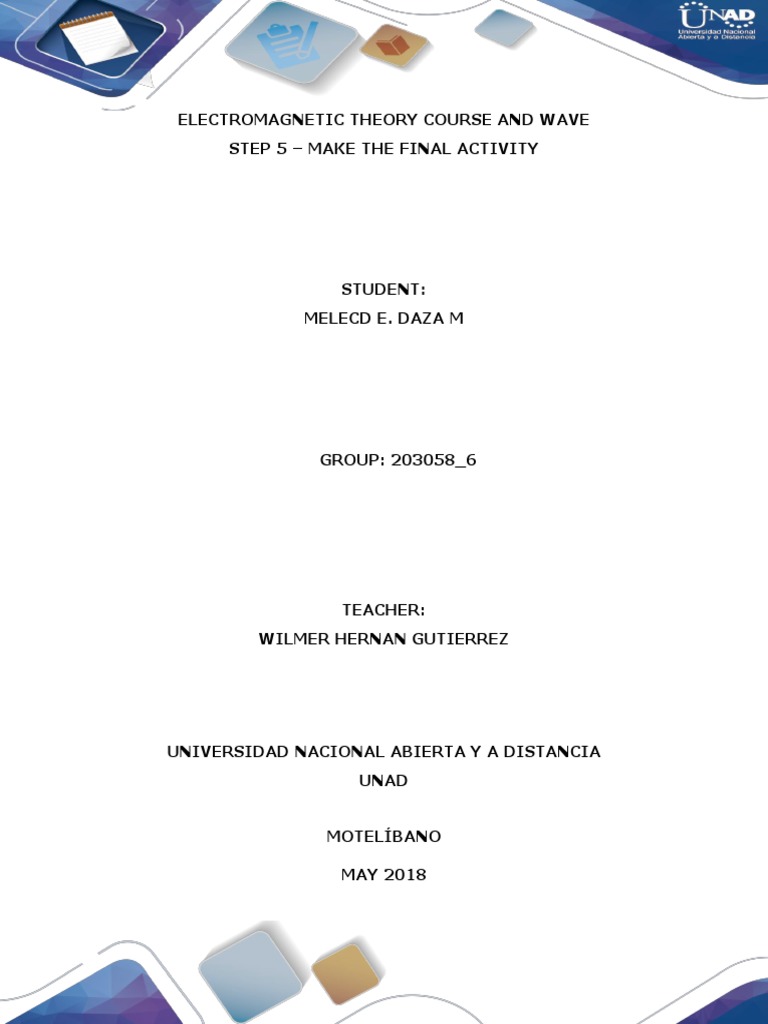

ELECTROMAGNETIC THEORY COURSE AND WAVE

STEP 5 – MAKE THE FINAL ACTIVITY

STUDENT:
MELECD E. DAZA M

GROUP: 203058_6

TEACHER:
WILMER HERNAN GUTIERREZ

UNIVERSIDAD NACIONAL ABIERTA Y A DISTANCIA


UNAD

MOTELÍBANO

MAY 2018
4. A near monitoring station has put 75Ω coaxial transmission line with a length of 20 m and
is terminated with an antenna of 37.5 + 𝑗78Ω. If the relative permittivity of the line is
2.56 and the frequency is 3.0 GHz, find the input impedance to the line, the reflection
coefficient at the load, the reflection coefficient at the input, and the SWR on the line.

𝑍𝐿 + 𝑗𝑍0 tan(𝛽𝑙)
𝑍𝑖𝑛 = 𝑍0
𝑍0 + 𝑗𝑍𝐿 tan(𝛽𝑙)

Where,

𝛽 = 𝜔√𝜇𝜀

𝛽 = 100.58

Replacing, we find that,

𝑍𝑖𝑛 = 183.88 − 𝑗157.71 Ω

The reflection coefficient at the load is,

𝑍𝐿 − 𝑍0
Γ𝐿 =
𝑍𝐿 + 𝑍0

Γ𝐿 = 0.099 + 𝑗0.624

The reflection coefficient at the input is,

𝑍𝑖𝑛 − 𝑍0
Γ𝑔 =
𝑍𝑖𝑛 + 𝑍0

Γ𝑔 = 0.577 − 𝑗0.257

Finally, the SWR is given by,

1 + |Γ𝐿 |
𝑆𝑊𝑅 =
1 − |Γ𝐿 |

𝑆𝑊𝑅 = 4.438
The next figure shows the simulations with the app “Smith_chart” available in the play
store. It validates the previous results. Look that the input impedance is normalized, so,
the input impedance will be,
𝑍𝑖𝑛 = (𝑅 + 𝑗𝑋) ⋅ 𝑍0

𝑍𝑖𝑛 = (2.29 − 𝑗2.11) ⋅ 75

𝑍𝑖𝑛 = 171.15 − 𝑗158.26 Ω

This is a result very approached to the theory result. In the software, the SWR is 4.4, it is
almost equal to the theory result.
