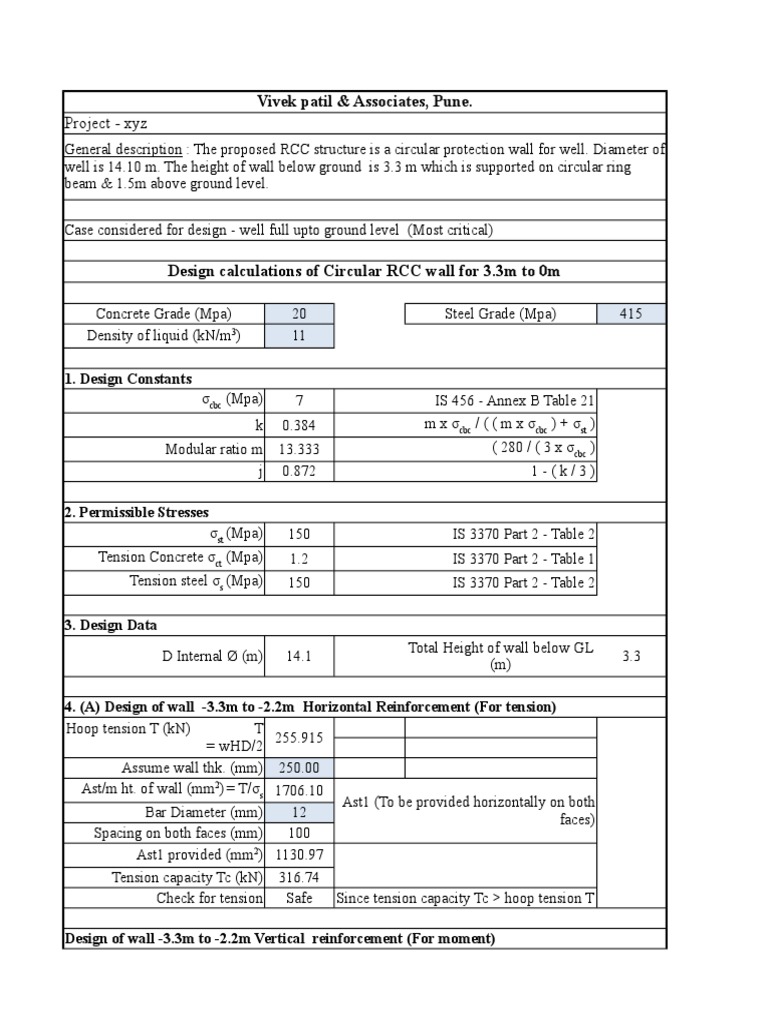

Vivek patil & Associates, Pune.

Project - xyz
General description : The proposed RCC structure is a circular protection wall for well. Diameter of
well is 14.10 m. The height of wall below ground is 3.3 m which is supported on circular ring
beam & 1.5m above ground level.

Case considered for design - well full upto ground level (Most critical)

Design calculations of Circular RCC wall for 3.3m to 0m

Concrete Grade (Mpa) 20 Steel Grade (Mpa) 415


Density of liquid (kN/m3) 11

1. Design Constants
σcbc (Mpa) 7 IS 456 - Annex B Table 21
k 0.384 m x σcbc / ( ( m x σcbc ) + σst )
Modular ratio m 13.333 ( 280 / ( 3 x σcbc )
j 0.872 1-(k/3)

2. Permissible Stresses
σst (Mpa) 150 IS 3370 Part 2 - Table 2
Tension Concrete σct (Mpa) 1.2 IS 3370 Part 2 - Table 1
Tension steel σs (Mpa) 150 IS 3370 Part 2 - Table 2

3. Design Data
Total Height of wall below GL
D Internal Ø (m) 14.1 3.3
(m)

4. (A) Design of wall -3.3m to -2.2m Horizontal Reinforcement (For tension)


Hoop tension T (kN) T
255.915
= wHD/2
Assume wall thk. (mm) 250.00
Ast/m ht. of wall (mm2) = T/σs 1706.10
Ast1 (To be provided horizontally on both
Bar Diameter (mm) 12 faces)
Spacing on both faces (mm) 100
Ast1 provided (mm2) 1130.97
Tension capacity Tc (kN) 316.74
Check for tension Safe Since tension capacity Tc > hoop tension T

Design of wall -3.3m to -2.2m Vertical reinforcement (For moment)


H2/Dt 3.09
If, 3 < H2/Dt < 12, height y = greater of H/3 or 1m.
Hence height to be designed as If H2/Dt > 12, height y = greater of H/4 or 1m.
1.00
vertical cantilever y (m)
Moment / m (kNm/m) = w
6.05
H y2 / 6
Ast2 = M / (σst x j x t) 220.22
Bar Diameter (mm) 12 Ast2 (To be provided vertically upto
cantilever height y m)
Spacing on both faces (mm C/C) 300
Hence provide Horizontal reinforcement for -3.3m to -2.2m is 12# @100mm c/c
Hence provide Vertical reinforcement for -3.3m to -2.2m is 12# @300mm c/c

4. (B) Design of wall -2.2m to -1.1m Horizontal Reinforcement (For tension)


Hoop tension T (kN) T
170.610
= wHD/2
Assume wall thk. (mm) 200.00
Ast/m ht. of wall (mm2) = T/σs 1137.40
Ast1 (To be provided horizontally on both
Bar Diameter (mm) 12 faces)
Spacing on both faces (mm) 150
Ast1 provided (mm2) 753.98
Tension capacity Tc (kN) 251.16
Check for tension Safe Since tension capacity Tc > hoop tension T
Distribution steel Vertical -2.2m to -1.1m
Min. Steel (%) 0.217 IS 3370 Part 2 - Cl. 7.1
Ast (mm ) 434.29
2

Bar Diameter (mm) 8 Ast (To be provided vertically)


Spacing on both faces (mm C/C) 200
Hence provide Horizontal reinforcement for -2.2m to -1.1m is 12# @150mm c/c
Hence provide Vertical reinforcement for -2.2m to -1.1m is 8# @200mm c/c

4. (C) Design of wall -1.1m to +1.5m Horizontal Reinforcement (For tension)


Hoop tension T (kN) T
170.610
= wHD/2
Assume wall thk. (mm) 200.00
Ast/m ht. of wall (mm2) = T/σs 1137.40
Ast1 (To be provided horizontally on both
Bar Diameter (mm) 12 faces)
Spacing on both faces (mm) 150
Ast1 provided (mm2) 753.98
Tension capacity Tc (kN) 251.16
Check for tension Safe Since tension capacity Tc > hoop tension T
Distribution steel Vertical -1.1m to +1.5m
Min. Steel (%) 0.217 IS 3370 Part 2 - Cl. 7.1
Ast (mm2) 434.29
Bar Diameter (mm) 8 Ast (To be provided vertically)
Spacing on both faces (mm C/C) 200
Hence provide Horizontal reinforcement for -1.1m to +1.5m is 12# @150mm c/c
