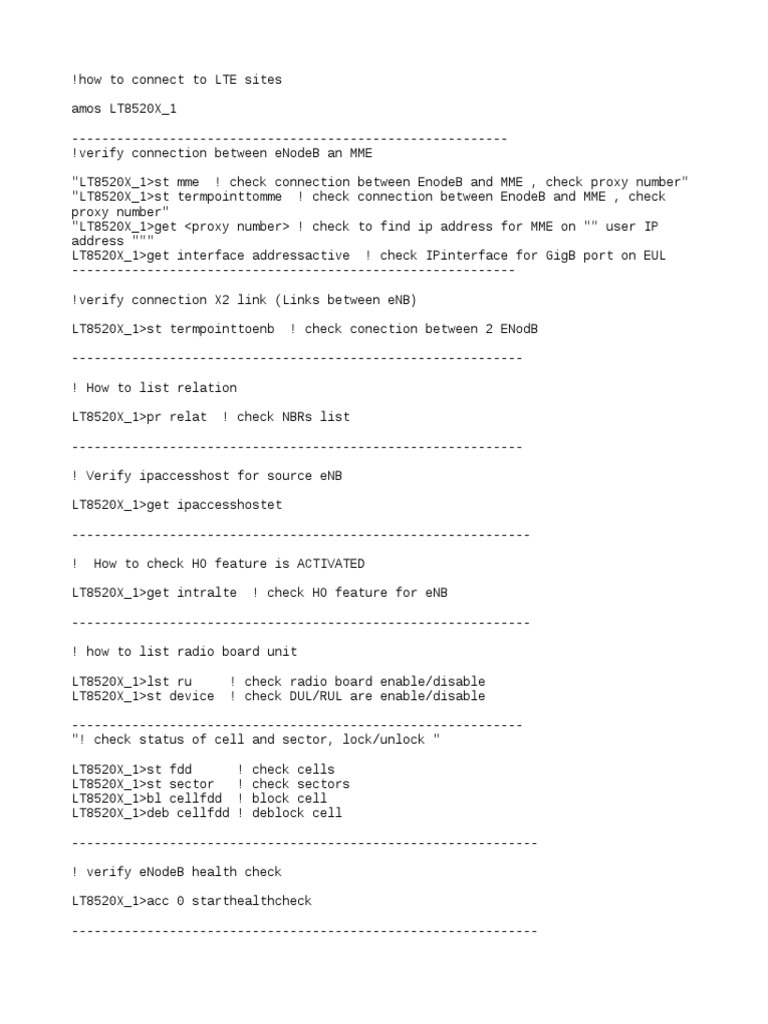

how to connect to LTE sites

amos LT8520X_1

----------------------------------------------------------
!verify connection between eNodeB an MME

"LT8520X_1>st mme ! check connection between EnodeB and MME , check proxy number"
"LT8520X_1>st termpointtomme ! check connection between EnodeB and MME , check
proxy number"
"LT8520X_1>get <proxy number> ! check to find ip address for MME on "" user IP
address """
LT8520X_1>get interface addressactive ! check IPinterface for GigB port on EUL
-----------------------------------------------------------

!verify connection X2 link (Links between eNB)

LT8520X_1>st termpointtoenb ! check conection between 2 ENodB

------------------------------------------------------------

! How to list relation

LT8520X_1>pr relat ! check NBRs list

------------------------------------------------------------

! Verify ipaccesshost for source eNB

LT8520X_1>get ipaccesshostet

-------------------------------------------------------------

! How to check HO feature is ACTIVATED

LT8520X_1>get intralte ! check HO feature for eNB

-------------------------------------------------------------

! how to list radio board unit

LT8520X_1>lst ru ! check radio board enable/disable

LT8520X_1>st device ! check DUL/RUL are enable/disable

------------------------------------------------------------
"! check status of cell and sector, lock/unlock "

LT8520X_1>st fdd ! check cells

LT8520X_1>st sector ! check sectors
LT8520X_1>bl cellfdd ! block cell
LT8520X_1>deb cellfdd ! deblock cell

--------------------------------------------------------------

! verify eNodeB health check

LT8520X_1>acc 0 starthealthcheck

--------------------------------------------------------------
! How to restart eNB

LT8520X_1>acc 0 manualrestart

---------------------------------------------------------------

! How to show log status of cell

LT8520X_1>llog

----------------------------------------------------------------

! check cell PCI

LT8520X_1>get utrancellfdd=LT8520X cellid ! PCI=(physicalLayerCellIdGroup* number

of sectors)+physicalLayerSubCellId

-----------------------------------------------------------------
! check the software package of eNodeB

LT8520X_1>pr upgrade

----------------------------------------------------------------

! How to check CV

LT8520X_1>cvcu ! check current CV

LT8520X_1>cvrm <CV name> ! delete old CV
LT8520X_1>cvset <CV name> ! set new CV from the list
"LT8520X_1>cvms <CV name> ! create CV after any change make , it should be a new
name , it can not overwrite the old name"

-----------------------------------------------------------------

! check eNodB related hardware

LT8520X_1>lpr rfport ! check RUL available ports

LT8520X_1>lpr riport ! check DUL available ports
LT8520X_1>cabx ! shows all RUS?DUL boards installed in the nodB
LT8520X_1>lpr antennaunitgroup ! check antenna group

-----------------------------------------------------------------

! how the verify the Sync

LT8520X_1>get sync ! check EnodB sync

LT8520X_1>st sync ! check lock/unlock or ebanble/disable sync
LT8520X_1>get . clock ! check clock mode ( 2= locked mode )
------------------------------------------------------------------

! how to check cell alarm

LT8520X_1>alt ! check cell alarms

LT8520X_1>ala ! check more detail on each alarm
LT8520X_1>lga -2d ! check cell alarm log

------------------------------------------------------------------
! check eNodB power setting

"LT8520X_1>get . power ! partOf RadioPower (0---100) , ConfOutputPower(20 , 40 ,

60 , 80 , 120 w) , MaximumTransmissionPower are 3 key eNodB power"
LT8520X_1>set sectorEquipmentFunction=S1 Confoutputpower 40 ! how to change power
setting

----------------------------------------------------------------

! verify timer from active to idle

LT8520X_1>get . tinactivity ! check timer from active to idle

LT8520X_1>set rcs=1 tinactivitytimer 60 ! change timer from active to idle

----------------------------------------------------------------
! check RRC drop because of lack of licence

pmx . pmrrcconnestabfaillic -m 2 -d

-------------------------------------------------------------

! check number of LTE users

LT0126Z_1> ue print -admitted

LT1189X_1> cabx

170219-12:35:40 10.253.244.128 16.0n ERBS_NODE_MODEL_G_1_312 stopfile=/tmp/6786

Please enter Node Password:
..........
Node type: RBS6102L
===================================================================================
=================================
SMN APN BOARD FAULT OPER MAINT STAT PRODUCTNUMBER REV SERIAL
DATE TEMP COREMGR
===================================================================================
=================================
0 1 DUS4102 OFF 16HZ OFF OFF KDU137624/11 R4K TU8XAS8198
20160708 42C Active*
-----------------------------------------------------------------------------------
---------------------------------

================================================================
SMN ProductNr Rev Name Date SerialNr
================================================================
0 ROJ999999 * BACKPLANE
----------------------------------------------------------------

===================================================================================
===========================================
SMN APN PORT BOARD FAULT OPER MAINT PRODUCT NR REV SERIAL
DATE TEMP AuxPIU Cells
===================================================================================
===========================================
0 1 BXP_0 RRUS12B3 OFF ON OFF KRC161282/2 R1S CR9G320822
20160326 27.8 RRU-1-1 LT1189XA1
 0 1 BXP_1 RRUS12B3 OFF ON OFF KRC161282/2 R1S CR9G320820
20160326 26.3 RRU-1-2 LT1189XB1
0 1 BXP_2 RRUS12B3 OFF ON OFF KRC161282/2 R1S CR9G320818
20160326 30.4 RRU-1-3 LT1189XC1
0 1 BXP_3 RRUS32B7 OFF ON OFF KRC161412/1 R1D D16T142936
20160503 26.3 RRU-1-4 LT1189XA2
0 1 BXP_4 RRUS32B7 OFF ON OFF KRC161412/1 R1D D16U097720
20160801 21.2 RRU-1-5 LT1189XB2
0 1 BXP_5 RRUS32B7 OFF ON OFF KRC161412/1 R1D D16U097740
20160801 23.5 RRU-1-6 LT1189XC2
-----------------------------------------------------------------------------------
-------------------------------------------

===================================================================================
===========================================
"SMN APN PORT TX1(W/dBm) TX2(W/dBm) TX3(W/dBm) TX4(W/dBm) VSWR1 (RL1) VSWR2
(RL2) VSWR3 (RL3) VSWR4 (RL4) Cells (cellId,PCI)"
===================================================================================
===========================================
" 0 1 BXP_0 19.1 (42.8) 19.0 (42.8) 1.24 (19.4) 1.14
(23.6) LT1189XA1 (11,216)"
" 0 1 BXP_1 2.2 (33.4) 3.3 (35.2) 1.24 (19.3) 1.16
(22.5) LT1189XB1 (12,214)"
" 0 1 BXP_2 40.6 (46.1) 3.6 (35.5) 1.15 (23.2) 1.21
(20.4) LT1189XC1 (13,215)"
" 0 1 BXP_3 4.1 (36.2) 4.1 (36.2) 0 0 1.12 (24.8) 1.11
(25.8) 0 0 LT1189XA2 (21,216)"
" 0 1 BXP_4 4.0 (36.0) 4.0 (36.0) 0 0 1.12 (24.7) 1.12
(24.9) 0 0 LT1189XB2 (22,214)"
" 0 1 BXP_5 3.9 (35.9) 3.9 (35.9) 0 0 1.14 (23.5) 1.14
(23.8) 0 0 LT1189XC2 (23,215)"
-----------------------------------------------------------------------------------
-------------------------------------------

Note: the RU/TX/VSWR tables in cabx are obsolete. Command invxr can be used
instead.

LT1189X_1> get Eutrancellfdd=LT1189X cellid

170219-12:39:01 10.253.244.128 16.0n ERBS_NODE_MODEL_G_1_312 stopfile=/tmp/6786

===================================================================================
==============================
MO Attribute Value
===================================================================================
==============================
EUtranCellFDD=LT1189XA1 cellId 11
EUtranCellFDD=LT1189XA1 physicalLayerCellIdGroup 72
EUtranCellFDD=LT1189XA1 physicalLayerSubCellId 0
EUtranCellFDD=LT1189XA2 cellId 21
EUtranCellFDD=LT1189XA2 physicalLayerCellIdGroup 72
EUtranCellFDD=LT1189XA2 physicalLayerSubCellId 0
EUtranCellFDD=LT1189XB1 cellId 12
EUtranCellFDD=LT1189XB1 physicalLayerCellIdGroup 71
EUtranCellFDD=LT1189XB1 physicalLayerSubCellId 1
EUtranCellFDD=LT1189XB2 cellId 22
EUtranCellFDD=LT1189XB2 physicalLayerCellIdGroup 71
EUtranCellFDD=LT1189XB2 physicalLayerSubCellId 1
EUtranCellFDD=LT1189XC1 cellId 13
EUtranCellFDD=LT1189XC1 physicalLayerCellIdGroup 71
EUtranCellFDD=LT1189XC1 physicalLayerSubCellId 2
EUtranCellFDD=LT1189XC2 cellId 23
EUtranCellFDD=LT1189XC2 physicalLayerCellIdGroup 71
EUtranCellFDD=LT1189XC2 physicalLayerSubCellId 2
===================================================================================
==============================
Total: 6 MOs

To check CS fallback ( nude level)

"get csfbtogeranutran
get . csfallbackprio
"
