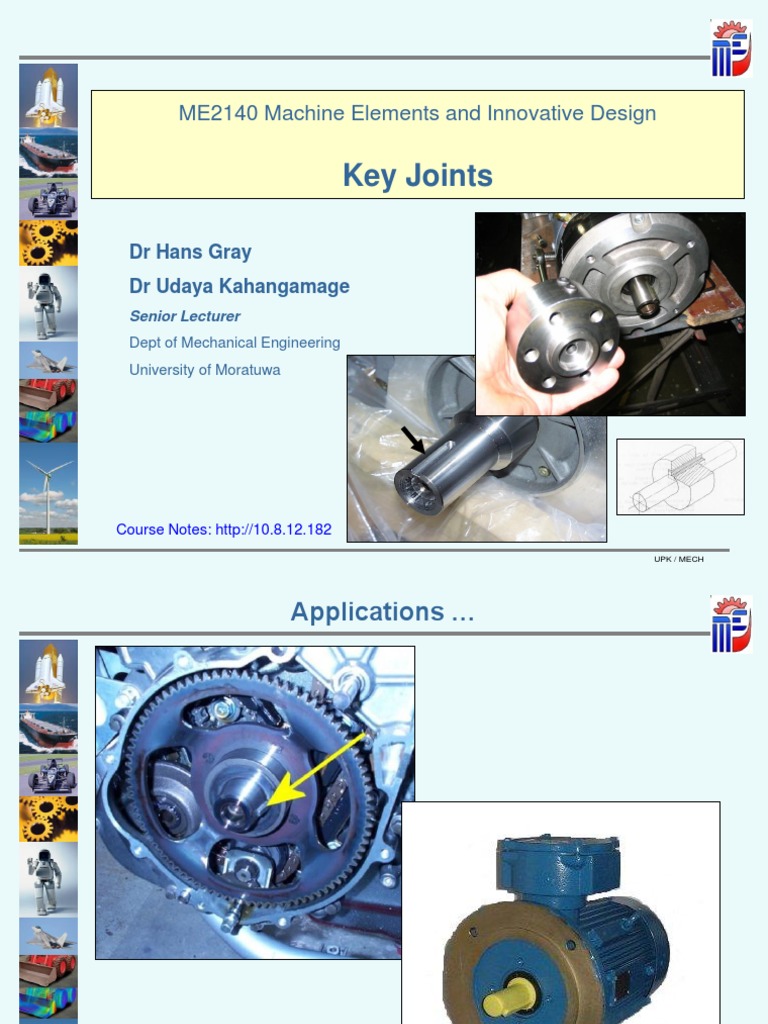

ME2140 Machine Elements and Innovative Design
Key Joints
Dr Hans Gray
Dr Udaya Kahangamage
Senior Lecturer
Dept of Mechanical Engineering
University of Moratuwa
Course Notes: http://10.8.12.182
UPK / MECH
Applications …
2 UPK / MECH
Applications …
3 UPK / MECH
Applications …
4 UPK / MECH
Outline…
• Introduction
• Advantages and Disadvantages of key joints
• Types of keys and applications
• Modes of failure and strength calculation
• Selection of keys
• Spline joints
5 UPK / MECH
Learning Outcomes
At the end of this section, you should be able to:
• select an appropriate type of keys for a given
application
• perform calculations on keys based on strength
• select appropriate cross sections for keys from
standard key tables
6 UPK / MECH
Introduction(1)
• Keys are used to mount pulleys, gears, couplings and
other similar devises on shafts
• Prevent relative rotary or axial (sliding) motion
between connected parts
• Joint can easily be assembled and disassembled
• Mainly used to transmit torsional loads
7 UPK / MECH
Advantages and Disadvantages
Advantages
Simple in design
Convenience in use
Low cost
Reliable
Disadvantages
Reduction of strength of connecting parts due to keyway
Stress concentration in key joints
Difficulty in achieving concentricity between mating surfaces
8 UPK / MECH
Types of Keys
9 UPK / MECH
Torque transmission …
• Square and parallel keys: torque is transmitted by
means of compressive and shear stresses
• Taper keys: torque is transmitted by means of
friction induced by compressive stresses
• Tangential keys: torque is transmitted by means of
compressive stresses alone
10 UPK / MECH
Group work
• Discuss in what ways a key can fail
11 UPK / MECH
Group work
• Design a rectangular key for a shaft of
diameter 40mm transmitting a torque of 1kNm.
Assume an allowable shear stress and
crushing stress for the key material to be
42MPa and 70MPa.
•Calculate the minimum length
of the key required for shear
failure not to occur.
•Calculate the minimum length
of the key required for crushing
failure not to occur.
12 UPK / MECH
Modes of Failure and Strength Calculation
• Shear failure
This consideration has been
incorporated in standardising
the cross section
of the keys. Therefore,
strength calculation for shear
is not required
in designing
• Crushing failure
13 UPK / MECH
Taper Keys
In taper key joints the transmitted torque is made up
of
The moment due to none uniform pressure over the width of
the key
The moment caused by the friction between the key and the
shaft
The moment caused by the friction between the hub and the
shaft
14 UPK / MECH
Modes of Failure and Strength Calculation
Comments
• For standard keys, calculation for crushing is
sufficient
• If two keys are used in one joint the length of key
must be increased by 25% due to none uniformity of
torque transmission.
• A key is selected according to the shaft diameter.
• The length is calculated based on crushing.
• If the length is higher than the hub
Two or three keys (25% longer) can be used at 1200 to each
other or
The hub size can be increased
• Cross sections of the keys have been standardised
• Formulas are used to find:
Allowable torque
Working length of the key
15 UPK / MECH
Selection of Keys
The type of key for a particular application is selected
by considering following factors:
• Power transmission requirement
• Stability and rigidity
• Accuracy of fit
• Physical configuration
Cross sectional dimensions of keys are selected from
standard charts
16 UPK / MECH
Example
• Design a rectangular parallel key for a shaft
of 50mm diameter that transmits a torque of
0.75 kNm . The key is made out of carbon
steel AISI1015. Use a safety factor of 2.
17 UPK / MECH
ME214 Machine Elements and Innovative Design
Spline Joints
Dr Hans Gray
Dr Udaya Kahangamage
Senior Lecturer
Dept of Mechanical Engineering
University of Moratuwa
Course Notes: http://10.8.12.182
UPK / MECH
Vehicle Propeller Shaft
19 UPK / MECH
Gearbox Input Shaft
20 UPK / MECH
Gear Trains
21 UPK / MECH
Spline Joints
• Spline joints can be considered as multiple key joints
• Splines can be used to transmit higher loads
• Joints can be either sliding or fixed
22 UPK / MECH
External splines can be made by hobbing, by shaping
• Hobbing
• Shaping
23 UPK / MECH
Internal splines can be cut by broaching or slotting
• Broaching
• Slotting
24 UPK / MECH
The Advantages of Spline Joints over Key Joints
• Greater load carrying capacity for same overall size
due to larger contact area between splines
• Ensures better centering between the parts
Centering Methods for
Parallel-sided Splines:
•Fit by Sides of Splines (a)
•Major Diameter Fit (b)
•Minor Diameter Fit (c)
25 UPK / MECH
Types of Splines
• Parallel sided splines
• Involutes splines
• Serrations (triangular)
26 UPK / MECH
Involutes splines
The main advantages of involute splines are:
Higher load carrying capacity due to gradual
thickening of the splines towards the root
Less stress concentration due to absence of
abrupt profile change at the root
Simple and more
efficient manufacture by
using gear generating
machines
27 UPK / MECH
Serrations
• Used for fixed joints
• Can be used to obtain
small angular adjustments
•
• Application:
Motorbike kick pedal
Motorbike gear lever
28 UPK / MECH
Spline Joint Standard Dimensions
According to the standards, parallel sided spline joints are specified
by indicating the following:
• Centering feature D, d, b
• No of splines (z)
• Nominal diameters
The standard splines are also categorised into 3 groups as:
light duty
medium duty
heavy duty
29 UPK / MECH
Strength Calculation for Spline Joints
• Spline joints generally fail by
crushing
• Other modes of failures are:
Damage to the working surface
Wear
Binding or seizing
30 UPK / MECH
Design Guidelines
• The working length of splines:
should not be less than 0.5D for stability.
should not be higher than 2D
• There is no actual benefit of increasing the
length of splines unnecessarily.
• The longer the splines the more costly the
manufacturing.
31 UPK / MECH
Standard Splines
32 UPK / MECH
Problem
Design a parallel sided spline joint to mount a
gear on a shaft of minimum diameter 30mm
using the standard data given. The shaft
transmits 16.5kW of power at a speed of
400rev/min. If the allowable crushing stress of
the splines is 70MPa, determine the minimum
length of the hub of the gear.
33 UPK / MECH
Design Procedure for splines
• Calculate the minimum shaft diameter (dmin) required
to transmit a given torque.
• Using standard data tables find d>dmin and get the
values for other required parameters (initially for light
duty splines)
• Find the required length of the spline (l) considering
crushing strength requirement
• If ‘l’ is larger than the hub length:
increase the hub length or
go for higher duty spline
34 UPK / MECH
Re-visit: Learning Outcomes
At the end of this section, you should be able to:
• select appropriate type of keys for a given application
• perform calculations on keys based on strength
• select appropriate cross sections for keys from
standard key tables
35 UPK / MECH
