6.

0 Results and Data Analysis

6.1 Results

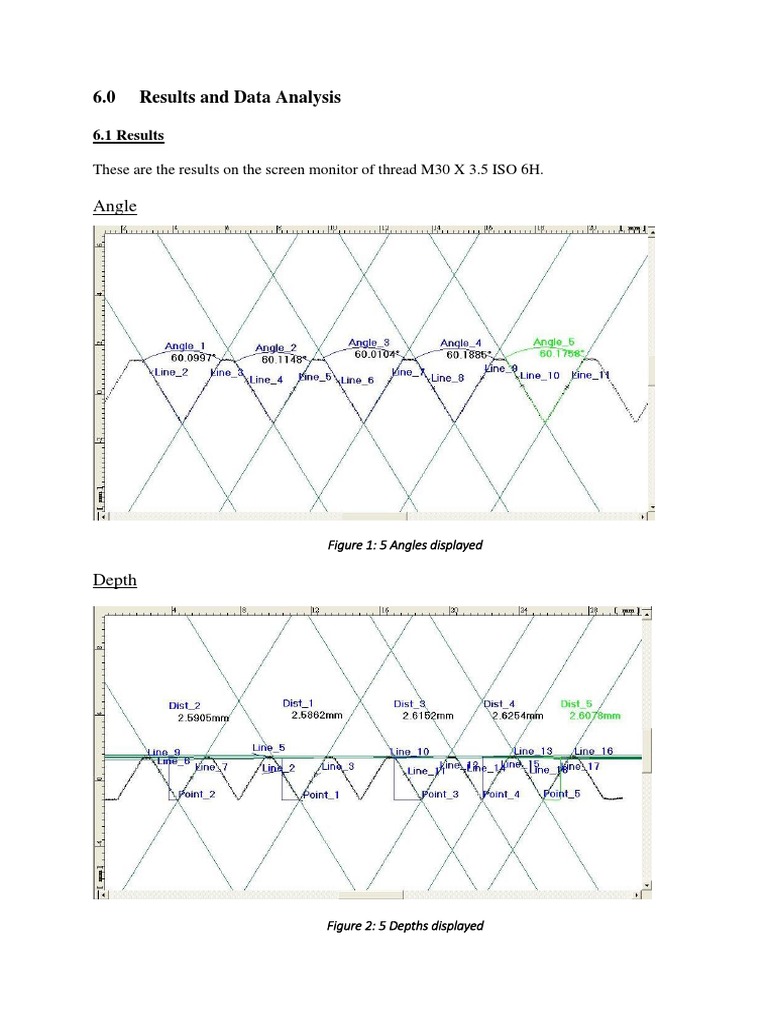

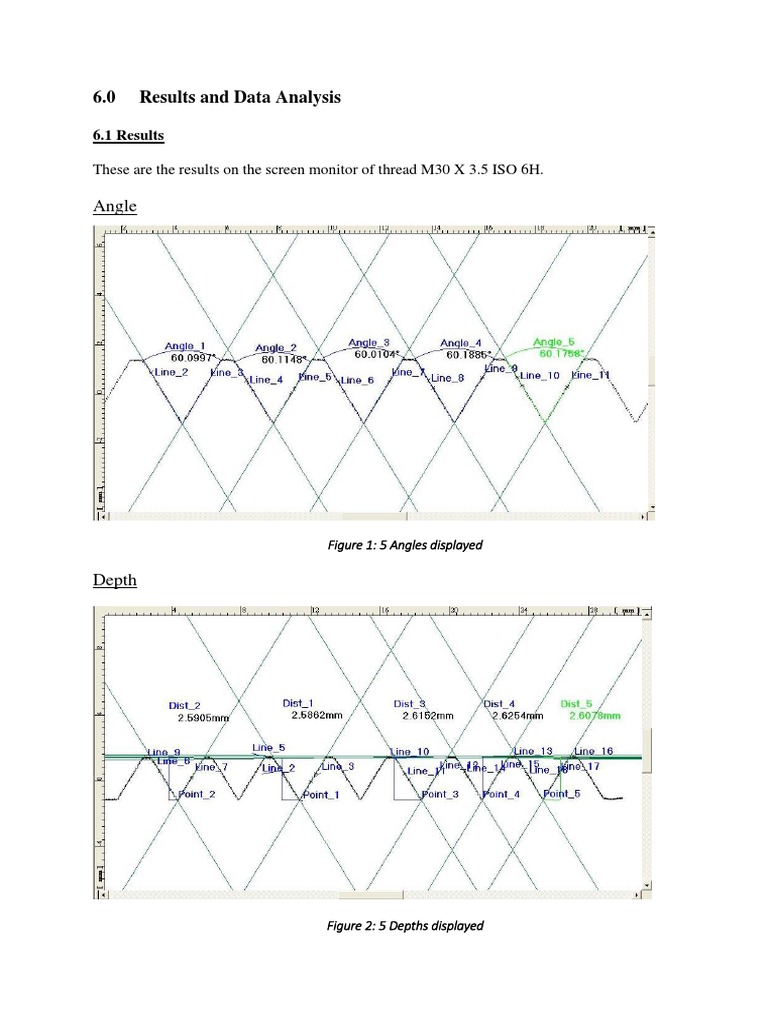

These are the results on the screen monitor of thread M30 X 3.5 ISO 6H.

Angle

Figure 1: 5 Angles displayed

Depth

Figure 2: 5 Depths displayed

Pitch

Figure 3: 5 Pitches displayed

6.2 Data Analysis

The results displayed was our experimental value. The theoretical value for thread M30 X 3.5
ISO 6H for angle and pitch is 60° and 3.5mm respectively

Meanwhile theoretical value for depth is as calculated below,

√3
H = Pitch
2

√3
= (3.5015)
2

=3.0323

5
Depth = H
8

5
= (3.0323)
8

= 1.8952mm

Thread 1 2 3 4 5 Average
Measurement value
Angle, (°) 60.0997 60.1148 60.0104 60.1885 60.1768 60.1180
Depth, (mm) 2.5905 2.5862 2.6152 2.6254 2.6078 2.6050
Pitch, (mm) 3.5044 3.5027 3.4966 3.4947 3.5091 3.5015

Table 1: Table of Average Value of Angle, Depth and Pitch

Thread Measurement Percentage Error (%)

Angle, (°) 0.2
Depth, (mm) 37.45
Pitch, (mm) 0.04

Table 2: Table of Percentage Error of Angle, Depth and Pitch

6.3 Sample Calculation

Average value

60.0997 + 60.1148 + 60.0104 + 60.1885 + 60.1768

𝐴𝑛𝑔𝑙𝑒 =
5

= 60.1180°

2.5905 + 2.5862 + 2.6152 + 2.6254 + 2.6078

𝐷𝑒𝑝𝑡ℎ =
5

= 2.6050mm

3.5044 + 3.5027 + 3.4966 + 3.4947 + 3.5091

𝑃𝑖𝑡𝑐ℎ =
5

= 3.5015mm

Percentage Error

60.1180° − 60°
𝐴𝑛𝑔𝑙𝑒 = X 100%
60°

= 0.2 %

2.6050𝑚𝑚 − 1.8952𝑚𝑚
𝐷𝑒𝑝𝑡ℎ = X 100 %
1.8952𝑚𝑚

= 37.45%

3.5015mm − 3.5mm
𝑃𝑖𝑡𝑐ℎ = X 100%
3.5𝑚𝑚

= 0.04%
