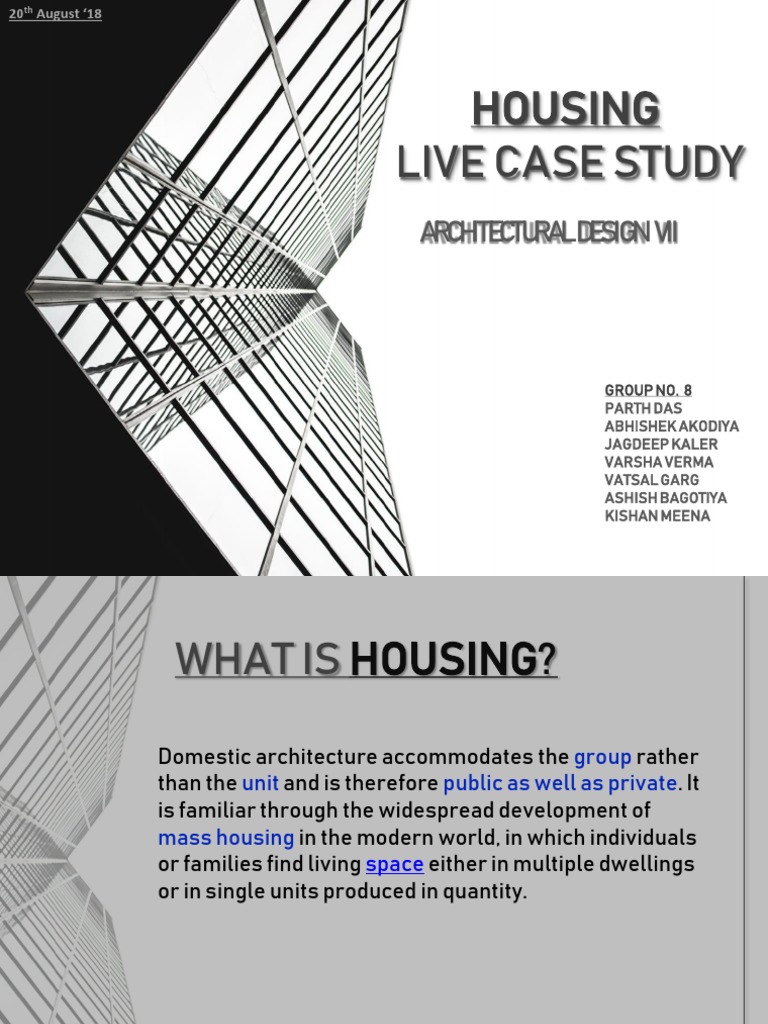

20th August ‘18
HOUSING
LIVE CASE STUDY
ARCHITECTURAL DESIGN VII
GROUP NO. 8
PARTH DAS
ABHISHEK AKODIYA
JAGDEEP KALER
VARSHA VERMA
VATSAL GARG
ASHISH BAGOTIYA
KISHAN MEENA
WHAT IS HOUSING?
Domestic architecture accommodates the group rather
than the unit and is therefore public as well as private. It
is familiar through the widespread development of
mass housing in the modern world, in which individuals
or families find living space either in multiple dwellings
or in single units produced in quantity.
01
CASE STUDIES
1. GOLF VIEW
APARTMENTS (D.D.A.
MIG FLATS), SAKET,
NEW DELHI (DDA)
2. ROCKVIEW
APARTMENTS
,VASANT KUNJ , DELHI
(DDA)
3. WAVE CITY DREAM
HOMES ,GHAZIABAD.
(PRIVATE BUILDER)
02
GOLF VIEW APARTMENTS
INTRODUCTION
• Golf View Apartments, got their name from the Qutub Golf Course, that oversees the site.
• Golf View Apartments by Delhi Development Authority is one of the popular residential project in
Saket, New Delhi.
•It has lavish and thoughtfully designed 500 residences.
•The project is located in a prime area with all facilities within the vicinity such as tailors, shops,
hospitals, and schools. The locality is very well-maintained with clean streets and beautiful gardens.
- Year of Construction ……………. 1968
- No. of Blocks …………………….......... 113
- No. of Dwelling units………………. 500
- Average Built up per Block…… 3326 sq ft
- Total Built up area…………………… 375838 sq ft
- Total plot area………………………….. 815312 sq ft
- Ground Coverage…………………….. 22.4%
- Height per block………………………. 10 m
- FAR (Floor Area Ratio)……………. 0.46 GOLF VIEW APARTMENTS
B, C & D BLOCK GATE
03
DESTINATION DISTANCE
(KM)
Malviya Nagar 1 km
Metro Station
Saket Metro Station 2 km
Hauz Khas Metro 3.5 km
Station
Max Super 2 km
Speciality Hospital
Select Citywalk 2 km
DPS International 2 km
Hauz Khas 4 km
SELECT CITYWALK
GOF VIEW APARTMENTS
HOSPITALS
METRO STATIONS
P ARK AND GREEN AR EA
SITE PLAN
NORTH 04
ABOUT SITE
ACCESS ROAD PARKING
GREEN SPACES WALKWAYS
PLANS
DDA BASIC PLAN CURRENT CHANGED PLAN
CHANGED PLAN
LIST OF CHANGES DONE
1. WALL BETWEEN DINING AND LIVING ROOM HAS BEEN
REMOVED TO GIVE ONE BIG HALL (STUDY+LIVING).
1 2 2. BALCONY HAS BEEN REPLACED WITH THE
CUPBOARDS TO HAVE EXTRA STORAGE SPACES
3. NEW BEDROOM WAS MADE AS THE RESIDENTS OF
5
LOWER FLOOR ENCROACHED UPON SOME LAND IN
FRONT OF THE HOUSE
6 4 3
4. BEDROOM HAS BEEN CONVERTED INTO DINING ROOM
ADJACENT TO THE KITCHEN
5. KITCHEN DOOR HAS BEEN MOVED TO THE OTHER WALL
7
6. NEW BEDROOM CONSTRUCTED AT THE TERRACE
SPACE
MOREOVER ALL THE WINDOWS, EXCEPT
A FEW HAVE BEEN REPLACED 7. NEW TERRACES MADE AS THE RESIDENCE BELOW
EXTENDED THEIR ZONES
REASONS FOR THE CHANGES
• THE APARTMENTS WERE MADE FOR A FAMILY OF TWO, BUT FAMILIES HAVE GROWN SINCE
AND THE SPACE FOR THEIR CHILDREN HAD TO BE MADE.
• FOR AESTHETIC REASONS ALMOST ALL THE RESIDENTS CHANGED THE STEEL FRAMED SLIT
WINDOWS.
• INCREASE IN STANDARD OF LIVING.
• ECONOMICAL AS COMPARED TO BUYING OR BUILDING A NEW HOUSE.
REASONS FOR THE CHANGES
ROCK VIEW APARTMENTS
INTRODUCTION
• Rock View Apartments by DDA is one of the popular residential project in Vasant Kunj, New Delhi.
• It has lavish yet thoughtfully designed 117 residences.
• It lays adjacent to JNU campus and is faced by Sanjay Van and Rock view gardens from which it
derived its name.
• It is a prime site, located in Vasant Kunj.
- No. of Blocks …………………….......... 44
- No. of Dwelling units………………. 117
- Average Built up per Block…… 3000 sq ft
- Total Built up area…………………… 132000 sq ft
- Total plot area………………………….. 334124 sq ft
- Ground Coverage…………………….. 15%
- Height per block………………………. 16 m
- FAR (Floor Area Ratio)……………. 0.40 ROCK VIEW APARTMENTS
03
SITE PLAN
NORTH 04
ABOUT SITE
ACCESS ROADS PARKING AND GREEN SPACES
PLANS
PLANS
PLANS
LIST OF CHANGES DONE
1. INCREASED THE LENGTH OF LIVING ROOM.
4
2. BEDROOM SHIFTED AND INCREASED THE SIZE OF
LOBBY.
2
1 3. UPPER FLOOR ADDED.
5 4. TOILET SIZE INCREASED.
3 5. TERRACE CONVERTED INTO BEDROOM.
6. BALCONIES EXTENED.
6
REASONS FOR THE CHANGES
• THE APARTMENTS WERE MADE FOR A FAMILY OF TWO, BUT FAMILIES HAVE GROWN SINCE
AND THE SPACE FOR THEIR CHILDREN HAD TO BE MADE.
• FOR AESTHETIC REASONS ALMOST ALL THE RESIDENTS CHANGED THE STEEL FRAMED SLIT
WINDOWS.
• INCREASE IN STANDARD OF LIVING.
• FURTHER NEEDS FOR LUXURY AND SPACE LED TO THE ENCROCHMENT OF TERRACE.
