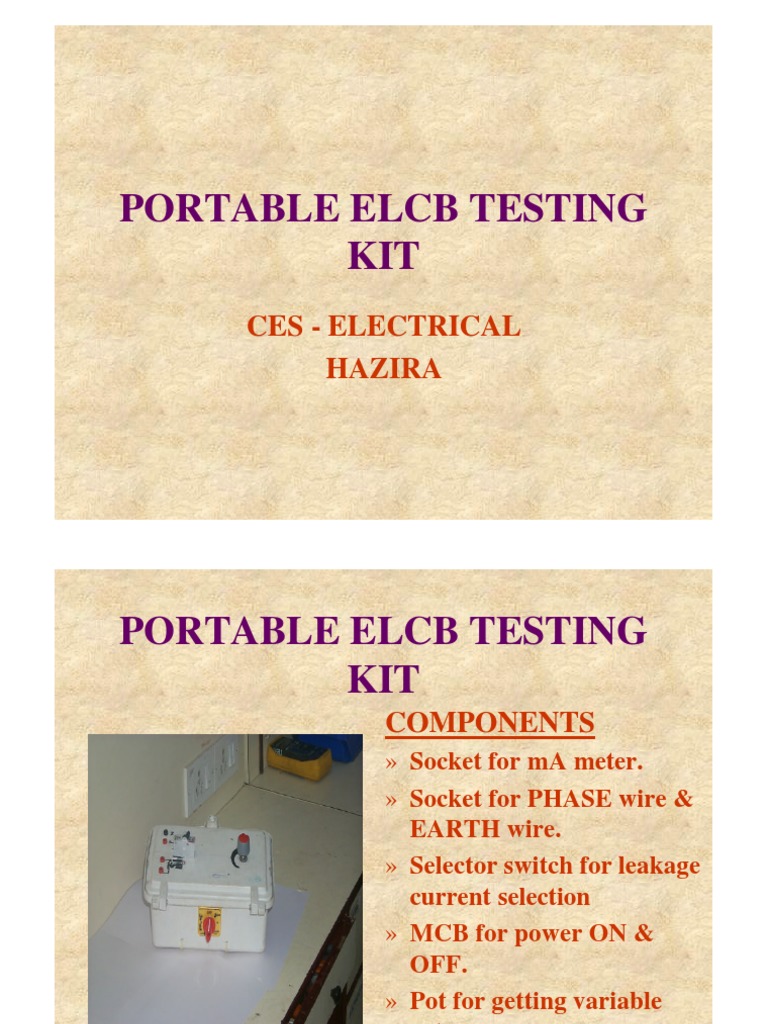

PORTABLE ELCB TESTING

KIT
CES - ELECTRICAL
HAZIRA
PORTABLE ELCB TESTING
KIT
COMPONENTS
» Socket for mA meter.
» Socket for PHASE wire &
EARTH wire.
» Selector switch for leakage
current selection
» MCB for power ON &
OFF.
» Pot for getting variable
mA.
ELCB TESTING KIT
INTERNAL
EXTERNAL CONNECTION
» Insert mA meter for
leakage current
measurement.
» Insert probe with
crocodile pin for Phase
connection.
» Insert probe with
crocodile pin for Earth
connection.
CONNECTION DIAGRAM
O
R Phase Y Phase O
O

EARTH BUS
O
O
O
O
O
O
O
Out going ckts Out going ckts
O
O
O
B Phase O

ELCB
O
O

NEUTRAL BUS
O
O
O
Out going ckts O
O
O
R Y B N O
O
O
O O O O O
m A P E O

m A Meter ELCB TEST KIT


ELCB TESTING AT FIELD
» For doing connection
put the ELCB & all out
going MCB’s “OFF”.
» Connect Phase wire to
“R” phase which is out
going from ELCB.
» Connect earth wire to
the earth bus bar.
» Put ELCB “ON”.
Cont…..
ELCB TESTING AT FIELD
» Put The MCB of ELCB
testing kit “ON”.
» Increase mA slowly till
ELCB gets tripped.
» Note down the tripping
value.
» Repeat above procedure
for each pole of the
ELCB.
