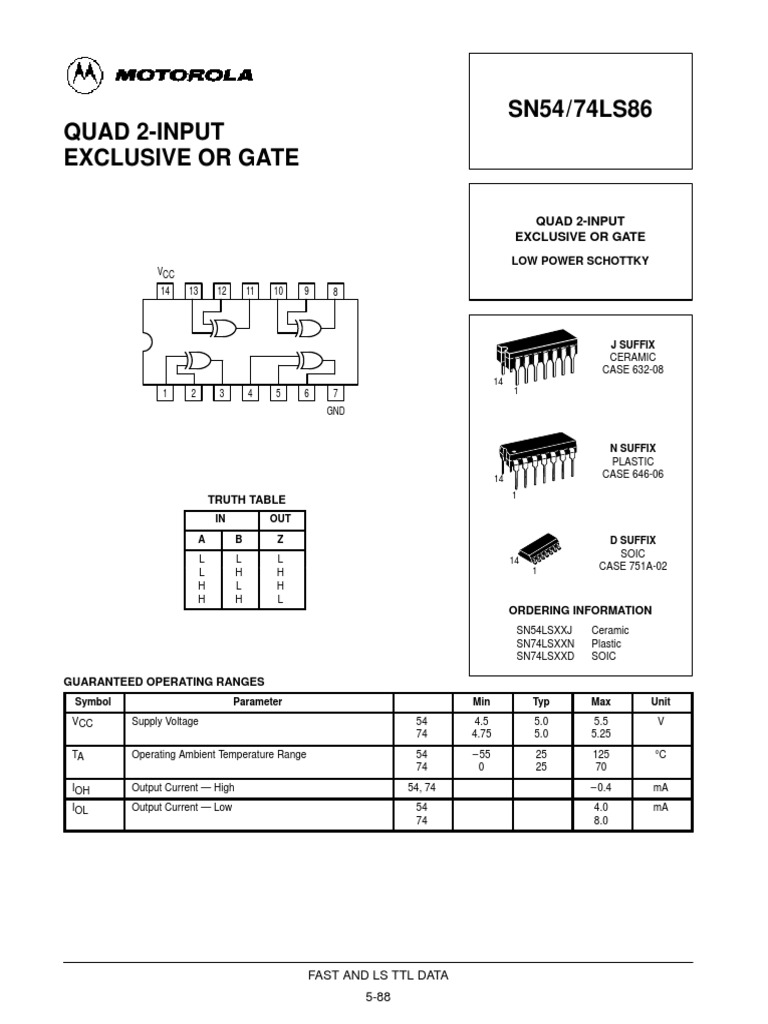

SN54/74LS86

QUAD 2-INPUT
EXCLUSIVE OR GATE

QUAD 2-INPUT
EXCLUSIVE OR GATE
LOW POWER SCHOTTKY
VCC
14 13 12 11 10 9 8

J SUFFIX
CERAMIC
CASE 632-08
14
1 2 3 4 5 6 7 1

GND

N SUFFIX
PLASTIC
14 CASE 646-06
1
TRUTH TABLE
IN OUT
A B Z D SUFFIX
L L L SOIC
14
1 CASE 751A-02
L H H
H L H
H H L
ORDERING INFORMATION
SN54LSXXJ Ceramic
SN74LSXXN Plastic
SN74LSXXD SOIC

GUARANTEED OPERATING RANGES

Symbol Parameter Min Typ Max Unit
VCC Supply Voltage 54 4.5 5.0 5.5 V
74 4.75 5.0 5.25
TA Operating Ambient Temperature Range 54 – 55 25 125 °C
74 0 25 70
IOH Output Current — High 54, 74 – 0.4 mA
IOL Output Current — Low 54 4.0 mA
74 8.0

FAST AND LS TTL DATA

5-88
 SN54/74LS86

DC CHARACTERISTICS OVER OPERATING TEMPERATURE RANGE (unless otherwise specified)

Limits
Symbol Parameter Min Typ Max Unit Test Conditions
Guaranteed Input HIGH Voltage for
VIH Input HIGH Voltage 2.0 V
All Inputs
54 0.7 Guaranteed Input LOW Voltage for
VIL Input LOW Voltage V
74 0.8 All Inputs

VIK Input Clamp Diode Voltage – 0.65 – 1.5 V VCC = MIN, IIN = – 18 mA
54 2.5 3.5 V VCC = MIN, IOH = MAX, VIN = VIH
VOH Output HIGH Voltage
74 2.7 3.5 V or VIL per Truth Table

54, 74 0.25 0.4 V IOL = 4.0 mA VCC = VCC MIN,

VOL Output LOW Voltage VIN = VIL or VIH
74 0.35 0.5 V IOL = 8.0 mA per Truth Table

40 µA VCC = MAX, VIN = 2.7 V

IIH Input HIGH Current
0.2 mA VCC = MAX, VIN = 7.0 V
IIL Input LOW Current – 0.8 mA VCC = MAX, VIN = 0.4 V
IOS Short Circuit Current (Note 1) – 20 –100 mA VCC = MAX
ICC Power Supply Current 10 mA VCC = MAX
Note 1: Not more than one output should be shorted at a time, nor for more than 1 second.

AC CHARACTERISTICS (TA = 25°C)

Limits
Symbol Parameter Min Typ Max Unit Test Conditions
tPLH Propagation Delay, 12 23
ns
tPHL Other Input LOW 10 17 VCC = 5.0 V
tPLH Propagation Delay, 20 30 CL = 15 pF
ns
tPHL Other Input HIGH 13 22

FAST AND LS TTL DATA

5-89
