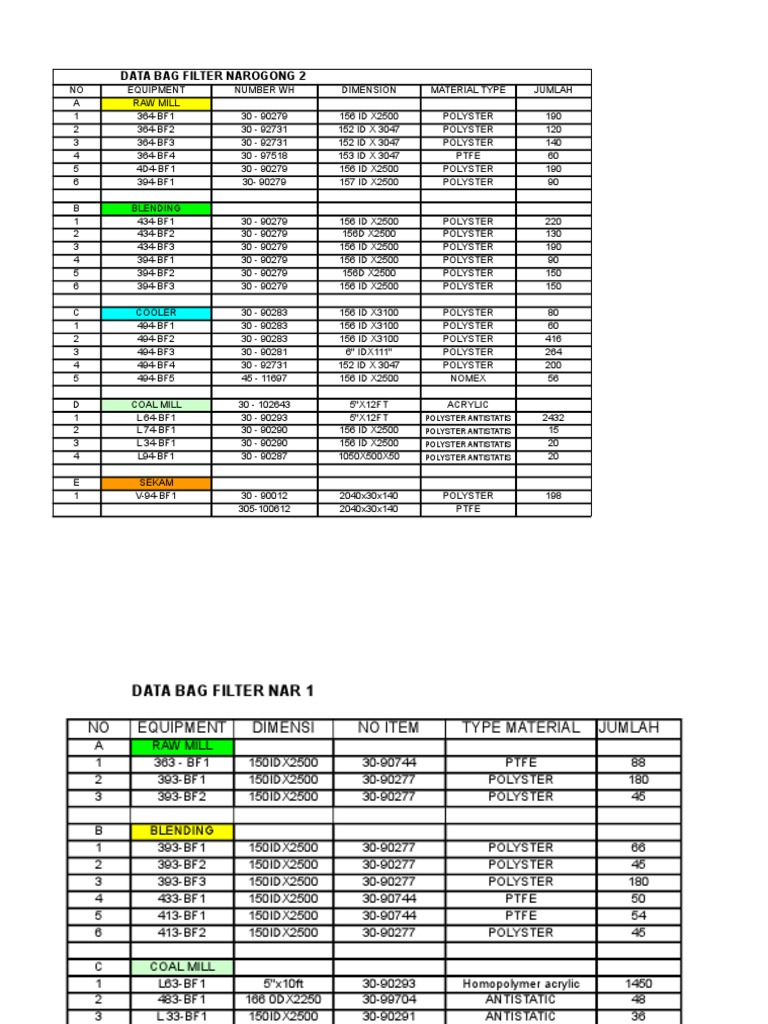

DATA BAG FILTER NAROGONG 2

NO EQUIPMENT NUMBER WH DIMENSION MATERIAL TYPE JUMLAH


A RAW MILL
1 364-BF1 30 - 90279 156 ID X2500 POLYSTER 190
2 364-BF2 30 - 92731 152 ID X 3047 POLYSTER 120
3 364-BF3 30 - 92731 152 ID X 3047 POLYSTER 140
4 364-BF4 30 - 97518 153 ID X 3047 PTFE 60
5 4D4-BF1 30 - 90279 156 ID X2500 POLYSTER 190
6 394-BF1 30- 90279 157 ID X2500 POLYSTER 90

B BLENDING
1 434-BF1 30 - 90279 156 ID X2500 POLYSTER 220
2 434-BF2 30 - 90279 156D X2500 POLYSTER 130
3 434-BF3 30 - 90279 156 ID X2500 POLYSTER 190
4 394-BF1 30 - 90279 156 ID X2500 POLYSTER 90
5 394-BF2 30 - 90279 156D X2500 POLYSTER 150
6 394-BF3 30 - 90279 156 ID X2500 POLYSTER 150

C COOLER 30 - 90283 156 ID X3100 POLYSTER 80


1 494-BF1 30 - 90283 156 ID X3100 POLYSTER 60
2 494-BF2 30 - 90283 156 ID X3100 POLYSTER 416
3 494-BF3 30 - 90281 6" IDX111" POLYSTER 264
4 494-BF4 30 - 92731 152 ID X 3047 POLYSTER 200
5 494-BF5 45 - 11697 156 ID X2500 NOMEX 56

D COAL MILL 30 - 102643 5"X12FT ACRYLIC


1 L 64-BF1 30 - 90293 5"X12FT POLYSTER ANTISTATIS 2432
2 L 74-BF1 30 - 90290 156 ID X2500 POLYSTER ANTISTATIS 15
3 L 34-BF1 30 - 90290 156 ID X2500 POLYSTER ANTISTATIS 20
4 L94-BF1 30 - 90287 1050X500X50 POLYSTER ANTISTATIS 20

E SEKAM
1 V-94-BF1 30 - 90012 2040x30x140 POLYSTER 198
305-100612 2040x30x140 PTFE
DATA BAG FILTER NAR 1

NO EQUIPMENT DIMENSI NO ITEM TYPE MATERIAL JUMLAH


A RAW MILL
1 363 - BF1 150IDX2500 30-90744 PTFE 88
2 393-BF1 150IDX2500 30-90277 POLYSTER 180
3 393-BF2 150IDX2500 30-90277 POLYSTER 45

B BLENDING
1 393-BF1 150IDX2500 30-90277 POLYSTER 66
2 393-BF2 150IDX2500 30-90277 POLYSTER 45
3 393-BF3 150IDX2500 30-90277 POLYSTER 180
4 433-BF1 150IDX2500 30-90744 PTFE 50
5 413-BF1 150IDX2500 30-90744 PTFE 54
6 413-BF2 150IDX2500 30-90277 POLYSTER 45

C COAL MILL
1 L63-BF1 5"x10ft 30-90293 Homopolymer acrylic 1450
2 483-BF1 166 0DX2250 30-99704 ANTISTATIC 48
3 L 33-BF1 150IDX2500 30-90291 ANTISTATIC 36
4 L93-BF1 150IDX2500 305-99021 PTFE 24

D COOLER
1 493-BF1 150IDX2500 30-90288 NOMEX 144
2 493-BF2 150IDX2500 30-90277 POLYSTER 90
3 493-BF3 150IDX2500 30-90277 POLYSTER 90
4 493-BF4 150IDX2500 30-90277 POLYSTER 50
DATA BAG FILTER AREA HRC / FM NAR 1
NO EQUIPMENT DIMENSI NUMBER WH MATERIAL TYPE JUMLAH
A HRC UTARA
1 541-BF1 5"X10FT 30-90278 POLYSTER 672
2 59A-BF1 2040X30X140 30-90012 POLYSTER 198
3 541-BF2 152X3047 30-92731 POLYSTER 100
4 531-BF1 152X3047 30-92731 POLYSTER 120
5 531-BF3 102ODX1830 30-102448 PTFE 77
6 51A-BF3 5"X10FT 30-90278 POLYSTER 144
7 541-BF3 152X3047 30-97518 PTFE 120
8 531-BF2 152X3047 30-97518 PTFE 80
9 541-BF4 152X3047 30-92731 POLYSTER 60
10 54A-BF2 152X3047 30-92731 POLYSTER 60
11 K9A-BF1 5"X10FT 30-90278 POLYSTER 99
12 55A-BF1 5"X10FT 30-90278 POLYSTER 144
13 53A-WF4 1050X500X50 30-90287 POLYSTER 20

B HRC SELATAN
1 542-BF1 5"X10FT 30-90278 POLYSTER 672
2 51A-BF4 5"X10FT 30-90278 POLYSTER 120
3 54A-BF1 116X2045 30-90280 POLYSTER 336
4 532-BF1 152X3047 30-92731 POLYSTER 120
5 532-BF3 102ODX1830 30-102448 PTFE 77
6 542-BF3 152X3047 30-92731 POLYSTER 60
7 532-BF2 152X3047 30-97518 PTFE 80
8 51A-BF1 5"X10FT 30-90278 POLYSTER 144
9 54A-BF4 5"X10FT 30-90278 POLYSTER 120

C FM NAR1
1 59A-BF1 2040X30X140 30-90012 POLYSTER 88
2 562-BF1 2040X30X140 30-90012 POLYSTER 2700
3 563-BF1 2040X30X140 30-90012 POLYSTER 2700
4 564-BF1 2040X30X140 30-90012 POLYSTER 3464
5 53A-BFA 116X2045 30-90280 POLYSTER NO ACTIVE
DATA BAG FILTER NAROGONG FM NAR 2
NO EQUIPMENT NUMBER WH DIMENSION MATERIAL TYPE JUMLAH
A TRANSPORT
1 51B-BF1 30-92731 152x3047 Polyster 120
2 51B-BF2 30-90279 156X2500 Polyster 56
3 51B-BF3 30-90279 156X2500 Polyster 160
4 51B-BF4 30-92731 152x3047 Polyster 100

FM 5
1 515-BF1 30-90279 156X2500 Polyster 140
2 535-BF1 30-90279 156X2500 Polyster 140
3 535-BF2 30-92731 152x3047 Polyster 100
4 545-BF1 30-90283 156X3100 Polyster 256
5 545-BF2 30-92731 152x3047 Polyster 100
6 565-BF1 30-90284 5"X12ft Acrylic 512 OFF
7 565-BF1 30-92739 152x3647 Homopolymer 600
8 565-BF4 30-92731 152x3047 Polyster
9 565-BF3 30-90284 5"X12ft Acrylic 704

TOP SILO
1 59B-BF1 30-90283 156X3100 Polyster 256

FM 6
1 516-BF1 30-90279 156X2500 Polyster 140
2 536-BF1 30-90279 156X2500 Polyster 140
3 546-BF1 30-90283 156X3100 Polyster 256
4 546-BF2 30-92731 152x3047 Polyster 100
5 566-BF1 30 - 90282 5 "x10 ft Homopolymer 512
6 566-BF4 30-92731 152x3047 Polyster 80
7 566-BF3 30-90284 5"X12ft Acrylic 704
8 TO4-BF1 30-90279 156X2500 Polyster 140
DATA BAG FILTER NAROGONG SILO SEMEN NAR1
NO EQUIPMENT NUMBER WH DIMENSION MATERIAL TYPE JUMLAH
1 59A-BF2 116X2045 30-90280 Polyster 96
2 59A-BF3 Polyster 120
3 59A-BF4 Polyster
4 59A-BF5 Polyster
5 59A-BF6 5"X10FT 30-90278 Polyster 144
7 59A-BF7 Polyster 120
8 59A-BF8 116X2045 30-90280 Polyster 120
9 59A-BF9 150x2500 30-90277 Polyster 348
10 59A-BF10 2040X30X140 30-90012 Polyster 176
