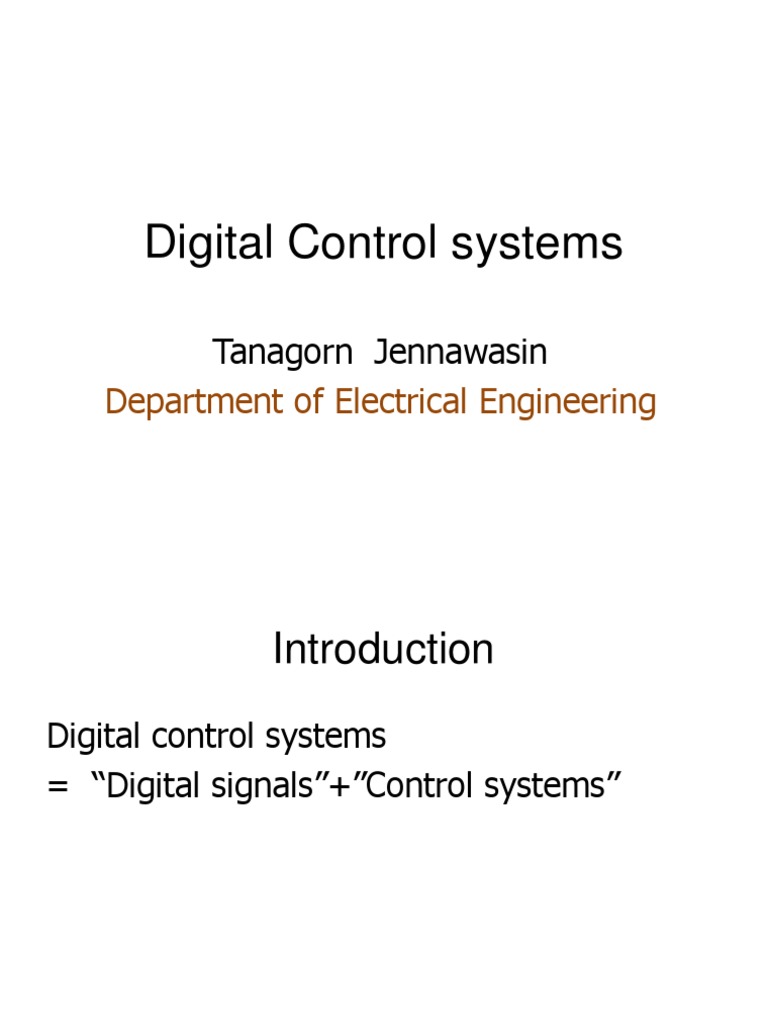

Digital Control systems
Tanagorn Jennawasin
Department of Electrical Engineering
Introduction
Digital control systems
= “Digital signals”+”Control systems”
Continuous-time vs. Discrete-time
• Continuous-time signals
- defined over a continuous range of time
• Discrete-time signals
- defined only at discrete instants of time
- can be considered as a sequence of discrete values
CT signal DT signal
Analog vs. Digital
• Analog signals
- continuous in both time and values
• Digital signals
- discrete-time signals with quantized values or finite-
precision values
Analog signal Digital signal
Control Systems (1)
reference error control input output
r (t ) e (t ) u (t ) y(t )
System (plant) to be
Controller
+ controlled
-
Objective:
1) Closed-loop stable
2) Small steady-state error
3) Good transient response
4) Disturbance rejection
Control Systems (2)
• Mathematical modeling
- Transfer functions or state-space representations
• Controller structure
- e.g. PID controllers, 1-st order controllers
• Design methods
- Root locus, Nyquist or Bode plots, pole placement,
etc.
Digital Control Systems (1)
reference error output
Digital
A/D controller
D/A Plant
+
-
A/D Converter: change analog signal to digital signal
D/A Converter: change digital signal to analog signal
Digital controller: implemented in digital computers, or in
microprocessors
Digital Control Systems (2)
Simplified version of a digital control systems
ZOH
r (t ) e(t ) Sampler u (t ) y(t )
C( z) Plant
+ T
-
Sampler:
Zero-order hold:
C ( z ) : Discrete-time controller to be designed
Why Digital Control?
• Easy to implement complicated control algorithms
• Easy to modify the controller
• Controller parameters unchanged with variations in
environment
• Low cost, low weight, and low power dissipation
• High noise tolerance
Applications
Disadvantages
• Sampling and quantization process will degrade system
performance
• Software errors
• Need power supply
