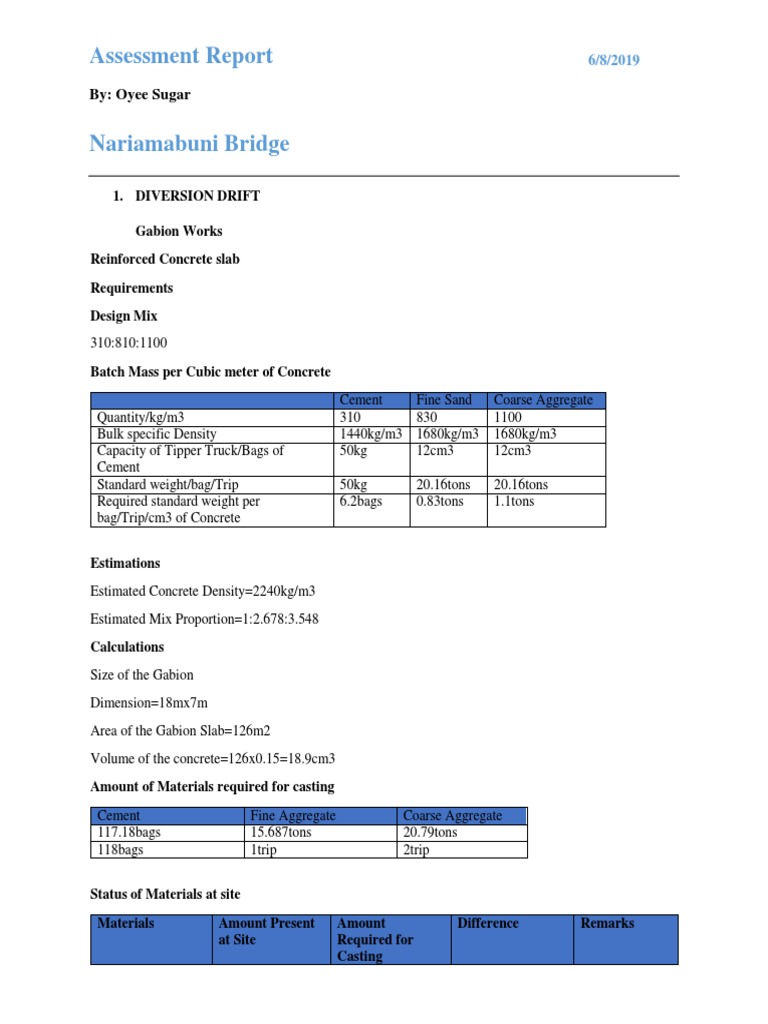

Assessment Report 6/8/2019

By: Oyee Sugar

Nariamabuni Bridge

1. DIVERSION DRIFT

Gabion Works
Reinforced Concrete slab
Requirements
Design Mix
310:810:1100
Batch Mass per Cubic meter of Concrete
Cement Fine Sand Coarse Aggregate
Quantity/kg/m3 310 830 1100
Bulk specific Density 1440kg/m3 1680kg/m3 1680kg/m3
Capacity of Tipper Truck/Bags of 50kg 12cm3 12cm3
Cement
Standard weight/bag/Trip 50kg 20.16tons 20.16tons
Required standard weight per 6.2bags 0.83tons 1.1tons
bag/Trip/cm3 of Concrete

Estimations
Estimated Concrete Density=2240kg/m3
Estimated Mix Proportion=1:2.678:3.548
Calculations
Size of the Gabion
Dimension=18mx7m
Area of the Gabion Slab=126m2
Volume of the concrete=126x0.15=18.9cm3
Amount of Materials required for casting
Cement Fine Aggregate Coarse Aggregate
117.18bags 15.687tons 20.79tons
118bags 1trip 2trip

Status of Materials at site

Materials Amount Present Amount Difference Remarks

at Site Required for
Casting
 Cement 264 118 146 ok

Fine Aggregate 2trips 1trip(12cm3 1trip ok

Tipper Truck Size)
Coarse Aggregate 2trips 2Trips(12cm3 0 ok
Tipper Truck Size)
Polythene Bag 126sqmtre 126sqmtre 0 ok
BRC 2rolls 11/2 Rolls 1/2Roll ok
Formworks and Provisional Provisional Provisional ok
supports
Water Tank 4,Crestank,5000ltr 2,5000ltr Crestank 2 ok

Equipments and Tools

Equipments and Available at site Required for Difference Remarks

Tools Casting
Tipper Truck 2 2 0 ok
Diana Truck 1 1 0 ok
Porker Complete 2 2 0 ok
Unit
Water Pump 2 2 0 ok
Complete

2. Construction Camp Site

Status of Progress

Activities Stage Comment Status Expected Expected Remarks

start Date completed
start
Construction of One Remaining One 50% 10th /8/19 13th /9/19
Staff offices Office prefabrication office
Complete to be installed
Construction of Structure Remaining 65% 8th/8/19 8th/8/19 Needs
Dinning and Kitchen completed improving the Floor 8’’x1’’Timber
and installing pcs
furniture for sitting
Construction of 4 stances 2 stances for UNRA 65% 9th/8/19 11th /9/19
latrine for TSL and complete Official remaining
UNRA officials to be cast
Installation of Lacking Not ok 13th /9/19 13th /8/19 Need high up
Container for crane
workshop and
storage
Landscaping Lacking Not ok 8th /8/19 8th /8/19
Generator shed Lacking Not ok 8th/8/19 8th /8/19
Water tank+Shed Lacking Not ok 9th /8/19 9th /8/19 Need welder and
a welding
machine
Electricity Lacking Not ok 14th /8/19 14th /8/19
Connection

3. Gravel works for Road Diversion

 Item Status Remarks Expected Start Expected date
Date of completion
Sign Post Lacking Shall be Installed before 8th /8/19 8th /8/19
Authorizing the road
diversion for use
Drainage channel along Lacking Not Yet Started 7th /8/19 7th /8/19
Diversion approach

Dismantling of existing Bailey Lacking Not yet Started 15th /8/19 25th /8/19
Bridge Structure

8th /8/19-8th
Kitchen
Sign Post
Generator shed
Huts
Landscaping

9th /8/19-9th
Water Tank+shed
Latrine
Huts

10th/8/19-13th
Prefabrication office

13th /8/19-13th
Installation of containers for workshop

14th/8/19-17th
Electricity Connection

15th /9/19-25th
Dismantling of existing Bailey Bridge Structure
