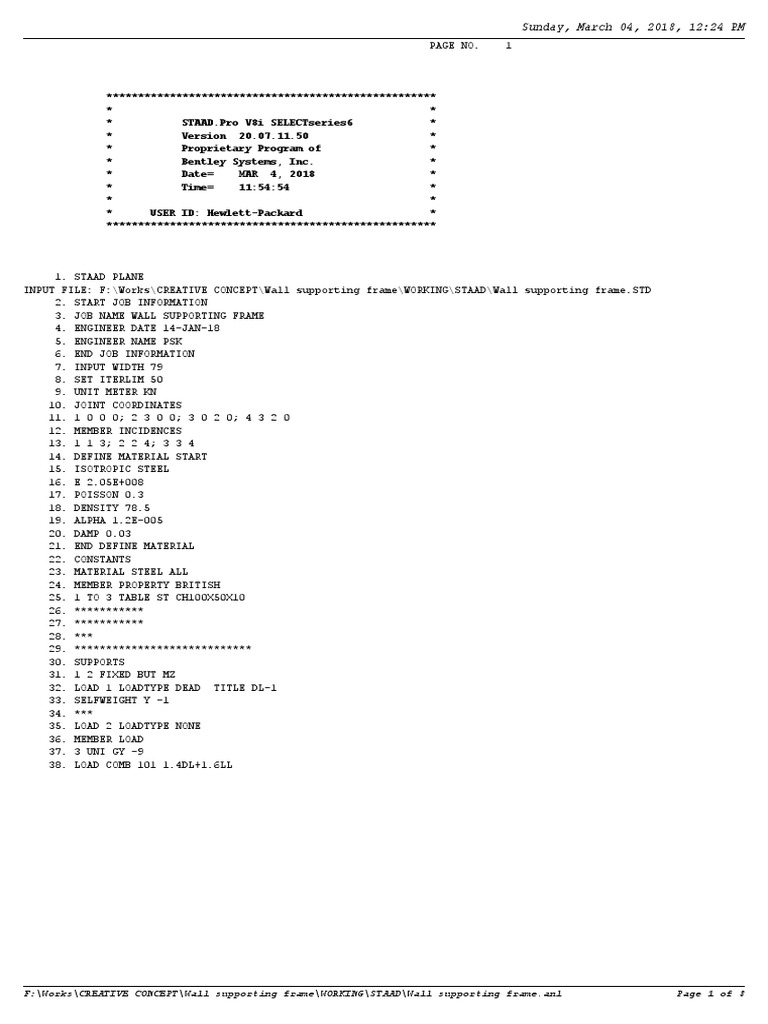

Sunday, March 04, 2018, 12:24 PM

PAGE NO. 1

****************************************************
* *
* STAAD.Pro V8i SELECTseries6 *
* Version 20.07.11.50 *
* Proprietary Program of *
* Bentley Systems, Inc. *
* Date= MAR 4, 2018 *
* Time= 11:54:54 *
* *
* USER ID: Hewlett-Packard *
****************************************************

1. STAAD PLANE
INPUT FILE: F:\Works\CREATIVE CONCEPT\Wall supporting frame\WORKING\STAAD\Wall supporting frame.STD
2. START JOB INFORMATION
3. JOB NAME WALL SUPPORTING FRAME
4. ENGINEER DATE 14-JAN-18
5. ENGINEER NAME PSK
6. END JOB INFORMATION
7. INPUT WIDTH 79
8. SET ITERLIM 50
9. UNIT METER KN
10. JOINT COORDINATES
11. 1 0 0 0; 2 3 0 0; 3 0 2 0; 4 3 2 0
12. MEMBER INCIDENCES
13. 1 1 3; 2 2 4; 3 3 4
14. DEFINE MATERIAL START
15. ISOTROPIC STEEL
16. E 2.05E+008
17. POISSON 0.3
18. DENSITY 78.5
19. ALPHA 1.2E-005
20. DAMP 0.03
21. END DEFINE MATERIAL
22. CONSTANTS
23. MATERIAL STEEL ALL
24. MEMBER PROPERTY BRITISH
25. 1 TO 3 TABLE ST CH100X50X10
26. ***********
27. ***********
28. ***
29. ****************************
30. SUPPORTS
31. 1 2 FIXED BUT MZ
32. LOAD 1 LOADTYPE DEAD TITLE DL-1
33. SELFWEIGHT Y -1
34. ***
35. LOAD 2 LOADTYPE NONE
36. MEMBER LOAD
37. 3 UNI GY -9
38. LOAD COMB 101 1.4DL+1.6LL

F:\Works\CREATIVE CONCEPT\Wall supporting frame\WORKING\STAAD\Wall supporting frame.anl Page 1 of 8

 Sunday, March 04, 2018, 12:24 PM
STAAD PLANE -- PAGE NO. 2

39. 1 1.4 2 1.6

40. LOAD COMB 201 1.0DL+1.0LL
41. 1 1.0 2 1.0
42. PERFORM ANALYSIS PRINT ALL

P R O B L E M S T A T I S T I C S
-----------------------------------

NUMBER OF JOINTS 4 NUMBER OF MEMBERS 3

NUMBER OF PLATES 0 NUMBER OF SOLIDS 0
NUMBER OF SURFACES 0 NUMBER OF SUPPORTS 2

SOLVER USED IS THE IN-CORE ADVANCED MATH SOLVER

TOTAL PRIMARY LOAD CASES = 2, TOTAL DEGREES OF FREEDOM = 8

TOTAL LOAD COMBINATION CASES = 2 SO FAR.

F:\Works\CREATIVE CONCEPT\Wall supporting frame\WORKING\STAAD\Wall supporting frame.anl Page 2 of 8

 Sunday, March 04, 2018, 12:24 PM
STAAD PLANE -- PAGE NO. 3

LOADING 1 LOADTYPE DEAD TITLE DL-1

-----------

SELFWEIGHT Y -1.000

ACTUAL WEIGHT OF THE STRUCTURE = 0.714 KN

LOADING 2 LOADTYPE NONE

-----------

MEMBER LOAD - UNIT KN METE

MEMBER UDL L1 L2 CON L LIN1 LIN2

3 -9.0000 GY 0.00 3.00

FOR LOADING - 1
APPLIED JOINT EQUIVALENT LOADS
JOINT FORCE-X FORCE-Y FORCE-Z MOM-X MOM-Y MOM-Z
1 0.00000E+00-1.02050E-01 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
2 0.00000E+00-1.02050E-01 0.00000E+00 0.00000E+00 0.00000E+00 0.00000E+00
3 0.00000E+00-2.55125E-01 0.00000E+00 0.00000E+00 0.00000E+00-7.65375E-02
4 0.00000E+00-2.55125E-01 0.00000E+00 0.00000E+00 0.00000E+00 7.65375E-02

STATIC LOAD/REACTION/EQUILIBRIUM SUMMARY FOR CASE NO. 1

LOADTYPE DEAD TITLE DL-1

CENTER OF FORCE BASED ON Y FORCES ONLY (METE).

(FORCES IN NON-GLOBAL DIRECTIONS WILL INVALIDATE RESULTS)

X = 0.149999999E+01
Y = 0.142857141E+01
Z = 0.000000000E+00

***TOTAL APPLIED LOAD ( KN METE ) SUMMARY (LOADING 1 )

SUMMATION FORCE-X = 0.00
SUMMATION FORCE-Y = -0.71
SUMMATION FORCE-Z = 0.00

SUMMATION OF MOMENTS AROUND THE ORIGIN-

MX= 0.00 MY= 0.00 MZ= -1.07

***TOTAL REACTION LOAD( KN METE ) SUMMARY (LOADING 1 )

SUMMATION FORCE-X = 0.00
SUMMATION FORCE-Y = 0.71
SUMMATION FORCE-Z = 0.00

F:\Works\CREATIVE CONCEPT\Wall supporting frame\WORKING\STAAD\Wall supporting frame.anl Page 3 of 8

 Sunday, March 04, 2018, 12:24 PM
STAAD PLANE -- PAGE NO. 4

SUMMATION OF MOMENTS AROUND THE ORIGIN-

MX= 0.00 MY= 0.00 MZ= 1.07

MAXIMUM DISPLACEMENTS ( CM /RADIANS) (LOADING 1)

MAXIMUMS AT NODE
X = -1.48708E-05 4
Y = -1.91463E-04 4
Z = 0.00000E+00 0
RX= 0.00000E+00 0
RY= 0.00000E+00 0
RZ= -8.33602E-05 3

EXTERNAL AND INTERNAL JOINT LOAD SUMMARY ( KN METE )-

JT EXT FX/ EXT FY/ EXT FZ/ EXT MX/ EXT MY/ EXT MZ/
INT FX INT FY INT FZ INT MX INT MY INT MZ

SUPPORT=1
1 0.00 -0.10 0.00 0.00 0.00 0.00
-0.03 -0.26 0.00 0.00 0.00 0.00 111110

2 0.00 -0.10 0.00 0.00 0.00 0.00

0.03 -0.26 0.00 0.00 0.00 0.00 111110

FOR LOADING - 2
APPLIED JOINT EQUIVALENT LOADS
JOINT FORCE-X FORCE-Y FORCE-Z MOM-X MOM-Y MOM-Z
3 0.00000E+00-1.35000E+01 0.00000E+00 0.00000E+00 0.00000E+00-6.75000E+00
4 0.00000E+00-1.35000E+01 0.00000E+00 0.00000E+00 0.00000E+00 6.75000E+00

STATIC LOAD/REACTION/EQUILIBRIUM SUMMARY FOR CASE NO. 2

LOADTYPE NONE

CENTER OF FORCE BASED ON Y FORCES ONLY (METE).

(FORCES IN NON-GLOBAL DIRECTIONS WILL INVALIDATE RESULTS)

X = 0.150000001E+01
Y = 0.199999999E+01
Z = 0.000000000E+00

***TOTAL APPLIED LOAD ( KN METE ) SUMMARY (LOADING 2 )

SUMMATION FORCE-X = 0.00
SUMMATION FORCE-Y = -27.00
SUMMATION FORCE-Z = 0.00

SUMMATION OF MOMENTS AROUND THE ORIGIN-

MX= 0.00 MY= 0.00 MZ= -40.50

***TOTAL REACTION LOAD( KN METE ) SUMMARY (LOADING 2 )

SUMMATION FORCE-X = -0.00
SUMMATION FORCE-Y = 27.00
SUMMATION FORCE-Z = 0.00

F:\Works\CREATIVE CONCEPT\Wall supporting frame\WORKING\STAAD\Wall supporting frame.anl Page 4 of 8

 Sunday, March 04, 2018, 12:24 PM
STAAD PLANE -- PAGE NO. 5

SUMMATION OF MOMENTS AROUND THE ORIGIN-

MX= 0.00 MY= 0.00 MZ= 40.50

MAXIMUM DISPLACEMENTS ( CM /RADIANS) (LOADING 2)

MAXIMUMS AT NODE
X = 1.31154E-03 3
Y = -1.01313E-02 4
Z = 0.00000E+00 0
RX= 0.00000E+00 0
RY= 0.00000E+00 0
RZ= -7.35171E-03 3

EXTERNAL AND INTERNAL JOINT LOAD SUMMARY ( KN METE )-

JT EXT FX/ EXT FY/ EXT FZ/ EXT MX/ EXT MY/ EXT MZ/
INT FX INT FY INT FZ INT MX INT MY INT MZ

SUPPORT=1
1 0.00 0.00 0.00 0.00 0.00 0.00
-2.33 -13.50 0.00 0.00 0.00 -0.00 111110

2 0.00 0.00 0.00 0.00 0.00 0.00

2.33 -13.50 0.00 0.00 0.00 -0.00 111110

LOAD COMBINATION NO. 101

1.4DL+1.6LL

LOADING- 1. 2.
FACTOR - 1.40 1.60

LOAD COMBINATION NO. 201

1.0DL+1.0LL

LOADING- 1. 2.
FACTOR - 1.00 1.00

************ END OF DATA FROM INTERNAL STORAGE ************

43. ***************************
44. PARAMETER 1
45. CODE BS5950
46. BEAM 3 ALL
47. CB 1 ALL
48. PY 275000 ALL
49. KY 1.2 MEMB 1 2
50. KZ 1.2 ALL
51. UNL 1.0 ALL
52. CHECK CODE ALL

F:\Works\CREATIVE CONCEPT\Wall supporting frame\WORKING\STAAD\Wall supporting frame.anl Page 5 of 8

 Sunday, March 04, 2018, 12:24 PM
STAAD PLANE -- PAGE NO. 6

STAAD.Pro CODE CHECKING - (BSI )

***********************

PROGRAM CODE REVISION V2.13_5950-1_2000

F:\Works\CREATIVE CONCEPT\Wall supporting frame\WORKING\STAAD\Wall supporting frame.anl Page 6 of 8

 Sunday, March 04, 2018, 12:24 PM
STAAD PLANE -- PAGE NO. 7

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

1 ST CH100X50X10 PASS BS-4.8.3.3.1 0.914 101

22.08 C 0.00 7.53 -
2 ST CH100X50X10 PASS BS-4.8.3.3.1 0.914 101
22.08 C 0.00 7.53 -
3 ST CH100X50X10 PASS BS-4.8.3.3.1 0.836 101
3.77 C 0.00 8.83 -

************** END OF TABULATED RESULT OF DESIGN **************

53. *****COLUMN
54. *****MAIN BEAM
55. FINISH

*********** END OF THE STAAD.Pro RUN ***********

**** DATE= MAR 4,2018 TIME= 11:54:57 ****

F:\Works\CREATIVE CONCEPT\Wall supporting frame\WORKING\STAAD\Wall supporting frame.anl Page 7 of 8
