CE 13001: Engineering Drawing and Graphics (Section: 02)
CE 13001: Engineering Drawing and Graphics (Section: 02)

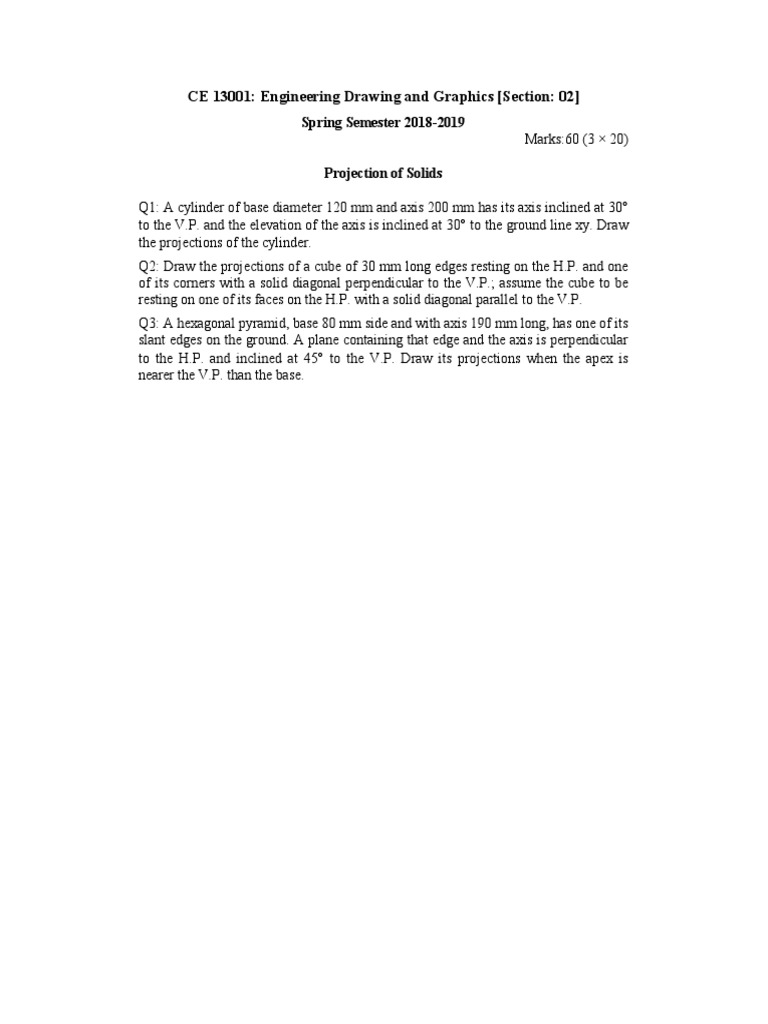

Projection of Solids
Q1: A cylinder of base diameter 120 mm and axis 200 mm has its axis inclined at 30
to the V.P. and the elevation of the axis is inclined at 30 to the ground line xy. Draw
the projections of the cylinder.
Q2: Draw the projections of a cube of 30 mm long edges resting on the H.P. and one
of its corners with a solid diagonal perpendicular to the V.P.; assume the cube to be
resting on one of its faces on the H.P. with a solid diagonal parallel to the V.P.
Q3: A hexagonal pyramid, base 80 mm side and with axis 190 mm long, has one of its
slant edges on the ground. A plane containing that edge and the axis is perpendicular
to the H.P. and inclined at 45 to the V.P. Draw its projections when the apex is
nearer the V.P. than the base.
