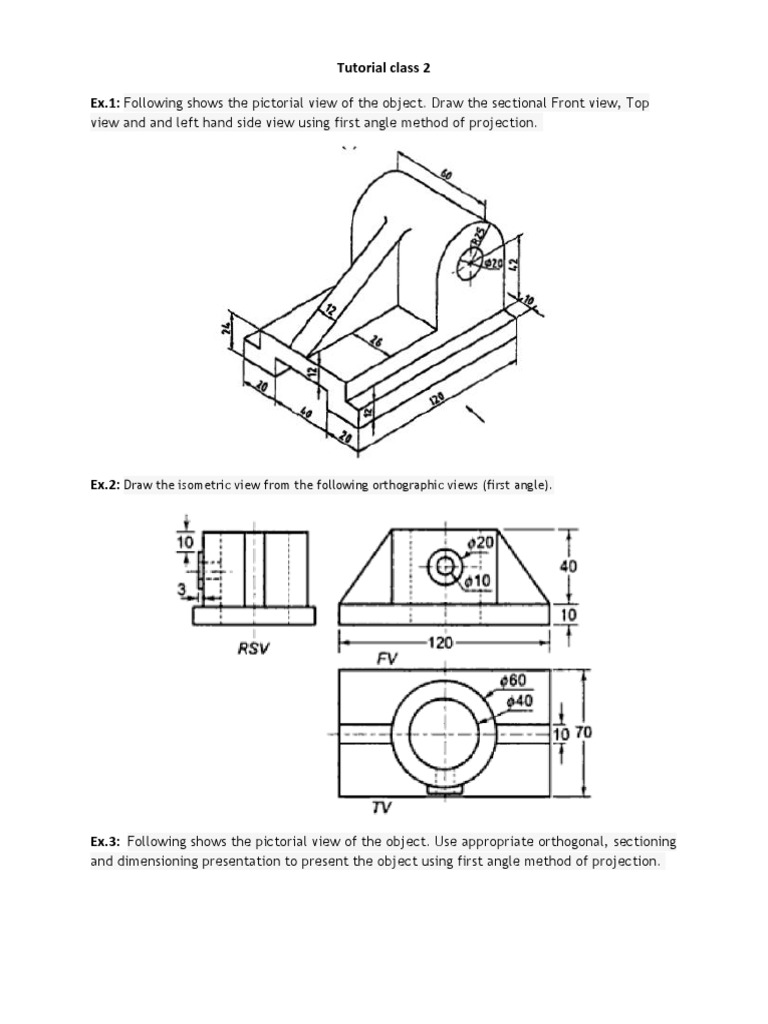

Tutorial class 2

Ex.1: Following shows the pictorial view of the object. Draw the sectional Front view, Top
view and and left hand side view using first angle method of projection.

Ex.2: Draw the isometric view from the following orthographic views (first angle).

Ex.3: Following shows the pictorial view of the object. Use appropriate orthogonal, sectioning
and dimensioning presentation to present the object using first angle method of projection.
Ex. 4. Two machine parts are to be fastened together by an M16 bolt (70mm length and
40mmthread length), a plain washer and a nut. Draw the fastening assembly

20

20
