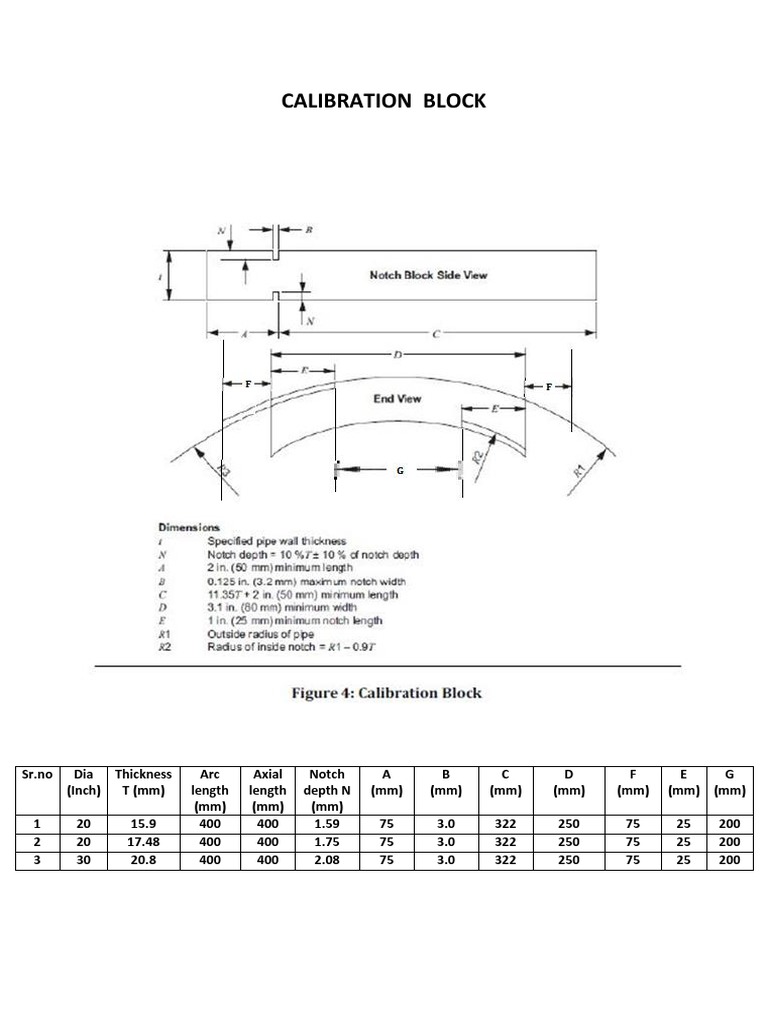

    CALIBRATION BLOCK

    Sr.no Dia Thickness Arc Axial Notch A B C D F E G


    (Inch) T (mm) length length depth N (mm) (mm) (mm) (mm) (mm) (mm) (mm)
    (mm) (mm) (mm)
    1 20 15.9 400 400 1.59 75 3.0 322 250 75 25 200
    2 20 17.48 400 400 1.75 75 3.0 322 250 75 25 200
    3 30 20.8 400 400 2.08 75 3.0 322 250 75 25 200
    Notch depth : 3mm
    Notch length : 25mm
