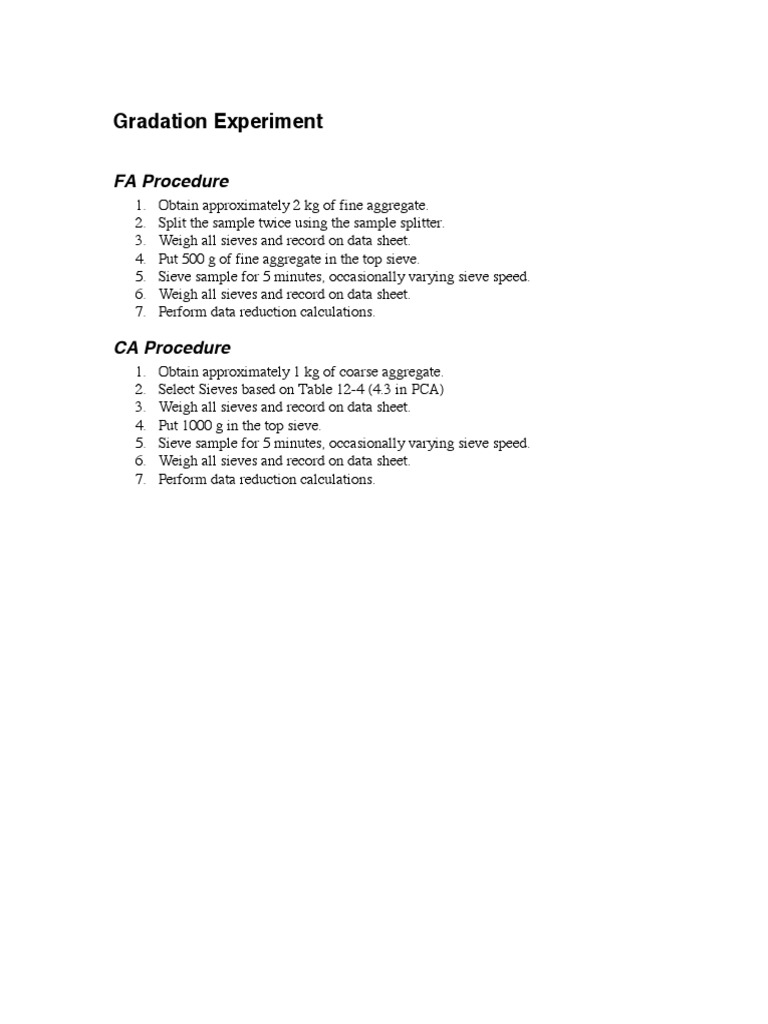

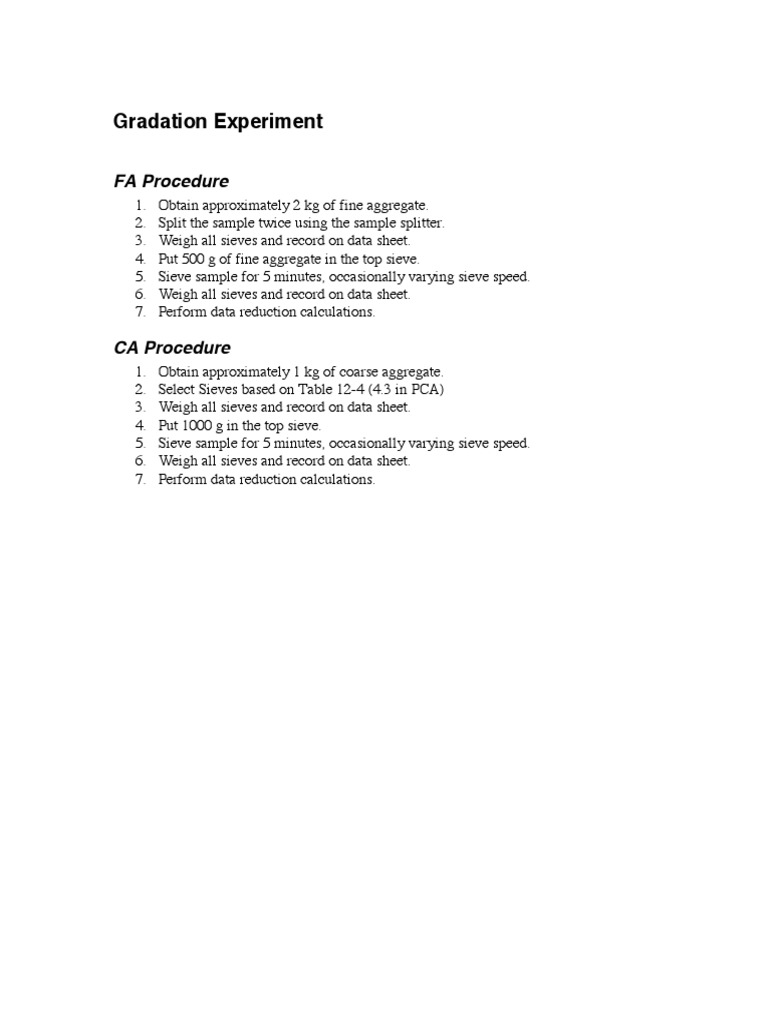

Gradation Experiment

FA Procedure
1. Obtain approximately 2 kg of fine aggregate.
2. Split the sample twice using the sample splitter.
3. Weigh all sieves and record on data sheet.
4. Put 500 g of fine aggregate in the top sieve.
5. Sieve sample for 5 minutes, occasionally varying sieve speed.
6. Weigh all sieves and record on data sheet.
7. Perform data reduction calculations.

CA Procedure
1. Obtain approximately 1 kg of coarse aggregate.
2. Select Sieves based on Table 12-4 (4.3 in PCA)
3. Weigh all sieves and record on data sheet.
4. Put 1000 g in the top sieve.
5. Sieve sample for 5 minutes, occasionally varying sieve speed.
6. Weigh all sieves and record on data sheet.
7. Perform data reduction calculations.
FA Data Sheet
Sieve Opening Sieve Wt. Wt with Sample Wt % Retained Sum % % Passing
(in/mm) Sample Retained
3/8
#4 0.190/4.75
#8 0.092/2.36
#16 0.046/1.18
#30 0.023/0.60
#50 0.018/0.30
#100 0.006/0.15
Pan
Total
CA Data Sheet
Sieve Opening Sieve Wt. Wt with Sample Wt % Retained Sum % % Passing
(in/mm) Sample Retained
1 1/2
1
3/4
1/2
3/8
#4 0.190/4.75
#8 0.092/2.36
Pan
Total
