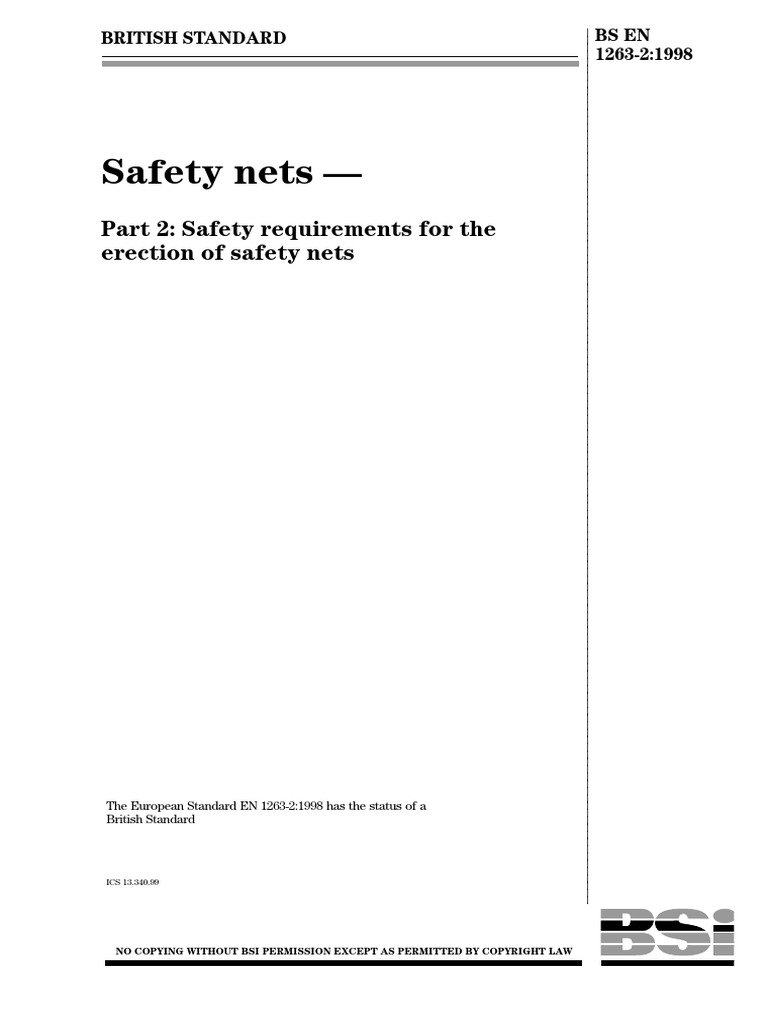

BRITISH STANDARD |

| BS EN
|
|
|
1263-2:1998
|
|
|
|
|
|
|
|
|
|
|
|
|
Safety nets Ð |
|
|
|
|
|
|
|
|
Part 2: Safety requirements for the |
|
|
erection of safety nets |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
The European Standard EN 1263-2:1998 has the status of a |
British Standard |
|
|
|
|
|
|
|
|
ICS 13.340.99 |
|
|
|
|
|
|
|
|
NO COPYING WITHOUT BSI PERMISSION EXCEPT AS PERMITTED BY COPYRIGHT LAW
|
|
|
|
BS EN 1263-2:1998

National foreword
This British Standard is the English language version of EN 1263-2:1998. Together
with BS EN 1263-1:1997 it supersedes BS 8093:1991 which is withdrawn.
The UK participation in its preparation was entrusted by Technical Committee
B/514, Access and support equipment, to Subcommittee B/514/27, Nets and sheets,
which has the responsibility to:

Ð aid enquirers to understand the text;

Ð present to the responsible European committee any enquiries on the
interpretation, or proposals for change, and keep the UK interests informed;
Ð monitor related international and European developments and promulgate
them in the UK.

A list of organizations represented on this subcommittee can be obtained on request

to its secretary.
Cross-references
The British Standards which implement international or European publications
referred to in this document may be found in the BSI Standards Catalogue under the
section entitled ªInternational Standards Correspondence Indexº, or by using the
ªFindº facility of the BSI Standards Electronic Catalogue.
A British Standard does not purport to include all the necessary provisions of a
contract. Users of British Standards are responsible for their correct application.
Compliance with a British Standard does not of itself confer immunity
from legal obligations.

Summary of pages
This document comprises a front cover, an inside front cover, the EN title page,
pages 2 to 9 and a back cover.

This British Standard, having Amendments issued since publication

been prepared under the
direction of the Sector Amd. No. Date Text affected
Committee for Building and Civil
Engineering, was published under
the authority of the Standards
Committee and comes into effect
on 15 December 1998

 BSI 1998

ISBN 0 580 30354 3

EUROPEAN STANDARD EN 1263-2
NORME EUROPEÂENNE
EUROPAÈISCHE NORM May 1998

ICS 13.340.20

Descriptors: buildings, site equipment, safety nets, work safety, accident, accident prevention, specifications, definitions, designation,
tests, marking

English version

Safety nets Ð Part 2: Safety requirements for the erection of

safety nets

Filets de seÂcurite РPartie 2: Exigences de seÂcurite Schutznetze Ð Teil 2: Sicherheitstechnische

pour le montage de filets de seÂcurite Anforderungen fuÈr die Errichtung von Schutznetzen

This European Standard was approved by CEN on 4 January 1998.

CEN members are bound to comply with the CEN/CENELEC Internal Regulations
which stipulate the conditions for giving this European Standard the status of a
national standard without any alteration. Up-to-date lists and bibliographical
references concerning such national standards may be obtained on application to
the Central Secretariat or to any CEN member.
This European Standard exists in three official versions (English, French, German).
A version in any other language made by translation under the responsibility of a
CEN member into its own language and notified to the Central Secretariat has the
same status as the official versions.
CEN members are the national standards bodies of Austria, Belgium, Czech
Republic, Denmark, Finland, France, Germany, Greece, Iceland, Ireland, Italy,
Luxembourg, Netherlands, Norway, Portugal, Spain, Sweden, Switzerland and
United Kingdom.

CEN
European Committee for Standardization
Comite EuropeÂen de Normalisation
EuropaÈisches Komitee fuÈr Normung

Central Secretariat: rue de Stassart 36, B-1050 Brussels

 1998 CEN All rights of exploitation in any form and by any means reserved worldwide for CEN national
Members.
Ref. No. EN 1263-2:1998 E
Page 2
EN 1263-2:1998

Foreword Contents
This European Standard has been prepared by Page
Technical Committee CEN/TC 53, Temporary works
equipment, the secretariat of which is held by DIN. Foreword 2
This European Standard is one of a series of standards 1 Scope 3
as listed below. 2 Normative references 3
EN 1263-1, Safety nets Ð Part 1: Safety requirements, 3 Definitions 3
test methods. 4 Safety requirements 3
EN 1263-2, Safety nets Ð Part 2: Safety requirements
for the erection of safety nets. 4.1 Instruction manual 3
Part 1 of this European standard includes an 4.2 Falling height 3
A-Deviation. 4.3 Catching width 4
This European Standard shall be given the status of a 4.4 Storage, inspection, replacement 4
national standard, either by publication of an identical 5 Erection of type S safety nets 4
text or by endorsement, at the latest by
November 1998, and conflicting national standards 5.1 Size of type S safety nets 4
shall be withdrawn at the latest by November 1998. 5.2 Erection with tie ropes 4
According to the CEN/CENELEC Internal Regulations, 5.3 Safety net linkage 5
the national standards organizations of the following
countries are bound to implement this European 5.4 Deformation of the safety net 5
Standard: Austria, Belguim, Czech Republic, Denmark, 6 Erection of type T safety nets 5
Finland, France, Germany, Greece, Iceland, Ireland, 6.1 Erection 5
Italy, Luxembourg, Netherlands, Norway, Portugal,
Spain, Sweeden, Switzerland and the United Kingdom. 6.2 Safety net linkage 5
7 Erection of type U safety nets 7
8 Erection of type V safety nets 7
8.1 Position of the upper edge of the
safety net 7
8.2 Safety net linkage 7
8.3 Erection 7
Annex A (informative) A-deviations 9

 BSI 1998

1 Scope
This European Standard specifies safety requirements
for the erection of safety nets in accordance with the
manufacturer's instruction manual and with the
product specifications and for testing of type S, type T,
type U and type V safety nets in accordance with
EN 1263-1.
Small safety nets of type S to EN 1263-1 (less
than 35 m2 and 5,0 m on the shortest side) are not
dealt with in this European Standard.
2 Normative references
This European Standard incorporates by dated or
undated reference, provisions from other publications.
These normative references are cited at the
appropriate places in the text and the publications are
listed hereafter. For dated references, subsequent
amendments to or revisions of any of these
publications apply to this European Standard only
when incorporated in it by amendment or revision. For
undated references the latest edition of the publication
referred to applies.
EN 1263-1:1997, Safety nets Ð Part 1: Safety
requirements, test methods.
3 Definitions
For the purposes of this European Standard, the
definitions given in EN 1263-1 apply.
1 Safety net
Figure 1 Ð Permissible falling heights and required catching widths of working
areas inclined between 08 and 208
 BSI 1998
Page 3
EN 1263-2:1998
4 Safety requirements
4.1 Instruction manual
For the use and application of safety nets an
instruction manual (guidance) in accordance with
clause 9 of EN 1263-1:1997 shall be included with each
consignment of nets. This instruction manual shall be
available in the language of the user. It shall contain at
least the following information:
Ð required anchorage forces;
Ð maximum falling height;
Ð minimum catching width;
Ð safety net linkage;
Ð minimum distance below the safety net;
Ð storage;
Ð inspection;
Ð replacement.
In addition to these instructions, special installation
instructions shall be followed according to the specific
application of the net.
4.2 Falling height
The falling height Hi is the vertical distance between
the safety net and the working point above, see
Figure 1.
The falling height He is the vertical distance between
the safety net and the working point above at the edge
of the working area, see Figure 1 and Figure 2.
Page 4
EN 1263-2:1998
The reduced falling height Hr is the vertical distance
between the safety net and the working point above at
a horizontal distance of 2,0 m from the anchorage
points, see Figure 1.
Safety nets should be erected as close as possible
below the working level. Each of the falling heights Hi
and He shall not exceed 6,0 m, see Figure 1 and
Figure 2.
In addition to this, the reduced falling height Hr shall
not exceed 3,0 m, see Figure 1.
4.3 Catching width
The catching width b is the horizontal distance
between the edge of the working area and the edge of
the safety net, see Figure 1 and Figure 2.
Dependent on the falling height, the catching width b
of the safety net shall not be less than the values given
in Table 1.
Table 1 Ð Permissible falling heights and
required catching widths
Falling height He # 1,0 m # 3,0 m # 6,0 m
Catching width b $ 2,0 m $ 2,5 m $ 3,0 m
If the working area is inclined by more than 208:
Ð the catching width b shall be at least 3,0 m;
Ð the distance t between the outermost working
point and the lowest point of the edge of the safety
net shall not exceed 3,0 m;
(see Figure 2).
1 Safety net
2 Lowest point of the edge of the safety net
Figure 2 Ð Permissible falling heights and required catching widths of working
areas inclined by more than 208
4.4 Storage, inspection, replacement
Safety nets and accessories shall:
Ð be stored in dry rooms or containers;
Ð be protected against UV radiation;
Ð not be stored close to thermal sources;
Ð not be stored in places where they could come
into contact with aggressive materials/substances
(acids, lyes, solvents, oil, etc).
In the event of a person falling into a safety net, the
net shall be inspected for damage and replaced if
necessary (see clause 9 of EN 1263-1:1997).
5 Erection of type S safety nets
5.1 Size of type S safety nets
For the erection of type S safety nets the smallest size
shall be at least 35 m2. For rectangular safety nets the
length of the shortest side shall be at least 5,0 m.
NOTE Small safety nets (less than 35 m2 and 5,0 m on the
shortest side) should be determined by national regulations.
5.2 Erection with tie ropes
Type S safety nets shall be erected with tie ropes on
anchorage points capable of bearing the characteristic
load. The distance between the anchorage points shall
be less than 2,5 m.
To calculate each anchorage point, the characteristic
load P used shall be at least 6 kN with the falling
height being 6,0 m. The assumed angle of this load
shall be a = 458, see Figure 3. For the calculation of the
supporting framework only three characteristic loads
of 4 kN, 6 kN and 4 kN shall be considered applied in
the most unfavourable way, see Figure 3.
 BSI 1998

Figure 3 Ð Examples of characteristic loads at the anchorage points
5.3 Safety net linkage
For the linkage of single safety nets, coupling ropes in
accordance with EN 1263-1 shall be used. The linkage
shall be made in such a way that distances greater
than 100 mm do not develop within the netting area.
When type S safety nets are linked by overlapping, the
minimum overlap shall be at least 2,0 m.
5.4 Deformation of the safety net
The maximum deformation of the safety net when
rigged according to the test conditions given in
clause 7 of EN 1263-1:1997 is shown in Figure 4.
NOTE Safety distances below the safety net are not covered by
this European Standard.
 BSI 1998
Page 5
EN 1263-2:1998
6 Erection of type T safety nets
6.1 Erection
Type T safety nets shall be erected according to the
specific instruction manual.
6.2 Safety net linkage
For the linkage of single safety nets, coupling ropes in
accordance with EN 1263-1 shall be used. The linkage
shall be made in such a way that distances greater
than 100 mm do not develop within the netting area.
When type T safety nets are linked by overlapping, the
minimum overlap shall be 0,75 m.
Page 6
EN 1263-2:1998

l Span of the safety net (smallest side)

h Vertical distance between anchorage point of the safety net and the working point above
Hi vertical distance between the safety net and the working point above
f0 deformation caused by the load of the safety net
fmax maximum deformation caused by the load of the safety net plus dynamic load
The curves only apply if:
Ð f0 # 0,1 3 l
Ð Hi = h + f0 # 6,0 m
Figure 4 Ð Maximum deformation of the safety net

 BSI 1998

7 Erection of type U safety nets
The upper edge of the safety net shall be located at
least 1,0 m above the intersection line of the roof and
net area, see Figure 5.
1 Net
Figure 5 Ð Position of the upper edge of
the safety net
8 Erection of type V safety nets
8.1 Position of the upper edge of the safety net
The upper edge of the safety net shall be located at
least 1,0 m above the working area, see Figure 6.
8.2 Safety net linkage
For the linkage of single safety nets, coupling ropes in
accordance with EN 1263-1 shall be used. The linkage
shall be made in such a way that distances greater
than 100 mm do not develop within the netting area.
For type V safety nets, overlapping shall not be used.
 BSI 1998
Page 7
EN 1263-2:1998
Figure 6 Ð Position of the upper edge of the
safety net
8.3 Erection
The safety net shall be attached to ªgallowº type
supports at its upper edge and to the building or
supporting framework at its lower edge.
For the erection of the net the following points shall
be taken into account.
Ð The distance between any two top supports shall
not exceed 5,0 m.
Ð The supports shall be secured against turning.
Ð The distance between the bottom edge anchorage
devices for the attachment of the net to the building
shall not exceed 50 cm, see Figure 7.
Ð The distance between the anchorage points and
the edge of the building shall be at least 10 cm, see
Figure 7.
Ð The upper edge of the safety net shall be
attached to a ªgallowº type support by a tie rope
with a loop, see Figure 8.
Page 8
EN 1263-2:1998

Figure 7 Ð Anchorage points for the attachment of the lower edge of the
safety net to the building by a border rope

Figure 8 Ð Attachment of the upper edge of the safety net to a ªgallowº type
support with a tie rope

 BSI 1998
 Page 9
EN 1263-2:1998

Annex A (informative)
A-deviations
A-deviation: National deviation due to regulations, the alteration of which is for the time being outside the
competence of the CEN/CENELEC member.
DENMARK
Clause 4.3, Catching width, Figure 1
Danish Ministry of Labour
Order on the conditions of construction sites and similar work places.
(Order no. 1017, 15 December 1993, clause 21 and clause 23.1)
Clause 4.3, Catching width, Figure 2
Danish Ministry of Labour
Order on the conditions of construction sites and similar work places.
(Order no. 1017, 15 December 1993, clause 23.1)
Clause 6, Erection of type T safety nets, Figure 5
Danish Ministry of Labour
Order on the conditions of construction sites and similar work places.
(Order no. 1017, 15 December 1993, clause 23.1)
Clause 8, Erection of type V safety nets, Figure 6
Danish Ministry of Labour
Order on the conditions of construction sites and similar work places.
(Order no. 1017, 15 December 1993, clause 22.1 and clause 23.1)

 BSI 1998
 |
|
|
|
|
|
|
|
|
BSI Ð British Standards Institution
|
|
|
|
|
|
| BSI is the independent national body responsible for preparing British Standards. It
|
| presents the UK view on standards in Europe and at the international level. It is
| incorporated by Royal Charter.
|
|
| Revisions
|
|
| British Standards are updated by amendment or revision. Users of British Standards
|
| should make sure that they possess the latest amendments or editions.
|
|
| It is the constant aim of BSI to improve the quality of our products and services. We
|
| would be grateful if anyone finding an inaccuracy or ambiguity while using this
| British Standard would inform the Secretary of the technical committee responsible,
|
| the identity of which can be found on the inside front cover. Tel: 020 8996 9000.
|
| Fax: 020 8996 7400.
|
|
| BSI offers members an individual updating service called PLUS which ensures that
|
| subscribers automatically receive the latest editions of standards.
|
|
| Buying standards
|
| Orders for all BSI, international and foreign standards publications should be
|
| addressed to Customer Services. Tel: 020 8996 9001. Fax: 020 8996 7001.
|
|
| In response to orders for international standards, it is BSI policy to supply the BSI
|
| implementation of those that have been published as British Standards, unless
|
| otherwise requested.
|
|
| Information on standards
|
| BSI provides a wide range of information on national, European and international
|
| standards through its Library and its Technical Help to Exporters Service. Various
|
| BSI electronic information services are also available which give details on all its
|
| products and services. Contact the Information Centre. Tel: 020 8996 7111.
|
| Fax: 020 8996 7048.
|
|
| Subscribing members of BSI are kept up to date with standards developments and
| receive substantial discounts on the purchase price of standards. For details of
|
| these and other benefits contact Membership Administration. Tel: 020 8996 7002.
|
| Fax: 020 8996 7001.
|
|
| Copyright
|
|
| Copyright subsists in all BSI publications. BSI also holds the copyright, in the UK, of
|
| the publications of the international standardization bodies. Except as permitted
| under the Copyright, Designs and Patents Act 1988 no extract may be reproduced,
|
| stored in a retrieval system or transmitted in any form or by any means ± electronic,
|
| photocopying, recording or otherwise ± without prior written permission from BSI.
|
|
| This does not preclude the free use, in the course of implementing the standard, of
|
| necessary details such as symbols, and size, type or grade designations. If these
|
| details are to be used for any other purpose than implementation then the prior
| written permission of BSI must be obtained.
|
|
| If permission is granted, the terms may include royalty payments or a licensing
|
| agreement. Details and advice can be obtained from the Copyright Manager.
|
| Tel: 020 8996 7070.
|
|
|
|
|
|
|
|
|
BSI |
|
389 Chiswick High Road |
|
London |
|
W4 4AL |
|
|
|
|
|
|
