CFS Version 10.0.

4 Page 1

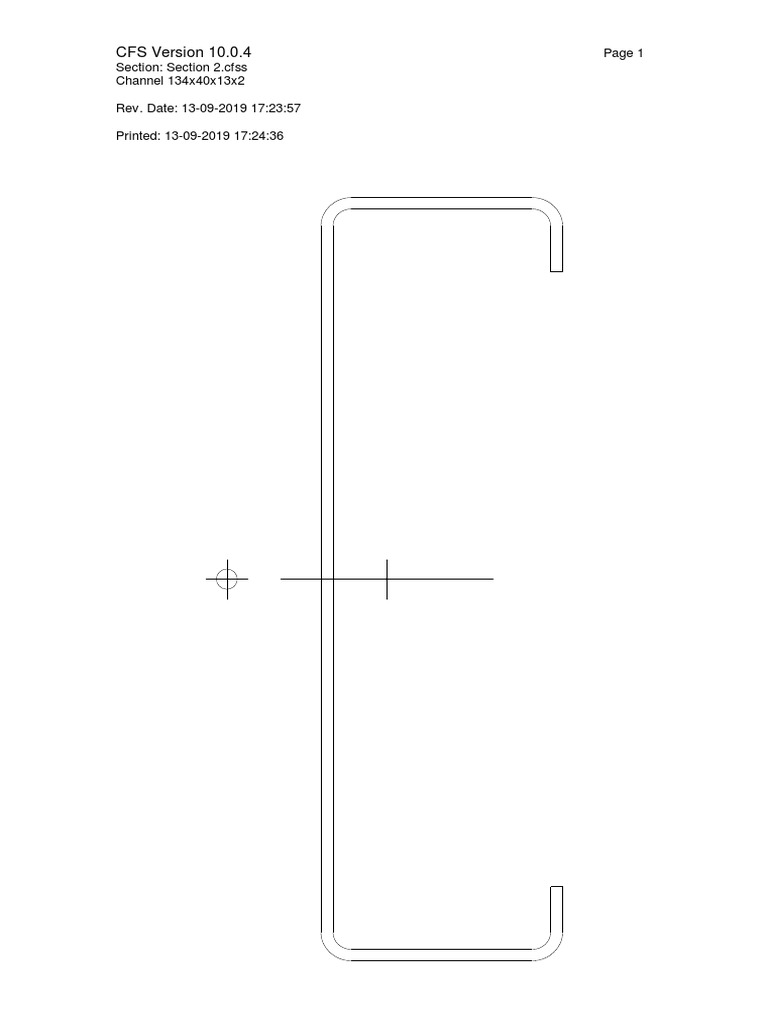

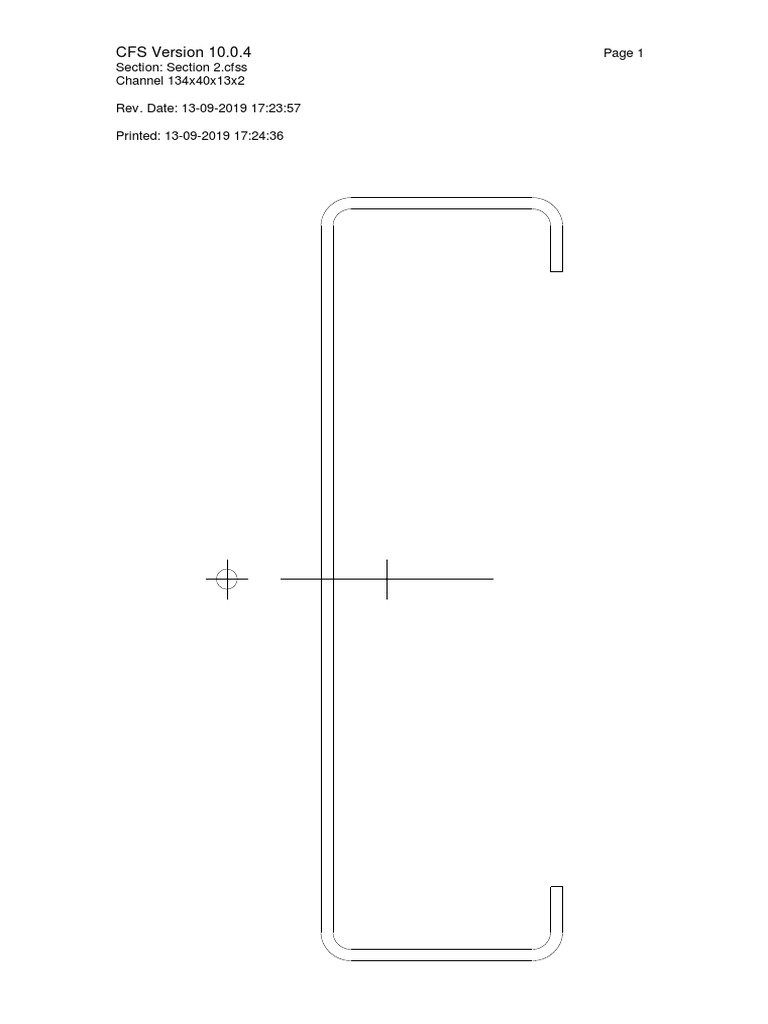

Section: Section 2.cfss
Channel 134x40x13x2

Rev. Date: 13-09-2019 17:23:57

Printed: 13-09-2019 17:24:36

CFS Version 10.0.4 Page 1
Section: Section 2.cfss
Channel 134x40x13x2

Rev. Date: 13-09-2019 17:23:57

Printed: 13-09-2019 17:24:36

Section Inputs
¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Material: A36
No strength increase from cold work of forming.
Modulus of Elasticity, E 203400 MPa
Yield Strength, Fy 350 MPa
Tensile Strength, Fu 410 MPa
Warping Constant Override, Cw 0 mm^6
Torsion Constant Override, J 0 mm^4

Stiffened Channel, Thickness 2 mm

Placement of Part from Origin:
X to center of gravity 0 mm
Y to center of gravity 0 mm
Outside dimensions, Open shape
Length Angle Radius Web k Hole Size Distance
(mm) (deg) (mm) Coef. (mm) (mm)
1 13.00 270.000 3.0000 None 0.000 0.00 6.50
2 40.00 180.000 3.0000 Single 0.000 0.00 20.00
3 134.00 90.000 3.0000 Cee 0.000 0.00 67.00
4 40.00 0.000 3.0000 Single 0.000 0.00 20.00
5 13.00 -90.000 3.0000 None 0.000 0.00 6.50

Full Section Properties

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Area 450.27 mm^2 Wt. 0.034630 kN/m Width 225.13 mm

Ix 1158200 mm^4 rx 50.717 mm Ixy 0 mm^4

Sx(t) 17287 mm^3 y(t) 67.000 mm a 0.000 deg
Sx(b) 17287 mm^3 y(b) 67.000 mm
Height 134.000 mm
Iy 88424 mm^4 ry 14.014 mm xo -26.467 mm
Sy(l) 8123 mm^3 x(l) 10.885 mm yo 0.000 mm
Sy(r) 3037 mm^3 x(r) 29.115 mm jx 70.803 mm
Width 40.000 mm jy 0.000 mm
I1 1158200 mm^4 r1 50.717 mm
I2 88424 mm^4 r2 14.014 mm
Ic 1246623 mm^4 rc 52.618 mm Cw 310779300 mm^6
Io 1562046 mm^4 ro 58.900 mm J 600.35 mm^4

Fully Braced Strength - 2016 North American Specification - US (ASD)

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯
Material Type: A36, Fy=350 MPa
Compression Positive Moment Positive Moment
Pao 69.181 kN Maxo 3.6229 kN-m Mayo 0.6365 kN-m
Ae 355.79 mm^2 Ixe 1158200 mm^4 Iye 88424 mm^4
Sxe(t) 17287 mm^3 Sye(l) 8123 mm^3
Tension Sxe(b) 17287 mm^3 Sye(r) 3037 mm^3
Ta 92.304 kN
Negative Moment Negative Moment
Maxo 3.6229 kN-m Mayo 0.6300 kN-m
Shear Ixe 1158200 mm^4 Iye 85637 mm^4
Vay 29.254 kN Sxe(t) 17287 mm^3 Sye(l) 7441 mm^3
Vax 15.750 kN Sxe(b) 17287 mm^3 Sye(r) 3006 mm^3
