Office: Sree Shruthilayam; No: 39,2 nd floor, Door No2, Near Apoorva Apartments, DB Sandra, Bangalore-560097;India
Ph +919980499248;Fax: +91-80-41503028,E-mail: info@i2rlabs.com,web: www.i2rlabs.com
The I2R TEMPERATURE MONITOR is a GSM based SMS alert device that monitors
temperature of the surroundings and provides temperature updates to the user,
it also provides alert messages if a preset higher or lower values of temperature
are reached. The Higher and lower values for which updates must be received can
also be set by the user through simple SMS commands as per requirement.

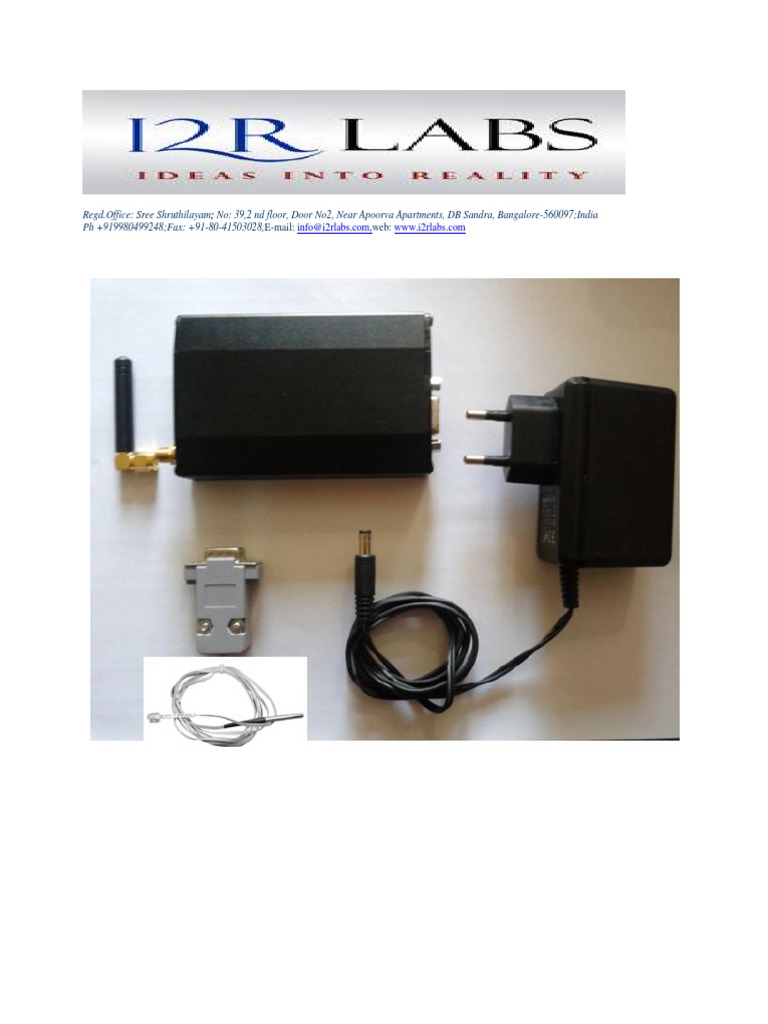

The device package consists of a main module, a rubber duct antenna, a DB9
cable with temperature sensor device at the other end and a power supply
adaptor
The first step is to connect the GSM rubber duct antenna in the SMA connector
that peeps out from the device.
The next step is to insert the SIM card, to insert the SIM card press the yellow
switch in the device as visible in the figure below, the SIM tray slides out now, so
now the SIM card can be inserted in to this tray and pushed back in to the SIM
slot
Once this is complete the device can be powered on by inserting the power plug
jack from the adapter power supply.
Once all the above steps are completed the device is ready for use.
The admin maintains monopoly over the control of the device, i.e. the admin can
1. Set the user numbers who can receive SMS and temperature data
2. Set higher and lower cutoff values for which the admin himself and users
should receive SMS alerts.
3. Can enable or disable the device to react when higher or lower cutoff values
are breached.
4. Can switch on or off call and message alert features.
WORKING.
Now after the setting up of the device as described in previous section the ADMIN
number must first be set which is done by the following command.
ADMIN:+91XXXXXXXXXX
Where ‘X’ represents 10 digit mobile number.
Now the ADMIN receives an acknowledgment message as “system updated”.
After this the user numbers need to be set, however there is no necessity for the
user number to be set, the admin can do so if he wishes through the following
command.
USERZ:+91XXXXXXXXXX
Where ‘Z’ represents user number varying from 1 to 20 and ‘X’ represents 10 digit
mobile number.
Here also ADMIN receives an acknowledgment message as “system updated”.
The temperature of the environment in which the device is placed can be known
at any instant by the ADMIN or any of the 20 USERS
This part of the device contains the temperature
sensor and it has a small magnetic plate fixed so as
to facilitate easy fixing of the device on any metal
surface.
All the commands that are used to configure and
receive data from the device are tabulated below.
The device also alerts the status of the main power. It will send sms POWER ON when the main
power is available and POWER OFF when the main power goes off.
NOTE:ALL THE COMMANDS WHICH ONLY ADMIN CAN SET AND REPLIES WHICH ONLY ADMIN WILL RECEIVE ARE
IN RED, ALL THE COMMANDS WHICH BOTH ADMIN AND USERS CAN SEND AND WHICH BOTH ADMIN AND USERS
RECEIVE ARE IN GREEN. THOSE IN BLUE ARE EXAMPLE REPLIES WHOSE FORMAT MAY CHANGE BASED ON
PARAMETERS AT THE TIME OF SENDING OR RECEIVING MESSAGES.
HIGH=030.00
HIGH=-05.00
LOW=010.00
LOW=-10.00
TEMP ALERT ON System Updated
This command enables the device to
give SMS ad call alerts to admin and
users if HCC or LCC values are
breached.
When sensor device reaches HCC Temperature is high, and its
Value is
Temperature=XX⁰C
Once the temperature sensor
breaches HCC the temperature
sensor must be enabled again
(through previous command), else
the admin and users will not
receive alerts if the HCC is
breached the next time
When sensor device reaches below Temperature is low, and its is
LCC value Temperature=XX⁰C
Once the temperature sensor
breaches LCC the temperature
sensor must be enabled again else
the admin and users will not
receive alerts if the LCC is
breached the next time
