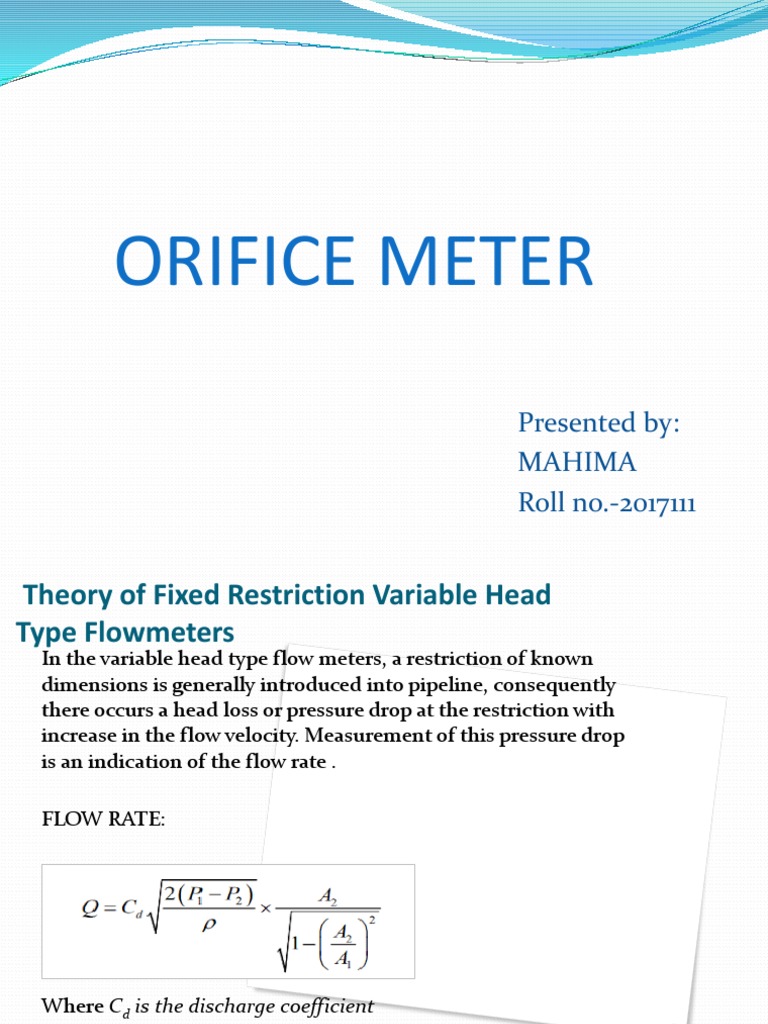

    ORIFICE METER

    Presented by:
    MAHIMA
    Roll no.-2017111
    Theory of Fixed Restriction Variable Head
    Type Flowmeters
    In the variable head type flow meters, a restriction of known
    dimensions is generally introduced into pipeline, consequently
    there occurs a head loss or pressure drop at the restriction with
    increase in the flow velocity. Measurement of this pressure drop
    is an indication of the flow rate .

    FLOW RATE:

    Where Cd is the discharge coefficient


    INTRODUCTION
    >An Orifice flow meter is the most common head type flow measuring
    device.
    >Also known as Obstruction meters.
    >It acts as obstruction in fluid flow causing change in fluid pressure
    which is proportional to rate of flow.
    >By measuring the difference in flow before and after the obstruction by
    means of differential pressure sensor ,rate of flow can be determined.
    CONSTRUCION
    >It consist of a horizontal pipe and
    a thin ,circular plate with a hole in
    it.
    >Diameter of orifice is genrally 0.5
    times diameter of pipe.
    >Upstream-sharp,square edge .
    >Differential pressure sensor U-
    tube manometer.
    Principle
    >It follows the bernoulli’s principle.
    >Total energy =pressure energy +kinetic energy
    +potential energy=constant
    Working
    >When a fluid passes through the orifice, its pressure builds up
    slightly at upstream of the orifice.
    >At a : Pressure is maximum and velocity is minimum.
    >At b(Vena Contracta): Pressure is minimum and velocity is
    maximum.
    > Difference in pressure is measured by U-tube manometer and
    then rate of flow can be calculated .
    Other shapes of orifice plate
    Advantages and disadvantages

    Advantages Disadvantages

     They have a simple construction.  Pressure recovery is very


     They are cheap. poor,i.e. pressure losses are high.
     The Orifice is small plates and  Susceptible to inaccuracies
    easy to install/remove and takes resulting from
    almost no space. erosion,corrosion,etc.
     It can be used to measure flow  It may be damaged by pressure
    rates in large pipes. transients because of its lower
    physical strength.
     High energy loss due to friction
    Applications
     Used in chemical, petro chemical.
     Water treatment plants.
     Power generation, gas generation and distribution.
     Oil filtration plants.
