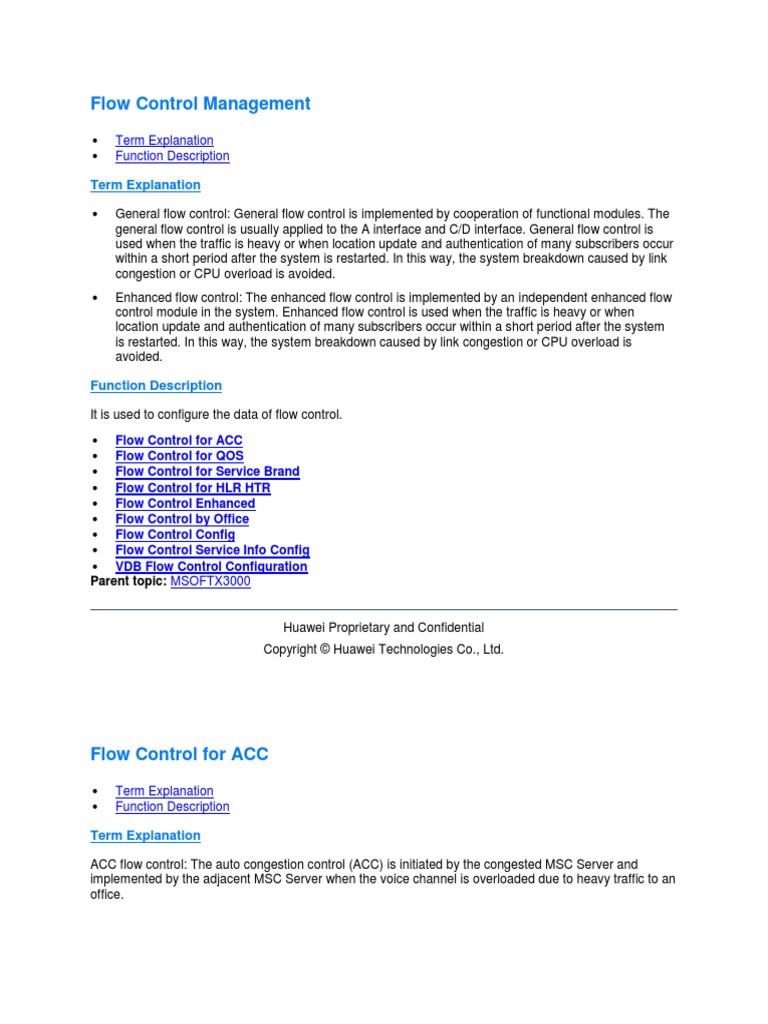

Flow Control Management

Flow Control Management
 Term Explanation
 Function Description
Term Explanation
 General flow control: General flow control is implemented by cooperation of functional modules. The
general flow control is usually applied to the A interface and C/D interface. General flow control is
used when the traffic is heavy or when location update and authentication of many subscribers occur
within a short period after the system is restarted. In this way, the system breakdown caused by link
congestion or CPU overload is avoided.
 Enhanced flow control: The enhanced flow control is implemented by an independent enhanced flow
control module in the system. Enhanced flow control is used when the traffic is heavy or when
location update and authentication of many subscribers occur within a short period after the system
is restarted. In this way, the system breakdown caused by link congestion or CPU overload is
avoided.
Function Description
It is used to configure the data of flow control.
 Flow Control for ACC

 Flow Control for QOS
 Flow Control for Service Brand
 Flow Control for HLR HTR
 Flow Control Enhanced
 Flow Control by Office
 Flow Control Config
 Flow Control Service Info Config
 VDB Flow Control Configuration
Parent topic: MSOFTX3000
Huawei Proprietary and Confidential

Copyright © Huawei Technologies Co., Ltd.
Flow Control for ACC

Term Explanation
ACC flow control: The auto congestion control (ACC) is initiated by the congested MSC Server and
implemented by the adjacent MSC Server when the voice channel is overloaded due to heavy traffic to an
office.
It is used to configure the data of ACC flow control.
 Add ACC Flow Control (ADD ACC)

 Remove ACC Flow Control (RMV ACC)
 Modify ACC Flow Control (MOD ACC)
 List ACC Flow Control (LST ACC)
Parent topic: Flow Control Management

Flow Control for QOS
 Terms Explanation
Terms Explanation
QoS flow control: The quality of service (QoS) flow control means that the switching equipment selects
the route according to the bearer quality between intra-office media gateways or between the outgoing
media gateway and the outgoing office direction, or according to the bearer quality of the IP domain. If the
bearer quality of a certain channel is low, the switching equipment can control the channel based on the
configured call restriction parameters and the call restriction threshold. When the bearer quality of the
channel is recovered, the switching equipment recovers the call based on the call restriction recovery
parameters.
It is used to configure the data of the QoS flow control.
 Set QOS Parameter (SET QOSPARA)

 List QOS Parameter (LST QOSPARA)

Set QOS Parameter (SET QOSPARA)
 Function
 Note
 Parameters
 Example
Function
SET QOSPARA is used to set an IP quality of service (QoS) parameter record in the configuration
database. The IP QoS parameter record applies to the following:
 IP bearers in a specified IP domain
 IP bearers between media gateways (MGWs) controlled by the MSOFTX3000
 IP bearers between an MGW controlled by the MSOFTX3000 and an MGW controlled by the peer
mobile switching center (MSC) server
Note
 Inappropriate values of QoS parameters affect traffic transmission within the MSOFTX3000 or
between the MSOFTX3000 and the peer MSC server. Therefore, exercise caution when running SET
QOSPARA.
 The QoS parameters configured by running SET QOSPARA are valid only when the following
conditions are met:
 IP bearers are used between MGWs controlled by the MSOFTX3000 or between an MGW
controlled by the MSOFTX3000 and an MGW controlled by the peer MSC server.
 The IP QoS sampling function and the IP QoS flow control function are enabled.
NOTE:
 The IP QoS sampling function is controlled by bit 1 of P353. By default, bit 1 of P353 is set
to 0, indicating that the IP QoS sampling function is disabled.
 The IP QoS sampling mode is controlled by bit 15 of P377. By default, bit 15 of P377 is set
to 1, indicating that inter-MSC and intra-MSC call samples are used for IP QoS checks.
 The IP QoS flow control function is controlled by bit 2 of P353. By default, bit 2 of P353 is
set to 0, indicating that the IP QoS flow control function is disabled.
 When multiple WCDB modules capable of trunk searching function are configured, QoS parameters
configured by running SET QOSPARA are effective on each WCDB module.
Parameters
Parameter ID Parameter Name Parameter Description
CBT Call barring type This parameter specifies the type of barred calls.
Value:
 Inter MSC: The MSOFTX3000 bars calls between an MGW controlle
controlled by the peer MSC server.
 Intra MSC: The MSOFTX3000 bars calls between MGWs controlled
 IP domain: The MSOFTX3000 bars calls between MGWs in a speci
SPT Sample protect time This parameter specifies the maximum number of minutes that the MSOF
If the MSOFTX3000 does not receive sampling results within the configur
failed and sends a sampling message to the MGW again.
Value range: 1-10 minutes
 When Call barring type is set to Inter MSC or Intra MSC, the defau
 When Call barring type is set to IP domain, the default value is 5 m
CBAL Call barring alarm severity This parameter specifies the call barring alarm severity level.
When the quality of IP bearers between MGWs deteriorates, the MGW re
MSOFTX3000. If the IP QoS alarm severity level reaches or exceeds the
MSOFTX3000 bars calls.
Value range: 1-5
Default value: 2
This parameter corresponds to the packet loss rate configured by running
following manner:
 The value 1 corresponds to the packet loss rate specified by Packet

QoS(%) configured on the MGW.
 The value 4 corresponds to the packet loss rate that is greater than t
ratio threshold for poor QoS(%) configured on the MGW.
FDP First descend percentage These parameters specify the percentage of calls allowed after call barrin
before call barring.
SDP Second descend When setting these parameters, note the following:
percentage  If the IP QoS alarm severity level reported by the MGW is equal to th
severity, the MSOFTX3000 bars calls based on the First descend p
 If the IP QoS alarm severity level reported by the MGW exceeds the
severity, the MSOFTX3000 bars calls based on the Second descen
 The First descend percentage cannot be smaller than the Second
 The MGW reports the IP QoS alarm severity level every minute. If th
reaches or exceeds the value of Call barring alarm severity for sev
MSOFTX3000 bars calls based on the configured percentages for co
is set to Inter MSC or Intra MSC, the number of allowed calls can be
If Call barring type is set to IP domain, the number of allowed calls
MNT Minimal threshold This parameter specifies the minimum number of calls allowed between b
parameter is configurable only when Call barring type is set to Inter MS
Value range: 2-100
Default value: 20
The Minimal threshold cannot be greater than the Maximal threshold.
CBDT Call barring detect timer This parameter specifies the interval at which the MSOFTX3000 checks I
parameter is configurable only when Call barring type is set to IP doma
Value range: 60-3600 seconds
Default value: 960 seconds
CBDCV Call barring detect call This parameter specifies the number of calls allowed per minute in a spec
value MSOFTX3000 starts call barring to check IP QoS. This parameter is conf
is set to IP domain.
Value range: 2-10000
Default value: 50
If the number of calls allowed per minute is smaller than the value specifi
MSOFTX3000 bars all calls. To enable the MGW to determine whether th
MSOFTX3000 periodically allows a specified number of calls through an
the number of allowed calls is determined by this parameter, and the peri
detect timer.
RLT Resume long timer These parameters specify the interval from when IP QoS is improved unt
IP QoS is restored to the satisfactory level.
RST Resume short timer Value range: 60-300 seconds
By default, Resume long timer is set to 150 seconds, and Resume sho
The value of Resume long timer cannot be smaller than the value of Re
When the IP QoS between MGWs is improved for the first time, the MSO
major alarm is generated (the IP QoS alarm severity level reported by the
of Call barring alarm severity) before the T1 timer expires, the MSOFTX
After the T1 timer expires, the MSOFTX3000 sets the T2 timer for N time
times. If a major alarm is generated during N x T2 timer duration, the MS
If no major alarm is generated before the T2 timer expires for N consecut
calculates the decrease in barred calls based on the Resume value. Wh
calls allowed per minute now and the decrease in barred calls is greater t
MSOFTX3000 infers that the MGW has recovered and stops call barring.
of calls allowed per minute now and the decrease in barred calls is smalle
MSOFTX3000 starts the T1 timer again.
If no major alarm is generated (the IP QoS alarm severity level reported b
value of Call barring alarm severity) after IP QoS is improved, the time
satisfactory level can be obtained by the following formula: (Value of Max
calls) x (Value of Resume long timer + Value of Resume hold times x R
interval from when IP QoS is improved until the MSOFTX3000 determine
satisfactory level is 100 minutes (6000 seconds): (200/10) x (150 second
The interval can be adjusted based on site requirements.
NOTE:
For details on how to calculate decrease in barred calls, see parameter d
RHT Resume hold times This parameter is used with Resume long timer or Resume short timer
barred calls in a certain period.
Value range: 1-10
Default value: 2
RDT Resume delta type This parameter specifies how the MSOFTX3000 reduces the number of b
Value:
 Geometric progression
 Arithmetic progression
Default value: Arithmetic progression
RV Resume value This parameter is used with Resume hold times to gradually reduce the
Value range: 2-5
Default value: 5
The rules for reducing the number of barred calls are as follows:
 If Resume delta type is set to Geometric Progression, the decreas
the power of N (Resume hold times). For example, if Resume valu
the decrease in barred calls is 8.
 If Resume delta type is set to Arithmetical Progression, the decre
multiplied by N (Resume hold times). For example, if Resume valu
the decrease in barred calls is 6.
If the MSOFTX3000 starts call barring again when IP QoS is being restor
decrease in barred calls is automatically set to 0.
MXT Maximal threshold This parameter specifies the maximum number of calls allowed between
number of calls between barred MGWs per minute reaches or exceeds th
MSOFTX3000 stops barring calls between the MGWs.
Value range: 100-10000
Default value: 200

When Call barring type is set to Inter MSC or Intra MSC, the Maximal t
Minimal threshold.
Example
1. To set a QoS parameter record, where:

 Call barring type is Inter MSC
 Sample protect time is 3
 Call barring alarm severity is 1
run the following command:
SET QOSPARA: CBT=INTMSC, SPT=3, CBAL=1;
 Call barring type is Intra MSC
SET QOSPARA: CBT=INRMSC, SPT=3, CBAL=2;
 Call barring type is IP domain
SET QOSPARA: CBT=IPDOMAIN, SPT=1, CBAL=2;
Parent topic: Flow Control for QOS
Flow Control for Service Brand

Term Explanation
Service brand control flow: The service brand flow control implements flow control on IN services based
on the enhanced flow control principles. Based on different combinations of the service key, calling
number, called number and SCF flag, the MSOFTX3000 defines an IN call service as a brand and
specifies the service traffic handling mode of this brand when the MSC/SSP is overloaded. In addition, a
service brand flow control level must be defined for the service brand whose handling mode is specified
as flow control. The flow control module adopts the enhanced flow control mode based on the priority.
It is used to configure the data of service brand flow control.
 Service Brand
 Flow Control Priority

Service Brand
Term Explanation
None.
It is used to configure the data of service brand.
 Add Service Brand (ADD FCSB)

 Remove Service Brand (RMV FCSB)
 Modify Service Brand (MOD FCSB)
 List Service Brand (LST FCSB)
Parent topic: Flow Control for Service Brand

Flow Control Priority
Term Explanation
None.
It is used to configure the data of flow control priority.
 Add Service Breed FC Level Config (ADD SBFCLEVEL)

 Remove Service Breed FC Level Config (RMV SBFCLEVEL)
 Modify Service Breed FC Level Config (MOD SBFCLEVEL)
 List Service Breed FC Level Config (LST SBFCLEVEL)
Parent topic: Flow Control for Service Brand

Flow Control for HLR HTR
Term Explanation
 HTR control flow: The hard to reach (HTR) flow control means that the switching equipment can auto
restrict calls from specified incoming trunks or callers to the specified destination codes when the
destination codes are hard to reach and the percentage of such calls reaches the preset threshold. If
the switching equipment judges that the call can reach the destination code, the switching equipment
automatically cancels the call restriction.
 HLR HTR control flow: The HLR HTR enhanced flow control is the mechanism used by the system
when the C/D interface link is congested due to the over-frequent retrieval of authentication set flow
(including the flows during location update and service access) and location update flow between the
MSOFTX3000 and the HLR.
It is used to configure the data of HLR HTR flow control.
 HTR Configuration Table Information

 HTR Control Table Information

HTR Configuration Table Information
Term Explanation
None.
It is used to configure the HTR Configuration table.
 Add HTR Config Table Information (ADD HTRCFG)

 Remove HTR Config Table Information (RMV HTRCFG)
 Modify HTR Config Table Information (MOD HTRCFG)
 List HTR Config Table Information (LST HTRCFG)
Parent topic: Flow Control for HLR HTR

HTR Control Table Information
Term Explanation
None.
It is used to configure the data of the HTR control table information.
 Add HTR Control Table Information (ADD HLRHTRCTRL)

 Remove HTR Control Table Information (RMV HLRHTRCTRL)
 Modify HTR Control Table Information (MOD HLRHTRCTRL)
 List HTR Control Table Information (LST HLRHTRCTRL)
Parent topic: Flow Control for HLR HTR

Flow Control Enhanced
 Terms Explanation
Terms Explanation
None.
It is used to configure the enhanced flow control data.
 RAN Office Overload Control


RAN Office Overload Control
Term Explanation
None.
It is used to configure the RAN (BSC/RNC) office direction overload control data.
 Add RAN Office Overload Control (ADD RANMC)

 Remove RAN Office Overload Control (RMV RANMC)
 Modify RAN Office Overload Control (MOD RANMC)
 List RAN Office Overload Control (LST RANMC)
Parent topic: Flow Control Enhanced

Flow Control by Office
Term Explanation
None.
It is used to configure the data related to flow control based on office directions.
 Add Control-Information of Office and Service (ADD OFCSRVCTRL)

 Remove Control-Information of Office and Service (RMV OFCSRVCTRL)
 Modify Control-Information of Office and Service (MOD OFCSRVCTRL)
 List Control-Information of Office and Service (LST OFCSRVCTRL)

Flow Control Config
 Note
Term Explanation
None.
It is used to provides commands for configuring and querying flow control config.
Note
None.
 List Flow Control Config (LST FCCFG)

 Set Flow Control Config (SET FCCFG)

Flow Control Service Info Config
 Note
Term Explanation
None.
It is used to provides commands for configuring and querying flow control service info.
Note
None.
 List Service Information Config (LST SRVCFG)

 Set Service Information Config(SET SRVCFG)

VDB Flow Control Configuration
Term Explanation
None.
The commands provided in this node are used to configure flow control data for the VDB module.
 Set VDB Flow Control Configuration (SET VDBFCCFG)

 List VDB Flow Control Configuration (LST VDBFCCFG)


Flow Control Management

Uploaded by

Document Information

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Flow Control Management

Uploaded by

Copyright:

Available Formats

Flow Control Management

It is used to configure the data of flow control.

 Flow Control for ACC

Huawei Proprietary and Confidential

Flow Control for ACC

It is used to configure the data of ACC flow control.

 Add ACC Flow Control (ADD ACC)

Huawei Proprietary and Confidential

It is used to configure the data of the QoS flow control.

 Set QOS Parameter (SET QOSPARA)

Huawei Proprietary and Confidential

Parameter ID Parameter Name Parameter Description

 The value 1 corresponds to the packet loss rate specified by Packet

For details on how to calculate decrease in barred calls, see parameter d

Default value: 200

1. To set a QoS parameter record, where:

Huawei Proprietary and Confidential

Copyright © Huawei Technologies Co., Ltd.

Flow Control for Service Brand

Huawei Proprietary and Confidential

It is used to configure the data of service brand.

 Add Service Brand (ADD FCSB)

Huawei Proprietary and Confidential

It is used to configure the data of flow control priority.

 Add Service Breed FC Level Config (ADD SBFCLEVEL)

Huawei Proprietary and Confidential

It is used to configure the data of HLR HTR flow control.

 HTR Configuration Table Information

Huawei Proprietary and Confidential

It is used to configure the HTR Configuration table.

 Add HTR Config Table Information (ADD HTRCFG)

Huawei Proprietary and Confidential

It is used to configure the data of the HTR control table information.

 Add HTR Control Table Information (ADD HLRHTRCTRL)

Huawei Proprietary and Confidential

It is used to configure the enhanced flow control data.

 RAN Office Overload Control

Huawei Proprietary and Confidential

 Add RAN Office Overload Control (ADD RANMC)

Huawei Proprietary and Confidential

 Add Control-Information of Office and Service (ADD OFCSRVCTRL)

Huawei Proprietary and Confidential

 List Flow Control Config (LST FCCFG)

Huawei Proprietary and Confidential

 List Service Information Config (LST SRVCFG)

Huawei Proprietary and Confidential

 Set VDB Flow Control Configuration (SET VDBFCCFG)

Huawei Proprietary and Confidential

You might also like
