Installation Manual GS50

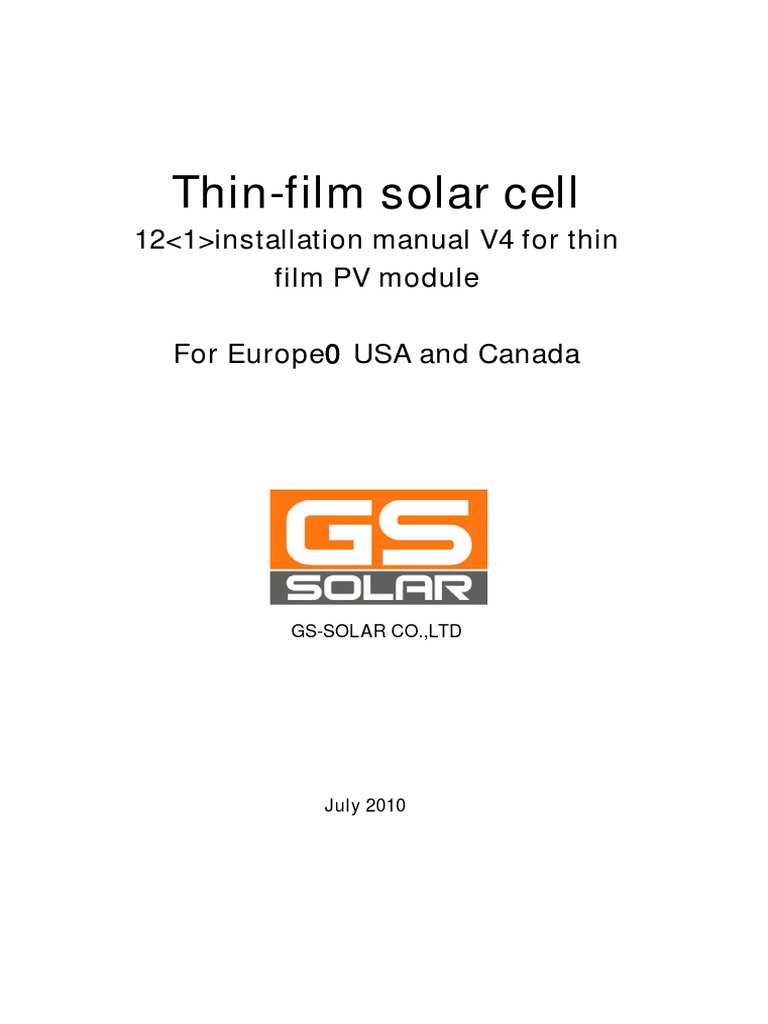

Thin-film solar cell
12<1>installation manual V4 for thin

film PV module
For Europe、USA and Canada
GS-SOLAR CO.,LTD
July 2010
Instructions for Installation Personnel
l Read this manual carefully before system installation;
l This manual does not contain all precautions for safety
installation; system installation shall strictly comply with safety
guidance;
l This manual provides guidance for system installation, but does
not guarantee installation quality. Installation shall be taken
seriously； electrical work is operated by professional
electricians;
l This manual is not applicable to BIPV; for BIPV, please contact
PV engineering department of GS-SOLAR；
l Do not dismantle the component or move any label or attached
parts.
GS-SOLAR thin-film solar module installation manual
Contents
1 SAFETY .
...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
..1
2 SPECIFICATION .
...
...
...
...
...
...
...
...
...
...
...
...
...
.4
2.1 MODULE SPECIFICATION .

...
...
...
...
...
...
...
...
...
..4
2.2 MODULE DIAGRAM .

...
...
...
...
...
...
...
...
...
...
...
..5
3 MACHINERY INSTALLATION .
...
...
...
...
...
...
...
...
...
.6
3.1 LOCATION CONSIDERATION .

...
...
...
...
...
...
...
...
..6
3.2 SUN-SHADING DESIGN CONSIDERATION .

...
...
...
...
..7
3.3 INSTALLATION STRUCTURE .

...
...
...
...
...
...
...
...
..8
3.4 INSTALLATION METHOD .

...
...
...
...
...
...
...
...
...
...9
4 CIRCUIT INSTALLATION .
...
...
...
...
...
...
...
...
...
...
.22
4.1 ELECTRIC CONNECTION .

...
...
...
...
...
...
...
...
...
.22
4.2 SOLAR MODULE CONNECTION .

...
...
...
...
...
...
...
.23
.
4.3 RULES...
...
...
...
...
...
...
...
...
...
...
...
...
...
...
.26
5. MAINTENANCE .
...
...
...
...
...
...
...
...
...
...
...
...
...2
7
6 DISCLAIMER .
...
...
...
...
...
...
...
...
...
...
...
...
...
...2
7
1 Safety
The manual provides safety information concerning installation and
operation of GS-SOLAR thin-film solar module. Before installation, local
government or relative dept. shall be contacted to confirm authorized rights,
permits, and installation and construction supervision requirements. A
construction (installation) permit shall be made available, if necessary.
GS-SOLAR suggests that installation shall comply with the local latest power
regulations, and that state or international electrical standards shall comply
with the corresponding local regulations. Please keep this manual for checkup.
The manual is compiled on basis of the knowledge and experience gained

by GS-SOLAR personnel, but does not guarantee responsiveness to the
information and proposals contained.
Safety Icon
There are a number of safety icons in the manual. Please make sure to
understand their meanings. These icons are classified according to the level of
consequence on products because of negligence and improper operation.
Please make sure you have read this manual and understood these icon
meanings.
T
hei
conm
ean
sth
reatt
olif
esa
fet
yorp
ossi
bleph
ysi
cal
h
arm.
T
hei
conme
ansp
hysi
calh
armo
rth
rea
ttop
rop
ert
y
s
afe
ty.
GS-SOLAR CO.,LTD
1
The icon means something is undoable.
Before product installation, wiring, operation and
maintenance, installation personnel shall carefully

read the manual. In a charging circuit in contact with modules, e.g.,
either connected or disconnected, its wire terminal is likely to induce
burn, spark and fatal electric shock, etc.
1) Module installation must abide by some local regulations, permits and

supervision requirements, in additional to the latest power regulations in
USA and Canada.
2) Installation personnel must be very careful and abide by safety

operations, e.g., but not limited to, exposed carrier parts must be insulated,
isolated or short-circuit protected; properly use insulating tools. All
installation personnel must wear insulating gloves, and proper protection
clothes and tools, and remove all metal accessories to reduce risks of
injury or accidental electric shock.
3) Before some electric connection or disconnection is operated, solar

module array shall be fully shaded.
4）If modules are connected in series, module voltage will increase; if

modules are connected in parallel, module current will increase. Hence, an
array module might generate high voltage and high current, a threat to life
safety or a hazard of physical injuries. Please take protective measure in
advance during connection. Do not place conductive objects nearby the
metal pieces of a connector.
Non-professionals are forbidden from electric connection work.
GS-SOLAR CO.,LTD
2
5) As installation and maintenance of solar modules requires a great deal

of skills, only qualified professionals are allowed.
6) Non-repairable modules. Damaged modules shall not be repaired but

be replaced (for Junction boxes and external cable in some situations,
simple repairs are allowed).
7) Be careful with installation. Do not bump, scratch, or drop modules. Do

not stand or sit on modules.
Non-professionals are forbidden from operation, as they may
cause electric leak,etc.
8) Broken modules are dangerous. Personnel in touch with module surface

or frame are likely to get an electric shock.
9) Do not install modules in rainy or windy days. Install dry modules in dry
condition, using dry tools.
10) When modules are working, the surface might turn hot, which are
likely to cause skin burn.
11) Do not expose modules to direct artificial sunlight.
12) Keep children and unauthorized personnel away from solar modules to
avoid risks of electric shock and physical injuries.
Do not install modules nearby combustible gas or
explosive objects.
13) As there might be sparks during module installation, do not install

nearby combustible gas or explosive objects.
GS-SOLAR CO.,LTD
3
2 Specification
2.1 Module specification
Maximum system voltage V 600V（1000V for Europe）
Maximum Source Circuit Fuse A 3
Module type
Amorphous silicon thin-film module
Weight kg Approximately 14.4
Size (LxWxH) mm 1245×635×7.5
No frame, 10 ± 1mm transparent
Frame material
edge
Bypass diode number 1
Cable type, diameter, length 2 cables 2.5mm2，400mm or750mm
Front panel 3.2mm glass
Back Cover Sheet 4mm glass
Fire Rating Class C
1) In the first months, module output power is higher than the rated. The
rated power is likely to be 15% higher and the working current 9%
higher.
2) Electric parameters are tested in standard test condition with errors of

short-circuit current, open circuit voltage and rated power within ±5%.
( irradiance 100mW/cm2，AM1.5 spectrum, cell temperature 25℃）
3) The current or voltage produced by a module might be higher than the

report data in standard test condition. Under corresponding conditions,
to calculate the rated voltage, current, fuse carrier of a module and the
electric specification of control parts, the short-circuit current and
open-circuit voltage marked on a module shall be multiplied by 1.25,
respectively for design and installation purpose. Multiplication of
125 %( 80% rated value drop) is appropriate. Please refer to relative
state power regulations.
4) Specification variation, if any, will not otherwise be notified.
GS-SOLAR CO.,LTD
4
2.2 Module diagram

Please refer the diagram as below (unit: mm)
Front view right view rear view
170 60
145
400
1245
635 7.5
GS-SOLAR CO.,LTD
5
3 Machinery installation
3.1 Location consideration
1) Fire risk: module array design and installation shall take full consideration of
fire risks. Especially, the rooftop, where a solar farm is erected, must meet
fireproof class C (or higher class). For correct roof selection, please refer to
local construction regulations. Rooftop construction and installation design will
impact architecture fire resistance. For less than 5 inch/feet (127mm/305mm)
slope, if any, fire resistance assessment shall be made. Improper installation
leads to potential fire risks.
2) Ventilation: It is suggested to leave a 4-inch (102mm) or bigger clearance

behind a module for ventilation, especially in extremely hot environment.
Ample clearance can condense or evaporate some moisture. Besides,
sufficient ventilation reduces module temperature and increases module’s
output.
3) Design strength: GS-SOLAR module is designed and tested under the

maximum load (+ / - 2400 Pa) to endure snow or wind attack. Bracket is
designed to have enough strength to support solar module and shall comply
with local specifications. Install module with care. Design strength of 2400 Pa
is equal to the condition of wind speed at 130km/hour (approximately 36m/s),
wind load approximately at + / - 800 Pa and tripled as per safety design
parameter.
4) Architecture construction: The bracket to support solar module shall have

enough strength (bracket design shall consider local wind, snow pressure, and
ice storm, etc.) If a module is installed at rooftop, appropriate installation
method shall be provided for special architecture.
5) Module position: GS-SOLAR module is installed at any horizontal to vertical

angle. Selecting an right tilt angle would cause the module accepted maximum
GS-SOLAR CO.,LTD
6
direct sunlight.
3.2 Sun-shading design consideration
In inclined installation, generally, array pitch is designed as per local

non-sun-shading from 9:00 a.m. to 15:00 p.m. on winter solstice. GS-SOLAR
has realized that amorphous silicon module has good weak-light optical effect,
and that partial sun-shading has less influence on outputoutput. Therefore,
sun-shading design of amorphous silicon PV system is optimized by
comprehensively taking all factors such as system floor space, cost, climate
and output.
Sun-shading of a module or a series of module array will decrease array

output. Bracket installed, adjacent modules and plant, or architecture nearby
might overshadow modules. In the optimized design of amorphous silicon PV
system, the short side of a module shall be shaded from sunlight as below
picture. This method can effectively reduce and avoid module overheating.
Sun-shading of long side (for transversal installation): this method may

lead to one or more complete PIN junction failure, current disfunction and
internal resistance increase. Power loss is substantial. This method requires
for avoiding sun-shading as much as possible. If necessary, an array pitch
shall be multiplied by 1.1~1.2 as safety design allowance. It is not
recommended for sun-shading optimized design.
Sun-shading of short side (for vertical installation): this method

overshadows the lower part of PIN junction. For upper part without
sun-shading, the output is normal. Power loss is low.
GS-SOLAR CO.,LTD
7
Optimized sun-shading design principles:
1. In areas of abundant rainfall and snow, in order not to abate

self-cleaning ability, it is suggested not to substantially change array tilt
angle. The design is optimized by shortening pitch. (In this situation, only
the lower part is shaded in the winter. As this area often has snow
residue in winter, sun-shading has minor impact on outputoutput. )
2. In areas of scarce rain, module self-cleaning is not required. The

design is optimized by properly reducing module array tilt angle.
3. In areas of low radiant exposure in winter, sun-shading is optimized by

shortening pitch.
3.3 Installation structure
Installation structure must be solid enough to securely bear module

weight and some other external force (e.g. wind, snow, ice). For some glass
panels, their modules and bracket may be destroyed by strong winds.
GS-SOLAR CO.,LTD
8
Therefore, bracket structure is designed to support their weight at maximum

wind speed (also by considering uplift and down force).
Installation structure (installation with proper force) shall prevent module

from deformation or distortion. Even if the environment is terrible, excessive
move or vibration shall be avoided.
The clearance between a module and a mounting surface is ample

enough to prevent both from contact with cables, which are likely to be
damaged due to squeeze and friction. The module is not designed as part of
entire rooftop or wall installation.
3.4 Installation method

3.4.1 Operation
GS-SOLAR modules are solidly packed with glass, however, any

improper installation and operation might destroy modules. When installing
GS-SOLAR modules, one shall wear protective gloves to avoid cut by sharp
glasses or burn. Modules are transported and stored in open vehicles or
containers. These modules are protected from bumping and knocking during
the whole transportation, hauling and installation process until installation
finishes.
In order not to break glass, which may crack modules, modules shall
not sit on unstable concrete or one corner shall not sit on concrete or any
other solid or coarse surface. Before taking out modules from the container or
other conveyance, please check module surface. Carefully move modules.
Do not hit other modules or hard object. Do not touch any object which might
cause scratches on glass.
To avoid electric shock, injuries or module damage, do

not drag module cables and Junction boxs during moving
and installation.
GS-SOLAR CO.,LTD
9
3.4.2 Fastening position for installation
A module is fastened with special clamp (4 fastening points every one

module) as below. The clamps are symmetrically laid out on a plane with
deviation no bigger than 1mm. D1 is the distance between two clamp
centerline points along 1245mm side, 760±10 mm long.
D1
D3
D2
Contact surface width (D2) is 9±1mm. Contact surface length (D3) is

80±2mm at the clamp. A clamp contains EPDM material to protect module
glass.
1) The four clamps on the bracket are on a plane

with levelness no bigger than 2mm.
2) The roughness of clamp contact surface is no

bigger than 12.5 RMS.
3) The contact surface of clamps is flat without deformation.
GS-SOLAR CO.,LTD
10
4) Recommended GS-SOLAR torque : 4 N·m ～ 6 N·m. 5 N·m torque
wrench is used so that modules will not fall off and the clamp will not
break module glass. The guarantee does not cover any module damage
because of improper installation.
5) During installation, personnel shall operate cautiously to avoid

module bumping, scratches, and drop and prevent personnel from
standing or sitting on modules.
3.4.3 Module positioning
Modules are mounted vertically or transversally.
A. Transversal installation as below:
T
ran
sve
rse
B. Vertical installation (as below).
GS-Solar recommends the vertical method for ground installation,

and the advantages are as below:
1. Effectively reduce sun-shading loss and increase system

outputoutput. For reasons, please refer to 3.2 Sun-shading
Consideration.
2. Easily optimize sun-shading design as per local climate and

effectively reduce system floor area.
3. Easily conduct electric connection. The upper and lower rows
GS-SOLAR CO.,LTD
11
are connected in series respectively as per the description in 4.2.3.

No need for extra cable, which saves system cost.
4. Effectively reduce the loss arising from system mismatching and

increase system output.
V
ert
ica
l
Disadvantages of vertical installation:

1. If clamps are not tightened, modules are likely to fall off.
2. If clamps are locked too tight, it is likely to cause stress and
break modules.
Hence, GS-SOLAR introduces torque wrench（5 N•m）to control
locking force, which effectively avoid above disadvantages.
3.4.4 Installation of mounting clamps
1) Specification of clamps
A. End clamps
GS-SOLAR CO.,LTD
12
B. Middle clamps
2) Position and size of clamps

A. End and middle clamp size
662
B. Middle clamps and middle clamps size
662
GS-SOLAR CO.,LTD
13
3) Installation of end clamps
Mount a bolt, an end clamp, a flat washer, a spring washer, and a

nut, respectively onto a bracket, but not tighten.
4) Installation of middle clamps
Mount a bolt, a middle clamp, a flat washer, a spring washer and a

nut, respectively onto a bracket, but not tighten.
3.4.5 Installation process
1) Before installation, please confirm if the bracket of solar module

unit satisfies design size (bracket in good order without obvious
deviation) and if the bracket assembled is solid and reliable.
GS-SOLAR CO.,LTD
14
Bracket rails
For module fastening
Bracket support legs

Note：this is an illustration.
Design as per specific
site
2） Please confirm if the distance from the mounting hole center of the
first rail (eg: C-type steel) to the second rail is 662mm, and if the
distance between mounting holes of other two rails is 662mm.
662mm Rails qty as per

actual design. In
the illustration,
1st rail
other rails are 662mm
ignored.
Last rail
662mm
662mm
3) Measure with a tape the corresponding position of a module edge on

the bracket after the module is installed as below (taking example of
vertical installation of 2 modules, the module edge is 15mm away from
the centerline of the bracket long side), make a mark (point A), and
adjust a laser level to the same height as the mark (point A), and beam
out a horizontal laser ray. Make a mark (point B) on the last rail along
GS-SOLAR CO.,LTD
15
the laser ray (ensure point B and point A's level deviation on the bracket
within 15mm)
B
Module edge
30mm Bracing
15mm
centerline along
Laser ray
long side
4) Pull a horizontal plumb line from point A to B and fix it at two points.
Personnel fixing a horizontal plumb line must

wear laser protection glasses ( to avoid eye burn)
Plumb line
GS-SOLAR CO.,LTD
16
5) For the first module installation, the lower edge of a module is along
the horizontal line (line AB). The first row of modules are installed
along this base line (if tilt angel, GS-SOLAR recommends top to
bottom installation solution).
12th
module
Arrow shows mounting sequence
6) Mount the end clamps on the bracket and fasten nuts so that clamps
will not slide (end clamps are applicable for fastening modules along
the edge. )
Makes sure clamps and the parts in contact with
clamps are clean without foreign matter, which

might casue stress and break modules.
GS-SOLAR CO.,LTD
17
7) Insert a module into EPDM pad of an end clamp and fasten nuts so
that the module will not slide.
8) Insert a module to a middle clamp and mount it onto the bracket.

Please fasten an end clamps at the front , and lock the middle clamp
but not tighten before the next module insert to EPDM of this middle
clamp，then lock the nuts. (Middle clamps are used to tighten two
neighboring modules.)
GS-SOLAR CO.,LTD
18
9) Lock the nuts on the left side of the clamps as per above method.
10) Repeat Step 7） and 8）till the last 2 modules in one row are to be
installed. (GS-SOLAR suggests no more than 12 modules each row
unless one row of modules can stay level.
GS-SOLAR CO.,LTD
19
11) The last module of the row is mounted with end clamps. (If more
than 12 modules each row, please use middle clamps to install the 12th
module to enable module mounting afterwards.)
GS-SOLAR CO.,LTD
20
12) After the first row of 12 modules are installed, check the levelness
and make adjustment if necessary. If no problem with levelness, move
down a horizontal drop cord from the horizontal line (line AB) fixed as
per Step 3) by 30mm [module row pitch at 30mm (in view to palm
thickness) for easy mount], and then start mounting row 2 and 3
modules (the module top edge shall be along the horizontal line), other
installation steps are the same as the 1st row. (Unless the inclination
angle of the bracket is 0 or modules are installed on a sloped rooftop,
GS-SOLAR suggests no more than 3 rows of modules).
GS-SOLAR CO.,LTD
21
30mm
13) Finish installing 3 rows of modules. (If modules each row are
designed to exceed 12 and more than 24 modules, GS-SOLAR
recommends the installation sequence as below to ensure levelness of
each row installed.)
1st module
12th module
th
24 module
4 Electric installation
4.1 Electric connection
Module connection can choose series, paralleling or series and

paralleling connection to achieve the required output. During installation, the
same type of modules string uses the same inverter.
GS-SOLAR CO.,LTD
22
Series connection: modules with series connection generate required output

voltage. The voltage shall not exceed maximum system voltage of the
module and maximum direct voltage of the inverter. Maximum system
voltage of the module is shown on the module product information list,
and maximum direct voltage of the inverter is shown on the inverter
electric data.
Paralleling connection: modules with paralleling connection generate

required current output. When connecting one array with the other,
current return, which might destroy modules, is must considered. For
maximum return current value, please refer to the module product
information list.
4.2 Solar module connection
1. Cable requirements: Modules are connected with cables of insulation grade

above 1000v, 2. 5 mm2 in size and ultra-violet resistant. If exposed in air,
high-temperature endurable insulating cables (minimum high-temperature
resistance at 90℃) are used.
2. Connector connection: there is one positive and one negative wire at the
back of a solar module. When connecting two terminals of a waterproof
connector, tighten the connector till the terminal reaches the bottom. (The
picture below shows one type of connector. The connector to be used for the
product may be different.)
GS-SOLAR CO.,LTD
23
A connector must be tightened. Loose connection

might lead to overheat, burn or other damage.
3. Module series connection: the negative wire of the first solar panel is
connected with the positive wire of the second solar panel. The negative wire
of the second solar panel is connected with the positive wire of the third solar
panel, and vice versa, till the sequence satisfies module string number in the
design.
4. Connection test: test open-circuit voltage of a module string with a

multi-meter and auxiliary cable. If no voltage is shown on the multimeter
(direct current), check this string of modules one by one till abnormal module
and reason is found. Fix it before next process. If the test shows voltage is
abnormal, the positive wire of the first solar panel and the negative wire of the
last panel shall be connected to the module string output cable.
Voltage testers must wear insulating gloves to avoid
electric shock.
5. Cable clear-up: If module cables are tangled, clear it up and make a mark ，
fix it behind the module.
Wrap cable end with insulating tape. In direct sunlight,

solar module will generate high voltage. Be careful of
electric shock.
GS-SOLAR CO.,LTD
24
6. Cable identification: Cable output terminal of each set of solar modules shall
bear an identification card (plate). The card shows the number of solar
modules, the polarity of solar array output cable (e.g. positive or negative) so
that an electrician can understand output terminal’s location of at the system
electric structure.
7. Connector protection: timely finish electric connection after module

installation. If electric connection is not finished in time or wind and snow
weather is forecast soon, lock positive and negative connectors of output cable,
or wrap connector terminals with insulating tape, which can effectively protect
metal pieces of a connector.
Without proper protection, electrode wires and

connectors are likely to be damaged.
If a wire is installed outdoor or through wall, please use metal tube, soft
metal tube or apply other protective measures, otherwise it might cause
electric shock or short-circuit.
8. Special situation requirements: If solar module output cable is under direct

sunlight, do use tubes to avoid electric shock.
GS-SOLAR CO.,LTD
25
4.3 Rules
Electric installation and wiring method shall strictly comply with the latest
local power regulations and some local regulations, permits and inspection
requirements.
In Canada the installation shall be in accordance with CSA C22.1, Safety

Standard for Electrical Installations, Canadian Electric Code, Part1. .
The system is designed by professionals familiar with solar system.

Carefully confirm voltage limit and overcurrent specification. Module
performance and safety relies on intact design and installation of electric
system.
Maximum system return current: In system design, one external return

current resistant diode can be mounted to one module or
array. It can be combined with a module or a series of
modules.
Return current: In special situations, if a module is shaded, it is likely to cause

extreme temperature, which is out of working range for a module.
It is likely to break glass, and cause temporary electric arch (if
conductive material is damaged) and smoke. If a big array is
considered in the design, the designer is suggested to contact
GS-SOLAR for design assistance.
Grounding: As modules have no frame or exposed conductive part (except

wire pins), grounding of module external surface is not required.
According to state electric regulations, conductive parts of any
non-carrier mounting structure must be grounded in compliant
with local standards. A correct grounding system must ensure that
under a lightening stroke, the electric system has the lowest loss,
and that the current protection device is easy to start under
GS-SOLAR CO.,LTD
26
electric failure.
Negative electrode of a module can be grounded or not grounded, which

is decided by inverter condition. If an inverter is electrically isolated without
transformer, the negative or positive electrode of a module is not grounded; if
an inverter is electrically isolated with a transformer, the negative or positive
electrode of a module can be grounded or not; for large-capacity(≥100KWp),
an inverter is electrically isolated with a transformer and the negative
electrode of a module is grounded by groundeding protection module made
by inverter supplier ,or PV module output terminals not grounded.
GS-SOLAR suggests that system design shall give priority to good

grounding measures to achieve safety. The design includes, but not limited to,
complete grounding to ensure low resistance of electrode grounding, and
potential failure treatment ability developed in the entire electric system.
5. Maintenance
Daily module maintenance is not required. But it is recommended to
regularly check if module glass is broken and if electric connection is loose or
corroded. Please refer to Thin-film Solar Module Maintenance Manual for
details.
6 Disclaimer
GS-SOLAR is not liable for this manual use and condition, or system
design installation, operation, use method, and module maintenance, which
is out of GS-SOLAR control, and declares that GS-SOLAR is not liable for
any loss or injury fee arising from improper installation, operation, use or
maintenance and connecting method, not compliant with this manual,
GS-SOLAR is not liable for any consequences arising from infringement of
some patents or other third party rights because of module use. GS-SOLAR's
liability of defective products is solely limited to replacement of defective
GS-SOLAR CO.,LTD
27
products.
Customers shall not utilize any patent or authorized patent use of

GS-SOLAR products, whatever expressed or implied. The manual is compiled
by GS-SOLAR personnel according to their own knowledge and experience,
but does not guarantee responsiveness to the information and proposals
contained, and shall not constitute any warranty expressed or implied.
GS-SOLAR reserves rights to change product and specification. Content
renewal, is any, will not otherwise be notified.
GS-SOLAR CO.,LTD
28
Address: Jiangnan High-tech Electronic
Industrial Zone, Nanhuan Road, Quanzhou,
Fujian,GHINA
Tel：086-0595-22412383
Fax：086-0595-22412393
GS-SOLAR CO.,LTD E-mail：sale@gs-solar.com
Website：http://www.gs-solar.com

Installation Manual GS50

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Installation Manual GS50

Uploaded by

Copyright:

Available Formats

Thin-film solar cell

12<1>installation manual V4 for thin

For Europe、USA and Canada

l This manual does not contain all precautions for safety

installation; system installation shall strictly comply with safety

l This manual provides guidance for system installation, but does

not guarantee installation quality. Installation shall be taken

seriously； electrical work is operated by professional

l This manual is not applicable to BIPV; for BIPV, please contact

PV engineering department of GS-SOLAR；

l Do not dismantle the component or move any label or attached

2.1 MODULE SPECIFICATION .

2.2 MODULE DIAGRAM .

3.1 LOCATION CONSIDERATION .

3.2 SUN-SHADING DESIGN CONSIDERATION .

3.3 INSTALLATION STRUCTURE .

3.4 INSTALLATION METHOD .

4.1 ELECTRIC CONNECTION .

4.2 SOLAR MODULE CONNECTION .

The manual is compiled on basis of the knowledge and experience gained

The icon means something is undoable.

Before product installation, wiring, operation and

maintenance, installation personnel shall carefully

1) Module installation must abide by some local regulations, permits and

2) Installation personnel must be very careful and abide by safety

3) Before some electric connection or disconnection is operated, solar

4）If modules are connected in series, module voltage will increase; if

Non-professionals are forbidden from electric connection work.

5) As installation and maintenance of solar modules requires a great deal

6) Non-repairable modules. Damaged modules shall not be repaired but

7) Be careful with installation. Do not bump, scratch, or drop modules. Do

Non-professionals are forbidden from operation, as they may

cause electric leak,etc.

8) Broken modules are dangerous. Personnel in touch with module surface

11) Do not expose modules to direct artificial sunlight.

Do not install modules nearby combustible gas or

13) As there might be sparks during module installation, do not install

2) Electric parameters are tested in standard test condition with errors of

3) The current or voltage produced by a module might be higher than the

4) Specification variation, if any, will not otherwise be notified.

2.2 Module diagram

Front view right view rear view

2) Ventilation: It is suggested to leave a 4-inch (102mm) or bigger clearance

3) Design strength: GS-SOLAR module is designed and tested under the

4) Architecture construction: The bracket to support solar module shall have

5) Module position: GS-SOLAR module is installed at any horizontal to vertical

3.2 Sun-shading design consideration

In inclined installation, generally, array pitch is designed as per local

Sun-shading of a module or a series of module array will decrease array

Sun-shading of long side (for transversal installation): this method may

Sun-shading of short side (for vertical installation): this method

Optimized sun-shading design principles:

1. In areas of abundant rainfall and snow, in order not to abate

2. In areas of scarce rain, module self-cleaning is not required. The

3. In areas of low radiant exposure in winter, sun-shading is optimized by

3.3 Installation structure

Installation structure must be solid enough to securely bear module

Therefore, bracket structure is designed to support their weight at maximum

Installation structure (installation with proper force) shall prevent module

The clearance between a module and a mounting surface is ample

3.4 Installation method

GS-SOLAR modules are solidly packed with glass, however, any

To avoid electric shock, injuries or module damage, do
