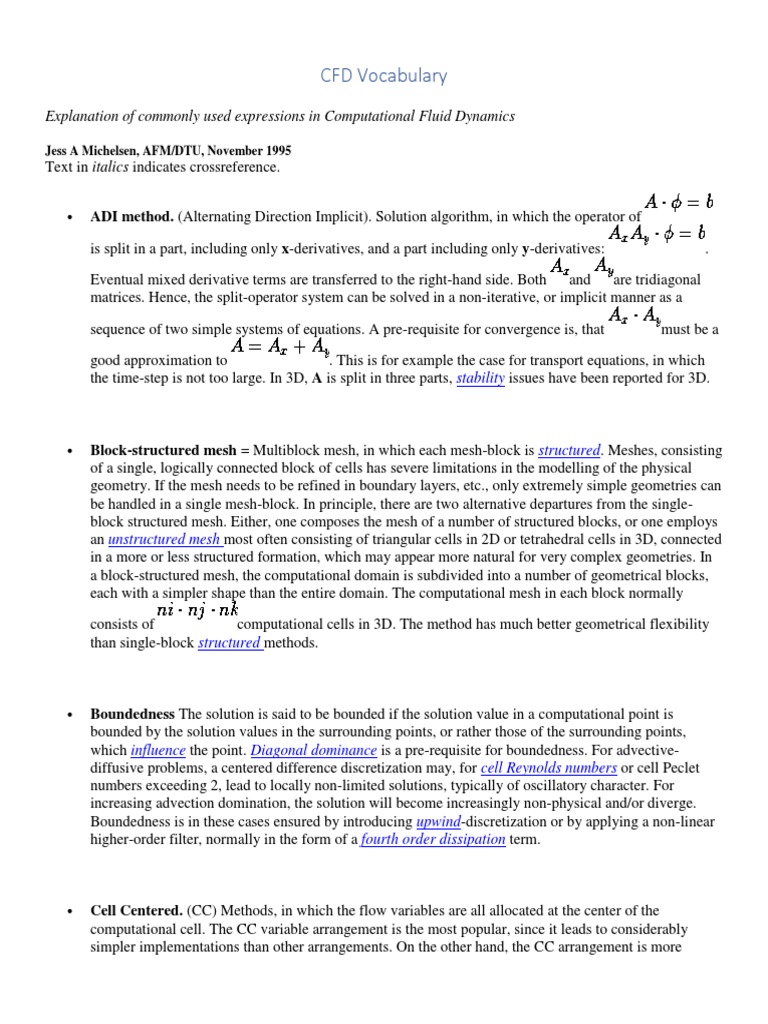

CFD Vocabulary

Explanation of commonly used expressions in Computational Fluid Dynamics

Jess A Michelsen, AFM/DTU, November 1995

Text in italics indicates crossreference.

• ADI method. (Alternating Direction Implicit). Solution algorithm, in which the operator of

is split in a part, including only x-derivatives, and a part including only y-derivatives: .

Eventual mixed derivative terms are transferred to the right-hand side. Both and are tridiagonal
matrices. Hence, the split-operator system can be solved in a non-iterative, or implicit manner as a

sequence of two simple systems of equations. A pre-requisite for convergence is, that must be a

good approximation to . This is for example the case for transport equations, in which
the time-step is not too large. In 3D, A is split in three parts, stability issues have been reported for 3D.

• Block-structured mesh = Multiblock mesh, in which each mesh-block is structured. Meshes, consisting
of a single, logically connected block of cells has severe limitations in the modelling of the physical
geometry. If the mesh needs to be refined in boundary layers, etc., only extremely simple geometries can
be handled in a single mesh-block. In principle, there are two alternative departures from the single-
block structured mesh. Either, one composes the mesh of a number of structured blocks, or one employs
an unstructured mesh most often consisting of triangular cells in 2D or tetrahedral cells in 3D, connected
in a more or less structured formation, which may appear more natural for very complex geometries. In
a block-structured mesh, the computational domain is subdivided into a number of geometrical blocks,
each with a simpler shape than the entire domain. The computational mesh in each block normally

consists of computational cells in 3D. The method has much better geometrical flexibility
than single-block structured methods.

• Boundedness The solution is said to be bounded if the solution value in a computational point is
bounded by the solution values in the surrounding points, or rather those of the surrounding points,
which influence the point. Diagonal dominance is a pre-requisite for boundedness. For advective-
diffusive problems, a centered difference discretization may, for cell Reynolds numbers or cell Peclet
numbers exceeding 2, lead to locally non-limited solutions, typically of oscillatory character. For
increasing advection domination, the solution will become increasingly non-physical and/or diverge.
Boundedness is in these cases ensured by introducing upwind-discretization or by applying a non-linear
higher-order filter, normally in the form of a fourth order dissipation term.

• Cell Centered. (CC) Methods, in which the flow variables are all allocated at the center of the
computational cell. The CC variable arrangement is the most popular, since it leads to considerably
simpler implementations than other arrangements. On the other hand, the CC arrangement is more
 susceptible to truncation errors, when the mesh departs from uniform rectangles. In the standard Finite
Volume method, the CC arrangement is normally an ingredient.

• Cell Reynolds number Reynolds number, in which the global scales are substituted by local velocity
and cell dimension. In practice, each mesh cell has one cell Reynolds number for each of its directions,
defined by the cell dimension and the flow speed in that direction. By analogy, one may speak of a cell
Peclet number for advection-diffusion problems in general. The cell Reynolds number becomes relevant
when judging the quality of a computed result. If e.g. the flowfield displays oscillations of some kind, it
is important to find their source. In this process, one needs to known if the upwind scheme is
unconditionally bounded, which is always the case for the Donor cell scheme, but only the case for
higher order schemes provided the cell Reynolds number does not exceed a certain limit.

• Cell Vertex methods (CV) In the Cell Vertex methods, the flow variables are stored at the vertices of
the cell. The flux imbalance, fluctuation, or rate of change, is integrated for the cell, either as the surface
flux integral or as the volume integral of the derivative terms. Hence, the fluctuation is now cell
centered. The fluctuation is then distributed among the vertices. Several schemes for this distribution
exist, most promising perhaps the multi-dimensional upwind schemes. It is noted, that the CV schemes
by nature are totally different from the Vertex Centered (VC) schemes.

• CFL number (Courant-Friedrich-Levy). For discretized transport problems, the CFL number
determines how many mesh cells, a fluid element passes during a timestep. Or rather, the fraction of a
timestep to pass one cell. For compressible flow, the definition is different. Here, the CFL number
determines how many cells are passed by a propagating pertubation. Hence, the wave-speed, i.e. fluid
speed plus the sound speed, is employed. For explicit timestepping schemes, such as Runge-Kutta, the
CFL number must be less than the stability limit for the actual scheme to converge. For implicit and
semi-implicit schemes, the CFL limit does not constitute a stability limit. On the other hand, the range of
parameters in which these schemes converge may often be characterized by the CFL number.

• Characteristic variables. Set of variables employed for compressible and pseudo-compressible flow. If
the governing equations are hyperbolic, eigenvalue analysis may upon a choice of a characteristic
direction lead to a splitting of the primitive variables into a set of wave-like variables. In 2D, there are
two acoustic variables, one shear variable, and the entropy. For this set of variables, it is possible to
compose upwind methods with very low or vanishing levels of numerical diffusion.

• Coefficients of influence If represents the discretized equation for a

single point in the computational domain and NB denotes all the neighbours of the point, the coefficients
are termed the coefficients of influence. A large coefficient of influence (relative to the remaining
ones) is reflected by a pertubation in the associated neighbour point greatly influencing the solution in
the actual point P.
• Conjugate gradient methods A class of non-stationary iterative methods for the solution of (linear)
systems of equations. May be brought to work efficiently if appropriate preconditioning is provided. For
highly structured problems, such as those resulting from the use of block structured meshes, the
multigrid methods are normally much faster than the conjugate gradient methods. Very small problems
is an exception. On the other hand, conjugate gradient methods may be preferred due to their more
straightforward implementation in existing codes.

• Conservation Law forms The governing equations may, for a given set of flow variables, be written in
at least five different conservation law forms. Under specific conditions, e.g. Cartesian mesh, some of
these are equivalent. The strong conservation form is the most widely used. The convective terms (in

Cartesian frame) are written as . When transformed to general frames of reference, i.e.
when used on general non-orthogonal meshes, this form is retained except for the appearance of metric
factors. The non-conservative form is employed in certain situations for incompressible flow. The

convective terms are written as . When transformed to general frames of reference, the
advective speed must be transformed into the composants in each of the local directions. Furthermore,
since the definition of the transformed velocity vector now differs in space, fictive forces appear. Apart
from the two already mentioned forms, the semi-conservative, the weak conservation, and the chain-rule
conservation forms exist. These have only very specialized purposes.

• Convergent Term used in two different contexts. In the first defines convergence for an algorithm, as

for , where represents the approximate solution, the theoretically

correct solution, and h the length of the integration step.

The second sense of the term is used about algorithms, that converge even for very large integration
steps (relative to other algorithms employed for the same problem). Hence, if only the steady-state is of
interest an, in this sense, convergent algorithm is preferred. The pressure-velocity couplings, such as
PISO and SIMPLE are normally viewed as convergent, while the ADI methods such as Peaceman-
Rachford, Briley-McDonald, and Beam-Warming are not convergent, according to this definition.
Convergence in this sense may not be proved for the Navier-Stokes equations. Experience, however,
shows that each algorithm has a certain range of parameters, for example the CFL number, within which
they perform near-optimally.

• Diagonal dominance The linear system of equations , where denotes the

diagonal coefficients and the coefficients of influence, is said to be diagonally dominant if, for all

equations, i.e. for all points P, the inequality is fulfilled. Diagonal dominance is a
necessary, but not sufficient, condition in the convergence proof for a range of relaxation methods.

• Domain Decomposition (DD) Iteration strategy used in conjunction with block structured methods. A
single-block problem may also be decomposed with the intention of exploiting parallel potential. DD is
 often an element of multigrid methods. The basic relaxation technique is performed on the individual
blocks. The task of the DD technique is then to ensure appropriate coupling between the blocks during
relaxation, and thus retain global convergence. Usually, with DD the relaxation is performed on a block
plus parts of the neighbouring block. In other words, the relaxations are performed on overlapping sub-
domains (Schwarz alternating method). With certain multigrid methods, the optimal overlap becomes
very small, i.e. one cell wide.

• Donor cell upwind The simplest upwind scheme for finite volume discretized advection-diffusion

problems. In a finite difference context, the derivative in has to be approximated. Centered

differences implies, that the derivative is determined using the upstream and the downstream point. This
leads to non- bounded solutions. In the donor cell scheme, the derivative is determined using the present
point the upstream point. Local truncation error analysis shows first order accuracy. Hence, the solution
becomes bounded at the expence of large amounts of numerical diffusion.

• Fourth order dissipation In order to obtain bounded solutions to advection dominated problems, an
extra term is artificially introduced. This term involves a fourth order filter, i.e. the term is proportional
to the fourth derivative of the solution. The inclusion of the term reduces the fourth order derivative and
smooth the solution. As sofar only the fourth order derivative is involved, the formal order of the
method is not compromized (of course provided that the method itself is not a fourth order method).
Unfortunately, the fourth order derivative may be very large due to physical phenomena such as shocks
or other discontinuous phenomena. In such situations, the fourth order dissipation must be switched off
and, to retain boundedness, substituted by a second order term. Fourth order dissipation was originally
proposed by Jameson in a Runge-Kutta scheme for the compressible Euler equations, as an alternative to
upwinding. Despite its elegance, the fourth order dissipation is currently being superseeded by more
modern upwind techniques, which are both more physically relevant and easier to control during
computations.

• Full Multigrid (FMG) For multigrid methods, as for all other iterative methods, the number of
iterations to reach convergence depends on the quality of the starting guess. For multigrid methods, it is
only natural to use the solution from the next coarser mesh as the starting guess on the fine mesh.
Recursively, the efficiency of finding this coarse solution depends on the starting guess on the coarser
mesh. The solution on the next coarser grid is again a good candidate. Hence, in the FMG method, one
initially computes the solution on the coarsest mesh. The coarse grid solution is interpolated to the next
finer grid, and the solution on the next finer grid is computed. The process is continued until the solution
on the finest mesh is determined. In many cases it may be shown that only one or two multigrid cycles

are needed for each added finer grid. The FMG process has can be shown to cost
operations, an efficiency which is unsurpassed.

• Limiting Normally in the form of flux limiting. It may be proved, that higher order upwind schemes can
not be unconditionally bounded. Instead of reverting to low order upwinding and accepting high levels
of numerical diffusion, one may apply the higher order upwind scheme as a correction to a lower order
scheme. Whenever the higher order scheme leads to locally unbounded solutions, the higher order
 correction may be limited. Hence, the corrective flux is multiplied by a limiter. The limiter is normally
computed as the ratio between two solution differences, taken at two stations in the upwind direction.
When this ratio becomes negative, a local extremum has been encountered, and the limiter vanishes.
Example of popular limiters are the MinMod limiter which is always a safe choice and the SuperBee
limiter which is said to be overcompressive, i.e. it tends to sharpen gradients, even for smooth solutions.

• Multi-block methods See Block Structured

• Multigrid (MG). A large - and growing - class of strategies mainly intended for accelleration of basic
relaxation methods. MG may in some cases have other purposes. Most relaxation methods are by nature
local, they tend to smooth the residuals in space, rather than reduce them. The rapidly varying residuals
are quickly annihilated, while the residuals of longer wavelength are left relatively unaffected. If the
residual norm is monitored a typical relaxation method will, perhaps after one or two iterations with
increasing residual norms, reduce the residual norm considerably for a small number of iterations,
whereupon the residual reduction tends to stall. At this point, it is appropriate to discretize the equation
for the deviation from the correct solution on a coarser mesh, the restriction process. On this mesh, the
residuals have a shorter wavelength relative to the mesh, hence the basic relaxation method is able to
smooth the residuals. One can now continue to discretize equations for the deviation from the exact
coarsegrid corrections on recursively coarser meshes, until the coarsest mesh consisting of only 1 or 2
cells in each dimension is reached. Upon solution on the coarsest mesh one recursively prolongates the
correction back on finer grids. For each finer grid one may perform relaxation sweeps. The process,
beginning with recursive restrictions and smoothings, continuing with the coarse grid solution, and
ending with recursive prolongations and smoothings back to the finest mesh is termed a multigrid cycle.
MG methods in both linear and non-linear versions exist. Some basic schemes do not smooth, instead
they propagate the residuals as a moving front. For these methods, the application of MG is intended to
more rapidly convey the residual front to the outer boundaries. Most explicit compressible flow schemes
are of this category. MG methods typically have linear convergence. See also Full Multigrid.

• Numerical diffusion. (ND) Often termed false diffusion. Diffusive side-effect from truncation errors
resulting from the discretization. Most prominent is false diffusion due to the use of upwind schemes for
the advection terms. ND from upwind discretization is not always controllable. ND is proportional to the
cell Reynolds number, hence the ratio between advection and effective diffusion is limited for a given
mesh, i.e. the effective Reynolds number is limited to a certain level, no matter how much the physical
Reynolds number is increased. A number of skew-upwind and high-order upwind methods have been
proposed to minimize the effect of ND. Most widely used is the QUICK scheme of Leonard.

• Odd-even decoupling. The physical solution is superimposed by one or more oscillatory spurious
solutions, which might under idealized conditions be extracted. The problem appears typically for
variables that enter the equations only in the form of first derivatives. The problem is best known from
pressure-velocity coouplings, and is resolved either by the use of staggered mesh or by introduction of a
fourth order dissipation term, as it is implicitly the case in the method of Rhie and Chow. The latter
form is employed on non-staggered meshes, which yields simpler implementation on non-orthogonal
meshes.
• Poisson equation The equation is called the Poisson equation. Its solution is an important
ingredient in numerous applications within the field of computational fluid dynamics, in the form shown
here aswell as a number of derived non-linear forms. The latter are mainly employed in mesh
generation. For incompressible Navier-Stokes calculations, the solution of Poissons equation often
consumes the majority of the computational time. Currently, with the application of increasingly
advanced multigrid methods, this is becoming less and less true.

• Prolongation The interpolation-like procedure in multigrid methods, that adds a coarsegrid correction to
the solution on a finer grid. Variants of different orders exist. For systems of second order equations,
linear prolongation suffices, higher order prolongation yields only marginally better convergence.
Higher order interpolation may, on the other hand, improve behaviour of the Full Multigrid method.

• Preconditioning. An approximation to the inverse of the matrix A in the system is employed

in most relaxation methods, including conjugate gradient and multigrid methods. There are several
demands on this approximation, or preconditioner. First of all, it should be good approximation to A.
Secondly, it should be sparse. Finally, the use of the preconditioner should preferrably vectorize. Gauss-
Seidel is a simple preconditioner, which does not vectorize. However, the mesh-points may be split in a
two-color system associating all points of odd index-sum to one color and all points of even index-sum
to the other color. If the two colors are now swept separately, the scheme may be vectorized very
effectively.

• Primitive variables In the description of momentum transport, in the form of Euler or Navier Stokes
equations, the set of variables consisting of velocity components and pressure is termed the set of

primitive variables. Another set of variables is the conservative often used in

compressible flow. The pressure is here determined from a constitutive relation. The primitive variables
may further be split into a set of characteristic variables. For incompressible flow, combinations as
stream function/vorticity or velocity/vorticity may be employed.

• QUICK upwind The simple Donor cell upwind scheme succesfully solves the problem of boundedness,
while on the other hand introducing excessive amounts of numerical diffusion. In a finite difference

context, the derivative in has to be approximated. In the donor cell scheme, the derivative is
determined using the present point and one upstream point. In the QUICK scheme, one adds one point in
each direction and calculates the derivative using the cubic polynomial drawn through the four involved
points. Local truncation error analysis shows third order accuracy. In multi-dimensional problems, the
QUICK scheme is applied separately in each of the spatial directions. The third order accuracy can not
be retained, it is difficult to determine an order. However, measurements reveal a limited amount of
numerical diffusion. The QUICK scheme is unconditionally bounded up to cell Peclet numbers of 5.
Beyond this limit, it may become unbounded. The QUICK scheme is normally applied as a correction to
the donor cell scheme. In situations with unboundedness, the correction may locally be limited, thus
 reverting to the donor cell scheme. The QUICK scheme has a somewhat different form in finite volume
contexts, since here the differences rather than the derivatives are of interest.

• Relaxation method. Designation of a class of iterative methods for the solution of e.g. discretized
partial differential equations. Relaxation methods often reduce short-waved residuals faster than long-
waved residuals. Relaxation methods are an ingredient in many equation solvers. Gauss-Seidel and
succesive over-relaxation (SOR) er examples of relaxation methods. Taking a geometrical viewpoint,
relaxation methods typically scan the computational domain in a block-wise manner. The block may as
in Gauss-Seidel be a single point. A lineblock is employed in line Gauss-Seidel, where the sweep
direction is perpendicular to the line-block. Using approximate factorizations such as ILLU (incomplete
line lower-upper), the block may effectively be extended to a complete plane. Considerable amounts of
computations may be saved by a judicious choice of block, which may be based on the coefficients of
influence. Whenever possible, points with great (mutual) influence are handled collectively.

• Residual norm A global measure of the residual. For any iterative method, a means to decide when to
terminate iteration due to convergence must be provided to retain any degree of generality. The best
would of course be to measure the error norm. Since the exact solution, or even an estimate is mostly not
available, one may in practical computations choose to monitor the residual norm or the increment
norm, or both. In most relevant cases, the increment norm is the cheapest one to compute, while the
residual norm is the safest. One normally decides to terminate iteration when the norm has dropped a
predefined number of orders. There are three commonly used norms, the 1-norm, the 2-norm, and the
max-norm ( -norm). The most appropriate choice depends on the type of iterative method. Most
methods for elliptic systems are fairly indifferent to the actual choice. The 1-norm has the advantage of
an easier physical interpretation for finite volume methods, e.g. the 1-norm of the mass residuals may be
directly compared to the net-inflow etc.

• Restriction. Designation for the process in multigrid methods, that transfers residuals from a finer mesh
to a coarser mesh. The term is also in some cases used for the transfer of approximate solutions from
finer to coarser meshes. Normally, the simplest possible method (depending on discretization etc.) is
employed for solutions, while a higher order weighting for the residuals may improve performance. For
Vertex centered computations, where the coarse mesh is found by removing every other fine mesh-point,
the simplest restriction is the injection, where the residual is transferred directly between the coinciding
fine and coarse points. Full weighting restriction implies that residuals in the neighbouring fine points
are weighted in. For Cell centered systems, where one coarse cell covers 2 fine cells in each coarsened
direction, the residuals in those fine cells covered by a coarse cell are accumulated and transferred to the
coarse cell.

• Solution adaptive mesh Computational mesh, in which the mesh division is adapted to the solution, for
instance such that greater gradients of the flow variable(s) results in denser mesh lines. Can be
performed either dynamically, i.e. the mesh is moved during the computation to reflect changes of
solution when they happen. Or the adaptation can be performed stepwise, where the mesh is adapted to
the near-converged solution a limited number of times, each time followed by a number of iterations on
the solution.
• Stability. In many contexts, the term refers to a system being tolerant to pertubations. Often, a stable
system is characterized by its ability to damp out pertubations exponentially in time, while for an
unstable system on the other hand a small pertubation may result in radical changes in the course of
time. Many systems tend to behave oscillatory in unstable situations, while others just exponentially race
away in a certain direction. In the time dimension, lack of convergence is often misinterpreted as
instability. The Crank-Nicholson method, which is unconditionally stable for any timestep, is a classical
example. For timesteps exceeding a certain range, the method delivers oscillatory results with almost
exponentially growing amplitude. Nevertheless, the symptom is not caused by instability. In the spatial
dimensions, non-boundedness may also resemble instability.

• Staggered mesh. Staggered = zig-zag order. Staggered mesh may be employed with pressure-velocity
couplings to prevent odd-even decoupling of the pressure. The pressure is allocated to the cell center,
while the horizontal velocity component is allocated to the vertical sides of the cells and the vertical
velocity component is allocated to the horizontal faces of the cell. When e.g. horizontal momentum is
evaluated, the involved pressure gradient may simply be found as the pressure difference between the
two neighbouring cell centers, thus preventing odd-even decoupling. Employed on non-orthogonal
meshes, the use of staggered mesh technique becomes considerably more complex. The velocity at all
cell faces must be split into components perpendicular and parallel to the face. All components need to
be stored at all faces, thus doubling storage in 2D (tripling in 3D). Further, as the definition of the
components differ in space for curved meshes, fictive forces appear. Currently, the method of Rhie,
using non-staggered mesh technique, attracts increasing popularity.

• Structured mesh. Computational mesh of type, where the neighbours of an actual point are found using

a simple, globally valid index variation. If e.g. a computational point has indices , the neighbour

on the right hand has indices , independent of the actual position within the computational
domain or mesh-block. Structured meshes normally require more points than the more geometrically
flexible unstructured meshes, but result in simpler and more efficient codes. Currently, the ratio of
efficiency for unstructured and structured implicit codes is around one order of magnitude.

• Transportivity. Means that the physical influence on a macro-scale is directly expressed in the
coefficients of influence, or in the flux evaluation. Hence, for advection dominated situations, the
upstream coefficients are greater than the downstream ones, reflecting that an upstream pertubation is
felt more strongly than a downstream pertubation. Transportivity expresses nothing about accuracy of
the discretization.

• Pressure-velocity coupling. Algorithm for the solution of the Navier-Stokes equations expressed in
primitive variables. The momentum equations are first solved as a predictor, tentatively using the
pressure field found in the preceeding iteration or timestep. The continuity equation, rewritten as the
divergence of the momentum equations, is then employed as a corrector. This results in a Poisson
equation for the pressure. Names as SIMPLE, PISO, and SIMPLEC designate different versions of
 pressure-velocty couplings. SIMPLE and SIMPLEC are iterative algorithms for the solution of steady
state problems, while PISO may be employed for both steady and unsteady calculations. All three
versions may easily be comprized in a single implementation.

• Underrelaxation. Most algorithms will, employed for transport equations, not converge for infinitely
long timesteps. If one in order to solve steady state problems merely removed the time derivative term,
one would be attempting to persuade the algorithm to do exactly this. Both explicit, implicit, and semi-
implicit algorithms will, again for transport equations, be characterized by an optimal timestep length,
for which they converge most expediently. This value is normally given as a CFL number or a Fourier
number based on local values of velocities etc. Instead of applying this optimal timestep, the time
derivative term may be substituted by an underrelaxation. Hence, The optimal underrelaxation factor
may be computed from . Thus, instead of using a global size of the timestep one may use
a constant CFL number throughout the domain. For this reason, underrelaxation is in some cases termed
local timestepping.

• Upwind differences. (UW) If discretizing advective-diffusive problems by centered differences, one

will for cell Peclet numbers exceeding 2 experience negative coefficients of influence on the downstream
side. Hence, a pertubation of the solution in the downstream points will result in a change in the opposite
direction in the present point. Thus, the solution becomes non-bounded. This behaviour may for
example be prevented by the use of UW. Coefficients of influence resulting from UW are transportive
in the sense that they reflect the fact that for progressively advection dominated flows upstream
influences become more prominent. The tradeoff when employing UW is normally an added numerical
diffusion. For the Donor cell scheme, the numerical diffusion is unacceptably high, while for the QUICK
scheme it is low to moderate, mostly on an acceptable level. For compressible flows, UW is viewed in a
different light. Here, instead of the primitive variables, a set of characteristic variables are often used.
The governing equations for the characteristic variables are locally hyperbolic. Hence, their solutions are
wavelike and upwind differences is the correct treatment. UW here appears under designations such as
flux splitting, flux difference splitting, fluctuation splitting etc.

• Unstructured mesh. Often a mesh in which the computational cells are triangles in 2D and tetrahedra in
3D. Employed, if very high demands are placed on geometrical flexibility. A growing family of
algorithms for the generation of these meshes are under development. Unstructured meshes require the
use of pointer structures in the computational code, as geometrical relation is generally not reflected in
storage relation. For flows involving shear layers, the unstructured meshes currently have problems with
excessive numerical diffusion. Hence, some researchers use combinations of structured mesh in shear
regions and unstructured mesh elsewhere.

• Vertex Centered (VC) In a vertex centered scheme, the flow variables are stored at the cell vertex. In
contrast to the Cell Vertex schemes, the fluxes are integrated along the perimeter of the dual cell. The
dual cell surrounds the vertex and is composed by dividing each cell between its vertices, normally the
division takes place along lines connecting the mid-face and the cell center. On unstructured meshes it is
noted that there are less vertices than cells. For triangular 2D meshes, the ratio between vertices and
cells is approximately 1:2, while on tetrahedral 3D meshes, the ratio is often 1:6. Hence, for unstructured
meshes the VC arrangement provides better discretization than CC for the same number of cells and
vertices.
