    11/21/19 5

    Proposal No: 19-0289

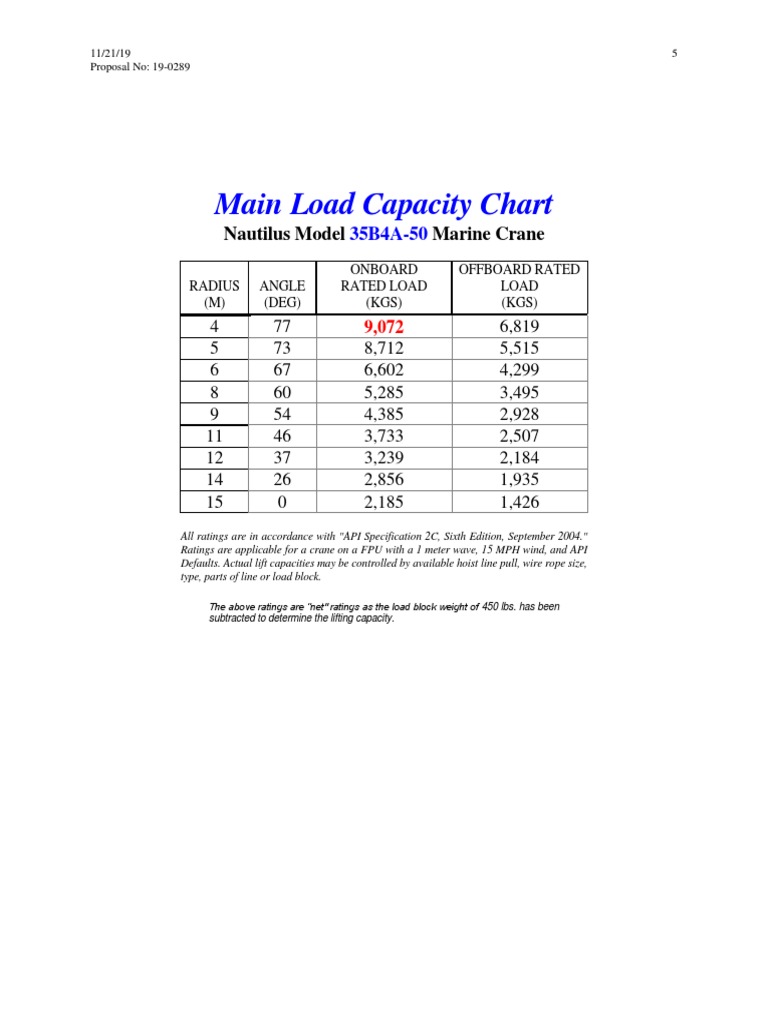

    Main Load Capacity Chart


    Nautilus Model 35B4A-50 Marine Crane
    ONBOARD OFFBOARD RATED
    RADIUS ANGLE RATED LOAD LOAD
    (M) (DEG) (KGS) (KGS)
    4 77 9,072 6,819
    5 73 8,712 5,515
    6 67 6,602 4,299
    8 60 5,285 3,495
    9 54 4,385 2,928
    11 46 3,733 2,507
    12 37 3,239 2,184
    14 26 2,856 1,935
    15 0 2,185 1,426
    All ratings are in accordance with "API Specification 2C, Sixth Edition, September 2004."
    Ratings are applicable for a crane on a FPU with a 1 meter wave, 15 MPH wind, and API
    Defaults. Actual lift capacities may be controlled by available hoist line pull, wire rope size,
    type, parts of line or load block.

    The above ratings are “net" ratings as the load block weight of 450 lbs. has been
    subtracted to determine the lifting capacity.
