Exploded view - mechatronic unit Page 1 of 3

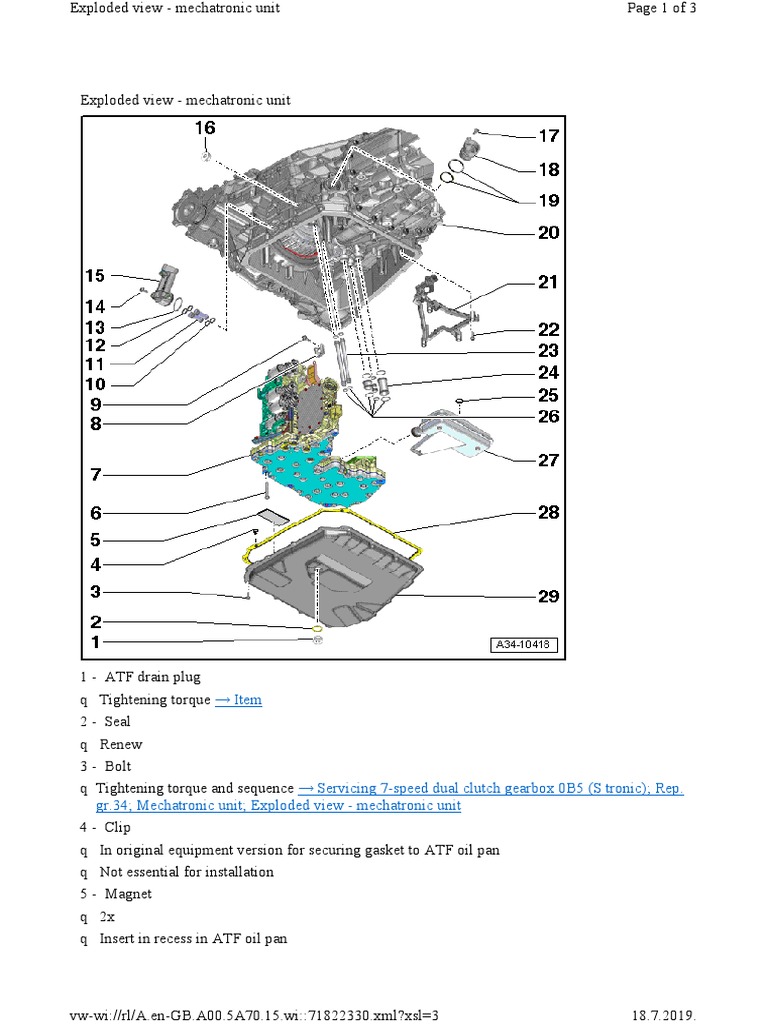

Exploded view - mechatronic unit

1 - ATF drain plug

q Tightening torque → Item
2 - Seal
q Renew
3 - Bolt
q Tightening torque and sequence → Servicing 7-speed dual clutch gearbox 0B5 (S tronic); Rep.
gr.34; Mechatronic unit; Exploded view - mechatronic unit
4 - Clip
q In original equipment version for securing gasket to ATF oil pan
q Not essential for installation
5 - Magnet
q 2x
q Insert in recess in ATF oil pan

vw-wi://rl/A.en-GB.A00.5A70.15.wi::71822330.xml?xsl=3 18.7.2019.
Exploded view - mechatronic unit Page 2 of 3

q Ensure that the magnet is in full contact with the ATF oil pan
6 - Bolt
q Tightening torque and sequence → Servicing 7-speed dual clutch gearbox 0B5 (S tronic); Rep.
gr.34; Mechatronic unit; Exploded view - mechatronic unit
7 - Mechatronic unit for dual clutch gearbox -J743-
q → Chapter „Removing and installing mechatronic unit“
After renewing mechatronic unit for dual clutch gearbox -J743-, run appropriate “Guided
l
Function” on vehicle diagnostic tester → Chapter
Disconnecting printed circuit from mechatronic unit for dual clutch gearbox -J743-
l
→ Servicing 7-speed dual clutch gearbox 0B5 (S tronic); Rep. gr.34; Mechatronic unit
8 - Retaining plate
q For ATF pipes
9 - Bolt
q Tightening torque and sequence → Servicing 7-speed dual clutch gearbox 0B5 (S tronic); Rep.
gr.34; Mechatronic unit; Exploded view - mechatronic unit
10 - O-rings
q Are renewed together with ATF pipes ( → Item)
q Lightly lubricate with ATF before inserting
11 - ATF pipes
q Renew
12 - O-rings
q Are renewed together with ATF pipes ( → Item)
q Lightly lubricate with ATF before inserting
13 - O-ring
q Renew
q Lightly lubricate with ATF before inserting
14 - Bolt
q Tightening torque → Item
15 - Housing for exchangeable ATF filter
q Removing and installing → Chapter
q Different versions are available; ensure that correct version is used
16 - ATF filler and inspection plug
q Tightening torque → Item
17 - Bolt
q Tightening torque and sequence → Servicing 7-speed dual clutch gearbox 0B5 (S tronic); Rep.
gr.34; Mechatronic unit; Exploded view - mechatronic unit
18 - Connector housing
– To remove, unscrew bolt -item 17- and turn connector housing anti-clockwise
19 - O-rings
q Renew
20 - Gearbox housing

vw-wi://rl/A.en-GB.A00.5A70.15.wi::71822330.xml?xsl=3 18.7.2019.
Exploded view - mechatronic unit Page 3 of 3

21 - Wiring harness
22 - Bolt
q Tightening torque and sequence → Servicing 7-speed dual clutch gearbox 0B5 (S tronic); Rep.
gr.34; Mechatronic unit; Exploded view - mechatronic unit
23 - ATF pipes
24 - ATF pipes
q Different versions are possible: one-piece or three-piece
25 - O-ring
q Renew
26 - O-rings
q Renew
27 - ATF intake filter
q Removing and installing → Servicing 7-speed dual clutch gearbox 0B5 (S tronic); Rep.
gr.34; Mechatronic unit
28 - Gasket
q Renew
q Installing → Anchor
29 - ATF oil pan
q → Chapter „Removing and installing oil pan“

vw-wi://rl/A.en-GB.A00.5A70.15.wi::71822330.xml?xsl=3 18.7.2019.
