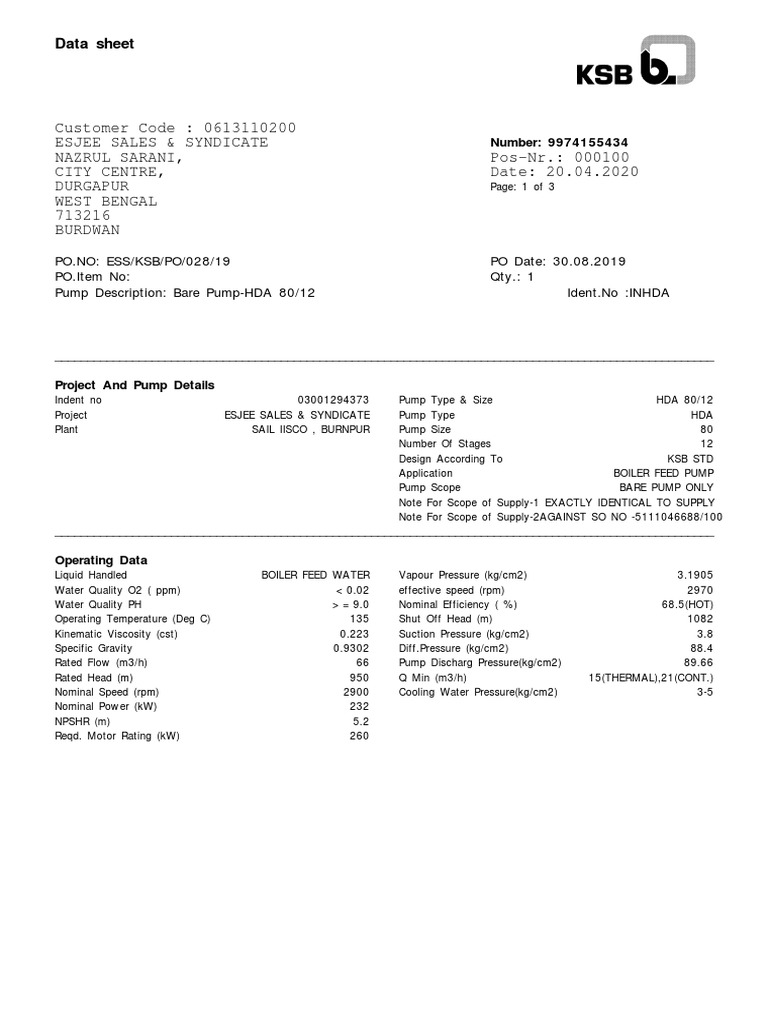

Data sheet

Customer Code : 0613110200

ESJEE SALES & SYNDICATE Number: 9974155434
NAZRUL SARANI, Pos-Nr.: 000100
CITY CENTRE, Date: 20.04.2020
DURGAPUR Page: 1 of 3
WEST BENGAL
713216
BURDWAN

PO.NO: ESS/KSB/PO/028/19 PO Date: 30.08.2019

PO.Item No: Qty.: 1
Pump Description: Bare Pump-HDA 80/12 Ident.No :INHDA

______________________________________________________________________________________________________

Project And Pump Details

Indent no 03001294373 Pump Type & Size HDA 80/12
Project ESJEE SALES & SYNDICATE Pump Type HDA
Plant SAIL IISCO , BURNPUR Pump Size 80
Number Of Stages 12
Design According To KSB STD
Application BOILER FEED PUMP
Pump Scope BARE PUMP ONLY
Note For Scope of Supply-1 EXACTLY IDENTICAL TO SUPPLY
Note For Scope of Supply-2AGAINST SO NO -5111046688/100
______________________________________________________________________________________________________

Operating Data
Liquid Handled BOILER FEED WATER Vapour Pressure (kg/cm2) 3.1905
Water Quality O2 ( ppm) <0.02 effective speed (rpm) 2970
Water Quality PH >=9.0 Nominal Efficiency ( %) 68.5(HOT)
Operating Temperature (Deg C) 135 Shut Off Head (m) 1082
Kinematic Viscosity (cst) 0.223 Suction Pressure (kg/cm2) 3.8
Specific Gravity 0.9302 Diff.Pressure (kg/cm2) 88.4
Rated Flow (m3/h) 66 Pump Discharg Pressure(kg/cm2) 89.66
Rated Head (m) 950 Q Min (m3/h) 15(THERMAL),21(CONT.)
Nominal Speed (rpm) 2900 Cooling Water Pressure(kg/cm2) 3-5
Nominal Power (kW) 232
NPSHR (m) 5.2
Reqd. Motor Rating (kW) 260
Data sheet

Customer Code : 0613110200

ESJEE SALES & SYNDICATE Number: 9974155434
NAZRUL SARANI, Pos-Nr.: 000100
CITY CENTRE, Date: 20.04.2020
DURGAPUR Page: 2 of 3
WEST BENGAL
713216
BURDWAN

PO.NO. : ESS/KSB/PO/028/19 PO Date : 30.08.2019

PO. Item No : Qty.: 1
Pump Description : Bare Pump-HDA 80/12 Ident.No :INHDA

______________________________________________________________________________________________________

Pump Design
Balancing Water BACK TO DEAERATOR Rotation Remark SEEN FROM DRIVE END
Rotation Direction CW Cooling API Plan E1+LOD(EXISTING)
Bearing Housing Type NORMAL Cooling Flow Rate (l/min) 60
Bearing Type PLAIN Cooling API Medium COOLING WATER
Stuffing Box Type HWD CoolingTemprature (°C) 35
Bearing Lubrication RING OIL Quenching API Plan 61
Lift Off Device ANTIFRICTION Hydro test Pr Suction (kg/cm2) 30
Casing Connection G Hydro Test Pr.Stage (kg/cm2) 115
Casing Support SHAFT CENTER Hydro testPr Discharge(kg/cm2) 115
Casing Feet CENTER FEET Imp - Dia -Design (mm) 245X 11
Casing Type DIFFUSER TYPE Nozzle Suction Size/Position 100 VERT UP
Impeller Type RADIAL CLOSED Nozzle Suction Machining ASME B 16.5 CLASS 150 RF
Shaft Seal MECHANICAL SEAL Nozzle Disch. Size /Position 80 VERT UP
Seal Mfg. Scope KSB Nozzle Discharge Machining ASME B 16.5 CLASS 900 RF
Seal Type & Size C050M1-4HDSC1 Perf.Curve No Q D
Seal Matl Code AQ1EGG
Flushing 1 API Plan 02- COOLED SEAT
Flushing 1 Medium WATER
______________________________________________________________________________________________________

Material
Material Execution 08 Shaft AISI 410(CR PLTD.)
Suction Casing WCB Impeller 1.4008.09
Stage Casing WCB Stuffing Box Housing WCB
Last stage casing CA6NM Wearing Ring / Wear Plate NICI
Discharge Casing CA6NM Shaft Protection Sleeve AISI 316
Stage Diffuser 1.4008.09 Tie Rod EN 24V/T
Counter Balancing Disc A182 GR F6A COND C Counter flange Material A 105
Balancing Disc A182 GR F6A COND B
Data sheet

Customer Code : 0613110200

ESJEE SALES & SYNDICATE Number: 9974155434
NAZRUL SARANI, Pos-Nr.: 000100
CITY CENTRE, Date: 20.04.2020
DURGAPUR Page: 3 of 3
WEST BENGAL
713216
BURDWAN

PO.NO. : ESS/KSB/PO/028/19 PO Date : 30.08.2019

PO. Item No : Qty.: 1
Pump Description : Bare Pump-HDA 80/12 Ident.No :INHDA

______________________________________________________________________________________________________

Drive And Accessories

Prime Mover MOTOR Coupling Make EXISTING NOT IN SCOPE
Prime Mover Proc By CLIENT Coupling Guard EXISTING NOT IN SCOPE
Prim Mover Receipt At works NO
Mot Make / Frame Size AS PER SO -5111046688
Base Frame EXISTING NOT IN SCOPE
Note 1 BARE PUMP SHALL BE SUITABLE TO
Note 2 MOUNT IN THE BAS FRAME OF
Note 3 SO NO- 5111046688
______________________________________________________________________________________________________

Coating
Paint KSB STD Paint Discription IDENTICAL TO -5111046688
______________________________________________________________________________________________________

Documentation Certificate
GA Drawing DIMENSIONAL Test Report Submission YES
P & I Diagram YES Witness Performance NO
CS Drawing YES Witness Strip NO
QN Number QN1270145 PART 11
Inspection By KSB INTERNAL
______________________________________________________________________________________________________

Gurantee Schedule
Pump Perf. Test As per ISO 9906 GR.1 Hydraulic Combination 245X11
Oper Point Capacity 1 (m3/h) 66 Std. Ref Curve No R 1820.452/337
Operating Point eff. 1 (%) 68 Tolerance on Capacity AS PER ISO 9906 GR. 1
Operating Point Head 1 (m) 950 Tolerance on Efficiency (%) AS PER ISO 9906 GR. 1
Operating Point Speeed 1 (rpm) 2970 Tolerance on Head (m) AS PER ISO 9906 GR. 1
Operating Point NPSHR 1 (m) 5.2 Tolerance on Power AS PER ISO 9906 GR. 1
Operating Point Power 1 (kW) 232 Tolerance on shut off Head + / - 5%
Ope Point Shut Off Head 1(m) 1082 Formula For Hot Water Efficien1-(1-CLD EF.)*(R HT/R CL)^0.05
Hot Efficiency Index 'X' 0.05
______________________________________________________________________________________________________

Additional Remark
Prepared by SMK
Old ISP Code X22740420170518103(IN096927)
