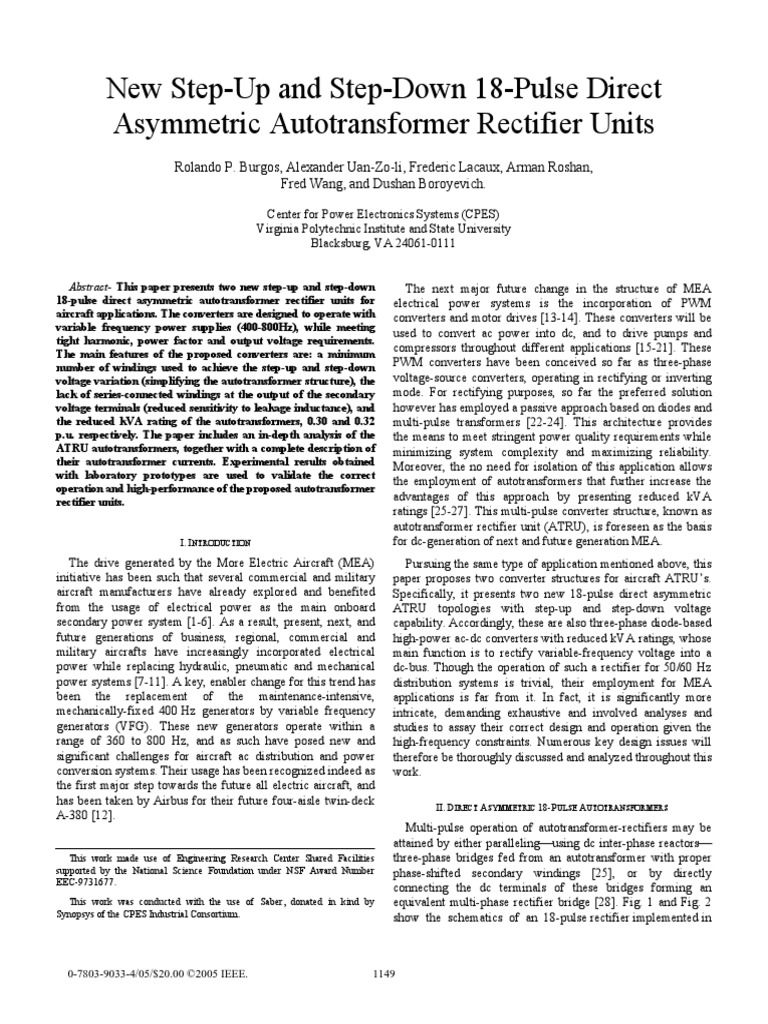

New Step-Up and Step-Down 18-Pulse Direct

Asymmetric Autotransformer Rectifier Units

Rolando P. Burgos, Alexander Uan-Zo-li, Frederic Lacaux, Arman Roshan,
Fred Wang, and Dushan Boroyevich.

Center for Power Electronics Systems (CPES)

Virginia Polytechnic Institute and State University
Blacksburg, VA 24061-0111

Abstract- This paper presents two new step-up and step-down
18-pulse direct asymmetric autotransformer rectifier units for
aircraft applications. The converters are designed to operate with
variable frequency power supplies (400-800Hz), while meeting
tight harmonic, power factor and output voltage requirements.
The main features of the proposed converters are: a minimum
number of windings used to achieve the step-up and step-down
voltage variation (simplifying the autotransformer structure), the
lack of series-connected windings at the output of the secondary
voltage terminals (reduced sensitivity to leakage inductance), and
the reduced kVA rating of the autotransformers, 0.30 and 0.32
p.u. respectively. The paper includes an in-depth analysis of the
ATRU autotransformers, together with a complete description of
their autotransformer currents. Experimental results obtained
with laboratory prototypes are used to validate the correct
operation and high-performance of the proposed autotransformer
rectifier units.
I. INTRODUCTION
The drive generated by the More Electric Aircraft (MEA)
initiative has been such that several commercial and military
aircraft manufacturers have already explored and benefited
from the usage of electrical power as the main onboard
secondary power system [1-6]. As a result, present, next, and
future generations of business, regional, commercial and
military aircrafts have increasingly incorporated electrical
power while replacing hydraulic, pneumatic and mechanical
power systems [7-11]. A key, enabler change for this trend has
been the replacement of the maintenance-intensive,
mechanically-fixed 400 Hz generators by variable frequency
generators (VFG). These new generators operate within a
range of 360 to 800 Hz, and as such have posed new and
significant challenges for aircraft ac distribution and power
conversion systems. Their usage has been recognized indeed as
the first major step towards the future all electric aircraft, and
has been taken by Airbus for their future four-aisle twin-deck
A-380 [12].
This work made use of Engineering Research Center Shared Facilities
supported by the National Science Foundation under NSF Award Number
EEC-9731677.
This work was conducted with the use of Saber, donated in kind by
Synopsys of the CPES Industrial Consortium.
The next major future change in the structure of MEA
electrical power systems is the incorporation of PWM
converters and motor drives [13-14]. These converters will be
used to convert ac power into dc, and to drive pumps and
compressors throughout different applications [15-21]. These
PWM converters have been conceived so far as three-phase
voltage-source converters, operating in rectifying or inverting
mode. For rectifying purposes, so far the preferred solution
however has employed a passive approach based on diodes and
multi-pulse transformers [22-24]. This architecture provides
the means to meet stringent power quality requirements while
minimizing system complexity and maximizing reliability.
Moreover, the no need for isolation of this application allows
the employment of autotransformers that further increase the
advantages of this approach by presenting reduced kVA
ratings [25-27]. This multi-pulse converter structure, known as
autotransformer rectifier unit (ATRU), is foreseen as the basis
for dc-generation of next and future generation MEA.
Pursuing the same type of application mentioned above, this
paper proposes two converter structures for aircraft ATRU’s.
Specifically, it presents two new 18-pulse direct asymmetric
ATRU topologies with step-up and step-down voltage
capability. Accordingly, these are also three-phase diode-based
high-power ac-dc converters with reduced kVA ratings, whose
main function is to rectify variable-frequency voltage into a
dc-bus. Though the operation of such a rectifier for 50/60 Hz
distribution systems is trivial, their employment for MEA
applications is far from it. In fact, it is significantly more
intricate, demanding exhaustive and involved analyses and
studies to assay their correct design and operation given the
high-frequency constraints. Numerous key design issues will
therefore be thoroughly discussed and analyzed throughout this
work.
II. DIRECT ASYMMETRIC 18-PULSE AUTOTRANSFORMERS
Multi-pulse operation of autotransformer-rectifiers may be
attained by either paralleling⎯using dc inter-phase reactors⎯
three-phase bridges fed from an autotransformer with proper
phase-shifted secondary windings [25], or by directly
connecting the dc terminals of these bridges forming an
equivalent multi-phase rectifier bridge [28]. Fig. 1 and Fig. 2
show the schematics of an 18-pulse rectifier implemented in

0-7803-9033-4/05/$20.00 ©2005 IEEE. 1149

Fig. 1. Schematic of 18-pulse rectifiers with paralleled three-phase bridges.
Fig. 2. Schematic of 18-pulse rectifier with direct connection of three-phase
bridges forming an equivalent nine-phase bridge.
both ways respectively. In the parallel case, the diodes conduct
1/3 of the load current for 120º, while in the direct case they
conduct the load current for 1/3 of the time, that is 40º. Of
these two, the direct connection of bridges is usually the
preferred choice since it eliminates all the current balancing
problems intrinsic to the parallel operation, i.e., high
impedance mismatch sensitivity, and high sensitivity to the
harmonic distortion of the supply voltages [22][28].
In the case of 18-pulse rectifiers, three sets of three-phase
voltages are required. Conventionally, and in reference to the
input power supply, these balanced set of voltages⎯generated
by a transformer or autotransformer⎯have a phase-shift of 0º,
and ±20º or ±40º. When these supply three directly-connected
three-phase bridges, each bridge conducts 1/3 of the load
power as shown by the per unit power indexes in Fig. 2. Fig. 3
shows the corresponding phasor diagram for ±40º, depicting
secondary phase voltages [v]abc, [vf]abc, and [vl]abc, and the
resultant line-to-line voltages applied. Clearly, the bridges
conduct one third of the time apiece, or equivalently each leg
or diode conducts two consecutive phasors (40º).
1150
Fig. 3. Phasor diagram of 18-pulse autotransformer with secondary phase
voltages [v]abc, [vf]abc, and [vl]abc. The figure also depicts the line-to-line
voltages applied at the dc terminals of the rectifier; the phasors are coded to
show which bridges conduct, namely forward-center ( ), forward-lagging
( ), or center-lagging ( ) bridge.
Fig. 4. Phasor diagram of asymmetric 18-pulse autotransformer with
secondary phase voltages [v]abc, [vf]abc, and [vl]abc. The figure also depicts the
line-to-line voltages applied at the dc terminals of the rectifier; the phasors are
coded to show which bridge pair conducts, namely center-forward ( ),
center-center ( ), or center-lagging ( ).
Since for 18-pulse operation one of the bridges is in phase
with the power supply, the operation of the converter may be
optimized to maximize the power going through the center
bridge, thus not through the phase-shifting autotransformer.
Such operation is described in detail in [27]. Basically, it
consists of adjusting the phase and amplitude of the lagging
and forward three-phase voltages in order to make them
interact continuously⎯on a line-to-line basis⎯with the center
bridge. Fig. 4 depicts the resultant phasor diagram for this
case, where the lagging and forward bridges are phase-shifted
by ±37º instead, and have a relative per unit amplitude of
0.767. As evinced by the figure, the resultant line-to-line
voltages applied at the dc terminals always involve the center Voltage Feeder 18-Pulse Diode Bridges Output DC
Supply Impedance Autotransformer Terminals
bridge, be it the bridge conducting both positive and negative P = 0.17p.u.
currents, or in combination with the forward and lagging [vf]abc
bridges. The result as shown in Fig. 5, is that only 1/3 of the
power goes through the autotransformer (lagging and forward
bridges), and the remaining 2/3 goes through the center bridge.
[vs]rst [i]rst Ls P = 0.66p.u.
va +vdc
The asymmetric autotransformer results in the center bridge vaf [v]abc
diodes conducting for 80º, and the lagging and forward bridge +37º -37º val

vcl vbf
diodes only for 20º. This advantageous power flow distribution
may become a serious hindrance when operating from high vc vcf vb
vbl
frequency power supplies. Hence, for aerospace applications -vdc
P = 0.17p.u.
with a variable frequency range of 400 to 800 Hz, the correct
operation of these diodes should be investigated, as an
excessive commutation period will result in the turning off of
[vl]abc
these diodes before their actual turn-on. This implies that three
diodes will conduct continuously, negatively affecting the
Fig. 5. Schematic of direct asymmetric 18-pulse rectifier.
harmonic distortion, i.e., 18-pulse characteristic, and overall
performance of the rectifier. vr
a) b)
va
va
vaf vr
III. STEP-UP AND STEP-DOWN AUTOTRANSFORMER ARRANGEMENTS vaf val
val
Depending on the application at hand, the output dc voltage vcl vbf
vcl vbf
of this type of rectifier may need to be adjusted to comply with
regulation requirements. The step-down need for 18-pulse vt
symmetric topologies in aerospace applications has already
vt vb vc vb
been presented in [23]. This step-down or step-up voltage gain vc vs
may be readily introduced by adjusting the output voltages of vs vcf vbl
the autotransformer. This implies a slight increase in the size vcf vbl
(kVA rating) of the autotransformer as now the center bridge is Fig. 6. Asymmetric autotransformer with supply input voltages [vs]rst, in a)
also connected through the autotransformer. Fig. 6 shows the step-down and b) step-up configurations.
asymmetric autotransformer introduced in [27], but in step-
down and step-up configurations. Clearly, the center bridge
terminals [v]abc are not connected directly to the input
terminals [vs]rst.
Some immediate observations may be obtained from
examining these autotransformers. Firstly, both step-down and
step-up units introduce a phase-shift between the primary or
supply voltages and the center-bridge voltages which now lead
the power supply. This does not affect their 18-pulse operation
and simply represents a relative rotation of the 18-pulse
voltages (forward-center-lagging) with respect to the input. Fig. 7. Asymmetric polygon and delta-polygon autotransformers.
Secondly, the step-up/down voltage gain may be generated by
either introducing an additional winding or by tapping one of
detrimental influence of the leakage inductance on these
the existent windings of the autotransformer as shown in
terminals is hence apparent, especially given the fact that these
Fig. 6. In the case an additional winding is used, this one may
terminals connect the diodes conducting only 20º. Moreover,
be implemented in different ways by using windings from
in the case of the step-down autotransformer, the input
different core legs. This results in slight variations of the total
terminals conducting the total input current are connected in
size and weight of the autotransformer as shown in [23][29].
the same manner, while in the step-up unit the direct bridge
The actual choice of topology for aerospace applications terminals are connected like this. The final effect is a bigger
then depends on other features, such as the sensitivity to the than necessary increase of the autotransformer kVA rating.
leakage inductance of the rectifier, size and weight, and ease of
manufacturability. In this respect, the asymmetric topologies
shown in Fig. 6 present a clear disadvantage, and that is that III. POLYGON ATRU TOPOLOGY
the voltage terminals of both lagging and forward bridges have Fig. 7 a) depicts an 18-pulse asymmetric polygon
autotransformer winding connected in series. The autotransformer. The main advantage over previous

1151
asymmetric autotransformers is that all autotransformer
windings are in parallel as opposed to the series connection
observed in Fig. 6. This is highly desirable when taking into
account the effect of the leakage inductance on the diodes, as
basically the equivalent commutating inductance is reduced by
a factor of three in this configuration.
In order to step-up or step-down the output voltages of the
polygon autotransformer, winding k2 is tapped and used as
input terminals for the supply voltages [vs]rst. The ratio
between the newly created windings k3 and k4 determines the
voltage gain of the autotransformer. In this way a step-up or
step-down ac voltage gain is attained without requiring an
additional winding, and hence maintaining the lower leakage
sensitivity of this autotransformer arrangement.
The number of turns in per unit for every winding may be
determined as follows as a function of the ac voltage gain Gac.
Windings k1, k2, k3, k4, and k5 may be derived from the 18-
Fig. 8. Asymmetric 18-pulse polygon autotransformer with step-up and step-
pulse asymmetric phasor diagram and Fig. 8 as follows: down tap in winding k2 creating windings k3 and k4.
⎛ π ⎞ 1
k1 = 0.767 sin ⎜ 37 ⎟ − k2 (1)
⎝ 180 ⎠ 2
a)
2 ⎛ ⎛ π ⎞⎞
k2 = ⎜⎜1 − 0.767 cos⎜ 37 ⎟ ⎟⎟ (2)
3⎝ ⎝ 180 ⎠⎠

k3 =
3 − k1 1
2
−
4
2
2 G ac
{
− 1 + 2 3k1 + 3k12 } (3)

k 4 = k 2 − k3 (4)

⎛ π ⎞
k 5 = 2 ⋅ 0.7672 − 2 ⋅ 0.767 2 cos⎜ (120 − 2 ⋅ 37 ) ⎟ (5)
⎝ 180 ⎠
For k3 larger than 0.04 p.u., the output voltages of the
autotransformer are stepped up, and for lower values stepped
down. To determine the rms current per winding, explicit
current expressions are determined for the twelve windings as b)
follows. Given the secondary line currents [if]abc, [i]abc, [il]abc,
the following current equations may be written.
ir = i2 − i1
i s = i 6 − i5 (6)
it = i10 − i9

iaf = i11 − i12 ia = i12 − i1 ial = i2 − i3

ibf = i3 − i4 ib = i 4 − i5 ibl = i6 − i7 (7)
icf = i7 − i8 ic = i8 − i9 icl = i10 − i11

Then equating the ampere turns per transformer core leg the
following relations are obtained.
i1k 3 + i 2 k 4 + i3 k 5 + i 4 k 2 = i8 k1 + i9 k1
i5 k 3 + i6 k 4 + i7 k 5 + i8 k 2 = i1k1 + i12 k1 (8)
Fig. 9. Asymmetric 18-pulse polygon autotransformer currents: a) winding
i9 k 3 + i10 k 4 + i11k 5 + i12 k 2 = i4 k1 + i5 k1 current through all 12 windings in reference to Fig. 8, b) line currents of
forward, center and lagging bridges and resultant input supply current.

1152
Solving these equations yields the following current
expressions.
i1 = i12 − i a i11 = iaf + i12 i2 = i al + ibf + i 4
i5 = i 4 − ib i3 = ibf + i4 i6 = ibl + icf + i8 (9)
i9 = i8 − ic i7 = icf + i8 i10 = icl + i af + i12

With i4, i8, and i12 defined by

i4 =
(a d − abe + ec
2 2
+ fb 2 − fac − bcd ) (10)
3 3 3
a + b + c − 3abc

i8 =
(a e − bce − bfa − cad + c
2 2
f + b2d ) (11)
3 3 3
a + b + c − 3abc

i12 =
(b e + a
2 2
f + c 2 d − abd − bcf − ace ) (12)
3 3 3
a + b + c − 3abc Fig. 10. Asymmetric 18-pulse delta-polygon autotransformer with step-up and
step-down tap in winding k2 creating windings k3 and k4.
And constants a, b, c, d, e, and f as follows:
a = 2k 2 + k 4 − k 3 b = −2k1 c = k3 (13)
a)
( )
d = − k1ic + k 3i a − k 4 i al + ibf − k 5 ibf (14)

e = −k1ia + k 3ib − k 4 (ibl + icf ) − k 5 icf (15)

f = − k1ib + k 3ic − k 4 (icl + iaf ) − k 5 iaf (16)

Fig. 9 depicts the per unit ideal currents on every winding in

figure (a), and the forward, center, and lagging bridge line
currents together with the input line current in figure (b).

IV. DELTA-POLYGON ATRU TOPOLOGY

Fig. 7 b) depicts an 18-pulse asymmetric delta-polygon
autotransformer. Just as the polygon autotransformer, all
autotransformer windings are in parallel as opposed to the
series connection observed in Fig. 6. In order to step-up or b)
step-down the output voltages of the delta-polygon
autotransformer, winding k2 is tapped and used as input
terminals for the supply voltages [vs]rst. The ratio between the
newly created windings k3 and k4 determines the step-up
voltage gain of the autotransformer. For stepping down the
voltage, a rotation of phasors is required, but for space-
limitation reasons only the step-up structure will be analyzed.
The number of turns in per unit for every winding as shown
in Fig. 10 may be determined as a function of the ac voltage
gain Gac. Windings k1, k2, k4, and k5 are given by (1-2) and (4-
5) respectively. The number of turns for k3 is given by:

3 1 G2
k3 = − 1 − ac (17)
2 G ac 4

To determine the rms current per winding, explicit current Fig. 11. Asymmetric 18-pulse delta-polygon autotransformer currents: a)
expressions are determined for the twelve windings as follows. winding current through all 12 windings in reference to Fig. 8, b) line currents
The secondary line currents [if]abc, [i]abc, [il]abc are given by (6- of forward, center and lagging bridges and resultant input supply current.

1153
 a) b) a) b)

c) d) c) d)

e) f) e) f)

Fig. 12. Experimental waveforms for polygon ATRU operating at 400Hz: (a-b)
input and output voltages for phase a showing step-up and phase-shift; (c)
input phase voltages and line currents for phare r and s; (d) input ac voltage
and current and output dc voltage and current; (e) line current for forward,
center, and lagging bridge; (f) positive dc rail current for forward, center, and
lagging bridge, and load current.
Fig. 14. Experimental waveforms for delta-polygon ATRU operating at
400Hz: (a-b) input and output voltages for phase a showing step-up and phase-
shift; (c) input phase voltages and line currents for phare r and s; (d) input ac
voltage and current and output dc voltage and current; (e) line current for
forward, center, and lagging bridge; (f) positive dc rail current for forward,
center, and lagging bridge, and load current.

a) b) a) b)

c) d) c) d)

Fig. 15. Experimental waveforms for delta-polygon ATRU operating at

Fig. 13. Experimental waveforms for polygon ATRU operating at 800Hz: (a-b) 800Hz: (a-b) input and output voltages for phase a showing step-up and phase-
input and output voltages for phase a showing step-up and phase-shift; (c) line shift; (c) line current for forward, center, and lagging bridge; (d) positive dc
current for forward, center, and lagging bridge; (d) positive dc rail current for rail current for forward, center, and lagging bridge, and load current.
forward, center, and lagging bridge, and load current.

1154
7). The ampere turns per transformer core leg have the
following form.
i1k 3 + i2 k 4 + i3 k 5 + i4 k 2 = i8 k1 + i10 k1
i5 k 3 + i6 k 4 + i7 k 5 + i8 k 2 = i 2 k1 + i12 k1 (18)
i9 k 3 + i10 k 4 + i11k 5 + i12 k 2 = i4 k1 + i6 k1
Solving these equations yields the same expressions as for the
polygon autotransformer given in (9-12) but with constants a,
b, c, d, e, and f defined as follows:
a = k 4 + k5 + k 2 b = −k1 c = k 3 − k1
(19)
( )
d = (icl + iaf )k1 + i a k 3 − i al + ibf k 4 − ibf k 5 (20)
e = (i al + ibf )k1 + ib k 3 − (ibl + icf )k 4 − icf k 5 (21)
f = (ibl + icf )k1 + ic k 3 − (icl + i af )k 4 − i af k 5
(22)
Fig. 11 depicts the per unit ideal currents on every winding
in figure(a), and the forward, center, and lagging bridge line
currents together with the input line current in figure (b).
V. EXPERIMENTAL RESULTS
Experimental results for the polygon direct asymmetric
ATRU are given in Fig. 12 and Fig. 13, depicting operation at
400 Hz and 800 Hz respectively. These waveforms illustrate
the correct operation of the converter, and the overall good
performance attained. The phase-shift introduced by this
topology is clearly seen in Fig. 12 b). Fig. 14 and Fig. 15 show
experimental results for the delta-polygon direct asymmetric
ATRU, depicting 400 Hz and 800 Hz operation as well. Both
topologies present similar performances, the advantages of the
delta-polygon ATRU comes from a 2% reduction in the kVA
rating; its values is 0.30 p.u. as opposed to 0.32 p.u. of the
polygon ATRU for a step-up operation with Gac = 1.1.
VI. CONCLUSIONS
This paper has presented two 18-pulse direct asymmetric
autotransformer rectifier units for aircraft applications. Based
on polygon and delta-polygon asymmetric autotransformers,
these converters presented a reduced kVA-rating structure with
minimized number of windings. The main advantages of the
proposed converters are the reduced sensitivity to leakage
inductance, which makes these topologies suitable for variable
high frequency operation (400-800Hz), and the ability to step-
up or step-down the output voltage by design. A complete
modeling and characterization of these autotransformers was
presented as well experimental results obtained with scaled-
down laboratory prototypes which validated the correct
operation of the proposed multi-pulse rectifiers.
REFERENCES
[1] R. Quigley, “More Electric Aircraft,” in Conf. IEEE APEC’93, pp. 906-
911, Mar. 1993.
[2] J. Weimer, “Electrical Power Technology for the More Electric
Aircraft,” in Conf. IEEE DASC’93, pp. 445-450, Oct. 1993.
[3] L. Feiner, “Power-by-Wire Aircraft Secondary Power Systems,” in Conf.
IEEE DASC’93, pp. 439-443, Oct. 1993.
[4] J. Cloyd, “Status of the United States Air Force's MEA Initiative,” IEEE
AES Systems Mag., vol 13., no. 4, pp. 17-22., Apr. 1998.
[5] R. Navarro, “All-Electric Airplanes Prove Efficient,” Aerospace Tech.
Develop., vol 6, no. 3, May/June 1998.
[6] S. Croke, and J. Herrenschmidt, “More Elecric Initiative- Power-by-Wire
Actuation Alternatives,” in Conf. IEEE NAECON’94, vol. 2, pp. 1338-
1346, May 1994.
[7] R. Jones, “The More Electric Aircraft: The Past and The Future?,” Elec.
Machines and Sys. For MEA, IEE Colloquium, pp. 1/1-1/4, Nov. 1999.
[8] L. Feiner, “Power Electronics for Transport Aircraft Applications,” in
Conf. IEEE IECON’93, vol. 2, pp. 719-724, Nov. 1993.
[9] C. Adams, “A380:’More Electric’ Aircraft,” Avionics Mag., Oct. 2001.
[10] “More-Electric Aircraft Technologies Move from Paper to Platform,”
[11]
Journ. of Aerospace and Def. Ind. News, Jan. 2001.
S. Cutts, “A Collaborative Approach to the More Electric Aircraft,” in
Conf. IEE PEMD’02, pp. 223-228, Apr. 2002.
[12] “A380 Maintenance Status Report,” Fast Magazine, no. 28, Aug. 2001.
[13] A. Emadi, and M. Ehsani, “Aircraft Power Systems: Technology, State
of the Art, and Future Trends,” IEEE AES Systems Mag., vol 15., no. 1,
pp. 28-32., Jan. 2000.
[14] I. Moir, “More Electric Aircraft-System Considerations,” Elec. Machines
and Sys. For MEA, IEE Colloquium, pp. 10/1-10/9, Nov. 1999.
[15] W. Homeyer, E. Bowles, S. Lupan, P. Walia, and M. Maldonado,
“Advanced Power Converters for More Electric Aircraft Applications,”
in Conf. IEEE IECEC-97., vol. 1, pp. 591-596, July 1997.
[16] P. Athalye, D. Maksimovic, and R. Erickson, “High-Performance Front-
End Converter for Avionics Applications,” in IEEE Trans. on Aerospace
and Elec. Sys., vol. 39, no. 2, Apr. 2003.
[17] G. Gong, M. Heldwein, U. Drofenik, K. Mino, J. Kolar, “Comparative
evaluation of three-phase high power factor AC-DC converter concepts
for application in future more electric aircrafts,” in Proceed. IEEE
APEC’04, vol. 2, pp. 1152-1159, March 2004.
[18] S. Chandrasekaran, D. Lindner, and D. Boroyevich, “Analysis of
subsystem integration in aircraft power distribution systems,” in Conf.
IEEE ISCAS’99, vol. 5, pp. 82-85, June 1999.
[19] U. Jensen, M. Rasmussen, T. Mortensen, F. Blaabjerg, and J. Pedersen,
“A New Control Method for 400 Hz Ground Power Units for Airplanes,”
in Conf. IEEE IAS’98, vol. 2, pp. 1469-1476, Oct. 1998.
[20] M. Taha, D. Skinner, S. Gami, M. Hohne, and G. Rannondi, “Variable
Frequency to Constant Frequency Converter (VFCFC) for Aircraft
Applications,” in Conf. IEE PEMD’02, pp. 235-240, Apr. 2002.
[21] G. Gong, U. Drofenik, and J. Kolar, “12-Pulse Rectifier for More
Electric Aircraft Applications,” in Proceed. IEEE ITC’03, vol. 2, pp.
1096-1101, Dec. 2003.
[22] A. Uan-Zo-li, R. Burgos, F. Wang, D. Boroyevich, F. Lacaux, and A.
Tardy, “Comparison of Prospective Topologies for Aircraft
Autotransformer-Rectifier Units,” in Proceed. IEEE IECON’03, vol. 2,
pp. 1122-1127, Nov. 2003.
[23] K. Furmanczyk and M. Stefanich, “Demonstration of Very High-Power
Airborne AC to DC Converter,” in Proceed. SAE International Power
System Conference, Nov. 2004.
[24] F. Chivite-Zabalza, A. Forsyth, D. Trainer, “Analysis and practical
evaluation of an 18-pulse rectifier for aerospace applications,” in
Proceed. IEEE PEMD’04, vol. 1, pp. 338-343, March 2004.
[25] S. Choi, P. Enjeti, and I. Pitel, “Polyphase Transformer Arrangements
with Reduced KVA Capacities for Harmonics Current Reduction in
Rectifier-Type Utility Interface,” in IEEE Trans. on Pow. Elec., vol. 11,
no. 5, pp. 680-690, Sep. 1996.
[26] G. Kamath, B. Runyan, and R. Wood, “A Compact Autotransformer
Based 12-Pulse Rectifier Circuit,” in Proceed. IEEE IECON’01, vol. 2,
pp. 1344-1349, Nov. 2001.
[27] G. Kamath, D. Benson, and R. Wood, “A Novel Autotransformer Based
18-Pulse Rectifier Circuit,” in Proceed. IEEE APEC’02, vol. 2, pp. 795-
801, Mar. 2000.
[28] D. Paice. Power Electronic Converter Harmonic s -Multipulse Methods
for Clean Power. IEEE Press, Piscataway, NJ, 1996.
[29] A. Uan-Zo-li, R. Burgos, F. Lacaux, A. Roshan, F. Wang, and D.
Boroyevich, “Analysis of New Step-Up and Step-Down Direct
Symmetric 18-Pulse Topologies for Aircraft Autotransformer Rectifier
Units,” in Proceed. IEEE PESC’05, June 2005.

1155
