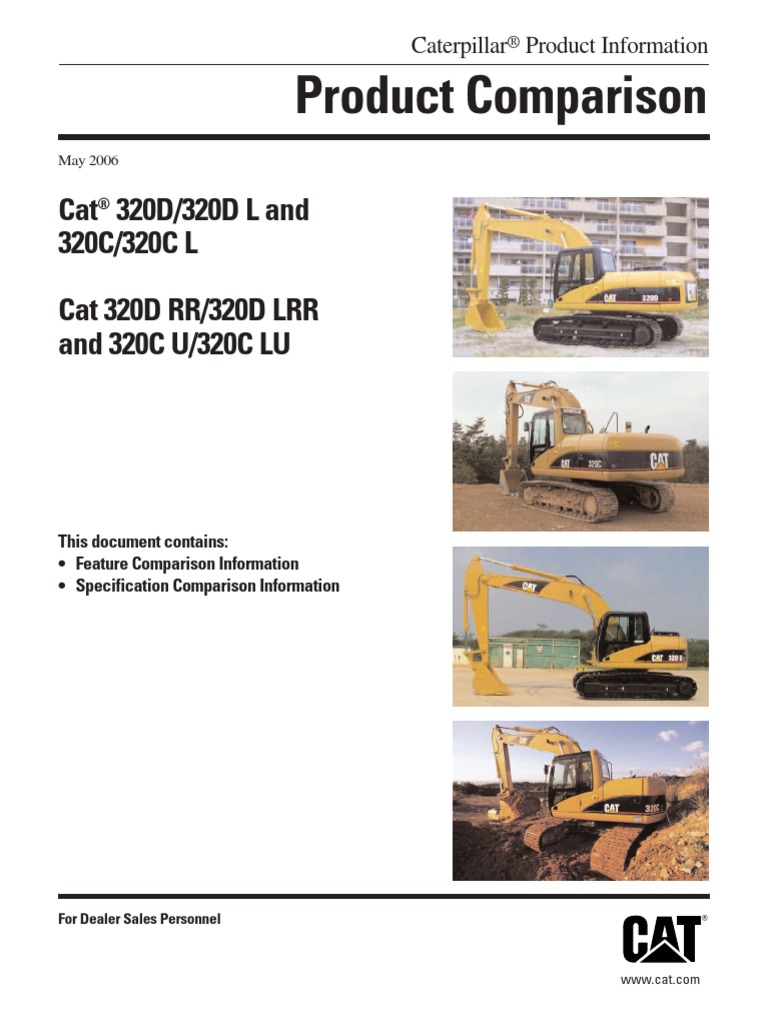

Caterpillar® Product Information

Product Comparison
May 2006

Cat® 320D/320D L and

320C/320C L

Cat 320D RR/320D LRR

and 320C U/320C LU

This document contains:

• Feature Comparison Information
• Specification Comparison Information

For Dealer Sales Personnel ®

www.cat.com
Table of Contents

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

More Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
More Drawbar Pull . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Increased Breakout Forces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Increased Lift Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Improved Controllablility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Lower Owning and Operating Costs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Service Intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operator Comfort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Improved Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
More Seat Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Console Redesign . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
New Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Improved Durability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Power Link Change . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Spring Recoil System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Front Linkage Changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Enhanced Tool Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
New Styling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Anti-Skid Plating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Technical Specifications Comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Working Ranges/Dimensions Comparison . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

2 TEJB9215 Cat 320D/320D L and 320C/320C L May 2006

Cat 320D RR/320D LRR and 320C U/320C LU
 Introduction

Caterpillar is pleased to introduce the 320D and 320D RR as the direct replacement of the 320C and 320C U.
Since the introduction of the 300 family excavators, they have become the standard of the industry for a
large variety of applications. The new 320D and 320D RR further enhance and build upon the attributes
that the C-Series excavators delivered.

The 320D/320D RR delivers:

• More performance

– More lift capacity

– More drawbar pull

– More breakout forces

– Improved controllability

• Lower owning and operating costs

– Economy mode

– Extended service interval for the main hydraulic return filter

• Better operator comfort

– Improved layout with better air flow and ventilation

– More seat options

– Improved effective sitting area

– New monitor with increased functionality

• Improved durability

– Power link change

– Spring recoil system

– Front linkage changes

• More versatility with the improved Tool Control System

• New styling that gives the D-Series a distinct new look

• New anti-skid plating on upper deck

May 2006 TEJB9215 Cat 320D/320D L and 320C/320C L 3

Cat 320D RR/320D LRR and 320C U/320C LU
More Performance

(lbf) kN Drawbar Pull

47,200 210

44,962 200 206

(46,311)
42,714 190 202

Index
(45,411)
40,466 180

38,218 170

35,969 160

33,721 150
320C/320C U 320D/320D RR

The hydraulic system pressure has been increased on the 320D/320D RR to 35 000 kPa (5,076 psi)
from 34 300 kPa (4,975 psi), which is an increase of 2%. The increased hydraulic pressure gives
the 320D/320D RR advantages over the 320C/320C U in the following areas:

More Drawbar Pull

The drawbar pull of the 320D/320D RR has been increased 2% (+4 kN [900 lb]) over the 320C/320C U.
The additional drawbar pull will increase the machines capabilities in the following functions:

• Performance traveling up slopes

• Easier spot turns

• Better travel capabilities in poor underfoot conditions

4 TEJB9215 Cat 320D/320D L and 320C/320C L May 2006

Cat 320D RR/320D LRR and 320C U/320C LU
 More Performance

Breakout Forces Comparison (SAE)

R3.9 R2.9 R2.5 M2.4
320C/320C U kN (lbf) 125 (28,101) 131 (29,450) 131 (29,450) 160 (35,969)
Bucket Forces 320D/320D RR kN (lbf) 131 (29,450) 131 (29,450) 131 (29,450) 166 (37,318)
Difference 105% 100% 100% 104%
320C/320C U kN (lbf) 83 (18,659) 100 (22,481) 113 (25,403) 125 (28,101)
Stick Forces 320D/320D RR kN (lbf) 86 (19,334) 105 (23,605) 117 (26,303) 125 (28,101)
Difference 104% 105% 104% 100%

Increased Breakout Forces

Breakout forces for the 320D/320D RR have been increased (4-5%) for certain sticks/buckets due to the
system pressure increases. The Mass Stick (M2.4) bucket cylinder bore has been increased 5 mm (0.2 in)
and has larger bucket pins, now 90 mm (3.5 in) each.

May 2006 TEJB9215 Cat 320D/320D L and 320C/320C L 5

Cat 320D RR/320D LRR and 320C U/320C LU
More Performance

320D L vs. 320C L Lift Capacity

Reach Booms, R2.9 Sticks
Bucket = 0.9 m3 (1.18 yd3)
Pressures: 320D L = 35 000 kPa (5,076 psi), 320C L = 34 300 kPa (4,975 psi)
Lift Load Radius

Point 5 ft 10 ft 15 ft 20 ft 25 ft Maximum
Height Front Side Front Side Front Side Front Side Front Side Front Side
25 ft 105% 105%
20 ft 103% 98% 103% 103%
15 ft 99% 100% 101% 100% 105% 105%
10 ft 97% 97% 99% 101% 100% 100% 101% 100% 105% 98%
5 ft 101% 101% 102% 100% 100% 100% 105% 100%
Ground 118% 118% 102% 101% 99% 100% 100% 100% 104% 100%
-5 ft 109% 109% 108% 108% 103% 100% 100% 100% 100% 100% 105% 100%
-10 ft 105% 105% 105% 100% 104% 101% 100% 100% 104% 98%
-15 ft 106% 106% 106% 100% 102% 102%
102%
= Advantage for the 320D
= No Difference (±1%)
= Advantage for the 320C

Increased Lift Capacity

The overall lift capacity of the 320D/320D RR has been increased by an average of 2% over the
320C/320C U. Over the front, the excavator is generally limited to its hydraulic capacity, so increasing
pressures will give those points in the working envelope additional lift capacity. Over the side is generally
limited by stability (track comes off the rollers), so increasing pressures will only affect overall lift over
the side minimally.

6 TEJB9215 Cat 320D/320D L and 320C/320C L May 2006

Cat 320D RR/320D LRR and 320C U/320C LU
 More Performance

Improved Controllability
The hydraulic valve stems in the main hydraulic valve have been redesigned for the D-Series. These new
generation valve stems improve from the C-Series and offer improvements in the following areas:

• Easier leveling ability for fine grading

• Faster combined movement

• Improved joystick responsiveness

May 2006 TEJB9215 Cat 320D/320D L and 320C/320C L 7

Cat 320D RR/320D LRR and 320C U/320C LU
More Performance

Lower Owning and Operating Costs

Economy Mode Features and Benefits:

• Standard feature on the 320D/320D RR

• For Light Duty applications (~ 12% less production)

• Reduces fuel consumption by 15-20%

• Maintains break-out forces and lift capacity as standard mode

• Accessible through monitor and remains active until it is deactivated by the operator

• Economy is active when the green gas tank icon is visible on the monitor

8 TEJB9215 Cat 320D/320D L and 320C/320C L May 2006

Cat 320D RR/320D LRR and 320C U/320C LU
 More Performance

Service Intervals
320D/320D RR 320C/320C U
Greasing
Front Pin Greasing – Bucket Linkage Hours 100 100
Front Pin Greasing – Stick Nose Hours 100 100
Front Pin Greasing – Other Pins Hours 1,000 1,000
Swing Bearing Hours 250 250
Swing Gear Hours 2,000 2,000
Fluid change
Engine Oil Hours 500 500
Coolant Hours 3,000 3,000
Hydraulic Oil Hours 5,000 5,000
Swing Drive Oil Hours 1,000 1,000
Dumper Case (Pump Drive) Hours Not Required 1,000
Final Drive Oil Hours 2,000 2,000
Filter change
Engine Oil Filter Hours 500 500
Hydraulic Return Filter Hours 2,000 1,000
Hydraulic Pilot Filter Hours 1,000 1,000
Hydraulic Drain Filter Hours 1,000 1,000
Hydraulic Tank Breather Element Hours Not Required Not Required
Fuel Filter – Primary Hours Cleaning Cleaning
Fuel Filter – Secondary Hours 500 500

Service Intervals

The hydraulic return filter interval has been increased from 1,000 hours to 2,000 hours for the D-Series,
primarily as an improvement in the filtration of the filter. All other maintenance intervals from the C-Series
have been maintained.

May 2006 TEJB9215 Cat 320D/320D L and 320C/320C L 9

Cat 320D RR/320D LRR and 320C U/320C LU
Operator Comfort
320D/320D RR – Improved Layout
The 320D/320D RR builds upon the world-class
320C/320C U cab by maintaining all of those
elements while offering enhancements in the
following areas:
• Frequently used switches move forward on the
right hand wall and the relocation of the radio
to the underneath of the right armrest.
• Improved airflow for air conditioning, heating
and ventilation.
• Console mounted armrests with one hand
height and angle adjust.
• New seat options available for maximum
operator comfort.
10 TEJB9215 Cat 320D/320D L and 320C/320C L
Cat 320D RR/320D LRR and 320C U/320C LU
320C/320C U – Improved Layout
The 320C features a redesigned cab and cab layout
that maximized comfort and brought the following
features:
• Cab exterior made of asymmetrical tubing for
improved resistance to fatigue and vibration.
• Relocation of switches and air conditioning
controls to the right hand wall for easier access
and eliminating exposure of the weather elements
to electrical components on the left (door) side.
• Increased visibility to the right hand side with
enlarged right side window.
• Increased upward visibility with the enlarged
polycarbonate pop-up skylight.
• Increased visibility to the left rear of the
machine with an enlarged left rear window.
• New seat that added additional comfort.
May 2006
 Operator Comfort

320D/320D RR – More Seat Options 320C/320C U – More Seat Options

The 320D/320D RR seat offerings build upon the
C-Series offering and gives the choice of several
different options:
• Mechanic suspension (high or low back) –
similar to the 320C seat providing very good
comfort to the operator.
The 320C/320C U offered a new standard
mechanical suspension seat that provides different
levels of firmness in the cushioning. The dark gray
areas are firmer and provide support to the operator.
The light gray is less firm and conforms to the
operator shape. The combination of both cushion
types provides maximum comfort to the operator.

• Air suspension – the air suspension further

enhances the operator comfort.

• Air suspension with heater – for those colder

climates, the heater provides additional heat
to the operator.

Note – not all seats available in all markets

May 2006 TEJB9215 Cat 320D/320D L and 320C/320C L 11

Cat 320D RR/320D LRR and 320C U/320C LU
Operator Comfort

320D/320D RR – Console Redesign 320C/320C U – Console Redesign

• The 320D/320D RR offers a redesign of the • The 320C/320C U armrest/consoles are situated
armrests and consoles, which lowers the above the seat and can restrict the effective
consoles to be level with the seat cushion seating area.
bottom. This redesign allows for more effective
seating area leading to the potential of more
operator comfort.

12 TEJB9215 Cat 320D/320D L and 320C/320C L May 2006

Cat 320D RR/320D LRR and 320C U/320C LU

320D/320D RR – New Monitor
The 320D/320D RR features a new monitor that
enhances the C-Series monitor in the following areas:
• More compact monitor that has streamlined
viewing area with more contrast, which allows
for easier viewing.
• 27 different languages are all available for
selection.
• Service meter hours can be displayed on
the monitor.
• Service interval tracking can be customized
to match the customer’s required intervals.
• Back-up key makes it easier to navigate
through the 4 menu settings: Settings,
Maintenance, Performance and Service.
• Monitor is camera/video ready – potential
for a dealer/customer installed option.
• Common with monitor on the 324D-385C.
May 2006 TEJB9215 Cat 320D/320D L and 320C/320C L
Cat 320D RR/320D LRR and 320C U/320C LU
Operator Comfort
320C/320C U – New Monitor
The 320C/320C U featured a new and improved
monitor that simplified the viewing area to the
operator. It also brought best in class functionality
with the following features:
• Warning messages in the form of text instead
of symbols that need to be interpreted.
• Multilingual capability – up to seven different
languages were programmed onto the monitor.
• Service intervals for main service items were
tracked and gave warning indication when
service interval is due.
• Ability to view engine speed, pump pressures,
and power shift pressures.
13
Improved Durability

320D/320D RR – Power Link Change 320C/320C U – Power Link Change

The 320D/320D RR offers a more robust design of The 320C/320C U provided a power link with the
the power link that includes an integrated lift eye. “H” bar design. The power link was difficult for
This lift eye is more functional and allows for a customers to attach a clevis around due to the size
clevis to attach more easily than the power link of the cross bar.
of the 320C/320C U. Lifting from the power link
versus a bucket lift eye gives you a mechanical
advantage as it lowers the load point and allows
more use of the boom cylinders.

14 TEJB9215 Cat 320D/320D L and 320C/320C L May 2006

Cat 320D RR/320D LRR and 320C U/320C LU
 Improved Durability

Spring Recoil System

The Spring Recoil System relieves abnormal track tension that results from mud packing or when material
gets stuck between the tracks and the sprockets. Extensive tension appears when the spring recoil is at
maximum stroke which could lead to final drive breakage, idler breakage or undercarriage frame bending.
The Spring Recoil System stroke on the 320D/320D RR has been increased 26% (45 mm to 57 mm [1.8 in
to 2.2 in]), which allows sufficient clearance between the track and the sprocket, plus preserves the
undercarriage components and frame.

May 2006 TEJB9215 Cat 320D/320D L and 320C/320C L 15

Cat 320D RR/320D LRR and 320C U/320C LU
Improved Durability

C-Series
Bucket Pin Dia Boss Width
320C to 320D Model Boom
Family PT8/PT10 mm (in)
No change 320/ Reach B 80/80 311 (12)
Boom
Pin locations changed 320 U Mass C 80/80 351 (14)
B-1 – Stick: Nose: pin
Stick
Pin Location Changed diameter increased
B1 – Linkage: CB2: pin D-Series
Linkage Bucket Pin Dia Boss Width
Idler link changed diameter increased Model Boom
Family PT8/PT10 mm (in)
320/ Reach B1 80/80 311 (12)
320 RR Mass CB2 90/90 351 (14)

Front Linkage Changes

The Front Linkage Options for the 320D/320D RR remains the same as provided for the 320C/320C U.
The B-Family linkage has not changed pin diameters or boss width, so work tools utilized on the
320C/320C U should remain compatible. The Mass stick has had a pin diameter increase to 90 mm/90 mm
(3.5 in/3.5 in) from 80 mm/80 mm (3.1 in/3.1 in) in order to provide a robust design due to the increases
in forces and power (associated with the 324D/325D).

16 TEJB9215 Cat 320D/320D L and 320C/320C L May 2006

Cat 320D RR/320D LRR and 320C U/320C LU
 Improved Durability

Enhanced Tool Control

• Capable of running either single or double function tools, one pump or two pump, high pressure

• Hammers, compactors, thumbs and non-rotating tools

• Ability to add medium pressure

• Pressures and flows programmable and stored through the monitor

• Hour accumulation tracked for each tool

• Ten tool presets (flow and pressure)

• Selection by Caterpillar tool name

• Selected work tool displayed on monitor

• New work tool settings can be recorded

• Shortcut button (right hand wall)

The Tool Control System on the 320D/320D RR has been enhanced to now allow for up to 10 different
tools to be pre-set and stored into the monitor. There is now also the option of choosing tool control that
does not have medium pressure for those customers that do not require the medium pressure. There is a
short cut to choose the tool through the soft switch on the right hand wall.

May 2006 TEJB9215 Cat 320D/320D L and 320C/320C L 17

Cat 320D RR/320D LRR and 320C U/320C LU
Improved Durability

320D/320D RR – New Styling 320C/320C U – New Styling

The 320D/320D RR builds upon the styling offered The 320C/320C U styling and coloring scheme has
with the 320C/320C U, but enhances it to give a been very well accepted in the market place. It gave
new distinct look of its own. the 320C/320C U a new sleek, rounded, more
modern look.
• The counterweight has been redesigned to
include a larger Cat logo to give it better brand
identification and give it a common look to the
large Caterpillar C-Series excavators.

• The cab appearance has subtle changes with the

skirt changed to yellow and the cab post/cab rear
changed to black. These changes are also
common with the large C-Series.

• The booms now have an enlarged shark fin decal

to provide better identification and visibility.

18 TEJB9215 Cat 320D/320D L and 320C/320C L May 2006

Cat 320D RR/320D LRR and 320C U/320C LU
 Improved Durability

320D/320D RR – Anti-Skid Plating 320C/320C U – Anti-Skid Plating

The 320D/320D RR features an improved punch The 320C/320C U featured punched star plating
star plating that provides the same level of traction that provides good traction especially during
during inclement weather, but prevents debris from inclement weather conditions.
falling into the upper frame compartments. It is also
more comfortable when service personnel have to
kneel on the plating in order to perform service and
maintenance functions.

May 2006 TEJB9215 Cat 320D/320D L and 320C/320C L 19

Cat 320D RR/320D LRR and 320C U/320C LU
Technical Specifications Comparison

Engine 320D 320C 320D RR 320C U

Engine Model Cat 3066 Cat 3066 Cat 3066 Cat 3066
Horsepower kw (hp) 103 (138) 103 (138) 103 (138) 103 (138)
Bore mm (in) 102 (4) 102 (4) 102 (4) 102 (4)
Stroke mm (in) 130 (5) 130 (5) 130 (5) 130 (5)
Displacement L (in3) 6.37 (389) 6.37 (389) 6.37 (389) 6.37 (389)

Weights 320D 320C 320D RR 320C U

Operating Weight – Std kg (lb) 20 300 (44,754) 19 700 (43,431) 22 800 (50,265) 22 300 (49,163)
Operating Weight – Long kg (lb) 21 500 (47,399) 21 000 (46,297) 24 000 (52,911) 23 000 (50,706)

Hydraulic System 320D 320C 320D RR 320C U

Main Implement System – Max Flow (x2) L/min (gal/min) 205 (54) 205 (54) 205 (54) 205 (54)
Maximum Pressure – Implements kPa (psi) 35 000 (5,076) 34 300 (4,975) 35 000 (5,076) 34 300 (4,975)
Pilot System – Max Flow L/min (gal/min) 32.4 (8.6) 41.0 (10.8) 32.4 (8.6) 41.0 (10.8)
Pilot System – Max Pressure kPa (psi) 3900 (566) 4120 (598) 3900 (566) 4120 (598)
Boom Cylinder – Bore mm (in) 120 (5) 120 (5) 120 (5) 120 (5)
Boom Cylinder – Stroke mm (in) 1260 (50) 1260 (50) 1260 (50) 1260 (50)
Stick Cylinder – Bore mm (in) 140 (6) 140 (6) 140 (6) 140 (6)
Stick Cylinder – Stroke mm (in) 1518 (60) 1430 (56) 1518 (60) 1430 (56)
B/B1 Bucket Cylinder – Bore mm (in) 120 (5) 120 (5) 120 (5) 120 (5)
B/B1 Bucket Cylinder – Stroke mm (in) 1104 (43) 1030 (41) 1104 (43) 1030 (41)
C/CB2 Bucket Cylinder – Bore mm (in) 135 (5.3) 130 (5.1) 135 (5.3) 130 (5.1)
C/CB2 Bucket Cylinder – Stroke mm (in) 1156 (45.5) 1150 (45.2) 1156 (45.5) 1150 (45.2)

Drive 320D 320C 320D RR 320C U

Maximum Drawbar Pull kN (lbf) 206 (46,311) 196 (44,063) 206 (46,311) 196 (44,063)
Maximum Travel Speed km/h (mph) 5.5 (3.4) 5.5 (3.4) 5.5 (3.4) 5.5 (3.4)

Swing Mechanism 320D 320C 320D RR 320C U

Swing Speed rpm 11.5 11.5 11.5 11.5
Swing Torque kN•m (lbf-ft) 62.0 (45,729) 62.0 (45,729) 62.0 (45,729) 62.0 (45,729)

Service Refill Capacities 320D 320C 320D RR 320C U

Fuel Tank Capacity L (gal) 410 (108) 400 (106) 284 (75) 284 (75)
Cooling System L (gal) 25 (7) 30 (8) 25 (7) 30 (8)
Engine Oil L (gal) 30 (8) 30 (8) 30 (8) 30 (8)
Swing Drive L (gal) 8 (2) 8 (2) 8 (2) 8 (2)
Final Drive (each) L (gal) 10 (3) 10 (3) 10 (3) 10 (3)
Hydraulic System (includes tank) L (gal) 260 (69) 200 (53) 240 (63) 240 (63)
Hydraulic Tank L (gal) 120 (32) 120 (32) 140 (37) 140 (37)

20 TEJB9215 Cat 320D/320D L and 320C/320C L May 2006

Cat 320D RR/320D LRR and 320C U/320C LU
 Working Ranges/Dimensions Comparison

Working Ranges 320D 320C 320D RR 320C U

Boom Reach Reach Reach Reach
Stick R2.9B1 R2.9B R2.9B1 R2.9
Maximum Digging Depth mm (in) 6640 (261) 6570 (259) 6640 (261) 6720 (265)
Maximum Reach @ Ground Level mm (in) 9780 (385) 9700 (382) 9780 (385) 9860 (388)
Maximum Cutting Height mm (in) 9410 (370) 9350 (368) 9410 (370) 9490 (374)
Maximum Loading Height mm (in) 6570 (259) 6650 (262) 6570 (259) 6500 (256)
Minimum Loading Height mm (in) 2250 (89) 2330 (92) 2250 (89) 2170 (85)
Maximum Depth Cut for 2.44 m (8 ft) Level Bottom mm (in) 6470 (255) 6370 (251) 6470 (255) 6370 (251)
Maximum Vertical Wall Digging Depth mm (in) 6050 (238) 5960 (235) 6050 (238) 6050 (238)

Dimensions 320D 320C 320D RR 320C U

Boom Reach Reach Reach Reach
Stick R2.9B1 R2.9B R2.9B1 R2.9
Shipping Height mm (in) 3030 (119) 3010 (118.5) 3030 (119) 3010 (118.5)
Shipping Length mm (in) 9460 (372) 9440 (371) 8770 (345) 8730 (344)
Tail Swing Radius mm (in) 2750 (108) 2750 (108) 2000 (79) 2000 (79)
Length to Center of Rollers – Std mm (in) 3265 (129) 3265 (129) 3265 (129) 3265 (129)
Length to Center of Rollers – Long mm (in) 3650 (144) 3650 (144) 3650 (144) 3650 (144)
Track Length – Std mm (in) 4075 (160) 4075 (160) 4075 (160) 4075 (160)
Track Length – Long mm (in) 4455 (175) 4455 (175) 4455 (175) 4455 (175)
Track Gauge – Std mm (in) 2200 (87) 2200 (87) 2200 (87) 2200 (87)
Track Gauge – Long mm (in) 2380 (94) 2380 (94) 2380 (94) 2380 (94)
Shipping Width – Std (w/600 mm [24 in]) mm (in) 2800 (110) 2800 (110) 2800 (110) 2800 (110)
Shipping Width – Long (w/800 mm [31 in]) mm (in) 3180 (125) 3180 (125) 3180 (125) 3180 (125)

May 2006 TEJB9215 Cat 320D/320D L and 320C/320C L 21

Cat 320D RR/320D LRR and 320C U/320C LU
The information contained herein is intended for circulation only to Caterpillar and Dealer employees whose duties require knowledge of such reports and
is intended exclusively for their information and training. It may contain unverified analysis and facts observed by various Caterpillar or Dealer employees.
However, effort has been made to provide reliable results regarding any information comparing Caterpillar built and competitive machines. Effort has been
made to use the latest available specifications and other materials in the full understanding that these are subject to change without notice. Any reproduction
of this release without the foregoing explanation is prohibited.
CAT, CATERPILLAR, their respective logos and “Caterpillar Yellow,” as well as corporate and product identity used herein, are trademarks of Caterpillar
and may not be used without permission.

TEJB9215
May 2006
®
www.cat.com

© 2006 Caterpillar
All Rights Reserved
Printed in the U.S.A.
