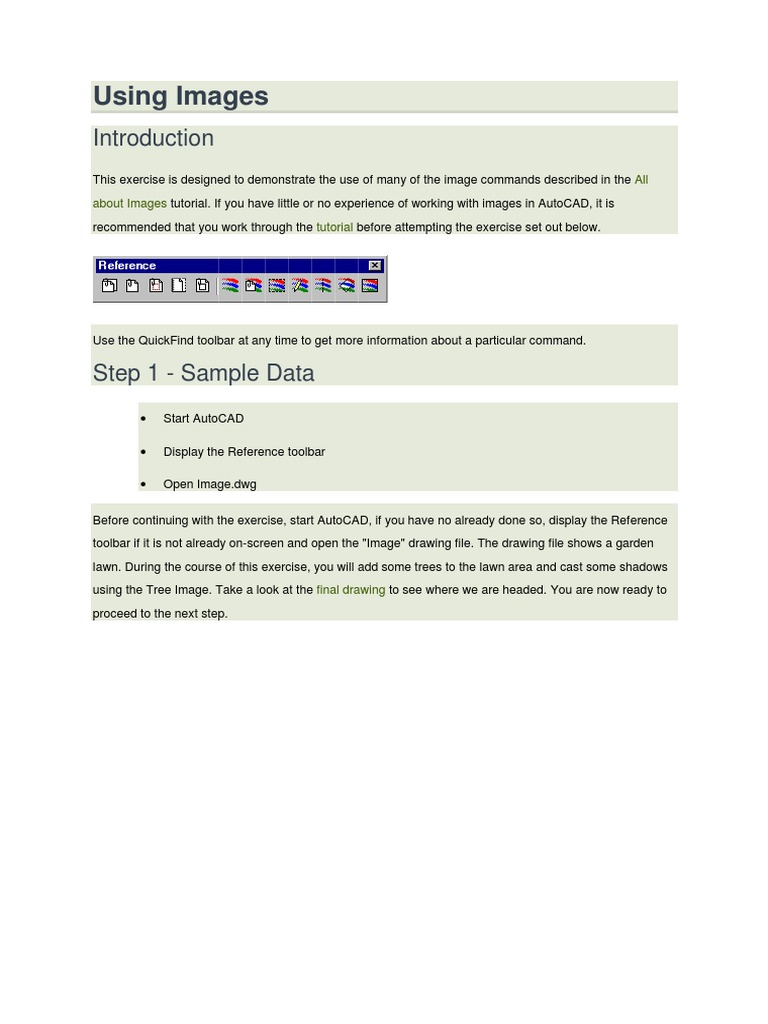

Using Images

Introduction
This exercise is designed to demonstrate the use of many of the image commands described in the All

about Images tutorial. If you have little or no experience of working with images in AutoCAD, it is

recommended that you work through the tutorial before attempting the exercise set out below.

Use the QuickFind toolbar at any time to get more information about a particular command.

Step 1 - Sample Data

• Start AutoCAD

• Display the Reference toolbar

• Open Image.dwg

Before continuing with the exercise, start AutoCAD, if you have no already done so, display the Reference

toolbar if it is not already on-screen and open the "Image" drawing file. The drawing file shows a garden

lawn. During the course of this exercise, you will add some trees to the lawn area and cast some shadows

using the Tree Image. Take a look at the final drawing to see where we are headed. You are now ready to

proceed to the next step.

Step 2 - Attaching the Image
• Create a new Layer

• Attach Tree Image.jpg

Use the Layers command to create an new layer called "Tree Image" and set it to be current. This is

just good drawing practice and means that the attached images will be on their own layer.

Next, start the Attach Image command from the Reference toolbar . When the Select Image File

dialogue box appears, find your way to your work folder and select the Tree Image.jpg file.

The dialogue box should now look something like the one shown above. To complete the selection, click on

the "Open" button. When the Image dialogue box appears, deselect the "Retain Path" option. The dialogue

box should now look like the one illustrated below.

Click the "OK" button to proceed, look at the command prompt and follow the command sequence below.

Specify insertion point <0,0>: (pick a point for the lower left-hand corner of the image)

Pick a point in the drawing area to fix the lower-left hand corner of the image. You needn't be too precise at

this stage because you can always move the image later.

Base image size: Width: 1.000000, Height: 0.967742, Unitless

Specify scale factor <1>: (scale so that the image is similar in size to the one illustrated)

Move the mouse to scale the image dynamically and pick a point when you are happy with the size.

If necessary, use the move command, Modify Move from the pull-down or from the Modify toolbar to

move the image into position. Remember, an image is selected by picking on its frame.

Your drawing should now look something like the one on the right.

Step 3 - Clipping the Image

• Clip the image using the Polygonal option

Original Image Polygonal Clip

Step 3 involves clipping the image in order to hide those parts of the image outside of the tree canopy. The

illustration (above right) shows what your image should look like after you have clipped it. Start the Image

Clip command from the Reference toolbar, and then follow the command sequence below.

Command Sequence
Command: IMAGECLIP
Select image to clip: (select the image by picking on its frame)
Enter image clipping option [ON/OFF/Delete/New boundary] <New>: (default)

Enter clipping type [Polygonal/Rectangular] <Rectangular>: P (for Polygonal)

Specify first point: (pick a point)
Specify next point or [Undo]: (pick the next point)
Specify next point or [Close/Undo]: (continue to pick points to define the tree canopy)

When you have traced around the tree canopy…

Specify next point or [Close/Undo]: (or C to close the polygon)

When you have completed clipping, your drawing should look something like the one on the right.

Remember that if you are not entirely happy with the effect when the clipping is complete, you can always

modify the clip frame using grips. Failing that, you can always delete the clipping frame using the "Delete"

option and create a new boundary from scratch.

Step 4 - Copy and Scale the Image

• Copy the clipped image

• Scale the new instance down slightly

Use the Copy command, Modify Copy from the pull-down menu or from the Modify toolbar to create

a copy (a second instance) of the clipped tree image. Place the new image so that it is to the upper-right of

the original.

Next, use the Scale command, Modify Scale from the pull-down or from the Modify toolbar to reduce

the size of the second image.

Had the image not been clipped, you could have used grips to scale it dynamically. If you select a clipped

image, the grips are used to define the clipping frame rather than the true image frame. However, this does

not prevent you from using the right-click options. Both the Copy and the Scale operations could be

completed by selecting the image first and then right-clicking. Both Copy and Scale are available from the

right-click menu.

When you have completed Step 4, your drawing should look something like the illustration on the right.

Step 5 - Copy both Images

• Copy the two images

The two images you have already created will be used to form the tree

shadows on the final drawing. Step 5 involves copying these two images and placing them over the two

originals but slightly to the lower right so that the new images form the tree canopies and the originals cast

the "shadow". It is quite important to get this the right way round because new image objects will always

hide older image objects when they overlap. Obviously you could remedy any problems with visual

hierarchy by using the Display Order options, Tools Display Order Options from the pull-down menu

but I have often found them to be unreliable and it is far better to get your object order right rather than

have to rely on display order settings.

So, use the Copy command again to copy the two images as shown in the illustration on the right.
Step 6 - Adjusting the Shadows
• Reduce the shadow brightness to 35

Use the Image Adjust command to reduce the brightness of the two shadow images to 35 percent. To do

this, start the Image Adjust command, from the reference toolbar, select the two shadow images, and

then .

When the Image Adjust dialogue box appears, click and drag the Brightness

slider to the left until the value in the edit box reads "35". Alternatively, click in the edit box and enter the

value directly.

Notice that, in the Image Adjust dialogue box, when two or more images are selected, the image name

above the preview is replaced by "Multiple images". If you try using this command with different images,

only the first selected image will display in the preview area.

Complete Step 6 by clicking the "OK" button. Your drawing should now look something like the illustration

on the right.

Top of page
Step 7 - Turning off Frames
• Turn off Image Frames

Finally, turn image frames off using the Image Frame command, from the Reference toolbar.

Your completed drawing should now look like the one in the illustration below.

Remember, you can also have your images display in True Colour. See the tutorial All About Images for

details. Also see Scaling Images to find out how to scale scanned base information.
