    YAO SIN YEE 133751 ESA 321

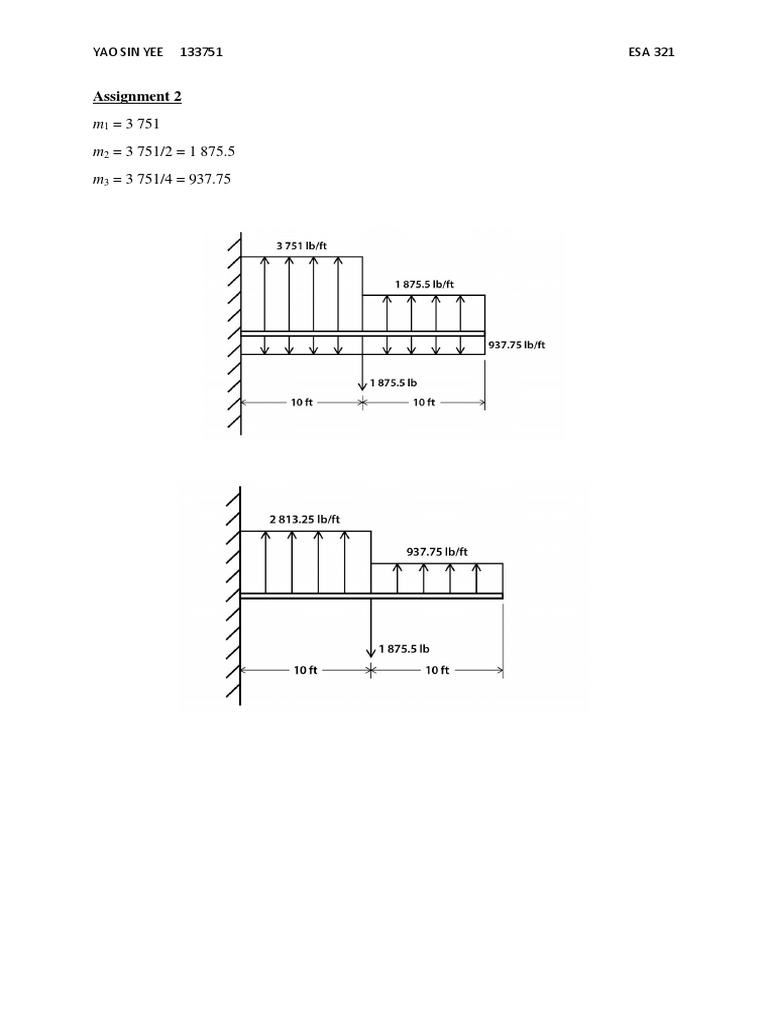

    Assignment 2
    m1 = 3 751
    m2 = 3 751/2 = 1 875.5
    m3 = 3 751/4 = 937.75
    YAO SIN YEE 133751 ESA 321

    + ↑ ∑Fy = 0
    − RA + 28 132.5 – 1 875.5 + 9 377.5 = 0
    RA = 35 634.5 lb

    ⤹ + ∑MA = 0
    − MR + 5 (28 132.5) – 10 (1 875.5) + 15 (9 377.5) = 0
    MR = 262 570 lb·ft

    0 < x ≤ 10 ft

    + ↑ ∑Fy = 0
    − 35 634.5 + 2 813.25x – V1 = 0
    V1 = 2 813.25x – 35 634.5 (1)
    YAO SIN YEE 133751 ESA 321

    ⤹ + ∑MA = 0
    − 262 570 + (x/2) (2 813.25x) – 2 813.25x2 + 35 634.5x + M1 = 0
    M1 = 1 406.625x2 – 35 634.5x + 262 570 (2)

    10 < x ≤ 20 ft

    + ↑ ∑Fy = 0
    − 35 634.5 + 28 132.5 – 1 875.5 + 937.75 (x – 10) – V2 = 0
    V2 = 937.75x – 18 755 (3)

    ⤹ + ∑MA = 0
    − 262 570 + 5 (28 132.5) – 10 (1 875.5) + [(x + 10)/2] (937.75) (x – 10) – 937.75x2 + 18 755x
    + M2 = 0
    M2 = 468.875x2 – 18 755x + 187 550 (4)

    x=0
    V1 = − 35 634.5 lb M1 = 262 570 lb⸱ft

    x = 10 ft
    V1 = − 7 503 lb M1 = 46 887.5 lb⸱ft
    V2 = − 9 377.5 lb M2 = 46 887.5 lb⸱ft
    YAO SIN YEE 133751 ESA 321

    x = 20 ft
    V2 = 0 lb M2 = 0 lb⸱ft

    Shear Force Diagram

    Bending Moment Diagram
