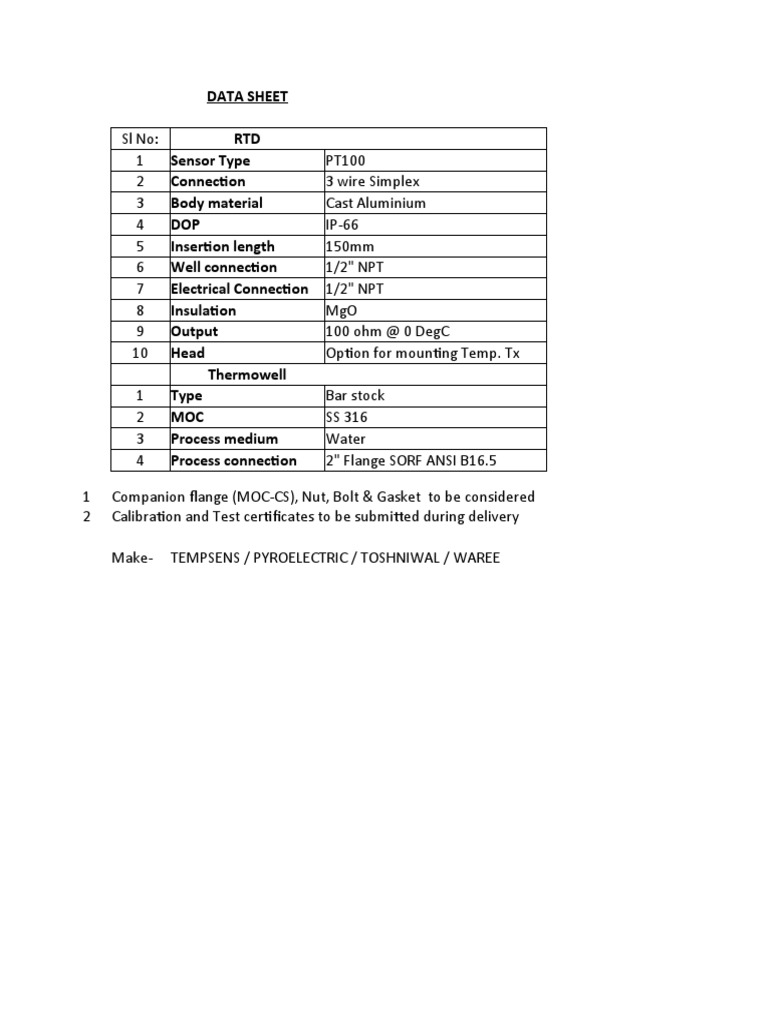

DATA SHEET

Sl No: RTD
1 Sensor Type PT100
2 Connection 3 wire Simplex
3 Body material Cast Aluminium
4 DOP IP-66
5 Insertion length 150mm
6 Well connection 1/2" NPT
7 Electrical Connection 1/2" NPT
8 Insulation MgO
9 Output 100 ohm @ 0 DegC
10 Head Option for mounting Temp. Tx
Thermowell
1 Type Bar stock
2 MOC SS 316
3 Process medium Water
4 Process connection 2" Flange SORF ANSI B16.5

1 Companion flange (MOC-CS), Nut, Bolt & Gasket to be considered


2 Calibration and Test certificates to be submitted during delivery

Make- TEMPSENS / PYROELECTRIC / TOSHNIWAL / WAREE
