System Overview: Sitrain

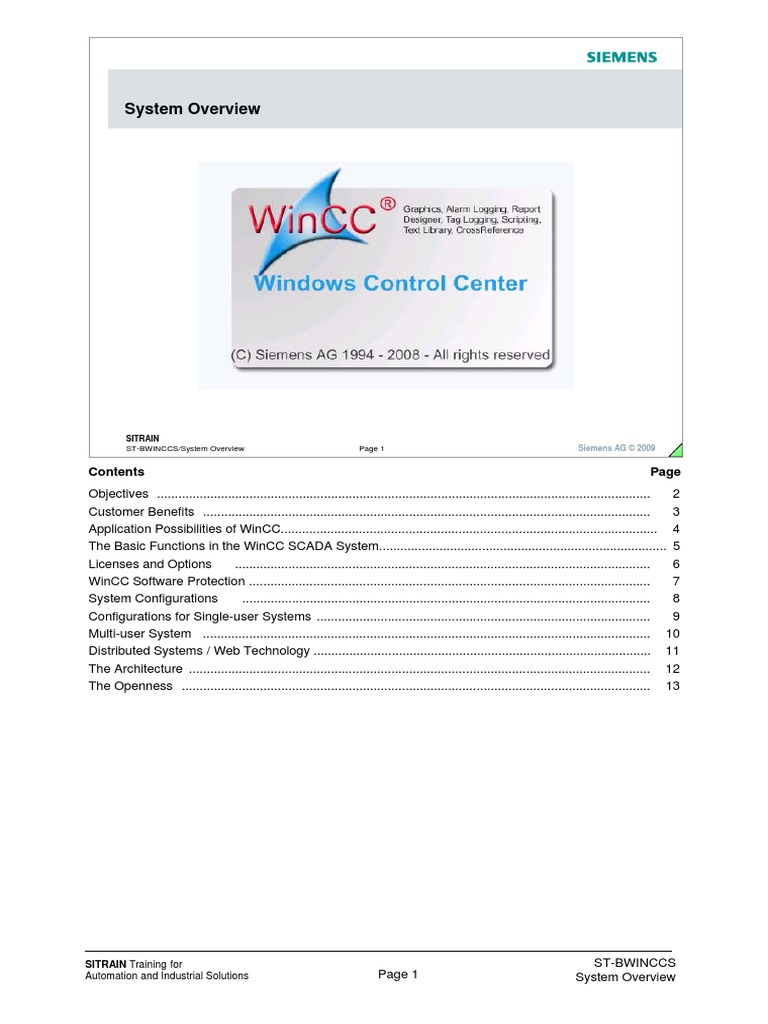

System Overview
SITRAIN
ST-BWINCCS/System Overview Page 1 Siemens AG © 2009
Contents Page
Objectives ........................................................................................................................................... 2
Customer Benefits .............................................................................................................................. 3
Application Possibilities of WinCC.......................................................................................................... 4
The Basic Functions in the WinCC SCADA System................................................................................. 5
Licenses and Options ..................................................................................................................... 6
WinCC Software Protection ................................................................................................................. 7
System Configurations ................................................................................................................... 8
Configurations for Single-user Systems .............................................................................................. 9
Multi-user System .............................................................................................................................. 10
Distributed Systems / Web Technology ............................................................................................... 11
The Architecture .................................................................................................................................. 12
The Openness .................................................................................................................................... 13
SITRAIN Training for ST-BWINCCS

Automation and Industrial Solutions Page 1 System Overview
Objectives
- Application Possibilities
- Forms of Delivery
- Core Functions
- Architecture
SITRAIN
Upon completion of this chapter, the participant will:
know the customer‘s benefits through using WinCC

be able to evaluate the application possibilities of WinCC for his task
be able to determine the possible system configurations
know how to use the key stick
know the forms of delivery of the system software
know the core functions of the system software
know the architecture of the WinCC software
know the openness structure
know the programmable logic controller (PLC) drivers and Microsoft
interfaces
be able to classify the option packages
know the core blocks

Customer Benefits
SITRAIN
WinCC because of the following features
standard operating system from Microsoft for

Windows XP-Professional+SP2
Windows Vista Business, Enterprise, Ultimate
Windows Server 2003 SP2,
Windows Server 2003R2 SP2
Internet Explorer >V6.0 SP1 up to V7.0
modern 32 bit operating system
- multitasking
- safe for industrial applications
- fast
uses Windows equipment (printer, driver, etc.)
supports data exchange with other Windows applications using OLE,
for example
ODBC, SQL, OLE-DB, ADO database interfaces
API programming interface with ODK development package
integration of OCX and Active X Controls in, for example, graphics, pictures
uses the OPC interface
uses the database MS SQL Server 2005 SP2
ANSI C, VBA, VBS programming interfaces in the Graphics Designer
…

Application Possibilities of WinCC
SITRAIN
From energy management control systems for buildings to industrial systems
Energy management control systems for buildings (ventilation, air

conditioning)
Materials handling technology
Mechanical engineering
Water resources and waste water management
Steel industry
Iron producing industry
Foundries
Cold rolling mills
Steel casting industry
Chemical industry
Pulp, paper, and corrugated cardboard production
Breweries, malt factories, and soft drink production
Foodstuffs and luxury food industry
Milk processing industry
Sugar industry
etc.

The Basic Functions in the WinCC SCADA System
Number ()
float zae
begin
Motor ON if value > 0
Valve closed begom
zae = zae + 1
Flap closed end
end
Global script
Alarm Logging (Programming interfaces)
(Message system)
Graphics Designer
(Screen creation)
MS SQL
Server Standard Interfaces of MS
2005 (ODBC, OPC,OLE...)
Tag Logging
(Measured Protocols
value
archiving)
Report Designer Tag Management
(Report system) (PLC communication and tags)
You will find notes on Basic Process Control at the end of Chapter 3.
SITRAIN
Basic Functions This slide illustrates the functionality of a modern process visualization with
- full graphics display.
- alarm display, alarm archiving and alarm logging.
- measured value acquisition (archiving functions, data compression, minimum

and maximum values etc.).
- Report Designer for documenting machine sequences and process sequences

with individual reporting.
- process communication to various PLC systems.
- standard interfaces for database and data processing, for example, in

Microsoft programs.
- programming interfaces (API) are available in all WinCC application modules

and allow access to data and functions.
Complex visualization tasks can be solved with the ANSI-C programming

language and/or with Visual Basic Script.
Options For useful extensions of the WinCC Basic Software, for example, Server
expansion, redundancy, DataMonitor, ODK, etc.
Note You will find the currently offered options on the Internet
http://www.siemens.com/wincc.
SCADA Supervisory Control and Data Acquisition

Licenses and Options
Options
RC Runtime 250k
250k 250k
250k 150k
150k
150k 100k 150k 100k
Power
100k Power 100k Pack WinCC
Pack Power Tags WinCC
Power Tags
(64k)
(64k) WinCC
RC Runtime Chip card Web
64 k 64k 64k reading Navigator Redundancy
64 k Power Tags
Power Tags Power function
Power
Pack Pack
RC (8k)
Runtime (8k)
8k 8k WinCC
8k
Power Tags 8k Power Tags WinCC WinCC
Power
Power Allen Bradley
Pack
RC Pack Runtime (2048)
-DF1 serial
2048
(2048) 2048 -Ethernet IP ProAgent Server
2048
Power Tags 2048 Power Tags
Power Modbus TCP/IP
Power Pack
RC Pack Runtime (512)
512 (512) 512
WinCC WinCC
Power Tags
512
Power Tags
512 WinCC
RC Power Runtime Power
Pack Pack DataMonitor User
128 128 (128) ODK
Power Tags
(128)
Power Tags
(Web_Client) Archives
Runtime +
Runtime (RT)
Configuration (RC)
512 archive tags are included in the basic system; Power Packs are also available.
SITRAIN
Basic Software The "WinCC" system software (core blocks with the basic functions), is scaled
through various licenses.
RT Licenses RT licenses entitle the user to use WinCC in runtime mode for an unlimited
amount of time. The use of editors is only possible in demo mode for a limited
time.
RC Licenses RT licenses entitle the user to use WinCC in runtime mode and configuration
mode for an unlimited amount of time.
Archive Tags 512 archive tags are included in the basic system, others up to 120,000 optional.
Power Pack The number of tags is upgraded with the power packs. The cost is the price
difference between the respective WinCC software packages for Configuration
and Runtime software. The number of archive tags can be increased by means of
Power Packs.
Options The basic software can be expanded through options.
- User archives (User Archives for batch recipes, for example).
- Additional PLC drivers.
- Server - Client (Multi-user system).
- ODK (Open Development Kit) for C programming.
- etc.
On the Internet under http://www.siemens.com/wincc, you can find the currently
offered options from the head office in Nuremberg-Moorenbrunn. ODK questions
see
FAQ 9652 128
Add-ons The basic software can be expanded through add-ons.
Customer-specific or technological extensions that use the sector-independent
WinCC software, for example, PM-MAINT maintenance program, PM-Aqua etc.
On the Internet under http://www.siemens.com/wincc, you can find the currently
offered add-ons from the Competence Centers Erlangen, Mannheim, Stuttgart,
and contacts.
Compatibility V7 FAQ 2192 7773

WinCC Software Protection
WinCC
Installation
with Automation License Manager
S IE ME N S
WinCC USB flash drive

SI C O M P
Licenses for options IP C R I 2 0
and add-ons
License for
WinCC basic SW
De-installation
with Automation License Manager
WinCC USB flash drive

or any other data storage medium
No DEFRAG can be performed after the licenses have been installed, since the licenses
could thereby be lost. Each WinCC Version has its own authorization.
SITRAIN
License and demo mode

The WinCC software is enabled by means of the supplied authorization (key disk).
Without a license, the user can configure in demo mode for one hour. After one
hour, the WinCC Explorer and editors are closed. After restarting an editor, the
system prompts you every 10 minutes to purchase a valid license. WinCC also
switches to demo mode if the maximum number of licensed power tags or archive
tags in a project is exceeded in a project. When you install a license, it is
transferred to a local drive and provided on the memory medium so that WinCC
can use this license. Cumulating more than one license per component requiring a
license is only possible for archive licenses. Other licenses cannot be cumulated.
Installation During the transfer of usage rights from the key stick to the PC, the installation
counter on the key stick is decremented.
Note No DEFRAG can be performed after the licenses have been installed, since the
licenses could thereby be lost.
De-Installation By transferring the usage rights from the PC back to the key stick, or any other
type of data storage medium, you can use the preparation for a renewed transfer
to another PC.
Virus scan Virus tests (scans) can only be carried out with proven virus programs while in
running operation. See FAQ 241 220 09.
Note The use of WinCC in process mode without valid licenses is not permissible.
Neither the name nor attributes of the folder "AX NF ZZ" must be changed,
otherwise the transferred license keys might be lost irrevocably.

System Configurations
Corporate
Management Level PC Network
Client Client Server 1 ... Server 12

Distributed
systems with
... Server and Client
LAN Client Client Server / R. Server
Management Level Network

and Production Level Multi-user system
with Server and Client
Client Client Server
Process Supervision Single-user system

Level and Production with PC and OP
Management Level
SIMATIC NET
Automation Level SIMATIC

WinAC MP
MPI
Distributed (not with S5)
Peripherals S5/S7 S505 S5 S7 S505S5/S7
SITRAIN
Configurations This slide illustrates the flexible configuration possibilities of WinCC.
- Extensive visualization tasks can be combined using multi-user systems.
- Distributed systems employ the technological distribution of a system or the

functional distribution to several WinCC computers.
- A Server takes over process coupling.
- All other clients are connected to a server using a PC network.
- The clients receive all data from the server.
- Even higher-order computers of the management level can access the

WinCC database at any time using the terminal bus.
- The SIMATIC Industrial Ethernet process bus can also be used as a

terminal bus for industrial applications in a harsh environment.
WinAC MP - Software PLC on a robust hardware platform (without fan and hard drive)
under Windows CE, executable on the multifunctional platform.

Configurations for Single-user Systems
Example 1 Example 2
Serial Coupling WinCC

coupling via network
-Windows XP Professional SP2

-Vista Business, Enterprise, Ultimate
-Windows Server 2003 SP2,
PzP -Windows Server 2003R2 SP2
serial V.24 / TTY
DK3964R + RK512 MPI (only S7) ,
SIMATIC NET PROFIBUS
SIMATIC NET Industrial Ethernet
SIMATIC S5 / S7 / 505 SIMATIC S5 / S7 / 505

or or
PLCs from other manufacturers PLCs from other manufacturers
SITRAIN
Configurations Single-user systems are used in small (number of tags) applications, but they can
also be the operator interface for independent system components.
Stand-Alone A single-user system can work as a stand-alone when it has everything it needs to
operate.
Compatibility V7 FAQ 2192 7773

Microsoft Windows hotfixes and security patches can be installed. The installation
of operating system service packs is not permitted; their use in combination with
SIMATIC WinCC requires an explicit release.

Multi-User System
... -Windows XP Professional SP2

Client 1 Client 32
-Vista Business, Enterprise, Ultimate
Terminal bus (PC Network)
all WinCC
all WinCC applications
applications
Red. Server
One Server
All Servers with :
-Windows Server 2003 Standard SP2 and Enterprise Edition
-Windows Server 2003 R2 SP2
SIMATIC NET
SIMATIC 505 SIMATIC S7-400

SIMATIC S5
Note: This WinCC configuration is also used for multi-configuration.
For each WinCC Client, the RT 128 Tags License is sufficient.
SITRAIN
Multi-user System
The Server Client configuration makes it possible to have up to 32 operator
stations linked to one Server. The configuration of the Server can be made by the
Client.
Redundancy Server
When you operate two WinCC stations in parallel, an archive adjustment is
automatically made at runtime or after the failure of a Server.
The automatic switching of a Client to the active Server guarantees the continuous
process execution and operation.
Note Number of Clients for Server with operator station: 4

Number of Clients for Server without operator station: 32
For the Clients, the same operating system must be used. However, different
operating systems can be used for Server and Clients. Clients without their own
project must not be operated on a computer with Windows Server 2003.

Distributed Systems / Web Technology
WinCC Web Client R/W

-Windows XP Professional SP2 all WinCC all WinCC DataMonitor Client only view
applications applications
-Vista Business, Enterprise,
Ultimate M Client 1 M Client 32
-Windows Server 2003
Terminal bus (PC Network)
all WinCC
WinCC Web Server (Web Navigator)
all WinCC applications
applications all WinCC - Technological distribution
Red. Server applications
- Functional distribution
Server 1
Server12 - Load distribution
...
SIMATIC NET
SIMATIC 505 SIMATIC S7-400

SIMATIC S5
SITRAIN
Distributed Systems
The Client can access up to 12 Server projects.
Redundancy Server
When you operate two WinCC stations in parallel, an archive adjustment is
automatically made at runtime or after the failure of a Server.
The automatic switching of a Client to the active Server guarantees the continuous
process execution and operation.
Note Number of Clients for Server with operator station: 4

Number of Clients for Server without operator station: 32
For the Clients, the same operating system must be used. However, different
operating systems can be used for Server and Clients.
WinCC Web Navigator

Process visualization using the Internet.
WinCC/Web Navigator enables you to operate and monitor your system using the
Internet or company-internal Intranet and/or LAN.
Option
Web Navigator Server (License on server 3 / 10 / 25 / 50 )
Web Navigator Client or DataMonitor Client (no license)
Thin Client (Web)

Based on the terminal service of Windows 2003, Thin Client solutions are possible
on different hardware platforms. This is true for clients positioned near the
machine that are based on the real-time operating system Windows CE 3.0, as
well as Linux and Unix clients. The Microsoft terminal server can only be used in
conjunction with the WinCC WebNavigator.

The Architecture
System Controller WinCC Explorer
CS CS CS CS CS CS
RT RT RT RT RT RT
Global Alarm Tag Report
Graphics Scripting Logging Logging Designer Option
CS CS CS
RT Access RT Text RT Tag Management
Protection ... Library Process Data
Data Manager
S7 Third Party PLCs

MS SQL Server .mdf S5
2005
RT .mdf
SITRAIN
Architecture This slide displays the relationships of the individual modules within the WinCC
Explorer.
WinCC Explorer The WinCC Explorer combines all the data necessary for operating a single-user
or multi-user system and ensures hierarchically-ordered storage.
System Controller The system controller takes care of system communication between the stations.
For multi-user systems, the system controller also provides the network-wide
project view, as well as communication between the client and server. The system
controller also handles coordination through the terminal bus.
Data Manager The data manager is the start-up location for processing central tasks in a WinCC
project. The data manager exists on every station and works closely together with
the system controller. The main task is handling tag management. The
communication channels are used to access process data.
Function Modules - Graphics Designer (graphics system)
Graphic display and process connection
- Global scripts (script editing)
Making the project dynamic to user-specific requirements
- Alarm logging (message system)
Displaying messages and acknowledgements
- Tag logging (measured value archiving, processing and trending)
Processing measured values and their long-term storage
Processing user-oriented data and their long-term storage
- Report designer (report system)
Reporting system states
Note The WinCC Explorer enables you to navigate through the WinCC applications and
their data with few operations. From its appearance and operation, the WinCC
Explorer is similar to the Explorer in Windows.
MS SQL Server 2005 Industry-suitable Database Management System from Microsoft

The Openness
OPC Client
Network
OPC Server Active X

User Windows
Programs OCX
Graphics Applications
OLE
API Trend
Alarm
Management Excel
ODBC/SQL Word
Analysis Report OLE DB(ADO)
Optimization Access
... PowerBuilder
DDE ...
Data Manager
OPC
OPC Net Server
SIMATIC NET
SITRAIN
Openness This slide illustrates all system modules with opened interfaces.
You can use your own programs with Windows applications, as well as data and
functions from WinCC here.
User programs can also be started from WinCC.
Applications that run under Windows, such as Excel, Word, or Access can be
combined freely with WinCC and individual user programs.
This also makes solutions to unusual management level tasks possible.
User Routines User routines run interpretively in WinCC. That is, a compiler is not necessary. If
an application requires many, extensive user routines with a high processing
capacity, standard tools (e.g. C++) can compile these routines, and they can be
attached to the WinCC sequence.
OPC OPC (OLE for Process Control) integrated Client/Server communication interface.
WinCC supports - OPC DA 3.0-Server (Data Access) contained in the basic system
Connectivity Pack option with :
- OPC A&E 1.10 Server (Alarm & Events)
- OPC HDA 1.20 (Historical Data Access)
- WinCC OLE-DB
As OPC XML DA 1.01 Server, WinCC can make data available even via the Web
PPS/MES systems and vice versa as OPC XML DA Client it can accept task and
recipe data.


System Overview: Sitrain

Uploaded by

Document Information

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

System Overview: Sitrain

Uploaded by

Copyright:

Available Formats

System Overview

SITRAIN Training for ST-BWINCCS

Upon completion of this chapter, the participant will:

 know the customer‘s benefits through using WinCC

SITRAIN Training for ST-BWINCCS

WinCC because of the following features

 standard operating system from Microsoft for

SITRAIN Training for ST-BWINCCS

From energy management control systems for buildings to industrial systems

 Energy management control systems for buildings (ventilation, air

SITRAIN Training for ST-BWINCCS

- full graphics display.

- alarm display, alarm archiving and alarm logging.

- measured value acquisition (archiving functions, data compression, minimum

- Report Designer for documenting machine sequences and process sequences

- process communication to various PLC systems.

- standard interfaces for database and data processing, for example, in

- programming interfaces (API) are available in all WinCC application modules

Complex visualization tasks can be solved with the ANSI-C programming

SITRAIN Training for ST-BWINCCS

SITRAIN Training for ST-BWINCCS

WinCC USB flash drive

Licenses for options IP C R I 2 0

WinCC USB flash drive

License and demo mode

SITRAIN Training for ST-BWINCCS

Client Client Server 1 ... Server 12

Management Level Network

Process Supervision Single-user system

Automation Level SIMATIC

Configurations This slide illustrates the flexible configuration possibilities of WinCC.

- Extensive visualization tasks can be combined using multi-user systems.

- Distributed systems employ the technological distribution of a system or the

- A Server takes over process coupling.

- All other clients are connected to a server using a PC network.

- The clients receive all data from the server.

- Even higher-order computers of the management level can access the

- The SIMATIC Industrial Ethernet process bus can also be used as a

SITRAIN Training for ST-BWINCCS

Serial Coupling WinCC

-Windows XP Professional SP2

SIMATIC S5 / S7 / 505 SIMATIC S5 / S7 / 505

Compatibility V7 FAQ 2192 7773

SITRAIN Training for ST-BWINCCS

... -Windows XP Professional SP2

Terminal bus (PC Network)

SIMATIC 505 SIMATIC S7-400

Note Number of Clients for Server with operator station: 4

SITRAIN Training for ST-BWINCCS

WinCC Web Client R/W

Terminal bus (PC Network)

SIMATIC 505 SIMATIC S7-400

Note Number of Clients for Server with operator station: 4

WinCC Web Navigator

Thin Client (Web)

SITRAIN Training for ST-BWINCCS

System Controller WinCC Explorer

S7 Third Party PLCs

SITRAIN Training for ST-BWINCCS

OPC Server Active X

OPC Net Server

SITRAIN Training for ST-BWINCCS

You might also like

know the customer‘s benefits through using WinCC

standard operating system from Microsoft for

Energy management control systems for buildings (ventilation, air
