PROJECT : PAGE :

CLIENT : DESIGN BY :
JOB NO. : DATE : REVIEW BY :

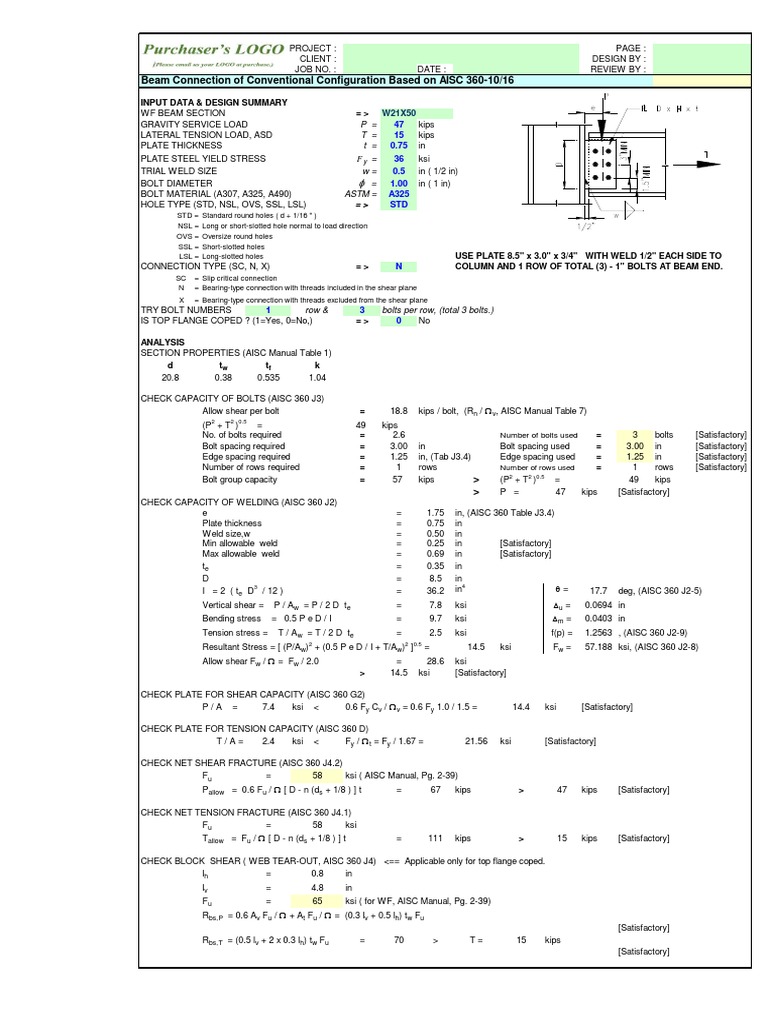

Beam Connection of Conventional Configuration Based on AISC 360-10/16

INPUT DATA & DESIGN SUMMARY


WF BEAM SECTION = > W21X50
GRAVITY SERVICE LOAD P = 47 kips
LATERAL TENSION LOAD, ASD T = 15 kips
PLATE THICKNESS t = 0.75 in
PLATE STEEL YIELD STRESS Fy = 36 ksi
TRIAL WELD SIZE w= 0.5 in ( 1/2 in)
BOLT DIAMETER f = 1.00 in ( 1 in)
BOLT MATERIAL (A307, A325, A490) ASTM = A325
HOLE TYPE (STD, NSL, OVS, SSL, LSL) => STD
STD = Standard round holes ( d + 1/16 " )
NSL = Long or short-slotted hole normal to load direction
OVS = Oversize round holes
SSL = Short-slotted holes
LSL = Long-slotted holes USE PLATE 8.5" x 3.0" x 3/4" WITH WELD 1/2" EACH SIDE TO
CONNECTION TYPE (SC, N, X) => N COLUMN AND 1 ROW OF TOTAL (3) - 1" BOLTS AT BEAM END.
SC = Slip critical connection
N = Bearing-type connection with threads included in the shear plane
X = Bearing-type connection with threads excluded from the shear plane
TRY BOLT NUMBERS 1 row & 3 bolts per row, (total 3 bolts.)
IS TOP FLANGE COPED ? (1=Yes, 0=No,) => 0 No

ANALYSIS
SECTION PROPERTIES (AISC Manual Table 1)
d tw tf k
20.8 0.38 0.535 1.04

CHECK CAPACITY OF BOLTS (AISC 360 J3)


Allow shear per bolt = 18.8 kips / bolt, (Rn / W v, AISC Manual Table 7)
(P2 + T2 )0.5 = 49 kips
No. of bolts required = 2.6 Number of bolts used = 3 bolts [Satisfactory]
Bolt spacing required = 3.00 in Bolt spacing used = 3.00 in [Satisfactory]
Edge spacing required = 1.25 in, (Tab J3.4) Edge spacing used = 1.25 in [Satisfactory]
Number of rows required = 1 rows Number of rows used = 1 rows [Satisfactory]
Bolt group capacity = 57 kips > (P2 + T2 )0.5 = 49 kips
> P = 47 kips [Satisfactory]
CHECK CAPACITY OF WELDING (AISC 360 J2)
e = 1.75 in, (AISC 360 Table J3.4)
Plate thickness = 0.75 in
Weld size,w = 0.50 in
Min allowable weld = 0.25 in [Satisfactory]
Max allowable weld = 0.69 in [Satisfactory]
te = 0.35 in
D = 8.5 in
I = 2 ( te D3 / 12 ) = 36.2 in4 q= 17.7 deg, (AISC 360 J2-5)
Vertical shear = P / Aw = P / 2 D t e = 7.8 ksi Du = 0.0694 in
Bending stress = 0.5 P e D / I = 9.7 ksi Dm = 0.0403 in
Tension stress = T / Aw = T / 2 D t e = 2.5 ksi f(p) = 1.2563 , (AISC 360 J2-9)
Resultant Stress = [ (P/Aw)2 + (0.5 P e D / I + T/Aw)2 ]0.5 = 14.5 ksi Fw = 57.188 ksi, (AISC 360 J2-8)
Allow shear Fw / W = Fw / 2.0 = 28.6 ksi
> 14.5 ksi [Satisfactory]

CHECK PLATE FOR SHEAR CAPACITY (AISC 360 G2)


P/A = 7.4 ksi < 0.6 Fy Cv / W v = 0.6 Fy 1.0 / 1.5 = 14.4 ksi [Satisfactory]

CHECK PLATE FOR TENSION CAPACITY (AISC 360 D)


T/A= 2.4 ksi < Fy / W t = Fy / 1.67 = 21.56 ksi [Satisfactory]

CHECK NET SHEAR FRACTURE (AISC 360 J4.2)


Fu = 58 ksi ( AISC Manual, Pg. 2-39)
Pallow = 0.6 Fu / W [ D - n (ds + 1/8 ) ] t = 67 kips > 47 kips [Satisfactory]

CHECK NET TENSION FRACTURE (AISC 360 J4.1)


Fu = 58 ksi
Tallow = Fu / W [ D - n (ds + 1/8 ) ] t = 111 kips > 15 kips [Satisfactory]

CHECK BLOCK SHEAR ( WEB TEAR-OUT, AISC 360 J4) <== Applicable only for top flange coped.
lh = 0.8 in
lv = 4.8 in
Fu = 65 ksi ( for WF, AISC Manual, Pg. 2-39)
Rbs,P = 0.6 Av Fu / W + At Fu / W = (0.3 lv + 0.5 lh) tw Fu
[Satisfactory]
Rbs,T = (0.5 lv + 2 x 0.3 lh) tw Fu = 70 > T= 15 kips
[Satisfactory]
