Operating Systems

CS F372

Memory Management

Biju K Raveendran

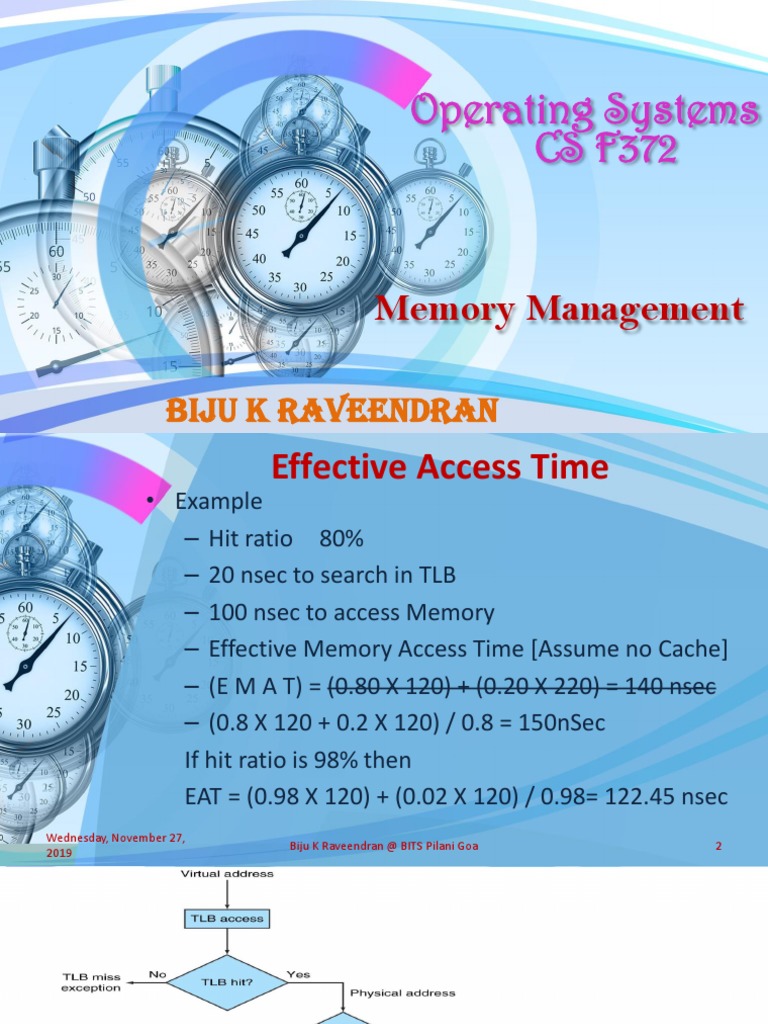

 Effective Access Time
• Example
– Hit ratio 80%
– 20 nsec to search in TLB
– 100 nsec to access Memory
– Effective Memory Access Time [Assume no Cache]
– (E M A T) = (0.80 X 120) + (0.20 X 220) = 140 nsec
– (0.8 X 120 + 0.2 X 120) / 0.8 = 150nSec
If hit ratio is 98% then
EAT = (0.98 X 120) + (0.02 X 120) / 0.98= 122.45 nsec
Wednesday, November 27,
Biju K Raveendran @ BITS Pilani Goa 2
2019
Wednesday, November 27,
Biju K Raveendran @ BITS Pilani Goa 3
2019
 Memory Protection
• Memory protection implemented by associating
protection bit with each frame
• One bit to specify the page is read write or read only
• Valid-invalid bit attached to each entry in the page
table:
– “valid” indicates that the associated page is in the
process’ logical address space, and is thus a legal
page
– “invalid” indicates that the page is not in the process’
logical address space
Wednesday, November 27,
Biju K Raveendran @ BITS Pilani Goa 4
2019
 Valid (v) or Invalid (i) bit in a page table

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 5
2019
 Structure of the page table
• Hierarchical Paging

• Hashed Page Tables

• Inverted Page Tables

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 6
2019
 Two level Page Table Scheme

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 7
2019
 Two level Paging Example
• A logical address (on 32-bit machine with 4K page size) is
divided into:
– a page number consisting of 20 bits
– a page offset consisting of 12 bits
– Need 1MB address space for one process’s page table
• Since the page table is paged, the page number is further
divided into:
– a 10-bit page number
– a 10-bit page offset

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 8
2019
 Two level Paging Example
• Thus, a logical address is as follows:
where pi is an index into the outer page table,
and p2 is the displacement within the page of
the outer page table.
• This address translation scheme is called
forward mapped page table
page number page offset

32 10 10 12
Wednesday, November 27,
Biju K Raveendran @ BITS Pilani Goa 9
2019
 Address Translation Scheme

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 10
2019
 Three level Paging Scheme

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 11
2019
 Multi-level paging and Performance
• Since each level is stored as a separate table in memory,
covering a logical address to a physical one may take
four memory accesses.
• Even though time needed for one memory access is
quintupled, caching permits performance to remain
reasonable.
• Cache hit rate of 98 percent yields:
Effective access time = (0.98 x 120 + 0.02 x 420)/0.98
= 128.57 nanoseconds.
which is only a 28.57% slowdown in memory access time.

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 12
2019
 Hashed Page Tables
• Common in address spaces > 32 bits
• The virtual page number is hashed into a page
table
– This page table contains a chain of elements
hashing to the same location
• Virtual page numbers are compared in this
chain searching for a match
– If a match is found, the corresponding
Wednesday, November 27,
physical frame is extracted
Biju K Raveendran @ BITS Pilani Goa 13
2019
 Hashed Page Table

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 14
2019
 Inverted Page Table
• One entry for each real page of memory
• Entry consists of the virtual address of the page stored in that real
memory location, with information about the process that owns
that page
• Decreases memory needed to store each page table, but increases
time needed to search the table when a page reference occurs
• Use hash table to limit the search to one — or at most a few —
page-table entries
– TLB can accelerate access
• But how to implement shared memory?
– One mapping of a virtual address to the shared physical
address
Wednesday, November 27,
Biju K Raveendran @ BITS Pilani Goa 15
2019
 Inverted Page Table Architecture

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 16
2019
 Shared Pages
• Shared code
– Shared code must appear in same location in the logical
address space of all processes
– Very difficult to implement for the systems that uses inverted
page tables.
• Private code and data
– Each process keeps a separate copy of the code and data
– The pages for the private code and data can appear anywhere
in the logical address space

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 17
2019
 Shared Pages Example

Wednesday, November 27,

Biju K Raveendran @ BITS Pilani Goa 18
2019
