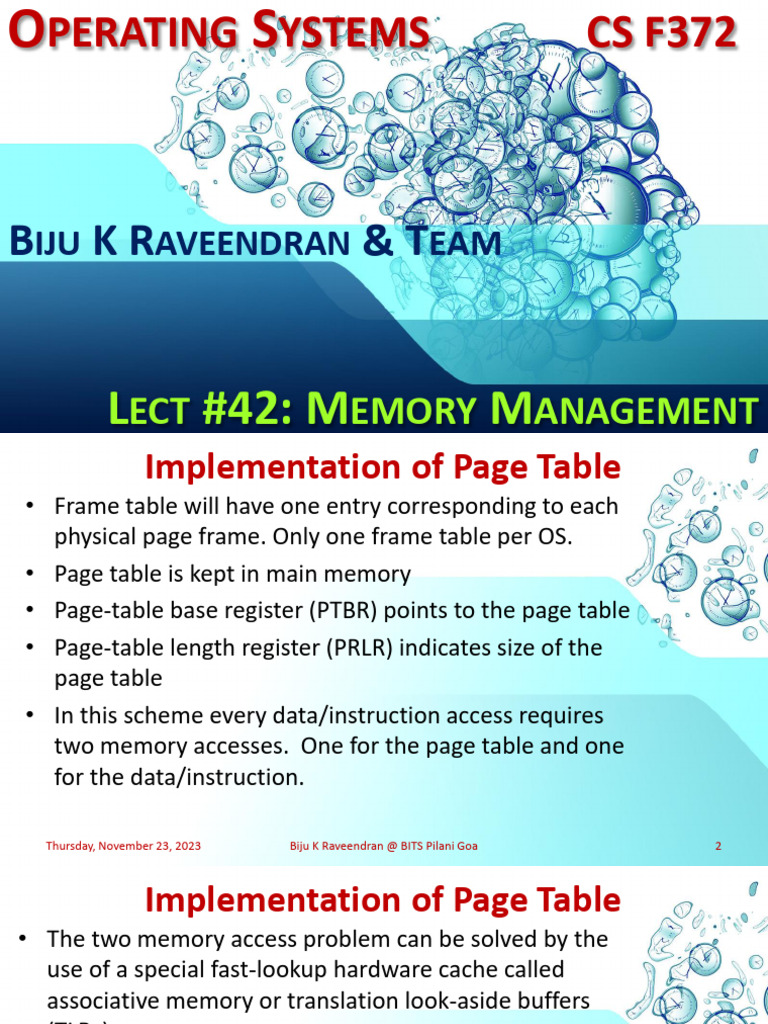

Implementation of Page Table • Frame table will have one entry corresponding to each physical page frame. Only one frame table per OS. • Page table is kept in main memory • Page-table base register (PTBR) points to the page table • Page-table length register (PRLR) indicates size of the page table • In this scheme every data/instruction access requires two memory accesses. One for the page table and one for the data/instruction.
Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 2
Implementation of Page Table • The two memory access problem can be solved by the use of a special fast-lookup hardware cache called associative memory or translation look-aside buffers (TLBs) • Some TLBs store address-space identifiers (ASIDs) in each TLB entry – uniquely identifies each process to provide address-space protection for that process • Instructions to load or modify the page table registers are privileged.
Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 3
Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 4 Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 5 Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 6 Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 7 Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 8 Translation Lookaside Buffer • Each virtual memory reference can cause two physical memory accesses – One to fetch the page table – One to fetch the data • To overcome this problem a high-speed cache is set up for page table entries – Called a Translation Lookaside Buffer (TLB) • Contains page table entries that have been most recently used Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 9 Translation Lookaside Buffer • Given a virtual address, processor examines the TLB • If page table entry is present (TLB hit), the frame number is retrieved and the real address is formed • If page table entry is not found in the TLB (TLB miss), the page number is used to index the process page table • First checks if page is already in main memory – If not in main memory a page fault is issued • The TLB is updated to include the new page entry Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 10 Associative Memory • Associative memory – parallel search Page # Frame #
Address translation (p, d)
– If p is in associative register, get frame # out – Otherwise get frame # from page table in memory Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 11 Paging Hardware with TLB
Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 12
Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 13 Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 14 Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 15 Effective Access Time • Associative Lookup = time unit • Assume memory cycle time is 1 microsecond • Effective Access Time (EAT) EAT = [TLB Time * # of hits + (Memory Access Time + TLB Time)* Number of misses] / #of memory accesses
Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 16
Effective Access Time • Example – # of memory requests: 1000, Number of Misses 200 – 20 nsec to search in TLB – 100 nsec to access Memory – Effective Memory Access Time?
Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 17
Memory Protection • Memory protection implemented by associating protection bit with each frame • One bit to specify the page is read write or read only • Valid-invalid bit attached to each entry in the page table: – “valid” indicates that the associated page is in the process’ logical address space, and is thus a legal page – “invalid” indicates that the page is not in the process’ logical address space Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 18 Valid (v) or Invalid (i) bit in a page table
Thursday, November 23, 2023 Biju K Raveendran @ BITS Pilani Goa 19
