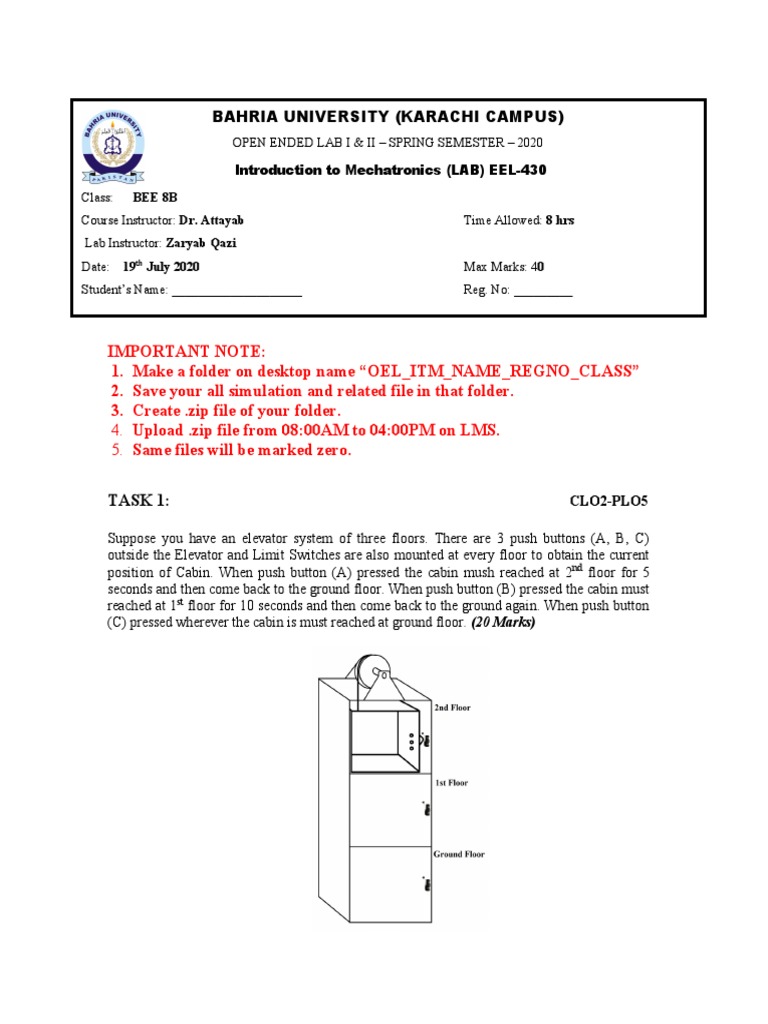

BAHRIA UNIVERSITY (KARACHI CAMPUS)

OPEN ENDED LAB I & II – SPRING SEMESTER – 2020

Introduction to Mechatronics (LAB) EEL-430

Class: BEE 8B
Course Instructor: Dr. Attayab Time Allowed: 8 hrs
Lab Instructor: Zaryab Qazi
Date: 19th July 2020 Max Marks: 40
Student’s Name: ____________________ Reg. No: _________

IMPORTANT NOTE:
1. Make a folder on desktop name “OEL_ITM_NAME_REGNO_CLASS”
2. Save your all simulation and related file in that folder.
3. Create .zip file of your folder.
4. Upload .zip file from 08:00AM to 04:00PM on LMS.
5. Same files will be marked zero.

TASK 1: CLO2-PLO5

Suppose you have an elevator system of three floors. There are 3 push buttons (A, B, C)
outside the Elevator and Limit Switches are also mounted at every floor to obtain the current
position of Cabin. When push button (A) pressed the cabin mush reached at 2 nd floor for 5
seconds and then come back to the ground floor. When push button (B) pressed the cabin must
reached at 1st floor for 10 seconds and then come back to the ground again. When push button
(C) pressed wherever the cabin is must reached at ground floor. (20 Marks)
TASK 2: CLO2-PLO5

Draw and Simulate the Pneumatic Sequencing Circuit according to given sequence. There are
three Double Acting Cylinders A, B and C, each cylinder has two positions – and + as shown
in Figure below. The sequence is

Run/End
A-
C-
B+
C+
B-
A+
Repeat

There must be a 3-way valve to Run and End the sequence. (20 Marks)
