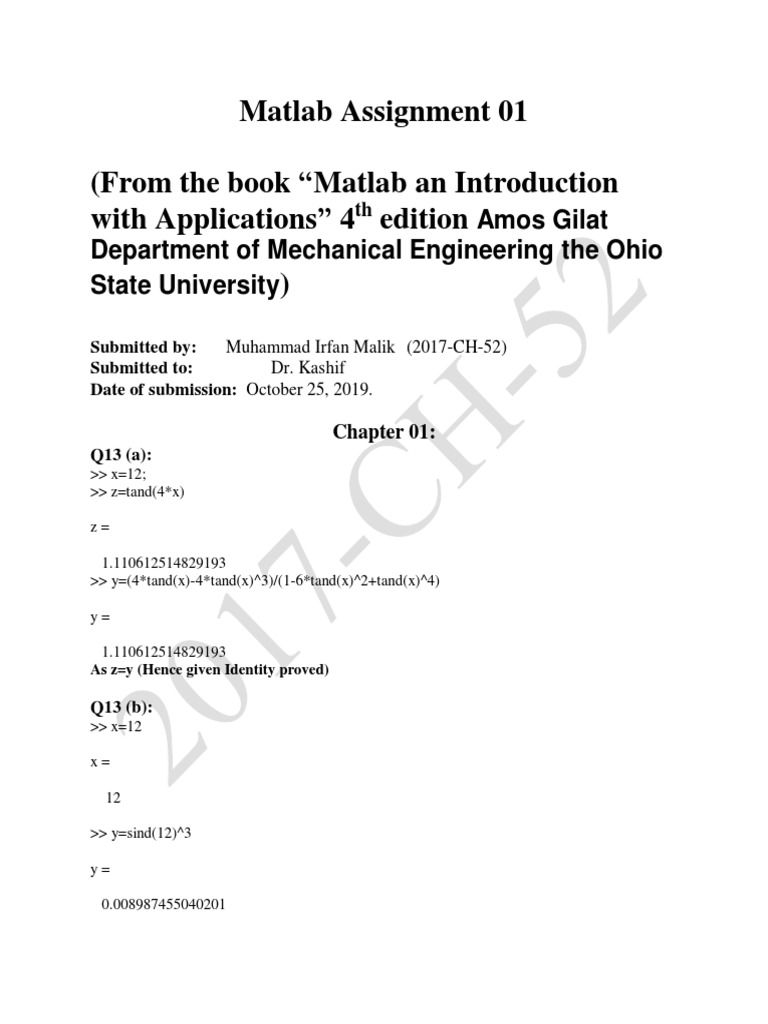

Matlab Assignment 01

(From the book “Matlab an Introduction

with Applications” 4th edition Amos Gilat
Department of Mechanical Engineering the Ohio
State University)

Submitted by: Muhammad Irfan Malik (2017-CH-52)

Submitted to: Dr. Kashif
Date of submission: October 25, 2019.

Chapter 01:
Q13 (a):
>> x=12;
>> z=tand(4*x)

z=

1.110612514829193
>> y=(4*tand(x)-4*tand(x)^3)/(1-6*tand(x)^2+tand(x)^4)

y=

1.110612514829193
As z=y (Hence given Identity proved)

Q13 (b):
>> x=12

x=

12

>> y=sind(12)^3

y=

0.008987455040201
>> z=(1/4)*(3*sind(x)-sind(3*x))

z=

0.008987455040201

As y=z (Hence given Identity proved)

Q14:
>> a=(5*pi)/8;
>> b=(pi/8);
>> x=sin(a)*cos(b)

x=

0.853553390593274

>> y=(1/2)*(sin(a-b)+sin(a+b))

y=

0.853553390593274
As x=y (Hence given Identity proved)

Chapter 02:
Q11:
>> i=[1 6 -3 -3 -3 -3 -3 -3 -3]

i=

1 6 -3 -3 -3 -3 -3 -3 -3

>> f=i(3:9)

f=

-3 -3 -3 -3 -3 -3 -3

Here “f” is a row vector contains 7 elements that are all (-3).

Q24 (a):

>> a=[7 2 -3 1 0]
a=

7 2 -3 1 0

>> b=[-3 10 0 7 -2]

b=

-3 10 0 7 -2

>> c=[1 0 4 -6 5]

c=

1 0 4 -6 5

>> u=ones(3)

u=

1 1 1
1 1 1
1 1 1

>> u(1,:)=a(1:3)

u=

7 2 -3
1 1 1
1 1 1

>> u

u=

7 2 -3
1 1 1
1 1 1

>> u(2,:)=b(1:3)

u=

7 2 -3
-3 10 0
 1 1 1

>> u(3,:)=c(1:3)

u=

7 2 -3
-3 10 0
1 0 4

Q24 (b):

>> a=[7 2 -3 1 0]

a=

7 2 -3 1 0

>> b=[-3 10 0 7 -2]

b=

-3 10 0 7 -2

>> c=[1 0 4 -6 5]

c=

1 0 4 -6 5
>> v=zeros(3)

v=

0 0 0
0 0 0
0 0 0

>> v

v=

0 0 0
0 0 0
0 0 0

>>
>> v(:,1)=a(3:5)

v=

-3 0 0
1 0 0
0 0 0
>> v(:,2)=b(3:5)

v=

-3 0 0
1 7 0
0 -2 0
>> v(:,3)=c(3:5)

v=

-3 0 4
1 7 -6
0 -2 5

Chapter 03:
Q12(a):

>> v=[2 4 6 8 10]

v=

2 4 6 8 10

>> s=[1 1 1 1 1]

s=

1 1 1 1 1
>> a=v.\s

a=

0.500000000000000 0.250000000000000 0.166666666666667 0.125000000000000

0.100000000000000

Q12 (b):
>> v=[2 4 6 8 10]

v=

2 4 6 8 10

>> q=[1 1 1 1 1]

q=

1 1 1 1 1
>> b=v.^2.\q

b=

0.250000000000000 0.062500000000000 0.027777777777778 0.015625000000000

0.010000000000000

Q12 (c):

v=

2 4 6 8 10
>> c=v./2

c=

1 2 3 4 5

Q12 (d):
>> v=[2 4 6 8 10]

v=

2 4 6 8 10
>> d=v./v

d=

1 1 1 1 1
Q34:

i1

i3 i2

i4

V1 =12V
V2 =24V
R1=20Ω
R2=12Ω
R3=8Ω
R4=6Ω
R5=10Ω

Using Mesh Analysis

 For Loope1
V1 –(i1- i3)R1 – (i1 – i2)R2 = 0
V1- i1R1+ i3R1- i1R2+i2R2=0
12-20i+20i3-12i1 +12i2 =0
12-32i1+12i2+20i3+0i4 =0 (Equ1)

 For Loope2
-V2 – (i2- i4)R4 – (i2- i1)R2 =0
-V2 - i2R4 + i4R4 - i2R2 +i1 R2=0
-24-6i2 +6i4 -12i2 +12i1 =0
-24+12i1-18i2+0i3+6i4= 0 (Equ2)
 For Loope3
V2 –(i3-–i1)R1–i3R3 =0
V2 - i3R1+ i1R1- i3R3=0
24-20i3+20i1-8i3=0
24+20i1+0i2-28i3+0i4 =0 (Equ3)

 For Loope4
- (i4 -i2) R4 - - i4R5 =0
- i4R4 + i2R4 – i4R5 =0
-6i4+6i2-10i4 =0
0+0i1+6i2+0i3-16i4 =0 (Equ4)

Summary of Equations:
12-32i1+12i2+20i3+0i4 =0
-32i1+12i2+20i3+0i4 = -12 (Equ1)

-24+12i1-18i2+0i3+6i4= 0
12i1-18i2+0i3+6i4 = 24 (Equ2)

24+20i1+0i2-28i3+0i4 =0
20i1+0i2-28i3+0i4 = -24 (Equ3)

0+0i1+6i2+0i3-16i4 =0
0i1+6i2+0i3-16i4 =0 (Equ4)

Now from Matlab

>> A=[-32 12 20 0; 12 -18 0 6; 20 0 -28 0; 0 6 0 -16]

A=

-32 12 20 0
12 -18 0 6
20 0 -28 0
0 6 0 -16
B=

-12
0
-24
0
>> inv(A)

ans =

-0.116666666666667 -0.088888888888889 -0.083333333333333 -0.033333333333333

-0.088888888888889 -0.131216931216931 -0.063492063492063 -0.049206349206349
-0.083333333333333 -0.063492063492063 -0.095238095238095 -0.023809523809524
-0.033333333333333 -0.049206349206349 -0.023809523809524 -0.080952380952381

>> X=inv(A)*B

X=

3.400000000000000
2.590476190476190
3.285714285714286
0.971428571428571
Therefore
i1= 3.4 A
i2= 2.59 A
i3= 3.28 A
i4= 0.97 A

Chapter5:
Q3(a):
>> x=[0:3]

x=

0 1 2 3
>> y=(x+1).*(x-2).*(2.*x-0.25)-exp(x)

y=

-0.500000000000000 -6.218281828459046 -7.389056098930650 2.914463076812332

>> plot(x,y,'g')
Q3(b):
>> x=[-3:6]

x=

-3 -2 -1 0 1 2 3 4 5 6

>> y=(x+1).*(x-2).*(2.*x-0.25)-exp(x)

y=

Columns 1 through 6

-62.549787068367863 -17.135335283236614 -0.367879441171442 -0.500000000000000 -

6.218281828459046 -7.389056098930650

Columns 7 through 10

2.914463076812332 22.901849966855764 27.086840897423400 -74.428793492735110

>> plot(x,y)
Q4:

>> x=[-2:2]

x=

-2 -1 0 1 2

>> y=sqrt(abs(cosd(3.*x)))+sin(x).^2

y=

1.824078996602090 1.707387950717973 1.000000000000000 1.707387950717973

1.824078996602090

>> plot(x,y,'r')
Q8(a):
>> t=[-30:-1.6]

t=

Columns 1 through 20

-30 -29 -28 -27 -26 -25 -24 -23 -22 -21 -20 -19 -18 -17 -16 -15 -14 -13 -
12 -11

Columns 21 through 29

-10 -9 -8 -7 -6 -5 -4 -3 -2

>> x=(3.*t)./(1+t.^3)

x=

Columns 1 through 6

0.003333456794696 0.003567328194194 0.003826704933716 0.004115435423229

0.004438122332859 0.004800307219662

Columns 7 through 12

0.005208710120813 0.005671543646227 0.006198929275852 0.006803455723542

0.007500937617202 0.008311461067367
 Columns 13 through 18

0.009260847196021 0.010382736156352 0.011721611721612 0.013337285121517

0.015311702515494 0.017759562841530

Columns 19 through 24

0.020845396641575 0.024812030075188 0.030030030030030 0.037087912087912

0.046966731898239 0.061403508771930

Columns 25 through 29

0.083720930232558 0.120967741935484 0.190476190476190 0.346153846153846

0.857142857142857

>> y=(3.*t.^2)./(1+t.^3)

y=

Columns 1 through 6

-0.100003703840883 -0.103452517631622 -0.107147738144048 -0.111116756427192 -

0.115391180654339 -0.120007680491551

Columns 7 through 12

-0.125009042899515 -0.130445503863225 -0.136376444068752 -0.142872570194384 -

0.150018752344043 -0.157917760279965

Columns 13 through 18

-0.166695249528383 -0.176506514657980 -0.187545787545788 -0.200059276822762 -

0.214363835216916 -0.230874316939891

Columns 19 through 24

-0.250144759698900 -0.272932330827068 -0.300300300300300 -0.333791208791209 -

0.375733855185910 -0.429824561403509

Columns 25 through 29

-0.502325581395349 -0.604838709677419 -0.761904761904762 -1.038461538461539 -

1.714285714285714
Q8(b):
>> t=[-0.6:40]

t=

Columns 1 through 6

-0.600000000000000 0.400000000000000 1.400000000000000 2.400000000000000

3.400000000000000 4.400000000000000

Columns 7 through 12

5.400000000000000 6.400000000000000 7.400000000000000 8.400000000000000

9.400000000000000 10.400000000000000

Columns 13 through 18

11.400000000000000 12.400000000000000 13.400000000000000 14.400000000000000

15.400000000000000 16.399999999999999

Columns 19 through 24
 17.399999999999999 18.399999999999999 19.399999999999999 20.399999999999999
21.399999999999999 22.399999999999999

Columns 25 through 30

23.399999999999999 24.399999999999999 25.399999999999999 26.399999999999999

27.399999999999999 28.399999999999999

Columns 31 through 36

29.399999999999999 30.399999999999999 31.399999999999999 32.399999999999999

33.399999999999999 34.399999999999999

Columns 37 through 41

35.399999999999999 36.399999999999999 37.399999999999999 38.399999999999999

39.399999999999999

>> x=(3.*t)./(1+t.^3)

x=

Columns 1 through 6

-2.295918367346939 1.127819548872181 1.121794871794872 0.485698866702644

0.253076617705439 0.153160679476469

Columns 7 through 12

0.102231421647819 0.072963852491412 0.054649651423845 0.042445393664183

0.033911186362412 0.027712050478566

Columns 13 through 18

0.023068455303856 0.019500698250808 0.016700566323682 0.014462749047199

0.012646225402818 0.011151546801138

Columns 19 through 24

0.009906958100779 0.008859636395386 0.007969999934268 0.007207916836657

0.006550122105703 0.005978422166281

Columns 25 through 30

0.005478424061863 0.005038621168927 0.004649725556356 0.004304173787756

0.003995756526013 0.003719337727390
 Columns 31 through 36

0.003470639491691 0.003246075594267 0.003042621507187 0.002857712047526

0.002689160140399 0.002535091861707

Columns 37 through 41

0.002393894136321 0.002264172350458 0.002144715787310 0.002034469278313

0.001932509824736

>> y=(3.*t.^2)./(1+t.^3)

y=

Columns 1 through 6

1.377551020408163 0.451127819548872 1.570512820512821 1.165677280086347

0.860460500198491 0.673906989696463

Columns 7 through 12

0.552049676898223 0.466968655945034 0.404407420536453 0.356541306779136

0.318765151806673 0.288205324977084

Columns 13 through 18

0.262980390463959 0.241808658310023 0.223787588737337 0.208263586279672

0.194751871203395 0.182885367538663

Columns 19 through 24

0.172381070953558 0.163017309675108 0.154617998724800 0.147041503467809

0.140172613062045 0.133916656524701

Columns 25 through 30

0.128195123047590 0.122942356521821 0.118103029131446 0.113630187996746

0.109483728812768 0.105629191457886

Columns 31 through 36

0.102036801055704 0.098680698065709 0.095538315325665 0.092589870339842

0.089817948689322 0.087207160042707

Columns 37 through 41
 0.084743852425759 0.082415873556673 0.080212370445404 0.078123620287219
0.076140887094601

>> plot(x,t,':b',y,t,'-g')

Chapter4:
Q2:
>> r=4.85/100;
P=100000;
y=10:30;
M=(P*(r/12))./(1-(1+(r/12)).^(-12.*y));
tbl=[y,M];
disp(M)
disp(y)
disp(tbl)
1.0e+03 *

Columns 1 through 6

1.053338409158346 0.979037203037794 0.917383650308490 0.865457759352513

0.821173725417141 0.783001870280961
 Columns 7 through 12

0.749794854663779 0.720675227539015 0.694960459103126 0.672111647628188

0.651697614333117 0.633369256928701

Columns 13 through 18

0.616840897707781 0.601876497400946 0.588279315611263 0.575884052781169

0.564550805582168 0.554160365576284

Columns 19 through 21

0.544610525327117 0.535813148778964 0.527691827570959

Columns 1 through 20

10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28
29

Column 21

30

1.0e+03 *

Columns 1 through 6

0.010000000000000 0.011000000000000 0.012000000000000 0.013000000000000

0.014000000000000 0.015000000000000

Columns 7 through 12

0.016000000000000 0.017000000000000 0.018000000000000 0.019000000000000

0.020000000000000 0.021000000000000

Columns 13 through 18

0.022000000000000 0.023000000000000 0.024000000000000 0.025000000000000

0.026000000000000 0.027000000000000

Columns 19 through 24

0.028000000000000 0.029000000000000 0.030000000000000 1.053338409158346

0.979037203037794 0.917383650308490

Columns 25 through 30
 0.865457759352513 0.821173725417141 0.783001870280961 0.749794854663779
0.720675227539015 0.694960459103126

Columns 31 through 36

0.672111647628188 0.651697614333117 0.633369256928701 0.616840897707781

0.601876497400946 0.588279315611263

Columns 37 through 42

0.575884052781169 0.564550805582168 0.554160365576284 0.544610525327117

0.535813148778964 0.527691827570959

Note: Here is the link of book from which assignment was completed
https://ecedmans.files.wordpress.com/2014/03/matlab-an-introduction-with-applications-4th-edition.pdf
