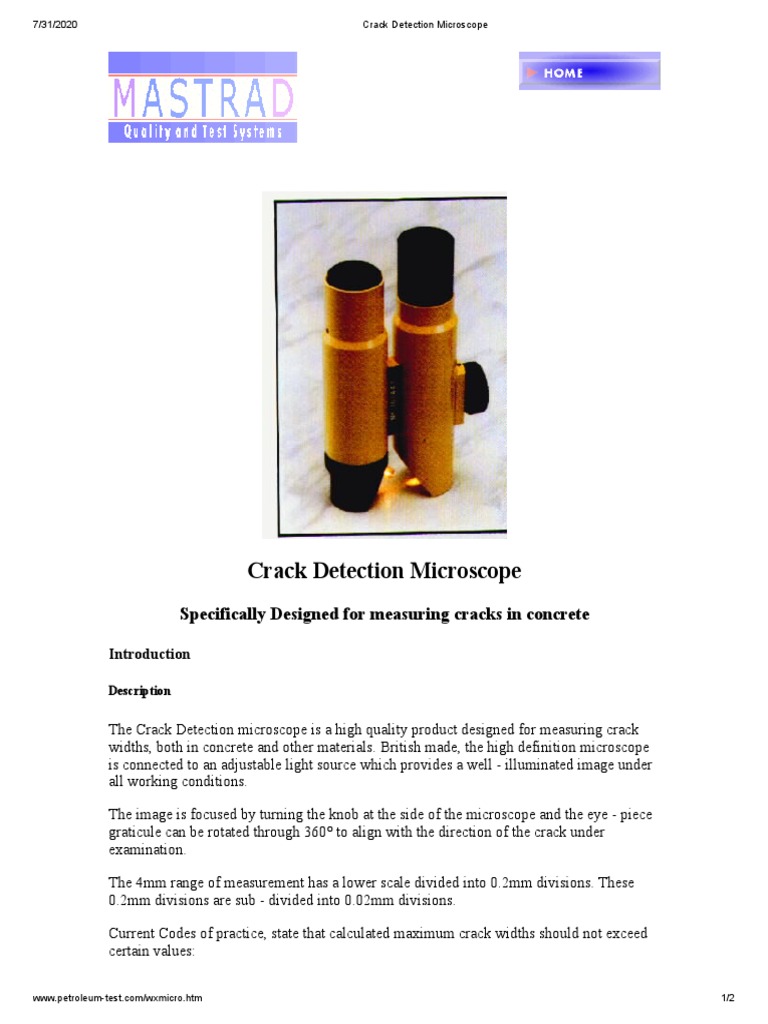

Crack Detection Microscope

Specifically Designed for measuring cracks in concrete

Introduction

Description

The Crack Detection microscope is a high quality product designed for measuring crack
widths, both in concrete and other materials. British made, the high definition microscope
is connected to an adjustable light source which provides a well - illuminated image under
all working conditions.

The image is focused by turning the knob at the side of the microscope and the eye - piece
graticule can be rotated through 360° to align with the direction of the crack under
examination.

The 4mm range of measurement has a lower scale divided into 0.2mm divisions. These
0.2mm divisions are sub - divided into 0.02mm divisions.

Current Codes of practice, state that calculated maximum crack widths should not exceed
certain values:

www.petroleum-test.com/wxmicro.htm 1/2
7/31/2020 Crack Detection Microscope

e.g. 0.3mm in BS 8110 : Part 2 for most types of environment. This value is 15 divisions
on the graticule.

The Crack Detection microscope is very easy to use and comes with simple instructions in
a wooden carrying box.

Specification

Magnification = x 35
Measuring Range = 4 mm
Divisions = 0.02mm
Weight including battery and box = 560gr
Dimensions of box = 150 x 100 50mm deep
