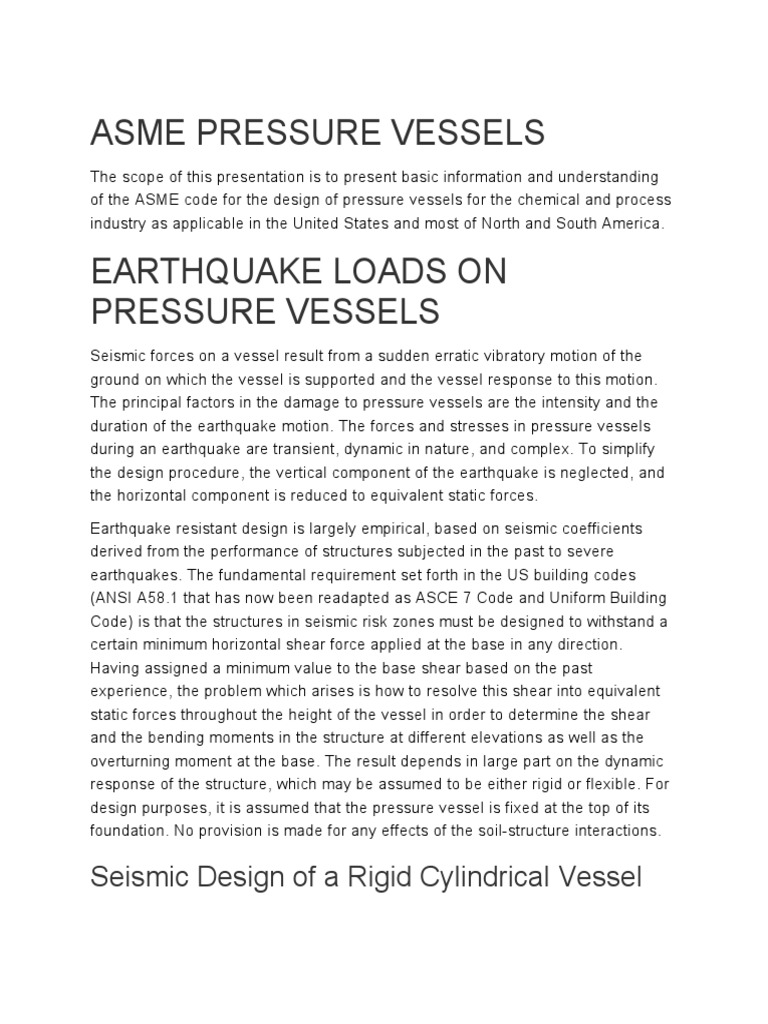

ASME PRESSURE VESSELS

The scope of this presentation is to present basic information and understanding

of the ASME code for the design of pressure vessels for the chemical and process
industry as applicable in the United States and most of North and South America.

EARTHQUAKE LOADS ON
PRESSURE VESSELS
Seismic forces on a vessel result from a sudden erratic vibratory motion of the
ground on which the vessel is supported and the vessel response to this motion.
The principal factors in the damage to pressure vessels are the intensity and the
duration of the earthquake motion. The forces and stresses in pressure vessels
during an earthquake are transient, dynamic in nature, and complex. To simplify
the design procedure, the vertical component of the earthquake is neglected, and
the horizontal component is reduced to equivalent static forces.

Earthquake resistant design is largely empirical, based on seismic coefficients

derived from the performance of structures subjected in the past to severe
earthquakes. The fundamental requirement set forth in the US building codes
(ANSI A58.1 that has now been readapted as ASCE 7 Code and Uniform Building
Code) is that the structures in seismic risk zones must be designed to withstand a
certain minimum horizontal shear force applied at the base in any direction.
Having assigned a minimum value to the base shear based on the past
experience, the problem which arises is how to resolve this shear into equivalent
static forces throughout the height of the vessel in order to determine the shear
and the bending moments in the structure at different elevations as well as the
overturning moment at the base. The result depends in large part on the dynamic
response of the structure, which may be assumed to be either rigid or flexible. For
design purposes, it is assumed that the pressure vessel is fixed at the top of its
foundation. No provision is made for any effects of the soil-structure interactions.

Seismic Design of a Rigid Cylindrical Vessel

The pressure vessel and its foundation are assumed to be rigid and the assumed
earthquake horizontal acceleration of ground, a, is transmitted directly into the
vessel. The term rigid here is used in the sense of having no deformation.

Each section of the vessel will be acted upon by a horizontal inertial force equal to
its mass and multiplied by the horizontal acceleration, a, of the quake movement.

The horizontal force will act at the center of gravity of the section. The overturning
moment at an arbitrary elevation is equal to ΔP times the distance of the center of
gravity of the vessel section above the section plane (see Figure 1). Their
resultant Pe is assumed to act at the center of gravity of the entire vessel and is
given by the equation,

Where

 g = gravitational acceleration
 W = operating vessel weight during the earthquake
 C = a/g, an empirical seismic coefficient, depending on the seismic zone
where the vessel is located




The usual value of c is given in Table 1.

Table 1: Values of the Coefficient c

ITEM ZONE 0 ZONE 1 ZONE 2 ZONE 3

Vessel 0 0.05 0.10 0.20

Equipment attached to the vessel 0 0.25 0.50 1.00


The overturning moment at the base Mb is equal to Pe times the elevation h of the
center of gravity of the vessel above the vessel base:

The simple rigid-structure approach was used in the early building codes. For a
short heavy vessel or a horizontal drum on two supports this design procedure is
easy to apply and probably justified. However, it cannot be reasonably applied to
tall, slender process columns, regardless of their dynamic properties.

Seismic Design of Flexible Tall Cylindrical

Vessels
The sudden erratic shift during an earthquake of the foundation under a flexible tall
cylindrical vessel relative to its center of gravity causes the vessel to deflect, since
the inertia of the vessel mass restrains the vessel from moving simultaneously with
its foundation. The vibration initiated by the induced elastic deflection is then
gradually reduced by damping or partial yielding in the vessel.

From experience and theoretical studies, it is known that the vessel with a longer
first period of vibration T and higher damping will be subjected to less total
damage than a vessel with shorter T and smaller damping capacity, provided that
it has the strength to withstand the sustained deflections.

A tall slender vessel represents a distributed system of multiple degrees of

freedom and will be excited into a transverse vibratory motion, consisting of
relatively simple deflection curves called modes, with the first fundamental most
predominant. Each mode has a unique period of vibration. The first three modes
for a cantilever beam of uniform cross section and weight are illustrated in Figure
2. Since the vessel will try to vibrate with a combination of natural frequencies,
with the first frequency predominant, the resulting motion can become complex
and determined by superposition.




For practical design purposes, the building codes require all free-standing
structures in seismic zones to be designed and constructed to withstand the
minimum lateral force V applied at the base in any horizontal direction and equal
to the product of the weight and empirical coefficients:

V = ZKCW

where,

 W = normal operating weight most likely to exist at the time of a possible

future earthquake
 Z = earthquake zone factor, a numerical coefficient dependent upon the
seismic zone in which the structure is located and found from the seismic
zoning maps. In US, for location in zone 1, Z = 0.25; zone 2, Z = 0.50; zone
3, Z = 1
  K = structure coefficient, a numerical coefficient related to the inherent
resistance of a structure type to the dynamic seismic forces; K is based on
the earthquake performance record of the type of the structure; for
cylindrical vessels supported at base the K value is taken as 2; for other
structures K may vary from 0.67 to 3.00
 C = flexibility factor, a numerical coefficient depending on the flexibility of
the vessel and given by the equation C = 0.05/T1/3, where T is the
fundamental period of vibration of the vessel, in seconds, in the direction
under consideration; for T < 0.12s, the factor C is usually taken as 0.10; a
great accuracy of T is not needed in computing the coefficient C in the
above equation, since C is inversely proportional to the cube root of T, and
hence does not change appreciably with small variations of T

The building codes prescribe the distribution of the base shear V over the height of
the structure in accordance with the triangular distribution equation

where

 Ft = 0.004 V(hn/Ds)2 ≤ 0.15V is a portion of V assumed concentrated at the

uppermost level hn of the structure to approximate the influence of higher
modes. For most towers, Ft = 0.15V, since hn/Ds > 6.12;
 Fi,Fx = the lateral force applied at levels hi, hx respectively;
 wi,wx= that portion of W which is located at or is assigned to levels i, x
respectively;
 Ds = the plan diameter of the vessels.

For check, the total lateral shear at the base is:

The force acting laterally in any direction on any appendage connected to the
vessel si given by the equation
where Wp is the weight of the appendage and Cp is taken equal to 0.2. Force Fp
is applied at the center of gravity of the attached equipment.

Since the higher modal responses contribute mainly only to the base shear, but
not to the overturning moments, the base moment Mb and the moments Mx at
levels hx above the base can be reduced by means of reduction coefficients J and
Jx, and are given by the following equations:

For structures where the total mass is predominantly concentrated at one level
and/ or it would seem reasonable to expect the structure to vibrate primarily in the
fundamental mode, J = 1.0 is recommended.

Example:
Compute the seismic loads and moments acting on a cylindrical vertical process
column of two diameters, as shown in Figure 3.

To determine the earthquake load distribution on a vessel with variable mass

concentrations, or on a vessel of two or more diameters, the entire vessel is
usually divided into n sections; not more than 10 sections are usually required, the
exact number depending on the weight distribution. The weight of each section wi
is assumed to be concentrated at the center of gravity of each section and the
seismic loads Fi and the moments Mx are computed.

From Figure 3, the total lateral force at the base V equals

V = ZKCW = 1 X 2 X 0.05 X 85 = 8.5 kips

 where K = 2
 W = 85 kips, including steel shell, trays, operating liquid, insulation, etc.
 Z = 1 for zone 3
  C = 0.05/ T1/3 = 0.05/ 11/3 = 0.05

In computing T, it would seem to be conservative to assume that the period T for

column 5-ft id x 100-ft high with uniformly distributed weight w = W/H will be
shorter than that of the stepped down column in Figure 3. Using the formula for a
uniform-diameter cantilever beam,


The transverse design shear Vx at hx elevations is equal to the sum of all lateral
forces Fi above the section elevation hx. Taking J = 1.0, the incremental moments
at particular section planes are
