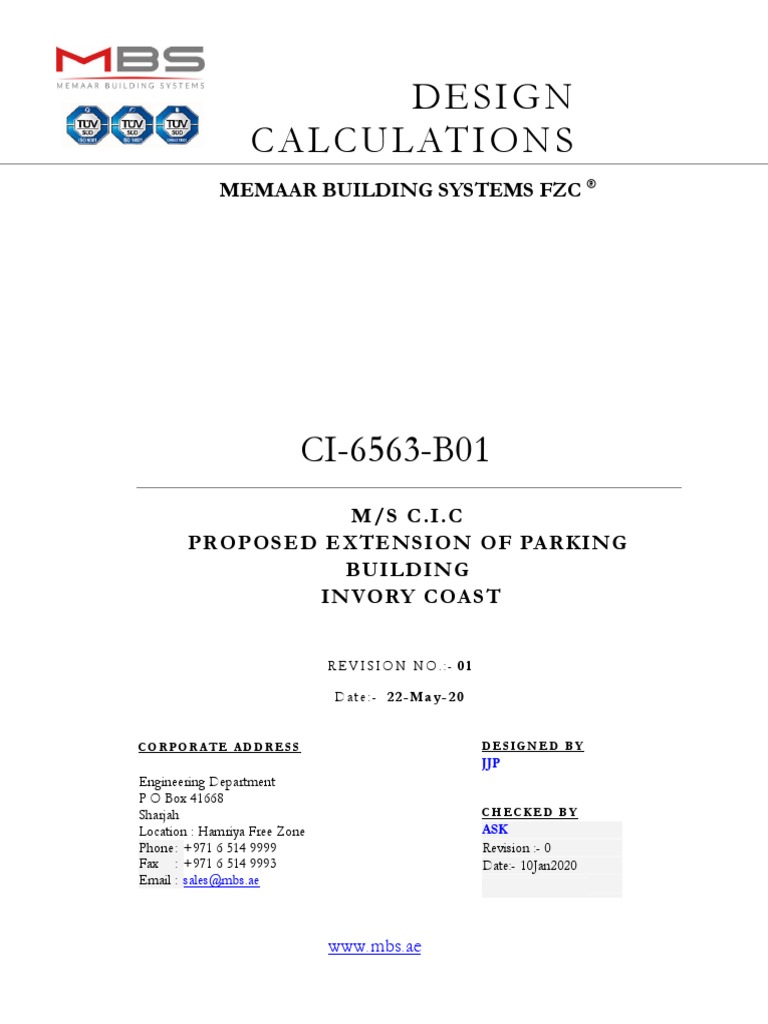

DESIGN

C A L C U L AT I O N S
MEMAAR BUILDING SYSTEMS FZC ®

CI-6563-B01
M/S C .I.C
PROPOSED EXTENSION OF PARKING
BUILDING
INVORY COAST

REVISION NO.:- 01

Date:- 22-May- 20

CORPORATE ADDRESS DESIGNED BY

JJP
Engineering Department
P O Box 41668
Sharjah CHECKED BY
Location : Hamriya Free Zone ASK
Phone: +971 6 514 9999 Revision :- 0
Fax : +971 6 514 9993 Date:- 10Jan2020
Email : sales@mbs.ae

www.mbs.ae
 01 22-May-20

CI-6563-B01

INTRODUCTION

This Design Calculation Package has been prepared using the latest applicable
American codes and standards and the latest developments in engineering
practices. A competent design engineer prepared the calculation and another
competent engineer checked his work.

Computer programs, spreadsheets, verified and tested by MBS, have been used as
applicable to determine structural requirements. The output of these programs has
been incorporated in this package.

For your easy reference, a table of contents has been provided. The description of
the building parameters considered, design codes and material specifications used,
design assumptions, loads and load combinations, and design sketches are also
included in the calculation.

Please read this calculation package in conjunction with the drawings provided.
You can resubmit this package with the drawings to other parties involved in this
project for their approval as required, or, keep this package for future reference.

Design & Detailing Manager

Engineering Department
MBS

Sheet 2 of 223 Version 3.1

 01 22-May-20

CI-6563-B01

INDEX

DESIGN CODES .............................................................................................................................................. 4

MATERIAL SPECIFICATION....................................................................................................................... 5
DESIGN ASSUMPTIONS................................................................................................................................ 6
LOAD COMBINATIONS ................................................................................................................................ 6
BUILDING DATA............................................................................................................................................ 7
METAL BUILDING SOFTWARE (MBS) ...................................................................................................... 8
DESIGN OUTPUT ......................................................................................................................................... 10
RIGID FRAME DESIGN-3D......................................................................................................................... 11
ROOF DESIGN .............................................................................................................................................123
DRAINAGE DESIGN ...................................................................................................................................212
STANDARD TABLES AND DETAILS........................................................................................................213
STANDARD ALUZINC COATED STEEL PANEL M45-250.....................................................................213
STANDARD HOT ROLLED SECTIONS PROPERTIES...........................................................................214
STANDARD Z SECTIONS PROPERTIES..................................................................................................215
STANDARD C SECTIONS PROPERTIES .................................................................................................216
STANDARD ANCHOR BOLT DESIGN......................................................................................................217
STANDARD PRIMARY CONNECTION BOLT DESIGN .........................................................................218
STANDARD SECONDARY CONNECTION BOLT DESIGN ...................................................................219
STANDARD CONNECTION BOLT TORQUE VALUES ..........................................................................220
STANDARD CONNECTION TABLES .......................................................................................................221
DESIGN SKETCHES....................................................................................................................................223

Sheet 3 of 223 Version 3.1

 01 22-May-20

CI-6563-B01

DESIGN CODES

The Pre-Engineered Building described in this calculation was designed according to the latest American Buildings
and Design Codes that have been referred to in the design:

The loads as described have been applied on the structure in accordance with:

 MBMA-2010 “Metal Buildings Manufacturers Association” Low Rise Buildi ng Systems Manual

Built up and hot rolled sections have been designed in accordance with:

 AISC-2005 “American Institute of Steel Construction” Manual of Steel Construction - Allowable Stress
Design, 13th Edition.

Cold formed components have been designed in accordance with:

 NAS-2001 North American Specification for the Design of Cold-Formed Steel Structural Members

Welding has been applied in accordance with:

 AWS D1.1M:2007 “American Welding Society” Structural Welding Code - Steel Manual, 2007 Edition.

Sheet 4 of 223 Version 3.1

 01 22-May-20

CI-6563-B01

MATERIAL SPECIFICATI ON

The following is the list of the material standards and specifications for which the building components have been
designed:

MATERIAL SPECIFICATIONS

No. Structural Components Material Specifications Strength

1 Built-up Sections ASTM A572M Grade 345 OR EN 10025 S355 JR Fy = 345 N/mm 2

Tubes ASTM A 500 Grade B OR JIS G 3445 STKM Fy = 317 N/mm 2

Hot Rolled
2 I-sections ASTM A 572M Grade 345 OR EN 10025 S355 JR Fy = 345 N/mm 2
Sections
Channels ASTM A 572M Grade 345 OR EN 10025 S355 JR Fy = 345 N/mm 2

3 Cold formed secondary members ASTM A653M SS Grade 340 Class 1 Coating: Z 275 Fy = 340 N/mm 2
Aluzinc coated
steel Bare & ASTM A792M Grade 340 Class 1 Coating: AZM 150 Fy = 340 N/mm 2
Sheeting Panels Pre-painted
4
Aluminum Mill
ASTM B 209 Grade AA 3105, Temper: H16
finish & Pre- Fy = 145 N/mm 2
Fu =170 N/mm2 (min.)
painted
Aluzinc coated
steel Pre- ASTM A792M CS Type-C Coating: AZM 100 Fy = 205 N/mm2
5 Sandwich panel painted
inner skin Aluminum Mill
ASTM B 209 Grade AA 3105, Temper: H16
finish & Pre- Fy = 145 N/mm2
Fu =170 N/mm2 (min.)
painted
6 Mezzanine Decking Panels ASTM A653M SS Grade 340 Class 1: Coating Z180 Fy = 340 N/mm 2

Cable ASTM A475 – Extra High Strength Class A ( Ωt = 2.50 ) Pu = 120 kN

Diagonal “X”
7 Rods ASTM A36 ( Fu = 400 N/mm 2 ) Fy = 250 N/mm 2
Bracing
HR Angles ASTM A36 ( Fu = 400 N/mm 2 ) Fy = 250 N/mm 2

ASTM F 1554 Grade 36 OR Din 933 Grade 4.6

8 Anchor Bolts Fy = 250 N/mm 2
Hot Dip Galvanized to ASTM A153, Class C or equivalent

ASTM A325M Type-1 or equivalent.(Fully threaded)

9 High Strength Bolts Fu = 830 N/mm2
Hot Dip Galvanized to ASTM A 153M Class C

ASTM A307 Grade A .(Fully threaded)

10 Secondary connection Bolts Fu = 413 N/mm 2
Electro Galvanized

ASTM A36 OR Din 933 Grade 4.6

11 Sag Rods Fy = 250 N/mm 2
Electro galvanized to B633

Fy = Yield Strength. Fu = Ultimate Tensile Strength. Pu = Minimum Breaking Load.

Important Note:-
Subject to market conditions and material availability, MBS reserves the right to substitute equivalent or
better material.

Sheet 5 of 223 Version 3.1

 01 22-May-20

CI-6563-B01

DESIGN ASSUMPTIONS

 The main frame rafters and exterior columns are rigidly connected to each other (using moment type
connections). The rafters are continuous over the columns.

 The exterior columns are pin connected to the foundations.

 The building is designed for open condition.

 Dust load 100 dan/m2 is combined with Roof live load.

 The lateral stability of the building is provided through the frame action of the main frames.

 The roof purlins are continuous beams supported at rigid frame locations and span the bay spacing of the
building.

 The roof sheeting provide lateral support for purlins and girts.

LOAD COMBINATIONS

1) Dead + Collateral Load

2) Dead + Collateral + Roof Live Load
3) Dead + Collateral + Wind Load
4) Dead + Collateral + 0.75 Roof Live + 0.75 Wind Load
5) 0.60 Dead + Wind Load

Sheet 6 of 223 Version 3.1

 01 22-May-20

CI-6563-B01

BUILDING DATA

1) Building Parameters
Width (mm) 37000 C/C of Steel Col @Y1, Y2,Y3
Frame Type Clear-span
Width Module (mm) 1 @ 37000
No. of diff. type of Rigid Frames 7 Rigid Frame @ Grid Lines Y1 to Y7
Remarks
Roof Slope 1 : 10# Eave Height (mm) 7966 mm above FFL*
Length (mm) 47020 O/O of Steel Bay Spacing (mm) 2@6960+1@9100+3@8000 O/O of Steel
* at roof extension end @GL:X1 and 6700 mm above FFL at roof extension end @GL:X6
Remarks
# - Between GL X1 to ridge and as per design from ridge to X6
2) Building Loads
Dead Load 0.15 kN/m2 Collateral Load Nil
Roof Live load 1.57$ kN/m2 Seismic Zone Nil
Wind Speed 155** km/hr Rainfall Intensity 150 mm/hour
** -3sec gust, Exposure-D as per MBMA-06
Remarks
$ - Dust load 100 dan/m2 (1 kN/m2 ) is combined with roof live load
3) End wall Condition
Left End Wall Framing Rigid Wind Column Bay Spacing (mm) 1@37000
Right End Wall Framing Rigid Wind Column Bay Spacing (mm) 1@30242 at Grid Y7
Remarks
4) Side walls & End walls Details
Location Length (mm) Height (mm) Wall Description
Near Side wall Full Full Open for access
Far Side wall Full Full Open for access
Left End wall Full Full Open for access
Right End wall Full Full Open for access

5) Panel and Insulation Details

Thickness Insulation
Location Type Material
(mm) Type Thickness (mm)
Roof Single Skin 0.70 Aluzinc - -
Near Side wall - - - - -
Far Side wall - - - - -
Left End wall - - - - -
Right End wall - - - - -
Remarks

Sheet 7 of 223 Version 3.1

 01 22-May-20

CI-6563-B01

METAL BUILDING SOFTW ARE (MBS)

Metal Building Software (MBS)

Metal Building Software (MBS) is a software program that does the complete structural analysis and optimized design
of steel framed metal buildings for a given shape, loads, building code and a list of available materials. Refer
www.mbsweb.com for more information.

INPUT DATA

The designer selects and edits a design control file which contains all information of the building, such as the size, shape,
building code, loads, framed openings and the type of frame members. The program uses this informa tion to prepare an
input file for each building.

RIGID FRAME DESIGN PROGRAM

The rigid frame module will design the rigid frames of a given building including flange plates, web plates, bolted end plate
connections, base plates, anchor bolts, interior columns, web stiffener plates, size of inside flange braces and its location.

ANALYSIS

Stiffness method of structural analysis is applied to consider the specific loads acting on the frame geometry to produce the
internal moments, shears and axial forces. The frame geometry starts with the building shape and is then corrected for the
distance between the building surface and the frame outside flange and the distance from the outer flange to the center of
gravity of the members.

The calculated internal actions are located on the center of gravity lines for the frames. Since the frame geometr y is smaller
than the building steel line geometry, the wall and roof loads located beyond the knee and peak surface intersection of the
frame are applied as concentrated loads and moments at the intersection of members. Analysis of the rigid frame depends
on member stiffness throughout the frame.

Tapered members are divided into short segments of constant depth. At building intersections the members are stiffened
due to overlap of the two intersecting members. Results of the analysis are reported at stre ss check points which are
located throughout the frame. Stress check points are located at each end of each segment plus at equal spacing between
the segment ends. The stress check points are located on the center of gravity line for the members and on lines which are
perpendicular to the member outside flange.

DESIGN CODE

Members are designed in accordance with the latest ‘Steel Construction Manual’ by the American Institute of Steel
Construction. Individual and combined stress checks are performed on shear, axial, and bending forces as per applicable /
selected code in the input file.

Sheet 8 of 223 Version 3.1

 01 22-May-20

CI-6563-B01

LOADING

The rigid frame is designed to withstand a number of design loads. Design loads are a linear combination of various
applicable loads, namely, Dead, Collateral, Live, Wind, Seismic and auxiliary loads. Basic loads are entered in the input file
of the rigid frame. The program generates the self weight of the rigid frame. The intensity of the wind loading on each
building surface is a product of the wind coefficient and the basic wind pressure.

 Two sets of wind coefficients are considered.

 Design load is a combination of all loads used in the design of the frame.
 Entering data for additional loads is a three step process as below,
 Each additional load other than the basic loads is defined on "Additional Load" line.
 The additional loads are combined to form an auxiliary load on the "Auxiliary Loads" line.
 The auxiliary loads are combined with other loads to form design loads for the frame on the "Design Loads" line.
 Crane loads are generated by the program as per the data entered in the design control file.

Some of the “Additional Load” types are denoted in the input file as below,
Concentrated Load is denoted by –[C]
Linear Distributed Load is denoted by –[D]
Concentrated Load on an interior column is denoted by –[I]
Linear Distributed Load on an interior column is denoted by –[W]

DESIGN SUMMARY REPORT

This report contains a detailed summary of the rigid frame design. It is divided into five headings,

 Members.
 Interior Columns.
 Weights.
 Reactions.
 Deflections.
 Rigid Frame Clearances.
 Design Warnings

The members section reports for each segment the outside flange length, width of both flanges, the web depth at the start
and end of each segment. The next three columns are the selected or specified plate thicknesses of web, outside flange,
and inside flange. The next nine columns indicate the maximum unity check (UC) for each of three checks for shear,
outside flange and inside flange. For each maximum (UC) value the corresponding location and Identification (ID) values
and design load are reported. Following this table there is a statement on the number of cycles of plate and/or depth
optimization used to obtain this design. For each interior column the following values are reported, location as measured
from the rear side of the building, column size using the designation in the column file, unity checks.

The first two lines of the section on weights are the weight for each member in the frame. A member is defined as a single
linear change in depth. The second part of the weight section is a summary of the weights including: frame members,
interior columns, connection plates, and base plates. Reactions are first reported for the sidewall columns and then for the
interior columns. A set of reactions is given for each design load. Positive vertical and horizontal reactions are in the
positive X and Y coordinate directions. Positive moment reactions on the column are counter clockwise.

Frame deflections are reported in two tables, the first column reports the design load number where as the second and
third column indicates the lateral deflection at the top of the left and right sidewall columns. The last column repor ts the
vertical deflection at the mid span of each span in the rafter. The second table has the deflection replaced with the ratio of
span length to deflection. Member spans are measured over member center line distances.

The last part of the Design Summary Report gives the program selected locations of inside flange braces for the rigid
frame.

Sheet 9 of 223 Version 3.1

 01 22-May-20

CI-6563-B01

DESIGN OUTPUT

Sheet 10 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

RIGID FRAME DESIGN -3D

Sheet 11 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Beam numbers

Sheet 12 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Node numbers

Sheet 13 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

PAGE NO. 1

****************************************************
* *
* STAAD.Pro CONNECT Edition *
* Version 21.03.00.146 *
* Proprietary Program of *
* Bentley Systems, Inc. *
* Date= MAY 22, 2020 *
* Time= 15:55:22 *
* *
* Licensed to: Memaar Building Systems FZC-EN *
****************************************************

1. STAAD SPACE
INPUT FILE: C:\JOB FOLDER(STAAD)\JOB FOLDER-GROUP-3\6563-B01-REV-01-SSU\3-D MODEL\6563-B01-REV-01-
6.STD
2. START JOB INFORMATION
3. ENGINEER DATE 02-APR-20
4. JOB REF FRAME GL-12
5. END JOB INFORMATION
6. INPUT WIDTH 79
7. *--------------------------------------------------------- -
8. *CHANGED EXTN TRIB+LZ ETC CORRECTED+ MY SECTIONS+ ADDED RAFTER WIND TO LW-CASE
9. *UPDATED WIND BRACING + REORDER BEAM + INTRODUCED BRACINGS
10. * ADDED S.T AS PURLINS + CHANGED ORIENTATIONS OF COLM +
11. *ADDING ONE MORE BRACING ROOF
12. * BRACHING CHANGED TO TRUSS WITH ANGLE+ REALEASE CONDN CHANGED FOR JB+
13. * JB DEFF CHKING + 2BAY CONDN ADDED+ BASE TO 350 +Y7 RFT CHANGED FRM 740 TO 825
14. * FINAL
15. *--------------------------------------------------------- -
16. UNIT METER KN
17. JOINT COORDINATES
18. 3 0.5 2.5125 0; 7 0.5 7.3175 0; 12 12.013 8.528 0; 17 15 8.826 0
19. 22 17.989 8.527 0; 23 37.5 2.4727 0; 27 37.5 6.5587 0; 28 6.05235 7.933 0
20. 29 9.03269 8.23 0; 30 23.9497 7.933 0; 31 20.969 8.23 0; 32 26.9444 7.634 0
21. 33 29.9391 7.335 0; 34 32.9245 7.03694 0; 35 41.7254 6.137 0
22. 36 -1.50035 7.1155 0; 37 0.5 2.5125 -6.96; 38 0.5 7.3175 -6.96
23. 39 6.05235 7.933 -6.96; 40 9.03269 8.23 -6.96; 41 12.013 8.528 -6.96
24. 42 15 8.826 -6.96; 43 17.989 8.527 -6.96; 44 20.9693 8.23 -6.96
25. 45 23.9497 7.933 -6.96; 46 26.9444 7.634 -6.96; 47 29.9391 7.335 -6.96
26. 48 32.9245 7.03694 -6.96; 49 37.5 6.5587 -6.96; 50 37.5 2.4727 -6.96
27. 51 41.7254 6.137 -6.96; 52 -1.50035 7.1155 -6.96; 53 0.5 2.5125 -13.92
28. 54 0.5 7.3175 -13.92; 55 6.05235 7.933 -13.92; 56 9.03269 8.23 -13.92
29. 57 12.013 8.528 -13.92; 58 15 8.826 -13.92; 59 17.989 8.527 -13.92
30. 60 20.9693 8.23 -13.92; 61 23.9497 7.933 -13.92; 62 26.9444 7.634 -13.92
31. 63 29.9391 7.335 -13.92; 64 32.9245 7.03694 -13.92; 65 37.5 6.5587 -13.92
32. 66 37.5 2.4727 -13.92; 67 41.7254 6.137 -13.92; 68 -1.50035 7.1155 -13.92
33. 71 4.43035 7.7708 -23.02; 72 9.03269 8.23 -23.02; 73 12.013 8.528 -23.02
34. 74 15 8.826 -23.02; 75 17.989 8.527 -23.02; 76 20.9693 8.23 -23.02
35. 77 23.9497 7.933 -23.02; 78 26.9444 7.634 -23.02; 79 29.9391 7.335 -23.02
36. 80 32.9245 7.03694 -23.02; 81 37.5 6.5587 -23.02; 82 37.5 2.4727 -23.02
37. 83 41.7254 6.137 -23.02; 85 -0.883 2.5 -31.02; 86 -0.883 7.305 -31.02
38. 87 6.05235 7.933 -31.02; 88 9.03269 8.23 -31.02; 89 12.013 8.528 -31.02

Sheet 14 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 2

39. 90 15 8.826 -31.02; 91 17.989 8.527 -31.02; 92 20.9693 8.23 -31.02

40. 93 23.9497 7.933 -31.02; 94 26.9444 7.634 -31.02; 97 30.3 7.272 -31.02
41. 98 30.3 2.5 -31.02; 99 35.8854 6.85 -31.02; 100 -2.36335 7.155 -31.02
42. 102 -0.883 7.305 -39.02; 103 6.76535 7.933 -39.02; 104 9.03269 8.23 -39.02
43. 105 12.013 8.528 -39.02; 106 15 8.826 -39.02; 107 17.989 8.527 -39.02
44. 108 20.9693 8.23 -39.02; 109 23.9497 7.933 -39.02; 110 26.9444 7.634 -39.02
45. 113 29.506 7.378 -39.02; 114 29.506 2.5 -39.02; 115 31.0954 7.214 -39.02
46. 116 -2.36335 7.155 -39.02; 117 -0.883 2.5 -47.02; 118 -0.883 7.305 -47.02
47. 119 6.76535 7.933 -47.02; 120 9.03269 8.23 -47.02; 121 12.013 8.528 -47.02
48. 122 15 8.826 -47.02; 123 17.989 8.527 -47.02; 124 20.9693 8.23 -47.02
49. 125 23.9497 7.933 -47.02; 129 28.712 7.43 -47.02; 130 28.712 2.5 -47.02
50. 132 -2.36335 7.155 -47.02; 133 6.76184 8.0037 -31.02
51. 134 6.76184 8.0037 -23.02; 135 6.76184 8.0037 -13.92; 136 30.0014 7.3 -47.02
52. 139 33.4094 6.85 -35.821; 140 -0.883 7.305 -46.72; 141 -0.883 7.305 -31.32
53. 143 0.5 7.3175 -0.3; 145 37.5 6.5587 -0.3; 147 37.5 6.5587 -14.22
54. 149 0.5 7.3175 -6.66; 151 37.5 6.5587 -6.66; 153 37.5 6.5587 -22.72
55. 154 41.7254 6.137 -25.908; 158 30.0692 7.31228 -25.905
56. 160 29.8259 7.3353 -35.7971; 162 23.9444 7.634 -35.797
57. 163 34.7448 6.83182 -25.8867; 164 6.76184 8.0037 -6.96
58. 165 6.03093 7.8727 -47.02
59. MEMBER INCIDENCES
60. 1 36 7; 2 7 3; 3 7 28; 4 28 29; 5 29 12; 6 12 17; 7 17 22; 8 31 22; 9 30 31
61. 10 32 30; 11 33 32; 12 34 33; 13 27 34; 14 27 23; 15 27 35; 16 143 3; 17 7 143
62. 18 145 23; 19 27 145; 20 143 149; 21 145 151; 22 149 37; 23 149 38; 24 151 50
63. 25 151 49; 26 52 38; 27 38 37; 28 38 39; 29 39 164; 30 40 41; 31 41 42
64. 32 42 43; 33 44 43; 34 45 44; 35 46 45; 36 47 46; 37 48 47; 38 49 48; 39 49 50
65. 40 49 51; 41 38 54; 42 49 65; 43 68 54; 44 54 53; 45 54 55; 46 55 135
66. 47 135 56; 48 56 57; 49 58 57; 50 58 59; 51 60 59; 52 61 60; 53 62 61
67. 54 63 62; 55 64 63; 56 65 64; 57 65 66; 58 65 67; 59 147 66; 60 65 147
68. 61 147 153; 62 134 135; 63 74 58; 64 77 61; 65 153 82; 66 153 81; 67 71 134
69. 68 134 72; 69 72 73; 70 74 73; 71 74 75; 72 76 75; 73 77 76; 74 78 77
70. 75 79 78; 76 80 79; 77 81 80; 78 81 82; 79 81 83; 80 81 163; 81 79 158
71. 82 163 158; 83 163 154; 84 134 133; 85 74 90; 86 77 93; 87 163 97; 88 158 97
72. 89 100 86; 90 86 85; 91 86 87; 92 87 133; 93 133 88; 94 88 89; 95 90 89
73. 96 90 91; 97 92 91; 98 93 92; 99 94 93; 100 97 94; 101 97 98; 102 97 99
74. 103 141 85; 104 141 86; 105 93 162; 106 97 160; 107 103 133; 108 106 90
75. 109 102 141; 110 160 162; 111 160 139; 112 162 109; 113 160 113; 114 116 102
76. 115 102 103; 116 103 104; 117 104 105; 118 106 105; 119 106 107; 120 108 107
77. 121 109 108; 122 110 109; 123 113 110; 124 113 114; 125 115 113; 126 102 140
78. 127 103 119; 128 106 122; 129 113 129; 130 140 117; 131 140 118; 132 132 118
79. 133 118 117; 134 118 165; 135 119 120; 136 120 121; 137 122 121; 138 122 123
80. 139 124 123; 140 125 124; 141 129 125; 142 129 130; 143 136 129; 157 65 79
81. 158 79 61; 161 74 61; 162 74 135; 165 74 133; 167 86 103; 168 103 118
82. 172 17 42; 176 133 106; 178 164 40; 179 164 135; 180 42 58; 181 103 122
83. 182 109 122; 183 109 129; 184 165 119; 185 38 135; 186 135 42; 187 42 61
84. 188 61 47; 189 47 65; 190 77 90; 191 47 63; 192 79 63; 193 109 125; 194 61 45
85. 195 134 58; 196 134 90
86. DEFINE MATERIAL START
87. ISOTROPIC STEEL
88. E 2.05E+08
89. POISSON 0.3
90. DENSITY 76.8195
91. ALPHA 1.2E-05
92. DAMP 0.03
93. TYPE STEEL
94. STRENGTH FY 253200 FU 407800 RY 1.5 RT 1.2

Sheet 15 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 3

95. ISOTROPIC CONCRETE

96. E 2.17185E+07
97. POISSON 0.17
98. DENSITY 23.5616
99. ALPHA 1E-05
100. DAMP 0.05
101. TYPE CONCRETE
102. STRENGTH FCU 27579
103. END DEFINE MATERIAL
104. *-------------------------------------------------- -
105. UNIT MMS KN
106. MEMBER PROPERTY AMERICAN
107. *COLUMN
108. *Y1-Y2-Y3
109. 2 TAPERED 1232 10 482 375 16
110. 27 TAPERED 1232 12 482 350 16
111. 44 TAPERED 1250 14 760 375 25
112. *---- -
113. *Y5
114. 90 TAPERED 1300 15 800 400 25
115. *---- -
116. *Y7
117. 133 TAPERED 1240 12 640 350 20
118. **
119. *Y1-Y2-Y3
120. 14 TAPERED 1230 10 480 350 15
121. 39 TAPERED 1230 10 480 350 15
122. 57 TAPERED 1240 12 750 350 20
123. *---- -
124. *Y4
125. 78 TAPERED 1030 10 480 300 15
126. *---- -
127. *Y5
128. 101 TAPERED 1236 12 786 350 18
129. *---- -
130. *Y6
131. 124 TAPERED 1030 10 480 300 15
132. *---- -
133. *Y7
134. 142 TAPERED 1224 10 680 350 15
135. *
136. ******
137. *PORTAL COLM
138. 103 130 TAPERED 824 6 274 225 12
139. *X1
140. 16 22 TAPERED 770 6 270 250 10
141. 18 24 TAPERED 770 6 270 200 10
142. 59 65 TAPERED 770 6 270 200 10
143. *---------------------------------------- -
144. *PORTAL RAFTER
145. *---------------------------------------- -
146. *@GL: Y5-Y7 / X1' +PORTAL JB
147. 109 TAPERED 824 7 824 300 12
148. 104 TAPERED 474 7 474 300 12
149. *
150. 126 TAPERED 824 7 824 300 12

Sheet 16 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 4

151. 131 TAPERED 474 7 474 300 12

152. ***
153. *PORTAL RAFTER @GL: Y1-Y2/ X1
154. 17 20 23 TAPERED 624 6 624 225 12
155. **
156. *PORTAL RAFTER @GL: Y1-Y2/ X6
157. 19 21 25 TAPERED 624 6 624 225 12
158. *19 21 25 TAPERED 370 4 370 225 10
159. **
160. *PORTAL RAFTER @GL: Y3-Y4/ X6
161. 60 61 66 TAPERED 624 6 624 250 12
162. **
163. *************
164. *RAFTERS
165. ****GL-Y1***
166. 3 TAPERED 1235 9 1035 325 15 325 20
167. *------------------------------------- -
168. 4 TAPERED 1028 7 1028 225 14 225 14
169. *
170. 5 TAPERED 1018 7 1018 225 9 225 9
171. 6 TAPERED 1018 7 1018 225 9 225 9
172. *------------------------------------- -
173. 7 TAPERED 1024 7 1024 225 12 225 12
174. *
175. 8 TAPERED 1028 6 1028 225 14 225 14
176. 9 TAPERED 1028 6 1028 225 14 225 14
177. 10 TAPERED 1028 6 1028 225 14 225 14
178. *------------------------------------- -
179. 11 TAPERED 1020 8 1020 225 10 225 10
180. 12 TAPERED 1020 8 1020 225 10 225 10
181. *------------------------------------- -
182. 13 TAPERED 1232 9 1032 300 16 300 16
183. ***
184. *EXTENSION
185. 15 TAPERED 466 4 316 175 8
186. * 15=IPEA200
187. ****GL-Y2****************************************************
188. 28 TAPERED 1240 10 1040 300 15 300 25
189. *------------------------------------- -
190. 29 TAPERED 1030 8 1030 225 14 225 14
191. 178 TAPERED 1030 8 1030 225 14 225 14
192. *
193. 30 TAPERED 1018 7 1018 225 9 225 9
194. 31 TAPERED 1018 7 1018 225 9 225 9
195. *------------------------------------- -
196. 32 TAPERED 1024 7 1024 225 12 225 12
197. *
198. 33 TAPERED 1028 6 1028 225 14 225 14
199. 34 TAPERED 1028 6 1028 225 14 225 14
200. 35 TAPERED 1028 6 1028 225 14 225 14
201. *------------------------------------- -
202. 36 TAPERED 1020 8 1020 225 10 225 10
203. 37 TAPERED 1020 8 1020 225 10 225 10
204. *------------------------------------- -
205. 38 TAPERED 1231 9 1031 300 16 300 16
206. ***

Sheet 17 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 5

207. *EXTENSION
208. 40 TAPERED 466 4 316 175 8
209. * 30=IPEA200
210. *
211. ****GL-Y3***
212. 45 TAPERED 1255 12 1005 325 25 325 30
213. *
214. 46 TAPERED 982 9 982 325 16 325 16
215. 47 TAPERED 982 9 982 325 16 325 16
216. *
217. 48 TAPERED 970 8 970 325 10 325 10
218. *
219. 49 TAPERED 1272 8 980 275 15 275 15
220. 50 TAPERED 1272 8 950 275 15 275 15
221. **
222. 51 TAPERED 961 8 961 300 18 300 18
223. 52 TAPERED 961 8 961 300 18 300 18
224. 53 TAPERED 961 8 961 300 18 300 18
225. *
226. 54 TAPERED 953 9 953 325 14 325 14
227. 55 TAPERED 953 9 953 325 14 325 14
228. *
229. 56 TAPERED 1245 10 970 325 20 325 25
230. ***
231. *EXTENSION
232. 58 TAPERED 470 4 320 175 10
233. * 45=IPEA200
234. **
235. ****GL-Y4***
236. *
237. 67 TAPERED 510 5 510 200 10 200 10
238. 68 TAPERED 510 5 510 200 10 200 10
239. 69 TAPERED 510 5 510 200 10 200 10
240. **RIDGE
241. 70 TAPERED 817 6 517 250 15 250 15
242. 71 TAPERED 817 6 490 250 15 250 15
243. **463 ` 460 DEPTH
244. 72 TAPERED 490 6 490 250 15 250 15
245. 73 TAPERED 490 6 490 250 15 250 15
246. *
247. 74 TAPERED 670 6 480 250 10 250 10
248. *------------------------------- -
249. 75 TAPERED 674 6 674 200 12 200 12
250. 76 TAPERED 674 6 674 200 12 200 12
251. *---------------------------- -
252. 77 TAPERED 978 8 678 325 12 325 16
253. ***
254. *EXTENSION
255. 79 TAPERED 470 4 320 175 10
256. **
257. *
258. **.*
259. ****GL-Y5*
260. 91 TAPERED 1250 12 1000 325 20 325 30
261. *------------------------ -
262. 92 TAPERED 970 9 970 275 10 275 10

Sheet 18 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 6

263. 93 TAPERED 987 9 970 275 10 275 10

264. *
265. 94 TAPERED 974 8 974 275 12 275 12
266. *RIDGE----------------------------- -
267. 95 TAPERED 1270 8 978 275 14 275 14
268. 96 TAPERED 1270 8 953 275 14 275 14
269. *-------------------- -
270. 97 TAPERED 953 8 953 275 14 275 14
271. 98 TAPERED 953 8 953 275 14 275 14
272. *
273. 99 TAPERED 953 9 953 275 14 275 14
274. *---------------------------- -
275. 100 TAPERED 1230 10 960 325 15 325 20
276. ***
277. *EXTENSION
278. 102 TAPERED 570 5 370 200 10
279. * 75=IPEA200
280. **
281. *
282. **
283. ****GL-Y6***
284. *EXTENSION
285. 114 TAPERED 506 5 506 175 10 175 10
286. 115 TAPERED 510 5 510 175 10 175 10
287. 116 TAPERED 510 5 510 175 10 175 10
288. *
289. 117 TAPERED 510 5 510 200 10 200 10
290. *--------------- -
291. 118 TAPERED 806 6 506 225 10 225 10
292. 119 TAPERED 810 6 470 225 10 225 10
293. *------------**463 ` 460 DEPTH--- -
294. 120 TAPERED 670 6 470 200 10 200 10
295. 121 TAPERED 670 6 670 200 10 200 10
296. *---- -
297. 122 TAPERED 674 7 674 300 12 300 15
298. *
299. 123 TAPERED 978 8 675 300 10 300 15
300. ***
301. * 89=IPEA200
302. **
303. ****GL-Y7***
304. 134 TAPERED 1235 12 985 300 15 300 20
305. *---------------------------- -
306. 135 184 TAPERED 974 8 974 225 12 225 12
307. *
308. 136 TAPERED 978 6 978 225 15 225 15
309. *RIDGE----------------------------- -
310. 137 TAPERED 1260 7 970 275 12 275 12
311. 138 TAPERED 1260 7 945 275 12 275 12
312. *---------------------------- -
313. 139 TAPERED 945 8 945 225 10 225 10
314. 140 TAPERED 945 8 945 225 10 225 10
315. *
316. 141 TAPERED 1230 10 952 325 12 325 15
317. ***
318. *EXTENSION

Sheet 19 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 7

319. *105 113=IPEA200

320. ****
321. *--------------------------------------- -
322. *JACK BEAM (WITH FB)
323. *--------------------------------------- -
324. *
325. **@GL: Y5-Y7 / X1A'
326. 107 127 TAPERED 1028 7 428 300 14
327. ***
328. *@GL: Y5-Y7 / X1B
329. 108 128 TAPERED 1024 6 424 250 12
330. *108 128 TAPERED 1500 7 500 300 14
331. ***
332. *@GL: Y3-Y5 / X1A
333. 62 84 TAPERED 1080 7 580 400 15
334. ***
335. *@GL: Y3-Y5 / X1B
336. *63 85 TAPERED 875 5 450 250 10
337. 63 85 TAPERED 1030 6 424 275 12
338. *63 85 TAPERED 1500 7 500 300 14
339. ***
340. *@GL: Y3-Y5 / X1B'
341. 64 86 TAPERED 1030 6 424 325 12
342. **---------------------------------- -
343. ****GL-Y4' ***
344. *EXTENSION
345. *---------------------------------- -
346. 82 TAPERED 764 6 764 300 12
347. 83 TAPERED 764 6 480 300 12
348. *---------------------------------- -
349. ****GL-Y5' ***
350. *EXTENSION
351. *---------------------------------- -
352. *MJ1
353. 111 TAPERED 386 4 386 175 8
354. 110 TAPERED 386 4 386 175 8
355. *---------------------------------- -
356. *STRUT BEAMS FOR EXTN
357. *---------------------------------- -
358. *MB1A
359. 105 112 TAPERED 506 4 506 200 7
360. *MB1
361. 106 113 TAPERED 510 4 510 225 10
362. *-- -
363. 80 87 TAPERED 674 6 674 400 15
364. 81 88 TAPERED 766 5 766 225 8
365. **--------------------------------------------------- -
366. *BUILT UP STRUT MEMBER
367. *--------------------------------------- -
368. *ST
369. MEMBER PROPERTY JAPANESE
370. 41 129 172 179 180 191 TO 194 TABLE ST TUB1251253.2
371. 42 TABLE ST TUB1501504.5
372. *MEMBER PROPERTY AMERICAN
373. *41 42 129 172 179 180 PRIS YD 30 ZD 30
374. *------------------------------------------ -

Sheet 20 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 8

375. *EXTN SMALL

376. MEMBER PROPERTY BRITISH
377. 1 26 43 89 125 132 143 TABLE ST UB203X133X25
378. *------------------------------------------ -
379. *ROOF BRACING
380. UNIT METER KG
381. MEMBER PROPERTY JAPANESE
382. 158 176 181 183 186 TO 189 TABLE ST TUB1501504.5
383. 157 161 162 165 167 168 182 185 190 195 196 TABLE ST TUB2002006
384. *162 165 TABLE ST TUB2002006
385. *---------------------------------------- -
386. *------------------------------------------------ -
387. UNIT METER KN
388. CONSTANTS
389. MATERIAL STEEL ALL
390. *------------------------------------------------- -
391. SUPPORTS
392. 3 23 37 50 53 66 82 85 98 114 117 130 PINNED
393. *-------------------------------------------------- -
394. MEMBER RELEASE
395. 23 25 41 42 62 TO 64 66 84 TO 88 107 108 112 113 127 TO 129 172 179 -
396. 180 END MY MZ
397. 17 19 41 42 60 80 81 105 106 129 172 179 180 START MY MZ
398. * MP 0.99 AT J.B ENDS AND LONG EXTN END
399. 82 110 END MY MZ
400. 191 START MY MZ
401. 191 END MY MZ
402. 192 START MY MZ
403. 192 END MY MZ
404. 193 START MY MZ
405. 193 END MY MZ
406. 194 START MY MZ
407. 194 END MY MZ
408. 85 START MY
409. 86 START MY
410. 64 START MY
411. 63 START MY
412. 62 START MY
413. 84 START MY
414. 108 START MY
415. 128 START MY
416. 107 START MY
417. 127 START MY
418. 126 START MY
419. 109 START MY
420. *------------------------------------------------------------------------- -
421. MEMBER TRUSS
422. 157 158 161 162 165 167 168 176 181 TO 183 185 TO 189
423. UNIT METER KG
424. MEMBER TRUSS
425. 190
426. MEMBER TRUSS
427. 195 196
428. *-------------------------------------------------------------------------- -
429. *-################################################
430. *LOAD CASES

Sheet 21 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 9

431. *-################################################
432. UNIT METER KN
433. LOAD 1 LOADTYPE DEAD TITLE ROOF DEAD
434. *-------------------------------------------------- -
435. SELFWEIGHT Y -1.14
436. MEMBER LOAD
437. *---------------------------------- -
438. *ROOF DEAD = 0.15 KN/M2
439. *---------------------------------- -
440. *0.15*6.96 = 1.05 KN/M
441. 1 3 TO 13 15 26 28 TO 38 40 178 UNI GY -1.05
442. *0.15*8.03 = 1.21 KN/M
443. 43 45 TO 56 58 UNI GY -1.21
444. *0.15*8.55 = 1.29 KN/M
445. 67 TO 77 UNI GY -1.29
446. *0.15*8.00 = 1.2 KN/M
447. 89 91 TO 100 102 114 TO 123 125 132 134 TO 141 143 184 UNI GY -1.2
448. *0.15*6=0.9 KN/M
449. 79 UNI GY -0.9
450. *0.15*4=-0.6 KN/M
451. 83 UNI GY -0.6
452. *0.15*2.7=0.41 KN/M
453. 111 UNI GY -0.41
454. 111 UNI GY -0.82 0 1
455. *2 BAY COND (25% EXTRA)
456. 26 28 UNI GY -0.27
457. 114 115 UNI GY -0.3
458. *-------------------------------------------------- -
459. LOAD 2 LOADTYPE ROOF LIVE TITLE ROOF LIVE
460. *-------------------------------------------------- -
461. *ROOF LIVE = 1.0 (DUST+ LOAD) + 0.57 = 1.57 KN/M2
462. *---------------------------------- -
463. *1.57 * 6.96 =10.93 KN/M
464. MEMBER LOAD
465. 1 3 TO 13 15 26 28 TO 38 40 178 UNI GY -10.93
466. *1.57*8.03 = 12.61 KN/M
467. 43 45 TO 56 58 UNI GY -12.61
468. *1.57*8.55 = 13.43 KN/M
469. 67 TO 77 UNI GY -13.43
470. *1.57*8.00 =12.56 KN/M
471. 89 91 TO 100 102 114 TO 123 125 132 134 TO 141 143 184 UNI GY -12.56
472. *
473. *1.57*6=9.42 KN/M
474. 79 UNI GY -9.42
475. *1.57*4=-6.28 KN/M
476. 83 UNI GY -6.28
477. *1.57*2.7=4.24 KN/M
478. 111 UNI GY -4.24
479. 111 UNI GY -8.48 0 1
480. *
481. *2 BAY COND (25% EXTRA)
482. 26 28 UNI GY -2.76
483. 114 115 UNI GY -3.14
484. *-------------------------------------------------- -
485. * WIND CASE
486. *-------------------------------------------------- -

Sheet 22 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 10

487. *CASE 1- CLEAR

488. **SURF --WIND_1--- --WIND_2--- LONG_WIND
489. ** ID LEFT RIGHT LEFT RIGHT 1 2
490. * 1 0.00 -0.00 0.00 -0.00 -0.00 -0.00
491. * 2 1.02 0.25 -0.94 -0.09 -0.68 0.68
492. * 3 0.25 1.02 -0.09 -0.94 -0.68 0.68
493. * 4 -0.00 0.00 -0.00 0.00 -0.00 -0.00
494. *-------------------------------------------------- -
495. *WIND SPEED = 155 KPH, EXPOSURE-D
496. * Q = 1.106 KN/M2
497. *-------------------------------------------------- -
498. *-------------------------------------------------- -
499. LOAD 3 LOADTYPE WIND TITLE WL1-CLEAR
500. *-------------------------------------------------- -
501. MEMBER LOAD
502. **RAFTER----------------------- -
503. ***BAY SPACING=6.96M - GL-Y1***
504. *1.02*1.106*6.96 = 7.86
505. 3 TO 6 UNI Y -7.86
506. *0.25*1.106*6.96 = 1.93
507. 7 TO 13 UNI Y -1.93
508. *1.7*1.106*6.96 =13.09
509. 1 UNI Y 13.09
510. *1.7*1.106*6.96 = 13.09
511. 15 UNI Y 13.09
512. *------------------------------------- -
513. ***BAY SPACING=6.96M - GL-Y2***
514. *1.02*1.106*6.96 = 7.86
515. 28 TO 31 178 UNI Y -7.86
516. *0.25*1.106*6.96 = 1.93
517. 32 TO 38 UNI Y -1.93
518. *1.7*1.106*6.96 = 13.09
519. 26 UNI Y 13.09
520. *1.7*1.106*6.96 = 13.09
521. 40 UNI Y 13.09
522. *------------------------------------- -
523. ***BAY SPACING=8.03M - GL-Y3***
524. *1.02*1.106*8.03 = 9.06
525. 45 TO 49 UNI Y -9.06
526. *0.25*1.106*8.03 = 2.22
527. 50 TO 56 UNI Y -2.22
528. *1.7*1.106*8.03 = 15.1
529. 43 UNI Y 15.1
530. *1.7*1.106*8.03 = 15.1
531. 58 UNI Y 15.1
532. *------------------------------------- -
533. ***BAY SPACING=8.55M - GL-Y4***
534. *1.02*1.106*8.55 = 9.65
535. 68 TO 70 UNI Y -9.65
536. *0.25*1.106*8.55 = 2.37
537. 71 TO 77 UNI Y -2.37
538. *1.7*1.106*8.55 = 16.08
539. 67 UNI Y 16.08
540. *1.7*1.106*6.00 = 11.29
541. 79 UNI Y 11.29
542. *------------------------------------- -

Sheet 23 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 11

543. ***BAY SPACING=8.00M - GL-Y5***

544. *1.02*1.106*8.00 = 9.03
545. 91 TO 95 115 TO 118 134 TO 137 184 UNI Y -9.03
546. *0.25*1.106*8.00 = 2.22
547. 96 TO 100 119 TO 123 138 TO 141 UNI Y -2.22
548. *1.7*1.106*8.00 = 15.05
549. 89 114 132 UNI Y 15.05
550. *1.7*1.106*8.00 = 15.05
551. 102 125 143 UNI Y 15.05
552. *1.7*1.106*4.00 = 7.52
553. 83 UNI Y 7.52
554. *1.7*1.106*2.70 = 5.08
555. 111 UNI Y 5.08
556. 111 UNI Y 10.16 0 1
557. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
558. 26 UNI Y 3.28
559. 28 UNI Y -1.97
560. 114 UNI Y 3.77
561. 115 UNI Y -2.26
562. *------------------------------------- -
563. *COLM
564. *LOAD = 1.3*1.106*0.375= 0.54 KN/M
565. 2 27 44 90 133 UNI GX 0.54
566. 14 39 57 78 101 124 142 UNI GX 0.54
567. *-------------------------------------------------- -
568. LOAD 4 LOADTYPE WIND TITLE WR1-CLEAR
569. *-------------------------------------------------- -
570. MEMBER LOAD
571. ***BAY SPACING=6.96M - GL-Y1***
572. *0.25*1.106*6.96 = 1.93
573. 3 TO 6 UNI Y -1.93
574. *1.02*1.106*6.96 = 7.86
575. 7 TO 13 UNI Y -7.86
576. *1.7*1.106*6.96 = 13.09
577. 1 UNI Y 13.09
578. *1.7*1.106*6.96 = 13.09
579. 15 UNI Y 13.09
580. *------------------------------------- -
581. ***BAY SPACING=6.96M - GL-Y2***
582. *0.25*1.106*6.96 = 1.93
583. 28 TO 31 178 UNI Y -1.93
584. *1.02*1.106*6.96 = 7.86
585. 32 TO 38 UNI Y -7.86
586. *1.7*1.106*6.96 =13.09
587. 26 UNI Y 13.09
588. *1.7*1.106*6.96 =13.09
589. 40 UNI Y 13.09
590. *------------------------------------- -
591. ***BAY SPACING=8.03M - GL-Y3***
592. *0.25*1.106*8.03 = 2.22
593. 45 TO 49 UNI Y -2.22
594. *1.02*1.106*8.03 = 9.06
595. 50 TO 56 UNI Y -9.06
596. *1.7*1.106*8.03 = 15.1
597. 43 UNI Y 15.1
598. *1.7*1.106*8.03 = 15.1

Sheet 24 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 12

599. 58 UNI Y 15.1

600. *------------------------------------- -
601. ***BAY SPACING=8.55M - GL-Y4***
602. *0.25*1.106*8.55 = 2.37
603. 68 TO 70 UNI Y -2.37
604. *1.02*1.106*8.55 = 9.65
605. 71 TO 77 UNI Y -9.65
606. *1.7*1.106*8.55 = 16.08
607. 67 UNI Y 16.08
608. *1.7*1.106*6.00 = 11.29
609. 79 UNI Y 11.29
610. *------------------------------------- -
611. ***BAY SPACING=8.00M - GL-Y5***
612. *0.25*1.106*8.00 = 2.22
613. 91 TO 95 115 TO 118 134 TO 137 184 UNI Y -2.22
614. *1.02*1.106*8.00 = 9.03
615. 96 TO 100 119 TO 123 138 TO 141 UNI Y -9.03
616. *1.7*1.106*8.00 = 15.05
617. 89 114 132 UNI Y 15.05
618. *1.7*1.106*8.00 = 15.05
619. 102 125 143 UNI Y 15.05
620. *1.7*1.106*4.00 = 7.53
621. 83 UNI Y 7.53
622. *1.7*1.106*2.70 = 5.08
623. 111 UNI Y 5.08
624. 111 UNI Y 10.16 0 1
625. *
626. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
627. 26 UNI Y 3.28
628. 28 UNI Y -0.49
629. 114 UNI Y 3.775
630. 115 UNI Y -0.56
631. *
632. *COLM
633. *LOAD = 1.3*1.106*0.375= 0.54 KN/M
634. 2 27 44 90 133 UNI GX -0.54
635. 14 39 57 78 101 124 142 UNI GX -0.54
636. *-------------------------------------------------- -
637. LOAD 5 LOADTYPE WIND TITLE WL2-CLEAR
638. *-------------------------------------------------- -
639. MEMBER LOAD
640. ***BAY SPACING=6.96M - GL-Y1***
641. *-0.94*1.106*6.96 = -7.24
642. 3 TO 6 UNI Y 7.24
643. *-0.09*1.106*6.96 = -0.70
644. 7 TO 13 UNI Y 0.7
645. **
646. *1.7*1.106*6.96 =13.09
647. 1 UNI Y 13.09
648. *1.7*1.106*6.96 =13.09
649. 15 UNI Y 13.09
650. *------------------------------------- -
651. ***BAY SPACING=6.96M - GL-Y2***
652. *-0.94*1.106*6.96 = -7.24
653. 28 TO 31 178 UNI Y 7.24
654. *-0.09*1.106*6.96 = -0.70

Sheet 25 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 13

655. 32 TO 38 UNI Y 0.7

656. **
657. *1.7*1.106*6.96 = 13.09
658. 26 UNI Y 13.09
659. *1.7*1.106*6.96 =13.09
660. 40 UNI Y 13.09
661. *------------------------------------- -
662. ***BAY SPACING=8.03M - GL-Y3***
663. *-0.94*1.106*8.03 = -8.350
664. 45 TO 49 UNI Y 8.35
665. *-0.09*1.106*8.03 = -0.80
666. 50 TO 56 UNI Y 0.8
667. **
668. *1.7*1.106*8.03 = 15.10
669. 43 UNI Y 15.1
670. *1.7*1.106*8.03 =15.10
671. 58 UNI Y 15.1
672. *------------------------------------- -
673. ***BAY SPACING=8.55M - GL-Y4***
674. *-0.94*1.106*8.55 = -8.89
675. 68 TO 70 UNI Y 8.89
676. *-0.09*1.106*8.55 = -0.86
677. 71 TO 77 UNI Y 0.86
678. **
679. *1.7*1.106*8.55 =16.08
680. 67 UNI Y 16.08
681. *1.7*1.106*6.00 = 11.29
682. 79 UNI Y 11.29
683. *------------------------------------- -
684. ***BAY SPACING=8.00M - GL-Y5***
685. *-0.94*1.106*8.00 = -8.32
686. 91 TO 95 115 TO 118 134 TO 137 184 UNI Y 8.32
687. *-0.09*1.106*8.00 = -0.80
688. 96 TO 100 119 TO 123 138 TO 141 UNI Y 0.8
689. **
690. *1.7*1.106*8.00 = 15.05
691. 89 114 132 UNI Y 15.05
692. *1.7*1.106*8.00 = 15.05
693. 102 125 143 UNI Y 15.05
694. *1.7*1.106*4.00 = 4.43
695. 83 UNI Y 4.43
696. *1.7*1.106*2.70 = 5.08
697. 111 UNI Y 5.08
698. 111 UNI Y 10.16 0 1
699. *
700. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
701. 26 UNI Y 3.28
702. 28 UNI Y 1.81
703. 114 UNI Y 3.77
704. 115 UNI Y 2.08
705. *
706. *COLM
707. *LOAD = 1.3*1.106*0.375= 0.54 KN/M
708. 2 27 44 90 133 UNI GX 0.54
709. 14 39 57 78 101 124 142 UNI GX 0.54
710. *-------------------------------------------------- -

Sheet 26 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 14

711. LOAD 6 LOADTYPE WIND TITLE WR2-CLEAR

712. *-------------------------------------------------- -
713. MEMBER LOAD
714. ***BAY SPACING=6.96M - GL-Y1***
715. *-0.09*1.106*6.96 = -0.70
716. 3 TO 6 UNI Y 0.7
717. *-0.94*1.106*6.96 = -7.24
718. 7 TO 13 UNI Y 7.24
719. **
720. *1.7*1.106*6.96 =13.09
721. 1 UNI Y 13.09
722. *1.7*1.106*6.96 =13.09
723. 15 UNI Y 13.09
724. *------------------------------------- -
725. ***BAY SPACING=6.96M - GL-Y2***
726. *-0.09*1.106*6.96 = -0.70
727. 28 TO 31 178 UNI Y 0.7
728. *-0.94*1.106*6.96 = -7.24
729. 32 TO 38 UNI Y 7.24
730. **
731. *1.7*1.106*6.96 =13.09
732. 26 UNI Y 13.09
733. *1.7*1.106*6.96 =13.09
734. 40 UNI Y 13.09
735. *------------------------------------- -
736. ***BAY SPACING=8.03M - GL-Y3***
737. *-0.09*1.106*8.03 = -0.80
738. 45 TO 49 UNI Y 0.8
739. *-0.94*1.106*8.03 = -8.35
740. 50 TO 56 UNI Y 8.35
741. **
742. *1.7*1.106*8.03 =15.10
743. 43 UNI Y 15.1
744. *1.7*1.106*8.03 =15.10
745. 58 UNI Y 15.1
746. *------------------------------------- -
747. ***BAY SPACING=8.55M - GL-Y4***
748. *-0.09*1.106*8.55 = -0.86
749. 68 TO 70 UNI Y 0.86
750. *-0.94*1.106*8.55 = -8.89
751. 71 TO 77 UNI Y 8.89
752. **
753. *1.7*1.106*8.55 = 16.08
754. 67 UNI Y 16.08
755. *1.7*1.106*6.00 = 16.08
756. 79 UNI Y 16.08
757. *------------------------------------- -
758. ***BAY SPACING=8.00M - GL-Y5***
759. *-0.09*1.106*8.00 = -0.80
760. 91 TO 95 115 TO 118 134 TO 137 184 UNI Y 0.8
761. *-0.94*1.106*8.00 = -8.32
762. 96 TO 100 119 TO 123 138 TO 141 UNI Y 8.32
763. **
764. *1.7*1.106*8.00 =15.05
765. 89 114 132 UNI Y 15.05
766. *1.7*1.106*8.00 = 15.05

Sheet 27 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 15

767. 102 125 143 UNI Y 15.05

768. *1.7*1.106*4.00 = 4.43
769. 83 UNI Y 4.43
770. *1.7*1.106*2.70 = 5.08
771. 111 UNI Y 5.08
772. 111 UNI Y 10.16 0 1
773. *
774. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
775. 26 UNI Y 3.28
776. 28 UNI Y 0.18
777. 114 UNI Y 3.77
778. 115 UNI Y 0.2
779. *
780. *COLM
781. *LOAD = 1.3*1.106*0.375= 0.54 KN/M
782. 2 27 44 90 133 UNI GX -0.54
783. 14 39 57 78 101 124 142 UNI GX -0.54
784. *-------------------------------------------------- -
785. LOAD 7 LOADTYPE WIND TITLE LW1-CLEAR
786. *-------------------------------------------------- -
787. MEMBER LOAD
788. ***BAY SPACING=6.96M - GL-Y1***
789. *-0.68*1.106*6.96 = 5.24
790. 3 TO 13 UNI Y 5.24
791. **
792. *1.7*1.106*6.96 =13.09
793. 1 UNI Y 13.09
794. *1.7*1.106*6.96 =13.09
795. 15 UNI Y 13.09
796. *------------------------------------- -
797. ***BAY SPACING=6.96M - GL-Y2***
798. *-0.68*1.106*6.96 = 5.24
799. 28 TO 38 178 UNI Y 5.24
800. **
801. *1.7*1.106*6.96 =13.09
802. 26 UNI Y 13.09
803. *1.7*1.106*6.96 =13.09
804. 40 UNI Y 13.09
805. *------------------------------------- -
806. ***BAY SPACING=8.03M - GL-Y3***
807. *-0.68*1.106*8.03 = 6.04
808. 45 TO 56 UNI Y 6.04
809. **
810. *1.7*1.106*8.03 =15.10
811. 43 UNI Y 15.1
812. *1.7*1.106*8.03 =15.10
813. 58 UNI Y 15.1
814. *------------------------------------- -
815. ***BAY SPACING=8.55M - GL-Y4***
816. *-0.68*1.106*8.55 = 6.43
817. 68 TO 77 UNI Y 6.43
818. **
819. *1.7*1.106*8.55 =16.08
820. 67 UNI Y 16.08
821. *1.7*1.106*6.00 =11.29
822. 79 UNI Y 11.29

Sheet 28 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 16

823. *------------------------------------- -
824. ***BAY SPACING=8.00M - GL-Y5***
825. *-0.68*1.106*8.00 = 6.02
826. 91 TO 100 115 TO 123 134 TO 141 184 UNI Y 6.02
827. **
828. *1.7*1.106*8.00 =15.05
829. 89 114 132 UNI Y 15.05
830. *1.7*1.106*8.00 =15.05
831. 102 125 143 UNI Y 15.05
832. *1.7*1.106*4.00 = 7.52
833. 83 UNI Y 7.52
834. *1.7*1.106*2.70 = 5.08
835. 111 UNI Y 5.08
836. 111 UNI Y 10.16 0 1
837. *
838. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
839. 26 UNI Y 3.28
840. 28 UNI Y 1.31
841. 114 UNI Y 3.77
842. 115 UNI Y 1.51
843. *------------------------------------- -
844. *LOADS IN LONGITUDINAL DIRECTION
845. *------------------------------------- -
846. *COLM
847. *(0.65+1.25)/2*1.3*1.106 = 1.37 KN/M X 5.6 /2 = 4.00 KN
848. JOINT LOAD
849. 7 38 54 86 118 FZ 4
850. 27 49 65 81 97 113 129 FZ 4
851. *------------------------------------------- -
852. *WIND AT RAFTER
853. * PER FRAME = (1.25+1.03)/2 * 1.3 * 1.106 = 1.65 KN/M *(15.0+23.0) = 64 KN
854. * TOTAL RAFTER LOAD = 64 KN X 7(NO. OF FRAMES) = 448 KN
855. *@EACH BRACE NODE = 448 / 16 = 28 KN
856. JOINT LOAD
857. *Y2
858. 38 42 45 47 49 164 FZ 28
859. *Y3
860. 58 61 63 65 135 FZ 28
861. *Y6
862. 102 103 106 109 113 FZ 28
863. *------------------------------------------- -
864. *WIND AT EXTN
865. *LEFT = 0.2*1.3*1.106*2.02 = 0.6 KN
866. 7 38 54 86 118 FZ 0.6
867. *--------------------------------------------- -
868. *RIGHT
869. *@Y7,Y6 = 0.2*1.3*1.106*2.02 = 0.6 KN
870. 113 129 FZ 0.6
871. *Y1-Y3
872. *(0.47+.32)/2 * 1.3 * 1.106 * 4.3 = 2.45 KN
873. 27 49 65 81 FZ 2.45
874. *Y6
875. *0.390 * 1.3 * 1.106 *3.62 = 2.1 KN
876. 113 FZ 2.1
877. *Y4
878. *{(0.764+0.474)/2 *7.02} * 1.3 * 1.106 = 6.3 KN

Sheet 29 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 17

879. 81 FZ 6.3
880. *Y5
881. *{(0.570+0.370)/2 *5.60} * 1.3 * 1.106 = 3.8 KN
882. 97 FZ 3.8
883. *-------------------------------------------------- -
884. LOAD 8 LOADTYPE WIND TITLE LW2-CLEAR
885. *-------------------------------------------------- -
886. MEMBER LOAD
887. ***BAY SPACING=6.96M - GL-Y1***
888. *0.68*1.106*6.96 = 5.24
889. 3 TO 13 UNI Y -5.24
890. **
891. *1.7*1.106*6.96 =13.09
892. 1 UNI Y 13.09
893. *1.7*1.106*6.96 =13.09
894. 15 UNI Y 13.09
895. ***BAY SPACING=6.96M - GL-Y2***
896. *0.68*1.106*6.96 = 5.24
897. 28 TO 38 178 UNI Y -5.24
898. **
899. *1.7*1.106*6.96 = 13.09
900. 26 UNI Y 13.09
901. *1.7*1.106*6.96 = 13.09
902. 40 UNI Y 13.09
903. ***BAY SPACING=8.03M - GL-Y3***
904. *0.68*1.106*8.03 = 6.04
905. 45 TO 56 UNI Y -6.04
906. **
907. *1.7*1.106*8.03 =15.10
908. 43 UNI Y 15.1
909. *1.7*1.106*8.03 =15.10
910. 58 UNI Y 15.1
911. ***BAY SPACING=8.55M - GL-Y4***
912. *0.68*1.106*8.55 = 6.43
913. 68 TO 77 UNI Y -6.43
914. **
915. *1.7*1.106*8.55 =16.08
916. 67 UNI Y 16.08
917. *1.7*1.106*6.00 =11.29
918. 79 UNI Y 11.29
919. ***BAY SPACING=8.00M - GL-Y5***
920. *0.68*1.106*8.00 = 6.02
921. 91 TO 100 115 TO 123 134 TO 141 184 UNI Y -6.02
922. **
923. *1.7*1.106*8.00 =15.05
924. 89 114 132 UNI Y 15.05
925. *1.7*1.106*8.00 =15.05
926. 102 125 143 UNI Y 15.05
927. *1.7*1.106*4.00 = 7.52
928. 83 UNI Y 7.52
929. *1.7*1.106*2.70 = 5.08
930. 111 UNI Y -5.08
931. 111 UNI Y -10.16 0 1
932. *
933. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
934. 26 UNI Y 3.28

Sheet 30 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 18

935. 28 UNI Y -1.31

936. 114 UNI Y 3.77
937. 115 UNI Y -1.51
938. *
939. *------------------------------------- -
940. *LOADS IN LONGITUDINAL DIRECTION
941. *------------------------------------- -
942. *COLM
943. *(0.65+1.25)/2*1.3*1.106 = 1.37 KN/M X 5.6 /2 = 4.00 KN
944. JOINT LOAD
945. 7 38 54 86 118 FZ -4
946. 27 49 65 81 97 113 129 FZ -4
947. *------------------------------------------- -
948. *WIND AT RAFTER
949. * PER FRAME = (1.25+1.03)/2 * 1.3 * 1.106 = 1.65 KN/M *(15.0+23.0) = 64 KN
950. * TOTAL RAFTER LOAD = 64 KN X 7(NO. OF FRAMES) = 448 KN
951. *@EACH BRACE NODE = 448 / 16 = 28 KN
952. JOINT LOAD
953. *Y2
954. 38 42 45 47 49 164 FZ -28
955. *Y3
956. 58 61 63 65 135 FZ -28
957. *Y6
958. 102 103 106 109 113 FZ -28
959. *------------------------------------------- -
960. *WIND AT EXTN
961. *LEFT = 0.2*1.3*1.106*2.02 = 0.6 KN
962. 7 38 54 86 118 FZ -0.6
963. *--------------------------------------------- -
964. *RIGHT
965. *@Y7,Y6 = 0.2*1.3*1.106*2.02 = 0.6 KN
966. 113 129 FZ -0.6
967. *Y1-Y3
968. *(0.47+.32)/2 * 1.3 * 1.106 * 4.3 = 2.45 KN
969. 27 49 65 81 FZ -2.45
970. *Y6
971. *0.390 * 1.3 * 1.106 *3.62 = 2.1 KN
972. 113 FZ -2.1
973. *Y4
974. *{(0.764+0.474)/2 *7.02} * 1.3 * 1.106 = 6.3 KN
975. 81 FZ -6.3
976. *Y5
977. *{(0.570+0.370)/2 *5.60} * 1.3 * 1.106 = 3.8 KN
978. 97 FZ -3.8
979. *-------------------------------------------------- -
980. *CASE 2 OBSTRUCTED
981. **(26)WIND COEFFICIENT:
982. **SURF --WIND_1--- --WIND_2--- LONG_WIND
983. ** ID LEFT RIGHT LEFT RIGHT 1 2
984. * 1 0.00 -0.00 0.00 -0.00 -0.00 -0.00
985. * 2 -0.43 -1.02 -0.94 -0.51 -1.02 0.43
986. * 3 -1.02 -0.43 -0.51 -0.94 -1.02 0.43
987. * 4 -0.00 0.00 -0.00 0.00 -0.00 -0.00
988. *-------------------------------------------------- -
989. LOAD 9 LOADTYPE WIND TITLE WL1-OBSTRUCTED
990. *-------------------------------------------------- -

Sheet 31 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 19

991. MEMBER LOAD

992. **RAFTER----------------------- -
993. ***BAY SPACING=6.96M - GL-Y1***
994. *0.43*1.106*6.96 = 3.32
995. 3 TO 6 UNI Y 3.32
996. *1.02*1.106*6.96 = 7.86
997. 7 TO 13 UNI Y 7.86
998. *1.7*1.106*6.96 =13.09
999. 1 UNI Y 13.09
1000. *1.7*1.106*6.96 =13.09
1001. 15 UNI Y 13.09
1002. *--------------------------------------- -
1003. ***BAY SPACING=6.96M - GL-Y2***
1004. *0.43*1.106*6.96 = 3.32
1005. 28 TO 31 178 UNI Y 3.32
1006. *1.02*1.106*6.96 = 7.86
1007. 32 TO 38 UNI Y 7.86
1008. *1.7*1.106*6.96 =13.09
1009. 26 UNI Y 13.09
1010. *1.7*1.106*6.96 =13.09
1011. 40 UNI Y 13.09
1012. *--------------------------------------- -
1013. ***BAY SPACING=8.03M - GL-Y3***
1014. *0.43*1.106*8.03 = 3.82
1015. 45 TO 49 UNI Y 3.82
1016. *1.02*1.106*8.03 = 9.06
1017. 50 TO 56 UNI Y 9.06
1018. *1.7*1.106*8.03 =15.10
1019. 43 UNI Y 15.1
1020. *1.7*1.106*8.03 =15.10
1021. 58 UNI Y 15.1
1022. *--------------------------------------- -
1023. ***BAY SPACING=8.55M - GL-Y4***
1024. *0.43*1.106*8.55 = 4.07
1025. 68 TO 70 UNI Y 4.07
1026. *1.02*1.106*8.55 = 9.65
1027. 71 TO 77 UNI Y 9.65
1028. *1.7*1.106*8.55 =16.08
1029. 67 UNI Y 16.08
1030. *1.7*1.106*6.00 =11.29
1031. 79 UNI Y 11.29
1032. *--------------------------------------- -
1033. ***BAY SPACING=8.00M - GL-Y5***
1034. *0.43*1.106*8.00 = 3.810
1035. 91 TO 95 115 TO 118 134 TO 137 184 UNI Y 3.81
1036. *1.02*1.106*8.00 = 9.03
1037. 96 TO 100 119 TO 123 138 TO 141 UNI Y 9.03
1038. *1.7*1.106*8.00 =15.05
1039. 89 114 132 UNI Y 15.05
1040. *1.7*1.106*8.00 = 15.05
1041. 102 125 143 UNI Y 15.05
1042. *1.7*1.106*4.00 = 7.53
1043. 83 UNI Y 7.53
1044. *1.7*1.106*2.70 = 5.08
1045. 111 UNI Y 5.08
1046. 111 UNI Y 10.16 0 1

Sheet 32 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 20

1047. *
1048. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
1049. 26 UNI Y 3.28
1050. 28 UNI Y 0.83
1051. 114 UNI Y 3.77
1052. 115 UNI Y 0.96
1053. *
1054. *COLM
1055. *LOAD = 1.3*1.106*0.375= 0.54 KN/M
1056. 2 27 44 90 133 UNI GX 0.54
1057. 14 39 57 78 101 124 142 UNI GX 0.54
1058. *-------------------------------------------------- -
1059. LOAD 10 LOADTYPE WIND TITLE WR1-OBSTRUCTED
1060. *-------------------------------------------------- -
1061. MEMBER LOAD
1062. ***BAY SPACING=6.96M - GL-Y1***
1063. *1.02*1.106*6.96 = 7.86
1064. 3 TO 6 UNI Y 7.86
1065. *0.43*1.106*6.96 = 3.32
1066. 7 TO 13 UNI Y 3.32
1067. *1.7*1.106*6.96 =13.09
1068. 1 UNI Y 13.09
1069. *1.7*1.106*6.96 =13.09
1070. 15 UNI Y 13.09
1071. *--------------------------------------- -
1072. ***BAY SPACING=6.96M - GL-Y2***
1073. *1.02*1.106*6.96 = 7.86
1074. 28 TO 31 178 UNI Y 7.86
1075. *0.43*1.106*6.96 = 3.32
1076. 32 TO 38 UNI Y 3.32
1077. *1.7*1.106*6.96 =13.09
1078. 26 UNI Y 13.09
1079. *1.7*1.106*6.96 =13.09
1080. 40 UNI Y 13.09
1081. *--------------------------------------- -
1082. ***BAY SPACING=8.03M - GL-Y3***
1083. *1.02*1.106*8.03 = 9.06
1084. 45 TO 49 UNI Y 9.06
1085. *0.43*1.106*8.03 = 3.82
1086. 50 TO 56 UNI Y 3.82
1087. *1.7*1.106*8.03 =15.10
1088. 43 UNI Y 15.1
1089. *1.7*1.106*8.03 =15.10
1090. 58 UNI Y 15.1
1091. *--------------------------------------- -
1092. ***BAY SPACING=8.55M - GL-Y4***
1093. *1.02*1.106*8.55 = 9.65
1094. 68 TO 70 UNI Y 9.65
1095. *0.43*1.106*8.55 = 4.07
1096. 71 TO 77 UNI Y 4.07
1097. *1.7*1.106*8.55 =16.08
1098. 67 UNI Y 16.08
1099. *1.7*1.106*6.00 =11.29
1100. 79 UNI Y 11.29
1101. *--------------------------------------- -
1102. ***BAY SPACING=8.00M - GL-Y5***

Sheet 33 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 21

1103. *1.02*1.106*8.00 = 9.03

1104. 91 TO 95 115 TO 118 134 TO 137 184 UNI Y 9.03
1105. *0.43*1.106*8.00 = 3.81
1106. 96 TO 100 119 TO 123 138 TO 141 UNI Y 3.81
1107. *1.7*1.106*8.00 =15.05
1108. 89 114 132 UNI Y 15.05
1109. *1.7*1.106*8.00 = 15.05
1110. 102 125 143 UNI Y 15.05
1111. *1.7*1.106*4.00 = 7.53
1112. 83 UNI Y 7.53
1113. *1.7*1.106*2.70 = 5.08
1114. 111 UNI Y 5.08
1115. 111 UNI Y 10.16 0 1
1116. *
1117. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
1118. 26 UNI Y 3.28
1119. 28 UNI Y 1.97
1120. 114 UNI Y 3.77
1121. 115 UNI Y 2.26
1122. *
1123. *COLM
1124. *LOAD = 1.3*1.106*0.375= 0.54 KN/M
1125. 2 27 44 90 133 UNI GX -0.54
1126. 14 39 57 78 101 124 142 UNI GX -0.54
1127. *-------------------------------------------------- -
1128. LOAD 11 LOADTYPE WIND TITLE WL2-OBSTRUCTED
1129. *-------------------------------------------------- -
1130. MEMBER LOAD
1131. ***BAY SPACING=6.96M - GL-Y1***
1132. *-0.94*1.106*6.96 = 7.24
1133. 3 TO 6 UNI Y 7.24
1134. *-0.51*1.106*6.96 = 3.93
1135. 7 TO 13 UNI Y 3.93
1136. **
1137. *1.7*1.106*6.96 =13.09
1138. 1 UNI Y 13.09
1139. *1.7*1.106*6.96 =13.09
1140. 15 UNI Y 13.09
1141. *--------------------------------------- -
1142. ***BAY SPACING=6.96M - GL-Y2***
1143. *-0.94*1.106*6.96 = 7.24
1144. 28 TO 31 178 UNI Y 7.24
1145. *-0.51*1.106*6.96 = 3.93
1146. 32 TO 38 UNI Y 3.93
1147. **
1148. *1.7*1.106*6.96 =13.09
1149. 26 UNI Y 13.09
1150. *1.7*1.106*6.96 =13.09
1151. 40 UNI Y 13.09
1152. *--------------------------------------- -
1153. ***BAY SPACING=8.03M - GL-Y3***
1154. *-0.94*1.106*8.03 = 8.35
1155. 45 TO 49 UNI Y 8.35
1156. *-0.51*1.106*8.03 = 4.53
1157. 50 TO 56 UNI Y 4.53
1158. **

Sheet 34 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 22

1159. *1.7*1.106*8.03 =15.10

1160. 43 UNI Y 15.1
1161. *1.7*1.106*8.03 =15.10
1162. 58 UNI Y 15.1
1163. *--------------------------------------- -
1164. ***BAY SPACING=8.55M - GL-Y4***
1165. *-0.94*1.106*8.55 = 8.89
1166. 68 TO 70 UNI Y 8.89
1167. *-0.51*1.106*8.55 = 4.83
1168. 71 TO 77 UNI Y 4.83
1169. **
1170. *1.7*1.106*8.55 =16.08
1171. 67 UNI Y 16.08
1172. *1.7*1.106*6.00 =11.29
1173. 79 UNI Y 11.29
1174. *--------------------------------------- -
1175. ***BAY SPACING=8.00M - GL-Y5***
1176. *-0.94*1.106*8.00 = 8.32
1177. 91 TO 95 115 TO 118 134 TO 137 184 UNI Y 8.32
1178. *-0.51*1.106*8.00 = 4.52
1179. 96 TO 100 119 TO 123 138 TO 141 UNI Y 4.52
1180. **
1181. *1.7*1.106*8.00 =15.05
1182. 89 114 132 UNI Y 15.05
1183. *1.7*1.106*8.00 = 15.05
1184. 102 125 143 UNI Y 15.05
1185. *1.7*1.106*4.00 = 7.53
1186. 83 UNI Y 7.53
1187. *1.7*1.106*2.70 = 5.08
1188. 111 UNI Y 5.08
1189. 111 UNI Y 10.16 0 1
1190. *
1191. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
1192. 26 UNI Y 3.28
1193. 28 UNI Y 1.82
1194. 114 UNI Y 3.77
1195. 115 UNI Y 2.09
1196. *
1197. *COLM
1198. *LOAD = 1.3*1.106*0.375= 0.54 KN/M
1199. 2 27 44 90 133 UNI GX 0.54
1200. 14 39 57 78 101 124 142 UNI GX 0.54
1201. *-------------------------------------------------- -
1202. LOAD 12 LOADTYPE WIND TITLE WR2-OBSTRUCTED
1203. *-------------------------------------------------- -
1204. MEMBER LOAD
1205. ***BAY SPACING=6.96M - GL-Y1***
1206. *-0.51*1.106*6.96 = 3.93
1207. 3 TO 6 UNI Y 3.93
1208. *-0.94*1.106*6.96 = 7.24
1209. 7 TO 13 UNI Y 7.24
1210. **
1211. *1.7*1.106*6.96 =13.09
1212. 1 UNI Y 13.09
1213. *1.7*1.106*6.96 =13.09
1214. 15 UNI Y 13.09

Sheet 35 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 23

1215. *--------------------------------------- -
1216. ***BAY SPACING=6.96M - GL-Y2***
1217. *-0.51*1.106*6.96 = 3.93
1218. 28 TO 31 178 UNI Y 3.93
1219. *-0.94*1.106*6.96 = 7.24
1220. 32 TO 38 UNI Y 7.24
1221. **
1222. *1.7*1.106*6.96 =13.09
1223. 26 UNI Y 13.09
1224. *1.7*1.106*6.96 =13.09
1225. 40 UNI Y 13.09
1226. *--------------------------------------- -
1227. ***BAY SPACING=8.03M - GL-Y3***
1228. *-0.51*1.106*8.03 = 4.53
1229. 45 TO 49 UNI Y 4.53
1230. *-0.94*1.106*8.03 = 8.35
1231. 50 TO 56 UNI Y 8.35
1232. **
1233. *1.7*1.106*8.03 =15.10
1234. 43 UNI Y 15.1
1235. *1.7*1.106*8.03 =15.10
1236. 58 UNI Y 15.1
1237. *--------------------------------------- -
1238. ***BAY SPACING=8.55M - GL-Y4***
1239. *-0.51*1.106*8.55 = 4.83
1240. 68 TO 70 UNI Y 4.83
1241. *-0.94*1.106*8.55 = 8.89
1242. 71 TO 77 UNI Y 8.89
1243. **
1244. *1.7*1.106*8.55 =16.08
1245. 67 UNI Y 16.08
1246. *1.7*1.106*6.00 =11.29
1247. 79 UNI Y 11.29
1248. *--------------------------------------- -
1249. ***BAY SPACING=8.00M - GL-Y5***
1250. *-0.51*1.106*8.00 = 4.52
1251. 91 TO 95 115 TO 118 134 TO 137 184 UNI Y 4.52
1252. *-0.94*1.106*8.00 = 8.32
1253. 96 TO 100 119 TO 123 138 TO 141 UNI Y 8.32
1254. **
1255. *1.7*1.106*8.00 =15.05
1256. 89 114 132 UNI Y 15.05
1257. *1.7*1.106*8.00 = 15.05
1258. 102 125 143 UNI Y 15.05
1259. *1.7*1.106*4.00 = 7.53
1260. 83 UNI Y 7.53
1261. *1.7*1.106*2.70 = 5.08
1262. 111 UNI Y 5.08
1263. 111 UNI Y 10.16 0 1
1264. *
1265. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
1266. 26 UNI Y 3.28
1267. 28 UNI Y 0.99
1268. 114 UNI Y 3.77
1269. 115 UNI Y 1.13
1270. *

Sheet 36 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 24

1271. *COLM
1272. *LOAD = 1.3*1.106*0.375= 0.54 KN/M
1273. 2 27 44 90 133 UNI GX -0.54
1274. 14 39 57 78 101 124 142 UNI GX -0.54
1275. *-------------------------------------------------- -
1276. LOAD 13 LOADTYPE WIND TITLE LW1-OBSTRUCTED
1277. *-------------------------------------------------- -
1278. MEMBER LOAD
1279. ***BAY SPACING=6.96M - GL-Y1***
1280. *-1.02*1.106*6.96 = 7.86
1281. 3 TO 13 UNI Y 7.86
1282. **
1283. *1.7*1.106*6.96 =13.09
1284. 1 UNI Y 13.09
1285. *1.7*1.106*6.96 =13.09
1286. 15 UNI Y 13.09
1287. *--------------------------------------- -
1288. ***BAY SPACING=6.96M - GL-Y2***
1289. *-1.02*1.106*6.96 = 7.86
1290. 28 TO 38 178 UNI Y 7.86
1291. **
1292. *1.7*1.106*6.96 =13.09
1293. 26 UNI Y 13.09
1294. *1.7*1.106*6.96 =13.09
1295. 40 UNI Y 13.09
1296. *--------------------------------------- -
1297. ***BAY SPACING=8.03M - GL-Y3***
1298. *1.02*1.106*8.03 = 9.06
1299. 45 TO 56 UNI Y 9.06
1300. **
1301. *1.7*1.106*8.03 =15.10
1302. 43 UNI Y 15.1
1303. *1.7*1.106*8.03 =15.10
1304. 58 UNI Y 15.1
1305. *--------------------------------------- -
1306. ***BAY SPACING=8.55M - GL-Y4***
1307. *1.02*1.106*8.55 = 9.65
1308. 68 TO 77 UNI Y 9.65
1309. **
1310. *1.7*1.106*8.55 =16.08
1311. 67 UNI Y 16.08
1312. *1.7*1.106*6.00 =11.29
1313. 79 UNI Y 11.29
1314. *--------------------------------------- -
1315. ***BAY SPACING=8.00M - GL-Y5***
1316. *1.02*1.106*8.00 = 9.03
1317. 91 TO 100 115 TO 123 134 TO 141 184 UNI Y 9.03
1318. **
1319. *1.7*1.106*8.00 =15.05
1320. 89 114 132 UNI Y 15.05
1321. *1.7*1.106*8.00 = 15.05
1322. 102 125 143 UNI Y 15.05
1323. *1.7*1.106*4.00 = 7.53
1324. 83 UNI Y 7.53
1325. *1.7*1.106*2.70 = 5.08
1326. 111 UNI Y 5.08

Sheet 37 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 25

1327. 111 UNI Y 10.16 0 1

1328. *
1329. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
1330. 26 UNI Y 3.28
1331. 28 UNI Y 1.97
1332. 114 UNI Y 3.77
1333. 115 UNI Y 2.26
1334. *
1335. *------------------------------------- -
1336. *LOADS IN LONGITUDINAL DIRECTION
1337. *------------------------------------- -
1338. *COLM
1339. *(0.65+1.25)/2*1.3*1.106 = 1.37 KN/M X 5.6 /2 = 4.00 KN
1340. JOINT LOAD
1341. 7 38 54 86 118 FZ 4
1342. 27 49 65 81 97 113 129 FZ 4
1343. *------------------------------------------- -
1344. *WIND AT RAFTER
1345. * PER FRAME = (1.25+1.03)/2 * 1.3 * 1.106 = 1.65 KN/M *(15.0+23.0) = 64 KN
1346. * TOTAL RAFTER LOAD = 64 KN X 7(NO. OF FRAMES) = 448 KN
1347. *@EACH BRACE NODE = 448 / 16 = 28 KN
1348. JOINT LOAD
1349. *Y2
1350. 38 42 45 47 49 164 FZ 28
1351. *Y3
1352. 58 61 63 65 135 FZ 28
1353. *Y6
1354. 102 103 106 109 113 FZ 28
1355. *------------------------------------------- -
1356. *WIND AT EXTN
1357. *LEFT = 0.2*1.3*1.106*2.02 = 0.6 KN
1358. 7 38 54 86 118 FZ 0.6
1359. *--------------------------------------------- -
1360. *RIGHT
1361. *@Y7,Y6 = 0.2*1.3*1.106*2.02 = 0.6 KN
1362. 113 129 FZ 0.6
1363. *Y1-Y3
1364. *(0.47+.32)/2 * 1.3 * 1.106 * 4.3 = 2.45 KN
1365. 27 49 65 81 FZ 2.45
1366. *Y6
1367. *0.390 * 1.3 * 1.106 *3.62 = 2.1 KN
1368. 113 FZ 2.1
1369. *Y4
1370. *{(0.764+0.474)/2 *7.02} * 1.3 * 1.106 = 6.3 KN
1371. 81 FZ 6.3
1372. *Y5
1373. *{(0.570+0.370)/2 *5.60} * 1.3 * 1.106 = 3.8 KN
1374. 97 FZ 3.8
1375. *-------------------------------------------------- -
1376. LOAD 14 LOADTYPE WIND TITLE LW2-OBSTRUCTED
1377. *-------------------------------------------------- -
1378. MEMBER LOAD
1379. ***BAY SPACING=6.96M - GL-Y1***
1380. *0.43*1.106*6.96 = 3.32
1381. 3 TO 13 UNI Y -3.32
1382. **

Sheet 38 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 26

1383. *1.7*1.106*6.96 =13.09

1384. 1 UNI Y 13.09
1385. *1.7*1.106*6.96 =13.09
1386. 15 UNI Y 13.09
1387. *--------------------------------------- -
1388. ***BAY SPACING=6.96M - GL-Y2***
1389. *0.43*1.106*6.96 = 3.32
1390. 28 TO 38 178 UNI Y -3.32
1391. **
1392. *1.7*1.106*6.96 =13.09
1393. 26 UNI Y 13.09
1394. *1.7*1.106*6.96 =13.09
1395. 40 UNI Y 13.09
1396. *--------------------------------------- -
1397. ***BAY SPACING=8.03M - GL-Y3***
1398. *0.43*1.106*8.03 = 3.82
1399. 45 TO 56 UNI Y -3.82
1400. **
1401. *1.7*1.106*8.03 =15.10
1402. 43 UNI Y 15.1
1403. *1.7*1.106*8.03 =15.10
1404. 58 UNI Y 15.1
1405. *--------------------------------------- -
1406. ***BAY SPACING=8.55M - GL-Y4***
1407. *0.43*1.106*8.55 = 4.07
1408. 68 TO 77 UNI Y -4.07
1409. **
1410. *1.7*1.106*8.55 =16.08
1411. 67 UNI Y 16.08
1412. *1.7*1.106*6.00 =11.29
1413. 79 UNI Y 11.29
1414. *--------------------------------------- -
1415. ***BAY SPACING=8.00M - GL-Y5***
1416. *0.43*1.106*8.00 = 3.810
1417. 91 TO 100 115 TO 123 134 TO 141 184 UNI Y -3.81
1418. **
1419. *1.7*1.106*8.00 =15.05
1420. 89 114 132 UNI Y 15.05
1421. *1.7*1.106*8.00 = 15.05
1422. 102 125 143 UNI Y 15.05
1423. *1.7*1.106*4.00 = 7.53
1424. 83 UNI Y 7.53
1425. *1.7*1.106*2.70 = 5.08
1426. 111 UNI Y 5.08
1427. 111 UNI Y 10.16 0 1
1428. *
1429. **2 BAY COND (25% EXTRA)@GL Y2&Y6 / X1-X1A
1430. 26 UNI Y 3.28
1431. 28 UNI Y -0.83
1432. 114 UNI Y 3.77
1433. 115 UNI Y -0.96
1434. *
1435. *------------------------------------- -
1436. *LOADS IN LONGITUDINAL DIRECTION
1437. *------------------------------------- -
1438. *COLM

Sheet 39 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 27

1439. *(0.65+1.25)/2*1.3*1.106 = 1.37 KN/M X 5.6 /2 = 4.00 KN

1440. JOINT LOAD
1441. 7 38 54 86 118 FZ -4
1442. 27 49 65 81 97 113 129 FZ -4
1443. *------------------------------------------- -
1444. *WIND AT RAFTER
1445. * PER FRAME = (1.25+1.03)/2 * 1.3 * 1.106 = 1.65 KN/M *(15.0+23.0) = 64 KN
1446. * TOTAL RAFTER LOAD = 64 KN X 7(NO. OF FRAMES) = 448 KN
1447. *@EACH BRACE NODE = 448 / 16 = 28 KN
1448. JOINT LOAD
1449. *Y2
1450. 38 42 45 47 49 164 FZ -28
1451. *Y3
1452. 58 61 63 65 135 FZ -28
1453. *Y6
1454. 102 103 106 109 113 FZ -28
1455. *------------------------------------------- -
1456. *WIND AT EXTN
1457. *LEFT = 0.2*1.3*1.106*2.02 = 0.6 KN
1458. 7 38 54 86 118 FZ -0.6
1459. *--------------------------------------------- -
1460. *RIGHT
1461. *@Y7,Y6 = 0.2*1.3*1.106*2.02 = 0.6 KN
1462. 113 129 FZ -0.6
1463. *Y1-Y3
1464. *(0.47+.32)/2 * 1.3 * 1.106 * 4.3 = 2.45 KN
1465. 27 49 65 81 FZ -2.45
1466. *Y6
1467. *0.390 * 1.3 * 1.106 *3.62 = 2.1 KN
1468. 113 FZ -2.1
1469. *Y4
1470. *{(0.764+0.474)/2 *7.02} * 1.3 * 1.106 = 6.3 KN
1471. 81 FZ -6.3
1472. *Y5
1473. *{(0.570+0.370)/2 *5.60} * 1.3 * 1.106 = 3.8 KN
1474. 97 FZ -3.8
1475. *-------------------------------------------------- -
1476. *-------------------------------------------------- -
1477. * LOAD COMBINATIONS AS PER AISC-ASD
1478. *-------------------------------------------------- -
1479. LOAD COMB 100 DL
1480. 1 1.0
1481. *
1482. LOAD COMB 101 DL+LL
1483. 1 1.0 2 1.0
1484. *
1485. LOAD COMB 102 DL+0.75LL
1486. 1 1.0 2 0.75
1487. *
1488. *CASE-1 CLEAR
1489. *
1490. LOAD COMB 103 DL+WL1
1491. 1 1.0 3 1.0
1492. LOAD COMB 104 DL+WR1
1493. 1 1.0 4 1.0
1494. LOAD COMB 105 DL+WL2

Sheet 40 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 28

1495. 1 1.0 5 1.0

1496. LOAD COMB 106 DL+WR2
1497. 1 1.0 6 1.0
1498. LOAD COMB 107 DL+WLL1
1499. 1 1.0 7 1.0
1500. LOAD COMB 108 DL+WLL2
1501. 1 1.0 8 1.0
1502. *
1503. *
1504. LOAD COMB 109 DL+0.75LL+0.75WL1
1505. 1 1.0 2 0.75 3 0.75
1506. LOAD COMB 110 DL+0.75LL+0.75WR1
1507. 1 1.0 2 0.75 4 0.75
1508. LOAD COMB 111 DL+0.75LL+0.75WL2
1509. 1 1.0 2 0.75 5 0.75
1510. LOAD COMB 112 DL+0.75LL+0.75WR2
1511. 1 1.0 2 0.75 6 0.75
1512. LOAD COMB 113 DL+0.75LL+0.75WLL1
1513. 1 1.0 2 0.75 7 0.75
1514. LOAD COMB 114 DL+0.75LL+0.75WLL2
1515. 1 1.0 2 0.75 8 0.75
1516. *
1517. *
1518. LOAD COMB 115 0.6DL+WL1
1519. 1 0.6 3 1.0
1520. LOAD COMB 116 0.6DL+WR1
1521. 1 0.6 4 1.0
1522. LOAD COMB 117 0.6DL+WL2
1523. 1 0.6 5 1.0
1524. LOAD COMB 118 0.6DL+WR2
1525. 1 0.6 6 1.0
1526. LOAD COMB 119 0.6DL+WLL1
1527. 1 0.6 7 1.0
1528. LOAD COMB 120 0.6DL+WLL2
1529. 1 0.6 8 1.0
1530. *
1531. *
1532. *CASE-2 OBSTRUCTED
1533. *
1534. LOAD COMB 121 DL+WL1
1535. 1 1.0 9 1.0
1536. LOAD COMB 122 DL+WR1
1537. 1 1.0 10 1.0
1538. LOAD COMB 123 DL+WL2
1539. 1 1.0 11 1.0
1540. LOAD COMB 124 DL+WR2
1541. 1 1.0 12 1.0
1542. LOAD COMB 125 DL+WLL1
1543. 1 1.0 13 1.0
1544. LOAD COMB 126 DL+WLL2
1545. 1 1.0 14 1.0
1546. *
1547. *
1548. LOAD COMB 127 DL+0.75LL+0.75WL1
1549. 1 1.0 2 0.75 9 0.75
1550. LOAD COMB 128 DL+0.75LL+0.75WR1

Sheet 41 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 29

1551. 1 1.0 2 0.75 10 0.75

1552. LOAD COMB 129 DL+0.75LL+0.75WL2
1553. 1 1.0 2 0.75 11 0.75
1554. LOAD COMB 130 DL+0.75LL+0.75WR2
1555. 1 1.0 2 0.75 12 0.75
1556. LOAD COMB 131 DL+0.75LL+0.75WLL1
1557. 1 1.0 2 0.75 13 0.75
1558. LOAD COMB 132 DL+0.75LL+0.75WLL2
1559. 1 1.0 2 0.75 14 0.75
1560. *
1561. *
1562. LOAD COMB 133 0.6DL+WL1
1563. 1 0.6 9 1.0
1564. LOAD COMB 134 0.6DL+WR1
1565. 1 0.6 10 1.0
1566. LOAD COMB 135 0.6DL+WL2
1567. 1 0.6 11 1.0
1568. LOAD COMB 136 0.6DL+WR2
1569. 1 0.6 12 1.0
1570. LOAD COMB 137 0.6DL+WLL1
1571. 1 0.6 13 1.0
1572. LOAD COMB 138 0.6DL+WLL2
1573. 1 0.6 14 1.0
1574. *-------------------------------------------------------- -
1575. *-----------FOR DEFLECTION ---------------------------- -
1576. *--------------------------------------------------------- -
1577. LOAD COMB 201 DL
1578. 1 1.0
1579. LOAD COMB 202 LL
1580. 2 1.0
1581. LOAD COMB 203 DL + LL
1582. 1 1.0 2 1.0
1583. *CASE-1
1584. LOAD COMB 204 WL-1
1585. 3 1.0
1586. LOAD COMB 205 WR-1
1587. 4 1.0
1588. LOAD COMB 206 WL-2
1589. 5 1.0
1590. LOAD COMB 207 WR-2
1591. 6 1.0
1592. LOAD COMB 208 LW-1
1593. 7 1.0
1594. LOAD COMB 209 LW-2
1595. 8 1.0
1596. *CASE-2
1597. LOAD COMB 210 WL-1
1598. 9 1.0
1599. LOAD COMB 211 WR-1
1600. 10 1.0
1601. LOAD COMB 212 WL-2
1602. 11 1.0
1603. LOAD COMB 213 WR-2
1604. 12 1.0
1605. LOAD COMB 214 LW-1
1606. 13 1.0

Sheet 42 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 30

1607. LOAD COMB 215 LW-2

1608. 14 1.0
1609. *
1610. *------------------------------------------------- -
1611. PERFORM ANALYSIS

P R O B L E M S T A T I S T I C S
-----------------------------------

NUMBER OF JOINTS 120 NUMBER OF MEMBERS 171

NUMBER OF PLATES 0 NUMBER OF SOLIDS 0
NUMBER OF SURFACES 0 NUMBER OF SUPPORTS 12

Using 64-bit analysis engine.

SOLVER USED IS THE OUT-OF-CORE BASIC SOLVER

ORIGINAL/FINAL BAND-WIDTH= 107/ 22/ 135 DOF

TOTAL PRIMARY LOAD CASES = 14, TOTAL DEGREES OF FREEDOM = 684
TOTAL LOAD COMBINATION CASES = 54 SO FAR.
SIZE OF STIFFNESS MATRIX = 93 DOUBLE KILO-WORDS
REQRD/AVAIL. DISK SPACE = 13.4/ 94593.9 MB

1612. LOAD LIST 100 TO 138

1613. DEFINE ENVELOPE
1614. 100 TO 138 ENVELOPE 1 TYPE STRENGTH
1615. 201 TO 215 ENVELOPE 2 TYPE SERVICEABILITY
1616. END DEFINE ENVELOPE
1617. *-------------------------------------------------- -
1619. PARAMETER 1
1620. CODE AISC UNIFIED 2005
1621. METHOD ASD
1622. BEAM 1 ALL
1623. STP 2 ALL
1624. STP 1 MEMB 1 26 43 67 89 114 125 132 143
1625. STP 1 MEMB 41 42 129 157 158 161 162 165 167 168 172 176 179 TO 183 -
1626. 185 TO 189 195 196
1627. FYLD 345000 ALL
1628. FYLD 317000 MEMB 41 42 129 157 158 161 162 165 167 168 172 176 179 TO 183 -
1629. 185 TO 189 195 196
1630. CB 0 ALL
1631. MAIN 200 ALL
1632. TMAIN 300 ALL
1633. INT 1 ALL
1634. TRACK 0 ALL
1635. *--------------------------------------- -
1636. * COLUMN
1637. *--------------------------------------- -
1638. KZ 1.5 MEMB 2 14 27 39 44 57 78 90 101 124 133 142

Sheet 43 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 31

1639. *BRACING @ JB
1640. *LZ 6.2 MEMB 162 165 195 196
1641. *LY 6.2 MEMB 162 165 195 196
1642. KZ 0.5 MEMB 162 165 195 196
1643. KY 0.5 MEMB 162 165 195 196
1644. *--------------------------------------- -
1645. * RAFTER
1646. *---------------------------------------- -
1647. LZ 14.6 MEMB 3 TO 6 28 TO 31 45 TO 49
1648. LZ 16 MEMB 91 TO 95 115 TO 118 134 TO 137 178 184
1649. LZ 9.1 MEMB 67 TO 70
1650. LZ 22.414 MEMB 7 TO 13 32 TO 38 50 TO 56 71 TO 77
1651. LZ 15.379 MEMB 96 TO 100
1652. LZ 14.578 MEMB 119 TO 123
1653. LZ 13.783 MEMB 138 TO 141
1654. LX 2 MEMB 1 3 TO 13 15 26 28 TO 38 40 43 45 TO 56 58 67 TO 77 79 83 89 91 -
1655. 92 TO 100 102 111 114 TO 123 125 132 134 TO 141 143 178 184
1656. LY 2 MEMB 1 3 TO 13 15 26 28 TO 38 40 43 45 TO 56 58 67 TO 77 79 83 89 91 -
1657. 92 TO 100 102 111 114 TO 123 125 132 134 TO 141 143 178 184
1658. UNT 1 MEMB 1 3 TO 13 15 26 28 TO 38 40 43 45 TO 56 58 67 TO 77 79 83 89 91 -
1659. 92 TO 100 102 111 114 TO 123 125 132 134 TO 141 143 178 184
1660. UNB 2 MEMB 1 3 TO 13 15 26 28 TO 38 40 43 45 TO 56 58 67 TO 77 79 83 89 91 -
1661. 92 TO 100 102 111 114 TO 123 125 132 134 TO 141 143 178 184
1662. *
1663. *EXTN CANTILEVER
1664. KZ 2 MEMB 1 15 26 40 43 58 67 79 83 89 102 111 114 125 132 143
1665. CB 1 MEMB 1 15 26 40 43 58 67 79 83 89 102 111 114 125 132 143
1666. ****
1667. *JACK BEAMS- WITH FB
1668. LZ 16 MEMB 104 107 TO 109 126 TO 128 131
1669. LZ 17.1 MEMB 62 TO 64 84 TO 86
1670. **STRUT BEAMS FOR EXTN-1
1671. LZ 10.61 MEMB 80 87
1672. UNT 10.61 MEMB 80 87
1673. UNB 10.61 MEMB 80 87
1674. LY 10.61 MEMB 80 87
1675. **STRUT BEAMS FOR EXTN-2,3,4
1676. LZ 8.1 MEMB 81 88 105 106 112 113
1677. UNT 8.1 MEMB 81 88 105 106 112 113
1678. UNB 8.1 MEMB 81 88 105 106 112 113
1679. LY 8.1 MEMB 81 88 105 106 112 113
1680. *
1681. LZ 11.8 MEMB 82 83
1682. ***
1683. *--------------------------------------- -
1684. CHECK CODE ALL
STEEL DESIGN

Sheet 44 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 32

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

1 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.511 101
2.48 T 0.00 24.65 2.01

2 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.922 110
204.57 C -0.04 -1635.41 0.00

3 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.925 110
363.46 C -0.32 1634.93 0.00

4 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.850 110
354.97 C -0.18 623.18 0.00

5 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.702 110
351.92 C -0.11 226.17 0.00

6 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.780 109
309.65 C 0.03 -302.67 3.00

Sheet 45 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 33

7 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.826 110
333.18 C 0.00 -517.61 3.00

8 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.915 110
336.27 C 0.03 -635.36 0.00

9 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.923 110
337.29 C 0.03 -642.37 2.00

10 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.888 110
339.34 C 0.05 -608.04 3.01

11 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.821 110
342.43 C 0.08 -434.70 3.01

12 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.836 109
321.55 C 0.13 458.62 0.00

13 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.889 110
354.67 C 0.19 1344.36 0.00

Sheet 46 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 34

14 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.848 114
296.38 C -0.02 1328.91 0.00

15 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.726 101
5.21 T 0.00 110.78 0.00

16 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.687 107
190.60 C 0.04 231.55 0.00

17 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.553 113
7.49 T 0.16 33.16 0.30

18 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.729 107
189.02 C -0.02 225.19 0.00

19 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.595 113
9.57 T -0.09 35.68 0.30

20 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.646 137
54.99 C -0.12 -264.50 6.36

Sheet 47 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 35

21 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.633 107
62.27 C 0.02 -257.08 6.36

22 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.710 108
228.39 C 0.11 220.34 0.00

23 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.736 137
119.82 C 0.00 0.00 0.30

24 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.723 126
208.10 C -0.06 209.24 0.00

25 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.742 137
132.48 C 0.00 0.00 0.30

26 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.637 101
3.09 T 0.00 30.75 2.01

27 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.874 110
226.02 C 0.04 -1723.11 0.00

Sheet 48 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 36

28 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.792 110
383.04 C 0.36 1722.42 0.00

29 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.814 110
372.99 C 0.40 646.10 0.00

30 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.744 110
369.86 C 0.29 239.04 0.00

31 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.810 109
326.92 C -0.01 -311.17 3.00

32 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.815 110
307.53 C 0.02 -524.00 3.00

33 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.905 110
310.62 C -0.05 -642.41 0.00

34 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.914 110
311.64 C -0.05 -649.65 2.00

Sheet 49 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 37

35 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.879 110
313.74 C -0.07 -615.71 3.01

36 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.809 110
316.83 C 0.08 -441.63 3.01

37 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.860 109
329.84 C 0.06 473.71 0.00

38 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.900 110
358.89 C -0.19 1360.34 0.00

39 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.859 110
252.69 C 0.02 1362.38 0.00

40 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.726 101
5.21 T 0.00 110.78 0.00

41 ST TUB1251253.2 (JAPANESE SECTIONS)

PASS Eq. H1-1b 0.103 125
4.79 C 0.00 -0.81 3.48

Sheet 50 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 38

42 ST TUB1501504.5 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.541 107
96.35 C 0.00 -1.36 3.48

43 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.587 101
2.85 T 0.00 28.35 2.01

44 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.874 110
425.26 C -0.01 -2829.60 0.00

45 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.903 110
628.93 C -0.00 2828.68 0.00

46 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.936 110
617.63 C 1.13 1060.87 0.00

47 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.738 110
486.25 C 1.27 863.56 0.00

48 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.921 110
483.53 C 0.92 384.12 0.00

Sheet 51 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 39

49 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.549 110
476.32 C 0.01 -535.90 0.00

50 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.917 110
377.40 C -0.06 -885.71 3.00

51 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.879 110
381.07 C 0.10 -1064.18 0.00

52 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.898 110
383.20 C 0.13 -1089.59 1.25

53 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.922 110
496.09 C 0.15 -1072.29 3.01

54 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.773 110
499.76 C 0.16 -667.55 3.01

55 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.869 109
467.77 C 0.13 807.93 0.00

Sheet 52 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 40

56 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.913 110
514.59 C 0.19 2132.12 0.00

57 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.872 114
426.78 C -0.01 2111.07 0.00

58 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.762 101
6.01 T 0.00 127.83 0.00

59 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.719 107
187.26 C -0.02 221.70 0.00

60 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.676 113
68.11 T -0.09 40.56 0.30

61 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.656 107
34.85 C 0.02 257.33 0.00

62 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.422 101
140.95 T 0.00 -518.19 0.00

Sheet 53 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 41

63 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.778 110
79.04 C 0.00 -341.19 0.00

64 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.787 110
34.33 T 0.00 -632.57 0.00

65 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.693 126
191.65 C -0.10 205.19 0.00

66 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.794 137
116.04 C 0.00 0.00 0.30

67 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.241 101
3.56 T 0.00 41.75 2.34

68 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.592 109
152.01 C 0.05 -131.09 2.28

69 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.720 109
149.95 C 0.09 -163.79 1.75

Sheet 54 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 42

70 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.527 109
144.79 C -0.19 1.84 0.00

71 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.761 110
386.56 C 0.10 -173.45 3.00

72 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.843 110
389.00 C -0.02 -212.82 1.00

73 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.825 110
390.22 C 0.02 -203.44 3.00

74 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.760 110
344.67 C 0.10 -125.75 1.50

75 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.660 110
346.47 C 0.06 -148.84 3.01

76 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.834 114
334.81 C -0.05 241.23 0.00

Sheet 55 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 43

77 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.847 110
297.82 C -0.19 977.88 0.00

78 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.759 110
212.21 C 0.15 978.84 0.00

79 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.820 118
0.34 T 0.00 -137.82 0.00

80 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.395 120
129.51 T -24.50 183.44 3.99

81 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.481 108
19.82 C -1.96 -63.65 2.89

82 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.342 120
4.23 T -7.21 -150.46 0.00

83 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.337 101
5.44 T 0.00 190.98 0.00

Sheet 56 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 44

84 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.421 101
133.56 T 0.00 -518.19 0.00

85 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.709 110
158.56 C 0.00 -341.22 0.00

86 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.782 110
0.97 T 0.00 -632.60 0.00

87 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.364 101
71.69 T -4.86 -249.76 0.00

88 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.494 108
21.73 C -1.96 -63.63 0.00

89 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.321 101
2.11 T 0.00 15.46 1.49

90 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.895 114
524.94 C 38.97 -2898.91 0.00

Sheet 57 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 45

91 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.928 110
600.21 C 0.45 2919.47 0.00

92 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.873 110
594.74 C -0.11 378.69 0.00

93 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.851 109
376.29 C -0.10 -482.59 2.28

94 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.973 109
372.79 C -0.08 -719.25 3.00

95 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.792 109
372.77 C 0.08 -719.25 3.00

96 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.844 110
315.56 C -0.04 -769.04 3.00

97 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.844 110
315.55 C 0.04 -769.04 3.00

Sheet 58 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 46

98 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.650 110
319.10 C 0.02 -572.90 3.00

99 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.831 109
348.11 C 0.00 810.50 0.00

100 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.898 109
354.72 C -0.00 1762.82 0.00

101 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.812 114
412.62 C 0.09 1767.52 0.00

102 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.800 101
6.04 T 0.00 223.58 0.00

103 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.454 138
158.12 T -0.10 -240.90 0.00

104 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.337 113
49.44 T 0.01 86.85 0.00

Sheet 59 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 47

105 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.284 107
8.41 C -0.12 -18.65 4.79

106 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.786 114
67.87 T 5.05 -108.03 4.80

107 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.777 109
29.31 T 0.00 -765.16 0.00

108 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.743 110
40.02 C 0.00 -332.41 0.00

109 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.518 138
37.38 T 0.38 -343.58 7.70

110 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.641 114
0.62 C -0.62 58.01 0.00

111 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.461 114
2.89 T 0.00 57.97 0.00

Sheet 60 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 48

112 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.274 107
8.10 C -0.12 -18.65 0.00

113 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.796 114
68.42 T 5.67 -108.38 0.00

114 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.176 101
2.66 T 0.00 19.51 1.49

115 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.636 109
4.13 T -0.05 38.21 7.67

116 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.587 109
165.42 C -0.03 -95.25 2.29

117 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.712 109
161.69 C -0.00 -146.38 2.25

118 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.602 109
160.85 C -0.01 -143.35 3.00

Sheet 61 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 49

119 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.792 110
198.05 C -0.04 -164.92 3.00

120 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.831 110
198.06 C 0.04 -164.92 3.00

121 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.534 110
201.40 C 0.08 -138.86 3.00

122 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.640 109
175.48 C 0.06 449.77 0.00

123 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.836 110
197.00 C -0.00 871.25 0.00

124 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.687 110
220.90 C 0.00 871.80 0.00

125 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.370 101
2.30 T 0.00 17.83 1.60

Sheet 62 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 50

126 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.613 114
24.18 T -0.24 410.61 7.70

127 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.773 109
0.01 C 0.00 -765.16 0.00

128 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.767 110
64.85 C 0.00 -332.41 0.00

129 ST TUB1251253.2 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.805 125
44.31 C 0.00 -1.08 4.02

130 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.797 114
303.90 C 0.28 298.40 0.00

131 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.600 114
108.94 T -0.22 112.21 0.00

132 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.321 101
2.11 T 0.00 15.46 1.49

Sheet 63 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 51

133 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.902 114
151.44 C 46.71 -1822.31 0.00

134 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.822 114
299.66 C -0.25 1822.04 0.00

135 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.792 109
314.59 C -0.09 -548.58 2.29

136 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.867 109
309.52 C -0.05 -634.91 3.00

137 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.923 109
309.52 C 0.05 -634.91 3.00

138 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.689 110
257.20 C -0.07 -487.11 2.50

139 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.804 110
257.77 C 0.08 -460.66 3.00

Sheet 64 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 52

140 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.807 109
288.97 C 0.18 428.01 0.00

141 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.878 109
296.22 C -0.00 1391.53 0.00

142 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.886 109
266.55 C 0.00 1391.90 0.00

143 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.244 101
1.83 T 0.00 11.73 1.30

157 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.480 113
102.76 C 0.00 0.00 0.00

158 ST TUB1501504.5 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.521 138
41.68 C 0.00 0.00 0.00

161 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.787 114
144.58 C 0.00 0.00 12.79

Sheet 65 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 53

162 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.368 110
213.63 C 0.00 0.00 12.30

165 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.442 114
269.38 C 0.00 0.00 11.51

167 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.302 113
73.78 C 0.00 0.00 0.00

168 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.631 114
154.36 C 0.00 0.00 11.09

172 ST TUB1251253.2 (JAPANESE SECTIONS)

PASS Eq. H1-1b 0.074 110
0.03 T 0.00 -0.81 3.48

176 ST TUB1501504.5 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.868 114
62.36 C 0.00 0.00 0.00

178 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.715 110
372.20 C 0.41 539.22 0.00

Sheet 66 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 54

179 ST TUB1251253.2 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.403 126
27.80 C 0.00 -0.81 3.48

180 ST TUB1251253.2 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.360 126
24.25 C 0.00 -0.81 3.48

181 ST TUB1501504.5 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.229 137
16.42 C 0.00 0.00 0.00

182 ST TUB2002006 (JAPANESE SECTIONS)

PASS Sec. E1 0.166 137
34.45 C 0.00 0.00 0.00

183 ST TUB1501504.5 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.409 114
44.75 C 0.00 0.00 9.32

184 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.726 109
322.31 C -0.13 -238.05 0.00

185 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.307 125
104.83 C 0.00 0.00 0.00

Sheet 67 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 55

186 ST TUB1501504.5 (JAPANESE SECTIONS)

PASS Eq. Sec. D2 0.050 104
24.16 T 0.00 0.00 10.82

187 ST TUB1501504.5 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.564 114
41.53 C 0.00 0.00 11.37

188 ST TUB1501504.5 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.284 101
31.96 C 0.00 0.00 9.20

189 ST TUB1501504.5 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.680 138
60.98 C 0.00 0.00 10.31

190 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. Sec. D2 0.053 110
50.27 T 0.00 0.00 12.04

191 ST TUB1251253.2 (JAPANESE SECTIONS)

PASS Eq. H1-1b 0.122 125
8.61 C 0.00 -0.81 3.48

192 ST TUB1251253.2 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.491 126
18.58 C 0.00 -1.39 4.55

Sheet 68 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 56

193 ST TUB1251253.2 (JAPANESE SECTIONS)

PASS Eq. H1-1b 0.092 108
0.04 C 0.00 -1.07 4.00

194 ST TUB1251253.2 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.400 126
27.93 C 0.00 -0.81 3.48

195 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. Sec. D2 0.132 110
114.38 T 0.00 0.00 12.30

196 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. Sec. D2 0.171 114
147.99 T 0.00 0.00 11.51

1685. *JB
1686. CHECK CODE MEMB 62 TO 64 84 TO 86 107 108 127 128
STEEL DESIGN

Sheet 69 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 57

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

62 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.422 101
140.95 T 0.00 -518.19 0.00

63 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.778 110
79.04 C 0.00 -341.19 0.00

64 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.787 110
34.33 T 0.00 -632.57 0.00

84 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.421 101
133.56 T 0.00 -518.19 0.00

85 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.709 110
158.56 C 0.00 -341.22 0.00

86 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.782 110
0.97 T 0.00 -632.60 0.00

Sheet 70 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 58

107 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.777 109
29.31 T 0.00 -765.16 0.00

108 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.743 110
40.02 C 0.00 -332.41 0.00

127 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.773 109
0.01 C 0.00 -765.16 0.00

128 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.767 110
64.85 C 0.00 -332.41 0.00

1687. *PORTAL
1688. CHECK CODE MEMB 16 TO 25 59 TO 61 65 66 103 130
STEEL DESIGN

Sheet 71 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 59

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

16 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.687 107
190.60 C 0.04 231.55 0.00

17 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.553 113
7.49 T 0.16 33.16 0.30

18 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.729 107
189.02 C -0.02 225.19 0.00

19 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.595 113
9.57 T -0.09 35.68 0.30

20 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.646 137
54.99 C -0.12 -264.50 6.36

21 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.633 107
62.27 C 0.02 -257.08 6.36

Sheet 72 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 60

22 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.710 108
228.39 C 0.11 220.34 0.00

23 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.736 137
119.82 C 0.00 0.00 0.30

24 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.723 126
208.10 C -0.06 209.24 0.00

25 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.742 137
132.48 C 0.00 0.00 0.30

59 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.719 107
187.26 C -0.02 221.70 0.00

60 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.676 113
68.11 T -0.09 40.56 0.30

61 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.656 107
34.85 C 0.02 257.33 0.00

Sheet 73 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 61

65 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.693 126
191.65 C -0.10 205.19 0.00

66 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.794 137
116.04 C 0.00 0.00 0.30

103 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.454 138
158.12 T -0.10 -240.90 0.00

130 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.797 114
303.90 C 0.28 298.40 0.00

1689. *RAFTER
1690. CHECK CODE MEMB 1 3 TO 13 15 17 19 23 25 26 28 TO 38 40 43 45 TO 56 58 60 -
1691. 66 TO 77 79 82 83 89 91 TO 100 102 104 110 111 114 TO 123 125 131 132 134 -
1692. 135 TO 141 143 178 184
STEEL DESIGN

Sheet 74 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 62

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

1 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.511 101
2.48 T 0.00 24.65 2.01

3 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.925 110
363.46 C -0.32 1634.93 0.00

4 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.850 110
354.97 C -0.18 623.18 0.00

5 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.702 110
351.92 C -0.11 226.17 0.00

6 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.780 109
309.65 C 0.03 -302.67 3.00

7 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.826 110
333.18 C 0.00 -517.61 3.00

Sheet 75 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 63

8 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.915 110
336.27 C 0.03 -635.36 0.00

9 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.923 110
337.29 C 0.03 -642.37 2.00

10 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.888 110
339.34 C 0.05 -608.04 3.01

11 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.821 110
342.43 C 0.08 -434.70 3.01

12 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.836 109
321.55 C 0.13 458.62 0.00

13 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.889 110
354.67 C 0.19 1344.36 0.00

15 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.726 101
5.21 T 0.00 110.78 0.00

Sheet 76 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 64

17 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.553 113
7.49 T 0.16 33.16 0.30

19 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.595 113
9.57 T -0.09 35.68 0.30

23 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.736 137
119.82 C 0.00 0.00 0.30

25 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.742 137
132.48 C 0.00 0.00 0.30

26 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.637 101
3.09 T 0.00 30.75 2.01

28 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.792 110
383.04 C 0.36 1722.42 0.00

29 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.814 110
372.99 C 0.40 646.10 0.00

Sheet 77 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 65

30 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.744 110
369.86 C 0.29 239.04 0.00

31 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.810 109
326.92 C -0.01 -311.17 3.00

32 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.815 110
307.53 C 0.02 -524.00 3.00

33 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.905 110
310.62 C -0.05 -642.41 0.00

34 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.914 110
311.64 C -0.05 -649.65 2.00

35 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.879 110
313.74 C -0.07 -615.71 3.01

36 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.809 110
316.83 C 0.08 -441.63 3.01

Sheet 78 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 66

37 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.860 109
329.84 C 0.06 473.71 0.00

38 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.900 110
358.89 C -0.19 1360.34 0.00

40 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.726 101
5.21 T 0.00 110.78 0.00

43 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.587 101
2.85 T 0.00 28.35 2.01

45 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.903 110
628.93 C -0.00 2828.68 0.00

46 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.936 110
617.63 C 1.13 1060.87 0.00

47 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.738 110
486.25 C 1.27 863.56 0.00

Sheet 79 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 67

48 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.921 110
483.53 C 0.92 384.12 0.00

49 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.549 110
476.32 C 0.01 -535.90 0.00

50 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.917 110
377.40 C -0.06 -885.71 3.00

51 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.879 110
381.07 C 0.10 -1064.18 0.00

52 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.898 110
383.20 C 0.13 -1089.59 1.25

53 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.922 110
496.09 C 0.15 -1072.29 3.01

54 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.773 110
499.76 C 0.16 -667.55 3.01

Sheet 80 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 68

55 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.869 109
467.77 C 0.13 807.93 0.00

56 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.913 110
514.59 C 0.19 2132.12 0.00

58 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.762 101
6.01 T 0.00 127.83 0.00

60 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.676 113
68.11 T -0.09 40.56 0.30

66 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.794 137
116.04 C 0.00 0.00 0.30

67 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.241 101
3.56 T 0.00 41.75 2.34

68 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.592 109
152.01 C 0.05 -131.09 2.28

Sheet 81 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 69

69 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.720 109
149.95 C 0.09 -163.79 1.75

70 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.527 109
144.79 C -0.19 1.84 0.00

71 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.761 110
386.56 C 0.10 -173.45 3.00

72 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.843 110
389.00 C -0.02 -212.82 1.00

73 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.825 110
390.22 C 0.02 -203.44 3.00

74 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.760 110
344.67 C 0.10 -125.75 1.50

75 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.660 110
346.47 C 0.06 -148.84 3.01

Sheet 82 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 70

76 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.834 114
334.81 C -0.05 241.23 0.00

77 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.847 110
297.82 C -0.19 977.88 0.00

79 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.820 118
0.34 T 0.00 -137.82 0.00

82 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.342 120
4.23 T -7.21 -150.46 0.00

83 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.337 101
5.44 T 0.00 190.98 0.00

89 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.321 101
2.11 T 0.00 15.46 1.49

91 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.928 110
600.21 C 0.45 2919.47 0.00

Sheet 83 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 71

92 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.873 110
594.74 C -0.11 378.69 0.00

93 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.851 109
376.29 C -0.10 -482.59 2.28

94 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.973 109
372.79 C -0.08 -719.25 3.00

95 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.792 109
372.77 C 0.08 -719.25 3.00

96 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.844 110
315.56 C -0.04 -769.04 3.00

97 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.844 110
315.55 C 0.04 -769.04 3.00

98 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.650 110
319.10 C 0.02 -572.90 3.00

Sheet 84 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 72

99 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.831 109
348.11 C 0.00 810.50 0.00

100 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.898 109
354.72 C -0.00 1762.82 0.00

102 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.800 101
6.04 T 0.00 223.58 0.00

104 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.337 113
49.44 T 0.01 86.85 0.00

110 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.641 114
0.62 C -0.62 58.01 0.00

111 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.461 114
2.89 T 0.00 57.97 0.00

114 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.176 101
2.66 T 0.00 19.51 1.49

Sheet 85 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 73

115 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.636 109
4.13 T -0.05 38.21 7.67

116 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.587 109
165.42 C -0.03 -95.25 2.29

117 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.712 109
161.69 C -0.00 -146.38 2.25

118 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.602 109
160.85 C -0.01 -143.35 3.00

119 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.792 110
198.05 C -0.04 -164.92 3.00

120 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.831 110
198.06 C 0.04 -164.92 3.00

121 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.534 110
201.40 C 0.08 -138.86 3.00

Sheet 86 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 74

122 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.640 109
175.48 C 0.06 449.77 0.00

123 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.836 110
197.00 C -0.00 871.25 0.00

125 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.370 101
2.30 T 0.00 17.83 1.60

131 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.600 114
108.94 T -0.22 112.21 0.00

132 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.321 101
2.11 T 0.00 15.46 1.49

134 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.822 114
299.66 C -0.25 1822.04 0.00

135 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.792 109
314.59 C -0.09 -548.58 2.29

Sheet 87 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 75

136 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.867 109
309.52 C -0.05 -634.91 3.00

137 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.923 109
309.52 C 0.05 -634.91 3.00

138 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.689 110
257.20 C -0.07 -487.11 2.50

139 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.804 110
257.77 C 0.08 -460.66 3.00

140 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.807 109
288.97 C 0.18 428.01 0.00

141 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.878 109
296.22 C -0.00 1391.53 0.00

143 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.244 101
1.83 T 0.00 11.73 1.30

Sheet 88 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 76

178 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.715 110
372.20 C 0.41 539.22 0.00

184 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.726 109
322.31 C -0.13 -238.05 0.00

1693. *COL
1694. CHECK CODE MEMB 2 14 16 18 22 24 27 39 44 57 59 65 78 90 101 103 124 130 133 -
1695. 142
STEEL DESIGN

Sheet 89 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 77

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

2 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.922 110
204.57 C -0.04 -1635.41 0.00

14 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.848 114
296.38 C -0.02 1328.91 0.00

16 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.687 107
190.60 C 0.04 231.55 0.00

18 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.729 107
189.02 C -0.02 225.19 0.00

22 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.710 108
228.39 C 0.11 220.34 0.00

24 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.723 126
208.10 C -0.06 209.24 0.00

Sheet 90 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 78

27 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.874 110
226.02 C 0.04 -1723.11 0.00

39 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.859 110
252.69 C 0.02 1362.38 0.00

44 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.874 110
425.26 C -0.01 -2829.60 0.00

57 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.872 114
426.78 C -0.01 2111.07 0.00

59 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.719 107
187.26 C -0.02 221.70 0.00

65 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.693 126
191.65 C -0.10 205.19 0.00

78 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.759 110
212.21 C 0.15 978.84 0.00

Sheet 91 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 79

90 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.895 114
524.94 C 38.97 -2898.91 0.00

101 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.812 114
412.62 C 0.09 1767.52 0.00

103 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.454 138
158.12 T -0.10 -240.90 0.00

124 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.687 110
220.90 C 0.00 871.80 0.00

130 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.797 114
303.90 C 0.28 298.40 0.00

133 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.902 114
151.44 C 46.71 -1822.31 0.00

142 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.886 109
266.55 C 0.00 1391.90 0.00

Sheet 92 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 80

1696. *Y1
1697. CHECK CODE MEMB 1 TO 19
STEEL DESIGN

Sheet 93 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 81

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

1 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.511 101
2.48 T 0.00 24.65 2.01

2 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.922 110
204.57 C -0.04 -1635.41 0.00

3 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.925 110
363.46 C -0.32 1634.93 0.00

4 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.850 110
354.97 C -0.18 623.18 0.00

5 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.702 110
351.92 C -0.11 226.17 0.00

6 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.780 109
309.65 C 0.03 -302.67 3.00

Sheet 94 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 82

7 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.826 110
333.18 C 0.00 -517.61 3.00

8 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.915 110
336.27 C 0.03 -635.36 0.00

9 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.923 110
337.29 C 0.03 -642.37 2.00

10 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.888 110
339.34 C 0.05 -608.04 3.01

11 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.821 110
342.43 C 0.08 -434.70 3.01

12 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.836 109
321.55 C 0.13 458.62 0.00

13 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.889 110
354.67 C 0.19 1344.36 0.00

Sheet 95 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 83

14 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.848 114
296.38 C -0.02 1328.91 0.00

15 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.726 101
5.21 T 0.00 110.78 0.00

16 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.687 107
190.60 C 0.04 231.55 0.00

17 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.553 113
7.49 T 0.16 33.16 0.30

18 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.729 107
189.02 C -0.02 225.19 0.00

19 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.595 113
9.57 T -0.09 35.68 0.30

1698. *Y2
1699. CHECK CODE MEMB 22 TO 40 178
STEEL DESIGN

Sheet 96 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 84

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

22 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.710 108
228.39 C 0.11 220.34 0.00

23 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.736 137
119.82 C 0.00 0.00 0.30

24 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.723 126
208.10 C -0.06 209.24 0.00

25 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.742 137
132.48 C 0.00 0.00 0.30

26 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.637 101
3.09 T 0.00 30.75 2.01

27 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.874 110
226.02 C 0.04 -1723.11 0.00

Sheet 97 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 85

28 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.792 110
383.04 C 0.36 1722.42 0.00

29 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.814 110
372.99 C 0.40 646.10 0.00

30 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.744 110
369.86 C 0.29 239.04 0.00

31 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.810 109
326.92 C -0.01 -311.17 3.00

32 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.815 110
307.53 C 0.02 -524.00 3.00

33 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.905 110
310.62 C -0.05 -642.41 0.00

34 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.914 110
311.64 C -0.05 -649.65 2.00

Sheet 98 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 86

35 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.879 110
313.74 C -0.07 -615.71 3.01

36 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.809 110
316.83 C 0.08 -441.63 3.01

37 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.860 109
329.84 C 0.06 473.71 0.00

38 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.900 110
358.89 C -0.19 1360.34 0.00

39 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.859 110
252.69 C 0.02 1362.38 0.00

40 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.726 101
5.21 T 0.00 110.78 0.00

178 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.715 110
372.20 C 0.41 539.22 0.00

Sheet 99 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 87

1700. *Y3
1701. CHECK CODE MEMB 43 TO 60
STEEL DESIGN

Sheet 100 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 88

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

43 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.587 101
2.85 T 0.00 28.35 2.01

44 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.874 110
425.26 C -0.01 -2829.60 0.00

45 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.903 110
628.93 C -0.00 2828.68 0.00

46 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.936 110
617.63 C 1.13 1060.87 0.00

47 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.738 110
486.25 C 1.27 863.56 0.00

48 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.921 110
483.53 C 0.92 384.12 0.00

Sheet 101 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 89

49 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.549 110
476.32 C 0.01 -535.90 0.00

50 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.917 110
377.40 C -0.06 -885.71 3.00

51 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.879 110
381.07 C 0.10 -1064.18 0.00

52 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.898 110
383.20 C 0.13 -1089.59 1.25

53 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.922 110
496.09 C 0.15 -1072.29 3.01

54 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.773 110
499.76 C 0.16 -667.55 3.01

55 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.869 109
467.77 C 0.13 807.93 0.00

Sheet 102 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 90

56 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.913 110
514.59 C 0.19 2132.12 0.00

57 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.872 114
426.78 C -0.01 2111.07 0.00

58 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.762 101
6.01 T 0.00 127.83 0.00

59 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.719 107
187.26 C -0.02 221.70 0.00

60 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.676 113
68.11 T -0.09 40.56 0.30

1702. *Y4
1703. CHECK CODE MEMB 65 TO 79
STEEL DESIGN

Sheet 103 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 91

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

65 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.693 126
191.65 C -0.10 205.19 0.00

66 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.794 137
116.04 C 0.00 0.00 0.30

67 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.241 101
3.56 T 0.00 41.75 2.34

68 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.592 109
152.01 C 0.05 -131.09 2.28

69 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.720 109
149.95 C 0.09 -163.79 1.75

70 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.527 109
144.79 C -0.19 1.84 0.00

Sheet 104 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 92

71 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.761 110
386.56 C 0.10 -173.45 3.00

72 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.843 110
389.00 C -0.02 -212.82 1.00

73 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.825 110
390.22 C 0.02 -203.44 3.00

74 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.760 110
344.67 C 0.10 -125.75 1.50

75 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.660 110
346.47 C 0.06 -148.84 3.01

76 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.834 114
334.81 C -0.05 241.23 0.00

77 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.847 110
297.82 C -0.19 977.88 0.00

Sheet 105 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 93

78 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.759 110
212.21 C 0.15 978.84 0.00

79 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.820 118
0.34 T 0.00 -137.82 0.00

1704. *Y5
1705. CHECK CODE MEMB 89 TO 104
STEEL DESIGN

Sheet 106 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 94

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

89 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.321 101
2.11 T 0.00 15.46 1.49

90 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.895 114
524.94 C 38.97 -2898.91 0.00

91 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.928 110
600.21 C 0.45 2919.47 0.00

92 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.873 110
594.74 C -0.11 378.69 0.00

93 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.851 109
376.29 C -0.10 -482.59 2.28

94 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.973 109
372.79 C -0.08 -719.25 3.00

Sheet 107 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 95

95 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.792 109
372.77 C 0.08 -719.25 3.00

96 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.844 110
315.56 C -0.04 -769.04 3.00

97 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.844 110
315.55 C 0.04 -769.04 3.00

98 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.650 110
319.10 C 0.02 -572.90 3.00

99 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.831 109
348.11 C 0.00 810.50 0.00

100 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.898 109
354.72 C -0.00 1762.82 0.00

101 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.812 114
412.62 C 0.09 1767.52 0.00

Sheet 108 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 96

102 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.800 101
6.04 T 0.00 223.58 0.00

103 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.454 138
158.12 T -0.10 -240.90 0.00

104 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.337 113
49.44 T 0.01 86.85 0.00

1706. *Y6
1707. CHECK CODE MEMB 114 TO 125
STEEL DESIGN

Sheet 109 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 97

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

114 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.176 101
2.66 T 0.00 19.51 1.49

115 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.636 109
4.13 T -0.05 38.21 7.67

116 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.587 109
165.42 C -0.03 -95.25 2.29

117 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.712 109
161.69 C -0.00 -146.38 2.25

118 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.602 109
160.85 C -0.01 -143.35 3.00

119 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.792 110
198.05 C -0.04 -164.92 3.00

Sheet 110 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 98

120 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.831 110
198.06 C 0.04 -164.92 3.00

121 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.534 110
201.40 C 0.08 -138.86 3.00

122 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.640 109
175.48 C 0.06 449.77 0.00

123 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.836 110
197.00 C -0.00 871.25 0.00

124 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.687 110
220.90 C 0.00 871.80 0.00

125 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.370 101
2.30 T 0.00 17.83 1.60

1708. *Y7
1709. CHECK CODE MEMB 130 TO 143 184
STEEL DESIGN

Sheet 111 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 99

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

130 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.797 114
303.90 C 0.28 298.40 0.00

131 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.600 114
108.94 T -0.22 112.21 0.00

132 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.321 101
2.11 T 0.00 15.46 1.49

133 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.902 114
151.44 C 46.71 -1822.31 0.00

134 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.822 114
299.66 C -0.25 1822.04 0.00

135 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.792 109
314.59 C -0.09 -548.58 2.29

Sheet 112 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 100

136 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.867 109
309.52 C -0.05 -634.91 3.00

137 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.923 109
309.52 C 0.05 -634.91 3.00

138 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.689 110
257.20 C -0.07 -487.11 2.50

139 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.804 110
257.77 C 0.08 -460.66 3.00

140 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1a 0.807 109
288.97 C 0.18 428.01 0.00

141 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.878 109
296.22 C -0.00 1391.53 0.00

142 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.886 109
266.55 C 0.00 1391.90 0.00

Sheet 113 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 101

143 ST UB203X133X25 (BRITISH SECTIONS)

PASS Eq. H1-1b 0.244 101
1.83 T 0.00 11.73 1.30

184 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.726 109
322.31 C -0.13 -238.05 0.00

1710. *EXTENSION
1711. CHECK CODE MEMB 80 TO 83 87 88 105 106 110 TO 113
STEEL DESIGN

Sheet 114 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 102

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

80 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.395 120
129.51 T -24.50 183.44 3.99

81 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.481 108
19.82 C -1.96 -63.65 2.89

82 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.342 120
4.23 T -7.21 -150.46 0.00

83 TAP ERED (AISC SECTIONS)

PASS Sec. G1 0.337 101
5.44 T 0.00 190.98 0.00

87 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.364 101
71.69 T -4.86 -249.76 0.00

88 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.494 108
21.73 C -1.96 -63.63 0.00

Sheet 115 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 103

105 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.284 107
8.41 C -0.12 -18.65 4.79

106 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.786 114
67.87 T 5.05 -108.03 4.80

110 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.641 114
0.62 C -0.62 58.01 0.00

111 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.461 114
2.89 T 0.00 57.97 0.00

112 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.274 107
8.10 C -0.12 -18.65 0.00

113 TAP ERED (AISC SECTIONS)

PASS Eq. H1-1b 0.796 114
68.42 T 5.67 -108.38 0.00

1712. *JB BRACING

1713. CHECK CODE MEMB 162 165 195 196
STEEL DESIGN

Sheet 116 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 104

STAAD.PRO CODE CHECKING - ( AISC-360-05-ASD) v3.3a

********************************************

ALL UNITS ARE - KN METE (UNLESS OTHERWISE Noted)

MEMBER TABLE RESULT/ CRITICAL COND/ RATIO/ LOADING/

FX MY MZ LOCATION
=======================================================================

162 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.368 110
213.63 C 0.00 0.00 12.30

165 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. H1-1a 0.442 114
269.38 C 0.00 0.00 11.51

195 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. Sec. D2 0.132 110
114.38 T 0.00 0.00 12.30

196 ST TUB2002006 (JAPANESE SECTIONS)

PASS Eq. Sec. D2 0.171 114
147.99 T 0.00 0.00 11.51

1714. START GROUP DEFINITION

1715. MEMBER
1716. _JB 16 TO 25 59 TO 66 84 TO 86 103 104 107 TO 109 126 TO 128 130 131
1717. _PORTAL 16 TO 25 59 TO 61 65 66 103 104 109 126 130 131
1718. _ROOF-BRACING 157 158 161 162 168 181 TO 183 185 TO 189
1719. _RAFTER-1 1 3 TO 13 15 17 19 23 25 26 28 TO 38 40 43 45 TO 56 58 60 -
1720. 66 TO 77 79 89 91 TO 100 102 104 114 TO 123 125 131 132 134 TO 141 143 178 -
1721. 184
1722. _COL 2 14 27 39 44 57 78 90 101 124 133 142
1723. _Y1 1 TO 15
1724. _Y2 26 TO 40 178
1725. _Y3 43 TO 58
1726. _Y4 67 TO 79
1727. _Y6 114 TO 125
1728. _Y7 132 TO 143 184

Sheet 117 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 105

1729. _Y1-Y3 1 TO 15 26 TO 40 43 TO 58 178

1730. _Y5 89 TO 102
1731. END GROUP DEFINITION
1732. *---------------------------------------------------- -
1733. *UNIT METER KG
1734. *STEEL TAKE OFF ALL
1735. **Y1 1 TO 15
1736. *STEEL TAKE OFF LIST 1 TO 15
1737. **Y2 26 TO 40 178
1738. *STEEL TAKE OFF LIST 26 TO 40 178
1739. **Y3 43 TO 58
1740. *STEEL TAKE OFF LIST 43 TO 58
1741. **Y4 67 TO 79
1742. *STEEL TAKE OFF LIST 67 TO 79
1743. **Y5 89 TO 102
1744. *STEEL TAKE OFF LIST 89 TO 102
1745. **Y6 114 TO 125
1746. *STEEL TAKE OFF LIST 114 TO 125
1747. **Y7 132 TO 143 184
1748. *STEEL TAKE OFF LIST 132 TO 143 184
1749. **RAFTER-1
1750. *STEEL TAKE OFF LIST 1 3 TO 13 15 17 19 23 25 26 28 TO 38 40 43 45 TO 56 58 -
1751. *60 66 TO 77 79 89 91 TO 100 102 104 114 TO 123 125 131 132 134 TO 141 143 -
1752. *178 184
1753. **COL
1754. *STEEL TAKE OFF LIST 2 14 27 39 44 57 78 90 101 124 133 142
1755. **---------------------------------------------------------------- -
1756. *
1757. *LOAD LIST 201 TO 215
1758. *PRINT JOINT DISPLACEMENT ALL
1759. UNIT METER KN
1760. LOAD LIST 1 TO 14
1761. PRINT SUPPORT REACTION ALL
SUPPORT REACTION ALL

Sheet 118 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 106

SUPPORT REACTIONS -UNIT KN METE STRUCTURE TYPE = SPACE

-----------------

JOINT LOAD FORCE-X FORCE-Y FORCE-Z MOM-X MOM-Y MOM Z

3 1 48.70 60.98 -0.93 0.00 0.00 0.00

2 238.24 222.10 -0.33 0.00 0.00 0.00
3 95.50 78.35 0.36 0.00 0.00 0.00
4 151.98 55.44 -0.90 0.00 0.00 0.00
5 -52.76 -110.10 -0.89 0.00 0.00 0.00
6 -104.90 -83.45 0.37 0.00 0.00 0.00
7 -107.85 -39.03 -59.04 0.00 0.00 0.00
8 131.63 -8.04 58.60 0.00 0.00 0.00
9 -138.04 -117.97 0.22 0.00 0.00 0.00
10 -93.66 -135.34 -0.77 0.00 0.00 0.00
11 -103.73 -133.46 -0.59 0.00 0.00 0.00
12 -127.74 -119.67 0.04 0.00 0.00 0.00
13 -167.72 -87.39 -59.04 0.00 0.00 0.00
14 87.75 -43.35 58.50 0.00 0.00 0.00
23 1 -48.70 62.80 -2.43 0.00 0.00 0.00
2 -238.24 256.90 -5.34 0.00 0.00 0.00
3 -110.66 0.54 -3.33 0.00 0.00 0.00
4 -135.14 72.96 -3.81 0.00 0.00 0.00
5 54.42 -91.62 1.58 0.00 0.00 0.00
6 91.47 -172.95 2.33 0.00 0.00 0.00
7 101.00 -75.24 -66.30 0.00 0.00 0.00
8 -130.52 -37.86 65.20 0.00 0.00 0.00
9 117.55 -190.77 3.10 0.00 0.00 0.00
10 99.92 -135.50 2.76 0.00 0.00 0.00
11 98.07 -142.29 2.72 0.00 0.00 0.00
12 119.18 -183.79 3.14 0.00 0.00 0.00
13 158.88 -125.19 -64.67 0.00 0.00 0.00
14 -88.10 -74.50 66.42 0.00 0.00 0.00
37 1 54.70 69.95 0.77 0.00 0.00 0.00
2 241.97 243.81 1.54 0.00 0.00 0.00
3 104.07 85.28 1.02 0.00 0.00 0.00
4 164.61 53.40 -0.46 0.00 0.00 0.00
5 -47.79 -127.39 -1.84 0.00 0.00 0.00
6 -104.27 -91.16 -0.33 0.00 0.00 0.00
7 -92.50 -207.10 -60.10 0.00 0.00 0.00
8 129.43 148.87 59.24 0.00 0.00 0.00
9 -137.70 -129.57 -0.78 0.00 0.00 0.00
10 -90.25 -153.91 -1.93 0.00 0.00 0.00
11 -100.59 -150.93 -1.73 0.00 0.00 0.00
12 -127.17 -132.43 -0.97 0.00 0.00 0.00
13 -154.56 -259.87 -60.50 0.00 0.00 0.00
14 83.82 110.02 58.84 0.00 0.00 0.00
50 1 -57.73 65.27 -0.52 0.00 0.00 0.00
2 -242.33 248.20 -3.07 0.00 0.00 0.00
3 -105.02 -9.28 -3.38 0.00 0.00 0.00
4 -124.21 61.10 -3.22 0.00 0.00 0.00

Sheet 119 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 107

SUPPORT REACTIONS -UNIT KN METE STRUCTURE TYPE = SPACE

-----------------

JOINT LOAD FORCE-X FORCE-Y FORCE-Z MOM-X MOM-Y MOM Z

5 63.05 -91.57 0.76 0.00 0.00 0.00

6 94.50 -170.27 0.78 0.00 0.00 0.00
7 95.06 -229.66 -68.03 0.00 0.00 0.00
8 -110.27 108.08 65.86 0.00 0.00 0.00
9 121.43 -186.68 1.40 0.00 0.00 0.00
10 107.83 -132.89 1.55 0.00 0.00 0.00
11 105.64 -139.74 1.45 0.00 0.00 0.00
12 123.41 -179.65 1.50 0.00 0.00 0.00
13 152.35 -276.06 -66.83 0.00 0.00 0.00
14 -68.26 74.09 66.76 0.00 0.00 0.00
53 1 117.53 118.11 -0.00 0.00 0.00 0.00
2 387.91 342.00 -0.00 0.00 0.00 0.00
3 145.27 111.13 -0.00 0.00 0.00 0.00
4 241.86 85.56 -0.00 0.00 0.00 0.00
5 -86.70 -167.47 0.00 0.00 0.00 0.00
6 -180.42 -137.14 0.00 0.00 0.00 0.00
7 -183.66 -190.25 -0.00 0.00 0.00 0.00
8 210.64 110.46 0.00 0.00 0.00 0.00
9 -229.51 -187.84 0.00 0.00 0.00 0.00
10 -154.19 -207.23 0.00 0.00 0.00 0.00
11 -169.27 -205.33 0.00 0.00 0.00 0.00
12 -214.38 -189.72 0.00 0.00 0.00 0.00
13 -280.03 -264.23 -0.00 0.00 0.00 0.00
14 140.13 56.31 0.00 0.00 0.00 0.00
66 1 -108.77 108.34 -2.97 0.00 0.00 0.00
2 -363.63 342.91 -5.03 0.00 0.00 0.00
3 -154.93 14.79 -3.42 0.00 0.00 0.00
4 -186.84 108.87 -3.85 0.00 0.00 0.00
5 97.30 -117.21 1.44 0.00 0.00 0.00
6 145.18 -223.08 2.09 0.00 0.00 0.00
7 160.25 -141.86 -64.77 0.00 0.00 0.00
8 -180.28 10.24 63.39 0.00 0.00 0.00
9 185.06 -247.43 2.85 0.00 0.00 0.00
10 161.91 -175.57 2.54 0.00 0.00 0.00
11 160.25 -184.53 2.50 0.00 0.00 0.00
12 186.72 -238.46 2.89 0.00 0.00 0.00
13 246.36 -210.20 -63.19 0.00 0.00 0.00
14 -117.20 -39.92 64.58 0.00 0.00 0.00
82 1 -41.18 73.73 0.20 0.00 0.00 0.00
2 -138.57 230.92 -2.67 0.00 0.00 0.00
3 -87.01 -56.04 -3.50 0.00 0.00 0.00
4 -124.89 13.35 -3.35 0.00 0.00 0.00
5 8.88 -91.34 0.57 0.00 0.00 0.00
6 49.13 -188.48 0.47 0.00 0.00 0.00
7 45.51 -224.80 -65.63 0.00 0.00 0.00
8 -111.56 44.01 63.02 0.00 0.00 0.00

Sheet 120 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 108

SUPPORT REACTIONS -UNIT KN METE STRUCTURE TYPE = SPACE

-----------------

JOINT LOAD FORCE-X FORCE-Y FORCE-Z MOM-X MOM-Y MOM Z

9 64.03 -195.75 1.09 0.00 0.00 0.00

10 35.79 -142.54 1.22 0.00 0.00 0.00
11 36.75 -149.69 1.12 0.00 0.00 0.00
12 63.07 -188.60 1.18 0.00 0.00 0.00
13 84.47 -261.82 -64.48 0.00 0.00 0.00
14 -83.25 17.00 63.89 0.00 0.00 0.00
85 1 128.31 148.83 -5.22 0.00 0.00 0.00
2 423.63 417.62 -20.07 0.00 0.00 0.00
3 182.91 160.98 2.25 0.00 0.00 0.00
4 216.87 76.30 16.11 0.00 0.00 0.00
5 -138.36 -234.00 23.28 0.00 0.00 0.00
6 -161.86 -137.72 7.86 0.00 0.00 0.00
7 -197.53 -190.43 -50.29 0.00 0.00 0.00
8 209.79 90.81 75.77 0.00 0.00 0.00
9 -226.75 -208.89 11.58 0.00 0.00 0.00
10 -199.30 -273.51 22.17 0.00 0.00 0.00
11 -208.38 -265.79 20.84 0.00 0.00 0.00
12 -217.67 -216.61 12.92 0.00 0.00 0.00
13 -300.74 -280.36 -48.37 0.00 0.00 0.00
14 135.90 25.63 77.25 0.00 0.00 0.00
98 1 -74.88 116.11 0.00 0.00 0.00 0.00
2 -239.80 370.24 0.00 0.00 0.00 0.00
3 -154.95 -28.43 0.01 0.00 0.00 0.00
4 -123.65 31.23 0.02 0.00 0.00 0.00
5 77.03 -174.71 0.01 0.00 0.00 0.00
6 54.60 -242.62 -0.00 0.00 0.00 0.00
7 105.57 -251.87 -0.00 0.00 0.00 0.00
8 -154.22 38.64 0.02 0.00 0.00 0.00
9 89.91 -277.70 0.00 0.00 0.00 0.00
10 115.11 -232.13 0.01 0.00 0.00 0.00
11 107.13 -237.63 0.01 0.00 0.00 0.00
12 97.90 -272.20 0.00 0.00 0.00 0.00
13 166.01 -315.96 -0.01 0.00 0.00 0.00
14 -113.96 -31.74 0.02 0.00 0.00 0.00
114 1 -31.77 49.93 0.00 0.00 0.00 0.00
2 -127.64 185.02 0.00 0.00 0.00 0.00
3 -53.23 -4.95 0.00 0.00 0.00 0.00
4 -66.97 52.20 -0.00 0.00 0.00 0.00
5 31.98 -64.98 -0.00 0.00 0.00 0.00
6 54.96 -128.60 0.00 0.00 0.00 0.00
7 56.63 -113.28 -0.00 0.00 0.00 0.00
8 -57.31 62.75 0.00 0.00 0.00 0.00
9 67.29 -140.67 0.00 0.00 0.00 0.00
10 57.60 -96.91 -0.00 0.00 0.00 0.00
11 55.79 -102.68 -0.00 0.00 0.00 0.00
12 69.11 -134.90 0.00 0.00 0.00 0.00

Sheet 121 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STAAD SPACE -- PAGE NO. 109

SUPPORT REACTIONS -UNIT KN METE STRUCTURE TYPE = SPACE

-----------------

JOINT LOAD FORCE-X FORCE-Y FORCE-Z MOM-X MOM-Y MOM Z

13 87.26 -148.87 -0.00 0.00 0.00 0.00

14 -39.89 1.38 0.00 0.00 0.00 0.00
117 1 63.67 100.95 11.09 0.00 0.00 0.00
2 263.86 327.00 34.96 0.00 0.00 0.00
3 132.12 145.72 10.03 0.00 0.00 0.00
4 149.46 64.97 -0.50 0.00 0.00 0.00
5 -81.13 -185.81 -24.87 0.00 0.00 0.00
6 -87.55 -94.44 -13.53 0.00 0.00 0.00
7 -124.32 -218.60 -88.00 0.00 0.00 0.00
8 157.00 157.98 71.09 0.00 0.00 0.00
9 -132.36 -153.88 -19.42 0.00 0.00 0.00
10 -117.72 -215.57 -27.53 0.00 0.00 0.00
11 -124.68 -207.96 -26.28 0.00 0.00 0.00
12 -125.40 -161.48 -20.67 0.00 0.00 0.00
13 -190.75 -291.07 -95.05 0.00 0.00 0.00
14 108.85 105.16 65.98 0.00 0.00 0.00
130 1 -49.87 61.33 0.00 0.00 0.00 0.00
2 -205.39 228.36 0.00 0.00 0.00 0.00
3 -105.89 56.62 -0.00 0.00 0.00 0.00
4 -59.44 83.32 0.00 0.00 0.00 0.00
5 96.33 -81.88 0.00 0.00 0.00 0.00
6 56.44 -113.50 -0.00 0.00 0.00 0.00
7 100.84 -123.74 -0.00 0.00 0.00 0.00
8 -89.49 77.80 0.00 0.00 0.00 0.00
9 87.34 -138.59 -0.00 0.00 0.00 0.00
10 124.15 -118.33 0.00 0.00 0.00 0.00
11 114.67 -120.30 0.00 0.00 0.00 0.00
12 96.83 -136.62 -0.00 0.00 0.00 0.00
13 147.92 -173.33 -0.00 0.00 0.00 0.00
14 -55.63 41.94 0.00 0.00 0.00 0.00

************** END OF LATEST ANALYSIS RESULT **************

1762. FINISH

STAAD SPACE -- PAGE NO. 110

*********** END OF THE STAAD.Pro RUN ***********

**** DATE= MAY 22,2020 TIME= 15:55:44 ****

Sheet 122 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

ROOF DESIGN

Sheet 123 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Case-1
*===============================================================================
*CI-6563-B01-REV-01- Roof Design Input 5/21/20 5:56pm
*===============================================================================

*( 1)JOBID:
'CI-6563-B01-REV-01-OBSTRUCTED'

*( 2)PROGRAM OPTIONS:
* Run Run Run Lap
* Purlin Panel Brace Stiff
'Y' 'N' 'Y' 0.50

*( 3)DESIGN CODE:
*Design ---Steel_Code--- ---Build--- Code Seismic
* Code Cold Hot Country Code Year Label Zone
'WS' 'NAUS01 ' 'AISC05' '----' 'MBMA' '06' 'MBMA 06 ' 'A '

*( 4)DESIGN CONSTANTS:
* ---Strength_Factor---
* ------Stress_Ratio------ ---Seismic---
* Purlin Panel Wind_Frame Wind Frame Brace
1.0000 1.00 1.00 1.000 1.000 1.000

*( 5)STEEL YIELDS:
* Web Flg C_Sec W_Sec R_Sec P_Sec T_Sec U_Sec EP BP
345 345 340 345 345 345 317 345 345 345

*( 6)DEFLECTION LIMITS:
*------Purlin----- ----Extension--- ----Gable_Ext---- Facia ---Panel--- Facia Wind_Frame
*Live Wind Total Live Wind Total Live Wind Total Girt Live Wind Panel Wind Seis
250.0 126.0 0.0 150.0 126.0 120.0 75.0 63.0 60.0 90.0 200.0 200.0 60.0 50.0 50.0

*( 7)REPORTS:
* Input Roof Eave Roof Cable Roof
* Echo Purlin Strut Panel Brace Open
'Y' 'Y' 'Y' 'N' 'Y' 'Y'

*( 8)BUILDING LAYOUT:
* Build L_Expand_EW R_Expand_EW ------Open_Wall------- Column
* Type Use Offset Use Offset L_EW F_SW R_EW B_SW Option
'FF-' 'Y ' 675.00 'Y ' 175.00 'N' 'N' 'N' 'N' '-'

*( 9)SURFACE SHAPE:
* No. X_Coord Y_Coord
4 0.0 8129.0
14871.0 9616.1
37741.0 7121.0
37741.0 0.0

*(10)WALL BAY SPACING:

* Wall No. ---Bay_Set---
* Id Sets Width Quan
1 1 38260.0 1
2 5 7635.0 1
6960.0 1
9100.0 1
8000.0 2
8150.0 1
3 1 38260.0 1
4 5 8150.0 1
8000.0 2
9100.0 1
6960.0 1
7635.0 1
5 5 7635.0 1
6960.0 1
9100.0 1
8000.0 2
8150.0 1

*(11)WALL OPENINGS:
* Wall Bay

Sheet 124 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

* Id No. Id Offset Width HeightL HeightR Type Option

1 0
2 0
3 0
4 0

*(12)PARTIAL WALLS:
*Wall Set_Of --Bay_Id-- Base Top Full_Load ----Panel-----
* Id Bays Id Use Start End Height Type Type Girt Col Part Opt
1 1 1 'P' 1 1 8097.0 '-' 'A' 'N' 'Y' '--------' '-'
2 1 2 'P' 1 6 6850.0 '-' 'A' 'N' 'Y' '--------' '-'
3 1 3 'P' 1 1 6850.0 '-' 'A' 'N' 'Y' '--------' '-'
4 1 4 'P' 1 6 8097.0 '-' 'A' 'N' 'Y' '--------' '-'

*(13)JACK BEAM LAYOUT:

* --Bay_Id-
* No. Id Start End Offset Height
0

*(14)SURFACE EXTENSION/FRAME RECESS:

* Surf ---Surf_Ext--- Frame_Recess
* Id Left Right Left Right
2 0.0 0.0 675.0 175.0
3 0.0 0.0 675.0 175.0

*(15)ENDWALL COLUMN/RAFTER:
*Wall L_Column R_Column
* Id Type Rot Type Rot Rafter
1 '-' 'N' '-' 'N' '--------'
3 '-' 'N' '-' 'N' '--------'

*(16)PURLINS:
* Surf Purlin --Flange_Strap-- Set ----Set_Lap---
* Id Type Offset Project Out In Space Depth Ext Int
2 'ZB' 0.00 0.00 'C' 'Y' 4800.0 200.00 0.0 0.0
3 'ZB' 0.00 0.00 'C' 'Y' 4800.0 200.00 0.0 0.0

*(17)PURLIN SPACING:
* Surf Space Peak Max Set No. -Purlin_Set-
* Id Opt Space Space Space Sets Space Quan
2 '-' 300.0 1800.0 950.0 8 620 1
950 1
550 1
750 2
700 1
800 1
750 1
975 9

3 '-' 300.0 1800.0 950.0 9 975 12

550 1
950 1
975 5
975 1
750 2
625 1
800 1
731 1
*(18)PURLIN SIZE:
*Surf Show
* Id Id No. Part
2 1 8 '250Z25' '250Z25' '250Z20' '250Z20' '250Z20' '250Z20' '250Z25' '250Z25'
3 1 8 '250Z25' '250Z25' '250Z20' '250Z20' '250Z20' '250Z20' '250Z25' '250Z25'

*(19)REPLACEMENT PURLINS:
* Surf Bay
*No. Id Id Id Part
0

*(20)EAVE STRUT:
*Wall
* Id Type Rot No. Part
2 'ZB' 'O' 0
4 'ZB' 'O' 0

Sheet 125 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

*(21)WALL GIRT:
*Wall Girt Girt
* Id Type Part Offset Proj
1 'ZF' '--------' 0.00 0.00
2 'ZB' '--------' 0.00 0.00
3 'ZF' '--------' 0.00 0.00
4 'ZB' '--------' 0.00 0.00

*(22)GUTTER/SOLDIER COLUMN:
*Wall --Gutter-- Soldier_Opt
* Id Use Width Rafter Brace
2 'N' 0.00 '-' '-'
4 'N' 0.00 '-' '-'

*(23)PANELS:
* Wall ----Roof_Panel--- -----------Standing_Seam-----------
* Panel Part Start Type Height Seam Type Clamp
'P1 ' 'P1 ' 0.0 '--' 0.00 '---------------' 'N'

*(24)LINER PANELS:
* --Bay_Id- Flange
*No. Start End Part Opt
0

*(25)INSULATION:
* Use Thick Part
'N' 50.00 'R50PU '

*(26)ROOF BRACING OPTIONS:

* -----L_EW_Brace_To_Frame----- -----R_EW_Brace_To_Frame-----
*Panel Diagonal Left_Bay Right_Bay Left_Bay Right_Bay
*Shear Bracing Opt Part Opt Part Opt Part Opt Part
'N' 'Y ' '-' '--------' '-' '--------' '-' '--------' '-' '--------'

*(27)ROOF DIAGONAL BRACING:

* Max_Pan Brace Each User_Selected_Roof_Bays
* Shear Type EW No. Bay_Id
1095 'CR' 'L' 3 2 3 6
0

*(28)ROOF BRACING ATTACHMENT:

*Wall
* Id No. Location
1 3 0.0 14871.0 37741.0
3 3 0.0 14871.0 37741.0

*(29)WALL/INTERIOR BRACING OPTIONS:

* -----------Order_Of_Selection-----------
* Wall Panel Diagonal Wind Wind Weak_Axis Brace
* Id Shear Bracing Bent Column Bending Option Height
2 'N' 'Y ' 'Y' 'N' 'N' 'XB' 5000.0
4 'N' 'Y ' 'Y' 'N' 'N' 'XB' 5000.0
5 'N' 'N ' 'N' 'N' 'N' '--' 0.0

*(30)SIDEWALL DIAGONAL BRACING:

* Wall Max_Pan User_Selected_SW_Bays
* Id Shear Type No. Bay_Id
2 1095 'CR' 3 2 3 6
4 1095 'CR' 3 1 4 5

*(31)WIND BENTS:
*Wall Member -----Column----- -----Rafter----- No.
* Id Type Depth Part Depth Part Bays Bay_Id
2 'W' 0.0 '--------' 0.0 '--------' 0
4 'W' 0.0 '--------' 0.0 '--------' 0
5 'W' 0.0 '--------' 0.0 '--------' 0

*(32)WIND COLUMNS:
*Wall Member Left/
* Id Type Depth Part No. Bay_Id Right
2 'W' 0.0 '--------' 0
4 'W' 0.0 '--------' 0
5 'W' 0.0 '--------' 0

Sheet 126 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

*(33)WALL BRACING ATTACHMENT:

*Wall --Bay_Id-- No. ----Level----
* Id No. Id Start End Connect Option Level Height Strut
2 1 1 1 6 'F' 0 2 5000.0 'B'
7121.0 'E'
4 1 2 1 6 'F' 0 2 5000.0 'B'
8129.0 'E'

*(34)INTERIOR DIAGONAL BRACING:

* Attach User_Selected_Int_Bays
*No. Offset Type No. Bay_Id
0

*(35)INTERIOR BRACING ATTACHMENT:

* --Bay_Id-- No.
* No. Offset Start End Level Level_Height
0

*(36)EXTENSION LAYOUT:
* Ext Wall --Bay_Id- --Edge_Extend-- End_Option
*No. Id Id Type Opt Mount Start End Left Right Left Right
2 1 2 'EE' '-' 'B' 1 6 0.0 0.0 ' ' ' '
2 4 'EE' '-' 'B' 1 6 0.0 0.0 ' ' ' '

*(37)EXTENSION SIZE:
*Ext ----Horizontal_Size---- ---------Vertical_Size-------- --Orient--
*Id Height Width Slope Elev Height Slope Project Beam Panel
1 0.0 4225.0 10.910 0.0 0.0 0.000 0.00 '-' '-'
2 0.0 1500.0 10.000 0.0 0.0 0.000 0.00 '-' '-'

*(38)EXTENSION PURLINS:
* Ext --Flange_Strap-- Set ----Set_Lap--- Peak Max Set
*No. Id Loc Type Out In Space Depth Ext Int Space Space Space
2 1 'R' 'ZB' 'C' 'Y' 4800.0 0.00 660.0 660.0 0.0 1800.0 975.0
2 'R' 'ZB' 'C' 'Y' 4800.0 0.00 660.0 660.0 0.0 1800.0 750.0

*(39)EXTENSION EAVE STRUTS/GUTTERS:

* Ext --Eave-- --Gutter--
*No. Id Type Rot Use Width
2 1 'ZB' '-' 'N' 0.00
2 'ZB' '-' 'N' 0.00

*(40)EXTENSION PANELS:
* Ext ------------Standing_Seam-----------
*No. Id Loc Part Rot Space Type Height Seam Type Clamp
4 1 'R' 'P1 ' 'N' 0.0 '--' 0.00 '---------------' 'N'
1 'S' '--------' 'N' 0.0 '--' 0.00 '---------------' 'N'
2 'R' 'P1 ' 'N' 0.0 '--' 0.00 '---------------' 'N'
2 'S' '--------' 'N' 0.0 '--' 0.00 '---------------' 'N'

*(41)EXTENSION BRACING:
* Ext Run Max_Pan Brace User_Selected_Bays
*No. Id Brace Shear Type No. Bay_Id
2 1 'N' 1460 '--' 0
2 'N' 1460 '--' 0

*(42)WALL BASE ELEVATION/DEAD:

*Wall Base Wall Seis --%_Open--
* Id Elev Dead Opt Seis Wind
1 2500.0 0.0957 'Y' 0.85 0.85
2 2500.0 0.0957 'Y' 1.00 1.00
3 2500.0 0.0957 'Y' 0.85 0.85
4 2500.0 0.0957 'Y' 1.00 1.00
5 0.0 0.2457 'Y' 0.00 0.00

*(43)ROOF BASIC LOADS:

* ---Deflection--- Wall Seismic
* Dead Collat Live Snow Rain Basic Load_Ratio --Friction-- Edge Ld_Rat
* Load Load Load Load Load Wind Snow Wind Seis Wind Coef Zone Factor
0.150 0.000 1.570 0.000 0.000 1.106 1.00 1.00 1.00 1.431 0.1058 0 1.0000

Sheet 127 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

*(44)WIND PRESSURE/SUCTION:
* Wind Wind Wind
* Press Suct Suct_Roof
0.4785 -1.5188 .. Purlins
0.4785 -1.5188 .. Interior Roof Panels
1.4311 0.0000 -1.1285 .. Long Bracing, Building
1.4311 0.0000 .. Long Bracing, Wall Edge Zone
1.6595 -1.1064 0.8851 .. Long Bracing, Facia/Parapet

*(45)EXTENSION BASIC LOADS:

* -------Purlin_Wind------- --------Panel_Wind--------
*Ext Attach_Beam Facia_Beam Attach_Beam Facia_Beam
*Id Dead Collat Live Snow Drift Slide Rain Press Suct Pre
ss Suct Press Suct Press Suct
1 0.1500 0.0000 1.5700 0.0000 0.0000 0.0000 .0000 0.479 -1.745 0.000 0.000 0.479 -1.877 0.000 0.000
2 0.1500 0.0000 1.5700 0.0000 0.0000 0.0000 .0000 0.479 -1.745 0.000 0.000 0.479 -1.877 0.000 0.000

*(46)ROOF EDGE & CORNER ZONES:

*Wind Surf No Zone ---Purlin--- ---Panel---- Screw
* Id Id Zone Id Width Length Press Suct Press Suct Suct
1 2 5 1 0 0 1.00 1.00 1.00 1.00 1.00 .. Interior
2 3448 3448 1.60 1.53 1.60 1.50 1.50 .. Middle
3 0 3448 1.60 1.53 2.00 3.00 3.00 .. Edge_Left
4 1948 0 1.60 1.53 2.00 3.00 3.00 .. Edge_Top
5 0 3448 1.60 1.53 2.00 3.00 3.00 .. Edge_Right
1 3 4 1 0 0 1.00 1.00 1.00 1.00 1.00 .. Interior
2 3448 3448 1.60 1.53 1.60 1.50 1.50 .. Middle
3 0 3448 1.60 1.53 2.00 3.00 3.00 .. Edge_Left
5 0 3448 1.60 1.53 2.00 3.00 3.00 .. Edge_Right
2 2 1 1 0 0 1.00 1.00 1.00 1.00 1.00 .. Interior
2 3 1 1 0 0 1.00 1.00 1.00 1.00 1.00 .. Interior

*(47)ROOF EDGE & CORNER ZONES, LONGITUDINAL:

* EW
*Wind Surf No Zone Purlin
* Id Id Zone Id Width Length Suct
1 2 1 1 0 0 1.00 .. Interior
1 3 1 1 0 0 1.00 .. Interior
2 2 1 1 0 0 1.00 .. Interior
2 3 1 1 0 0 1.00 .. Interior

*(48)EXTENSION EDGE ZONES:

* Ext No. Zone ---Purlin-- ---Panel--- Screw
*No. Id Orn Zone Id Length Press Suct Press Suct Suct
2 1 'H' 3 1 0 1.00 1.00 1.00 1.00 1.00
2 3448 1.00 0.51 1.00 1.61 1.61
3 3448 1.00 0.51 1.00 1.61 1.61
2 'H' 3 1 0 1.00 1.00 1.00 1.00 1.00
2 3448 1.00 0.51 1.00 1.61 1.61
3 3448 1.00 0.51 1.00 1.61 1.61

*(49)PURLIN LOAD COMBINATIONS, STRENGTH:

* Surf No. Load -Add_Snow- ---Wind1--- ---Wind2--- Long_Wind Aux_Load
* Id Load Id Dead Collat Live Snow Drift Slide Rain Press Suct Press Suct EW1 EW2 Id Coef
2 5 1 1.00 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
2 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
3 1.00 1.00 0.75 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0.00 0.00 0 0.00
4 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0.00 0.00 0 0.00
5 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0 0.00
3 5 1 1.00 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
2 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
3 1.00 1.00 0.75 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0.00 0.00 0 0.00
4 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0.00 0.00 0 0.00
5 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0 0.00

*(50)PURLIN LOAD COMBINATIONS, DEFLECTION:

* Surf No. Load -Add_Snow- ---Wind1--- ---Wind2--- Long_Wind Aux_Load
* Id Load Id Dead Collat Live Snow Drift Slide Rain Press Suct Press Suct EW1 EW2 Id Coef
2 5 6 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
7 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
8 1.00 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
9 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0 0.00
10 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0 0.00
3 5 6 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
7 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
8 1.00 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
9 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0 0.00
10 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0 0.00

Sheet 128 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

*(51)BRACING LOAD COMBINATIONS, STRENGTH:

* No. Load -Add_Snow- Long_Wind Aux_Load
* Load Id Dead Collat Live Snow Drift Slide Rain EW1 EW2 Seis Id Coef
11 1 1.00 1.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0 0.00
2 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0 0.00
3 1.00 1.00 0.75 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0 0.00
4 1.00 1.00 0.75 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0 0.00
5 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0 0.00
6 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0 0.00
7 0.60 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0 0.00
8 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0 0.00
9 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
10 1.00 1.00 0.75 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
11 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00

*(52)BRACING LOAD COMBINATIONS, DEFLECTION:

* No. Load -Add_Snow- Long_Wind Aux_Load
* Load Id Dead Collat Live Snow Drift Slide Rain EW1 EW2 Seis Id Coef
5 12 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
13 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
14 1.00 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
15 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0 0.00
16 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0 0.00

*(53)EXTENSION LOAD COMBINATIONS, STRENGTH:

* No. Load Wind Wind
* Load Id Dead Collat Live Snow Drift Slide Rain Press Suct
5 1 1.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00
2 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
3 1.00 0.00 0.75 0.00 0.00 0.00 0.00 0.75 0.00
4 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00
5 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00

*(54)EXTENSION LOAD COMBINATIONS, DEFLECTION:

* No. Load Wind Wind
* Load Id Dead Collat Live Snow Drift Slide Rain Press Suct
5 6 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
7 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00
8 1.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00
9 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00
10 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00

*(55)PANEL LOAD COMBINATIONS, STRENGTH:

* No. Load -Add_Snow- ---Wind1--- ---Wind2--- Aux_Load
* Load Id Dead Collat Live Snow Drift Slide Rain Press Suct Press Suct Id Coef
6 1 1.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
2 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
3 1.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0 0.00
4 1.00 0.00 0.75 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0 0.00
5 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0 0.00
6 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0 0.00

*(56)PANEL LOAD COMBINATIONS, DEFLECTION:

* No. Load -Add_Snow- ---Wind1--- ---Wind2--- Aux_Load
* Load Id Dead Collat Live Snow Drift Slide Rain Press Suct Press Suct Id Coef
5 7 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
8 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0 0.00
9 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0 0.00
10 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
11 1.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00

*(57)AUXILIARY LOADS:
* No._Add Add_Load
* No. Id Name Combs Id Coef
0

*(58)ADDITIONAL LOADS:
* Surf Basic Load Load F D ----Surface----
* No. Id Id Load Type Orn W1 W2 D1 D2 Start End
0

Sheet 129 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

*(59)PURLIN LAPS:
*Surf Data ------Set_1------- ------Set_2------- ------Set_3-------
* Id Opt Sets Left Right Quan Left Right Quan Left Right Quan
2 '-' 0
3 '-' 0

*(60)PURLIN LAPS: Extensions

*Ext Data ------Set_1------- ------Set_2------- ------Set_3-------
* Id Opt Sets Left Right Quan Left Right Quan Left Right Quan
1 '-' 0
2 '-' 0

*(61)PURLIN STRAPS:
* No.
* Opt Bay Straps/Bay
'-' 0

*(62)PURLIN STRAPS: Extensions

*Ext No.
* Id Bay Straps/Bay
1 0
2 0

*(63)PANEL SCREWS:
* No. Washer
*Zone Locate Id Zone Part Dia Limit Dia -------Spacing------
4 'ROOF ' 0 'INT ' '??? ' 5.50 15.300 19.00 0.00 0.00 0.00
'ROOF ' 0 'EDGE' '??? ' 5.50 15.300 19.00 0.00 0.00 0.00
'ROOF ' 0 'CORN' '??? ' 5.50 15.300 19.00 0.00 0.00 0.00
'WALL ' 0 'BASE' '??? ' 5.50 15.300 19.00 0.00 0.00 0.00

*(64)EXPANSION JOINTS:
*No. Expansion_Location
0

*(65)ADDED PURLINS:
* Surf --Bay_Id-- -Surface_Offset- ---Support---
*No. Id Id Start End Start End Opt Locate
0

*(66)PURLIN SYSTEMS:
*Surf Added_Purlins
* Id No. Id No. Id
2 1 1 0
3 1 1 0

*(67)ROOF OPENING LAYOUT:

* -Location- Frame --Surface-- ----Bay----
*No. Id Use Id Opt Type Id Offset Id Offset Width Length Ref Dist
0

*(68)ROOF OPENING FRAMING:

*Open Jamb Head ----Support---- Panel
* Id Type Type Type Opt Depth Opt Load

*(69)DESIGN CODE OPTIONS:

*No. Event Condition
0

*(70)WALL LIGHT PANELS:

* Wall ---Bay---- -Light_Panel-
* No. Id Id Offset Length Offset
0

*AUXILIARY LOAD DESCRIPTIONS:

* Aux
* Id Description
*
*ADDITIONAL LOAD DESCRIPTIONS:
* Add
* Id Description
*
* Code files used:
* MBMA.06

Sheet 130 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

* ROOFMBMA.06 Version 4.5

================================================================================
CI-6563-B01-REV-01- Design Code 5/21/20 8:06pm
================================================================================

STRUCTURAL CODE:
Design Basis : WS - Working Stress
Hot Rolled Steel : AISC05
Cold Formed Steel : NAUS01

BUILDING CODE:
Wind Code : MBMA 06
Seismic Zone : A

MODULUS OF ELASTICITY:
Hot Rolled Steel : 199955 (MN/m2)
Cold Formed Steel : 203403 (MN/m2)

================================================================================
CI-6563-B01-REV-01- Purlin Layout(Surface= 2) 5/21/20 8:06pm
================================================================================

SURFACE LAYOUT:
Surface No. Peak
Id Length Row Space
------- ------- --- -----
2 14945 17 300

PURLIN LOCATION:
Purlin Surf Load Dead Show ------Max_Load------
Id Offset Space Width Load Report Id UC Report Notes
------ ------ ----- ----- ----- ------ --- ---- --------- ------
1 620 620 785 0.095 Y 8 0.68 Deflection
2 1570 950 750 0.099 8 0.65 Deflection
3 2120 550 650 0.114 5 0.80 Mom,Shr
4 2870 750 750 0.099 5 0.98 Mom,Shr
5 3620 750 725 0.103 5 0.95 Mom,Shr
6 4320 700 750 0.099 5 0.98 Mom,Shr
7 5120 800 775 0.096 5 0.97 Mom,Shr
8 5870 750 862 0.086 5 0.88 Mom,Shr
9 6845 975 975 0.076 Y 5 0.99 Mom,Shr
10 7820 975 975 0.076 5 0.99 Mom,Shr
11 8795 975 975 0.076 5 0.99 Mom,Shr
12 9770 975 975 0.076 5 0.99 Mom,Shr
13 10745 975 975 0.076 5 0.99 Mom,Shr
14 11720 975 975 0.076 5 0.99 Mom,Shr
15 12695 975 975 0.076 5 0.99 Mom,Shr
16 13670 975 975 0.076 5 0.99 Mom,Shr
17 14645 975 787 0.094 5 0.80 Mom,Shr
14945 300
-----
Average= 0.086

LAYOUT:
Bay Design ---Lap(mm)-- No.
Id Part Length Left Right Strap
---- -------- ------ ----- ----- -----
LExt 250Z25 675 0
1 250Z25 6960 660 1
2 250Z20 6960 660 660 1
3 250Z20 9100 660 660 1
4 250Z20 8000 660 660 1
5 250Z20 8000 660 660 1
6 250Z25 7975 660 1
RExt 250Z25 175 0

LOAD COMBINATIONS:
5 - 0.6Dead+Wind_Suction1

Sheet 131 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

================================================================================
CI-6563-B01-REV-01- Purlin(Surface= 2, Id= 1) 5/21/20 8:06pm
================================================================================
------------------------------
ROOF PURLIN
Surface Id = 2
Purlin Id = 1
Offset = 620
------------------------------

LAYOUT: (Purlin Id= 1)

Available
Design Reduction
Bay Length ---Lap(mm)-- Load No. Factor
Id Part (mm) Left Right Width Strap Out In
---- -------- ------ ----- ----- ----- ----- ---- ----
LExt 250Z25 675 785 0 0.00 0.70
1 250Z25 6960 660 785 1 0.00 0.70
2 250Z20 6960 660 660 785 1 0.00 0.70
3 250Z20 9100 660 660 785 1 0.00 0.70
4 250Z20 8000 660 660 785 1 0.00 0.70
5 250Z20 8000 660 660 785 1 0.00 0.70
6 250Z25 7975 660 785 1 0.00 0.70
RExt 250Z25 175 785 0 0.00 0.70

LOAD ID 1 : Dead+Collateral+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.90 0.00 0.08 338 0.30
1 3.84 -4.60 -5.48 0.30 -5.19 2866 2.70 6.03
2 4.44 3.56 -3.99 -4.88 6.03 3.39 -1.34 3318 4.61 7.53
3 5.94 5.06 -5.36 -6.25 7.53 3.91 -5.64 4436 5.10 8.93
4 5.69 4.81 -4.13 -5.02 8.93 5.46 -3.18 4253 3.20 6.22
5 5.00 4.12 -4.83 -5.71 6.22 3.21 -3.12 3735 5.58 9.05
6 6.47 5.59 -4.21 9.05 5.07 -6.58 4834 0.02
RExt 0.23 0.00 0.02 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.90 41.17 0.02 RSup 0.30 13.63 0.02 RSup 0.03 4.4
1 RLap -4.60 41.17 0.11 MidS -5.19 13.63 0.38 RSup 0.27 -12.7
2 RLap -3.99 20.99 0.19 RLap 4.61 10.23 0.45 RLap 0.49 0.1
3 RLap -5.36 20.99 0.26 MidS -5.64 10.23 0.55 RLap 0.56 -24.9
4 LLap 4.81 20.99 0.23 LLap 5.46 10.23 0.53 LLap 0.58 -7.9
5 RLap -4.83 20.99 0.23 RLap 5.58 10.23 0.55 RLap 0.59 -7.5
6 LLap 5.59 41.17 0.14 MidS -6.58 13.63 0.48 LLap 0.43 -20.1
RExt LSup 0.23 41.17 0.01 LSup 0.02 13.63 0.00 LSup 0.00 1.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.53 8.78 11.94 0.29
2 2.03 8.78 9.55 0.23 2.85 8.78 9.55 0.33
3 2.85 8.78 9.55 0.33 3.38 8.78 9.55 0.39
4 3.38 8.78 9.55 0.39 2.36 8.78 9.55 0.27
5 2.36 8.78 9.55 0.27 3.06 8.78 9.55 0.35
6 3.80 8.78 11.94 0.43

LOAD ID 2 : Dead+Collateral
----------------------------------------------------------------------

REACTIONS:

Sheet 132 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.08 0.00 0.01 338 0.03
1 0.34 -0.40 -0.48 0.03 -0.45 2866 0.24 0.53
2 0.39 0.31 -0.35 -0.43 0.53 0.30 -0.12 3318 0.40 0.66
3 0.52 0.44 -0.47 -0.55 0.66 0.34 -0.49 4436 0.45 0.78
4 0.50 0.42 -0.36 -0.44 0.78 0.48 -0.28 4253 0.28 0.54
5 0.44 0.36 -0.42 -0.50 0.54 0.28 -0.27 3735 0.49 0.79
6 0.57 0.49 -0.37 0.79 0.44 -0.58 4834 0.00
RExt 0.02 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.08 41.17 0.00 RSup 0.03 13.63 0.00 LSup 0.00 0.4
1 RLap -0.40 41.17 0.01 MidS -0.45 13.63 0.03 LSup 0.00 -1.1
2 RLap -0.35 20.99 0.02 RLap 0.40 10.23 0.04 RLap 0.04 0.0
3 RLap -0.47 20.99 0.02 MidS -0.49 10.23 0.05 RLap 0.05 -2.2
4 LLap 0.42 20.99 0.02 LLap 0.48 10.23 0.05 LLap 0.05 -0.7
5 RLap -0.42 20.99 0.02 RLap 0.49 10.23 0.05 RLap 0.05 -0.7
6 LLap 0.49 41.17 0.01 MidS -0.58 13.63 0.04 LLap 0.04 -1.8
RExt LSup 0.02 41.17 0.00 LSup 0.00 13.63 0.00 LSup 0.00 0.1

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.22 8.78 11.94 0.03
2 0.18 8.78 9.55 0.02 0.25 8.78 9.55 0.03
3 0.25 8.78 9.55 0.03 0.30 8.78 9.55 0.03
4 0.30 8.78 9.55 0.03 0.21 8.78 9.55 0.02
5 0.21 8.78 9.55 0.02 0.27 8.78 9.55 0.03
6 0.33 8.78 11.94 0.04

LOAD ID 3 : Dead+Collateral+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.89 0.00 0.07 338 0.30
1 3.77 -4.52 -5.39 0.30 -5.10 2866 2.65 5.92
2 4.37 3.50 -3.92 -4.79 5.92 3.33 -1.32 3318 4.53 7.40
3 5.84 4.97 -5.27 -6.14 7.40 3.84 -5.54 4436 5.01 8.77
4 5.60 4.73 -4.06 -4.93 8.77 5.36 -3.12 4253 3.14 6.11
5 4.91 4.05 -4.74 -5.61 6.11 3.15 -3.07 3735 5.48 8.90
6 6.36 5.49 -4.13 8.90 4.99 -6.47 4834 0.02
RExt 0.23 0.00 0.02 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.89 41.17 0.02 RSup 0.30 13.63 0.02 RSup 0.03 4.3
1 RLap -4.52 41.17 0.11 MidS -5.10 13.63 0.37 RSup 0.27 -12.5
2 RLap -3.92 20.99 0.19 RLap 4.53 10.23 0.44 RLap 0.48 0.1
3 RLap -5.27 20.99 0.25 MidS -5.54 10.23 0.54 RLap 0.55 -24.5
4 LLap 4.73 20.99 0.23 LLap 5.36 10.23 0.52 LLap 0.57 -7.7
5 RLap -4.74 20.99 0.23 RLap 5.48 10.23 0.54 RLap 0.58 -7.4
6 LLap 5.49 41.17 0.13 MidS -6.47 13.63 0.47 LLap 0.42 -19.7
RExt LSup 0.23 41.17 0.01 LSup 0.02 13.63 0.00 LSup 0.00 1.6

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC

Sheet 133 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

---- ----- ----- ----- ---- ----- ----- ----- ----

1 2.49 8.78 11.94 0.28
2 2.00 8.78 9.55 0.23 2.80 8.78 9.55 0.32
3 2.80 8.78 9.55 0.32 3.32 8.78 9.55 0.38
4 3.32 8.78 9.55 0.38 2.31 8.78 9.55 0.26
5 2.31 8.78 9.55 0.26 3.00 8.78 9.55 0.34
6 3.74 8.78 11.94 0.43

LOAD ID 4 : Dead+Collateral+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.27 0.00 0.02 338 0.09
1 1.14 -1.37 -1.64 0.09 -1.55 2866 0.81 1.80
2 1.33 1.06 -1.19 -1.45 1.80 1.01 -0.40 3318 1.37 2.25
3 1.77 1.51 -1.60 -1.86 2.25 1.16 -1.68 4436 1.52 2.66
4 1.70 1.43 -1.23 -1.50 2.66 1.63 -0.95 4253 0.95 1.85
5 1.49 1.23 -1.44 -1.70 1.85 0.96 -0.93 3735 1.66 2.70
6 1.93 1.67 -1.25 2.70 1.51 -1.96 4834 0.01
RExt 0.07 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.27 41.17 0.01 RSup 0.09 13.63 0.01 LSup 0.00 1.3
1 RLap -1.37 41.17 0.03 MidS -1.55 13.63 0.11 RSup 0.08 -3.8
2 RLap -1.19 20.99 0.06 RLap 1.37 10.23 0.13 RLap 0.15 0.0
3 RLap -1.60 20.99 0.08 MidS -1.68 10.23 0.16 RLap 0.17 -7.4
4 LLap 1.43 20.99 0.07 LLap 1.63 10.23 0.16 LLap 0.17 -2.3
5 RLap -1.44 20.99 0.07 RLap 1.66 10.23 0.16 RLap 0.18 -2.2
6 LLap 1.67 41.17 0.04 MidS -1.96 13.63 0.14 LLap 0.13 -6.0
RExt LSup 0.07 41.17 0.00 LSup 0.01 13.63 0.00 LSup 0.00 0.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.76 8.78 11.94 0.09
2 0.61 8.78 9.55 0.07 0.85 8.78 9.55 0.10
3 0.85 8.78 9.55 0.10 1.01 8.78 9.55 0.11
4 1.01 8.78 9.55 0.11 0.70 8.78 9.55 0.08
5 0.70 8.78 9.55 0.08 0.91 8.78 9.55 0.10
6 1.13 8.78 11.94 0.13

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.76 0.00 -0.06 338 -0.26
1 -3.22 3.86 4.60 -0.26 4.36 2866 -2.27 -5.06
2 -3.73 -2.99 3.35 4.09 -5.06 -2.84 1.13 3318 -3.86 -6.32
3 -4.98 -4.24 4.50 5.24 -6.32 -3.28 4.73 4436 -4.28 -7.49
4 -4.78 -4.04 3.47 4.21 -7.49 -4.58 2.67 4253 -2.68 -5.22
5 -4.20 -3.45 4.05 4.79 -5.22 -2.69 2.62 3735 -4.68 -7.59
6 -5.43 -4.69 3.53 -7.59 -4.26 5.52 4834 -0.02
RExt -0.20 0.00 -0.02 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.76 41.17 0.02 RSup -0.26 13.63 0.02 RSup 0.03 -3.7
1 RLap 3.86 41.17 0.09 MidS 4.36 9.54 0.46 RSup 0.23 10.6

Sheet 134 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

2 RLap 3.35 20.99 0.16 RLap -3.86 10.23 0.38 RLap 0.41 -0.1
3 RLap 4.50 20.99 0.21 MidS 4.73 7.16 0.66 RLap 0.47 20.9
4 LLap -4.04 20.99 0.19 LLap -4.58 10.23 0.45 LLap 0.49 6.6
5 RLap 4.05 20.99 0.19 RLap -4.68 10.23 0.46 RLap 0.49 6.3
6 LLap -4.69 41.17 0.11 MidS 5.52 9.54 0.58 LLap 0.36 16.8
RExt LSup -0.20 41.17 0.00 LSup -0.02 13.63 0.00 LSup 0.00 -1.4

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.12 8.78 11.94 0.24
2 1.71 8.78 9.55 0.19 2.39 8.78 9.55 0.27
3 2.39 8.78 9.55 0.27 2.84 8.78 9.55 0.32
4 2.84 8.78 9.55 0.32 1.98 8.78 9.55 0.23
5 1.98 8.78 9.55 0.23 2.56 8.78 9.55 0.29
6 3.19 8.78 11.94 0.36

DEFLECTION:
------------------------------

LOAD ID 6 : Dead+Collateral
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.4
1 3480 -1.1 27.8 0.04
2 3480 0.0 27.8 0.00
3 4550 -2.2 36.4 0.06
4 4000 -0.7 32.0 0.02
5 4000 -0.7 32.0 0.02
6 3988 -1.8 31.9 0.06
RExt 175 0.1

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.0
1 3480 -11.6 27.8 0.42
2 3480 0.1 27.8 0.00
3 4550 -22.7 36.4 0.62
4 4000 -7.2 32.0 0.22
5 4000 -6.9 32.0 0.21
6 3988 -18.3 31.9 0.57
RExt 175 1.5

LOAD ID 8 : Dead+Collateral+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.4
1 3480 -12.7 27.8 0.46
2 3480 0.1 27.8 0.00
3 4550 -24.9 36.4 0.68
4 4000 -7.9 32.0 0.25
5 4000 -7.5 32.0 0.24
6 3988 -20.1 31.9 0.63
RExt 175 1.7

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.2
1 3480 -3.6 55.2 0.06
2 3480 0.0 55.2 0.00
3 4550 -7.0 72.2 0.10

Sheet 135 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

4 4000 -2.2 63.5 0.03

5 4000 -2.1 63.5 0.03
6 3988 -5.6 63.3 0.09
RExt 175 0.5

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -3.9
1 3480 11.3 55.2 0.20
2 3480 -0.1 55.2 0.00
3 4550 22.2 72.2 0.31
4 4000 7.0 63.5 0.11
5 4000 6.7 63.5 0.11
6 3988 17.9 63.3 0.28
RExt 175 -1.5
================================================================================
CI-6563-B01-REV-01- Purlin(Surface= 2, Id= 9) 5/21/20 8:06pm
================================================================================
------------------------------
ROOF PURLIN
Surface Id = 2
Purlin Id = 9
Offset = 6845
------------------------------

LAYOUT: (Purlin Id= 9)

Available
Design Reduction
Bay Length ---Lap(mm)-- Load No. Factor
Id Part (mm) Left Right Width Strap Out In
---- -------- ------ ----- ----- ----- ----- ---- ----
LExt 250Z25 675 975 0 0.00 0.70
1 250Z25 6960 660 975 1 0.00 0.70
2 250Z20 6960 660 660 975 1 0.00 0.70
3 250Z20 9100 660 660 975 1 0.00 0.70
4 250Z20 8000 660 660 975 1 0.00 0.70
5 250Z20 8000 660 660 975 1 0.00 0.70
6 250Z25 7975 660 975 1 0.00 0.70
RExt 250Z25 175 975 0 0.00 0.70

LOAD ID 1 : Dead+Collateral+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.12 0.00 0.09 338 0.38
1 4.77 -5.71 -6.81 0.38 -6.45 2866 3.35 7.48
2 5.52 4.42 -4.96 -6.06 7.48 4.21 -1.67 3318 5.72 9.35
3 7.38 6.28 -6.66 -7.76 9.35 4.85 -7.00 4436 6.33 11.08
4 7.07 5.97 -5.13 -6.23 11.08 6.78 -3.95 4253 3.97 7.72
5 6.21 5.11 -5.99 -7.09 7.72 3.99 -3.88 3735 6.93 11.24
6 8.04 6.94 -5.22 11.24 6.30 -8.18 4834 0.03
RExt 0.29 0.00 0.03 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.12 41.17 0.03 RSup 0.38 13.63 0.03 RSup 0.04 5.4
1 RLap -5.71 41.17 0.14 MidS -6.45 13.63 0.47 RSup 0.34 -15.7
2 RLap -4.96 20.99 0.24 RLap 5.72 10.23 0.56 RLap 0.61 0.1
3 RLap -6.66 20.99 0.32 MidS -7.00 10.23 0.68 RLap 0.69 -31.0
4 LLap 5.97 20.99 0.28 LLap 6.78 10.23 0.66 LLap 0.72 -9.8
5 RLap -5.99 20.99 0.29 RLap 6.93 10.23 0.68 RLap 0.73 -9.4
6 LLap 6.94 41.17 0.17 MidS -8.18 13.63 0.60 LLap 0.53 -24.9
RExt LSup 0.29 41.17 0.01 LSup 0.03 13.63 0.00 LSup 0.00 2.1

Sheet 136 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.14 8.78 11.94 0.36
2 2.53 8.78 9.55 0.29 3.54 8.78 9.55 0.40
3 3.54 8.78 9.55 0.40 4.20 8.78 9.55 0.48
4 4.20 8.78 9.55 0.48 2.93 8.78 9.55 0.33
5 2.93 8.78 9.55 0.33 3.80 8.78 9.55 0.43
6 4.72 8.78 11.94 0.54

LOAD ID 2 : Dead+Collateral
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.10 0.00 0.01 338 0.03
1 0.42 -0.50 -0.60 0.03 -0.56 2866 0.29 0.66
2 0.48 0.39 -0.43 -0.53 0.66 0.37 -0.15 3318 0.50 0.82
3 0.65 0.55 -0.58 -0.68 0.82 0.42 -0.61 4436 0.55 0.97
4 0.62 0.52 -0.45 -0.55 0.97 0.59 -0.35 4253 0.35 0.68
5 0.54 0.45 -0.53 -0.62 0.68 0.35 -0.34 3735 0.61 0.98
6 0.70 0.61 -0.46 0.98 0.55 -0.72 4834 0.00
RExt 0.03 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.10 41.17 0.00 RSup 0.03 13.63 0.00 LSup 0.00 0.5
1 RLap -0.50 41.17 0.01 MidS -0.56 13.63 0.04 RLap 0.03 -1.4
2 RLap -0.43 20.99 0.02 RLap 0.50 10.23 0.05 RLap 0.05 0.0
3 RLap -0.58 20.99 0.03 MidS -0.61 10.23 0.06 RLap 0.06 -2.7
4 LLap 0.52 20.99 0.02 LLap 0.59 10.23 0.06 LLap 0.06 -0.9
5 RLap -0.53 20.99 0.03 RLap 0.61 10.23 0.06 RLap 0.06 -0.8
6 LLap 0.61 41.17 0.01 MidS -0.72 13.63 0.05 LLap 0.05 -2.2
RExt LSup 0.03 41.17 0.00 LSup 0.00 13.63 0.00 LSup 0.00 0.2

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.28 8.78 11.94 0.03
2 0.22 8.78 9.55 0.03 0.31 8.78 9.55 0.04
3 0.31 8.78 9.55 0.04 0.37 8.78 9.55 0.04
4 0.37 8.78 9.55 0.04 0.26 8.78 9.55 0.03
5 0.26 8.78 9.55 0.03 0.33 8.78 9.55 0.04
6 0.41 8.78 11.94 0.05

LOAD ID 3 : Dead+Collateral+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.10 0.00 0.09 338 0.37
1 4.88 -6.14 -7.22 0.37 -6.91 2965 3.36 7.77
2 5.50 4.42 -4.80 -5.88 7.77 4.50 -1.48 3364 5.56 9.08
3 7.23 6.15 -6.56 -7.64 9.08 4.67 -6.90 4424 6.27 10.95
4 6.97 5.90 -5.02 -6.10 10.95 6.71 -3.93 4268 3.78 7.45
5 6.02 4.95 -5.97 -7.05 7.45 3.83 -3.65 3687 7.25 11.54
6 8.41 7.34 -5.34 11.54 6.35 -8.70 4720 0.03
RExt 0.29 0.00 0.03 0.01 87 0.00

Sheet 137 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.10 41.17 0.03 RSup 0.37 13.63 0.03 RSup 0.04 5.8
1 RLap -6.14 41.17 0.15 MidS -6.91 13.63 0.51 RSup 0.35 -17.1
2 RLap -4.80 20.99 0.23 RLap 5.56 10.20 0.55 RLap 0.59 0.8
3 RLap -6.56 20.99 0.31 MidS -6.90 10.23 0.67 RLap 0.69 -30.6
4 LLap 5.90 20.99 0.28 LLap 6.71 10.23 0.66 LLap 0.71 -9.8
5 RLap -5.97 20.99 0.28 RLap 7.25 10.23 0.71 RLap 0.76 -8.2
6 LLap 7.34 41.17 0.18 MidS -8.70 13.63 0.64 LLap 0.54 -27.1
RExt LSup 0.29 41.17 0.01 LSup 0.03 13.63 0.00 LSup 0.00 2.2

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.26 8.78 11.94 0.37
2 2.62 8.78 9.55 0.30 3.44 8.78 9.55 0.39
3 3.44 8.78 9.55 0.39 4.15 8.78 9.55 0.47
4 4.15 8.78 9.55 0.47 2.82 8.78 9.55 0.32
5 2.82 8.78 9.55 0.32 3.90 8.78 9.55 0.44
6 4.85 8.78 11.94 0.55

LOAD ID 4 : Dead+Collateral+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.33 0.00 0.03 338 0.11
1 1.62 -2.23 -2.56 0.11 -2.51 3118 1.07 2.65
2 1.72 1.39 -1.40 -1.73 2.65 1.62 -0.34 3469 1.65 2.68
3 2.18 1.85 -2.00 -2.33 2.68 1.35 -2.11 4398 1.94 3.37
4 2.13 1.81 -1.51 -1.83 3.37 2.07 -1.22 4303 1.06 2.16
5 1.77 1.45 -1.87 -2.19 2.16 1.10 -1.00 3575 2.51 3.85
6 2.91 2.59 -1.77 3.85 2.04 -3.13 4539 0.01
RExt 0.09 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.33 41.17 0.01 RSup 0.11 13.63 0.01 LSup 0.00 2.1
1 RLap -2.23 41.17 0.05 MidS -2.51 13.63 0.18 RSup 0.12 -6.3
2 RLap -1.40 20.99 0.07 RLap 1.65 10.14 0.16 RLap 0.17 0.7
3 RLap -2.00 20.99 0.10 MidS -2.11 10.23 0.21 RLap 0.21 -9.4
4 LLap 1.81 20.99 0.09 LLap 2.07 10.23 0.20 LLap 0.22 -3.1
5 RLap -1.87 20.99 0.09 RLap 2.51 10.01 0.25 RLap 0.26 -1.8
6 LLap 2.59 41.17 0.06 MidS -3.13 13.63 0.23 LLap 0.18 -10.0
RExt LSup 0.09 41.17 0.00 LSup 0.01 13.63 0.00 LSup 0.00 0.8

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 1.11 8.78 11.94 0.13
2 0.89 8.78 9.55 0.10 1.02 8.78 9.55 0.12
3 1.02 8.78 9.55 0.12 1.28 8.78 9.55 0.15
4 1.28 8.78 9.55 0.15 0.82 8.78 9.55 0.09
5 0.82 8.78 9.55 0.09 1.30 8.78 9.55 0.15
6 1.62 8.78 11.94 0.18

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------

Sheet 138 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.94 0.00 -0.08 338 -0.32
1 -4.73 6.76 7.68 -0.32 7.62 3164 -3.06 -7.83
2 -4.91 -3.99 3.88 4.80 -7.83 -4.89 0.81 3519 -4.59 -7.45
3 -6.12 -5.20 5.66 6.58 -7.45 -3.71 5.97 4386 -5.49 -9.53
4 -6.03 -5.11 4.21 5.13 -9.53 -5.85 3.49 4320 -2.87 -5.96
5 -4.91 -3.99 5.33 6.25 -5.96 -3.02 2.69 3522 -7.47 -11.29
6 -8.67 -7.75 5.16 -11.29 -5.87 9.48 4424 -0.02
RExt -0.24 0.00 -0.02 -0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.94 41.17 0.02 RSup -0.32 13.63 0.02 RSup 0.03 -6.3
1 RLap 6.76 41.17 0.16 MidS 7.62 9.54 0.80 RSup 0.36 19.3
2 LLap -3.99 20.99 0.19 LLap -4.89 10.23 0.48 LLap 0.51 -2.6
3 RLap 5.66 20.99 0.27 MidS 5.97 7.16 0.83 RLap 0.60 26.6
4 LLap -5.11 20.99 0.24 LLap -5.85 10.23 0.57 LLap 0.62 9.0
5 RLap 5.33 20.99 0.25 RLap -7.47 10.23 0.73 RLap 0.77 4.0
6 LLap -7.75 41.17 0.19 MidS 9.48 9.54 0.99 LLap 0.52 30.7
RExt LSup -0.24 41.17 0.01 LSup -0.02 13.63 0.00 LSup 0.00 -2.4

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.29 8.78 11.94 0.37
2 2.64 8.78 9.55 0.30 2.82 8.78 9.55 0.32
3 2.82 8.78 9.55 0.32 3.61 8.78 9.55 0.41
4 3.61 8.78 9.55 0.41 2.26 8.78 9.55 0.26
5 2.26 8.78 9.55 0.26 3.81 8.78 9.55 0.43
6 4.74 8.78 11.94 0.54

DEFLECTION:
------------------------------

LOAD ID 6 : Dead+Collateral
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.5
1 3480 -1.4 27.8 0.05
2 3480 0.0 27.8 0.00
3 4550 -2.7 36.4 0.07
4 4000 -0.9 32.0 0.03
5 4000 -0.8 32.0 0.03
6 3988 -2.2 31.9 0.07
RExt 175 0.2

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.9
1 3480 -14.4 27.8 0.52
2 3480 0.1 27.8 0.00
3 4550 -28.3 36.4 0.78
4 4000 -8.9 32.0 0.28
5 4000 -8.5 32.0 0.27
6 3988 -22.8 31.9 0.71
RExt 175 1.9

LOAD ID 8 : Dead+Collateral+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----

Sheet 139 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LExt 0 5.4
1 3480 -15.7 27.8 0.57
2 3480 0.1 27.8 0.00
3 4550 -31.0 36.4 0.85
4 4000 -9.8 32.0 0.30
5 4000 -9.4 32.0 0.29
6 3988 -24.9 31.9 0.78
RExt 175 2.1

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 2.1
1 3480 -6.6 55.2 0.12
2 3480 0.9 55.2 0.02
3 4550 -8.9 72.2 0.12
4 4000 -3.0 63.5 0.05
5 4000 -1.3 63.5 0.02
6 3988 -10.5 63.3 0.17
RExt 175 0.8

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -6.6
1 3480 20.2 55.2 0.36
2 3480 -2.6 55.2 0.05
3 4550 28.2 72.2 0.39
4 4000 9.5 63.5 0.15
5 4000 4.5 63.5 0.07
6 3988 32.0 63.3 0.51
RExt 175 -2.5
================================================================================
CI-6563-B01-REV-01- Purlin Layout(Surface= 3) 5/21/20 8:06pm
================================================================================

SURFACE LAYOUT:
Surface No. Peak
Id Length Row Space
------- ------- --- -----
3 23006 25 300

PURLIN LOCATION:
Purlin Surf Load Dead Show ------Max_Load------
Id Offset Space Width Load Report Id UC Report Notes
------ ------ ----- ----- ----- ------ --- ---- --------- ------
1 300 300 788 0.094 Y 5 0.80 Mom,Shr
2 1275 975 975 0.076 5 0.99 Mom,Shr
3 2250 975 975 0.076 5 0.99 Mom,Shr
4 3225 975 975 0.076 5 0.99 Mom,Shr
5 4200 975 975 0.076 5 0.99 Mom,Shr
6 5175 975 975 0.076 5 0.99 Mom,Shr
7 6150 975 975 0.076 5 0.99 Mom,Shr
8 7125 975 975 0.076 5 0.99 Mom,Shr
9 8100 975 975 0.076 5 0.99 Mom,Shr
10 9075 975 975 0.076 5 0.99 Mom,Shr
11 10050 975 975 0.076 5 0.99 Mom,Shr
12 11025 975 975 0.076 5 0.99 Mom,Shr
13 12000 975 762 0.098 5 0.78 Mom,Shr
14 12550 550 750 0.099 5 0.76 Mom,Shr
15 13500 950 962 0.077 5 0.98 Mom,Shr
16 14475 975 975 0.076 5 0.99 Mom,Shr
17 15450 975 975 0.076 5 0.99 Mom,Shr
18 16425 975 975 0.076 5 0.99 Mom,Shr
19 17400 975 975 0.076 5 0.99 Mom,Shr
20 18375 975 975 0.076 5 0.99 Mom,Shr
21 19350 975 862 0.086 5 0.86 Mom,Shr
22 20100 750 750 0.099 5 0.98 Mom,Shr
23 20850 750 687 0.108 5 0.90 Mom,Shr
24 21475 625 713 0.104 5 0.93 Mom,Shr

Sheet 140 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

25 22275 800 765 0.097 Y 5 1.00 Mom,Shr

23006 731
-----
Average= 0.082

LAYOUT:
Bay Design ---Lap(mm)-- No.
Id Part Length Left Right Strap
---- -------- ------ ----- ----- -----
LExt 250Z25 675 0
1 250Z25 6960 660 1
2 250Z20 6960 660 660 1
3 250Z20 9100 660 660 1
4 250Z20 8000 660 660 1
5 250Z20 8000 660 660 1
6 250Z25 7975 660 1
RExt 250Z25 175 0

LOAD COMBINATIONS:
5 - 0.6Dead+Wind_Suction1

================================================================================
CI-6563-B01-REV-01- Purlin(Surface= 3, Id= 1) 5/21/20 8:06pm
================================================================================
------------------------------
ROOF PURLIN
Surface Id = 3
Purlin Id = 1
Offset = 300
------------------------------

LAYOUT: (Purlin Id= 1)

Available
Design Reduction
Bay Length ---Lap(mm)-- Load No. Factor
Id Part (mm) Left Right Width Strap Out In
---- -------- ------ ----- ----- ----- ----- ---- ----
LExt 250Z25 675 788 0 0.00 0.70
1 250Z25 6960 660 788 1 0.00 0.70
2 250Z20 6960 660 660 788 1 0.00 0.70
3 250Z20 9100 660 660 788 1 0.00 0.70
4 250Z20 8000 660 660 788 1 0.00 0.70
5 250Z20 8000 660 660 788 1 0.00 0.70
6 250Z25 7975 660 788 1 0.00 0.70
RExt 250Z25 175 788 0 0.00 0.70

LOAD ID 1 : Dead+Collateral+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.90 0.00 0.08 338 0.31
1 3.84 -4.60 -5.49 0.31 -5.20 2866 2.70 6.03
2 4.45 3.56 -4.00 -4.88 6.03 3.39 -1.35 3318 4.61 7.54
3 5.95 5.06 -5.37 -6.25 7.54 3.91 -5.64 4436 5.10 8.94
4 5.70 4.82 -4.14 -5.02 8.94 5.47 -3.18 4253 3.20 6.23
5 5.01 4.12 -4.83 -5.72 6.23 3.21 -3.12 3735 5.58 9.06
6 6.48 5.60 -4.21 9.06 5.08 -6.59 4834 0.02
RExt 0.23 0.00 0.02 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.90 41.17 0.02 RSup 0.31 13.63 0.02 RSup 0.03 4.4
1 RLap -4.60 41.17 0.11 MidS -5.20 13.63 0.38 RSup 0.27 -12.7

Sheet 141 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

2 RLap -4.00 20.99 0.19 RLap 4.61 10.23 0.45 RLap 0.49 0.1
3 RLap -5.37 20.99 0.26 MidS -5.64 10.23 0.55 RLap 0.56 -25.0
4 LLap 4.82 20.99 0.23 LLap 5.47 10.23 0.53 LLap 0.58 -7.9
5 RLap -4.83 20.99 0.23 RLap 5.58 10.23 0.55 RLap 0.59 -7.6
6 LLap 5.60 41.17 0.14 MidS -6.59 13.63 0.48 LLap 0.43 -20.1
RExt LSup 0.23 41.17 0.01 LSup 0.02 13.63 0.00 LSup 0.00 1.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.54 8.78 11.94 0.29
2 2.04 8.78 9.55 0.23 2.86 8.78 9.55 0.33
3 2.86 8.78 9.55 0.33 3.39 8.78 9.55 0.39
4 3.39 8.78 9.55 0.39 2.36 8.78 9.55 0.27
5 2.36 8.78 9.55 0.27 3.06 8.78 9.55 0.35
6 3.81 8.78 11.94 0.43

LOAD ID 2 : Dead+Collateral
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.08 0.00 0.01 338 0.03
1 0.34 -0.40 -0.48 0.03 -0.46 2866 0.24 0.53
2 0.39 0.31 -0.35 -0.43 0.53 0.30 -0.12 3318 0.40 0.66
3 0.52 0.44 -0.47 -0.55 0.66 0.34 -0.49 4436 0.45 0.78
4 0.50 0.42 -0.36 -0.44 0.78 0.48 -0.28 4253 0.28 0.55
5 0.44 0.36 -0.42 -0.50 0.55 0.28 -0.27 3735 0.49 0.79
6 0.57 0.49 -0.37 0.79 0.45 -0.58 4834 0.00
RExt 0.02 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.08 41.17 0.00 RSup 0.03 13.63 0.00 LSup 0.00 0.4
1 RLap -0.40 41.17 0.01 MidS -0.46 13.63 0.03 LSup 0.00 -1.1
2 RLap -0.35 20.99 0.02 RLap 0.40 10.23 0.04 RLap 0.04 0.0
3 RLap -0.47 20.99 0.02 MidS -0.49 10.23 0.05 RLap 0.05 -2.2
4 LLap 0.42 20.99 0.02 LLap 0.48 10.23 0.05 LLap 0.05 -0.7
5 RLap -0.42 20.99 0.02 RLap 0.49 10.23 0.05 RLap 0.05 -0.7
6 LLap 0.49 41.17 0.01 MidS -0.58 13.63 0.04 LLap 0.04 -1.8
RExt LSup 0.02 41.17 0.00 LSup 0.00 13.63 0.00 LSup 0.00 0.1

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.22 8.78 11.94 0.03
2 0.18 8.78 9.55 0.02 0.25 8.78 9.55 0.03
3 0.25 8.78 9.55 0.03 0.30 8.78 9.55 0.03
4 0.30 8.78 9.55 0.03 0.21 8.78 9.55 0.02
5 0.21 8.78 9.55 0.02 0.27 8.78 9.55 0.03
6 0.33 8.78 11.94 0.04

LOAD ID 3 : Dead+Collateral+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.89 0.00 0.08 338 0.30
1 3.94 -4.95 -5.82 0.30 -5.57 2965 2.71 6.27
2 4.43 3.56 -3.87 -4.74 6.27 3.63 -1.19 3364 4.49 7.33

Sheet 142 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

3 5.83 4.96 -5.29 -6.16 7.33 3.77 -5.57 4424 5.05 8.83
4 5.62 4.76 -4.05 -4.92 8.83 5.41 -3.17 4268 3.05 6.01
5 4.86 3.99 -4.81 -5.68 6.01 3.09 -2.95 3687 5.85 9.31
6 6.79 5.92 -4.31 9.31 5.12 -7.02 4720 0.02
RExt 0.23 0.00 0.02 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.89 41.17 0.02 RSup 0.30 13.63 0.02 RSup 0.03 4.7
1 RLap -4.95 41.17 0.12 MidS -5.57 13.63 0.41 RSup 0.28 -13.8
2 RLap -3.87 20.99 0.18 RLap 4.49 10.20 0.44 RLap 0.47 0.6
3 RLap -5.29 20.99 0.25 MidS -5.57 10.23 0.54 RLap 0.55 -24.7
4 LLap 4.76 20.99 0.23 LLap 5.41 10.23 0.53 LLap 0.57 -7.9
5 RLap -4.81 20.99 0.23 RLap 5.85 10.23 0.57 RLap 0.61 -6.6
6 LLap 5.92 41.17 0.14 MidS -7.02 13.63 0.52 LLap 0.44 -21.9
RExt LSup 0.23 41.17 0.01 LSup 0.02 13.63 0.00 LSup 0.00 1.8

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.63 8.78 11.94 0.30
2 2.12 8.78 9.55 0.24 2.78 8.78 9.55 0.32
3 2.78 8.78 9.55 0.32 3.35 8.78 9.55 0.38
4 3.35 8.78 9.55 0.38 2.28 8.78 9.55 0.26
5 2.28 8.78 9.55 0.26 3.14 8.78 9.55 0.36
6 3.91 8.78 11.94 0.45

LOAD ID 4 : Dead+Collateral+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.27 0.00 0.02 338 0.09
1 1.31 -1.80 -2.07 0.09 -2.03 3119 0.86 2.14
2 1.39 1.13 -1.13 -1.40 2.14 1.31 -0.27 3469 1.33 2.17
3 1.76 1.50 -1.62 -1.88 2.17 1.09 -1.71 4398 1.56 2.72
4 1.72 1.46 -1.22 -1.48 2.72 1.67 -0.99 4303 0.86 1.75
5 1.43 1.17 -1.51 -1.77 1.75 0.89 -0.81 3575 2.03 3.11
6 2.35 2.09 -1.43 3.11 1.64 -2.53 4539 0.01
RExt 0.07 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.27 41.17 0.01 RSup 0.09 13.63 0.01 LSup 0.00 1.7
1 RLap -1.80 41.17 0.04 MidS -2.03 13.63 0.15 RSup 0.10 -5.1
2 RLap -1.13 20.99 0.05 RLap 1.33 10.14 0.13 RLap 0.14 0.6
3 RLap -1.62 20.99 0.08 MidS -1.71 10.23 0.17 RLap 0.17 -7.6
4 LLap 1.46 20.99 0.07 LLap 1.67 10.23 0.16 LLap 0.18 -2.5
5 RLap -1.51 20.99 0.07 RLap 2.03 10.01 0.20 RLap 0.21 -1.4
6 LLap 2.09 41.17 0.05 MidS -2.53 13.63 0.19 LLap 0.14 -8.1
RExt LSup 0.07 41.17 0.00 LSup 0.01 13.63 0.00 LSup 0.00 0.6

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.90 8.78 11.94 0.10
2 0.72 8.78 9.55 0.08 0.82 8.78 9.55 0.09
3 0.82 8.78 9.55 0.09 1.03 8.78 9.55 0.12
4 1.03 8.78 9.55 0.12 0.66 8.78 9.55 0.08
5 0.66 8.78 9.55 0.08 1.05 8.78 9.55 0.12
6 1.31 8.78 11.94 0.15

Sheet 143 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.76 0.00 -0.06 338 -0.26
1 -3.82 5.46 6.21 -0.26 6.15 3164 -2.47 -6.32
2 -3.97 -3.22 3.13 3.88 -6.32 -3.95 0.65 3519 -3.70 -6.02
3 -4.94 -4.20 4.57 5.31 -6.02 -3.00 4.82 4386 -4.44 -7.70
4 -4.87 -4.12 3.40 4.15 -7.70 -4.73 2.82 4320 -2.32 -4.81
5 -3.97 -3.23 4.30 5.05 -4.81 -2.44 2.18 3522 -6.03 -9.12
6 -7.01 -6.26 4.17 -9.12 -4.74 7.66 4424 -0.02
RExt -0.20 0.00 -0.02 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.76 41.17 0.02 RSup -0.26 13.63 0.02 RSup 0.03 -5.1
1 RLap 5.46 41.17 0.13 MidS 6.15 9.54 0.64 RSup 0.29 15.6
2 LLap -3.22 20.99 0.15 LLap -3.95 10.23 0.39 LLap 0.41 -2.1
3 RLap 4.57 20.99 0.22 MidS 4.82 7.16 0.67 RLap 0.48 21.5
4 LLap -4.12 20.99 0.20 LLap -4.73 10.23 0.46 LLap 0.50 7.3
5 RLap 4.30 20.99 0.20 RLap -6.03 10.23 0.59 RLap 0.62 3.2
6 LLap -6.26 41.17 0.15 MidS 7.66 9.54 0.80 LLap 0.42 24.8
RExt LSup -0.20 41.17 0.00 LSup -0.02 13.63 0.00 LSup 0.00 -1.9

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.66 8.78 11.94 0.30
2 2.13 8.78 9.55 0.24 2.28 8.78 9.55 0.26
3 2.28 8.78 9.55 0.26 2.92 8.78 9.55 0.33
4 2.92 8.78 9.55 0.33 1.82 8.78 9.55 0.21
5 1.82 8.78 9.55 0.21 3.08 8.78 9.55 0.35
6 3.83 8.78 11.94 0.44

DEFLECTION:
------------------------------

LOAD ID 6 : Dead+Collateral
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.4
1 3480 -1.1 27.8 0.04
2 3480 0.0 27.8 0.00
3 4550 -2.2 36.4 0.06
4 4000 -0.7 32.0 0.02
5 4000 -0.7 32.0 0.02
6 3988 -1.8 31.9 0.06
RExt 175 0.1

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.0
1 3480 -11.6 27.8 0.42
2 3480 0.1 27.8 0.00
3 4550 -22.8 36.4 0.63
4 4000 -7.2 32.0 0.22
5 4000 -6.9 32.0 0.22
6 3988 -18.3 31.9 0.58
RExt 175 1.5

Sheet 144 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LOAD ID 8 : Dead+Collateral+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.4
1 3480 -12.7 27.8 0.46
2 3480 0.1 27.8 0.00
3 4550 -25.0 36.4 0.69
4 4000 -7.9 32.0 0.25
5 4000 -7.6 32.0 0.24
6 3988 -20.1 31.9 0.63
RExt 175 1.7

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.7
1 3480 -5.3 55.2 0.10
2 3480 0.7 55.2 0.01
3 4550 -7.2 72.2 0.10
4 4000 -2.5 63.5 0.04
5 4000 -1.0 63.5 0.02
6 3988 -8.5 63.3 0.13
RExt 175 0.6

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -5.3
1 3480 16.3 55.2 0.29
2 3480 -2.1 55.2 0.04
3 4550 22.8 72.2 0.32
4 4000 7.7 63.5 0.12
5 4000 3.6 63.5 0.06
6 3988 25.8 63.3 0.41
RExt 175 -2.0
================================================================================
CI-6563-B01-REV-01- Purlin(Surface= 3, Id= 25) 5/21/20 8:06pm
================================================================================
------------------------------
ROOF PURLIN
Surface Id = 3
Purlin Id = 25
Offset = 22275
------------------------------

LAYOUT: (Purlin Id= 25)

Available
Design Reduction
Bay Length ---Lap(mm)-- Load No. Factor
Id Part (mm) Left Right Width Strap Out In
---- -------- ------ ----- ----- ----- ----- ---- ----
LExt 250Z25 675 765 0 0.00 0.70
1 250Z25 6960 660 765 1 0.00 0.70
2 250Z20 6960 660 660 765 1 0.00 0.70
3 250Z20 9100 660 660 765 1 0.00 0.70
4 250Z20 8000 660 660 765 1 0.00 0.70
5 250Z20 8000 660 660 765 1 0.00 0.70
6 250Z25 7975 660 765 1 0.00 0.70
RExt 250Z25 175 765 0 0.00 0.70

LOAD ID 1 : Dead+Collateral+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right

Sheet 145 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.88 0.00 0.07 338 0.30
1 3.73 -4.47 -5.33 0.30 -5.05 2866 2.63 5.86
2 4.32 3.46 -3.89 -4.75 5.86 3.29 -1.31 3318 4.48 7.33
3 5.78 4.92 -5.22 -6.08 7.33 3.80 -5.49 4436 4.96 8.69
4 5.54 4.68 -4.02 -4.88 8.69 5.31 -3.09 4253 3.11 6.05
5 4.87 4.01 -4.70 -5.56 6.05 3.12 -3.04 3735 5.43 8.81
6 6.30 5.44 -4.09 8.81 4.94 -6.41 4834 0.02
RExt 0.23 0.00 0.02 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.88 41.17 0.02 RSup 0.30 13.63 0.02 RSup 0.03 4.2
1 RLap -4.47 41.17 0.11 MidS -5.05 13.63 0.37 RSup 0.26 -12.3
2 RLap -3.89 20.99 0.19 RLap 4.48 10.23 0.44 RLap 0.47 0.1
3 RLap -5.22 20.99 0.25 MidS -5.49 10.23 0.54 RLap 0.54 -24.3
4 LLap 4.68 20.99 0.22 LLap 5.31 10.23 0.52 LLap 0.56 -7.6
5 RLap -4.70 20.99 0.22 RLap 5.43 10.23 0.53 RLap 0.57 -7.3
6 LLap 5.44 41.17 0.13 MidS -6.41 13.63 0.47 LLap 0.42 -19.5
RExt LSup 0.23 41.17 0.01 LSup 0.02 13.63 0.00 LSup 0.00 1.6

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.46 8.78 11.94 0.28
2 1.98 8.78 9.55 0.23 2.78 8.78 9.55 0.32
3 2.78 8.78 9.55 0.32 3.29 8.78 9.55 0.37
4 3.29 8.78 9.55 0.37 2.29 8.78 9.55 0.26
5 2.29 8.78 9.55 0.26 2.97 8.78 9.55 0.34
6 3.70 8.78 11.94 0.42

LOAD ID 2 : Dead+Collateral
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.08 0.00 0.01 338 0.03
1 0.33 -0.39 -0.47 0.03 -0.44 2866 0.23 0.51
2 0.38 0.30 -0.34 -0.42 0.51 0.29 -0.11 3318 0.39 0.64
3 0.51 0.43 -0.46 -0.53 0.64 0.33 -0.48 4436 0.43 0.76
4 0.49 0.41 -0.35 -0.43 0.76 0.47 -0.27 4253 0.27 0.53
5 0.43 0.35 -0.41 -0.49 0.53 0.27 -0.27 3735 0.48 0.77
6 0.55 0.48 -0.36 0.77 0.43 -0.56 4834 0.00
RExt 0.02 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.08 41.17 0.00 RSup 0.03 13.63 0.00 LSup 0.00 0.4
1 RLap -0.39 41.17 0.01 MidS -0.44 13.63 0.03 LSup 0.00 -1.1
2 RLap -0.34 20.99 0.02 RLap 0.39 10.23 0.04 RLap 0.04 0.0
3 RLap -0.46 20.99 0.02 MidS -0.48 10.23 0.05 RLap 0.05 -2.1
4 LLap 0.41 20.99 0.02 LLap 0.47 10.23 0.05 LLap 0.05 -0.7
5 RLap -0.41 20.99 0.02 RLap 0.48 10.23 0.05 RLap 0.05 -0.6
6 LLap 0.48 41.17 0.01 MidS -0.56 13.63 0.04 LLap 0.04 -1.7
RExt LSup 0.02 41.17 0.00 LSup 0.00 13.63 0.00 LSup 0.00 0.1

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.22 8.78 11.94 0.02

Sheet 146 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

2 0.17 8.78 9.55 0.02 0.24 8.78 9.55 0.03

3 0.24 8.78 9.55 0.03 0.29 8.78 9.55 0.03
4 0.29 8.78 9.55 0.03 0.20 8.78 9.55 0.02
5 0.20 8.78 9.55 0.02 0.26 8.78 9.55 0.03
6 0.32 8.78 11.94 0.04

LOAD ID 3 : Dead+Collateral+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.86 0.00 0.07 338 0.29
1 3.79 -4.86 -5.81 0.29 -5.31 2936 2.85 6.37
2 4.77 3.82 -4.34 -5.29 6.37 3.54 -1.50 3302 4.99 8.17
3 6.42 5.47 -5.78 -6.74 8.17 4.25 -6.08 4440 5.48 9.61
4 6.14 5.18 -4.47 -5.43 9.61 5.88 -3.42 4246 3.50 6.77
5 5.43 4.48 -5.18 -6.13 6.77 3.50 -3.43 3757 5.85 9.58
6 6.85 5.90 -4.14 9.58 5.37 -6.66 4770 0.02
RExt 0.22 0.00 0.02 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.86 41.17 0.02 RSup 0.29 13.63 0.02 RSup 0.03 4.4
1 RLap -4.86 41.17 0.12 MidS -5.31 13.63 0.39 RSup 0.29 -13.0
2 RLap -4.34 20.99 0.21 RLap 4.99 10.23 0.49 RLap 0.53 -0.1
3 RLap -5.78 20.99 0.28 MidS -6.08 10.23 0.59 RLap 0.60 -26.9
4 LLap 5.18 20.99 0.25 LLap 5.88 10.23 0.57 LLap 0.62 -8.4
5 RLap -5.18 20.99 0.25 RLap 5.85 10.23 0.57 RLap 0.62 -8.6
6 LLap 5.90 41.17 0.14 MidS -6.66 13.63 0.49 LLap 0.45 -20.3
RExt LSup 0.22 41.17 0.01 LSup 0.02 13.63 0.00 LSup 0.00 1.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.68 8.78 11.94 0.31
2 2.15 8.78 9.55 0.25 3.09 8.78 9.55 0.35
3 3.09 8.78 9.55 0.35 3.64 8.78 9.55 0.42
4 3.64 8.78 9.55 0.42 2.56 8.78 9.55 0.29
5 2.56 8.78 9.55 0.29 3.23 8.78 9.55 0.37
6 4.02 8.78 11.94 0.46

LOAD ID 4 : Dead+Collateral+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.26 0.00 0.02 338 0.09
1 1.24 -1.80 -2.16 0.09 -1.86 2990 1.05 2.36
2 1.81 1.45 -1.68 -2.04 2.36 1.28 -0.61 3275 1.93 3.15
3 2.46 2.10 -2.21 -2.58 3.15 1.65 -2.33 4447 2.09 3.67
4 2.35 1.98 -1.72 -2.09 3.67 2.24 -1.30 4235 1.37 2.63
5 2.10 1.74 -1.97 -2.33 2.63 1.36 -1.36 3792 2.13 3.55
6 2.54 2.18 -1.34 3.55 1.99 -2.29 4598 0.01
RExt 0.07 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.26 41.17 0.01 RSup 0.09 13.63 0.01 LSup 0.00 1.5
1 RLap -1.80 41.17 0.04 MidS -1.86 13.63 0.14 RSup 0.11 -4.5
2 RLap -1.68 20.99 0.08 RLap 1.93 10.23 0.19 RLap 0.20 -0.2
3 RLap -2.21 20.99 0.11 MidS -2.33 10.23 0.23 RLap 0.23 -10.3

Sheet 147 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

4 LLap 1.98 20.99 0.09 LLap 2.24 10.23 0.22 LLap 0.24 -3.2
5 RLap -1.97 20.99 0.09 RLap 2.13 10.23 0.21 RLap 0.23 -3.5
6 LLap 2.18 41.17 0.05 MidS -2.29 13.63 0.17 LLap 0.17 -7.0
RExt LSup 0.07 41.17 0.00 LSup 0.01 13.63 0.00 LSup 0.00 0.6

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.99 8.78 11.94 0.11
2 0.80 8.78 9.55 0.09 1.19 8.78 9.55 0.14
3 1.19 8.78 9.55 0.14 1.39 8.78 9.55 0.16
4 1.39 8.78 9.55 0.16 1.00 8.78 9.55 0.11
5 1.00 8.78 9.55 0.11 1.20 8.78 9.55 0.14
6 1.49 8.78 11.94 0.17

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.74 0.00 -0.06 338 -0.25
1 -3.59 5.49 6.62 -0.25 5.58 3095 -3.21 -7.21
2 -5.59 -4.46 5.19 6.32 -7.21 -3.89 1.92 3265 -5.96 -9.76
3 -7.62 -6.49 6.83 7.96 -9.76 -5.11 7.18 4449 -6.45 -11.33
4 -7.24 -6.11 5.32 6.45 -11.33 -6.92 4.00 4232 -4.27 -8.15
5 -6.51 -5.38 6.05 7.18 -8.15 -4.23 4.23 3804 -6.47 -10.84
6 -7.77 -6.64 3.86 -10.84 -6.08 6.79 4551 -0.02
RExt -0.19 0.00 -0.02 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.74 41.17 0.02 RSup -0.25 13.63 0.02 RSup 0.03 -4.5
1 RLap 5.49 41.17 0.13 MidS 5.58 9.54 0.58 RSup 0.32 13.6
2 RLap 5.19 20.99 0.25 RLap -5.96 10.23 0.58 RLap 0.63 0.7
3 RLap 6.83 20.99 0.33 MidS 7.18 7.16 1.00 RLap 0.71 31.7
4 LLap -6.11 20.99 0.29 LLap -6.92 10.23 0.68 LLap 0.73 9.7
5 RLap 6.05 20.99 0.29 RLap -6.47 10.23 0.63 RLap 0.69 11.2
6 LLap -6.64 41.17 0.16 MidS 6.79 9.54 0.71 LLap 0.51 20.6
RExt LSup -0.19 41.17 0.00 LSup -0.02 13.63 0.00 LSup 0.00 -1.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.03 8.78 11.94 0.34
2 2.43 8.78 9.55 0.28 3.70 8.78 9.55 0.42
3 3.70 8.78 9.55 0.42 4.29 8.78 9.55 0.49
4 4.29 8.78 9.55 0.49 3.09 8.78 9.55 0.35
5 3.09 8.78 9.55 0.35 3.66 8.78 9.55 0.42
6 4.55 8.78 11.94 0.52

DEFLECTION:
------------------------------

LOAD ID 6 : Dead+Collateral
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.4
1 3480 -1.1 27.8 0.04
2 3480 0.0 27.8 0.00
3 4550 -2.1 36.4 0.06
4 4000 -0.7 32.0 0.02

Sheet 148 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

5 4000 -0.6 32.0 0.02

6 3988 -1.7 31.9 0.05
RExt 175 0.1

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 3.9
1 3480 -11.3 27.8 0.40
2 3480 0.1 27.8 0.00
3 4550 -22.1 36.4 0.61
4 4000 -7.0 32.0 0.22
5 4000 -6.7 32.0 0.21
6 3988 -17.8 31.9 0.56
RExt 175 1.5

LOAD ID 8 : Dead+Collateral+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.2
1 3480 -12.3 27.8 0.44
2 3480 0.1 27.8 0.00
3 4550 -24.3 36.4 0.67
4 4000 -7.6 32.0 0.24
5 4000 -7.3 32.0 0.23
6 3988 -19.5 31.9 0.61
RExt 175 1.6

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.5
1 3480 -4.6 55.2 0.08
2 3480 -0.3 55.2 0.00
3 4550 -10.9 72.2 0.15
4 4000 -3.3 63.5 0.05
5 4000 -3.9 63.5 0.06
6 3988 -7.0 63.3 0.11
RExt 175 0.6

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -4.8
1 3480 14.2 55.2 0.26
2 3480 0.7 55.2 0.01
3 4550 33.0 72.2 0.46
4 4000 10.1 63.5 0.16
5 4000 11.6 63.5 0.18
6 3988 21.6 63.3 0.34
RExt 175 -1.7
================================================================================
CI-6563-B01-REV-01- Purlin(Extension= 1, Roof) 5/21/20 8:06pm
================================================================================
------------------------------
EAVE EXTENSION ROOF PURLIN
Wall Id = 2
Extension Id = 1
Bay Start = 1
Bay End = 6
Extension Wid= 4225
------------------------------

LAYOUT:
Available

Sheet 149 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Design Reduction
Bay Length --Lap(mm)-- Load No. No. Factor
Id Part (mm) Left Right Width Strap Row Out In
---- -------- ------ ---- ----- ----- ----- --- ------ ------ ---- ----
LExt 250Z20 675 975 0 4 4.2 16.7 0.00 0.70
1 250Z20 6960 660 975 1 4 47.2 188.7 0.00 0.70
2 250Z20 6960 660 660 975 1 4 51.3 205.0 0.00 0.70
3 250Z20 9100 660 660 975 1 4 64.5 258.0 0.00 0.70
4 250Z20 8000 660 660 975 1 4 57.7 230.8 0.00 0.70
5 250Z20 8000 660 660 975 1 4 57.7 230.8 0.00 0.70
6 250Z20 7975 660 975 1 4 53.5 213.8 0.00 0.70
RExt 250Z20 175 975 0 4 1.1 4.3 0.00 0.70

Purlin DL= 0.071 (kN/m2)

LOAD ID 1 : Dead+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.12 0.00 0.09 338 0.38
1 4.73 -5.72 -6.82 0.38 -6.37 2852 3.49 7.63
2 5.54 4.44 -4.92 -6.02 7.63 4.34 -1.60 3336 5.69 9.29
3 7.36 6.26 -6.65 -7.75 9.29 4.80 -7.00 4432 6.33 11.08
4 7.07 5.97 -5.12 -6.21 11.08 6.78 -3.95 4256 3.94 7.68
5 6.19 5.09 -6.00 -7.09 7.68 3.96 -3.85 3727 6.99 11.31
6 8.03 6.94 -5.20 11.31 6.37 -8.13 4840 0.03
RExt 0.29 0.00 0.03 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.12 20.99 0.05 RSup 0.38 10.23 0.04 RSup 0.06 6.6
1 RLap -5.72 20.99 0.27 MidS -6.37 10.23 0.62 RLap 0.43 -19.2
2 RLap -4.92 20.99 0.23 RLap 5.69 10.22 0.56 RLap 0.60 0.4
3 RLap -6.65 20.99 0.32 MidS -7.00 10.23 0.68 RLap 0.69 -31.0
4 LLap 5.97 20.99 0.28 LLap 6.78 10.23 0.66 LLap 0.72 -9.8
5 RLap -6.00 20.99 0.29 RLap 6.99 10.23 0.68 RLap 0.74 -9.1
6 LLap 6.94 20.99 0.33 MidS -8.13 10.23 0.79 LLap 0.70 -30.8
RExt LSup 0.29 20.99 0.01 LSup 0.03 10.23 0.00 LSup 0.00 2.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.89 8.78 9.55 0.33
2 2.89 8.78 9.55 0.33 3.52 8.78 9.55 0.40
3 3.52 8.78 9.55 0.40 4.20 8.78 9.55 0.48
4 4.20 8.78 9.55 0.48 2.91 8.78 9.55 0.33
5 2.91 8.78 9.55 0.33 4.28 8.78 9.55 0.49
6 4.28 8.78 9.55 0.49

LOAD ID 2 : Dead
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.10 0.00 0.01 338 0.03
1 0.42 -0.50 -0.60 0.03 -0.56 2852 0.31 0.67
2 0.49 0.39 -0.43 -0.53 0.67 0.38 -0.14 3336 0.50 0.81
3 0.65 0.55 -0.58 -0.68 0.81 0.42 -0.61 4432 0.56 0.97
4 0.62 0.52 -0.45 -0.54 0.97 0.59 -0.35 4256 0.35 0.67
5 0.54 0.45 -0.53 -0.62 0.67 0.35 -0.34 3727 0.61 0.99
6 0.70 0.61 -0.46 0.99 0.56 -0.71 4840 0.00

Sheet 150 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

RExt 0.03 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.10 20.99 0.00 RSup 0.03 10.23 0.00 LSup 0.00 0.6
1 RLap -0.50 20.99 0.02 MidS -0.56 10.23 0.05 RLap 0.04 -1.7
2 RLap -0.43 20.99 0.02 RLap 0.50 10.22 0.05 RLap 0.05 0.0
3 RLap -0.58 20.99 0.03 MidS -0.61 10.23 0.06 RLap 0.06 -2.7
4 LLap 0.52 20.99 0.02 LLap 0.59 10.23 0.06 LLap 0.06 -0.9
5 RLap -0.53 20.99 0.03 RLap 0.61 10.23 0.06 RLap 0.06 -0.8
6 LLap 0.61 20.99 0.03 MidS -0.71 10.23 0.07 LLap 0.06 -2.7
RExt LSup 0.03 20.99 0.00 LSup 0.00 10.23 0.00 LSup 0.00 0.2

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.25 8.78 9.55 0.03
2 0.25 8.78 9.55 0.03 0.31 8.78 9.55 0.04
3 0.31 8.78 9.55 0.04 0.37 8.78 9.55 0.04
4 0.37 8.78 9.55 0.04 0.26 8.78 9.55 0.03
5 0.26 8.78 9.55 0.03 0.38 8.78 9.55 0.04
6 0.38 8.78 9.55 0.04

LOAD ID 3 : Dead+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.10 0.00 0.09 338 0.37
1 4.65 -5.63 -6.70 0.37 -6.26 2852 3.43 7.50
2 5.44 4.37 -4.84 -5.91 7.50 4.27 -1.58 3336 5.59 9.14
3 7.23 6.16 -6.54 -7.62 9.14 4.72 -6.88 4432 6.22 10.90
4 6.95 5.87 -5.03 -6.11 10.90 6.67 -3.88 4256 3.87 7.55
5 6.08 5.01 -5.90 -6.97 7.55 3.89 -3.78 3727 6.87 11.12
6 7.90 6.82 -5.12 11.12 6.26 -7.99 4840 0.02
RExt 0.29 0.00 0.02 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.10 20.99 0.05 RSup 0.37 10.23 0.04 RSup 0.06 6.5
1 RLap -5.63 20.99 0.27 MidS -6.26 10.23 0.61 RLap 0.43 -18.9
2 RLap -4.84 20.99 0.23 RLap 5.59 10.22 0.55 RLap 0.59 0.4
3 RLap -6.54 20.99 0.31 MidS -6.88 10.23 0.67 RLap 0.68 -30.5
4 LLap 5.87 20.99 0.28 LLap 6.67 10.23 0.65 LLap 0.71 -9.6
5 RLap -5.90 20.99 0.28 RLap 6.87 10.23 0.67 RLap 0.73 -9.0
6 LLap 6.82 20.99 0.33 MidS -7.99 10.23 0.78 LLap 0.69 -30.2
RExt LSup 0.29 20.99 0.01 LSup 0.02 10.23 0.00 LSup 0.00 2.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.84 8.78 9.55 0.32
2 2.84 8.78 9.55 0.32 3.46 8.78 9.55 0.39
3 3.46 8.78 9.55 0.39 4.13 8.78 9.55 0.47
4 4.13 8.78 9.55 0.47 2.86 8.78 9.55 0.33
5 2.86 8.78 9.55 0.33 4.21 8.78 9.55 0.48
6 4.21 8.78 9.55 0.48

Sheet 151 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LOAD ID 4 : Dead+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.33 0.00 0.03 338 0.11
1 1.42 -1.71 -2.04 0.11 -1.90 2852 1.04 2.28
2 1.66 1.33 -1.47 -1.80 2.28 1.30 -0.48 3336 1.70 2.78
3 2.20 1.87 -1.99 -2.32 2.78 1.44 -2.09 4432 1.89 3.31
4 2.11 1.78 -1.53 -1.86 3.31 2.03 -1.18 4256 1.18 2.30
5 1.85 1.52 -1.79 -2.12 2.30 1.18 -1.15 3727 2.09 3.38
6 2.40 2.07 -1.56 3.38 1.90 -2.43 4840 0.01
RExt 0.09 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.33 20.99 0.02 RSup 0.11 10.23 0.01 RSup 0.02 2.0
1 RLap -1.71 20.99 0.08 MidS -1.90 10.23 0.19 RLap 0.13 -5.7
2 RLap -1.47 20.99 0.07 RLap 1.70 10.22 0.17 RLap 0.18 0.1
3 RLap -1.99 20.99 0.09 MidS -2.09 10.23 0.20 RLap 0.21 -9.3
4 LLap 1.78 20.99 0.09 LLap 2.03 10.23 0.20 LLap 0.22 -2.9
5 RLap -1.79 20.99 0.09 RLap 2.09 10.23 0.20 RLap 0.22 -2.7
6 LLap 2.07 20.99 0.10 MidS -2.43 10.23 0.24 LLap 0.21 -9.2
RExt LSup 0.09 20.99 0.00 LSup 0.01 10.23 0.00 LSup 0.00 0.8

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.86 8.78 9.55 0.10
2 0.86 8.78 9.55 0.10 1.05 8.78 9.55 0.12
3 1.05 8.78 9.55 0.12 1.26 8.78 9.55 0.14
4 1.26 8.78 9.55 0.14 0.87 8.78 9.55 0.10
5 0.87 8.78 9.55 0.10 1.28 8.78 9.55 0.15
6 1.28 8.78 9.55 0.15

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.53 0.00 -0.04 338 -0.18
1 -2.83 5.03 6.10 -0.18 4.81 3186 -3.02 -6.69
2 -5.26 -4.19 4.92 5.99 -6.69 -3.57 1.86 3253 -5.64 -9.24
3 -7.20 -6.13 6.44 7.51 -9.24 -4.85 6.78 4453 -6.06 -10.67
4 -6.82 -5.76 5.04 6.10 -10.67 -6.51 3.74 4223 -4.10 -7.78
5 -6.20 -5.13 5.66 6.73 -7.78 -4.04 4.10 3835 -5.82 -9.91
6 -7.12 -6.06 3.03 -9.91 -5.56 5.79 4409 -0.01
RExt -0.14 0.00 -0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.53 20.99 0.03 RSup -0.18 10.23 0.02 RSup 0.03 -4.8
1 RLap 5.03 20.99 0.24 MidS 4.81 7.16 0.67 RLap 0.38 14.4
2 RLap 4.92 20.99 0.23 RLap -5.64 10.23 0.55 RLap 0.60 0.8
3 RLap 6.44 20.99 0.31 MidS 6.78 7.16 0.95 RLap 0.66 29.9
4 LLap -5.76 20.99 0.27 LLap -6.51 10.23 0.64 LLap 0.69 9.0
5 RLap 5.66 20.99 0.27 RLap -5.82 10.23 0.57 RLap 0.63 11.2
6 LLap -6.06 20.99 0.29 MidS 5.79 7.16 0.81 LLap 0.61 21.7
RExt LSup -0.14 20.99 0.01 LSup -0.01 10.23 0.00 LSup 0.00 -1.7

LAP BOLT SHEAR/BEARING:

Sheet 152 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.53 8.78 9.55 0.29
2 2.53 8.78 9.55 0.29 3.50 8.78 9.55 0.40
3 3.50 8.78 9.55 0.40 4.04 8.78 9.55 0.46
4 4.04 8.78 9.55 0.46 2.95 8.78 9.55 0.34
5 2.95 8.78 9.55 0.34 3.76 8.78 9.55 0.43
6 3.76 8.78 9.55 0.43

DEFLECTION:
------------------------------

LOAD ID 6 : Dead
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.6
1 3480 -1.7 58.0 0.03
2 3480 0.0 58.0 0.00
3 4550 -2.7 75.8 0.04
4 4000 -0.9 66.7 0.01
5 4000 -0.8 66.7 0.01
6 3988 -2.7 66.5 0.04
RExt 175 0.2

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 6.0
1 3480 -17.5 46.4 0.38
2 3480 0.4 46.4 0.01
3 4550 -28.3 60.7 0.47
4 4000 -8.9 53.3 0.17
5 4000 -8.3 53.3 0.16
6 3988 -28.1 53.2 0.53
RExt 175 2.3

LOAD ID 8 : Dead+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 6.6
1 3480 -19.2 58.0 0.33
2 3480 0.4 58.0 0.01
3 4550 -31.0 75.8 0.41
4 4000 -9.8 66.7 0.15
5 4000 -9.1 66.7 0.14
6 3988 -30.8 66.5 0.46
RExt 175 2.5

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.9
1 3480 -5.4 55.2 0.10
2 3480 0.1 55.2 0.00
3 4550 -8.7 72.2 0.12
4 4000 -2.8 63.5 0.04
5 4000 -2.6 63.5 0.04
6 3988 -8.7 63.3 0.14
RExt 175 0.7

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)

Sheet 153 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Id (mm) Calc Limit Ratio

---- ------ ----- ----- -----
LExt 0 -5.1
1 3480 15.4 55.2 0.28
2 3480 0.8 55.2 0.01
3 4550 31.5 72.2 0.44
4 4000 9.5 63.5 0.15
5 4000 11.7 63.5 0.18
6 3988 23.3 63.3 0.37
RExt 175 -1.8
================================================================================
CI-6563-B01-REV-01- Eave(Extension= 1) 5/21/20 8:06pm
================================================================================
------------------------------
EAVE EXTENSION EAVE STRUT
Wall Id = 2
Extension Id = 1
Bay Start = 1
Bay End = 6
Extension Wid= 4225
------------------------------

LAYOUT:
Available
Design Reduction
Bay Length --Lap(mm)-- Load No. No. Factor
Id Part (mm) Left Right Width Strap Row Out In
---- -------- ------ ---- ----- ----- ----- --- ------ ------ ---- ----
LExt 250Z20 675 275 0 1 4.2 4.2 0.00 0.70
1 250Z20 6960 660 275 1 1 47.2 47.2 0.00 0.70
2 250Z20 6960 660 660 275 1 1 51.3 51.3 0.00 0.70
3 250Z20 9100 660 660 275 1 1 64.5 64.5 0.00 0.70
4 250Z20 8000 660 660 275 1 1 57.7 57.7 0.00 0.70
5 250Z20 8000 660 660 275 1 1 57.7 57.7 0.00 0.70
6 250Z20 7975 660 275 1 1 53.5 53.5 0.00 0.70
RExt 250Z20 175 275 0 1 1.1 1.1 0.00 0.70

Purlin DL= 0.251 (kN/m2)

LOAD ID 1 : Dead+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.32 0.00 0.03 338 0.11
1 1.34 -1.61 -1.92 0.11 -1.80 2852 0.99 2.15
2 1.56 1.25 -1.39 -1.70 2.15 1.22 -0.45 3336 1.60 2.62
3 2.08 1.77 -1.88 -2.19 2.62 1.35 -1.97 4432 1.79 3.13
4 1.99 1.68 -1.44 -1.75 3.13 1.91 -1.11 4256 1.11 2.17
5 1.75 1.44 -1.69 -2.00 2.17 1.12 -1.08 3727 1.97 3.19
6 2.27 1.96 -1.47 3.19 1.80 -2.29 4840 0.01
RExt 0.08 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.32 20.99 0.02 RSup 0.11 10.23 0.01 RSup 0.02 1.9
1 RLap -1.61 20.99 0.08 MidS -1.80 10.23 0.18 RLap 0.12 -5.4
2 RLap -1.39 20.99 0.07 RLap 1.60 10.22 0.16 RLap 0.17 0.1
3 RLap -1.88 20.99 0.09 MidS -1.97 10.23 0.19 RLap 0.20 -8.7
4 LLap 1.68 20.99 0.08 LLap 1.91 10.23 0.19 LLap 0.20 -2.8
5 RLap -1.69 20.99 0.08 RLap 1.97 10.23 0.19 RLap 0.21 -2.6
6 LLap 1.96 20.99 0.09 MidS -2.29 10.23 0.22 LLap 0.20 -8.7
RExt LSup 0.08 20.99 0.00 LSup 0.01 10.23 0.00 LSup 0.00 0.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Sheet 154 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Id Calc Shear Bear UC Calc Shear Bear UC

---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.82 8.78 9.55 0.09
2 0.82 8.78 9.55 0.09 0.99 8.78 9.55 0.11
3 0.99 8.78 9.55 0.11 1.18 8.78 9.55 0.13
4 1.18 8.78 9.55 0.13 0.82 8.78 9.55 0.09
5 0.82 8.78 9.55 0.09 1.21 8.78 9.55 0.14
6 1.21 8.78 9.55 0.14

LOAD ID 2 : Dead
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.03 0.00 0.00 338 0.01
1 0.12 -0.14 -0.17 0.01 -0.16 2852 0.09 0.19
2 0.14 0.11 -0.12 -0.15 0.19 0.11 -0.04 3336 0.14 0.23
3 0.18 0.15 -0.16 -0.19 0.23 0.12 -0.17 4432 0.16 0.27
4 0.17 0.15 -0.13 -0.15 0.27 0.17 -0.10 4256 0.10 0.19
5 0.15 0.13 -0.15 -0.18 0.19 0.10 -0.10 3727 0.17 0.28
6 0.20 0.17 -0.13 0.28 0.16 -0.20 4840 0.00
RExt 0.01 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.03 20.99 0.00 RSup 0.01 10.23 0.00 LSup 0.00 0.2
1 RLap -0.14 20.99 0.01 MidS -0.16 10.23 0.02 LSup 0.00 -0.5
2 RLap -0.12 20.99 0.01 RLap 0.14 10.22 0.01 LSup 0.00 0.0
3 RLap -0.16 20.99 0.01 MidS -0.17 10.23 0.02 LSup 0.00 -0.8
4 LLap 0.15 20.99 0.01 LLap 0.17 10.23 0.02 LSup 0.00 -0.2
5 RLap -0.15 20.99 0.01 RLap 0.17 10.23 0.02 LSup 0.00 -0.2
6 LLap 0.17 20.99 0.01 MidS -0.20 10.23 0.02 LSup 0.00 -0.8
RExt LSup 0.01 20.99 0.00 LSup 0.00 10.23 0.00 LSup 0.00 0.1

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.07 8.78 9.55 0.01
2 0.07 8.78 9.55 0.01 0.09 8.78 9.55 0.01
3 0.09 8.78 9.55 0.01 0.10 8.78 9.55 0.01
4 0.10 8.78 9.55 0.01 0.07 8.78 9.55 0.01
5 0.07 8.78 9.55 0.01 0.11 8.78 9.55 0.01
6 0.11 8.78 9.55 0.01

LOAD ID 3 : Dead+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.31 0.00 0.03 338 0.10
1 1.31 -1.59 -1.89 0.10 -1.77 2852 0.97 2.12
2 1.54 1.23 -1.36 -1.67 2.12 1.20 -0.44 3336 1.58 2.58
3 2.04 1.74 -1.85 -2.15 2.58 1.33 -1.94 4432 1.76 3.07
4 1.96 1.66 -1.42 -1.72 3.07 1.88 -1.10 4256 1.09 2.13
5 1.72 1.41 -1.66 -1.97 2.13 1.10 -1.07 3727 1.94 3.14
6 2.23 1.92 -1.44 3.14 1.77 -2.25 4840 0.01
RExt 0.08 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.31 20.99 0.01 RSup 0.10 10.23 0.01 RSup 0.02 1.8

Sheet 155 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

1 RLap -1.59 20.99 0.08 MidS -1.77 10.23 0.17 RLap 0.12 -5.3
2 RLap -1.36 20.99 0.07 RLap 1.58 10.22 0.15 RLap 0.17 0.1
3 RLap -1.85 20.99 0.09 MidS -1.94 10.23 0.19 RLap 0.19 -8.6
4 LLap 1.66 20.99 0.08 LLap 1.88 10.23 0.18 LLap 0.20 -2.7
5 RLap -1.66 20.99 0.08 RLap 1.94 10.23 0.19 RLap 0.20 -2.5
6 LLap 1.92 20.99 0.09 MidS -2.25 10.23 0.22 LLap 0.19 -8.5
RExt LSup 0.08 20.99 0.00 LSup 0.01 10.23 0.00 LSup 0.00 0.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.80 8.78 9.55 0.09
2 0.80 8.78 9.55 0.09 0.98 8.78 9.55 0.11
3 0.98 8.78 9.55 0.11 1.16 8.78 9.55 0.13
4 1.16 8.78 9.55 0.13 0.81 8.78 9.55 0.09
5 0.81 8.78 9.55 0.09 1.19 8.78 9.55 0.14
6 1.19 8.78 9.55 0.14

LOAD ID 4 : Dead+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.09 0.00 0.01 338 0.03
1 0.40 -0.48 -0.57 0.03 -0.54 2852 0.29 0.64
2 0.47 0.37 -0.41 -0.51 0.64 0.37 -0.14 3336 0.48 0.78
3 0.62 0.53 -0.56 -0.65 0.78 0.40 -0.59 4432 0.53 0.93
4 0.60 0.50 -0.43 -0.52 0.93 0.57 -0.33 4256 0.33 0.65
5 0.52 0.43 -0.51 -0.60 0.65 0.33 -0.32 3727 0.59 0.95
6 0.68 0.59 -0.44 0.95 0.54 -0.69 4840 0.00
RExt 0.02 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.09 20.99 0.00 RSup 0.03 10.23 0.00 LSup 0.00 0.6
1 RLap -0.48 20.99 0.02 MidS -0.54 10.23 0.05 RLap 0.04 -1.6
2 RLap -0.41 20.99 0.02 RLap 0.48 10.22 0.05 RLap 0.05 0.0
3 RLap -0.56 20.99 0.03 MidS -0.59 10.23 0.06 RLap 0.06 -2.6
4 LLap 0.50 20.99 0.02 LLap 0.57 10.23 0.06 LLap 0.06 -0.8
5 RLap -0.51 20.99 0.02 RLap 0.59 10.23 0.06 RLap 0.06 -0.8
6 LLap 0.59 20.99 0.03 MidS -0.69 10.23 0.07 LLap 0.06 -2.6
RExt LSup 0.02 20.99 0.00 LSup 0.00 10.23 0.00 LSup 0.00 0.2

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.24 8.78 9.55 0.03
2 0.24 8.78 9.55 0.03 0.30 8.78 9.55 0.03
3 0.30 8.78 9.55 0.03 0.35 8.78 9.55 0.04
4 0.35 8.78 9.55 0.04 0.25 8.78 9.55 0.03
5 0.25 8.78 9.55 0.03 0.36 8.78 9.55 0.04
6 0.36 8.78 9.55 0.04

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.15 0.00 -0.01 338 -0.05
1 -0.80 1.42 1.72 -0.05 1.36 3186 -0.85 -1.89

Sheet 156 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

2 -1.48 -1.18 1.39 1.69 -1.89 -1.01 0.52 3253 -1.59 -2.61
3 -2.03 -1.73 1.82 2.12 -2.61 -1.37 1.91 4453 -1.71 -3.01
4 -1.93 -1.62 1.42 1.72 -3.01 -1.84 1.06 4223 -1.16 -2.19
5 -1.75 -1.45 1.60 1.90 -2.19 -1.14 1.16 3835 -1.64 -2.80
6 -2.01 -1.71 0.85 -2.80 -1.57 1.63 4458 0.00
RExt -0.04 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.15 20.99 0.01 RSup -0.05 10.23 0.00 LSup 0.00 -1.3
1 RLap 1.42 20.99 0.07 MidS 1.36 7.16 0.19 RLap 0.11 4.1
2 RLap 1.39 20.99 0.07 RLap -1.59 10.23 0.16 RLap 0.17 0.2
3 RLap 1.82 20.99 0.09 MidS 1.91 7.16 0.27 RLap 0.19 8.4
4 LLap -1.62 20.99 0.08 LLap -1.84 10.23 0.18 LLap 0.20 2.5
5 RLap 1.60 20.99 0.08 RLap -1.64 10.23 0.16 RLap 0.18 3.2
6 LLap -1.71 20.99 0.08 MidS 1.63 7.16 0.23 LLap 0.17 6.1
RExt LSup -0.04 20.99 0.00 LSup 0.00 10.23 0.00 LSup 0.00 -0.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.71 8.78 9.55 0.08
2 0.71 8.78 9.55 0.08 0.99 8.78 9.55 0.11
3 0.99 8.78 9.55 0.11 1.14 8.78 9.55 0.13
4 1.14 8.78 9.55 0.13 0.83 8.78 9.55 0.09
5 0.83 8.78 9.55 0.09 1.06 8.78 9.55 0.12
6 1.06 8.78 9.55 0.12

DEFLECTION:
------------------------------

LOAD ID 6 : Dead
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.2
1 3480 -0.5 58.0 0.01
2 3480 0.0 58.0 0.00
3 4550 -0.8 75.8 0.01
4 4000 -0.2 66.7 0.00
5 4000 -0.2 66.7 0.00
6 3988 -0.8 66.5 0.01
RExt 175 0.1

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.7
1 3480 -4.9 46.4 0.11
2 3480 0.1 46.4 0.00
3 4550 -8.0 60.7 0.13
4 4000 -2.5 53.3 0.05
5 4000 -2.3 53.3 0.04
6 3988 -7.9 53.2 0.15
RExt 175 0.7

LOAD ID 8 : Dead+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.9
1 3480 -5.4 58.0 0.09
2 3480 0.1 58.0 0.00
3 4550 -8.7 75.8 0.12
4 4000 -2.8 66.7 0.04

Sheet 157 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

5 4000 -2.6 66.7 0.04

6 3988 -8.7 66.5 0.13
RExt 175 0.7

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.5
1 3480 -1.5 55.2 0.03
2 3480 0.0 55.2 0.00
3 4550 -2.5 72.2 0.03
4 4000 -0.8 63.5 0.01
5 4000 -0.7 63.5 0.01
6 3988 -2.4 63.3 0.04
RExt 175 0.2

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -1.4
1 3480 4.4 55.2 0.08
2 3480 0.2 55.2 0.00
3 4550 8.9 72.2 0.12
4 4000 2.7 63.5 0.04
5 4000 3.3 63.5 0.05
6 3988 6.6 63.3 0.10
RExt 175 -0.5
================================================================================
CI-6563-B01-REV-01- Purlin(Extension= 2, Roof) 5/21/20 8:06pm
================================================================================
------------------------------
EAVE EXTENSION ROOF PURLIN
Wall Id = 4
Extension Id = 2
Bay Start = 1
Bay End = 6
Extension Wid= 1500
------------------------------

LAYOUT:
Available
Design Reduction
Bay Length --Lap(mm)-- Load No. No. Factor
Id Part (mm) Left Right Width Strap Row Out In
---- -------- ------ ---- ----- ----- ----- --- ------ ------ ---- ----
LExt 250Z20 175 750 0 1 1.1 1.1 0.00 0.70
1 250Z20 7975 660 750 1 1 53.5 53.5 0.00 0.70
2 250Z20 8000 660 660 750 1 1 57.7 57.7 0.00 0.70
3 250Z20 8000 660 660 750 1 1 57.7 57.7 0.00 0.70
4 250Z20 9100 660 660 750 1 1 64.5 64.5 0.00 0.70
5 250Z20 6960 660 660 750 1 1 51.3 51.3 0.00 0.70
6 250Z20 6960 660 750 1 1 47.2 47.2 0.00 0.70
RExt 250Z20 675 750 0 1 4.2 4.2 0.00 0.70

Purlin DL= 0.092 (kN/m2)

LOAD ID 1 : Dead+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.22 0.00 0.00 88 0.02
1 4.01 -5.35 -6.19 0.02 -6.27 3135 4.91 8.71
2 5.47 4.62 -3.92 -4.77 8.71 5.38 -2.96 4273 3.05 5.92
3 4.79 3.94 -4.60 -5.44 5.92 3.04 -3.04 3744 5.23 8.54
4 5.97 5.13 -4.82 -5.67 8.54 4.88 -5.39 4668 3.70 7.16

Sheet 158 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

5 4.64 3.79 -3.42 -4.27 7.16 4.38 -1.24 3624 3.34 5.88
6 5.25 4.41 -3.65 5.88 2.69 -4.91 4108 0.29
RExt 0.86 0.00 0.29 0.07 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.22 20.99 0.01 RSup 0.02 10.23 0.00 LSup 0.00 2.0
1 RLap -5.35 20.99 0.25 MidS -6.27 10.23 0.61 RLap 0.54 -23.7
2 LLap 4.62 20.99 0.22 LLap 5.38 10.23 0.53 LLap 0.57 -7.0
3 RLap -4.60 20.99 0.22 RLap 5.23 10.23 0.51 RLap 0.55 -7.5
4 LLap 5.13 20.99 0.24 MidS -5.39 10.23 0.53 LLap 0.53 -23.9
5 LLap 3.79 20.99 0.18 LLap 4.38 10.22 0.43 LLap 0.46 0.3
6 LLap 4.41 20.99 0.21 MidS -4.91 10.23 0.48 LLap 0.33 -14.8
RExt LSup 0.86 20.99 0.04 LSup 0.29 10.23 0.03 LSup 0.05 5.1

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.30 8.78 9.55 0.38
2 3.30 8.78 9.55 0.38 2.24 8.78 9.55 0.26
3 2.24 8.78 9.55 0.26 3.24 8.78 9.55 0.37
4 3.24 8.78 9.55 0.37 2.71 8.78 9.55 0.31
5 2.71 8.78 9.55 0.31 2.23 8.78 9.55 0.25
6 2.23 8.78 9.55 0.25

LOAD ID 2 : Dead
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.02 0.00 0.00 88 0.00
1 0.35 -0.47 -0.54 0.00 -0.55 3135 0.43 0.76
2 0.48 0.40 -0.34 -0.42 0.76 0.47 -0.26 4273 0.27 0.52
3 0.42 0.35 -0.40 -0.48 0.52 0.27 -0.27 3744 0.46 0.75
4 0.52 0.45 -0.42 -0.50 0.75 0.43 -0.47 4668 0.32 0.63
5 0.41 0.33 -0.30 -0.37 0.63 0.38 -0.11 3624 0.29 0.52
6 0.46 0.39 -0.32 0.52 0.24 -0.43 4108 0.03
RExt 0.08 0.00 0.03 0.01 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.02 20.99 0.00 RSup 0.00 10.23 0.00 LSup 0.00 0.2
1 RLap -0.47 20.99 0.02 MidS -0.55 10.23 0.05 RLap 0.05 -2.1
2 LLap 0.40 20.99 0.02 LLap 0.47 10.23 0.05 LLap 0.05 -0.6
3 RLap -0.40 20.99 0.02 RLap 0.46 10.23 0.04 RLap 0.05 -0.7
4 LLap 0.45 20.99 0.02 MidS -0.47 10.23 0.05 LLap 0.05 -2.1
5 LLap 0.33 20.99 0.02 LLap 0.38 10.22 0.04 LLap 0.04 0.0
6 LLap 0.39 20.99 0.02 MidS -0.43 10.23 0.04 LLap 0.03 -1.3
RExt LSup 0.08 20.99 0.00 LSup 0.03 10.23 0.00 LSup 0.00 0.4

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.29 8.78 9.55 0.03
2 0.29 8.78 9.55 0.03 0.20 8.78 9.55 0.02
3 0.20 8.78 9.55 0.02 0.28 8.78 9.55 0.03
4 0.28 8.78 9.55 0.03 0.24 8.78 9.55 0.03
5 0.24 8.78 9.55 0.03 0.20 8.78 9.55 0.02
6 0.20 8.78 9.55 0.02

LOAD ID 3 : Dead+0.75Live+0.75Wind_Pressure1

Sheet 159 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.22 0.00 0.00 88 0.02
1 3.94 -5.25 -6.08 0.02 -6.16 3135 4.82 8.56
2 5.37 4.54 -3.86 -4.69 8.56 5.29 -2.91 4273 3.00 5.82
3 4.71 3.88 -4.52 -5.35 5.82 2.98 -2.99 3744 5.14 8.39
4 5.87 5.04 -4.74 -5.57 8.39 4.79 -5.30 4668 3.64 7.04
5 4.56 3.73 -3.36 -4.19 7.04 4.31 -1.21 3624 3.29 5.78
6 5.16 4.33 -3.59 5.78 2.65 -4.83 4108 0.29
RExt 0.85 0.00 0.29 0.07 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.22 20.99 0.01 RSup 0.02 10.23 0.00 LSup 0.00 1.9
1 RLap -5.25 20.99 0.25 MidS -6.16 10.23 0.60 RLap 0.53 -23.3
2 LLap 4.54 20.99 0.22 LLap 5.29 10.23 0.52 LLap 0.56 -6.9
3 RLap -4.52 20.99 0.22 RLap 5.14 10.23 0.50 RLap 0.54 -7.4
4 LLap 5.04 20.99 0.24 MidS -5.30 10.23 0.52 LLap 0.52 -23.5
5 LLap 3.73 20.99 0.18 LLap 4.31 10.22 0.42 LLap 0.46 0.3
6 LLap 4.33 20.99 0.21 MidS -4.83 10.23 0.47 LLap 0.33 -14.5
RExt LSup 0.85 20.99 0.04 LSup 0.29 10.23 0.03 LSup 0.05 5.0

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.24 8.78 9.55 0.37
2 3.24 8.78 9.55 0.37 2.20 8.78 9.55 0.25
3 2.20 8.78 9.55 0.25 3.18 8.78 9.55 0.36
4 3.18 8.78 9.55 0.36 2.67 8.78 9.55 0.30
5 2.67 8.78 9.55 0.30 2.19 8.78 9.55 0.25
6 2.19 8.78 9.55 0.25

LOAD ID 4 : Dead+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.07 0.00 0.00 88 0.01
1 1.20 -1.60 -1.85 0.01 -1.87 3135 1.46 2.60
2 1.63 1.38 -1.17 -1.42 2.60 1.61 -0.88 4273 0.91 1.77
3 1.43 1.18 -1.37 -1.63 1.77 0.91 -0.91 3744 1.56 2.55
4 1.78 1.53 -1.44 -1.69 2.55 1.46 -1.61 4668 1.10 2.14
5 1.38 1.13 -1.02 -1.27 2.14 1.31 -0.37 3624 1.00 1.76
6 1.57 1.32 -1.09 1.76 0.80 -1.47 4108 0.09
RExt 0.26 0.00 0.09 0.02 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.07 20.99 0.00 RSup 0.01 10.23 0.00 LSup 0.00 0.6
1 RLap -1.60 20.99 0.08 MidS -1.87 10.23 0.18 RLap 0.16 -7.1
2 LLap 1.38 20.99 0.07 LLap 1.61 10.23 0.16 LLap 0.17 -2.1
3 RLap -1.37 20.99 0.07 RLap 1.56 10.23 0.15 RLap 0.17 -2.2
4 LLap 1.53 20.99 0.07 MidS -1.61 10.23 0.16 LLap 0.16 -7.1
5 LLap 1.13 20.99 0.05 LLap 1.31 10.22 0.13 LLap 0.14 0.1
6 LLap 1.32 20.99 0.06 MidS -1.47 10.23 0.14 LLap 0.10 -4.4
RExt LSup 0.26 20.99 0.01 LSup 0.09 10.23 0.01 LSup 0.00 1.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Sheet 160 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.99 8.78 9.55 0.11
2 0.99 8.78 9.55 0.11 0.67 8.78 9.55 0.08
3 0.67 8.78 9.55 0.08 0.97 8.78 9.55 0.11
4 0.97 8.78 9.55 0.11 0.81 8.78 9.55 0.09
5 0.81 8.78 9.55 0.09 0.66 8.78 9.55 0.08
6 0.66 8.78 9.55 0.08

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.10 0.00 0.00 88 -0.01
1 -2.33 4.66 5.48 -0.01 4.45 3566 -4.28 -7.62
2 -5.18 -4.36 3.95 4.77 -7.62 -4.48 3.15 4165 -3.11 -5.98
3 -4.69 -3.87 4.43 5.25 -5.98 -3.16 2.88 3777 -5.01 -8.20
4 -5.78 -4.96 4.71 5.54 -8.20 -4.66 5.21 4647 -3.73 -7.11
5 -4.61 -3.79 3.22 4.04 -7.11 -4.34 1.43 3707 -2.75 -5.14
6 -4.69 -3.87 2.18 -5.14 -2.32 3.70 3774 -0.14
RExt -0.41 0.00 -0.14 -0.03 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.10 20.99 0.00 RSup -0.01 10.23 0.00 LSup 0.00 -1.3
1 RLap 4.66 20.99 0.22 MidS 4.45 7.16 0.62 RLap 0.47 16.7
2 LLap -4.36 20.99 0.21 LLap -4.48 10.23 0.44 LLap 0.48 8.6
3 RLap 4.43 20.99 0.21 RLap -5.01 10.23 0.49 RLap 0.53 6.9
4 LLap -4.96 20.99 0.24 MidS 5.21 7.16 0.73 LLap 0.51 23.0
5 LLap -3.79 20.99 0.18 LLap -4.34 10.23 0.42 LLap 0.46 0.6
6 LLap -3.87 20.99 0.18 MidS 3.70 7.16 0.52 LLap 0.29 11.1
RExt LSup -0.41 20.99 0.02 LSup -0.14 10.23 0.01 LSup 0.02 -3.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.89 8.78 9.55 0.33
2 2.89 8.78 9.55 0.33 2.27 8.78 9.55 0.26
3 2.27 8.78 9.55 0.26 3.11 8.78 9.55 0.35
4 3.11 8.78 9.55 0.35 2.69 8.78 9.55 0.31
5 2.69 8.78 9.55 0.31 1.95 8.78 9.55 0.22
6 1.95 8.78 9.55 0.22

DEFLECTION:
------------------------------

LOAD ID 6 : Dead
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.2
1 3988 -2.1 66.5 0.03
2 4000 -0.6 66.7 0.01
3 4000 -0.7 66.7 0.01
4 4550 -2.1 75.8 0.03
5 3480 0.0 58.0 0.00
6 3480 -1.3 58.0 0.02
RExt 675 0.4

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)

Sheet 161 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Id (mm) Calc Limit Ratio

---- ------ ----- ----- -----
LExt 0 1.8
1 3988 -21.6 53.2 0.41
2 4000 -6.4 53.3 0.12
3 4000 -6.9 53.3 0.13
4 4550 -21.8 60.7 0.36
5 3480 0.3 46.4 0.01
6 3480 -13.5 46.4 0.29
RExt 675 4.7

LOAD ID 8 : Dead+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 2.0
1 3988 -23.7 66.5 0.36
2 4000 -7.0 66.7 0.11
3 4000 -7.5 66.7 0.11
4 4550 -23.9 75.8 0.32
5 3480 0.3 58.0 0.01
6 3480 -14.8 58.0 0.26
RExt 675 5.1

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.5
1 3988 -6.7 63.3 0.11
2 4000 -2.0 63.5 0.03
3 4000 -2.1 63.5 0.03
4 4550 -6.7 72.2 0.09
5 3480 0.1 55.2 0.00
6 3480 -4.2 55.2 0.08
RExt 675 1.4

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -1.4
1 3988 17.9 63.3 0.28
2 4000 9.0 63.5 0.14
3 4000 7.3 63.5 0.12
4 4550 24.3 72.2 0.34
5 3480 0.6 55.2 0.01
6 3480 11.9 55.2 0.22
RExt 675 -3.9
================================================================================
CI-6563-B01-REV-01- Eave(Extension= 2) 5/21/20 8:06pm
================================================================================
------------------------------
EAVE EXTENSION EAVE STRUT
Wall Id = 4
Extension Id = 2
Bay Start = 1
Bay End = 6
Extension Wid= 1500
------------------------------

LAYOUT:
Available
Design Reduction
Bay Length --Lap(mm)-- Load No. No. Factor
Id Part (mm) Left Right Width Strap Row Out In
---- -------- ------ ---- ----- ----- ----- --- ------ ------ ---- ----
LExt 250Z20 175 479 0 1 1.1 1.1 0.00 0.70
1 250Z20 7975 660 479 1 1 53.5 53.5 0.00 0.70
2 250Z20 8000 660 660 479 1 1 57.7 57.7 0.00 0.70

Sheet 162 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

3 250Z20 8000 660 660 479 1 1 57.7 57.7 0.00 0.70

4 250Z20 9100 660 660 479 1 1 64.5 64.5 0.00 0.70
5 250Z20 6960 660 660 479 1 1 51.3 51.3 0.00 0.70
6 250Z20 6960 660 479 1 1 47.2 47.2 0.00 0.70
RExt 250Z20 675 479 0 1 4.2 4.2 0.00 0.70

Purlin DL= 0.144 (kN/m2)

LOAD ID 1 : Dead+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.14 0.00 0.00 88 0.01
1 2.56 -3.41 -3.95 0.01 -4.00 3135 3.13 5.56
2 3.49 2.95 -2.50 -3.04 5.56 3.44 -1.89 4273 1.95 3.78
3 3.06 2.52 -2.94 -3.48 3.78 1.94 -1.94 3744 3.34 5.45
4 3.81 3.27 -3.08 -3.62 5.45 3.11 -3.44 4668 2.36 4.57
5 2.96 2.42 -2.18 -2.72 4.57 2.80 -0.79 3624 2.13 3.75
6 3.35 2.82 -2.33 3.75 1.72 -3.13 4108 0.19
RExt 0.55 0.00 0.19 0.05 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.14 20.99 0.01 RSup 0.01 10.23 0.00 LSup 0.00 1.2
1 RLap -3.41 20.99 0.16 MidS -4.00 10.23 0.39 RLap 0.35 -15.1
2 LLap 2.95 20.99 0.14 LLap 3.44 10.23 0.34 LLap 0.36 -4.5
3 RLap -2.94 20.99 0.14 RLap 3.34 10.23 0.33 RLap 0.35 -4.8
4 LLap 3.27 20.99 0.16 MidS -3.44 10.23 0.34 LLap 0.34 -15.2
5 LLap 2.42 20.99 0.12 LLap 2.80 10.22 0.27 LLap 0.30 0.2
6 LLap 2.82 20.99 0.13 MidS -3.13 10.23 0.31 LLap 0.21 -9.4
RExt LSup 0.55 20.99 0.03 LSup 0.19 10.23 0.02 LSup 0.03 3.3

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.11 8.78 9.55 0.24
2 2.11 8.78 9.55 0.24 1.43 8.78 9.55 0.16
3 1.43 8.78 9.55 0.16 2.07 8.78 9.55 0.24
4 2.07 8.78 9.55 0.24 1.73 8.78 9.55 0.20
5 1.73 8.78 9.55 0.20 1.42 8.78 9.55 0.16
6 1.42 8.78 9.55 0.16

LOAD ID 2 : Dead
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.01 0.00 0.00 88 0.00
1 0.22 -0.30 -0.35 0.00 -0.35 3135 0.27 0.49
2 0.31 0.26 -0.22 -0.27 0.49 0.30 -0.17 4273 0.17 0.33
3 0.27 0.22 -0.26 -0.30 0.33 0.17 -0.17 3744 0.29 0.48
4 0.33 0.29 -0.27 -0.32 0.48 0.27 -0.30 4668 0.21 0.40
5 0.26 0.21 -0.19 -0.24 0.40 0.25 -0.07 3624 0.19 0.33
6 0.29 0.25 -0.20 0.33 0.15 -0.27 4108 0.02
RExt 0.05 0.00 0.02 0.00 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.01 20.99 0.00 RSup 0.00 10.23 0.00 LSup 0.00 0.1
1 RLap -0.30 20.99 0.01 MidS -0.35 10.23 0.03 RLap 0.03 -1.3

Sheet 163 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

2 LLap 0.26 20.99 0.01 LLap 0.30 10.23 0.03 LLap 0.03 -0.4
3 RLap -0.26 20.99 0.01 RLap 0.29 10.23 0.03 RLap 0.03 -0.4
4 LLap 0.29 20.99 0.01 MidS -0.30 10.23 0.03 LLap 0.03 -1.3
5 LLap 0.21 20.99 0.01 LLap 0.25 10.22 0.02 LLap 0.03 0.0
6 LLap 0.25 20.99 0.01 MidS -0.27 10.23 0.03 LLap 0.02 -0.8
RExt LSup 0.05 20.99 0.00 LSup 0.02 10.23 0.00 LSup 0.00 0.3

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.18 8.78 9.55 0.02
2 0.18 8.78 9.55 0.02 0.13 8.78 9.55 0.01
3 0.13 8.78 9.55 0.01 0.18 8.78 9.55 0.02
4 0.18 8.78 9.55 0.02 0.15 8.78 9.55 0.02
5 0.15 8.78 9.55 0.02 0.12 8.78 9.55 0.01
6 0.12 8.78 9.55 0.01

LOAD ID 3 : Dead+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.14 0.00 0.00 88 0.01
1 2.52 -3.35 -3.88 0.01 -3.93 3135 3.08 5.47
2 3.43 2.90 -2.46 -2.99 5.47 3.38 -1.86 4273 1.91 3.71
3 3.00 2.47 -2.89 -3.42 3.71 1.90 -1.91 3744 3.28 5.36
4 3.75 3.22 -3.03 -3.56 5.36 3.06 -3.38 4668 2.32 4.49
5 2.91 2.38 -2.15 -2.68 4.49 2.75 -0.78 3624 2.10 3.69
6 3.30 2.77 -2.29 3.69 1.69 -3.08 4108 0.18
RExt 0.54 0.00 0.18 0.05 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.14 20.99 0.01 RSup 0.01 10.23 0.00 LSup 0.00 1.2
1 RLap -3.35 20.99 0.16 MidS -3.93 10.23 0.38 RLap 0.34 -14.9
2 LLap 2.90 20.99 0.14 LLap 3.38 10.23 0.33 LLap 0.36 -4.4
3 RLap -2.89 20.99 0.14 RLap 3.28 10.23 0.32 RLap 0.35 -4.7
4 LLap 3.22 20.99 0.15 MidS -3.38 10.23 0.33 LLap 0.33 -15.0
5 LLap 2.38 20.99 0.11 LLap 2.75 10.22 0.27 LLap 0.29 0.2
6 LLap 2.77 20.99 0.13 MidS -3.08 10.23 0.30 LLap 0.21 -9.3
RExt LSup 0.54 20.99 0.03 LSup 0.18 10.23 0.02 LSup 0.03 3.2

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.07 8.78 9.55 0.24
2 2.07 8.78 9.55 0.24 1.41 8.78 9.55 0.16
3 1.41 8.78 9.55 0.16 2.03 8.78 9.55 0.23
4 2.03 8.78 9.55 0.23 1.70 8.78 9.55 0.19
5 1.70 8.78 9.55 0.19 1.40 8.78 9.55 0.16
6 1.40 8.78 9.55 0.16

LOAD ID 4 : Dead+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.04 0.00 0.00 88 0.00
1 0.76 -1.02 -1.18 0.00 -1.19 3135 0.93 1.66
2 1.04 0.88 -0.75 -0.91 1.66 1.03 -0.56 4273 0.58 1.13

Sheet 164 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

3 0.91 0.75 -0.88 -1.04 1.13 0.58 -0.58 3744 1.00 1.63
4 1.14 0.98 -0.92 -1.08 1.63 0.93 -1.03 4668 0.71 1.36
5 0.88 0.72 -0.65 -0.81 1.36 0.83 -0.24 3624 0.64 1.12
6 1.00 0.84 -0.70 1.12 0.51 -0.94 4108 0.06
RExt 0.16 0.00 0.06 0.01 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.04 20.99 0.00 RSup 0.00 10.23 0.00 LSup 0.00 0.4
1 RLap -1.02 20.99 0.05 MidS -1.19 10.23 0.12 RLap 0.10 -4.5
2 LLap 0.88 20.99 0.04 LLap 1.03 10.23 0.10 LLap 0.11 -1.3
3 RLap -0.88 20.99 0.04 RLap 1.00 10.23 0.10 RLap 0.11 -1.4
4 LLap 0.98 20.99 0.05 MidS -1.03 10.23 0.10 LLap 0.10 -4.6
5 LLap 0.72 20.99 0.03 LLap 0.83 10.22 0.08 LLap 0.09 0.1
6 LLap 0.84 20.99 0.04 MidS -0.94 10.23 0.09 LLap 0.06 -2.8
RExt LSup 0.16 20.99 0.01 LSup 0.06 10.23 0.01 LSup 0.00 1.0

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.63 8.78 9.55 0.07
2 0.63 8.78 9.55 0.07 0.43 8.78 9.55 0.05
3 0.43 8.78 9.55 0.05 0.62 8.78 9.55 0.07
4 0.62 8.78 9.55 0.07 0.52 8.78 9.55 0.06
5 0.52 8.78 9.55 0.06 0.42 8.78 9.55 0.05
6 0.42 8.78 9.55 0.05

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.07 0.00 0.00 88 -0.01
1 -1.49 2.97 3.50 -0.01 2.84 3517 -2.73 -4.87
2 -3.30 -2.78 2.52 3.04 -4.87 -2.86 2.01 4165 -1.98 -3.82
3 -3.00 -2.47 2.83 3.35 -3.82 -2.02 1.84 3777 -3.20 -5.24
4 -3.69 -3.16 3.01 3.53 -5.24 -2.98 3.33 4647 -2.38 -4.54
5 -2.94 -2.42 2.06 2.58 -4.54 -2.77 0.91 3707 -1.75 -3.28
6 -2.99 -2.47 1.39 -3.28 -1.48 2.36 3774 -0.09
RExt -0.26 0.00 -0.09 -0.02 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.07 20.99 0.00 RSup -0.01 10.23 0.00 LSup 0.00 -0.8
1 RLap 2.97 20.99 0.14 MidS 2.84 7.16 0.40 RLap 0.30 10.6
2 LLap -2.78 20.99 0.13 LLap -2.86 10.23 0.28 LLap 0.31 5.5
3 RLap 2.83 20.99 0.13 RLap -3.20 10.23 0.31 RLap 0.34 4.4
4 LLap -3.16 20.99 0.15 MidS 3.33 7.16 0.46 LLap 0.33 14.7
5 LLap -2.42 20.99 0.12 LLap -2.77 10.23 0.27 LLap 0.29 0.4
6 LLap -2.47 20.99 0.12 MidS 2.36 7.16 0.33 LLap 0.19 7.1
RExt LSup -0.26 20.99 0.01 LSup -0.09 10.23 0.01 LSup 0.00 -2.3

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 1.84 8.78 9.55 0.21
2 1.84 8.78 9.55 0.21 1.45 8.78 9.55 0.16
3 1.45 8.78 9.55 0.16 1.98 8.78 9.55 0.23
4 1.98 8.78 9.55 0.23 1.72 8.78 9.55 0.20
5 1.72 8.78 9.55 0.20 1.24 8.78 9.55 0.14
6 1.24 8.78 9.55 0.14

Sheet 165 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

DEFLECTION:
------------------------------

LOAD ID 6 : Dead
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.1
1 3988 -1.3 66.5 0.02
2 4000 -0.4 66.7 0.01
3 4000 -0.4 66.7 0.01
4 4550 -1.3 75.8 0.02
5 3480 0.0 58.0 0.00
6 3480 -0.8 58.0 0.01
RExt 675 0.3

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.1
1 3988 -13.8 53.2 0.26
2 4000 -4.1 53.3 0.08
3 4000 -4.4 53.3 0.08
4 4550 -13.9 60.7 0.23
5 3480 0.2 46.4 0.00
6 3480 -8.6 46.4 0.19
RExt 675 3.0

LOAD ID 8 : Dead+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.2
1 3988 -15.1 66.5 0.23
2 4000 -4.5 66.7 0.07
3 4000 -4.8 66.7 0.07
4 4550 -15.2 75.8 0.20
5 3480 0.2 58.0 0.00
6 3480 -9.4 58.0 0.16
RExt 675 3.3

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.4
1 3988 -4.3 63.3 0.07
2 4000 -1.3 63.5 0.02
3 4000 -1.4 63.5 0.02
4 4550 -4.3 72.2 0.06
5 3480 0.1 55.2 0.00
6 3480 -2.7 55.2 0.05
RExt 675 0.9

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -0.9
1 3988 11.4 63.3 0.18
2 4000 5.7 63.5 0.09
3 4000 4.7 63.5 0.07
4 4550 15.5 72.2 0.21
5 3480 0.4 55.2 0.01
6 3480 7.6 55.2 0.14
RExt 675 -2.5

Sheet 166 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

================================================================================
CI-6563-B01-REV-01- Warning Summary 5/21/20 8:06pm
================================================================================

.. No Warnings

Sheet 167 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Case-2
*===============================================================================
*CI-6563-B01-REV-01- Roof Design Input 5/21/20 5:42pm
*===============================================================================

*( 1)JOBID:
'CI-6563-B01-REV-01-CLEAR'

*( 2)PROGRAM OPTIONS:
* Run Run Run Lap
* Purlin Panel Brace Stiff
'Y' 'N' 'Y' 0.50

*( 3)DESIGN CODE:
*Design ---Steel_Code--- ---Build--- Code Seismic
* Code Cold Hot Country Code Year Label Zone
'WS' 'NAUS01 ' 'AISC05' '----' 'MBMA' '06' 'MBMA 06 ' 'A '

*( 4)DESIGN CONSTANTS:
* ---Strength_Factor---
* ------Stress_Ratio------ ---Seismic---
* Purlin Panel Wind_Frame Wind Frame Brace
1.0000 1.00 1.00 1.000 1.000 1.000

*( 5)STEEL YIELDS:
* Web Flg C_Sec W_Sec R_Sec P_Sec T_Sec U_Sec EP BP
345 345 340 345 345 345 317 345 345 345

*( 6)DEFLECTION LIMITS:
*------Purlin----- ----Extension--- ----Gable_Ext---- Facia ---Panel--- Facia Wind_Frame
*Live Wind Total Live Wind Total Live Wind Total Girt Live Wind Panel Wind Seis
250.0 126.0 0.0 150.0 126.0 120.0 75.0 63.0 60.0 90.0 200.0 200.0 60.0 50.0 50.0

*( 7)REPORTS:
* Input Roof Eave Roof Cable Roof
* Echo Purlin Strut Panel Brace Open
'Y' 'Y' 'Y' 'N' 'Y' 'Y'

*( 8)BUILDING LAYOUT:
* Build L_Expand_EW R_Expand_EW ------Open_Wall------- Column
* Type Use Offset Use Offset L_EW F_SW R_EW B_SW Option
'FF-' 'Y ' 675.00 'Y ' 175.00 'N' 'N' 'N' 'N' '-'

*( 9)SURFACE SHAPE:
* No. X_Coord Y_Coord
4 0.0 8129.0
14871.0 9616.1
37741.0 7121.0
37741.0 0.0

*(10)WALL BAY SPACING:

* Wall No. ---Bay_Set---
* Id Sets Width Quan
1 1 38260.0 1
2 5 7635.0 1
6960.0 1
9100.0 1
8000.0 2
8150.0 1
3 1 38260.0 1
4 5 8150.0 1
8000.0 2
9100.0 1
6960.0 1
7635.0 1
5 5 7635.0 1
6960.0 1
9100.0 1
8000.0 2
8150.0 1

Sheet 168 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

*(11)WALL OPENINGS:
* Wall Bay
* Id No. Id Offset Width HeightL HeightR Type Option
1 0
2 0
3 0
4 0

*(12)PARTIAL WALLS:
*Wall Set_Of --Bay_Id-- Base Top Full_Load ----Panel-----
* Id Bays Id Use Start End Height Type Type Girt Col Part Opt
1 1 1 'P' 1 1 8079.0 '-' 'A' 'N' 'Y' '--------' '-'
2 1 2 'P' 1 6 7121.0 '-' 'A' 'N' 'Y' '--------' '-'
3 1 3 'P' 1 1 7121.0 '-' 'A' 'N' 'Y' '--------' '-'
4 1 4 'P' 1 6 8079.0 '-' 'A' 'N' 'Y' '--------' '-'

*(13)JACK BEAM LAYOUT:

* --Bay_Id-
* No. Id Start End Offset Height
0

*(14)SURFACE EXTENSION/FRAME RECESS:

* Surf ---Surf_Ext--- Frame_Recess
* Id Left Right Left Right
2 0.0 0.0 675.0 175.0
3 0.0 0.0 675.0 175.0

*(15)ENDWALL COLUMN/RAFTER:
*Wall L_Column R_Column
* Id Type Rot Type Rot Rafter
1 '-' 'N' '-' 'N' '--------'
3 '-' 'N' '-' 'N' '--------'

*(16)PURLINS:
* Surf Purlin --Flange_Strap-- Set ----Set_Lap---
* Id Type Offset Project Out In Space Depth Ext Int
2 'ZB' 0.00 0.00 'C' 'Y' 4800.0 200.00 0.0 0.0
3 'ZB' 0.00 0.00 'C' 'Y' 4800.0 200.00 0.0 0.0

*(17)PURLIN SPACING:
* Surf Space Peak Max Set No. -Purlin_Set-
* Id Opt Space Space Space Sets Space Quan
2 '-' 300.0 1800.0 950.0 8 620 1
950 1
550 1
750 2
700 1
800 1
750 1
975 9

3 '-' 300.0 1800.0 950.0 9 975 12

550 1
950 1
975 5
975 1
750 2
625 1
800 1
731 1

*(18)PURLIN SIZE:
*Surf Show
* Id Id No. Part
2 1 8 '250Z25' '250Z25' '250Z20' '250Z20' '250Z20' '250Z20' '250Z25' '250Z25'
3 1 8 '250Z25' '250Z25' '250Z20' '250Z20' '250Z20' '250Z20' '250Z25' '250Z25'
*(19)REPLACEMENT PURLINS:
* Surf Bay
*No. Id Id Id Part
0

*(20)EAVE STRUT:
*Wall

Sheet 169 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

* Id Type Rot No. Part

2 'ZB' 'O' 0
4 'ZB' 'O' 0

*(21)WALL GIRT:
*Wall Girt Girt
* Id Type Part Offset Proj
1 'ZF' '--------' 0.00 0.00
2 'ZB' '--------' 0.00 0.00
3 'ZF' '--------' 0.00 0.00
4 'ZB' '--------' 0.00 0.00

*(22)GUTTER/SOLDIER COLUMN:
*Wall --Gutter-- Soldier_Opt
* Id Use Width Rafter Brace
2 'N' 0.00 '-' '-'
4 'N' 0.00 '-' '-'

*(23)PANELS:
* Wall ----Roof_Panel--- -----------Standing_Seam-----------
* Panel Part Start Type Height Seam Type Clamp
'P1 ' 'P1 ' 0.0 '--' 0.00 '---------------' 'N'

*(24)LINER PANELS:
* --Bay_Id- Flange
*No. Start End Part Opt
0

*(25)INSULATION:
* Use Thick Part
'N' 50.00 'R50PU '

*(26)ROOF BRACING OPTIONS:

* -----L_EW_Brace_To_Frame----- -----R_EW_Brace_To_Frame-----
*Panel Diagonal Left_Bay Right_Bay Left_Bay Right_Bay
*Shear Bracing Opt Part Opt Part Opt Part Opt Part
'N' 'Y ' '-' '--------' '-' '--------' '-' '--------' '-' '--------'

*(27)ROOF DIAGONAL BRACING:

* Max_Pan Brace Each User_Selected_Roof_Bays
* Shear Type EW No. Bay_Id
1095 'CR' 'L' 3 2 3 6
0

*(28)ROOF BRACING ATTACHMENT:

*Wall
* Id No. Location
1 3 0.0 14871.0 37741.0
3 3 0.0 14871.0 37741.0

*(29)WALL/INTERIOR BRACING OPTIONS:

* -----------Order_Of_Selection-----------
* Wall Panel Diagonal Wind Wind Weak_Axis Brace
* Id Shear Bracing Bent Column Bending Option Height
2 'N' 'Y ' 'Y' 'N' 'N' 'XB' 5000.0
4 'N' 'Y ' 'Y' 'N' 'N' 'XB' 5000.0
5 'N' 'N ' 'N' 'N' 'N' '--' 0.0

*(30)SIDEWALL DIAGONAL BRACING:

* Wall Max_Pan User_Selected_SW_Bays
* Id Shear Type No. Bay_Id
2 1095 'CR' 3 2 3 6
4 1095 'CR' 3 1 4 5

*(31)WIND BENTS:
*Wall Member -----Column----- -----Rafter----- No.
* Id Type Depth Part Depth Part Bays Bay_Id
2 'W' 0.0 '--------' 0.0 '--------' 0
4 'W' 0.0 '--------' 0.0 '--------' 0
5 'W' 0.0 '--------' 0.0 '--------' 0

*(32)WIND COLUMNS:
*Wall Member Left/
* Id Type Depth Part No. Bay_Id Right

Sheet 170 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

2 'W' 0.0 '--------' 0

4 'W' 0.0 '--------' 0
5 'W' 0.0 '--------' 0

*(33)WALL BRACING ATTACHMENT:

*Wall --Bay_Id-- No. ----Level----
* Id No. Id Start End Connect Option Level Height Strut
2 1 1 1 6 'F' 0 2 5000.0 'B'
7121.0 'E'
4 1 2 1 6 'F' 0 2 5000.0 'B'
8129.0 'E'

*(34)INTERIOR DIAGONAL BRACING:

* Attach User_Selected_Int_Bays
*No. Offset Type No. Bay_Id
0

*(35)INTERIOR BRACING ATTACHMENT:

* --Bay_Id-- No.
* No. Offset Start End Level Level_Height
0

*(36)EXTENSION LAYOUT:
* Ext Wall --Bay_Id- --Edge_Extend-- End_Option
*No. Id Id Type Opt Mount Start End Left Right Left Right
2 1 2 'EE' '-' 'B' 1 6 0.0 0.0 ' ' ' '
2 4 'EE' '-' 'B' 1 6 0.0 0.0 ' ' ' '

*(37)EXTENSION SIZE:
*Ext ----Horizontal_Size---- ---------Vertical_Size-------- --Orient--
*Id Height Width Slope Elev Height Slope Project Beam Panel
1 0.0 4225.0 10.910 0.0 0.0 0.000 0.00 '-' '-'
2 0.0 1500.0 10.000 0.0 0.0 0.000 0.00 '-' '-'

*(38)EXTENSION PURLINS:
* Ext --Flange_Strap-- Set ----Set_Lap--- Peak Max Set
*No. Id Loc Type Out In Space Depth Ext Int Space Space Space
2 1 'R' 'ZB' 'C' 'Y' 4800.0 0.00 660.0 660.0 0.0 1800.0 975.0
2 'R' 'ZB' 'C' 'Y' 4800.0 0.00 660.0 660.0 0.0 1800.0 750.0

*(39)EXTENSION EAVE STRUTS/GUTTERS:

* Ext --Eave-- --Gutter--
*No. Id Type Rot Use Width
2 1 'ZB' '-' 'N' 0.00
2 'ZB' '-' 'N' 0.00

*(40)EXTENSION PANELS:
* Ext ------------Standing_Seam-----------
*No. Id Loc Part Rot Space Type Height Seam Type Clamp
4 1 'R' 'P1 ' 'N' 0.0 '--' 0.00 '---------------' 'N'
1 'S' '--------' 'N' 0.0 '--' 0.00 '---------------' 'N'
2 'R' 'P1 ' 'N' 0.0 '--' 0.00 '---------------' 'N'
2 'S' '--------' 'N' 0.0 '--' 0.00 '---------------' 'N'

*(41)EXTENSION BRACING:
* Ext Run Max_Pan Brace User_Selected_Bays
*No. Id Brace Shear Type No. Bay_Id
2 1 'N' 1460 '--' 0
2 'N' 1460 '--' 0

*(42)WALL BASE ELEVATION/DEAD:

*Wall Base Wall Seis --%_Open--
* Id Elev Dead Opt Seis Wind
1 2500.0 0.0957 'Y' 0.85 0.85
2 2500.0 0.0957 'Y' 1.00 1.00
3 2500.0 0.0957 'Y' 0.85 0.85
4 2500.0 0.0957 'Y' 1.00 1.00
5 0.0 0.2457 'Y' 0.00 0.00

*(43)ROOF BASIC LOADS:

* ---Deflection--- Wall Seismic
* Dead Collat Live Snow Rain Basic Load_Ratio --Friction-- Edge Ld_Rat
* Load Load Load Load Load Wind Snow Wind Seis Wind Coef Zone Factor
0.150 0.000 1.570 0.000 0.000 1.106 1.00 1.00 1.00 1.431 0.1058 0 1.0000

Sheet 171 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

*(44)WIND PRESSURE/SUCTION:
* Wind Wind Wind
* Press Suct Suct_Roof
1.0504 -1.1125 .. Purlins
1.0504 -1.1125 .. Interior Roof Panels
1.4311 0.0000 -1.1285 .. Long Bracing, Building
1.4311 0.0000 .. Long Bracing, Wall Edge Zone
1.6595 -1.1064 0.8851 .. Long Bracing, Facia/Parapet

*(45)EXTENSION BASIC LOADS:

* -------Purlin_Wind------- --------Panel_Wind-
-------
*Ext Attach_Beam Facia_Beam Attach_Beam
Facia_Beam
*Id Dead Collat Live Snow Drift Slide Rain Press Suct Press Suct Press Suct Press
Suct
1 0.1500 0.0000 1.5700 0.0000 0.0000 0.0000 .0000 0.479 -1.745 0.000 0.000 0.479 -1.877 0.000
0.000
2 0.1500 0.0000 1.5700 0.0000 0.0000 0.0000 .0000 0.479 -1.745 0.000 0.000 0.479 -1.877 0.000
0.000

*(46)ROOF EDGE & CORNER ZONES:

*Wind Surf No Zone ---Purlin--- ---Panel---- Screw
* Id Id Zone Id Width Length Press Suct Press Suct Suct
1 2 5 1 0 0 1.00 1.00 1.00 1.00 1.00 .. Interior
2 3448 3448 1.60 1.53 1.60 1.50 1.50 .. Middle
3 0 3448 1.60 1.53 2.00 3.00 3.00 .. Edge_Left
4 1948 0 1.60 1.53 2.00 3.00 3.00 .. Edge_Top
5 0 3448 1.60 1.53 2.00 3.00 3.00 .. Edge_Right
1 3 4 1 0 0 1.00 1.00 1.00 1.00 1.00 .. Interior
2 3448 3448 1.60 1.53 1.60 1.50 1.50 .. Middle
3 0 3448 1.60 1.53 2.00 3.00 3.00 .. Edge_Left
5 0 3448 1.60 1.53 2.00 3.00 3.00 .. Edge_Right
2 2 1 1 0 0 1.00 1.00 1.00 1.00 1.00 .. Interior
2 3 1 1 0 0 1.00 1.00 1.00 1.00 1.00 .. Interior

*(47)ROOF EDGE & CORNER ZONES, LONGITUDINAL:

* EW
*Wind Surf No Zone Purlin
* Id Id Zone Id Width Length Suct
1 2 1 1 0 0 1.00 .. Interior
1 3 1 1 0 0 1.00 .. Interior
2 2 1 1 0 0 1.00 .. Interior
2 3 1 1 0 0 1.00 .. Interior

*(48)EXTENSION EDGE ZONES:

* Ext No. Zone ---Purlin-- ---Panel--- Screw
*No. Id Orn Zone Id Length Press Suct Press Suct Suct
2 1 'H' 3 1 0 1.00 1.00 1.00 1.00 1.00
2 3448 1.00 0.51 1.00 1.61 1.61
3 3448 1.00 0.51 1.00 1.61 1.61
2 'H' 3 1 0 1.00 1.00 1.00 1.00 1.00
2 3448 1.00 0.51 1.00 1.61 1.61
3 3448 1.00 0.51 1.00 1.61 1.61

*(49)PURLIN LOAD COMBINATIONS, STRENGTH:

* Surf No. Load -Add_Snow- ---Wind1--- ---Wind2--- Long_Wind Aux_Load
* Id Load Id Dead Collat Live Snow Drift Slide Rain Press Suct Press Suct EW1 EW2 Id Coef
2 5 1 1.00 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
2 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
3 1.00 1.00 0.75 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0.00 0.00 0 0.00
4 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0.00 0.00 0 0.00
5 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0 0.00
3 5 1 1.00 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
2 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
3 1.00 1.00 0.75 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0.00 0.00 0 0.00
4 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0.00 0.00 0 0.00
5 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0 0.00

*(50)PURLIN LOAD COMBINATIONS, DEFLECTION:

* Surf No. Load -Add_Snow- ---Wind1--- ---Wind2--- Long_Wind Aux_Load
* Id Load Id Dead Collat Live Snow Drift Slide Rain Press Suct Press Suct EW1 EW2 Id Coef
2 5 6 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
7 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
8 1.00 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
9 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0 0.00

Sheet 172 of 223 Version

3.1
 01 22-May-20

CI-6563-B01
10 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0 0.00
3 5 6 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
7 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
8 1.00 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
9 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0 0.00
10 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0 0.00

*(51)BRACING LOAD COMBINATIONS, STRENGTH:

* No. Load -Add_Snow- Long_Wind Aux_Load
* Load Id Dead Collat Live Snow Drift Slide Rain EW1 EW2 Seis Id Coef
11 1 1.00 1.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0 0.00
2 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0 0.00
3 1.00 1.00 0.75 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0 0.00
4 1.00 1.00 0.75 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0 0.00
5 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0 0.00
6 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0 0.00
7 0.60 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0 0.00
8 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0 0.00
9 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
10 1.00 1.00 0.75 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
11 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00

*(52)BRACING LOAD COMBINATIONS, DEFLECTION:

* No. Load -Add_Snow- Long_Wind Aux_Load
* Load Id Dead Collat Live Snow Drift Slide Rain EW1 EW2 Seis Id Coef
5 12 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
13 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
14 1.00 1.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
15 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0 0.00
16 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0 0.00

*(53)EXTENSION LOAD COMBINATIONS, STRENGTH:

* No. Load Wind Wind
* Load Id Dead Collat Live Snow Drift Slide Rain Press Suct
5 1 1.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00
2 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
3 1.00 0.00 0.75 0.00 0.00 0.00 0.00 0.75 0.00
4 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00
5 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00

*(54)EXTENSION LOAD COMBINATIONS, DEFLECTION:

* No. Load Wind Wind
* Load Id Dead Collat Live Snow Drift Slide Rain Press Suct
5 6 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00
7 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00
8 1.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00
9 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00
10 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00

*(55)PANEL LOAD COMBINATIONS, STRENGTH:

* No. Load -Add_Snow- ---Wind1--- ---Wind2--- Aux_Load
* Load Id Dead Collat Live Snow Drift Slide Rain Press Suct Press Suct Id Coef
6 1 1.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
2 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
3 1.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0 0.00
4 1.00 0.00 0.75 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0 0.00
5 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.75 0.00 0.00 0.00 0 0.00
6 0.60 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0 0.00

*(56)PANEL LOAD COMBINATIONS, DEFLECTION:

* No. Load -Add_Snow- ---Wind1--- ---Wind2--- Aux_Load
* Load Id Dead Collat Live Snow Drift Slide Rain Press Suct Press Suct Id Coef
5 7 0.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
8 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0.00 0 0.00
9 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 1.00 0.00 0.00 0 0.00
10 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00
11 1.00 0.00 1.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0 0.00

*(57)AUXILIARY LOADS:
* No._Add Add_Load
* No. Id Name Combs Id Coef
0

Sheet 173 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

*(58)ADDITIONAL LOADS:
* Surf Basic Load Load F D ----Surface----
* No. Id Id Load Type Orn W1 W2 D1 D2 Start End
0

*(59)PURLIN LAPS:
*Surf Data ------Set_1------- ------Set_2------- ------Set_3-------
* Id Opt Sets Left Right Quan Left Right Quan Left Right Quan
2 '-' 0
3 '-' 0

*(60)PURLIN LAPS: Extensions

*Ext Data ------Set_1------- ------Set_2------- ------Set_3-------
* Id Opt Sets Left Right Quan Left Right Quan Left Right Quan
1 '-' 0
2 '-' 0

*(61)PURLIN STRAPS:
* No.
* Opt Bay Straps/Bay
'-' 0

*(62)PURLIN STRAPS: Extensions

*Ext No.
* Id Bay Straps/Bay
1 0
2 0

*(63)PANEL SCREWS:
* No. Washer
*Zone Locate Id Zone Part Dia Limit Dia -------Spacing------
4 'ROOF ' 0 'INT ' '??? ' 5.50 15.300 19.00 0.00 0.00 0.00
'ROOF ' 0 'EDGE' '??? ' 5.50 15.300 19.00 0.00 0.00 0.00
'ROOF ' 0 'CORN' '??? ' 5.50 15.300 19.00 0.00 0.00 0.00
'WALL ' 0 'BASE' '??? ' 5.50 15.300 19.00 0.00 0.00 0.00

*(64)EXPANSION JOINTS:
*No. Expansion_Location
0

*(65)ADDED PURLINS:
* Surf --Bay_Id-- -Surface_Offset- ---Support---
*No. Id Id Start End Start End Opt Locate
0

*(66)PURLIN SYSTEMS:
*Surf Added_Purlins
* Id No. Id No. Id
2 1 1 0
3 1 1 0

*(67)ROOF OPENING LAYOUT:

* -Location- Frame --Surface-- ----Bay----
*No. Id Use Id Opt Type Id Offset Id Offset Width Length Ref Dist
0

*(68)ROOF OPENING FRAMING:

*Open Jamb Head ----Support---- Panel
* Id Type Type Type Opt Depth Opt Load

*(69)DESIGN CODE OPTIONS:

*No. Event Condition
0

*(70)WALL LIGHT PANELS:

* Wall ---Bay---- -Light_Panel-
* No. Id Id Offset Length Offset
0

*AUXILIARY LOAD DESCRIPTIONS:

* Aux
* Id Description
*

Sheet 174 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

*ADDITIONAL LOAD DESCRIPTIONS:

* Add
* Id Description
*
* Code files used:
* MBMA.06
* ROOFMBMA.06 Version 4.5
================================================================================
CI-6563-B01-REV-01- Design Code 5/21/20 8:06pm
================================================================================

STRUCTURAL CODE:
Design Basis : WS - Working Stress
Hot Rolled Steel : AISC05
Cold Formed Steel : NAUS01

BUILDING CODE:
Wind Code : MBMA 06
Seismic Zone : A

MODULUS OF ELASTICITY:
Hot Rolled Steel : 199955 (MN/m2)
Cold Formed Steel : 203403 (MN/m2)

================================================================================
CI-6563-B01-REV-01- Purlin Layout(Surface= 2) 5/21/20 8:06pm
================================================================================

SURFACE LAYOUT:
Surface No. Peak
Id Length Row Space
------- ------- --- -----
2 14945 17 300

PURLIN LOCATION:
Purlin Surf Load Dead Show ------Max_Load------
Id Offset Space Width Load Report Id UC Report Notes
------ ------ ----- ----- ----- ------ --- ---- --------- ------
1 620 620 785 0.095 Y 3 0.73 Mom+Shr
2 1570 950 750 0.099 3 0.70 Mom+Shr
3 2120 550 650 0.114 3 0.70 Mom+Shr
4 2870 750 750 0.099 3 0.83 Mom+Shr
5 3620 750 725 0.103 3 0.81 Mom+Shr
6 4320 700 750 0.099 3 0.83 Mom+Shr
7 5120 800 775 0.096 3 0.84 Mom+Shr
8 5870 750 862 0.086 3 0.88 Mom+Shr
9 6845 975 975 0.076 3 1.00 Mom+Shr
10 7820 975 975 0.076 3 1.00 Mom+Shr
11 8795 975 975 0.076 3 1.00 Mom+Shr
12 9770 975 975 0.076 3 1.00 Mom+Shr
13 10745 975 975 0.076 3 1.00 Mom+Shr
14 11720 975 975 0.076 Y 3 1.00 Mom+Shr
15 12695 975 975 0.076 3 1.00 Mom+Shr
16 13670 975 975 0.076 3 1.00 Mom+Shr
17 14645 975 787 0.094 3 0.80 Mom+Shr
14945 300
-----
Average= 0.086

LAYOUT:
Bay Design ---Lap(mm)-- No.
Id Part Length Left Right Strap
---- -------- ------ ----- ----- ----- ------ ------
LExt 250Z25 675 0 5.2 88.7
1 250Z25 6960 660 1 58.9 1001.3
2 250Z20 6960 660 660 1 51.3 871.3
3 250Z20 9100 660 660 1 64.5 1096.5
4 250Z20 8000 660 660 1 57.7 980.7
5 250Z20 8000 660 660 1 57.7 980.7
6 250Z25 7975 660 1 66.7 1134.7
RExt 250Z25 175 0 1.4 23.0

Sheet 175 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LOAD COMBINATIONS:
3 - Dead+Collateral+0.75Live+0.75Wind_Pressure1

================================================================================
CI-6563-B01-REV-01- Purlin(Surface= 2, Id= 1) 5/21/20 8:06pm
================================================================================
------------------------------
ROOF PURLIN
Surface Id = 2
Purlin Id = 1
Offset = 620
------------------------------

LAYOUT: (Purlin Id= 1)

Available
Design Reduction
Bay Length ---Lap(mm)-- Load No. Factor
Id Part (mm) Left Right Width Strap Out In
---- -------- ------ ----- ----- ----- ----- ---- ----
LExt 250Z25 675 785 0 0.00 0.70
1 250Z25 6960 660 785 1 0.00 0.70
2 250Z20 6960 660 660 785 1 0.00 0.70
3 250Z20 9100 660 660 785 1 0.00 0.70
4 250Z20 8000 660 660 785 1 0.00 0.70
5 250Z20 8000 660 660 785 1 0.00 0.70
6 250Z25 7975 660 785 1 0.00 0.70
RExt 250Z25 175 785 0 0.00 0.70

LOAD ID 1 : Dead+Collateral+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.90 0.00 0.08 338 0.30
1 3.84 -4.60 -5.48 0.30 -5.19 2866 2.70 6.03
2 4.44 3.56 -3.99 -4.88 6.03 3.39 -1.34 3318 4.61 7.53
3 5.94 5.06 -5.36 -6.25 7.53 3.91 -5.64 4436 5.10 8.93
4 5.69 4.81 -4.13 -5.02 8.93 5.46 -3.18 4253 3.20 6.22
5 5.00 4.12 -4.83 -5.71 6.22 3.21 -3.12 3735 5.58 9.05
6 6.47 5.59 -4.21 9.05 5.07 -6.58 4834 0.02
RExt 0.23 0.00 0.02 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.90 41.17 0.02 RSup 0.30 13.63 0.02 RSup 0.03 4.4
1 RLap -4.60 41.17 0.11 MidS -5.19 13.63 0.38 RSup 0.27 -12.7
2 RLap -3.99 20.99 0.19 RLap 4.61 10.23 0.45 RLap 0.49 0.1
3 RLap -5.36 20.99 0.26 MidS -5.64 10.23 0.55 RLap 0.56 -24.9
4 LLap 4.81 20.99 0.23 LLap 5.46 10.23 0.53 LLap 0.58 -7.9
5 RLap -4.83 20.99 0.23 RLap 5.58 10.23 0.55 RLap 0.59 -7.5
6 LLap 5.59 41.17 0.14 MidS -6.58 13.63 0.48 LLap 0.43 -20.1
RExt LSup 0.23 41.17 0.01 LSup 0.02 13.63 0.00 LSup 0.00 1.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.53 8.78 11.94 0.29
2 2.03 8.78 9.55 0.23 2.85 8.78 9.55 0.33
3 2.85 8.78 9.55 0.33 3.38 8.78 9.55 0.39
4 3.38 8.78 9.55 0.39 2.36 8.78 9.55 0.27
5 2.36 8.78 9.55 0.27 3.06 8.78 9.55 0.35
6 3.80 8.78 11.94 0.43

Sheet 176 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LOAD ID 2 : Dead+Collateral
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.08 0.00 0.01 338 0.03
1 0.34 -0.40 -0.48 0.03 -0.45 2866 0.24 0.53
2 0.39 0.31 -0.35 -0.43 0.53 0.30 -0.12 3318 0.40 0.66
3 0.52 0.44 -0.47 -0.55 0.66 0.34 -0.49 4436 0.45 0.78
4 0.50 0.42 -0.36 -0.44 0.78 0.48 -0.28 4253 0.28 0.54
5 0.44 0.36 -0.42 -0.50 0.54 0.28 -0.27 3735 0.49 0.79
6 0.57 0.49 -0.37 0.79 0.44 -0.58 4834 0.00
RExt 0.02 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.08 41.17 0.00 RSup 0.03 13.63 0.00 LSup 0.00 0.4
1 RLap -0.40 41.17 0.01 MidS -0.45 13.63 0.03 LSup 0.00 -1.1
2 RLap -0.35 20.99 0.02 RLap 0.40 10.23 0.04 RLap 0.04 0.0
3 RLap -0.47 20.99 0.02 MidS -0.49 10.23 0.05 RLap 0.05 -2.2
4 LLap 0.42 20.99 0.02 LLap 0.48 10.23 0.05 LLap 0.05 -0.7
5 RLap -0.42 20.99 0.02 RLap 0.49 10.23 0.05 RLap 0.05 -0.7
6 LLap 0.49 41.17 0.01 MidS -0.58 13.63 0.04 LLap 0.04 -1.8
RExt LSup 0.02 41.17 0.00 LSup 0.00 13.63 0.00 LSup 0.00 0.1

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.22 8.78 11.94 0.03
2 0.18 8.78 9.55 0.02 0.25 8.78 9.55 0.03
3 0.25 8.78 9.55 0.03 0.30 8.78 9.55 0.03
4 0.30 8.78 9.55 0.03 0.21 8.78 9.55 0.02
5 0.21 8.78 9.55 0.02 0.27 8.78 9.55 0.03
6 0.33 8.78 11.94 0.04

LOAD ID 3 : Dead+Collateral+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.12 0.00 0.09 338 0.38
1 4.74 -5.68 -6.77 0.38 -6.41 2866 3.33 7.44
2 5.48 4.39 -4.93 -6.02 7.44 4.18 -1.66 3318 5.69 9.30
3 7.33 6.24 -6.62 -7.71 9.30 4.82 -6.96 4436 6.29 11.02
4 7.03 5.94 -5.10 -6.19 11.02 6.74 -3.93 4253 3.95 7.68
5 6.17 5.08 -5.96 -7.05 7.68 3.96 -3.85 3735 6.88 11.17
6 7.99 6.90 -5.19 11.17 6.26 -8.13 4834 0.03
RExt 0.29 0.00 0.03 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.12 41.17 0.03 RSup 0.38 13.63 0.03 RSup 0.04 5.4
1 RLap -5.68 41.17 0.14 MidS -6.41 13.63 0.47 RSup 0.33 -15.6
2 RLap -4.93 20.99 0.23 RLap 5.69 10.23 0.56 RLap 0.60 0.1
3 RLap -6.62 20.99 0.32 MidS -6.96 10.23 0.68 RLap 0.69 -30.8
4 LLap 5.94 20.99 0.28 LLap 6.74 10.23 0.66 LLap 0.71 -9.7
5 RLap -5.96 20.99 0.28 RLap 6.88 10.23 0.67 RLap 0.73 -9.3
6 LLap 6.90 41.17 0.17 MidS -8.13 13.63 0.60 LLap 0.53 -24.8
RExt LSup 0.29 41.17 0.01 LSup 0.03 13.63 0.00 LSup 0.00 2.0

LAP BOLT SHEAR/BEARING:

Sheet 177 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.13 8.78 11.94 0.36
2 2.51 8.78 9.55 0.29 3.52 8.78 9.55 0.40
3 3.52 8.78 9.55 0.40 4.17 8.78 9.55 0.48
4 4.17 8.78 9.55 0.48 2.91 8.78 9.55 0.33
5 2.91 8.78 9.55 0.33 3.77 8.78 9.55 0.43
6 4.70 8.78 11.94 0.54

LOAD ID 4 : Dead+Collateral+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.50 0.00 0.04 338 0.17
1 2.11 -2.53 -3.02 0.17 -2.86 2866 1.49 3.31
2 2.44 1.96 -2.20 -2.68 3.31 1.86 -0.74 3318 2.53 4.14
3 3.27 2.78 -2.95 -3.44 4.14 2.15 -3.10 4436 2.80 4.91
4 3.13 2.65 -2.27 -2.76 4.91 3.00 -1.75 4253 1.76 3.42
5 2.75 2.26 -2.65 -3.14 3.42 1.77 -1.72 3735 3.07 4.98
6 3.56 3.07 -2.31 4.98 2.79 -3.62 4834 0.01
RExt 0.13 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.50 41.17 0.01 RSup 0.17 13.63 0.01 RSup 0.02 2.4
1 RLap -2.53 41.17 0.06 MidS -2.86 13.63 0.21 RSup 0.15 -7.0
2 RLap -2.20 20.99 0.10 RLap 2.53 10.23 0.25 RLap 0.27 0.0
3 RLap -2.95 20.99 0.14 MidS -3.10 10.23 0.30 RLap 0.31 -13.7
4 LLap 2.65 20.99 0.13 LLap 3.00 10.23 0.29 LLap 0.32 -4.3
5 RLap -2.65 20.99 0.13 RLap 3.07 10.23 0.30 RLap 0.32 -4.1
6 LLap 3.07 41.17 0.07 MidS -3.62 13.63 0.27 LLap 0.24 -11.0
RExt LSup 0.13 41.17 0.00 LSup 0.01 13.63 0.00 LSup 0.00 0.9

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 1.39 8.78 11.94 0.16
2 1.12 8.78 9.55 0.13 1.57 8.78 9.55 0.18
3 1.57 8.78 9.55 0.18 1.86 8.78 9.55 0.21
4 1.86 8.78 9.55 0.21 1.30 8.78 9.55 0.15
5 1.30 8.78 9.55 0.15 1.68 8.78 9.55 0.19
6 2.09 8.78 11.94 0.24

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.54 0.00 -0.05 338 -0.18
1 -2.30 2.76 3.29 -0.18 3.12 2866 -1.62 -3.62
2 -2.67 -2.14 2.40 2.93 -3.62 -2.03 0.81 3318 -2.77 -4.52
3 -3.57 -3.04 3.22 3.75 -4.52 -2.34 3.38 4436 -3.06 -5.36
4 -3.42 -2.89 2.48 3.01 -5.36 -3.28 1.91 4253 -1.92 -3.73
5 -3.00 -2.47 2.90 3.43 -3.73 -1.93 1.87 3735 -3.35 -5.44
6 -3.89 -3.36 2.53 -5.44 -3.05 3.95 4834 -0.01
RExt -0.14 0.00 -0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)

Sheet 178 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit

---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.54 41.17 0.01 RSup -0.18 13.63 0.01 RSup 0.02 -2.6
1 RLap 2.76 41.17 0.07 MidS 3.12 9.54 0.33 RSup 0.16 7.6
2 RLap 2.40 20.99 0.11 RLap -2.77 10.23 0.27 RLap 0.29 0.0
3 RLap 3.22 20.99 0.15 MidS 3.38 7.16 0.47 RLap 0.33 15.0
4 LLap -2.89 20.99 0.14 LLap -3.28 10.23 0.32 LLap 0.35 4.7
5 RLap 2.90 20.99 0.14 RLap -3.35 10.23 0.33 RLap 0.35 4.5
6 LLap -3.36 41.17 0.08 MidS 3.95 9.54 0.41 LLap 0.26 12.1
RExt LSup -0.14 41.17 0.00 LSup -0.01 13.63 0.00 LSup 0.00 -1.0

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 1.52 8.78 11.94 0.17
2 1.22 8.78 9.55 0.14 1.71 8.78 9.55 0.20
3 1.71 8.78 9.55 0.20 2.03 8.78 9.55 0.23
4 2.03 8.78 9.55 0.23 1.41 8.78 9.55 0.16
5 1.41 8.78 9.55 0.16 1.84 8.78 9.55 0.21
6 2.28 8.78 11.94 0.26

DEFLECTION:
------------------------------

LOAD ID 6 : Dead+Collateral
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.4
1 3480 -1.1 27.8 0.04
2 3480 0.0 27.8 0.00
3 4550 -2.2 36.4 0.06
4 4000 -0.7 32.0 0.02
5 4000 -0.7 32.0 0.02
6 3988 -1.8 31.9 0.06
RExt 175 0.1

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.0
1 3480 -11.6 27.8 0.42
2 3480 0.1 27.8 0.00
3 4550 -22.7 36.4 0.62
4 4000 -7.2 32.0 0.22
5 4000 -6.9 32.0 0.21
6 3988 -18.3 31.9 0.57
RExt 175 1.5

LOAD ID 8 : Dead+Collateral+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.4
1 3480 -12.7 27.8 0.46
2 3480 0.1 27.8 0.00
3 4550 -24.9 36.4 0.68
4 4000 -7.9 32.0 0.25
5 4000 -7.5 32.0 0.24
6 3988 -20.1 31.9 0.63
RExt 175 1.7

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----

Sheet 179 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LExt 0 2.7
1 3480 -7.8 55.2 0.14
2 3480 0.0 55.2 0.00
3 4550 -15.4 72.2 0.21
4 4000 -4.8 63.5 0.08
5 4000 -4.6 63.5 0.07
6 3988 -12.4 63.3 0.20
RExt 175 1.0

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -2.8
1 3480 8.3 55.2 0.15
2 3480 0.0 55.2 0.00
3 4550 16.3 72.2 0.23
4 4000 5.1 63.5 0.08
5 4000 4.9 63.5 0.08
6 3988 13.1 63.3 0.21
RExt 175 -1.1
================================================================================
CI-6563-B01-REV-01- Purlin(Surface= 2, Id= 14) 5/21/20 8:06pm
================================================================================
------------------------------
ROOF PURLIN
Surface Id = 2
Purlin Id = 14
Offset = 11720
------------------------------

LAYOUT: (Purlin Id= 14)

Available
Design Reduction
Bay Length ---Lap(mm)-- Load No. Factor
Id Part (mm) Left Right Width Strap Out In
---- -------- ------ ----- ----- ----- ----- ---- ----
LExt 250Z25 675 975 0 0.00 0.70
1 250Z25 6960 660 975 1 0.00 0.70
2 250Z20 6960 660 660 975 1 0.00 0.70
3 250Z20 9100 660 660 975 1 0.00 0.70
4 250Z20 8000 660 660 975 1 0.00 0.70
5 250Z20 8000 660 660 975 1 0.00 0.70
6 250Z25 7975 660 975 1 0.00 0.70
RExt 250Z25 175 975 0 0.00 0.70

LOAD ID 1 : Dead+Collateral+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.12 0.00 0.09 338 0.38
1 4.77 -5.71 -6.81 0.38 -6.45 2866 3.35 7.48
2 5.52 4.42 -4.96 -6.06 7.48 4.21 -1.67 3318 5.72 9.35
3 7.38 6.28 -6.66 -7.76 9.35 4.85 -7.00 4436 6.33 11.08
4 7.07 5.97 -5.13 -6.23 11.08 6.78 -3.95 4253 3.97 7.72
5 6.21 5.11 -5.99 -7.09 7.72 3.99 -3.88 3735 6.93 11.24
6 8.04 6.94 -5.22 11.24 6.30 -8.18 4834 0.03
RExt 0.29 0.00 0.03 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.12 41.17 0.03 RSup 0.38 13.63 0.03 RSup 0.04 5.4
1 RLap -5.71 41.17 0.14 MidS -6.45 13.63 0.47 RSup 0.34 -15.7
2 RLap -4.96 20.99 0.24 RLap 5.72 10.23 0.56 RLap 0.61 0.1
3 RLap -6.66 20.99 0.32 MidS -7.00 10.23 0.68 RLap 0.69 -31.0
4 LLap 5.97 20.99 0.28 LLap 6.78 10.23 0.66 LLap 0.72 -9.8

Sheet 180 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

5 RLap -5.99 20.99 0.29 RLap 6.93 10.23 0.68 RLap 0.73 -9.4
6 LLap 6.94 41.17 0.17 MidS -8.18 13.63 0.60 LLap 0.53 -24.9
RExt LSup 0.29 41.17 0.01 LSup 0.03 13.63 0.00 LSup 0.00 2.1

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.14 8.78 11.94 0.36
2 2.53 8.78 9.55 0.29 3.54 8.78 9.55 0.40
3 3.54 8.78 9.55 0.40 4.20 8.78 9.55 0.48
4 4.20 8.78 9.55 0.48 2.93 8.78 9.55 0.33
5 2.93 8.78 9.55 0.33 3.80 8.78 9.55 0.43
6 4.72 8.78 11.94 0.54

LOAD ID 2 : Dead+Collateral
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.10 0.00 0.01 338 0.03
1 0.42 -0.50 -0.60 0.03 -0.56 2866 0.29 0.66
2 0.48 0.39 -0.43 -0.53 0.66 0.37 -0.15 3318 0.50 0.82
3 0.65 0.55 -0.58 -0.68 0.82 0.42 -0.61 4436 0.55 0.97
4 0.62 0.52 -0.45 -0.55 0.97 0.59 -0.35 4253 0.35 0.68
5 0.54 0.45 -0.53 -0.62 0.68 0.35 -0.34 3735 0.61 0.98
6 0.70 0.61 -0.46 0.98 0.55 -0.72 4834 0.00
RExt 0.03 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.10 41.17 0.00 RSup 0.03 13.63 0.00 LSup 0.00 0.5
1 RLap -0.50 41.17 0.01 MidS -0.56 13.63 0.04 RLap 0.03 -1.4
2 RLap -0.43 20.99 0.02 RLap 0.50 10.23 0.05 RLap 0.05 0.0
3 RLap -0.58 20.99 0.03 MidS -0.61 10.23 0.06 RLap 0.06 -2.7
4 LLap 0.52 20.99 0.02 LLap 0.59 10.23 0.06 LLap 0.06 -0.9
5 RLap -0.53 20.99 0.03 RLap 0.61 10.23 0.06 RLap 0.06 -0.8
6 LLap 0.61 41.17 0.01 MidS -0.72 13.63 0.05 LLap 0.05 -2.2
RExt LSup 0.03 41.17 0.00 LSup 0.00 13.63 0.00 LSup 0.00 0.2

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.28 8.78 11.94 0.03
2 0.22 8.78 9.55 0.03 0.31 8.78 9.55 0.04
3 0.31 8.78 9.55 0.04 0.37 8.78 9.55 0.04
4 0.37 8.78 9.55 0.04 0.26 8.78 9.55 0.03
5 0.26 8.78 9.55 0.03 0.33 8.78 9.55 0.04
6 0.41 8.78 11.94 0.05

LOAD ID 3 : Dead+Collateral+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.39 0.00 0.12 338 0.47
1 6.31 -8.21 -9.56 0.47 -9.23 3028 4.28 10.15
2 6.98 5.62 -5.96 -7.31 10.15 5.99 -1.70 3398 6.94 11.31
3 9.06 7.71 -8.26 -9.61 11.31 5.78 -8.70 4416 7.92 13.82
4 8.78 7.43 -6.28 -7.64 13.82 8.47 -4.98 4280 4.63 9.23
5 7.49 6.14 -7.57 -8.93 9.23 4.73 -4.44 3650 9.52 14.97

Sheet 181 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

6 11.05 9.70 -6.91 14.97 8.12 -11.58 4626 0.03

RExt 0.36 0.00 0.03 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.39 41.17 0.03 RSup 0.47 13.63 0.03 RSup 0.05 7.7
1 RLap -8.21 41.17 0.20 MidS -9.23 13.63 0.68 RSup 0.46 -23.0
2 RLap -5.96 20.99 0.28 RLap 6.94 10.18 0.68 RLap 0.73 1.6
3 RLap -8.26 20.99 0.39 MidS -8.70 10.23 0.85 RLap 0.86 -38.6
4 LLap 7.43 20.99 0.35 LLap 8.47 10.23 0.83 LLap 0.90 -12.5
5 RLap -7.57 20.99 0.36 RLap 9.52 10.16 0.94 RLap 1.00 -9.3
6 LLap 9.70 41.17 0.24 MidS -11.58 13.63 0.85 LLap 0.70 -36.5
RExt LSup 0.36 41.17 0.01 LSup 0.03 13.63 0.00 LSup 0.00 2.9

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 4.26 8.78 11.94 0.49
2 3.43 8.78 9.55 0.39 4.29 8.78 9.55 0.49
3 4.29 8.78 9.55 0.49 5.23 8.78 9.55 0.60
4 5.23 8.78 9.55 0.60 3.50 8.78 9.55 0.40
5 3.50 8.78 9.55 0.40 5.05 8.78 9.55 0.58
6 6.29 8.78 11.94 0.72

LOAD ID 4 : Dead+Collateral+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.62 0.00 0.05 338 0.21
1 3.05 -4.30 -4.90 0.21 -4.84 3146 1.99 5.03
2 3.20 2.60 -2.56 -3.17 5.03 3.11 -0.57 3498 3.02 4.91
3 4.02 3.41 -3.70 -4.31 4.91 2.46 -3.91 4391 3.59 6.23
4 3.94 3.34 -2.77 -3.37 6.23 3.83 -2.27 4313 1.92 3.94
5 3.24 2.64 -3.47 -4.08 3.94 2.00 -1.80 3544 4.78 7.27
6 5.55 4.95 -3.33 7.27 3.81 -6.03 4453 0.01
RExt 0.16 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.62 41.17 0.01 RSup 0.21 13.63 0.02 RSup 0.02 4.0
1 RLap -4.30 41.17 0.10 MidS -4.84 13.63 0.36 RSup 0.23 -12.3
2 LLap 2.60 20.99 0.12 LLap 3.11 10.08 0.31 LLap 0.33 1.5
3 RLap -3.70 20.99 0.18 MidS -3.91 10.23 0.38 RLap 0.39 -17.4
4 LLap 3.34 20.99 0.16 LLap 3.83 10.23 0.37 LLap 0.41 -5.9
5 RLap -3.47 20.99 0.17 RLap 4.78 9.94 0.48 RLap 0.50 -2.9
6 LLap 4.95 41.17 0.12 MidS -6.03 13.63 0.44 LLap 0.34 -19.4
RExt LSup 0.16 41.17 0.00 LSup 0.01 13.63 0.00 LSup 0.00 1.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.11 8.78 11.94 0.24
2 1.70 8.78 9.55 0.19 1.86 8.78 9.55 0.21
3 1.86 8.78 9.55 0.21 2.36 8.78 9.55 0.27
4 2.36 8.78 9.55 0.27 1.49 8.78 9.55 0.17
5 1.49 8.78 9.55 0.17 2.46 8.78 9.55 0.28
6 3.06 8.78 11.94 0.35

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

Sheet 182 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.67 0.00 -0.06 338 -0.23
1 -3.40 4.87 5.53 -0.23 5.49 3167 -2.19 -5.63
2 -3.52 -2.86 2.77 3.43 -5.63 -3.52 0.57 3524 -3.28 -5.32
3 -4.38 -3.72 4.05 4.71 -5.32 -2.65 4.27 4385 -3.93 -6.82
4 -4.31 -3.66 3.01 3.67 -6.82 -4.19 2.50 4321 -2.05 -4.26
5 -3.51 -2.85 3.82 4.48 -4.26 -2.16 1.92 3517 -5.38 -8.11
6 -6.24 -5.58 3.71 -8.11 -4.21 6.83 4417 -0.02
RExt -0.18 0.00 -0.02 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.67 41.17 0.02 RSup -0.23 13.63 0.02 RSup 0.02 -4.5
1 RLap 4.87 41.17 0.12 MidS 5.49 9.54 0.58 RSup 0.26 13.9
2 LLap -2.86 20.99 0.14 LLap -3.52 10.23 0.34 LLap 0.37 -1.9
3 RLap 4.05 20.99 0.19 MidS 4.27 7.16 0.60 RLap 0.43 19.1
4 LLap -3.66 20.99 0.17 LLap -4.19 10.23 0.41 LLap 0.44 6.5
5 RLap 3.82 20.99 0.18 RLap -5.38 10.23 0.53 RLap 0.55 2.8
6 LLap -5.58 41.17 0.14 MidS 6.83 9.54 0.72 LLap 0.37 22.1
RExt LSup -0.18 41.17 0.00 LSup -0.02 13.63 0.00 LSup 0.00 -1.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.36 8.78 11.94 0.27
2 1.90 8.78 9.55 0.22 2.02 8.78 9.55 0.23
3 2.02 8.78 9.55 0.23 2.58 8.78 9.55 0.29
4 2.58 8.78 9.55 0.29 1.61 8.78 9.55 0.18
5 1.61 8.78 9.55 0.18 2.74 8.78 9.55 0.31
6 3.41 8.78 11.94 0.39

DEFLECTION:
------------------------------

LOAD ID 6 : Dead+Collateral
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.5
1 3480 -1.4 27.8 0.05
2 3480 0.0 27.8 0.00
3 4550 -2.7 36.4 0.07
4 4000 -0.9 32.0 0.03
5 4000 -0.8 32.0 0.03
6 3988 -2.2 31.9 0.07
RExt 175 0.2

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.9
1 3480 -14.4 27.8 0.52
2 3480 0.1 27.8 0.00
3 4550 -28.3 36.4 0.78
4 4000 -8.9 32.0 0.28
5 4000 -8.5 32.0 0.27
6 3988 -22.8 31.9 0.71
RExt 175 1.9

LOAD ID 8 : Dead+Collateral+Live
----------------------------------------------------------------------

Sheet 183 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Bay Offset Deflect(mm)

Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 5.4
1 3480 -15.7 27.8 0.57
2 3480 0.1 27.8 0.00
3 4550 -31.0 36.4 0.85
4 4000 -9.8 32.0 0.30
5 4000 -9.4 32.0 0.29
6 3988 -24.9 31.9 0.78
RExt 175 2.1

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.7
1 3480 -14.5 55.2 0.26
2 3480 2.0 55.2 0.04
3 4550 -19.6 72.2 0.27
4 4000 -6.7 63.5 0.11
5 4000 -2.7 63.5 0.04
6 3988 -23.0 63.3 0.36
RExt 175 1.8

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -4.8
1 3480 14.8 55.2 0.27
2 3480 -1.9 55.2 0.03
3 4550 20.7 72.2 0.29
4 4000 7.0 63.5 0.11
5 4000 3.3 63.5 0.05
6 3988 23.4 63.3 0.37
RExt 175 -1.8
================================================================================
CI-6563-B01-REV-01- Purlin Layout(Surface= 3) 5/21/20 8:06pm
================================================================================

SURFACE LAYOUT:
Surface No. Peak
Id Length Row Space
------- ------- --- -----
3 23006 25 300

PURLIN LOCATION:
Purlin Surf Load Dead Show ------Max_Load------
Id Offset Space Width Load Report Id UC Report Notes
------ ------ ----- ----- ----- ------ --- ---- --------- ------
1 300 300 788 0.094 Y 3 0.80 Mom+Shr
2 1275 975 975 0.076 Y 3 1.00 Mom+Shr
3 2250 975 975 0.076 3 1.00 Mom+Shr
4 3225 975 975 0.076 3 1.00 Mom+Shr
5 4200 975 975 0.076 3 1.00 Mom+Shr
6 5175 975 975 0.076 3 1.00 Mom+Shr
7 6150 975 975 0.076 3 1.00 Mom+Shr
8 7125 975 975 0.076 3 1.00 Mom+Shr
9 8100 975 975 0.076 3 1.00 Mom+Shr
10 9075 975 975 0.076 3 1.00 Mom+Shr
11 10050 975 975 0.076 3 1.00 Mom+Shr
12 11025 975 975 0.076 3 1.00 Mom+Shr
13 12000 975 762 0.098 3 0.78 Mom+Shr
14 12550 550 750 0.099 3 0.77 Mom+Shr
15 13500 950 962 0.077 3 0.98 Mom+Shr
16 14475 975 975 0.076 3 1.00 Mom+Shr
17 15450 975 975 0.076 3 1.00 Mom+Shr
18 16425 975 975 0.076 3 1.00 Mom+Shr
19 17400 975 975 0.076 3 1.00 Mom+Shr
20 18375 975 975 0.076 3 1.00 Mom+Shr
21 19350 975 862 0.086 3 0.89 Mom+Shr

Sheet 184 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

22 20100 750 750 0.099 3 0.83 Mom+Shr

23 20850 750 687 0.108 3 0.76 Mom+Shr
24 21475 625 713 0.104 3 0.79 Mom+Shr
25 22275 800 765 0.097 3 0.85 Mom+Shr
23006 731
-----
Average= 0.082

LAYOUT:
Bay Design ---Lap(mm)-- No.
Id Part Length Left Right Strap
---- -------- ------ ----- ----- ----- ------ ------
LExt 250Z25 675 0 5.2 130.4
1 250Z25 6960 660 1 58.9 1472.6
2 250Z20 6960 660 660 1 51.3 1281.3
3 250Z20 9100 660 660 1 64.5 1612.5
4 250Z20 8000 660 660 1 57.7 1442.3
5 250Z20 8000 660 660 1 57.7 1442.3
6 250Z25 7975 660 1 66.7 1668.7
RExt 250Z25 175 0 1.4 33.8

LOAD COMBINATIONS:
3 - Dead+Collateral+0.75Live+0.75Wind_Pressure1

================================================================================
CI-6563-B01-REV-01- Purlin(Surface= 3, Id= 1) 5/21/20 8:06pm
================================================================================
------------------------------
ROOF PURLIN
Surface Id = 3
Purlin Id = 1
Offset = 300
------------------------------

LAYOUT: (Purlin Id= 1)

Available
Design Reduction
Bay Length ---Lap(mm)-- Load No. Factor
Id Part (mm) Left Right Width Strap Out In
---- -------- ------ ----- ----- ----- ----- ---- ----
LExt 250Z25 675 788 0 0.00 0.70
1 250Z25 6960 660 788 1 0.00 0.70
2 250Z20 6960 660 660 788 1 0.00 0.70
3 250Z20 9100 660 660 788 1 0.00 0.70
4 250Z20 8000 660 660 788 1 0.00 0.70
5 250Z20 8000 660 660 788 1 0.00 0.70
6 250Z25 7975 660 788 1 0.00 0.70
RExt 250Z25 175 788 0 0.00 0.70

LOAD ID 1 : Dead+Collateral+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.90 0.00 0.08 338 0.31
1 3.84 -4.60 -5.49 0.31 -5.20 2866 2.70 6.03
2 4.45 3.56 -4.00 -4.88 6.03 3.39 -1.35 3318 4.61 7.54
3 5.95 5.06 -5.37 -6.25 7.54 3.91 -5.64 4436 5.10 8.94
4 5.70 4.82 -4.14 -5.02 8.94 5.47 -3.18 4253 3.20 6.23
5 5.01 4.12 -4.83 -5.72 6.23 3.21 -3.12 3735 5.58 9.06
6 6.48 5.60 -4.21 9.06 5.08 -6.59 4834 0.02
RExt 0.23 0.00 0.02 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit

Sheet 185 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.90 41.17 0.02 RSup 0.31 13.63 0.02 RSup 0.03 4.4
1 RLap -4.60 41.17 0.11 MidS -5.20 13.63 0.38 RSup 0.27 -12.7
2 RLap -4.00 20.99 0.19 RLap 4.61 10.23 0.45 RLap 0.49 0.1
3 RLap -5.37 20.99 0.26 MidS -5.64 10.23 0.55 RLap 0.56 -25.0
4 LLap 4.82 20.99 0.23 LLap 5.47 10.23 0.53 LLap 0.58 -7.9
5 RLap -4.83 20.99 0.23 RLap 5.58 10.23 0.55 RLap 0.59 -7.6
6 LLap 5.60 41.17 0.14 MidS -6.59 13.63 0.48 LLap 0.43 -20.1
RExt LSup 0.23 41.17 0.01 LSup 0.02 13.63 0.00 LSup 0.00 1.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.54 8.78 11.94 0.29
2 2.04 8.78 9.55 0.23 2.86 8.78 9.55 0.33
3 2.86 8.78 9.55 0.33 3.39 8.78 9.55 0.39
4 3.39 8.78 9.55 0.39 2.36 8.78 9.55 0.27
5 2.36 8.78 9.55 0.27 3.06 8.78 9.55 0.35
6 3.81 8.78 11.94 0.43

LOAD ID 2 : Dead+Collateral
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.08 0.00 0.01 338 0.03
1 0.34 -0.40 -0.48 0.03 -0.46 2866 0.24 0.53
2 0.39 0.31 -0.35 -0.43 0.53 0.30 -0.12 3318 0.40 0.66
3 0.52 0.44 -0.47 -0.55 0.66 0.34 -0.49 4436 0.45 0.78
4 0.50 0.42 -0.36 -0.44 0.78 0.48 -0.28 4253 0.28 0.55
5 0.44 0.36 -0.42 -0.50 0.55 0.28 -0.27 3735 0.49 0.79
6 0.57 0.49 -0.37 0.79 0.45 -0.58 4834 0.00
RExt 0.02 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.08 41.17 0.00 RSup 0.03 13.63 0.00 LSup 0.00 0.4
1 RLap -0.40 41.17 0.01 MidS -0.46 13.63 0.03 LSup 0.00 -1.1
2 RLap -0.35 20.99 0.02 RLap 0.40 10.23 0.04 RLap 0.04 0.0
3 RLap -0.47 20.99 0.02 MidS -0.49 10.23 0.05 RLap 0.05 -2.2
4 LLap 0.42 20.99 0.02 LLap 0.48 10.23 0.05 LLap 0.05 -0.7
5 RLap -0.42 20.99 0.02 RLap 0.49 10.23 0.05 RLap 0.05 -0.7
6 LLap 0.49 41.17 0.01 MidS -0.58 13.63 0.04 LLap 0.04 -1.8
RExt LSup 0.02 41.17 0.00 LSup 0.00 13.63 0.00 LSup 0.00 0.1

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.22 8.78 11.94 0.03
2 0.18 8.78 9.55 0.02 0.25 8.78 9.55 0.03
3 0.25 8.78 9.55 0.03 0.30 8.78 9.55 0.03
4 0.30 8.78 9.55 0.03 0.21 8.78 9.55 0.02
5 0.21 8.78 9.55 0.02 0.27 8.78 9.55 0.03
6 0.33 8.78 11.94 0.04

LOAD ID 3 : Dead+Collateral+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----

Sheet 186 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LExt 0.00 -1.12 0.00 0.09 338 0.38

1 5.10 -6.62 -7.72 0.38 -7.45 3029 3.46 8.19
2 5.63 4.53 -4.80 -5.90 8.19 4.83 -1.37 3398 5.60 9.13
3 7.31 6.22 -6.66 -7.76 9.13 4.66 -7.02 4416 6.39 11.15
4 7.09 5.99 -5.07 -6.16 11.15 6.83 -4.01 4280 3.74 7.44
5 6.04 4.95 -6.11 -7.20 7.44 3.82 -3.59 3650 7.68 12.08
6 8.92 7.83 -5.57 12.08 6.55 -9.34 4626 0.03
RExt 0.29 0.00 0.03 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.12 41.17 0.03 RSup 0.38 13.63 0.03 RSup 0.04 6.2
1 RLap -6.62 41.17 0.16 MidS -7.45 13.63 0.55 RSup 0.37 -18.6
2 RLap -4.80 20.99 0.23 RLap 5.60 10.18 0.55 RLap 0.59 1.3
3 RLap -6.66 20.99 0.32 MidS -7.02 10.23 0.69 RLap 0.70 -31.1
4 LLap 5.99 20.99 0.29 LLap 6.83 10.23 0.67 LLap 0.72 -10.1
5 RLap -6.11 20.99 0.29 RLap 7.68 10.16 0.76 RLap 0.80 -7.5
6 LLap 7.83 41.17 0.19 MidS -9.34 13.63 0.69 LLap 0.56 -29.5
RExt LSup 0.29 41.17 0.01 LSup 0.03 13.63 0.00 LSup 0.00 2.3

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.44 8.78 11.94 0.39
2 2.76 8.78 9.55 0.31 3.46 8.78 9.55 0.39
3 3.46 8.78 9.55 0.39 4.22 8.78 9.55 0.48
4 4.22 8.78 9.55 0.48 2.82 8.78 9.55 0.32
5 2.82 8.78 9.55 0.32 4.08 8.78 9.55 0.46
6 5.07 8.78 11.94 0.58

LOAD ID 4 : Dead+Collateral+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.50 0.00 0.04 338 0.17
1 2.47 -3.47 -3.96 0.17 -3.91 3146 1.61 4.06
2 2.58 2.10 -2.07 -2.56 4.06 2.51 -0.46 3498 2.44 3.97
3 3.24 2.76 -2.99 -3.48 3.97 1.99 -3.15 4391 2.90 5.03
4 3.19 2.70 -2.24 -2.72 5.03 3.09 -1.84 4313 1.55 3.18
5 2.62 2.13 -2.80 -3.29 3.18 1.62 -1.46 3544 3.86 5.87
6 4.49 4.00 -2.69 5.87 3.08 -4.87 4452 0.01
RExt 0.13 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.50 41.17 0.01 RSup 0.17 13.63 0.01 RSup 0.02 3.2
1 RLap -3.47 41.17 0.08 MidS -3.91 13.63 0.29 RSup 0.18 -9.9
2 LLap 2.10 20.99 0.10 LLap 2.51 10.08 0.25 LLap 0.26 1.2
3 RLap -2.99 20.99 0.14 MidS -3.15 10.23 0.31 RLap 0.32 -14.1
4 LLap 2.70 20.99 0.13 LLap 3.09 10.23 0.30 LLap 0.33 -4.7
5 RLap -2.80 20.99 0.13 RLap 3.86 9.94 0.39 RLap 0.40 -2.3
6 LLap 4.00 41.17 0.10 MidS -4.87 13.63 0.36 LLap 0.27 -15.7
RExt LSup 0.13 41.17 0.00 LSup 0.01 13.63 0.00 LSup 0.00 1.2

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 1.71 8.78 11.94 0.19
2 1.37 8.78 9.55 0.16 1.50 8.78 9.55 0.17
3 1.50 8.78 9.55 0.17 1.91 8.78 9.55 0.22

Sheet 187 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

4 1.91 8.78 9.55 0.22 1.21 8.78 9.55 0.14

5 1.21 8.78 9.55 0.14 1.98 8.78 9.55 0.23
6 2.47 8.78 11.94 0.28

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.54 0.00 -0.05 338 -0.18
1 -2.75 3.94 4.47 -0.18 4.43 3167 -1.77 -4.55
2 -2.84 -2.31 2.24 2.77 -4.55 -2.85 0.46 3524 -2.65 -4.30
3 -3.54 -3.00 3.27 3.80 -4.30 -2.14 3.45 4385 -3.18 -5.51
4 -3.49 -2.95 2.43 2.97 -5.51 -3.39 2.02 4321 -1.66 -3.44
5 -2.84 -2.30 3.08 3.62 -3.44 -1.74 1.55 3517 -4.34 -6.55
6 -5.04 -4.51 2.99 -6.55 -3.40 5.52 4417 -0.01
RExt -0.14 0.00 -0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.54 41.17 0.01 RSup -0.18 13.63 0.01 RSup 0.02 -3.7
1 RLap 3.94 41.17 0.10 MidS 4.43 9.54 0.46 RSup 0.21 11.3
2 LLap -2.31 20.99 0.11 LLap -2.85 10.23 0.28 LLap 0.30 -1.5
3 RLap 3.27 20.99 0.16 MidS 3.45 7.16 0.48 RLap 0.35 15.4
4 LLap -2.95 20.99 0.14 LLap -3.39 10.23 0.33 LLap 0.36 5.2
5 RLap 3.08 20.99 0.15 RLap -4.34 10.23 0.42 RLap 0.45 2.3
6 LLap -4.51 41.17 0.11 MidS 5.52 9.54 0.58 LLap 0.30 17.9
RExt LSup -0.14 41.17 0.00 LSup -0.01 13.63 0.00 LSup 0.00 -1.4

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 1.91 8.78 11.94 0.22
2 1.53 8.78 9.55 0.17 1.63 8.78 9.55 0.19
3 1.63 8.78 9.55 0.19 2.09 8.78 9.55 0.24
4 2.09 8.78 9.55 0.24 1.30 8.78 9.55 0.15
5 1.30 8.78 9.55 0.15 2.21 8.78 9.55 0.25
6 2.75 8.78 11.94 0.31

DEFLECTION:
------------------------------

LOAD ID 6 : Dead+Collateral
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.4
1 3480 -1.1 27.8 0.04
2 3480 0.0 27.8 0.00
3 4550 -2.2 36.4 0.06
4 4000 -0.7 32.0 0.02
5 4000 -0.7 32.0 0.02
6 3988 -1.8 31.9 0.06
RExt 175 0.1

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.0
1 3480 -11.6 27.8 0.42
2 3480 0.1 27.8 0.00
3 4550 -22.8 36.4 0.63
4 4000 -7.2 32.0 0.22

Sheet 188 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

5 4000 -6.9 32.0 0.22

6 3988 -18.3 31.9 0.58
RExt 175 1.5

LOAD ID 8 : Dead+Collateral+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.4
1 3480 -12.7 27.8 0.46
2 3480 0.1 27.8 0.00
3 4550 -25.0 36.4 0.69
4 4000 -7.9 32.0 0.25
5 4000 -7.6 32.0 0.24
6 3988 -20.1 31.9 0.63
RExt 175 1.7

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 3.8
1 3480 -11.7 55.2 0.21
2 3480 1.6 55.2 0.03
3 4550 -15.8 72.2 0.22
4 4000 -5.4 63.5 0.08
5 4000 -2.2 63.5 0.03
6 3988 -18.6 63.3 0.29
RExt 175 1.4

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -3.9
1 3480 11.9 55.2 0.22
2 3480 -1.5 55.2 0.03
3 4550 16.7 72.2 0.23
4 4000 5.6 63.5 0.09
5 4000 2.7 63.5 0.04
6 3988 18.9 63.3 0.30
RExt 175 -1.5
================================================================================
CI-6563-B01-REV-01- Purlin(Surface= 3, Id= 2) 5/21/20 8:06pm
================================================================================
------------------------------
ROOF PURLIN
Surface Id = 3
Purlin Id = 2
Offset = 1275
------------------------------

LAYOUT: (Purlin Id= 2)

Available
Design Reduction
Bay Length ---Lap(mm)-- Load No. Factor
Id Part (mm) Left Right Width Strap Out In
---- -------- ------ ----- ----- ----- ----- ---- ----
LExt 250Z25 675 975 0 0.00 0.70
1 250Z25 6960 660 975 1 0.00 0.70
2 250Z20 6960 660 660 975 1 0.00 0.70
3 250Z20 9100 660 660 975 1 0.00 0.70
4 250Z20 8000 660 660 975 1 0.00 0.70
5 250Z20 8000 660 660 975 1 0.00 0.70
6 250Z25 7975 660 975 1 0.00 0.70
RExt 250Z25 175 975 0 0.00 0.70

Sheet 189 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LOAD ID 1 : Dead+Collateral+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.12 0.00 0.09 338 0.38
1 4.76 -5.70 -6.80 0.38 -6.44 2866 3.35 7.47
2 5.51 4.41 -4.95 -6.05 7.47 4.20 -1.67 3318 5.71 9.34
3 7.36 6.27 -6.65 -7.74 9.34 4.84 -6.99 4436 6.32 11.06
4 7.06 5.96 -5.12 -6.22 11.06 6.77 -3.94 4253 3.97 7.71
5 6.20 5.10 -5.98 -7.08 7.71 3.98 -3.87 3735 6.91 11.22
6 8.02 6.93 -5.21 11.22 6.29 -8.16 4834 0.03
RExt 0.29 0.00 0.03 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.12 41.17 0.03 RSup 0.38 13.63 0.03 RSup 0.04 5.4
1 RLap -5.70 41.17 0.14 MidS -6.44 13.63 0.47 RSup 0.34 -15.7
2 RLap -4.95 20.99 0.24 RLap 5.71 10.23 0.56 RLap 0.60 0.1
3 RLap -6.65 20.99 0.32 MidS -6.99 10.23 0.68 RLap 0.69 -30.9
4 LLap 5.96 20.99 0.28 LLap 6.77 10.23 0.66 LLap 0.72 -9.7
5 RLap -5.98 20.99 0.29 RLap 6.91 10.23 0.68 RLap 0.73 -9.3
6 LLap 6.93 41.17 0.17 MidS -8.16 13.63 0.60 LLap 0.53 -24.9
RExt LSup 0.29 41.17 0.01 LSup 0.03 13.63 0.00 LSup 0.00 2.0

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.14 8.78 11.94 0.36
2 2.52 8.78 9.55 0.29 3.54 8.78 9.55 0.40
3 3.54 8.78 9.55 0.40 4.19 8.78 9.55 0.48
4 4.19 8.78 9.55 0.48 2.92 8.78 9.55 0.33
5 2.92 8.78 9.55 0.33 3.79 8.78 9.55 0.43
6 4.72 8.78 11.94 0.54

LOAD ID 2 : Dead+Collateral
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.10 0.00 0.01 338 0.03
1 0.42 -0.50 -0.60 0.03 -0.56 2866 0.29 0.66
2 0.48 0.39 -0.43 -0.53 0.66 0.37 -0.15 3318 0.50 0.82
3 0.65 0.55 -0.58 -0.68 0.82 0.42 -0.61 4436 0.55 0.97
4 0.62 0.52 -0.45 -0.55 0.97 0.59 -0.35 4253 0.35 0.68
5 0.54 0.45 -0.52 -0.62 0.68 0.35 -0.34 3735 0.61 0.98
6 0.70 0.61 -0.46 0.98 0.55 -0.72 4834 0.00
RExt 0.03 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.10 41.17 0.00 RSup 0.03 13.63 0.00 LSup 0.00 0.5
1 RLap -0.50 41.17 0.01 MidS -0.56 13.63 0.04 RLap 0.03 -1.4
2 RLap -0.43 20.99 0.02 RLap 0.50 10.23 0.05 RLap 0.05 0.0
3 RLap -0.58 20.99 0.03 MidS -0.61 10.23 0.06 RLap 0.06 -2.7
4 LLap 0.52 20.99 0.02 LLap 0.59 10.23 0.06 LLap 0.06 -0.9
5 RLap -0.52 20.99 0.02 RLap 0.61 10.23 0.06 RLap 0.06 -0.8
6 LLap 0.61 41.17 0.01 MidS -0.72 13.63 0.05 LLap 0.05 -2.2
RExt LSup 0.03 41.17 0.00 LSup 0.00 13.63 0.00 LSup 0.00 0.2

Sheet 190 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.28 8.78 11.94 0.03
2 0.22 8.78 9.55 0.03 0.31 8.78 9.55 0.04
3 0.31 8.78 9.55 0.04 0.37 8.78 9.55 0.04
4 0.37 8.78 9.55 0.04 0.26 8.78 9.55 0.03
5 0.26 8.78 9.55 0.03 0.33 8.78 9.55 0.04
6 0.41 8.78 11.94 0.05

LOAD ID 3 : Dead+Collateral+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.38 0.00 0.12 338 0.47
1 6.31 -8.20 -9.55 0.47 -9.22 3029 4.28 10.14
2 6.97 5.61 -5.95 -7.30 10.14 5.99 -1.70 3398 6.93 11.30
3 9.05 7.70 -8.25 -9.60 11.30 5.77 -8.69 4416 7.91 13.80
4 8.77 7.42 -6.27 -7.63 13.80 8.46 -4.97 4280 4.63 9.22
5 7.48 6.13 -7.57 -8.92 9.22 4.72 -4.44 3650 9.51 14.95
6 11.04 9.69 -6.90 14.95 8.11 -11.57 4626 0.03
RExt 0.36 0.00 0.03 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.38 41.17 0.03 RSup 0.47 13.63 0.03 RSup 0.05 7.7
1 RLap -8.20 41.17 0.20 MidS -9.22 13.63 0.68 RSup 0.46 -23.0
2 RLap -5.95 20.99 0.28 RLap 6.93 10.18 0.68 RLap 0.73 1.6
3 RLap -8.25 20.99 0.39 MidS -8.69 10.23 0.85 RLap 0.86 -38.6
4 LLap 7.42 20.99 0.35 LLap 8.46 10.23 0.83 LLap 0.90 -12.5
5 RLap -7.57 20.99 0.36 RLap 9.51 10.16 0.94 RLap 1.00 -9.3
6 LLap 9.69 41.17 0.24 MidS -11.57 13.63 0.85 LLap 0.70 -36.5
RExt LSup 0.36 41.17 0.01 LSup 0.03 13.63 0.00 LSup 0.00 2.9

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 4.26 8.78 11.94 0.49
2 3.42 8.78 9.55 0.39 4.28 8.78 9.55 0.49
3 4.28 8.78 9.55 0.49 5.23 8.78 9.55 0.60
4 5.23 8.78 9.55 0.60 3.49 8.78 9.55 0.40
5 3.49 8.78 9.55 0.40 5.05 8.78 9.55 0.58
6 6.28 8.78 11.94 0.72

LOAD ID 4 : Dead+Collateral+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.62 0.00 0.05 338 0.21
1 3.05 -4.30 -4.90 0.21 -4.84 3146 1.99 5.02
2 3.20 2.60 -2.56 -3.17 5.02 3.11 -0.57 3498 3.02 4.91
3 4.02 3.41 -3.70 -4.31 4.91 2.46 -3.91 4391 3.59 6.23
4 3.94 3.34 -2.77 -3.37 6.23 3.83 -2.27 4313 1.92 3.94
5 3.24 2.64 -3.47 -4.07 3.94 2.00 -1.80 3544 4.78 7.27
6 5.55 4.95 -3.33 7.27 3.81 -6.03 4452 0.01
RExt 0.16 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:

Sheet 191 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)

Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.62 41.17 0.01 RSup 0.21 13.63 0.02 RSup 0.02 4.0
1 RLap -4.30 41.17 0.10 MidS -4.84 13.63 0.36 RSup 0.23 -12.2
2 LLap 2.60 20.99 0.12 LLap 3.11 10.08 0.31 LLap 0.33 1.5
3 RLap -3.70 20.99 0.18 MidS -3.91 10.23 0.38 RLap 0.39 -17.4
4 LLap 3.34 20.99 0.16 LLap 3.83 10.23 0.37 LLap 0.41 -5.9
5 RLap -3.47 20.99 0.17 RLap 4.78 9.94 0.48 RLap 0.50 -2.9
6 LLap 4.95 41.17 0.12 MidS -6.03 13.63 0.44 LLap 0.34 -19.4
RExt LSup 0.16 41.17 0.00 LSup 0.01 13.63 0.00 LSup 0.00 1.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.11 8.78 11.94 0.24
2 1.70 8.78 9.55 0.19 1.86 8.78 9.55 0.21
3 1.86 8.78 9.55 0.21 2.36 8.78 9.55 0.27
4 2.36 8.78 9.55 0.27 1.49 8.78 9.55 0.17
5 1.49 8.78 9.55 0.17 2.46 8.78 9.55 0.28
6 3.06 8.78 11.94 0.35

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.67 0.00 -0.06 338 -0.23
1 -3.40 4.87 5.53 -0.23 5.49 3167 -2.19 -5.63
2 -3.52 -2.86 2.77 3.43 -5.63 -3.52 0.57 3524 -3.28 -5.33
3 -4.38 -3.72 4.05 4.71 -5.33 -2.65 4.27 4385 -3.93 -6.82
4 -4.32 -3.66 3.01 3.67 -6.82 -4.19 2.50 4321 -2.05 -4.26
5 -3.51 -2.85 3.82 4.48 -4.26 -2.16 1.92 3517 -5.38 -8.11
6 -6.24 -5.58 3.71 -8.11 -4.21 6.83 4417 -0.02
RExt -0.17 0.00 -0.02 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.67 41.17 0.02 RSup -0.23 13.63 0.02 RSup 0.02 -4.5
1 RLap 4.87 41.17 0.12 MidS 5.49 9.54 0.58 RSup 0.26 13.9
2 LLap -2.86 20.99 0.14 LLap -3.52 10.23 0.34 LLap 0.37 -1.9
3 RLap 4.05 20.99 0.19 MidS 4.27 7.16 0.60 RLap 0.43 19.1
4 LLap -3.66 20.99 0.17 LLap -4.19 10.23 0.41 LLap 0.44 6.5
5 RLap 3.82 20.99 0.18 RLap -5.38 10.23 0.53 RLap 0.55 2.8
6 LLap -5.58 41.17 0.14 MidS 6.83 9.54 0.72 LLap 0.37 22.1
RExt LSup -0.17 41.17 0.00 LSup -0.02 13.63 0.00 LSup 0.00 -1.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.36 8.78 11.94 0.27
2 1.90 8.78 9.55 0.22 2.02 8.78 9.55 0.23
3 2.02 8.78 9.55 0.23 2.59 8.78 9.55 0.29
4 2.59 8.78 9.55 0.29 1.61 8.78 9.55 0.18
5 1.61 8.78 9.55 0.18 2.74 8.78 9.55 0.31
6 3.41 8.78 11.94 0.39

DEFLECTION:
------------------------------

LOAD ID 6 : Dead+Collateral
----------------------------------------------------------------------
Bay Offset Deflect(mm)

Sheet 192 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Id (mm) Calc Limit Ratio

---- ------ ----- ----- -----
LExt 0 0.5
1 3480 -1.4 27.8 0.05
2 3480 0.0 27.8 0.00
3 4550 -2.7 36.4 0.07
4 4000 -0.9 32.0 0.03
5 4000 -0.8 32.0 0.03
6 3988 -2.2 31.9 0.07
RExt 175 0.2

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.9
1 3480 -14.3 27.8 0.51
2 3480 0.1 27.8 0.00
3 4550 -28.2 36.4 0.77
4 4000 -8.9 32.0 0.28
5 4000 -8.5 32.0 0.27
6 3988 -22.7 31.9 0.71
RExt 175 1.9

LOAD ID 8 : Dead+Collateral+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 5.4
1 3480 -15.7 27.8 0.56
2 3480 0.1 27.8 0.00
3 4550 -30.9 36.4 0.85
4 4000 -9.7 32.0 0.30
5 4000 -9.3 32.0 0.29
6 3988 -24.9 31.9 0.78
RExt 175 2.0

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 4.7
1 3480 -14.5 55.2 0.26
2 3480 2.0 55.2 0.04
3 4550 -19.6 72.2 0.27
4 4000 -6.7 63.5 0.11
5 4000 -2.7 63.5 0.04
6 3988 -23.0 63.3 0.36
RExt 175 1.8

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -4.8
1 3480 14.8 55.2 0.27
2 3480 -1.9 55.2 0.03
3 4550 20.7 72.2 0.29
4 4000 7.0 63.5 0.11
5 4000 3.3 63.5 0.05
6 3988 23.4 63.3 0.37
RExt 175 -1.8
================================================================================
CI-6563-B01-REV-01- Purlin(Extension= 1, Roof) 5/21/20 8:06pm
================================================================================
------------------------------
EAVE EXTENSION ROOF PURLIN
Wall Id = 2
Extension Id = 1
Bay Start = 1

Sheet 193 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Bay End = 6
Extension Wid= 4225
------------------------------

LAYOUT:
Available
Design Reduction
Bay Length --Lap(mm)-- Load No. No. Unit Total Factor
Id Part (mm) Left Right Width Strap Row Weight Weight Out In
---- -------- ------ ---- ----- ----- ----- --- ------ ------ ---- ----
LExt 250Z20 675 975 0 4 4.2 16.7 0.00 0.70
1 250Z20 6960 660 975 1 4 47.2 188.7 0.00 0.70
2 250Z20 6960 660 660 975 1 4 51.3 205.0 0.00 0.70
3 250Z20 9100 660 660 975 1 4 64.5 258.0 0.00 0.70
4 250Z20 8000 660 660 975 1 4 57.7 230.8 0.00 0.70
5 250Z20 8000 660 660 975 1 4 57.7 230.8 0.00 0.70
6 250Z20 7975 660 975 1 4 53.5 213.8 0.00 0.70
RExt 250Z20 175 975 0 4 1.1 4.3 0.00 0.70
------
Total(kg)= 1348.1

Purlin DL= 0.071 (kN/m2)

LOAD ID 1 : Dead+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.12 0.00 0.09 338 0.38
1 4.73 -5.72 -6.82 0.38 -6.37 2852 3.49 7.63
2 5.54 4.44 -4.92 -6.02 7.63 4.34 -1.60 3336 5.69 9.29
3 7.36 6.26 -6.65 -7.75 9.29 4.80 -7.00 4432 6.33 11.08
4 7.07 5.97 -5.12 -6.21 11.08 6.78 -3.95 4256 3.94 7.68
5 6.19 5.09 -6.00 -7.09 7.68 3.96 -3.85 3727 6.99 11.31
6 8.03 6.94 -5.20 11.31 6.37 -8.13 4840 0.03
RExt 0.29 0.00 0.03 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.12 20.99 0.05 RSup 0.38 10.23 0.04 RSup 0.06 6.6
1 RLap -5.72 20.99 0.27 MidS -6.37 10.23 0.62 RLap 0.43 -19.2
2 RLap -4.92 20.99 0.23 RLap 5.69 10.22 0.56 RLap 0.60 0.4
3 RLap -6.65 20.99 0.32 MidS -7.00 10.23 0.68 RLap 0.69 -31.0
4 LLap 5.97 20.99 0.28 LLap 6.78 10.23 0.66 LLap 0.72 -9.8
5 RLap -6.00 20.99 0.29 RLap 6.99 10.23 0.68 RLap 0.74 -9.1
6 LLap 6.94 20.99 0.33 MidS -8.13 10.23 0.79 LLap 0.70 -30.8
RExt LSup 0.29 20.99 0.01 LSup 0.03 10.23 0.00 LSup 0.00 2.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.89 8.78 9.55 0.33
2 2.89 8.78 9.55 0.33 3.52 8.78 9.55 0.40
3 3.52 8.78 9.55 0.40 4.20 8.78 9.55 0.48
4 4.20 8.78 9.55 0.48 2.91 8.78 9.55 0.33
5 2.91 8.78 9.55 0.33 4.28 8.78 9.55 0.49
6 4.28 8.78 9.55 0.49

LOAD ID 2 : Dead
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup

Sheet 194 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.10 0.00 0.01 338 0.03
1 0.42 -0.50 -0.60 0.03 -0.56 2852 0.31 0.67
2 0.49 0.39 -0.43 -0.53 0.67 0.38 -0.14 3336 0.50 0.81
3 0.65 0.55 -0.58 -0.68 0.81 0.42 -0.61 4432 0.56 0.97
4 0.62 0.52 -0.45 -0.54 0.97 0.59 -0.35 4256 0.35 0.67
5 0.54 0.45 -0.53 -0.62 0.67 0.35 -0.34 3727 0.61 0.99
6 0.70 0.61 -0.46 0.99 0.56 -0.71 4840 0.00
RExt 0.03 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.10 20.99 0.00 RSup 0.03 10.23 0.00 LSup 0.00 0.6
1 RLap -0.50 20.99 0.02 MidS -0.56 10.23 0.05 RLap 0.04 -1.7
2 RLap -0.43 20.99 0.02 RLap 0.50 10.22 0.05 RLap 0.05 0.0
3 RLap -0.58 20.99 0.03 MidS -0.61 10.23 0.06 RLap 0.06 -2.7
4 LLap 0.52 20.99 0.02 LLap 0.59 10.23 0.06 LLap 0.06 -0.9
5 RLap -0.53 20.99 0.03 RLap 0.61 10.23 0.06 RLap 0.06 -0.8
6 LLap 0.61 20.99 0.03 MidS -0.71 10.23 0.07 LLap 0.06 -2.7
RExt LSup 0.03 20.99 0.00 LSup 0.00 10.23 0.00 LSup 0.00 0.2

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.25 8.78 9.55 0.03
2 0.25 8.78 9.55 0.03 0.31 8.78 9.55 0.04
3 0.31 8.78 9.55 0.04 0.37 8.78 9.55 0.04
4 0.37 8.78 9.55 0.04 0.26 8.78 9.55 0.03
5 0.26 8.78 9.55 0.03 0.38 8.78 9.55 0.04
6 0.38 8.78 9.55 0.04

LOAD ID 3 : Dead+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -1.10 0.00 0.09 338 0.37
1 4.65 -5.63 -6.70 0.37 -6.26 2852 3.43 7.50
2 5.44 4.37 -4.84 -5.91 7.50 4.27 -1.58 3336 5.59 9.14
3 7.23 6.16 -6.54 -7.62 9.14 4.72 -6.88 4432 6.22 10.90
4 6.95 5.87 -5.03 -6.11 10.90 6.67 -3.88 4256 3.87 7.55
5 6.08 5.01 -5.90 -6.97 7.55 3.89 -3.78 3727 6.87 11.12
6 7.90 6.82 -5.12 11.12 6.26 -7.99 4840 0.02
RExt 0.29 0.00 0.02 0.01 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -1.10 20.99 0.05 RSup 0.37 10.23 0.04 RSup 0.06 6.5
1 RLap -5.63 20.99 0.27 MidS -6.26 10.23 0.61 RLap 0.43 -18.9
2 RLap -4.84 20.99 0.23 RLap 5.59 10.22 0.55 RLap 0.59 0.4
3 RLap -6.54 20.99 0.31 MidS -6.88 10.23 0.67 RLap 0.68 -30.5
4 LLap 5.87 20.99 0.28 LLap 6.67 10.23 0.65 LLap 0.71 -9.6
5 RLap -5.90 20.99 0.28 RLap 6.87 10.23 0.67 RLap 0.73 -9.0
6 LLap 6.82 20.99 0.33 MidS -7.99 10.23 0.78 LLap 0.69 -30.2
RExt LSup 0.29 20.99 0.01 LSup 0.02 10.23 0.00 LSup 0.00 2.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.84 8.78 9.55 0.32
2 2.84 8.78 9.55 0.32 3.46 8.78 9.55 0.39

Sheet 195 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

3 3.46 8.78 9.55 0.39 4.13 8.78 9.55 0.47

4 4.13 8.78 9.55 0.47 2.86 8.78 9.55 0.33
5 2.86 8.78 9.55 0.33 4.21 8.78 9.55 0.48
6 4.21 8.78 9.55 0.48

LOAD ID 4 : Dead+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.33 0.00 0.03 338 0.11
1 1.42 -1.71 -2.04 0.11 -1.90 2852 1.04 2.28
2 1.66 1.33 -1.47 -1.80 2.28 1.30 -0.48 3336 1.70 2.78
3 2.20 1.87 -1.99 -2.32 2.78 1.44 -2.09 4432 1.89 3.31
4 2.11 1.78 -1.53 -1.86 3.31 2.03 -1.18 4256 1.18 2.30
5 1.85 1.52 -1.79 -2.12 2.30 1.18 -1.15 3727 2.09 3.38
6 2.40 2.07 -1.56 3.38 1.90 -2.43 4840 0.01
RExt 0.09 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.33 20.99 0.02 RSup 0.11 10.23 0.01 RSup 0.02 2.0
1 RLap -1.71 20.99 0.08 MidS -1.90 10.23 0.19 RLap 0.13 -5.7
2 RLap -1.47 20.99 0.07 RLap 1.70 10.22 0.17 RLap 0.18 0.1
3 RLap -1.99 20.99 0.09 MidS -2.09 10.23 0.20 RLap 0.21 -9.3
4 LLap 1.78 20.99 0.09 LLap 2.03 10.23 0.20 LLap 0.22 -2.9
5 RLap -1.79 20.99 0.09 RLap 2.09 10.23 0.20 RLap 0.22 -2.7
6 LLap 2.07 20.99 0.10 MidS -2.43 10.23 0.24 LLap 0.21 -9.2
RExt LSup 0.09 20.99 0.00 LSup 0.01 10.23 0.00 LSup 0.00 0.8

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.86 8.78 9.55 0.10
2 0.86 8.78 9.55 0.10 1.05 8.78 9.55 0.12
3 1.05 8.78 9.55 0.12 1.26 8.78 9.55 0.14
4 1.26 8.78 9.55 0.14 0.87 8.78 9.55 0.10
5 0.87 8.78 9.55 0.10 1.28 8.78 9.55 0.15
6 1.28 8.78 9.55 0.15

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.53 0.00 -0.04 338 -0.18
1 -2.83 5.03 6.10 -0.18 4.81 3186 -3.02 -6.69
2 -5.26 -4.19 4.92 5.99 -6.69 -3.57 1.86 3253 -5.64 -9.24
3 -7.20 -6.13 6.44 7.51 -9.24 -4.85 6.78 4453 -6.06 -10.67
4 -6.82 -5.76 5.04 6.10 -10.67 -6.51 3.74 4223 -4.10 -7.78
5 -6.20 -5.13 5.66 6.73 -7.78 -4.04 4.10 3835 -5.82 -9.91
6 -7.12 -6.06 3.03 -9.91 -5.56 5.79 4409 -0.01
RExt -0.14 0.00 -0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.53 20.99 0.03 RSup -0.18 10.23 0.02 RSup 0.03 -4.8
1 RLap 5.03 20.99 0.24 MidS 4.81 7.16 0.67 RLap 0.38 14.4
2 RLap 4.92 20.99 0.23 RLap -5.64 10.23 0.55 RLap 0.60 0.8
3 RLap 6.44 20.99 0.31 MidS 6.78 7.16 0.95 RLap 0.66 29.9
4 LLap -5.76 20.99 0.27 LLap -6.51 10.23 0.64 LLap 0.69 9.0

Sheet 196 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

5 RLap 5.66 20.99 0.27 RLap -5.82 10.23 0.57 RLap 0.63 11.2
6 LLap -6.06 20.99 0.29 MidS 5.79 7.16 0.81 LLap 0.61 21.7
RExt LSup -0.14 20.99 0.01 LSup -0.01 10.23 0.00 LSup 0.00 -1.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.53 8.78 9.55 0.29
2 2.53 8.78 9.55 0.29 3.50 8.78 9.55 0.40
3 3.50 8.78 9.55 0.40 4.04 8.78 9.55 0.46
4 4.04 8.78 9.55 0.46 2.95 8.78 9.55 0.34
5 2.95 8.78 9.55 0.34 3.76 8.78 9.55 0.43
6 3.76 8.78 9.55 0.43

DEFLECTION:
------------------------------

LOAD ID 6 : Dead
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.6
1 3480 -1.7 58.0 0.03
2 3480 0.0 58.0 0.00
3 4550 -2.7 75.8 0.04
4 4000 -0.9 66.7 0.01
5 4000 -0.8 66.7 0.01
6 3988 -2.7 66.5 0.04
RExt 175 0.2

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 6.0
1 3480 -17.5 46.4 0.38
2 3480 0.4 46.4 0.01
3 4550 -28.3 60.7 0.47
4 4000 -8.9 53.3 0.17
5 4000 -8.3 53.3 0.16
6 3988 -28.1 53.2 0.53
RExt 175 2.3

LOAD ID 8 : Dead+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 6.6
1 3480 -19.2 58.0 0.33
2 3480 0.4 58.0 0.01
3 4550 -31.0 75.8 0.41
4 4000 -9.8 66.7 0.15
5 4000 -9.1 66.7 0.14
6 3988 -30.8 66.5 0.46
RExt 175 2.5

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.9
1 3480 -5.4 55.2 0.10
2 3480 0.1 55.2 0.00
3 4550 -8.7 72.2 0.12
4 4000 -2.8 63.5 0.04
5 4000 -2.6 63.5 0.04
6 3988 -8.7 63.3 0.14

Sheet 197 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

RExt 175 0.7

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -5.1
1 3480 15.4 55.2 0.28
2 3480 0.8 55.2 0.01
3 4550 31.5 72.2 0.44
4 4000 9.5 63.5 0.15
5 4000 11.7 63.5 0.18
6 3988 23.3 63.3 0.37
RExt 175 -1.8
================================================================================
CI-6563-B01-REV-01- Eave(Extension= 1) 5/21/20 8:06pm
================================================================================
------------------------------
EAVE EXTENSION EAVE STRUT
Wall Id = 2
Extension Id = 1
Bay Start = 1
Bay End = 6
Extension Wid= 4225
------------------------------

LAYOUT:
Available
Design Reduction
Bay Length --Lap(mm)-- Load No. No. Factor
Id Part (mm) Left Right Width Strap Row Out In
---- -------- ------ ---- ----- ----- ----- --- ------ ------ ---- ----
LExt 250Z20 675 275 0 1 4.2 4.2 0.00 0.70
1 250Z20 6960 660 275 1 1 47.2 47.2 0.00 0.70
2 250Z20 6960 660 660 275 1 1 51.3 51.3 0.00 0.70
3 250Z20 9100 660 660 275 1 1 64.5 64.5 0.00 0.70
4 250Z20 8000 660 660 275 1 1 57.7 57.7 0.00 0.70
5 250Z20 8000 660 660 275 1 1 57.7 57.7 0.00 0.70
6 250Z20 7975 660 275 1 1 53.5 53.5 0.00 0.70
RExt 250Z20 175 275 0 1 1.1 1.1 0.00 0.70

Purlin DL= 0.251 (kN/m2)

LOAD ID 1 : Dead+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.32 0.00 0.03 338 0.11
1 1.34 -1.61 -1.92 0.11 -1.80 2852 0.99 2.15
2 1.56 1.25 -1.39 -1.70 2.15 1.22 -0.45 3336 1.60 2.62
3 2.08 1.77 -1.88 -2.19 2.62 1.35 -1.97 4432 1.79 3.13
4 1.99 1.68 -1.44 -1.75 3.13 1.91 -1.11 4256 1.11 2.17
5 1.75 1.44 -1.69 -2.00 2.17 1.12 -1.08 3727 1.97 3.19
6 2.27 1.96 -1.47 3.19 1.80 -2.29 4840 0.01
RExt 0.08 0.00 0.01 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.32 20.99 0.02 RSup 0.11 10.23 0.01 RSup 0.02 1.9
1 RLap -1.61 20.99 0.08 MidS -1.80 10.23 0.18 RLap 0.12 -5.4
2 RLap -1.39 20.99 0.07 RLap 1.60 10.22 0.16 RLap 0.17 0.1
3 RLap -1.88 20.99 0.09 MidS -1.97 10.23 0.19 RLap 0.20 -8.7
4 LLap 1.68 20.99 0.08 LLap 1.91 10.23 0.19 LLap 0.20 -2.8
5 RLap -1.69 20.99 0.08 RLap 1.97 10.23 0.19 RLap 0.21 -2.6
6 LLap 1.96 20.99 0.09 MidS -2.29 10.23 0.22 LLap 0.20 -8.7

Sheet 198 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

RExt LSup 0.08 20.99 0.00 LSup 0.01 10.23 0.00 LSup 0.00 0.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.82 8.78 9.55 0.09
2 0.82 8.78 9.55 0.09 0.99 8.78 9.55 0.11
3 0.99 8.78 9.55 0.11 1.18 8.78 9.55 0.13
4 1.18 8.78 9.55 0.13 0.82 8.78 9.55 0.09
5 0.82 8.78 9.55 0.09 1.21 8.78 9.55 0.14
6 1.21 8.78 9.55 0.14

LOAD ID 2 : Dead
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.03 0.00 0.00 338 0.01
1 0.12 -0.14 -0.17 0.01 -0.16 2852 0.09 0.19
2 0.14 0.11 -0.12 -0.15 0.19 0.11 -0.04 3336 0.14 0.23
3 0.18 0.15 -0.16 -0.19 0.23 0.12 -0.17 4432 0.16 0.27
4 0.17 0.15 -0.13 -0.15 0.27 0.17 -0.10 4256 0.10 0.19
5 0.15 0.13 -0.15 -0.18 0.19 0.10 -0.10 3727 0.17 0.28
6 0.20 0.17 -0.13 0.28 0.16 -0.20 4840 0.00
RExt 0.01 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.03 20.99 0.00 RSup 0.01 10.23 0.00 LSup 0.00 0.2
1 RLap -0.14 20.99 0.01 MidS -0.16 10.23 0.02 LSup 0.00 -0.5
2 RLap -0.12 20.99 0.01 RLap 0.14 10.22 0.01 LSup 0.00 0.0
3 RLap -0.16 20.99 0.01 MidS -0.17 10.23 0.02 LSup 0.00 -0.8
4 LLap 0.15 20.99 0.01 LLap 0.17 10.23 0.02 LSup 0.00 -0.2
5 RLap -0.15 20.99 0.01 RLap 0.17 10.23 0.02 LSup 0.00 -0.2
6 LLap 0.17 20.99 0.01 MidS -0.20 10.23 0.02 LSup 0.00 -0.8
RExt LSup 0.01 20.99 0.00 LSup 0.00 10.23 0.00 LSup 0.00 0.1

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.07 8.78 9.55 0.01
2 0.07 8.78 9.55 0.01 0.09 8.78 9.55 0.01
3 0.09 8.78 9.55 0.01 0.10 8.78 9.55 0.01
4 0.10 8.78 9.55 0.01 0.07 8.78 9.55 0.01
5 0.07 8.78 9.55 0.01 0.11 8.78 9.55 0.01
6 0.11 8.78 9.55 0.01

LOAD ID 3 : Dead+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.31 0.00 0.03 338 0.10
1 1.31 -1.59 -1.89 0.10 -1.77 2852 0.97 2.12
2 1.54 1.23 -1.36 -1.67 2.12 1.20 -0.44 3336 1.58 2.58
3 2.04 1.74 -1.85 -2.15 2.58 1.33 -1.94 4432 1.76 3.07
4 1.96 1.66 -1.42 -1.72 3.07 1.88 -1.10 4256 1.09 2.13
5 1.72 1.41 -1.66 -1.97 2.13 1.10 -1.07 3727 1.94 3.14
6 2.23 1.92 -1.44 3.14 1.77 -2.25 4840 0.01
RExt 0.08 0.00 0.01 0.00 87 0.00

Sheet 199 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.31 20.99 0.01 RSup 0.10 10.23 0.01 RSup 0.02 1.8
1 RLap -1.59 20.99 0.08 MidS -1.77 10.23 0.17 RLap 0.12 -5.3
2 RLap -1.36 20.99 0.07 RLap 1.58 10.22 0.15 RLap 0.17 0.1
3 RLap -1.85 20.99 0.09 MidS -1.94 10.23 0.19 RLap 0.19 -8.6
4 LLap 1.66 20.99 0.08 LLap 1.88 10.23 0.18 LLap 0.20 -2.7
5 RLap -1.66 20.99 0.08 RLap 1.94 10.23 0.19 RLap 0.20 -2.5
6 LLap 1.92 20.99 0.09 MidS -2.25 10.23 0.22 LLap 0.19 -8.5
RExt LSup 0.08 20.99 0.00 LSup 0.01 10.23 0.00 LSup 0.00 0.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.80 8.78 9.55 0.09
2 0.80 8.78 9.55 0.09 0.98 8.78 9.55 0.11
3 0.98 8.78 9.55 0.11 1.16 8.78 9.55 0.13
4 1.16 8.78 9.55 0.13 0.81 8.78 9.55 0.09
5 0.81 8.78 9.55 0.09 1.19 8.78 9.55 0.14
6 1.19 8.78 9.55 0.14

LOAD ID 4 : Dead+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.09 0.00 0.01 338 0.03
1 0.40 -0.48 -0.57 0.03 -0.54 2852 0.29 0.64
2 0.47 0.37 -0.41 -0.51 0.64 0.37 -0.14 3336 0.48 0.78
3 0.62 0.53 -0.56 -0.65 0.78 0.40 -0.59 4432 0.53 0.93
4 0.60 0.50 -0.43 -0.52 0.93 0.57 -0.33 4256 0.33 0.65
5 0.52 0.43 -0.51 -0.60 0.65 0.33 -0.32 3727 0.59 0.95
6 0.68 0.59 -0.44 0.95 0.54 -0.69 4840 0.00
RExt 0.02 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.09 20.99 0.00 RSup 0.03 10.23 0.00 LSup 0.00 0.6
1 RLap -0.48 20.99 0.02 MidS -0.54 10.23 0.05 RLap 0.04 -1.6
2 RLap -0.41 20.99 0.02 RLap 0.48 10.22 0.05 RLap 0.05 0.0
3 RLap -0.56 20.99 0.03 MidS -0.59 10.23 0.06 RLap 0.06 -2.6
4 LLap 0.50 20.99 0.02 LLap 0.57 10.23 0.06 LLap 0.06 -0.8
5 RLap -0.51 20.99 0.02 RLap 0.59 10.23 0.06 RLap 0.06 -0.8
6 LLap 0.59 20.99 0.03 MidS -0.69 10.23 0.07 LLap 0.06 -2.6
RExt LSup 0.02 20.99 0.00 LSup 0.00 10.23 0.00 LSup 0.00 0.2

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.24 8.78 9.55 0.03
2 0.24 8.78 9.55 0.03 0.30 8.78 9.55 0.03
3 0.30 8.78 9.55 0.03 0.35 8.78 9.55 0.04
4 0.35 8.78 9.55 0.04 0.25 8.78 9.55 0.03
5 0.25 8.78 9.55 0.03 0.36 8.78 9.55 0.04
6 0.36 8.78 9.55 0.04

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:

Sheet 200 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.15 0.00 -0.01 338 -0.05
1 -0.80 1.42 1.72 -0.05 1.36 3186 -0.85 -1.89
2 -1.48 -1.18 1.39 1.69 -1.89 -1.01 0.52 3253 -1.59 -2.61
3 -2.03 -1.73 1.82 2.12 -2.61 -1.37 1.91 4453 -1.71 -3.01
4 -1.93 -1.62 1.42 1.72 -3.01 -1.84 1.06 4223 -1.16 -2.19
5 -1.75 -1.45 1.60 1.90 -2.19 -1.14 1.16 3835 -1.64 -2.80
6 -2.01 -1.71 0.85 -2.80 -1.57 1.63 4458 0.00
RExt -0.04 0.00 0.00 0.00 87 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.15 20.99 0.01 RSup -0.05 10.23 0.00 LSup 0.00 -1.3
1 RLap 1.42 20.99 0.07 MidS 1.36 7.16 0.19 RLap 0.11 4.1
2 RLap 1.39 20.99 0.07 RLap -1.59 10.23 0.16 RLap 0.17 0.2
3 RLap 1.82 20.99 0.09 MidS 1.91 7.16 0.27 RLap 0.19 8.4
4 LLap -1.62 20.99 0.08 LLap -1.84 10.23 0.18 LLap 0.20 2.5
5 RLap 1.60 20.99 0.08 RLap -1.64 10.23 0.16 RLap 0.18 3.2
6 LLap -1.71 20.99 0.08 MidS 1.63 7.16 0.23 LLap 0.17 6.1
RExt LSup -0.04 20.99 0.00 LSup 0.00 10.23 0.00 LSup 0.00 -0.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.71 8.78 9.55 0.08
2 0.71 8.78 9.55 0.08 0.99 8.78 9.55 0.11
3 0.99 8.78 9.55 0.11 1.14 8.78 9.55 0.13
4 1.14 8.78 9.55 0.13 0.83 8.78 9.55 0.09
5 0.83 8.78 9.55 0.09 1.06 8.78 9.55 0.12
6 1.06 8.78 9.55 0.12

DEFLECTION:
------------------------------

LOAD ID 6 : Dead
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.2
1 3480 -0.5 58.0 0.01
2 3480 0.0 58.0 0.00
3 4550 -0.8 75.8 0.01
4 4000 -0.2 66.7 0.00
5 4000 -0.2 66.7 0.00
6 3988 -0.8 66.5 0.01
RExt 175 0.1

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.7
1 3480 -4.9 46.4 0.11
2 3480 0.1 46.4 0.00
3 4550 -8.0 60.7 0.13
4 4000 -2.5 53.3 0.05
5 4000 -2.3 53.3 0.04
6 3988 -7.9 53.2 0.15
RExt 175 0.7

LOAD ID 8 : Dead+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio

Sheet 201 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

---- ------ ----- ----- -----

LExt 0 1.9
1 3480 -5.4 58.0 0.09
2 3480 0.1 58.0 0.00
3 4550 -8.7 75.8 0.12
4 4000 -2.8 66.7 0.04
5 4000 -2.6 66.7 0.04
6 3988 -8.7 66.5 0.13
RExt 175 0.7

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.5
1 3480 -1.5 55.2 0.03
2 3480 0.0 55.2 0.00
3 4550 -2.5 72.2 0.03
4 4000 -0.8 63.5 0.01
5 4000 -0.7 63.5 0.01
6 3988 -2.4 63.3 0.04
RExt 175 0.2

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -1.4
1 3480 4.4 55.2 0.08
2 3480 0.2 55.2 0.00
3 4550 8.9 72.2 0.12
4 4000 2.7 63.5 0.04
5 4000 3.3 63.5 0.05
6 3988 6.6 63.3 0.10
RExt 175 -0.5
================================================================================
CI-6563-B01-REV-01- Purlin(Extension= 2, Roof) 5/21/20 8:06pm
================================================================================
------------------------------
EAVE EXTENSION ROOF PURLIN
Wall Id = 4
Extension Id = 2
Bay Start = 1
Bay End = 6
Extension Wid= 1500
------------------------------

LAYOUT:
Available
Design Reduction
Bay Length --Lap(mm)-- Load No. No. Unit Total Factor
Id Part (mm) Left Right Width Strap Row Weight Weight Out In
---- -------- ------ ---- ----- ----- ----- --- ------ ------ ---- ----
LExt 250Z20 175 750 0 1 1.1 1.1 0.00 0.70
1 250Z20 7975 660 750 1 1 53.5 53.5 0.00 0.70
2 250Z20 8000 660 660 750 1 1 57.7 57.7 0.00 0.70
3 250Z20 8000 660 660 750 1 1 57.7 57.7 0.00 0.70
4 250Z20 9100 660 660 750 1 1 64.5 64.5 0.00 0.70
5 250Z20 6960 660 660 750 1 1 51.3 51.3 0.00 0.70
6 250Z20 6960 660 750 1 1 47.2 47.2 0.00 0.70
RExt 250Z20 675 750 0 1 4.2 4.2 0.00 0.70
------
Total(kg)= 337.0

Purlin DL= 0.092 (kN/m2)

LOAD ID 1 : Dead+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------

Sheet 202 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.22 0.00 0.00 88 0.02
1 4.01 -5.35 -6.19 0.02 -6.27 3135 4.91 8.71
2 5.47 4.62 -3.92 -4.77 8.71 5.38 -2.96 4273 3.05 5.92
3 4.79 3.94 -4.60 -5.44 5.92 3.04 -3.04 3744 5.23 8.54
4 5.97 5.13 -4.82 -5.67 8.54 4.88 -5.39 4668 3.70 7.16
5 4.64 3.79 -3.42 -4.27 7.16 4.38 -1.24 3624 3.34 5.88
6 5.25 4.41 -3.65 5.88 2.69 -4.91 4108 0.29
RExt 0.86 0.00 0.29 0.07 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.22 20.99 0.01 RSup 0.02 10.23 0.00 LSup 0.00 2.0
1 RLap -5.35 20.99 0.25 MidS -6.27 10.23 0.61 RLap 0.54 -23.7
2 LLap 4.62 20.99 0.22 LLap 5.38 10.23 0.53 LLap 0.57 -7.0
3 RLap -4.60 20.99 0.22 RLap 5.23 10.23 0.51 RLap 0.55 -7.5
4 LLap 5.13 20.99 0.24 MidS -5.39 10.23 0.53 LLap 0.53 -23.9
5 LLap 3.79 20.99 0.18 LLap 4.38 10.22 0.43 LLap 0.46 0.3
6 LLap 4.41 20.99 0.21 MidS -4.91 10.23 0.48 LLap 0.33 -14.8
RExt LSup 0.86 20.99 0.04 LSup 0.29 10.23 0.03 LSup 0.05 5.1

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.30 8.78 9.55 0.38
2 3.30 8.78 9.55 0.38 2.24 8.78 9.55 0.26
3 2.24 8.78 9.55 0.26 3.24 8.78 9.55 0.37
4 3.24 8.78 9.55 0.37 2.71 8.78 9.55 0.31
5 2.71 8.78 9.55 0.31 2.23 8.78 9.55 0.25
6 2.23 8.78 9.55 0.25

LOAD ID 2 : Dead
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.02 0.00 0.00 88 0.00
1 0.35 -0.47 -0.54 0.00 -0.55 3135 0.43 0.76
2 0.48 0.40 -0.34 -0.42 0.76 0.47 -0.26 4273 0.27 0.52
3 0.42 0.35 -0.40 -0.48 0.52 0.27 -0.27 3744 0.46 0.75
4 0.52 0.45 -0.42 -0.50 0.75 0.43 -0.47 4668 0.32 0.63
5 0.41 0.33 -0.30 -0.37 0.63 0.38 -0.11 3624 0.29 0.52
6 0.46 0.39 -0.32 0.52 0.24 -0.43 4108 0.03
RExt 0.08 0.00 0.03 0.01 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.02 20.99 0.00 RSup 0.00 10.23 0.00 LSup 0.00 0.2
1 RLap -0.47 20.99 0.02 MidS -0.55 10.23 0.05 RLap 0.05 -2.1
2 LLap 0.40 20.99 0.02 LLap 0.47 10.23 0.05 LLap 0.05 -0.6
3 RLap -0.40 20.99 0.02 RLap 0.46 10.23 0.04 RLap 0.05 -0.7
4 LLap 0.45 20.99 0.02 MidS -0.47 10.23 0.05 LLap 0.05 -2.1
5 LLap 0.33 20.99 0.02 LLap 0.38 10.22 0.04 LLap 0.04 0.0
6 LLap 0.39 20.99 0.02 MidS -0.43 10.23 0.04 LLap 0.03 -1.3
RExt LSup 0.08 20.99 0.00 LSup 0.03 10.23 0.00 LSup 0.00 0.4

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----

Sheet 203 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

1 0.29 8.78 9.55 0.03

2 0.29 8.78 9.55 0.03 0.20 8.78 9.55 0.02
3 0.20 8.78 9.55 0.02 0.28 8.78 9.55 0.03
4 0.28 8.78 9.55 0.03 0.24 8.78 9.55 0.03
5 0.24 8.78 9.55 0.03 0.20 8.78 9.55 0.02
6 0.20 8.78 9.55 0.02

LOAD ID 3 : Dead+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.22 0.00 0.00 88 0.02
1 3.94 -5.25 -6.08 0.02 -6.16 3135 4.82 8.56
2 5.37 4.54 -3.86 -4.69 8.56 5.29 -2.91 4273 3.00 5.82
3 4.71 3.88 -4.52 -5.35 5.82 2.98 -2.99 3744 5.14 8.39
4 5.87 5.04 -4.74 -5.57 8.39 4.79 -5.30 4668 3.64 7.04
5 4.56 3.73 -3.36 -4.19 7.04 4.31 -1.21 3624 3.29 5.78
6 5.16 4.33 -3.59 5.78 2.65 -4.83 4108 0.29
RExt 0.85 0.00 0.29 0.07 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.22 20.99 0.01 RSup 0.02 10.23 0.00 LSup 0.00 1.9
1 RLap -5.25 20.99 0.25 MidS -6.16 10.23 0.60 RLap 0.53 -23.3
2 LLap 4.54 20.99 0.22 LLap 5.29 10.23 0.52 LLap 0.56 -6.9
3 RLap -4.52 20.99 0.22 RLap 5.14 10.23 0.50 RLap 0.54 -7.4
4 LLap 5.04 20.99 0.24 MidS -5.30 10.23 0.52 LLap 0.52 -23.5
5 LLap 3.73 20.99 0.18 LLap 4.31 10.22 0.42 LLap 0.46 0.3
6 LLap 4.33 20.99 0.21 MidS -4.83 10.23 0.47 LLap 0.33 -14.5
RExt LSup 0.85 20.99 0.04 LSup 0.29 10.23 0.03 LSup 0.05 5.0

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 3.24 8.78 9.55 0.37
2 3.24 8.78 9.55 0.37 2.20 8.78 9.55 0.25
3 2.20 8.78 9.55 0.25 3.18 8.78 9.55 0.36
4 3.18 8.78 9.55 0.36 2.67 8.78 9.55 0.30
5 2.67 8.78 9.55 0.30 2.19 8.78 9.55 0.25
6 2.19 8.78 9.55 0.25

LOAD ID 4 : Dead+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.07 0.00 0.00 88 0.01
1 1.20 -1.60 -1.85 0.01 -1.87 3135 1.46 2.60
2 1.63 1.38 -1.17 -1.42 2.60 1.61 -0.88 4273 0.91 1.77
3 1.43 1.18 -1.37 -1.63 1.77 0.91 -0.91 3744 1.56 2.55
4 1.78 1.53 -1.44 -1.69 2.55 1.46 -1.61 4668 1.10 2.14
5 1.38 1.13 -1.02 -1.27 2.14 1.31 -0.37 3624 1.00 1.76
6 1.57 1.32 -1.09 1.76 0.80 -1.47 4108 0.09
RExt 0.26 0.00 0.09 0.02 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.07 20.99 0.00 RSup 0.01 10.23 0.00 LSup 0.00 0.6
1 RLap -1.60 20.99 0.08 MidS -1.87 10.23 0.18 RLap 0.16 -7.1
2 LLap 1.38 20.99 0.07 LLap 1.61 10.23 0.16 LLap 0.17 -2.1

Sheet 204 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

3 RLap -1.37 20.99 0.07 RLap 1.56 10.23 0.15 RLap 0.17 -2.2
4 LLap 1.53 20.99 0.07 MidS -1.61 10.23 0.16 LLap 0.16 -7.1
5 LLap 1.13 20.99 0.05 LLap 1.31 10.22 0.13 LLap 0.14 0.1
6 LLap 1.32 20.99 0.06 MidS -1.47 10.23 0.14 LLap 0.10 -4.4
RExt LSup 0.26 20.99 0.01 LSup 0.09 10.23 0.01 LSup 0.00 1.5

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.99 8.78 9.55 0.11
2 0.99 8.78 9.55 0.11 0.67 8.78 9.55 0.08
3 0.67 8.78 9.55 0.08 0.97 8.78 9.55 0.11
4 0.97 8.78 9.55 0.11 0.81 8.78 9.55 0.09
5 0.81 8.78 9.55 0.09 0.66 8.78 9.55 0.08
6 0.66 8.78 9.55 0.08

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.10 0.00 0.00 88 -0.01
1 -2.33 4.66 5.48 -0.01 4.45 3566 -4.28 -7.62
2 -5.18 -4.36 3.95 4.77 -7.62 -4.48 3.15 4165 -3.11 -5.98
3 -4.69 -3.87 4.43 5.25 -5.98 -3.16 2.88 3777 -5.01 -8.20
4 -5.78 -4.96 4.71 5.54 -8.20 -4.66 5.21 4647 -3.73 -7.11
5 -4.61 -3.79 3.22 4.04 -7.11 -4.34 1.43 3707 -2.75 -5.14
6 -4.69 -3.87 2.18 -5.14 -2.32 3.70 3774 -0.14
RExt -0.41 0.00 -0.14 -0.03 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.10 20.99 0.00 RSup -0.01 10.23 0.00 LSup 0.00 -1.3
1 RLap 4.66 20.99 0.22 MidS 4.45 7.16 0.62 RLap 0.47 16.7
2 LLap -4.36 20.99 0.21 LLap -4.48 10.23 0.44 LLap 0.48 8.6
3 RLap 4.43 20.99 0.21 RLap -5.01 10.23 0.49 RLap 0.53 6.9
4 LLap -4.96 20.99 0.24 MidS 5.21 7.16 0.73 LLap 0.51 23.0
5 LLap -3.79 20.99 0.18 LLap -4.34 10.23 0.42 LLap 0.46 0.6
6 LLap -3.87 20.99 0.18 MidS 3.70 7.16 0.52 LLap 0.29 11.1
RExt LSup -0.41 20.99 0.02 LSup -0.14 10.23 0.01 LSup 0.02 -3.7

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.89 8.78 9.55 0.33
2 2.89 8.78 9.55 0.33 2.27 8.78 9.55 0.26
3 2.27 8.78 9.55 0.26 3.11 8.78 9.55 0.35
4 3.11 8.78 9.55 0.35 2.69 8.78 9.55 0.31
5 2.69 8.78 9.55 0.31 1.95 8.78 9.55 0.22
6 1.95 8.78 9.55 0.22

DEFLECTION:
------------------------------

LOAD ID 6 : Dead
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.2
1 3988 -2.1 66.5 0.03
2 4000 -0.6 66.7 0.01
3 4000 -0.7 66.7 0.01

Sheet 205 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

4 4550 -2.1 75.8 0.03

5 3480 0.0 58.0 0.00
6 3480 -1.3 58.0 0.02
RExt 675 0.4

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.8
1 3988 -21.6 53.2 0.41
2 4000 -6.4 53.3 0.12
3 4000 -6.9 53.3 0.13
4 4550 -21.8 60.7 0.36
5 3480 0.3 46.4 0.01
6 3480 -13.5 46.4 0.29
RExt 675 4.7

LOAD ID 8 : Dead+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 2.0
1 3988 -23.7 66.5 0.36
2 4000 -7.0 66.7 0.11
3 4000 -7.5 66.7 0.11
4 4550 -23.9 75.8 0.32
5 3480 0.3 58.0 0.01
6 3480 -14.8 58.0 0.26
RExt 675 5.1

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.5
1 3988 -6.7 63.3 0.11
2 4000 -2.0 63.5 0.03
3 4000 -2.1 63.5 0.03
4 4550 -6.7 72.2 0.09
5 3480 0.1 55.2 0.00
6 3480 -4.2 55.2 0.08
RExt 675 1.4

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -1.4
1 3988 17.9 63.3 0.28
2 4000 9.0 63.5 0.14
3 4000 7.3 63.5 0.12
4 4550 24.3 72.2 0.34
5 3480 0.6 55.2 0.01
6 3480 11.9 55.2 0.22
RExt 675 -3.9
================================================================================
CI-6563-B01-REV-01- Eave(Extension= 2) 5/21/20 8:06pm
================================================================================
------------------------------
EAVE EXTENSION EAVE STRUT
Wall Id = 4
Extension Id = 2
Bay Start = 1
Bay End = 6
Extension Wid= 1500
------------------------------

LAYOUT:

Sheet 206 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Available
Design Reduction
Bay Length --Lap(mm)-- Load No. No. Factor
Id Part (mm) Left Right Width Strap Row Out In
---- -------- ------ ---- ----- ----- ----- --- ------ ------ ---- ----
LExt 250Z20 175 479 0 1 1.1 1.1 0.00 0.70
1 250Z20 7975 660 479 1 1 53.5 53.5 0.00 0.70
2 250Z20 8000 660 660 479 1 1 57.7 57.7 0.00 0.70
3 250Z20 8000 660 660 479 1 1 57.7 57.7 0.00 0.70
4 250Z20 9100 660 660 479 1 1 64.5 64.5 0.00 0.70
5 250Z20 6960 660 660 479 1 1 51.3 51.3 0.00 0.70
6 250Z20 6960 660 479 1 1 47.2 47.2 0.00 0.70
RExt 250Z20 675 479 0 1 4.2 4.2 0.00 0.70

Purlin DL= 0.144 (kN/m2)

LOAD ID 1 : Dead+Live
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.14 0.00 0.00 88 0.01
1 2.56 -3.41 -3.95 0.01 -4.00 3135 3.13 5.56
2 3.49 2.95 -2.50 -3.04 5.56 3.44 -1.89 4273 1.95 3.78
3 3.06 2.52 -2.94 -3.48 3.78 1.94 -1.94 3744 3.34 5.45
4 3.81 3.27 -3.08 -3.62 5.45 3.11 -3.44 4668 2.36 4.57
5 2.96 2.42 -2.18 -2.72 4.57 2.80 -0.79 3624 2.13 3.75
6 3.35 2.82 -2.33 3.75 1.72 -3.13 4108 0.19
RExt 0.55 0.00 0.19 0.05 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.14 20.99 0.01 RSup 0.01 10.23 0.00 LSup 0.00 1.2
1 RLap -3.41 20.99 0.16 MidS -4.00 10.23 0.39 RLap 0.35 -15.1
2 LLap 2.95 20.99 0.14 LLap 3.44 10.23 0.34 LLap 0.36 -4.5
3 RLap -2.94 20.99 0.14 RLap 3.34 10.23 0.33 RLap 0.35 -4.8
4 LLap 3.27 20.99 0.16 MidS -3.44 10.23 0.34 LLap 0.34 -15.2
5 LLap 2.42 20.99 0.12 LLap 2.80 10.22 0.27 LLap 0.30 0.2
6 LLap 2.82 20.99 0.13 MidS -3.13 10.23 0.31 LLap 0.21 -9.4
RExt LSup 0.55 20.99 0.03 LSup 0.19 10.23 0.02 LSup 0.03 3.3

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.11 8.78 9.55 0.24
2 2.11 8.78 9.55 0.24 1.43 8.78 9.55 0.16
3 1.43 8.78 9.55 0.16 2.07 8.78 9.55 0.24
4 2.07 8.78 9.55 0.24 1.73 8.78 9.55 0.20
5 1.73 8.78 9.55 0.20 1.42 8.78 9.55 0.16
6 1.42 8.78 9.55 0.16

LOAD ID 2 : Dead
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.01 0.00 0.00 88 0.00
1 0.22 -0.30 -0.35 0.00 -0.35 3135 0.27 0.49
2 0.31 0.26 -0.22 -0.27 0.49 0.30 -0.17 4273 0.17 0.33
3 0.27 0.22 -0.26 -0.30 0.33 0.17 -0.17 3744 0.29 0.48
4 0.33 0.29 -0.27 -0.32 0.48 0.27 -0.30 4668 0.21 0.40
5 0.26 0.21 -0.19 -0.24 0.40 0.25 -0.07 3624 0.19 0.33
6 0.29 0.25 -0.20 0.33 0.15 -0.27 4108 0.02

Sheet 207 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

RExt 0.05 0.00 0.02 0.00 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.01 20.99 0.00 RSup 0.00 10.23 0.00 LSup 0.00 0.1
1 RLap -0.30 20.99 0.01 MidS -0.35 10.23 0.03 RLap 0.03 -1.3
2 LLap 0.26 20.99 0.01 LLap 0.30 10.23 0.03 LLap 0.03 -0.4
3 RLap -0.26 20.99 0.01 RLap 0.29 10.23 0.03 RLap 0.03 -0.4
4 LLap 0.29 20.99 0.01 MidS -0.30 10.23 0.03 LLap 0.03 -1.3
5 LLap 0.21 20.99 0.01 LLap 0.25 10.22 0.02 LLap 0.03 0.0
6 LLap 0.25 20.99 0.01 MidS -0.27 10.23 0.03 LLap 0.02 -0.8
RExt LSup 0.05 20.99 0.00 LSup 0.02 10.23 0.00 LSup 0.00 0.3

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.18 8.78 9.55 0.02
2 0.18 8.78 9.55 0.02 0.13 8.78 9.55 0.01
3 0.13 8.78 9.55 0.01 0.18 8.78 9.55 0.02
4 0.18 8.78 9.55 0.02 0.15 8.78 9.55 0.02
5 0.15 8.78 9.55 0.02 0.12 8.78 9.55 0.01
6 0.12 8.78 9.55 0.01

LOAD ID 3 : Dead+0.75Live+0.75Wind_Pressure1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.14 0.00 0.00 88 0.01
1 2.52 -3.35 -3.88 0.01 -3.93 3135 3.08 5.47
2 3.43 2.90 -2.46 -2.99 5.47 3.38 -1.86 4273 1.91 3.71
3 3.00 2.47 -2.89 -3.42 3.71 1.90 -1.91 3744 3.28 5.36
4 3.75 3.22 -3.03 -3.56 5.36 3.06 -3.38 4668 2.32 4.49
5 2.91 2.38 -2.15 -2.68 4.49 2.75 -0.78 3624 2.10 3.69
6 3.30 2.77 -2.29 3.69 1.69 -3.08 4108 0.18
RExt 0.54 0.00 0.18 0.05 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.14 20.99 0.01 RSup 0.01 10.23 0.00 LSup 0.00 1.2
1 RLap -3.35 20.99 0.16 MidS -3.93 10.23 0.38 RLap 0.34 -14.9
2 LLap 2.90 20.99 0.14 LLap 3.38 10.23 0.33 LLap 0.36 -4.4
3 RLap -2.89 20.99 0.14 RLap 3.28 10.23 0.32 RLap 0.35 -4.7
4 LLap 3.22 20.99 0.15 MidS -3.38 10.23 0.33 LLap 0.33 -15.0
5 LLap 2.38 20.99 0.11 LLap 2.75 10.22 0.27 LLap 0.29 0.2
6 LLap 2.77 20.99 0.13 MidS -3.08 10.23 0.30 LLap 0.21 -9.3
RExt LSup 0.54 20.99 0.03 LSup 0.18 10.23 0.02 LSup 0.03 3.2

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 2.07 8.78 9.55 0.24
2 2.07 8.78 9.55 0.24 1.41 8.78 9.55 0.16
3 1.41 8.78 9.55 0.16 2.03 8.78 9.55 0.23
4 2.03 8.78 9.55 0.23 1.70 8.78 9.55 0.19
5 1.70 8.78 9.55 0.19 1.40 8.78 9.55 0.16
6 1.40 8.78 9.55 0.16

LOAD ID 4 : Dead+0.75Wind_Pressure1
----------------------------------------------------------------------

Sheet 208 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 -0.04 0.00 0.00 88 0.00
1 0.76 -1.02 -1.18 0.00 -1.19 3135 0.93 1.66
2 1.04 0.88 -0.75 -0.91 1.66 1.03 -0.56 4273 0.58 1.13
3 0.91 0.75 -0.88 -1.04 1.13 0.58 -0.58 3744 1.00 1.63
4 1.14 0.98 -0.92 -1.08 1.63 0.93 -1.03 4668 0.71 1.36
5 0.88 0.72 -0.65 -0.81 1.36 0.83 -0.24 3624 0.64 1.12
6 1.00 0.84 -0.70 1.12 0.51 -0.94 4108 0.06
RExt 0.16 0.00 0.06 0.01 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup -0.04 20.99 0.00 RSup 0.00 10.23 0.00 LSup 0.00 0.4
1 RLap -1.02 20.99 0.05 MidS -1.19 10.23 0.12 RLap 0.10 -4.5
2 LLap 0.88 20.99 0.04 LLap 1.03 10.23 0.10 LLap 0.11 -1.3
3 RLap -0.88 20.99 0.04 RLap 1.00 10.23 0.10 RLap 0.11 -1.4
4 LLap 0.98 20.99 0.05 MidS -1.03 10.23 0.10 LLap 0.10 -4.6
5 LLap 0.72 20.99 0.03 LLap 0.83 10.22 0.08 LLap 0.09 0.1
6 LLap 0.84 20.99 0.04 MidS -0.94 10.23 0.09 LLap 0.06 -2.8
RExt LSup 0.16 20.99 0.01 LSup 0.06 10.23 0.01 LSup 0.00 1.0

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Id Calc Shear Bear UC Calc Shear Bear UC
---- ----- ----- ----- ---- ----- ----- ----- ----
1 0.63 8.78 9.55 0.07
2 0.63 8.78 9.55 0.07 0.43 8.78 9.55 0.05
3 0.43 8.78 9.55 0.05 0.62 8.78 9.55 0.07
4 0.62 8.78 9.55 0.07 0.52 8.78 9.55 0.06
5 0.52 8.78 9.55 0.06 0.42 8.78 9.55 0.05
6 0.42 8.78 9.55 0.05

LOAD ID 5 : 0.6Dead+Wind_Suction1
----------------------------------------------------------------------

REACTIONS:
---------Shear(kN)-------- --------------Moment(kN-m)--------------
Bay Left Left Right Right Left Left MidSpan Right Right
Id Sup Lap Lap Sup Sup Lap Mom Loc Lap Sup
---- ----- ----- ----- ----- ----- ----- ----- ----- ----- -----
LExt 0.00 0.07 0.00 0.00 88 -0.01
1 -1.49 2.97 3.50 -0.01 2.84 3517 -2.73 -4.87
2 -3.30 -2.78 2.52 3.04 -4.87 -2.86 2.01 4165 -1.98 -3.82
3 -3.00 -2.47 2.83 3.35 -3.82 -2.02 1.84 3777 -3.20 -5.24
4 -3.69 -3.16 3.01 3.53 -5.24 -2.98 3.33 4647 -2.38 -4.54
5 -2.94 -2.42 2.06 2.58 -4.54 -2.77 0.91 3707 -1.75 -3.28
6 -2.99 -2.47 1.39 -3.28 -1.48 2.36 3774 -0.09
RExt -0.26 0.00 -0.09 -0.02 338 0.00

STRENGTH/DEFLECTION:
Bay -------Shear(kN)------ -----Moment(kN-m)----- -Mom+Shr- Deflect(mm)
Id Loc Calc Limit UC Loc Calc Limit UC Loc UC Calc Limit
---- ---- ------ ----- ---- ---- ------ ----- ---- ---- ---- ----- -----
LExt RSup 0.07 20.99 0.00 RSup -0.01 10.23 0.00 LSup 0.00 -0.8
1 RLap 2.97 20.99 0.14 MidS 2.84 7.16 0.40 RLap 0.30 10.6
2 LLap -2.78 20.99 0.13 LLap -2.86 10.23 0.28 LLap 0.31 5.5
3 RLap 2.83 20.99 0.13 RLap -3.20 10.23 0.31 RLap 0.34 4.4
4 LLap -3.16 20.99 0.15 MidS 3.33 7.16 0.46 LLap 0.33 14.7
5 LLap -2.42 20.99 0.12 LLap -2.77 10.23 0.27 LLap 0.29 0.4
6 LLap -2.47 20.99 0.12 MidS 2.36 7.16 0.33 LLap 0.19 7.1
RExt LSup -0.26 20.99 0.01 LSup -0.09 10.23 0.01 LSup 0.00 -2.3

LAP BOLT SHEAR/BEARING:

Bolt = 12.00 (A307 )

Bay -----Left_Lap(kN)----- -----Right_Lap(kN)----

Sheet 209 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Id Calc Shear Bear UC Calc Shear Bear UC

---- ----- ----- ----- ---- ----- ----- ----- ----
1 1.84 8.78 9.55 0.21
2 1.84 8.78 9.55 0.21 1.45 8.78 9.55 0.16
3 1.45 8.78 9.55 0.16 1.98 8.78 9.55 0.23
4 1.98 8.78 9.55 0.23 1.72 8.78 9.55 0.20
5 1.72 8.78 9.55 0.20 1.24 8.78 9.55 0.14
6 1.24 8.78 9.55 0.14

DEFLECTION:
------------------------------

LOAD ID 6 : Dead
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.1
1 3988 -1.3 66.5 0.02
2 4000 -0.4 66.7 0.01
3 4000 -0.4 66.7 0.01
4 4550 -1.3 75.8 0.02
5 3480 0.0 58.0 0.00
6 3480 -0.8 58.0 0.01
RExt 675 0.3

LOAD ID 7 : Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.1
1 3988 -13.8 53.2 0.26
2 4000 -4.1 53.3 0.08
3 4000 -4.4 53.3 0.08
4 4550 -13.9 60.7 0.23
5 3480 0.2 46.4 0.00
6 3480 -8.6 46.4 0.19
RExt 675 3.0

LOAD ID 8 : Dead+Live
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 1.2
1 3988 -15.1 66.5 0.23
2 4000 -4.5 66.7 0.07
3 4000 -4.8 66.7 0.07
4 4550 -15.2 75.8 0.20
5 3480 0.2 58.0 0.00
6 3480 -9.4 58.0 0.16
RExt 675 3.3

LOAD ID 9 : Wind_Pressure1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 0.4
1 3988 -4.3 63.3 0.07
2 4000 -1.3 63.5 0.02
3 4000 -1.4 63.5 0.02
4 4550 -4.3 72.2 0.06
5 3480 0.1 55.2 0.00
6 3480 -2.7 55.2 0.05
RExt 675 0.9

LOAD ID 10 : Wind_Suction1
----------------------------------------------------------------------
Bay Offset Deflect(mm)
Id (mm) Calc Limit Ratio
---- ------ ----- ----- -----
LExt 0 -0.9

Sheet 210 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

1 3988 11.4 63.3 0.18

2 4000 5.7 63.5 0.09
3 4000 4.7 63.5 0.07
4 4550 15.5 72.2 0.21
5 3480 0.4 55.2 0.01
6 3480 7.6 55.2 0.14
RExt 675 -2.5

================================================================================
CI-6563-B01-REV-01- Warning Summary 5/21/20 8:06pm
================================================================================

.. No Warnings

Sheet 211 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

DRAINAGE DESIGN

Sheet 212 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STANDARD TABLES AND DETAILS

STAN DARD ALUZINC COA TED STEEL PANEL M45 -250

Sheet 213 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STANDARD HOT ROLLED SECTIONS PROPERTIES

Sheet 214 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STANDARD Z SECTIONS PROPERTIES

Sheet 215 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STANDARD C SECTIONS PROPERTIES

Sheet 216 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STANDARD ANCHOR BOLT DESIGN

Sheet 217 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STANDARD PRIMARY CONNECTION BOLT DESI GN

Sheet 218 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STANDARD SECONDARY C ONNECTION BOLT DESIG N

Sheet 219 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

S TANDARD CONNECTION BOLT TORQUE VALUES

Sheet 220 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

STANDARD CONNECTION TABLES

Sheet 221 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

Sheet 222 of 223 Version

3.1
 01 22-May-20

CI-6563-B01

DESIGN SKETCHES

Note:
For Design Sketches, Please refer Approval Drawings

Sheet 223 of 223 Version

3.1
