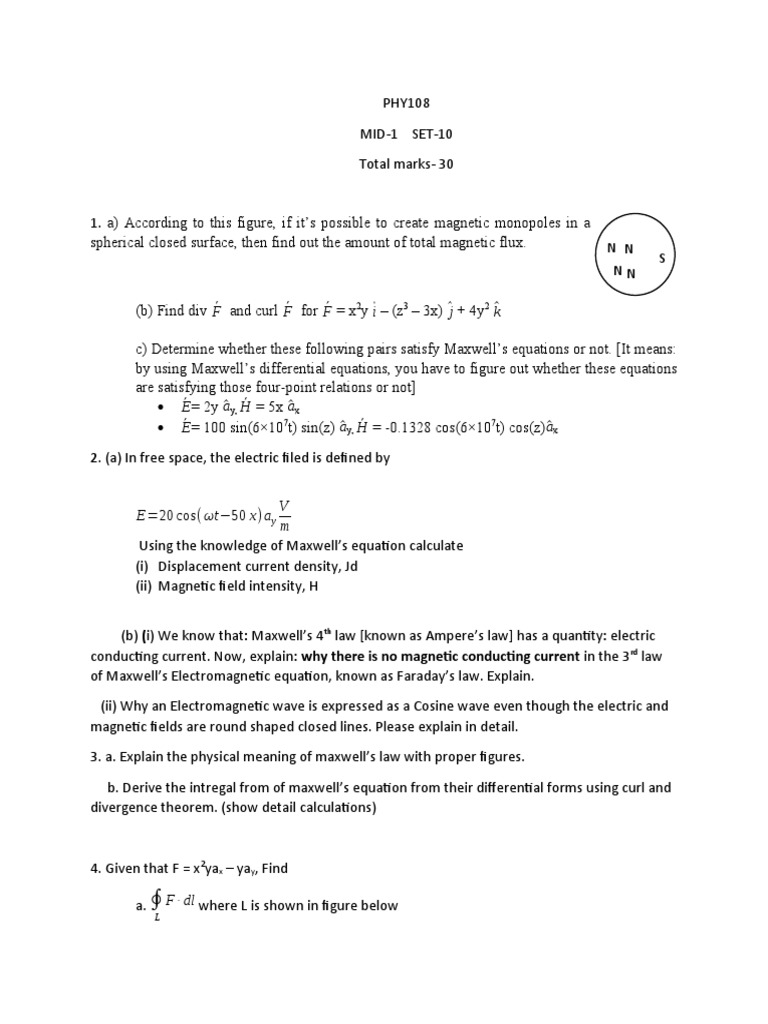

PHY108

MID-1 SET-10
Total marks- 30

1. a) According to this figure, if it’s possible to create magnetic monopoles in a

spherical closed surface, then find out the amount of total magnetic flux. N N
S
NN

(b) Find div F́ and curl F́ for F́ = x2y i^ – (z3 – 3x) ^j + 4y2 k^

c) Determine whether these following pairs satisfy Maxwell’s equations or not. [It means:
by using Maxwell’s differential equations, you have to figure out whether these equations
are satisfying those four-point relations or not]
 É= 2y a^ y, H́ = 5x a^ x
 É= 100 sin(6×107t) sin(z) a^ y, H́ = -0.1328 cos(6×107t) cos(z)a^ x
2. (a) In free space, the electric filed is defined by

V
E=20 cos(ωt−50 x)a y
m
Using the knowledge of Maxwell’s equation calculate
(i) Displacement current density, Jd
(ii) Magnetic field intensity, H

(b) (i) We know that: Maxwell’s 4th law [known as Ampere’s law] has a quantity: electric
conducting current. Now, explain: why there is no magnetic conducting current in the 3rd law
of Maxwell’s Electromagnetic equation, known as Faraday’s law. Explain.
(ii) Why an Electromagnetic wave is expressed as a Cosine wave even though the electric and
magnetic fields are round shaped closed lines. Please explain in detail.
3. a. Explain the physical meaning of maxwell’s law with proper figures.
b. Derive the intregal from of maxwell’s equation from their differential forms using curl and
divergence theorem. (show detail calculations)

4. Given that F = x2yax – yay, Find

a. ∮ F ∙ dl where L is shown in figure below

L
 b. ∮ (∇ × F )∙ dS where S is the area bounded by L
L

Fig: Problem 1

5. a) Given, É = É m sin(x) sin (t) a^ y and H́ = É m/µo cos(x) cos (t) a^ z. Determine whether these
fields satisfy Maxwell’s equations or not.

b) Given that, in free space É = É m sin (wt-βz) a^ y. Find D́ , B́ , H́ and J́ d. Then show that
∇´ .( ∇
´ × H́ )=0.

c) Identify weather these functions satisfy the wave equations or not. Show all the
calculations.
10
a. B= cos (ωt−2 ρ) a∅ (This is Cylindrical co-ordinate [ u can use internet to
ρ
know the calculation process])
b. sinω(100 z +50 t)

6. a) Explain with proper figures (in detail): In the Faraday’s electromagnetic equation (also
known as Maxwell’s 3rd equation), why the sign of the time derivative is negative but the curl
part (of electric field) is positive.
Also explain in detail (with proper figures): if the sign ‘were’ positive, what would
happen!!!!

b) (i) calculate the divergence of this function: 25xyz + 19xy+ 30xz

(ii) calculate the curl of this function: 25xyz + 19xy+ 30xz
(iii) Calculate the gradient of this function: 25xyz + 19xy+ 30xz
